2015 TOYOTA AYGO Owners Manual (in English)

3538-2. Steps to take in an emergency
8
When trouble arises
AYGO_EE_OM99J92E
(Comes on)
High engine coolant temperature warning light (for
HM01 engine)
Indicates that the engine is overheating.
→ P. 398
(Flashes)
“STOP” warning light
Indicates a malfunction in:
• Engine oil pressure is too low; or
• Engine is almost overheating.
→ Immediately stop the vehicle in a safe place and con-
tact any authorized Toyota dealer or repairer, or
another duly qualified and equipped professional.
(Comes on)
Multi-mode manual transmissi on warning light (vehicles
with a multi-mode manual transmission)
Indicates a malfunction in the multi-mode manual trans-
mission system.
→ Have the system checked by any authorized Toyota
dealer or repairer, or another duly qualified and
equipped professional.
Multi-mode manual transmission warning light (warning
buzzer) (vehicles with a multi-mode manual transmis-
sion)
Indicates a malfunction in the multi-mode manual trans-
mission system and that the clutch has become hot due to
excessive load.
→ Pull over and shift the shift lever to N. Wait for about
15 minutes for the clutch to cool down. Have the sys-
tem checked by any authorized Toyota dealer or
repairer, or another duly qualified and equipped pro-
fessional.
(Flashes)
Heat clutch warning light (warning buzzer) (vehicles
with a multi-mode manual transmission)
Indicates that the clutch has become hot, but does not
indicate a malfunction in the multi-mode manual transmis-
sion system.
→ Pull over and shift the shift lever to N. Wait for about
15 minutes for the clutch to cool down.
Warning lightWarning light/Details/Actions

3548-2. Steps to take in an emergency
AYGO_EE_OM99J92E
Malfunction indicator lamp
Indicates a malfunction in:
• The electronic engine control system;
• The electronic throttle control system;
• The emission control system (if equipped); or
• The electronic multi-mode manual transmission control
system (if equipped).
→ Have the vehicle inspected by any authorized Toyota
dealer or repairer, or another duly qualified and
equipped professional immediately.
SRS warning light
Indicates a malfunction in:
• The SRS airbag system; or
• The seat belt pretensioner system.
→ Have the vehicle inspected by any authorized Toyota
dealer or repairer, or another duly qualified and
equipped professional immediately.
ABS warning light
Indicates a malfunction in:
• The ABS; or
• The brake assist system (if equipped)
→ Have the vehicle inspected by any authorized Toyota
dealer or repairer, or another duly qualified and
equipped professional immediately.
Electric power steering system warning light (warning
buzzer)
Indicates a malfunction in the EPS (Electric Power Steer-
ing) system
→ Have the vehicle inspected by any authorized Toyota
dealer or repairer, or another duly qualified and
equipped professional immediately.
(Yellow) (For 1KR engine)
(For HM01 engine)
Speed limiter indicator (if equipped)
Indicates a malfunction in the speed limiter system.
→ Have the vehicle inspected by any authorized Toyota
dealer or repairer, or another duly qualified and
equipped professional immediately.
(Flashes)
Stop & Start cancel indicator (if equipped)
Indicates a malfunction in the Stop & Start system
→ Have the vehicle inspected by any authorized Toyota
dealer or repairer, or another duly qualified and
equipped professional immediately.
Warning lightWarning light/Details/Actions

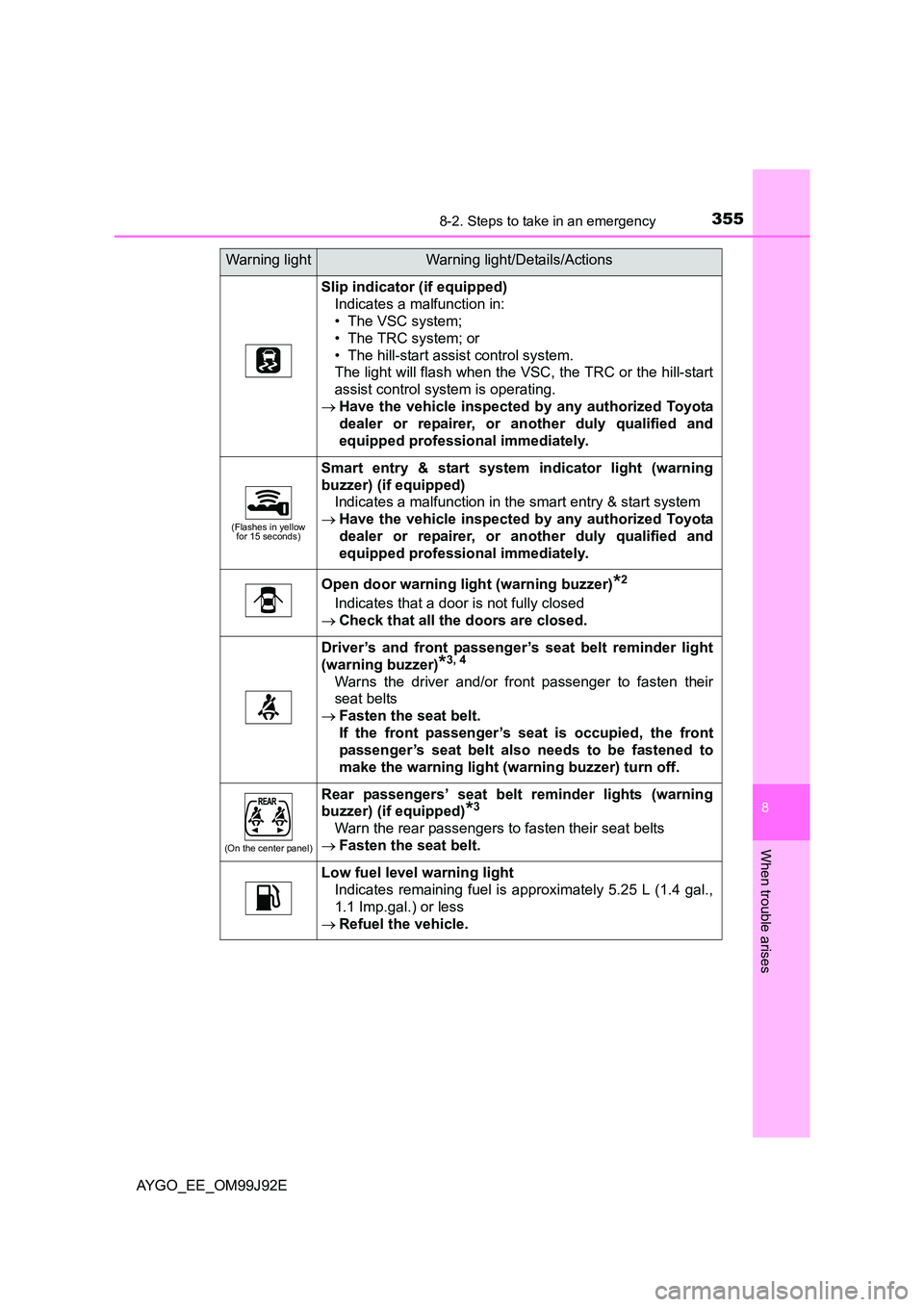

3558-2. Steps to take in an emergency
8
When trouble arises
AYGO_EE_OM99J92E
Slip indicator (if equipped)
Indicates a malfunction in:
• The VSC system;
• The TRC system; or
• The hill-start assist control system.
The light will flash when the VSC, the TRC or the hill-start
assist control system is operating.
→ Have the vehicle inspected by any authorized Toyota
dealer or repairer, or another duly qualified and
equipped professional immediately.
(Flashes in yellow for 15 seconds)
Smart entry & start system indicator light (warning
buzzer) (if equipped)
Indicates a malfunction in the smart entry & start system
→ Have the vehicle inspected by any authorized Toyota
dealer or repairer, or another duly qualified and
equipped professional immediately.
Open door warning light (warning buzzer)*2
Indicates that a door is not fully closed
→ Check that all the doors are closed.
Driver’s and front passenger’s seat belt reminder light
(warning buzzer)*3, 4
Warns the driver and/or front passenger to fasten their
seat belts
→ Fasten the seat belt.
If the front passenger’s seat is occupied, the front
passenger’s seat belt also needs to be fastened to
make the warning light (warning buzzer) turn off.
(On the center panel)
Rear passengers’ seat belt reminder lights (warning
buzzer) (if equipped)*3
Warn the rear passengers to fasten their seat belts
→ Fasten the seat belt.
Low fuel level warning light
Indicates remaining fuel is approximately 5.25 L (1.4 gal.,
1.1 Imp.gal.) or less
→ Refuel the vehicle.
Warning lightWarning light/Details/Actions

3568-2. Steps to take in an emergency
AYGO_EE_OM99J92E
*1: Parking brake engaged warning buzzer:
A buzzer will sound if the vehicle is driven at a speed of approximately
5 km/h (3 mph) or more.
*2: Open door warning buzzer:
A buzzer will sound if the vehicle reaches a speed of 5 km/h (3 mph) or
more with any door open.
*3: Driver’s and passenger’s seat belt buzzer:
The driver’s and passenger’s seat belt buzzer sounds to alert the driver
and passenger that his or her seat belt is not fastened. The buzzer sounds
for 30 seconds after the vehicle reaches a speed of 20 km/h (12 mph).
Then, if the seat belt is still unfastened, the buzzer will sound in a different
tone for 90 more seconds.
*4: Driver’s seat belt reminder light only, on some models
■ To prevent the clutch from overheating (vehicles with a multi-mode man-
ual transmission)
● Do not use the accelerator pedal or starting assist system to hold the vehicle
on a hill.
● On an uphill incline, observe the following whenever possible:
• Maintain a safe distance from the vehicle ahead and avoid unnecessary
starting off and stopping.
• Avoid using E mode on an uphill slope. This will help to avoid unneces-
sary gear changes.
Tire pressure warning light (if equipped)
When the light comes on:
Low tire inflation pressure such as
• Natural causes ( →P. 357)
• Flat tire ( →P. 361, 374)
→ Adjust the tire inflation pressure to the specified level
and carry out initialization.
When the light comes on after blinking for 1 minute:
Malfunction in the tire pressure warning system
→ Have the system checked by any authorized Toyota
dealer or repairer, or another duly qualified and
equipped professional.
Warning lightWarning light/Details/Actions

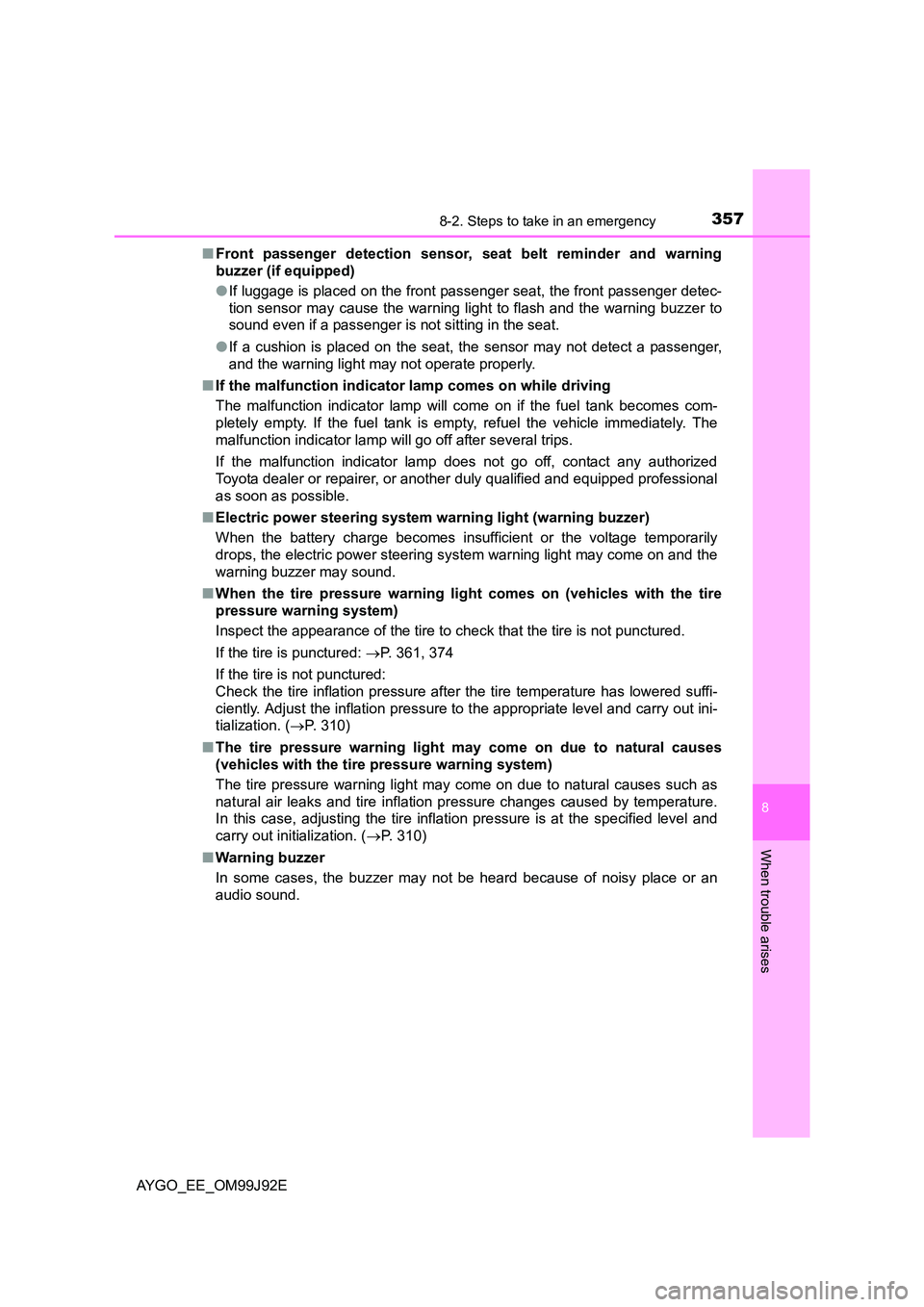

3578-2. Steps to take in an emergency
8
When trouble arises
AYGO_EE_OM99J92E
■ Front passenger detection sensor, seat belt reminder and warning
buzzer (if equipped)
● If luggage is placed on the front passenger seat, the front passenger detec-
tion sensor may cause the warning light to flash and the warning buzzer to
sound even if a passenger is not sitting in the seat.
● If a cushion is placed on the seat, the sensor may not detect a passenger,
and the warning light may not operate properly.
■ If the malfunction indicator lamp comes on while driving
The malfunction indicator lamp will come on if the fuel tank becomes com-
pletely empty. If the fuel tank is empt y, refuel the vehicle immediately. The
malfunction indicator lamp will go off after several trips.
If the malfunction indicator lamp does not go off, contact any authorized
Toyota dealer or repairer, or another duly qualified and equipped professional
as soon as possible.
■ Electric power steering system warning light (warning buzzer)
When the battery charge becomes insufficient or the voltage temporarily
drops, the electric power steering system warning light may come on and the
warning buzzer may sound.
■ When the tire pressure warning light comes on (vehicles with the tire
pressure warning system)
Inspect the appearance of the tire to check that the tire is not punctured.
If the tire is punctured: →P. 361, 374
If the tire is not punctured:
Check the tire inflation pressure after the tire temperature has lowered suffi-
ciently. Adjust the inflation pressure to the appropriate level and carry out ini-
tialization. ( →P. 310)
■ The tire pressure warning light may come on due to natural causes
(vehicles with the tire pressure warning system)
The tire pressure warning light may come on due to natural causes such as
natural air leaks and tire inflation pressure changes caused by temperature.
In this case, adjusting the tire inflation pressure is at the specified level and
carry out initialization. ( →P. 310)
■ Warning buzzer
In some cases, the buzzer may not be heard because of noisy place or an
audio sound.

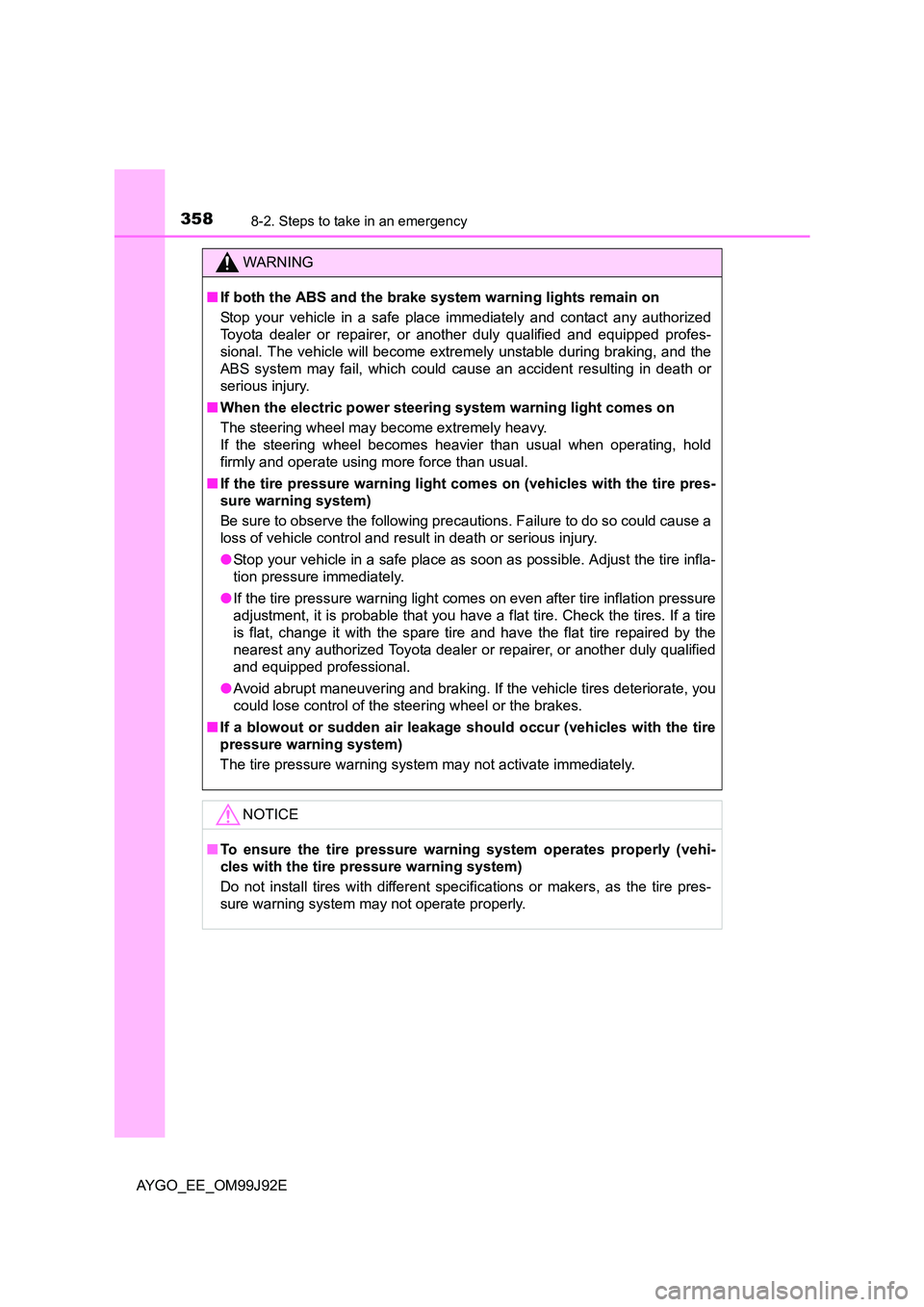

3588-2. Steps to take in an emergency
AYGO_EE_OM99J92E
WARNING
■ If both the ABS and the brake system warning lights remain on
Stop your vehicle in a safe place immediately and contact any authorized
Toyota dealer or repairer, or another duly qualified and equipped profes-
sional. The vehicle will become extremely unstable during braking, and the
ABS system may fail, which could cause an accident resulting in death or
serious injury.
■ When the electric power steering system warning light comes on
The steering wheel may become extremely heavy.
If the steering wheel becomes heavier than usual when operating, hold
firmly and operate using more force than usual.
■ If the tire pressure warning light comes on (vehicles with the tire pres-
sure warning system)
Be sure to observe the following precautions. Failure to do so could cause a
loss of vehicle control and result in death or serious injury.
● Stop your vehicle in a safe place as soon as possible. Adjust the tire infla-
tion pressure immediately.
● If the tire pressure warning light comes on even after tire inflation pressure
adjustment, it is probable that you have a flat tire. Check the tires. If a tire
is flat, change it with the spare tire and have the flat tire repaired by the
nearest any authorized Toyota dealer or repairer, or another duly qualified
and equipped professional.
● Avoid abrupt maneuvering and braking. If the vehicle tires deteriorate, you
could lose control of the steering wheel or the brakes.
■ If a blowout or sudden air leakage should occur (vehicles with the tire
pressure warning system)
The tire pressure warning system may not activate immediately.
NOTICE
■ To ensure the tire pressure warning system operates properly (vehi-
cles with the tire pressure warning system)
Do not install tires with different specifications or makers, as the tire pres-
sure warning system may not operate properly.

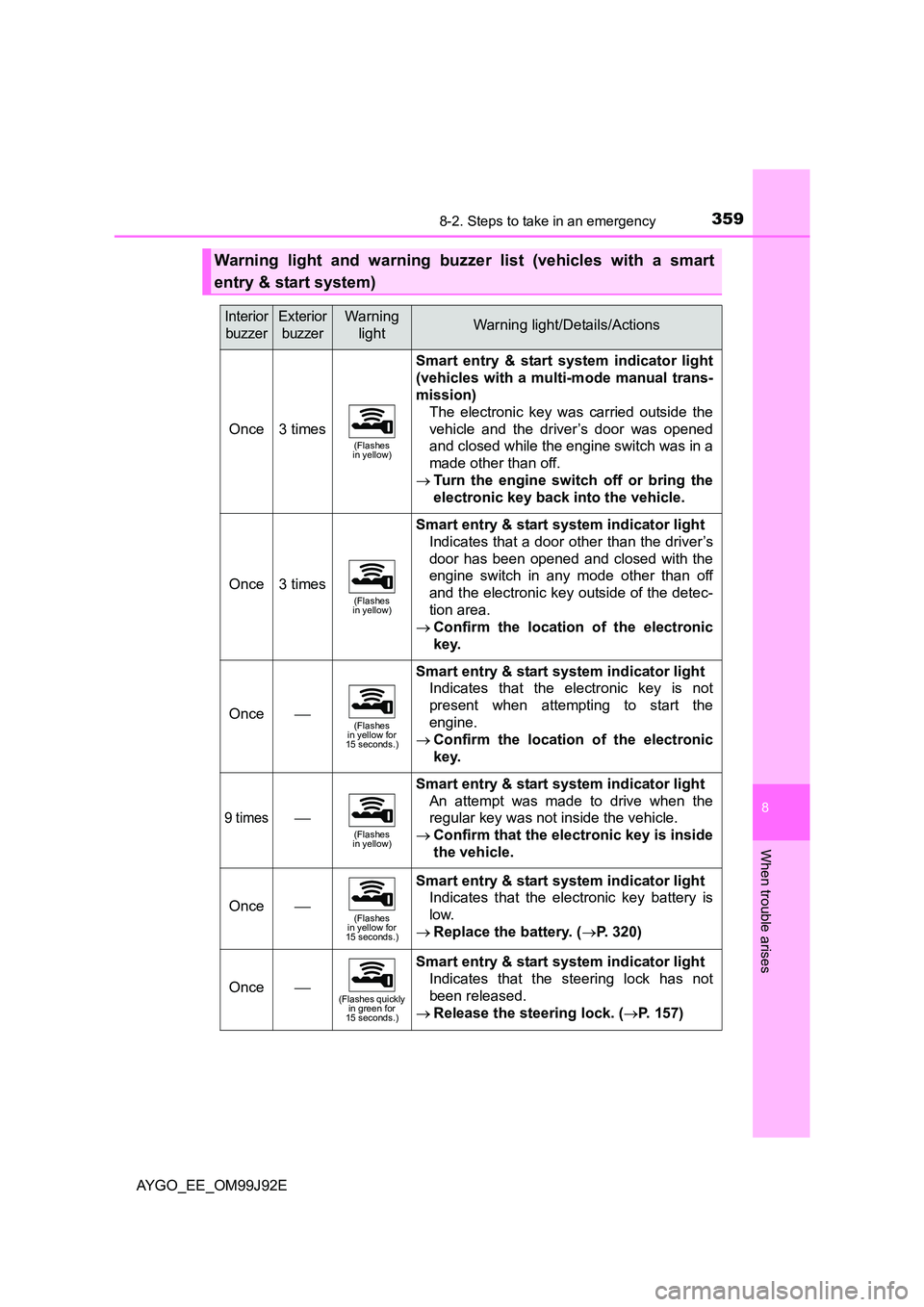

3598-2. Steps to take in an emergency
8
When trouble arises
AYGO_EE_OM99J92E
Warning light and warning buzzer list (vehicles with a smart
entry & start system)
Interior
buzzer
Exterior
buzzer
Warning
lightWarning light/Details/Actions
Once3 times(Flashes in yellow)
Smart entry & start system indicator light
(vehicles with a multi-mode manual trans-
mission)
The electronic key was carried outside the
vehicle and the driver’s door was opened
and closed while the engine switch was in a
made other than off.
→ Turn the engine switch off or bring the
electronic key back into the vehicle.
Once3 times(Flashes in yellow)
Smart entry & start system indicator light
Indicates that a door other than the driver’s
door has been opened and closed with the
engine switch in any mode other than off
and the electronic key outside of the detec-
tion area.
→ Confirm the location of the electronic
key.
Once(Flashes in yellow for 15 seconds.)
Smart entry & start system indicator light
Indicates that the electronic key is not
present when attempting to start the
engine.
→ Confirm the location of the electronic
key.
9 times(Flashes in yellow)
Smart entry & start system indicator light
An attempt was made to drive when the
regular key was not inside the vehicle.
→ Confirm that the electronic key is inside
the vehicle.
Once(Flashes in yellow for 15 seconds.)
Smart entry & start system indicator light
Indicates that the electronic key battery is
low.
→ Replace the battery. (→P. 320)
Once(Flashes quickly in green for 15 seconds.)
Smart entry & start system indicator light
Indicates that the steering lock has not
been released.
→ Release the steering lock. (→P. 157)

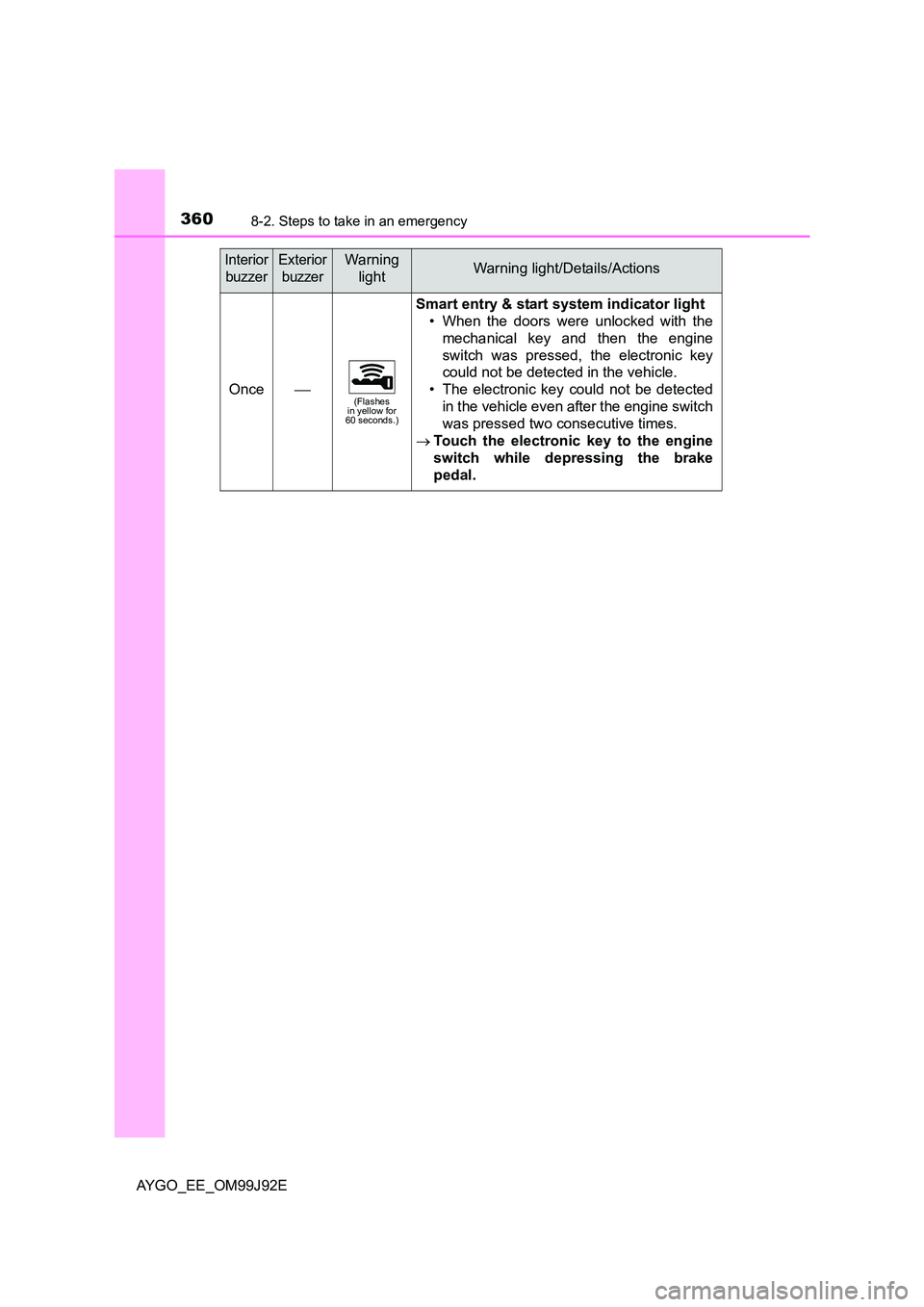

3608-2. Steps to take in an emergency
AYGO_EE_OM99J92E
Once(Flashes in yellow for 60 seconds.)
Smart entry & start system indicator light
• When the doors were unlocked with the
mechanical key and then the engine
switch was pressed, the electronic key
could not be detected in the vehicle.
• The electronic key could not be detected
in the vehicle even after the engine switch
was pressed two consecutive times.
→ Touch the electronic key to the engine
switch while depressing the brake
pedal.
Interior
buzzer
Exterior
buzzer
Warning
lightWarning light/Details/Actions
