2015 TOYOTA AYGO Owners Manual (in English)

3297-3. Do-it-yourself maintenance
7
Maintenance and care
AYGO_EE_OM99J92E
*1: 1KR engine
*2: HM01 engine
*3: Left-hand drive vehicles
*4: Right-hand drive vehicles
■After a fuse is replaced
● If the lights do not turn on even after the fuse has been replaced, a bulb may
need replacement. ( →P. 330)
● If the replaced fuse blows again, have the vehicle inspected by any autho-
rized Toyota dealer or repairer, or another duly qualified and equipped pro-
fessional.
■ If there is an overload in a circuit
The fuses are designed to blow, protecting the wiring harness from damage.
26DOOR F/R*3
25Power windowsDOOR F/L*4
27A/C10Air conditioning system
28FOG RR5Rear fog light
WARNING
■ To prevent system breakdowns and vehicle fire
Observe the following precautions.
Failure to do so may cause damage to the vehicle, and possibly a fire or
injury.
● Never use a fuse of a higher amperage rating than that indicated, or use
any other object in place of a fuse.
● Always use a genuine Toyota fuse or equivalent.
Never replace a fuse with a wire, even as a temporary fix.
● Do not modify the fuses or fuse boxes.
NOTICE
■ Before replacing fuses
Have the cause of electrical overload determined and repaired by any
authorized Toyota dealer or repairer, or another duly qualified and equipped
professional as soon as possible.
FuseAmpereCircuit

3307-3. Do-it-yourself maintenance
AYGO_EE_OM99J92E

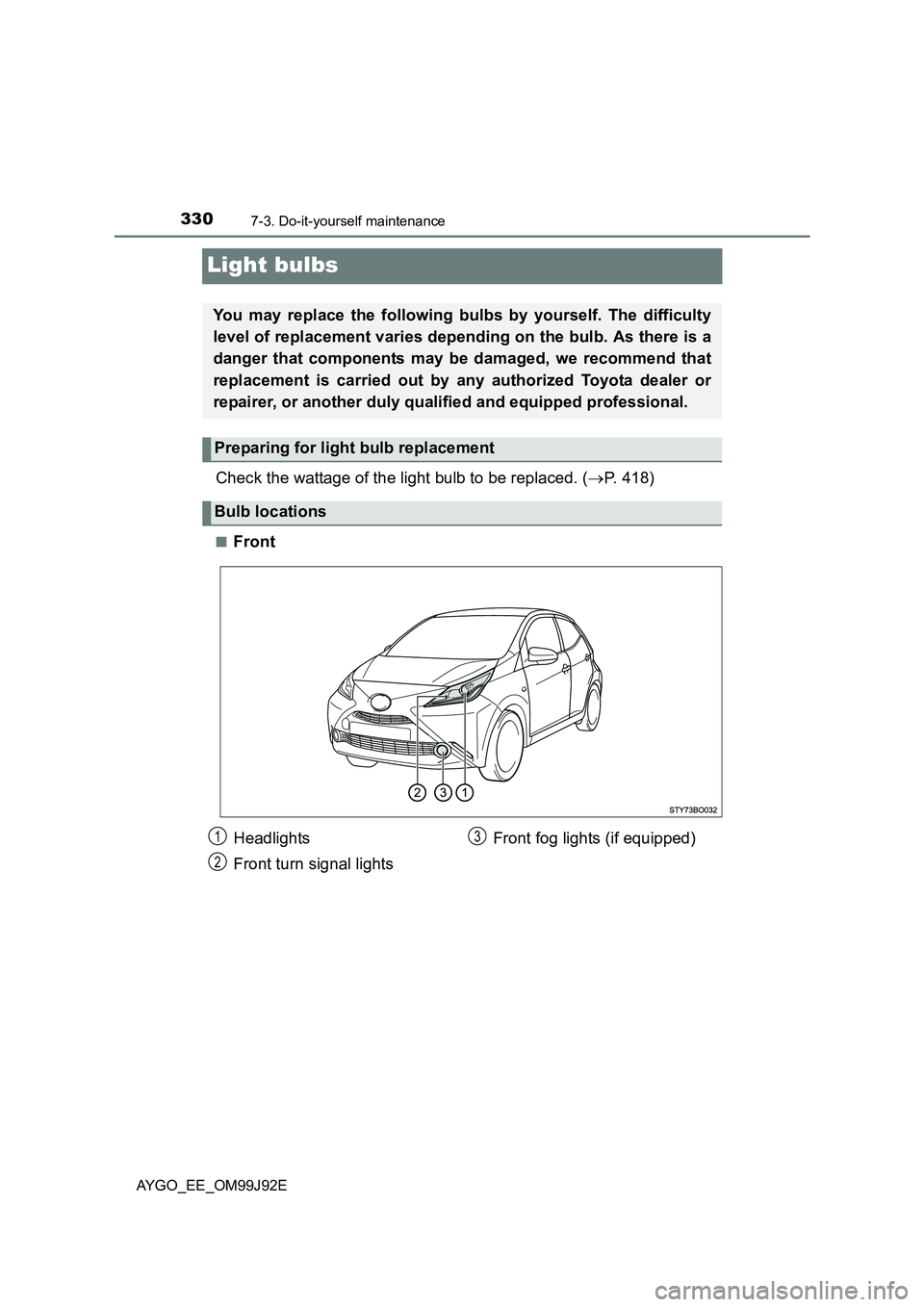

Light bulbs
Check the wattage of the light bulb to be replaced. (→P. 418)
■Front
You may replace the following bulbs by yourself. The difficulty
level of replacement varies depending on the bulb. As there is a
danger that components may be damaged, we recommend that
replacement is carried out by any authorized Toyota dealer or
repairer, or another duly qualified and equipped professional.
Preparing for light bulb replacement
Bulb locations
Headlights
Front turn signal lights
Front fog lights (if equipped)1
2
3

3317-3. Do-it-yourself maintenance
7
Maintenance and care
AYGO_EE_OM99J92E

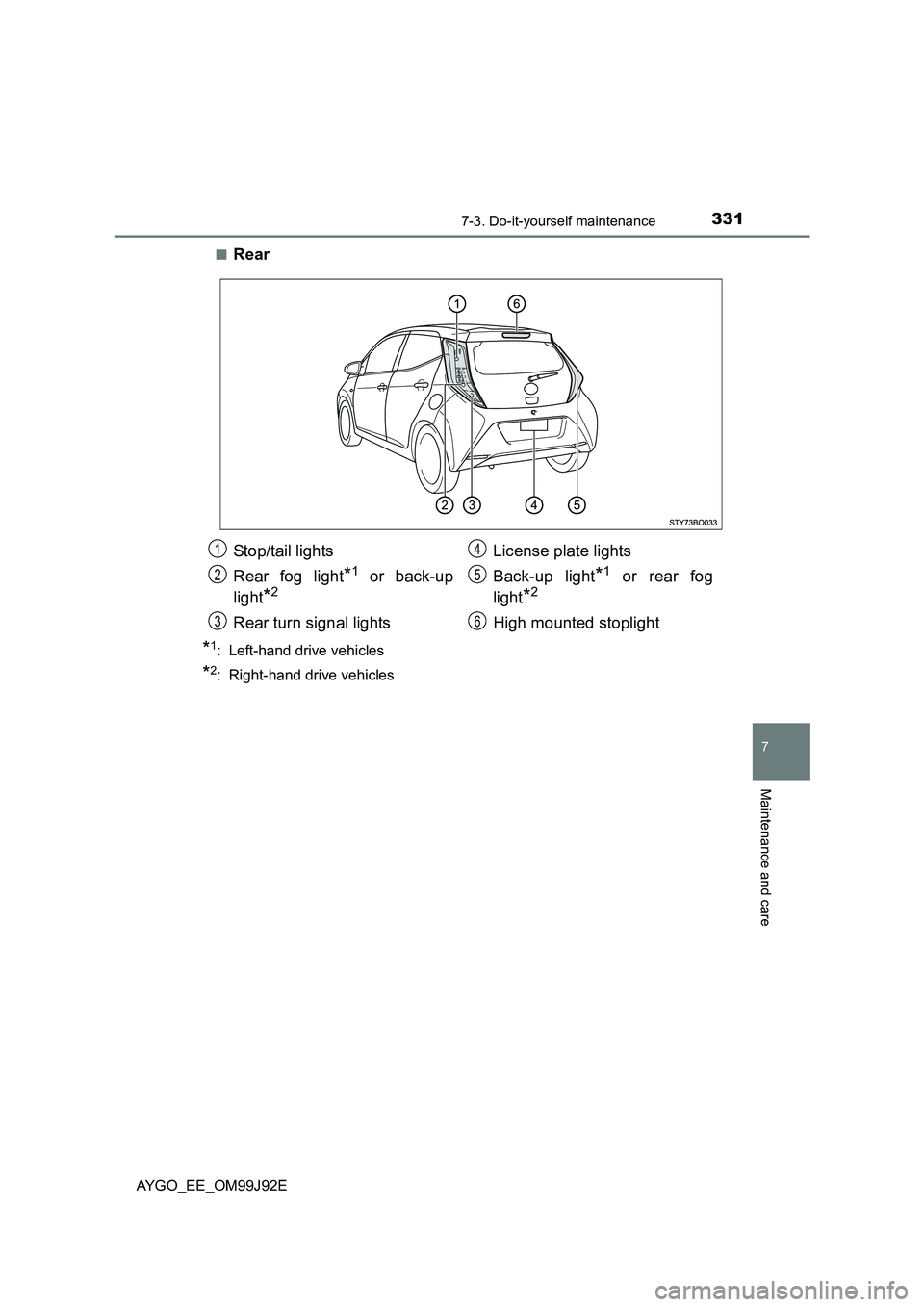

■Rear
*1: Left-hand drive vehicles
*2: Right-hand drive vehicles
Stop/tail lights
Rear fog light*1 or back-up
light*2
Rear turn signal lights
License plate lights
Back-up light*1 or rear fog
light*2
High mounted stoplight
1
2
3
4
5
6

3327-3. Do-it-yourself maintenance
AYGO_EE_OM99J92E

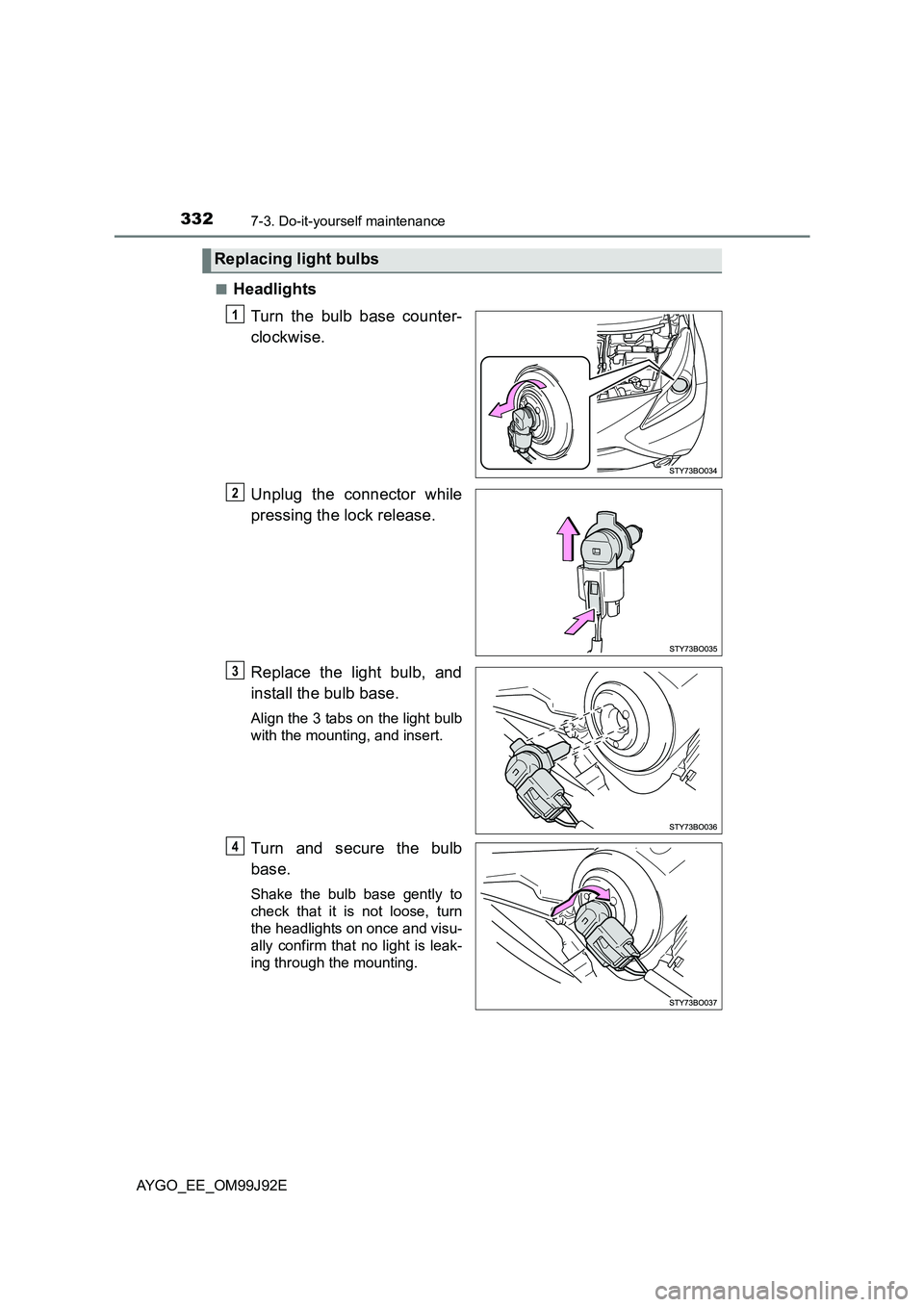

■Headlights
Turn the bulb base counter-
clockwise.
Unplug the connector while
pressing the lock release.
Replace the light bulb, and
install the bulb base.
Align the 3 tabs on the light bulb
with the mounting, and insert.
Turn and secure the bulb
base.
Shake the bulb base gently to
check that it is not loose, turn
the headlights on once and visu-
ally confirm that no light is leak-
ing through the mounting.
Replacing light bulbs
1
2
3
4

3337-3. Do-it-yourself maintenance
7
Maintenance and care
AYGO_EE_OM99J92E

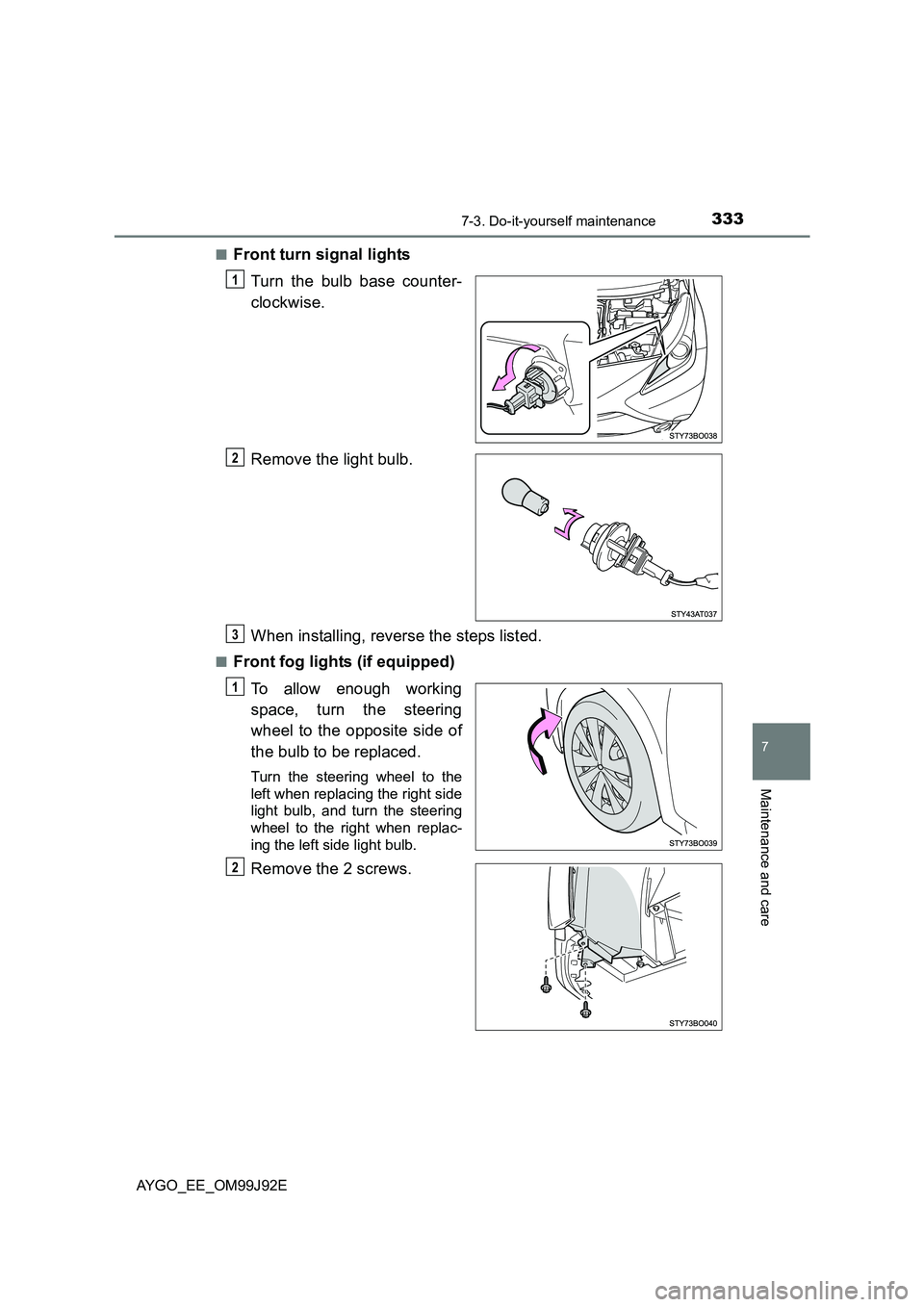

■Front turn signal lights
Turn the bulb base counter-
clockwise.
Remove the light bulb.
When installing, reverse the steps listed.
■Front fog lights (if equipped)
To allow enough working
space, turn the steering
wheel to the opposite side of
the bulb to be replaced.
Turn the steering wheel to the
left when replacing the right side
light bulb, and turn the steering
wheel to the right when replac-
ing the left side light bulb.
Remove the 2 screws.
1
2
3
1
2

3347-3. Do-it-yourself maintenance
AYGO_EE_OM99J92E
Remove the fender liner clip
and open the fender liner.
Unplug the connector while
pressing the lock release.
Turn the bulb base counter-
clockwise.
Set the new light bulb.
Align the 3 tabs on the light bulb
with the mounting, and insert.
Turn it clockwise to set.
3
4
5
6

3357-3. Do-it-yourself maintenance
7
Maintenance and care
AYGO_EE_OM99J92E
Set the connector.
After installing the connector,
shake the bulb base gently to
check that it is not loose, turn
the fog lights on once and visu-
ally confirm that no light is leak-
ing through the mounting.
Reinstall the fender liner and
install the clip.
Insert the clip and turn to lock.
Reinstall the 2 screws.
7
8
9

3367-3. Do-it-yourself maintenance
AYGO_EE_OM99J92E

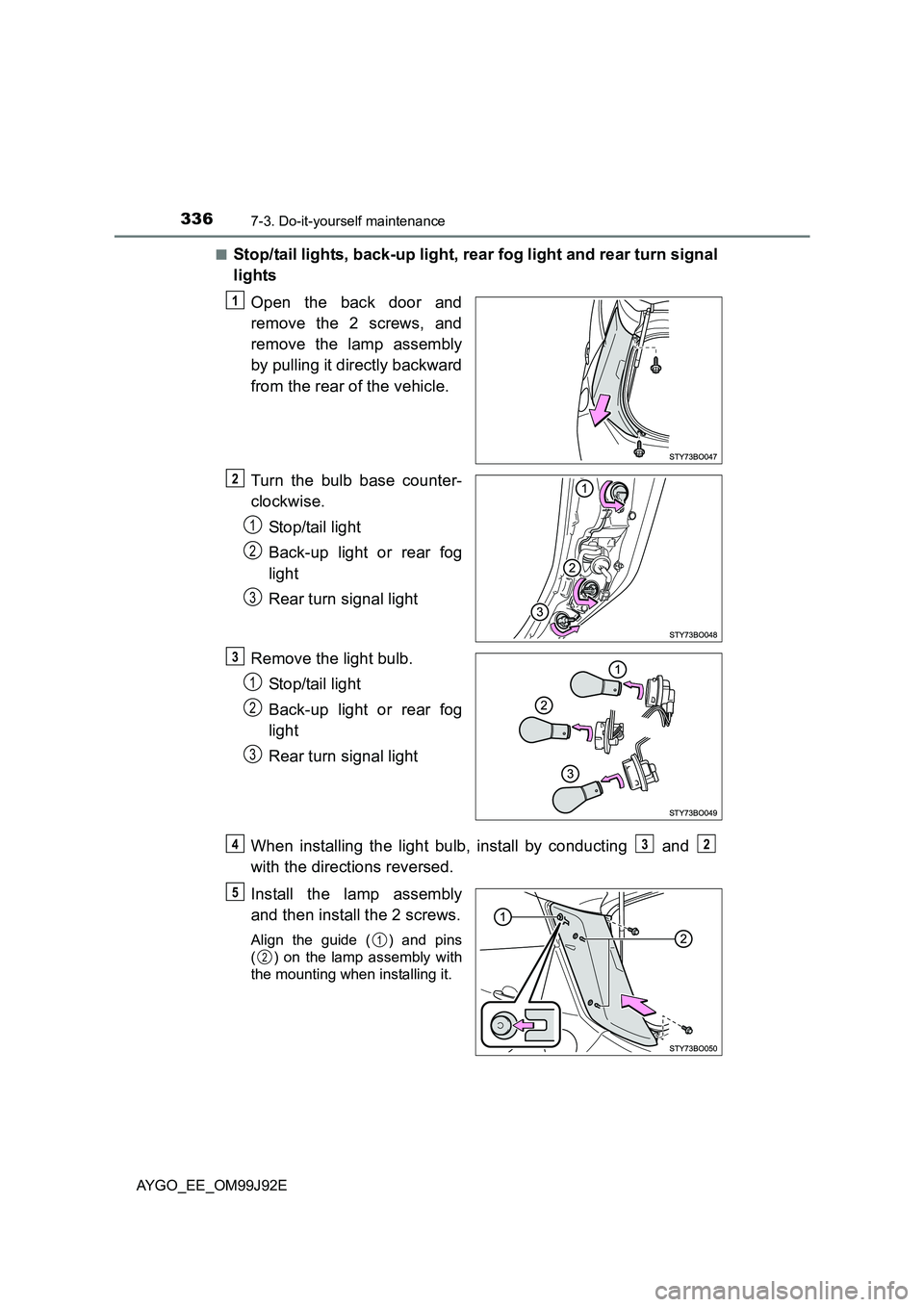

■Stop/tail lights, back-up light, rear fog light and rear turn signal
lights
Open the back door and
remove the 2 screws, and
remove the lamp assembly
by pulling it directly backward
from the rear of the vehicle.
Turn the bulb base counter-
clockwise.
Stop/tail light
Back-up light or rear fog
light
Rear turn signal light
Remove the light bulb.
Stop/tail light
Back-up light or rear fog
light
Rear turn signal light
When installing the light bulb, install by conducting and
with the directions reversed.
Install the lamp assembly
and then install the 2 screws.
Align the guide ( ) and pins
( ) on the lamp assembly with
the mounting when installing it.
1
2
1
2
3
3
1
2
3
432
5
1
2
