2015 TOYOTA AYGO Owners Manual (in English)

2015-1. Basic Operations
5
Audio system
AYGO_EE_OM99J92E
●Type B (AM/FM radio with Bluetooth®)
■Using cellular phones
Interference may be heard through the audio system’s speakers if a cellular
phone is being used inside or close to the vehicle while the audio system is
operating.
NOTICE
■ To prevent battery discharge
Do not leave the audio system on longer than necessary with the engine
stopped.
■ To avoid damaging the audio system
Take care not to spill drinks or other fluids over the audio system.

2025-1. Basic Operations
AYGO_EE_OM99J92E
Steering wheel audio switches∗
Vo lu m e swi tc h
• Increases/decreases volume
• Press and hold: Continuously
increases/decreases volume
Radio mode:
• Press: Select a radio station
• Press and hold: Seek up/
down
Bluetooth®, iPod or USB mode:
• Press: Select a track/file/song
• Press and hold: Select a folder or album (Bluetooth® or USB)
“MODE” switch
• Turns the power on, selects audio source
• Press and hold this switch to mute or pause the current opera-
tion. To cancel the mute or pause, press and hold the switch
again.
∗: If equipped
Some audio features can be controlled using the switches on
the steering wheel.
Operation may differ depending on the type of audio system or
navigation system. For details, refer to the manual provided with
the audio system or navigation system.
Operating the audio system using the steering wheel switches
1
2
WARNING
■ To reduce the risk of an accident
Exercise care when operating the audio switches on the steering wheel.
3

203
5
5-1. Basic Operations
Audio system
AYGO_EE_OM99J92E

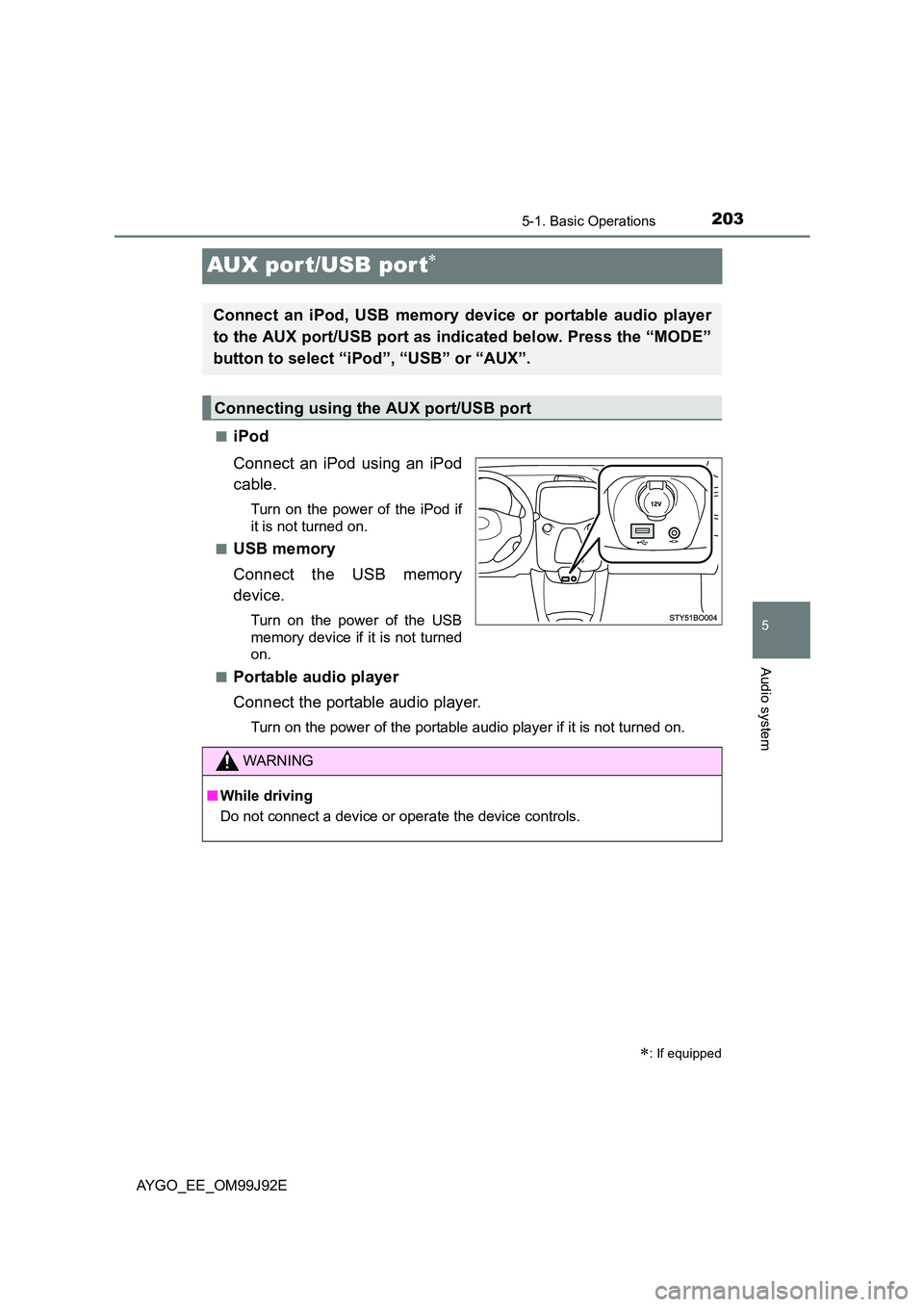

AUX port/USB por t∗
■iPod
Connect an iPod using an iPod
cable.
Turn on the power of the iPod if
it is not turned on.
■USB memory
Connect the USB memory
device.
Turn on the power of the USB
memory device if it is not turned
on.
■Portable audio player
Connect the portable audio player.
Turn on the power of the portable audio player if it is not turned on.
∗: If equipped
Connect an iPod, USB memory device or portable audio player
to the AUX port/USB port as indicated below. Press the “MODE”
button to select “iPod”, “USB” or “AUX”.
Connecting using the AUX port/USB port
WARNING
■ While driving
Do not connect a device or operate the device controls.

2045-2. Using the audio system
AYGO_EE_OM99J92E
Optimal use of the audio system∗
Displays the “SETUP” menu/
Selecting the mode
Changes the following settings
• Sound quality and volume bal-
ance
→ P. 2 0 5
The sound quality and balance
setting can be changed to pro-
duce the best sound.
• Automatic Sound Levelizer
→ P. 2 0 5
• AUX setting
→ P. 2 0 5
■Changing sound quality modes
Press the “MENU” knob.
Turn the knob to select “Sound settings”.
Press the knob.
Turn the knob as corresponds to the desired mode.
“Bass”, “Treble”, “Balance”, or “ASL” can be selected.
Press the knob.
∗: If equipped
The sound quality, volume balance, ASL and AUX settings can
be adjusted.
1
2
Using the audio control function
1
2
3
4
5

2055-2. Using the audio system
5
Audio system
AYGO_EE_OM99J92E
■Adjusting sound quality
Turning the “MENU” knob adjusts the level.
*: The sound quality level is adjusted individually in each audio mode.
Press the knob or (Back) to return to the sound setting
menu.
■Adjusting the Automatic Sound Levelizer (ASL)
When ASL is selected, turn the “MENU” knob to change the
amount of ASL.
“LOW”, “MID”, “HIGH”, or “OFF” can be selected.
ASL automatically adjusts the volume and tone quality according to
vehicle speed.
Press the knob or (Back) to return to the sound setting
menu.
■Changing the AUX settings
Press the “MENU” knob.
Turn the knob to select “AUX Changes”.
Press the knob to select “On” or “Off”.
On mode: AUX can be use
Off mode: AUX cannot be use
Press (Back) to return to the setup menu.
Sound
quality mode
Mode
displayedLevelTurn to the
left
Turn to the
right
Bass*“Bass”-5 to 5LowHighTreble*“Treble”-5 to 5
Left/right
volume
balance
“Balance”L7 to R7Shifts to leftShifts to right
1
2
3

2065-3. Using the radio
AYGO_EE_OM99J92E
Radio operation∗
XTy pe A
∗: If equipped
Press the “MODE” button until “AM”, “FM” or “DAB” (if
equipped) is displayed.
Power
Vo lu m e
Changing the audio source
Station selectors
Adjusting the frequency or
selecting items
Seeking the frequency
1
2
3
4
5
6

2075-3. Using the radio
5
Audio system
AYGO_EE_OM99J92E

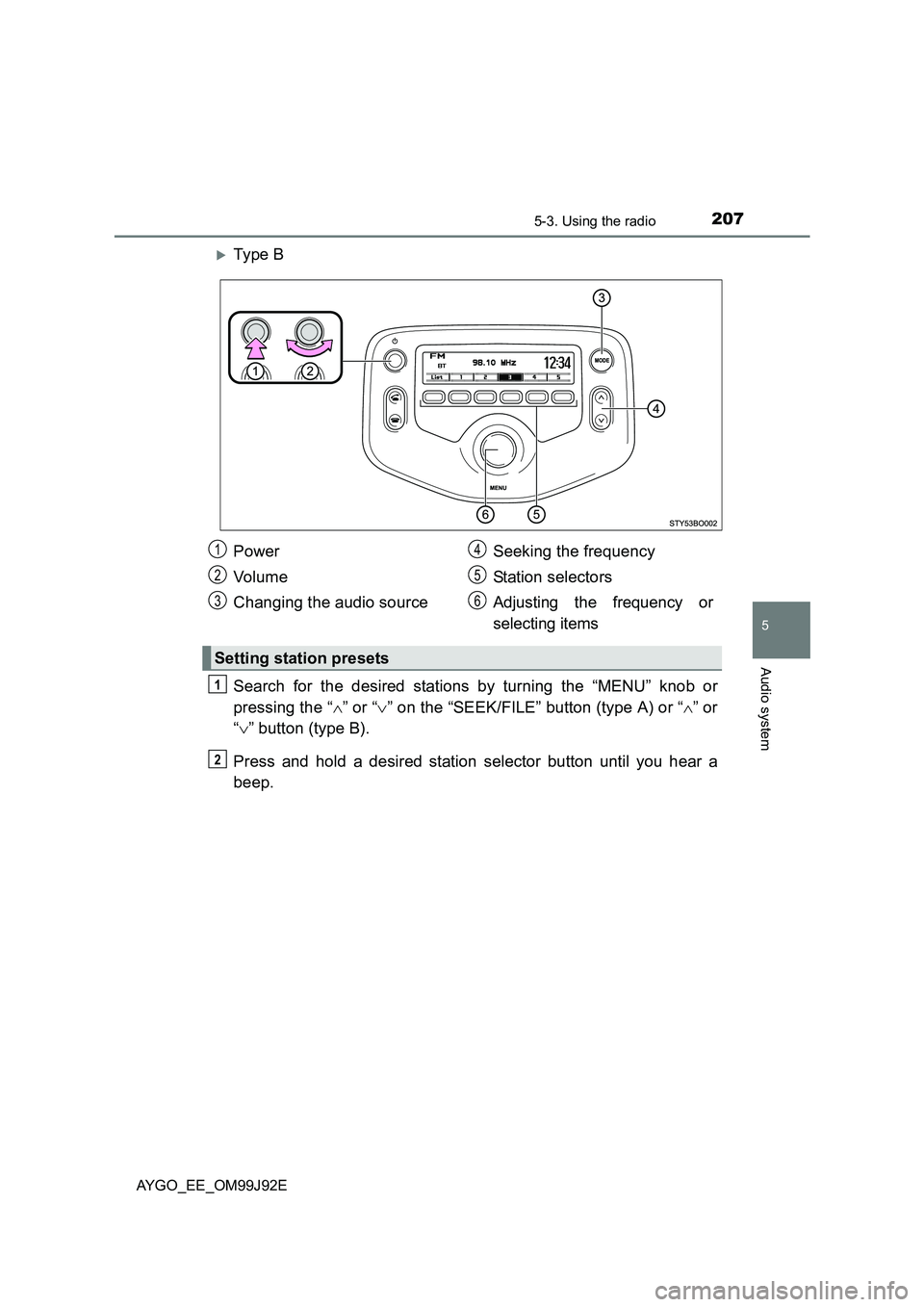

XTy pe B
Search for the desired stations by turning the “MENU” knob or
pressing the “ ∧” or “∨” on the “SEEK/FILE” button (type A) or “∧” or
“ ∨” button (type B).
Press and hold a desired station selector button until you hear a
beep.
Power
Vo lu m e
Changing the audio source
Seeking the frequency
Station selectors
Adjusting the frequency or
selecting items
Setting station presets
1
2
3
4
5
6
1
2

2085-3. Using the radio
AYGO_EE_OM99J92E
■Updating the station list
Press (List).
The station list will be displayed.
Press (Update) to update the list.
“Updating” is displayed while the searching is in process, and then avail-
able stations will be listed on the display.
To cancel the updating process, press (Back).
■Selecting a station from the station list
Press (List).
The station list will be displayed.
Turn the “MENU” knob to select a station.
Press the knob to tune in the station.
To return to the previous display, press (Back).
This feature allows your radio to receive station.
■Listening to stations of the same network
Press the “MENU” knob.
Turn the knob to “Radio” and press the knob.
Turn the knob as corresponds to the desired mode: “FM AF”,
“Region code” or “DAB AF” (if equipped).
Press the knob to select “On” or “Off”.
FM AF On/DAB AF On (if equipped) mode:
The station among those of the same network with strong recep-
tion is selected.
Region code On mode:
The station among those of the same network with strong recep-
tion and broadcasting the same program is selected.
Using the station list (FM mode only)
RDS (Radio Data System)
1
2
1
2
3
1
2
3
4
