1694-3. Operating the lights and wipers
4
Driving
AYGO_EE_OM99J92E

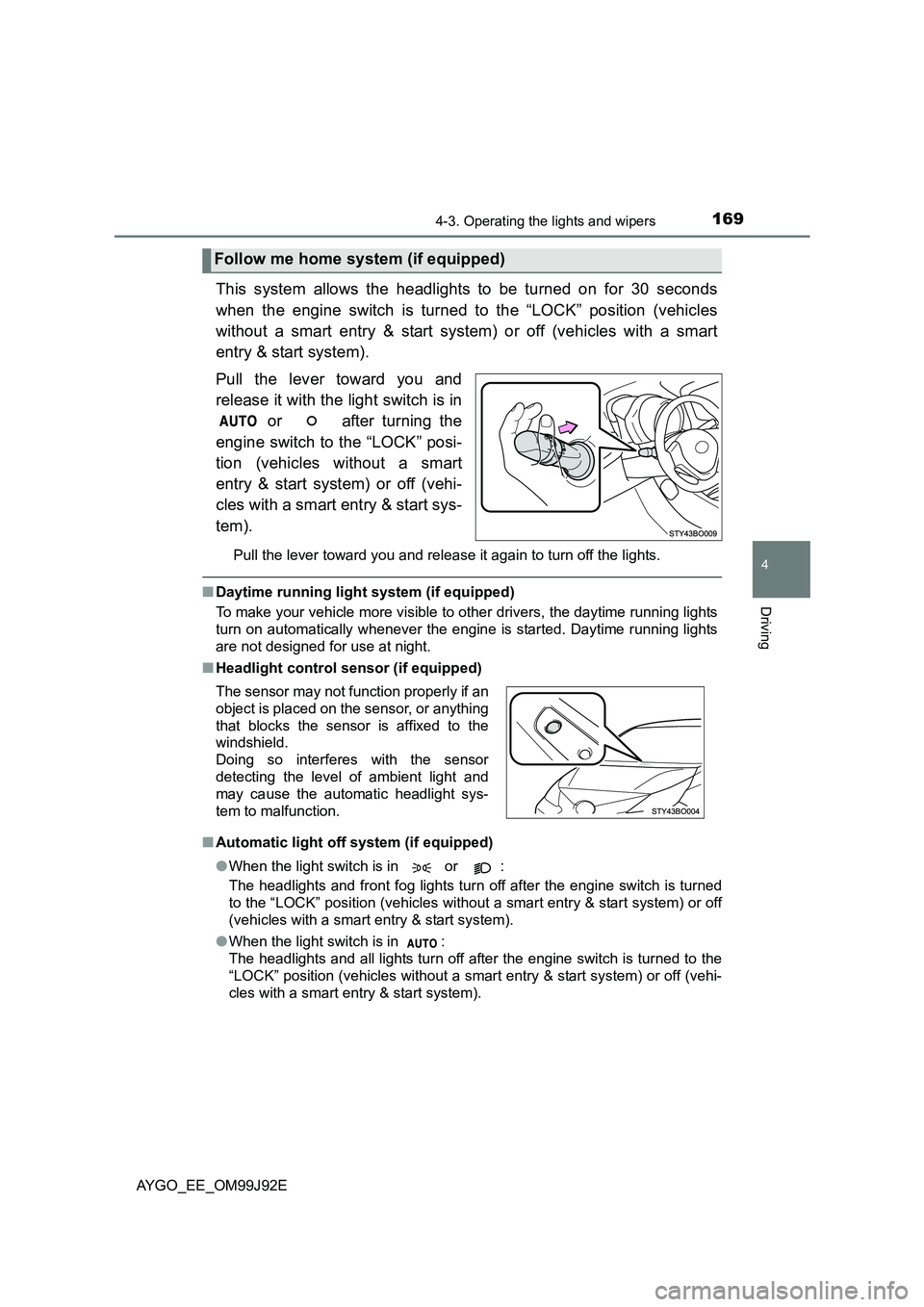

This system allows the headlights to be turned on for 30 seconds
when the engine switch is turned to the “LOCK” position (vehicles
without a smart entry & start system) or off (vehicles with a smart
entry & start system).
Pull the lever toward you and
release it with the light switch is in
or after turning the
engine switch to the “LOCK” posi-
tion (vehicles without a smart
entry & start system) or off (vehi-
cles with a smart entry & start sys-
tem).
Pull the lever toward you and release it again to turn off the lights.
■ Daytime running light system (if equipped)
To make your vehicle more visible to other drivers, the daytime running lights
turn on automatically whenever the engine is started. Daytime running lights
are not designed for use at night.
■ Headlight control sensor (if equipped)
■ Automatic light off system (if equipped)
● When the light switch is in or :
The headlights and front fog lights turn off after the engine switch is turned
to the “LOCK” position (vehicles without a smart entry & start system) or off
(vehicles with a smart entry & start system).
● When the light switch is in :
The headlights and all lights turn off after the engine switch is turned to the
“LOCK” position (vehicles without a smart entry & start system) or off (vehi-
cles with a smart entry & start system).
Follow me home system (if equipped)
The sensor may not function properly if an
object is placed on the sensor, or anything
that blocks the sensor is affixed to the
windshield.
Doing so interferes with the sensor
detecting the level of ambient light and
may cause the automatic headlight sys-
tem to malfunction.

1704-3. Operating the lights and wipers
AYGO_EE_OM99J92E

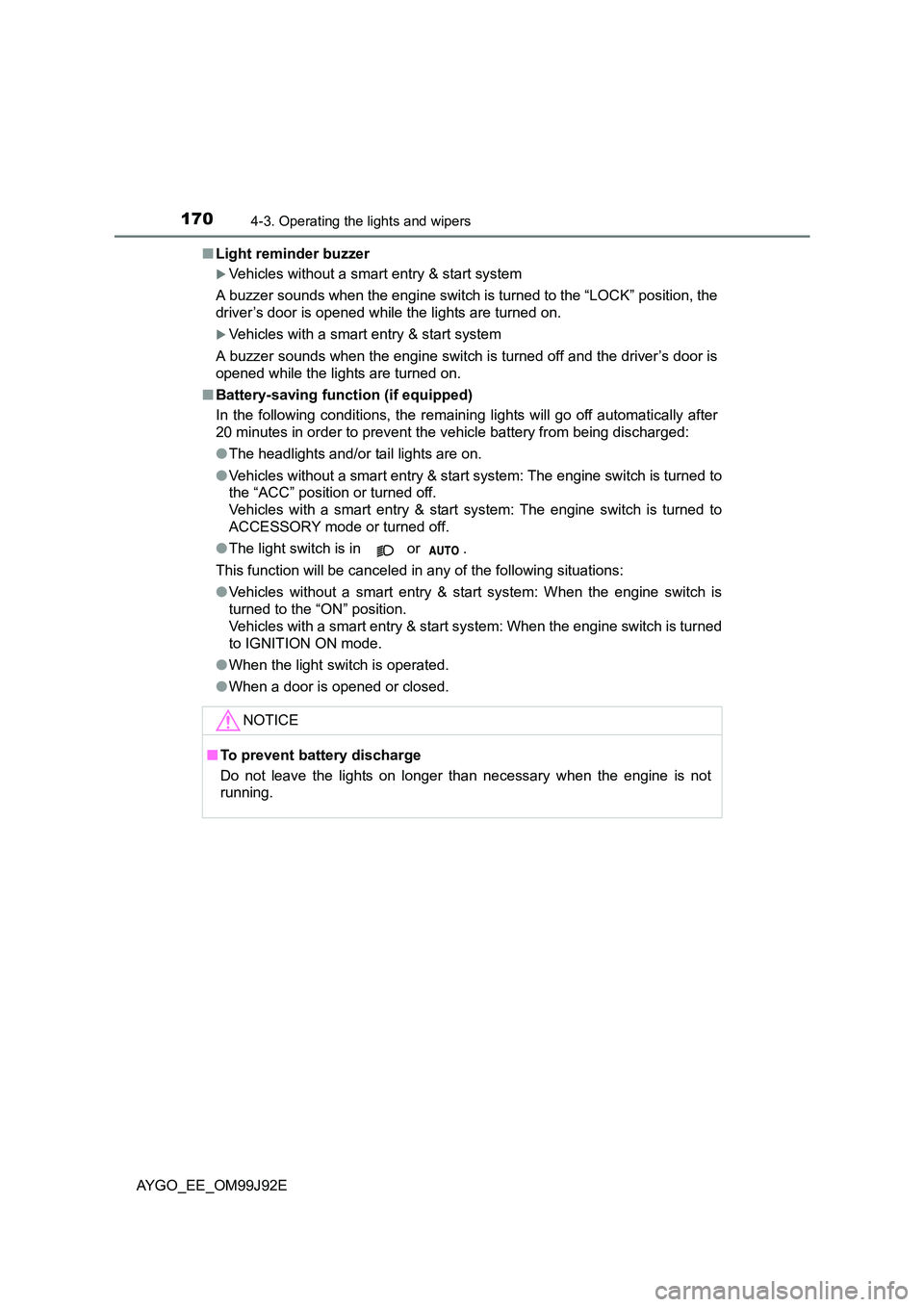

■ Light reminder buzzer
XVehicles without a smart entry & start system
A buzzer sounds when the engine switch is turned to the “LOCK” position, the
driver’s door is opened while the lights are turned on.
XVehicles with a smart entry & start system
A buzzer sounds when the engine switch is turned off and the driver’s door is
opened while the lights are turned on.
■ Battery-saving function (if equipped)
In the following conditions, the remaining lights will go off automatically after
20 minutes in order to prevent the vehicle battery from being discharged:
● The headlights and/or tail lights are on.
● Vehicles without a smart entry & start system: The engine switch is turned to
the “ACC” position or turned off.
Vehicles with a smart entry & start system: The engine switch is turned to
ACCESSORY mode or turned off.
● The light switch is in or .
This function will be canceled in any of the following situations:
● Vehicles without a smart entry & start system: When the engine switch is
turned to the “ON” position.
Vehicles with a smart entry & start system: When the engine switch is turned
to IGNITION ON mode.
● When the light switch is operated.
● When a door is opened or closed.
NOTICE
■ To prevent battery discharge
Do not leave the lights on longer than necessary when the engine is not
running.

171
4
4-3. Operating the lights and wipers
Driving
AYGO_EE_OM99J92E

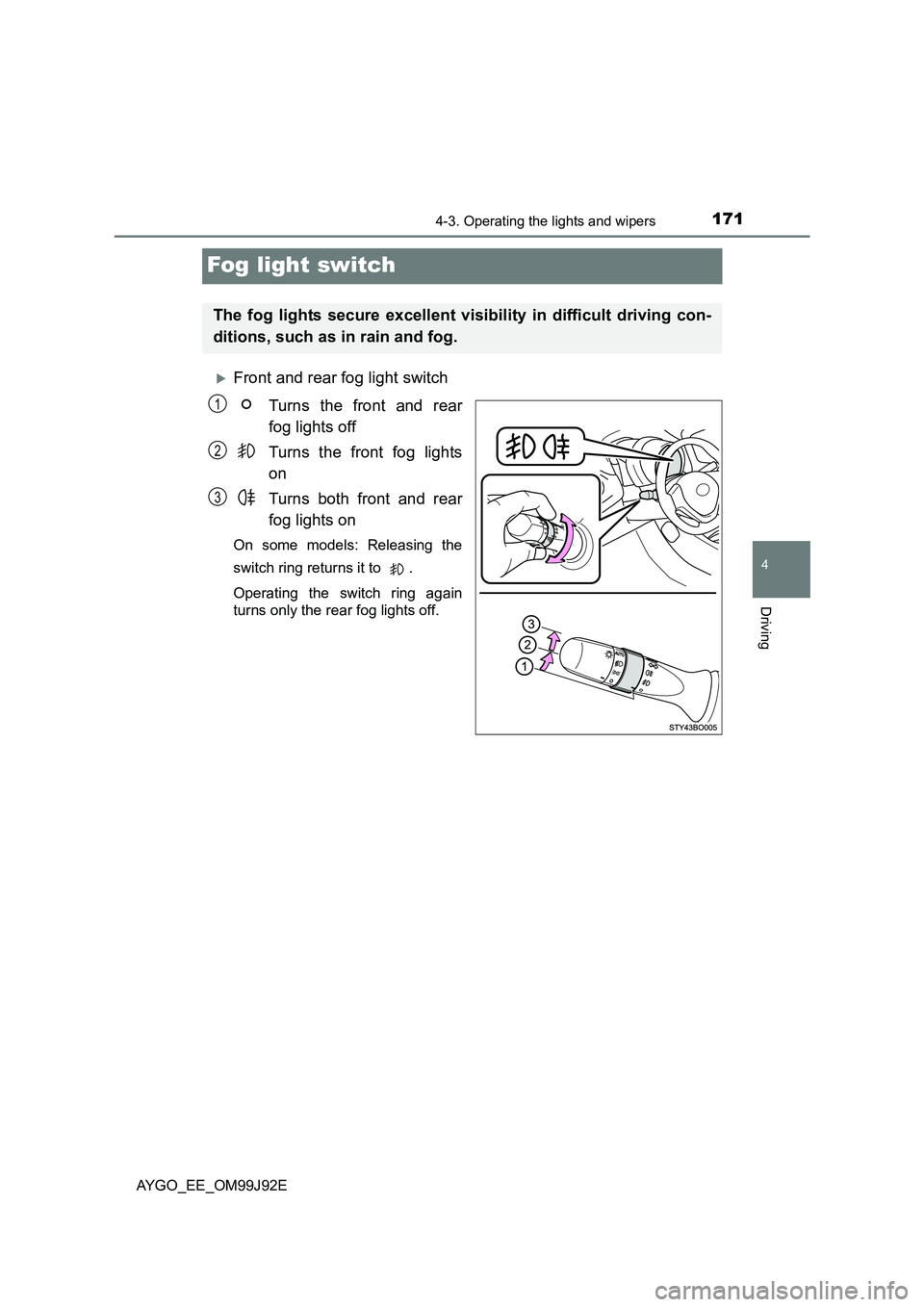

Fog light switch
XFront and rear fog light switch
Turns the front and rear
fog lights off
Turns the front fog lights
on
Turns both front and rear
fog lights on
On some models: Releasing the
switch ring returns it to .
Operating the switch ring again
turns only the rear fog lights off.
The fog lights secure excellent visibility in difficult driving con-
ditions, such as in rain and fog.
1
2
3

1724-3. Operating the lights and wipers
AYGO_EE_OM99J92E

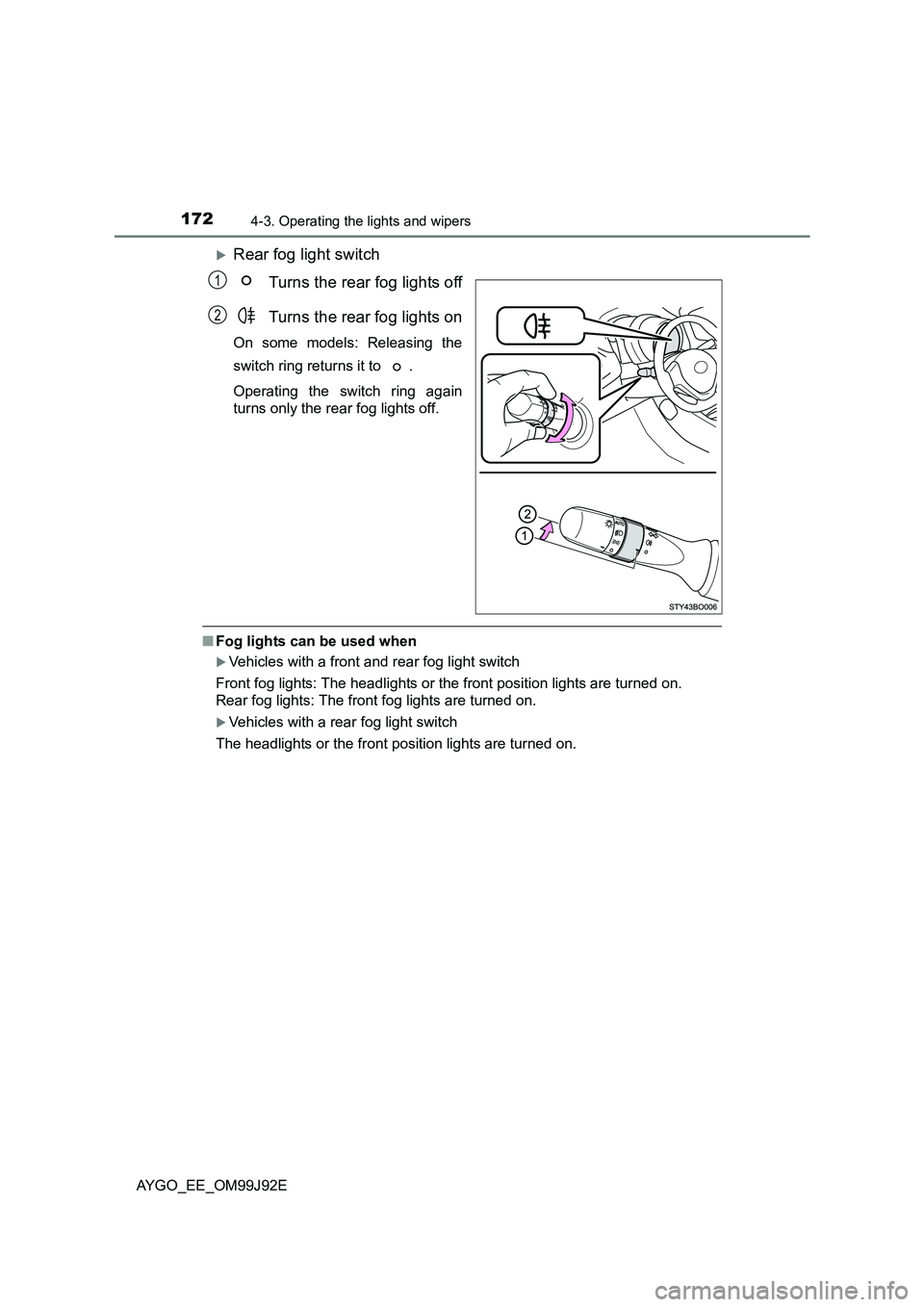

XRear fog light switch
Turns the rear fog lights off
Turns the rear fog lights on
On some models: Releasing the
switch ring returns it to .
Operating the switch ring again
turns only the rear fog lights off.
■ Fog lights can be used when
XVehicles with a front and rear fog light switch
Front fog lights: The headlights or the front position lights are turned on.
Rear fog lights: The front fog lights are turned on.
XVehicles with a rear fog light switch
The headlights or the front position lights are turned on.
1
2

173
4
4-3. Operating the lights and wipers
Driving
AYGO_EE_OM99J92E

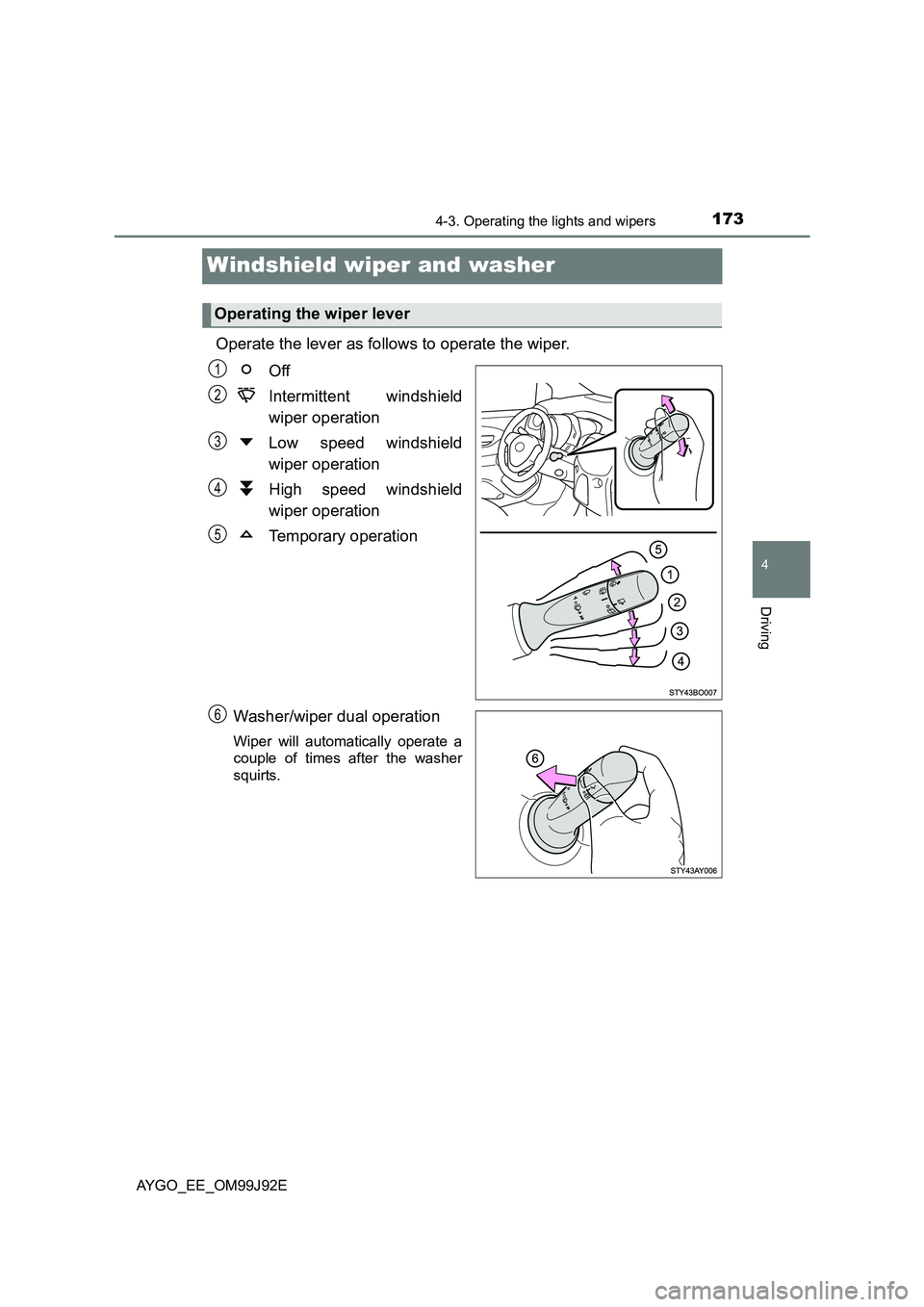

Windshield wiper and washer
Operate the lever as follows to operate the wiper.
Off
Intermittent windshield
wiper operation
Low speed windshield
wiper operation
High speed windshield
wiper operation
Temporary operation
Washer/wiper dual operation
Wiper will automatically operate a
couple of times after the washer
squirts.
Operating the wiper lever
1
2
3
4
5
6

1744-3. Operating the lights and wipers
AYGO_EE_OM99J92E
■The windshield wiper and washer can be operated when
XVehicles without a smart entry & start system
The engine switch is in the “ON” position.
XVehicles with a smart entry & start system
The engine switch is in IGNITION ON mode.
■ If no windshield washer fluid sprays
Check that the washer nozzles are not blocked, if there is washer fluid in the
windshield washer fluid reservoir.
WARNING
■ Caution regarding the use of washer fluid
When it is cold, do not use the washer fluid until the windshield becomes
warm. The fluid may freeze on the windshield and cause low visibility. This
may lead to an accident, resulting in death or serious injury.
NOTICE
■ When the windshield is dry
Do not use the wiper, as they may damage the windshield.
■ When the washer fluid tank is empty
Do not operate the switch continually as the washer fluid pump may over-
heat.
■ To prevent battery discharge
Do not leave the wiper on longer than necessary when the engine is off.

175
4
4-3. Operating the lights and wipers
Driving
AYGO_EE_OM99J92E
Rear window wiper and washer
Turning the end of the lever turns on the rear window wiper and
washer.
Off
Normal window wiper
operation
Washer/wiper dual opera-
tion
Washer operation
■ The rear window wiper and washer can be operated when
XVehicles without a smart entry & start system
The engine switch is in the “ON” position.
XVehicles with a smart entry & start system
The engine switch is in IGNITION ON mode.
■ If no washer fluid sprays
Check that the washer nozzle is not blocked, if there is washer fluid in the
washer fluid reservoir.
1
2
3
4

1764-3. Operating the lights and wipers
AYGO_EE_OM99J92E

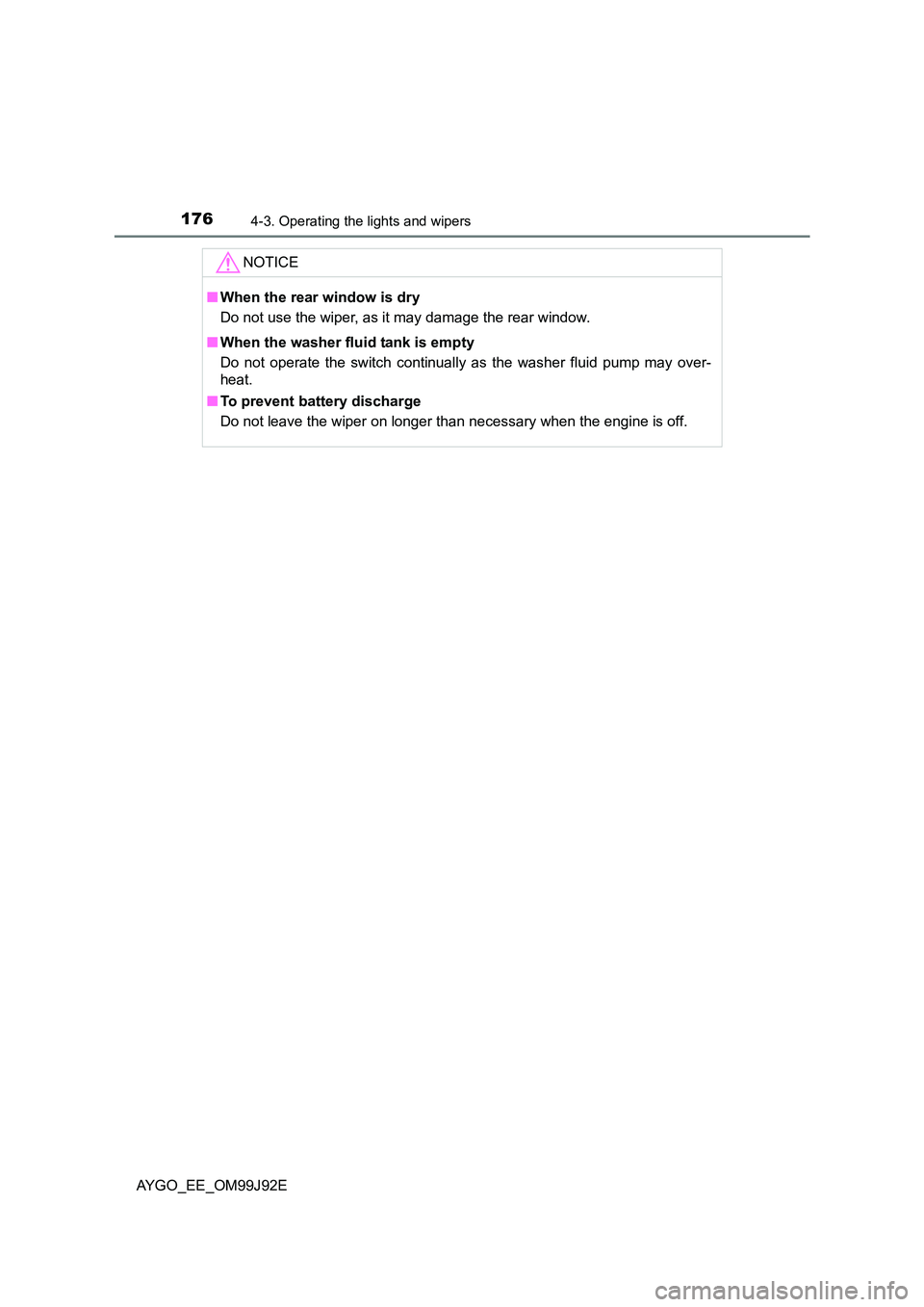

NOTICE
■ When the rear window is dry
Do not use the wiper, as it may damage the rear window.
■ When the washer fluid tank is empty
Do not operate the switch continually as the washer fluid pump may over-
heat.
■ To prevent battery discharge
Do not leave the wiper on longer than necessary when the engine is off.
