4018-2. Steps to take in an emergency
8
When trouble arises
AYGO_EE_OM99J92E

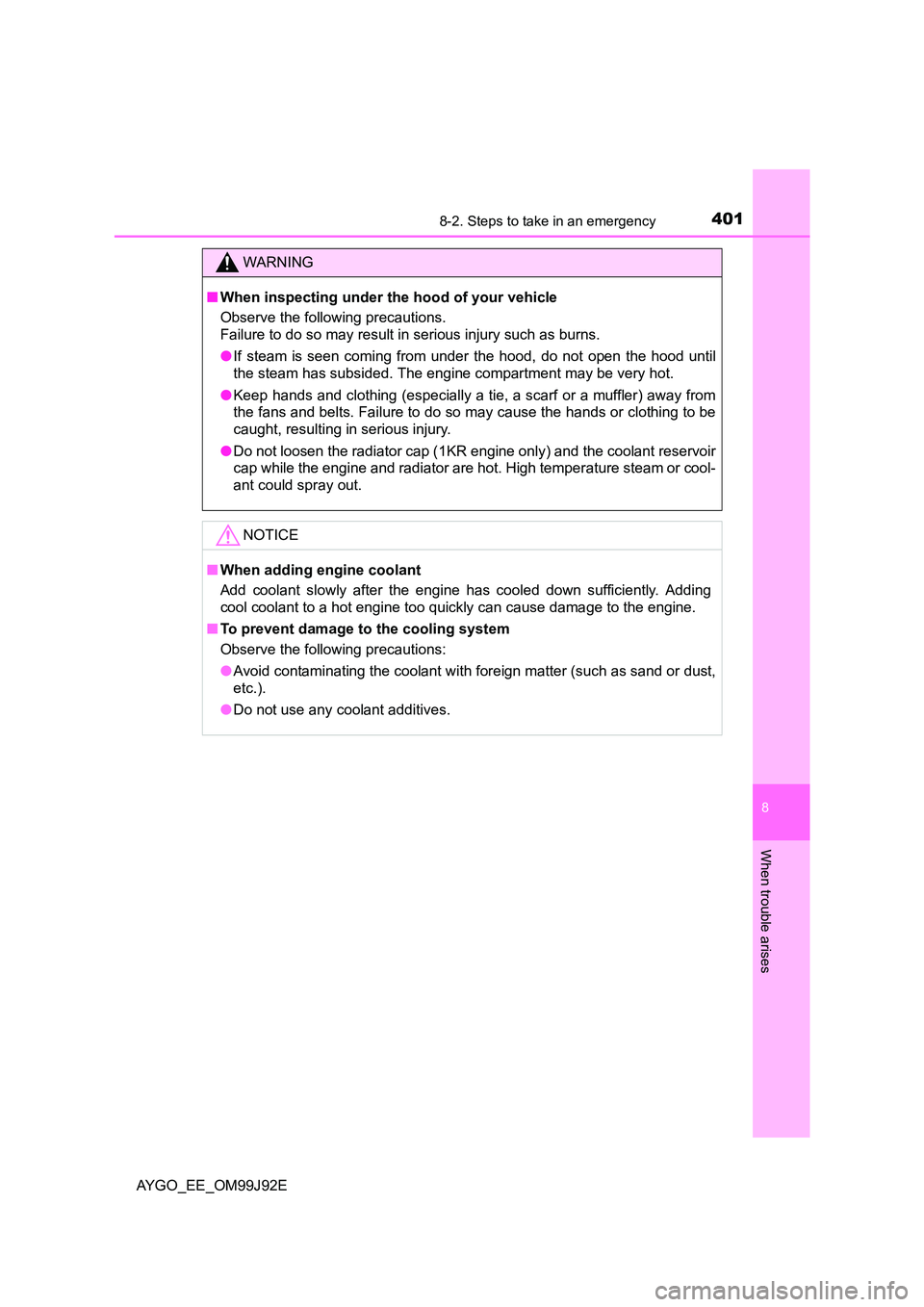

WARNING
■ When inspecting under the hood of your vehicle
Observe the following precautions.
Failure to do so may result in serious injury such as burns.
● If steam is seen coming from under the hood, do not open the hood until
the steam has subsided. The engine compartment may be very hot.
● Keep hands and clothing (especially a tie, a scarf or a muffler) away from
the fans and belts. Failure to do so may cause the hands or clothing to be
caught, resulting in serious injury.
● Do not loosen the radiator cap (1KR engine only) and the coolant reservoir
cap while the engine and radiator are hot. High temperature steam or cool-
ant could spray out.
NOTICE
■ When adding engine coolant
Add coolant slowly after the engine has cooled down sufficiently. Adding
cool coolant to a hot engine too quickly can cause damage to the engine.
■ To prevent damage to the cooling system
Observe the following precautions:
● Avoid contaminating the coolant with foreign matter (such as sand or dust,
etc.).
● Do not use any coolant additives.

4028-2. Steps to take in an emergency
AYGO_EE_OM99J92E
If the vehicle becomes stuck
Stop the engine. Set the parking brake and shift the shift lever to N.
Remove the mud, snow or sand from around the stuck tire.
Place wood, stones or some other material to help provide traction
under the tires.
Restart the engine.
Shift the shift lever to E, M or R (vehicles with a multi-mode manual
transmission) or 1 or R (vehicles with a manual transmission) and
release the parking brake. Then, while exercising caution, depress
the accelerator pedal.
■ When it is difficult to free the vehicle (vehicles with a VSC system)
Press to turn off TRC.
Turn off TRC and/or VSC if these functions are hampering your attempts to
free the vehicle. ( →P. 192)
■ Emergency hooks
Carry out the following procedures if the tires spin or the vehicle
becomes stuck in mud, dirt or snow:
When your vehicle becomes stuck and
cannot move, the emergency hooks are
used for another vehicle to pull your
vehicle to pull your vehicle out in an
emergency.
Your vehicle is not designed to tow
another vehicle.
1
2
3
4
5

4038-2. Steps to take in an emergency
8
When trouble arises
AYGO_EE_OM99J92E

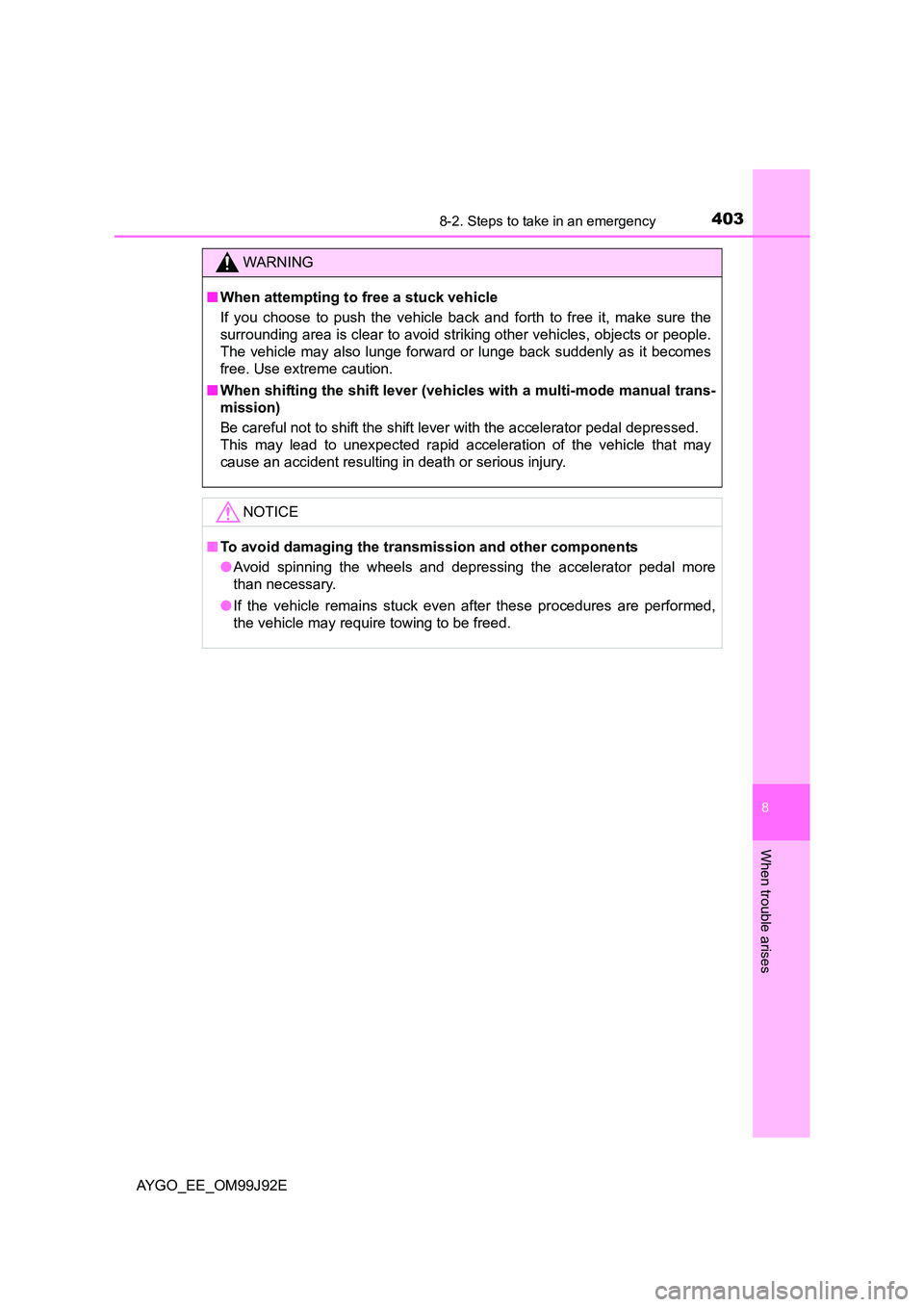

WARNING
■ When attempting to free a stuck vehicle
If you choose to push the vehicle back and forth to free it, make sure the
surrounding area is clear to avoid striking other vehicles, objects or people.
The vehicle may also lunge forward or lunge back suddenly as it becomes
free. Use extreme caution.
■ When shifting the shift lever (vehicles with a multi-mode manual trans-
mission)
Be careful not to shift the shift lever with the accelerator pedal depressed.
This may lead to unexpected rapid acceleration of the vehicle that may
cause an accident resulting in death or serious injury.
NOTICE
■ To avoid damaging the transmission and other components
● Avoid spinning the wheels and depressing the accelerator pedal more
than necessary.
● If the vehicle remains stuck even after these procedures are performed,
the vehicle may require towing to be freed.

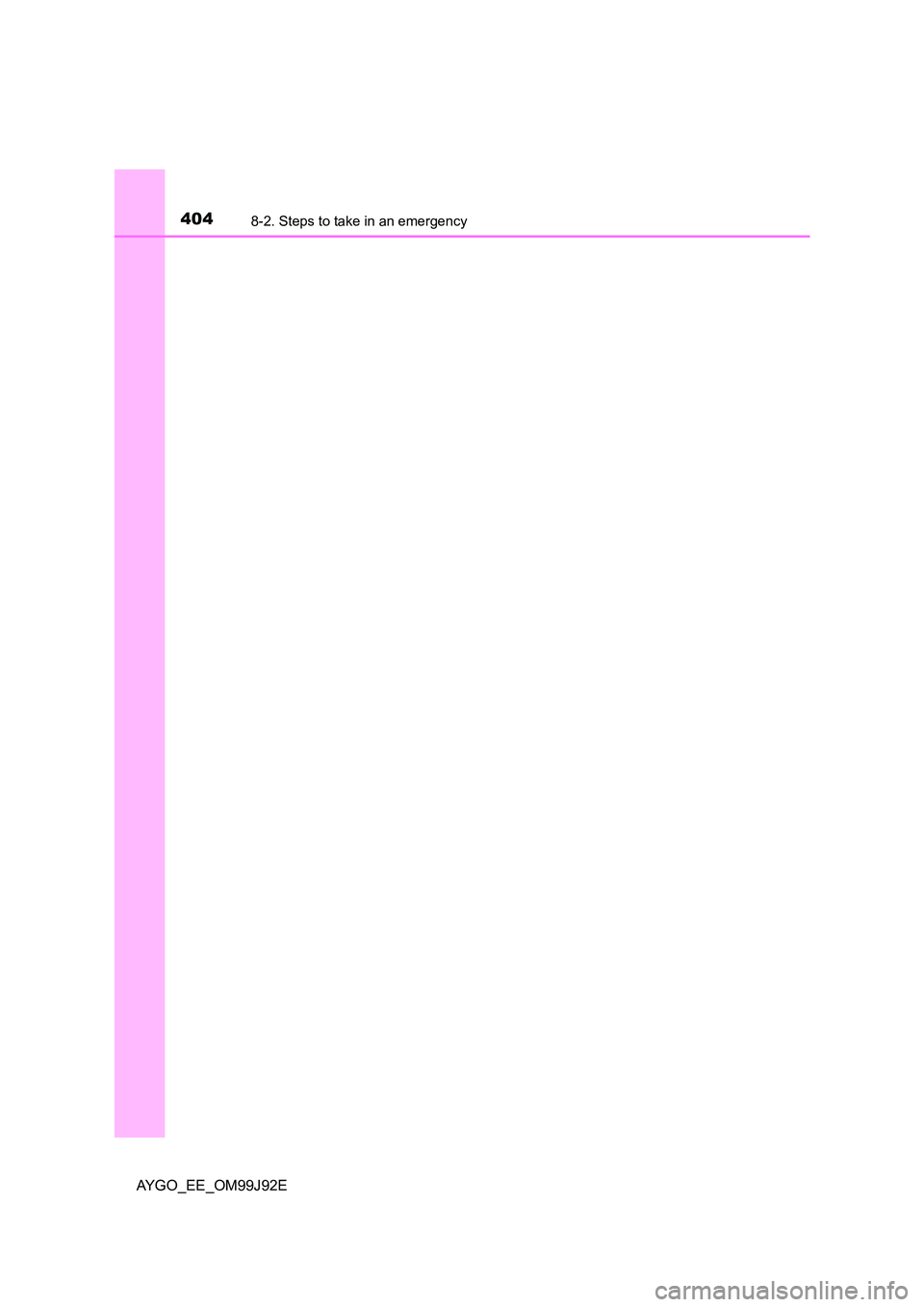

4048-2. Steps to take in an emergency
AYGO_EE_OM99J92E

405

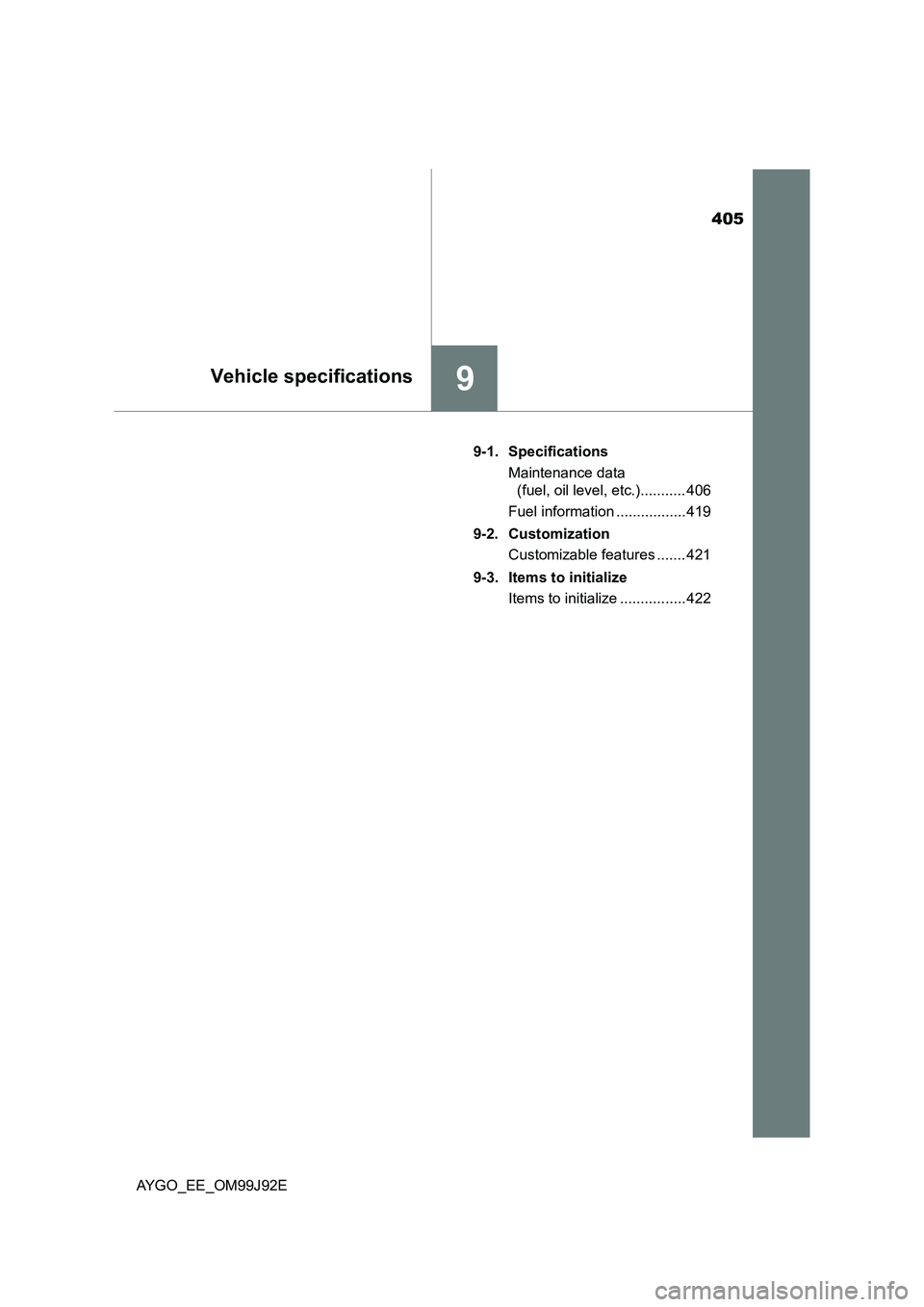

9Vehicle specifications
AYGO_EE_OM99J92E
9-1. Specifications
Maintenance data
(fuel, oil level, etc.)........... 406
Fuel information ................. 419
9-2. Customization
Customizable features ....... 421
9-3. Items to initialize
Items to initialize ................ 422

4069-1. Specifications
AYGO_EE_OM99J92E

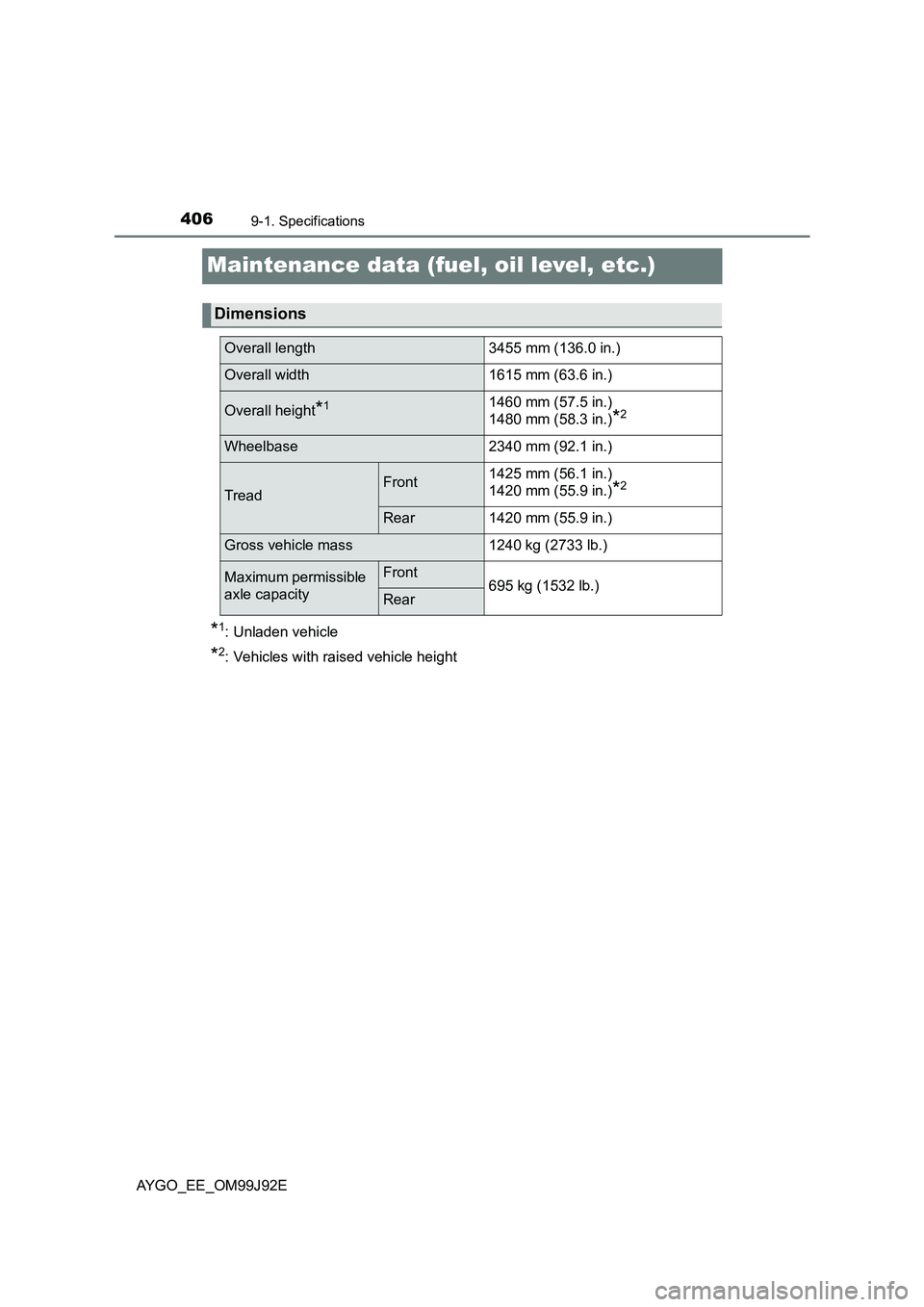

Maintenance data (fuel, oil level, etc.)
*1: Unladen vehicle
*2: Vehicles with raised vehicle height
Dimensions
Overall length3455 mm (136.0 in.)
Overall width1615 mm (63.6 in.)
Overall height*11460 mm (57.5 in.)
1480 mm (58.3 in.)*2
Wheelbase2340 mm (92.1 in.)
TreadFront1425 mm (56.1 in.)
1420 mm (55.9 in.)*2
Rear1420 mm (55.9 in.)
Gross vehicle mass1240 kg (2733 lb.)
Maximum permissible
axle capacity
Front695 kg (1532 lb.)Rear

4079-1. Specifications
9
Vehicle specifications
AYGO_EE_OM99J92E

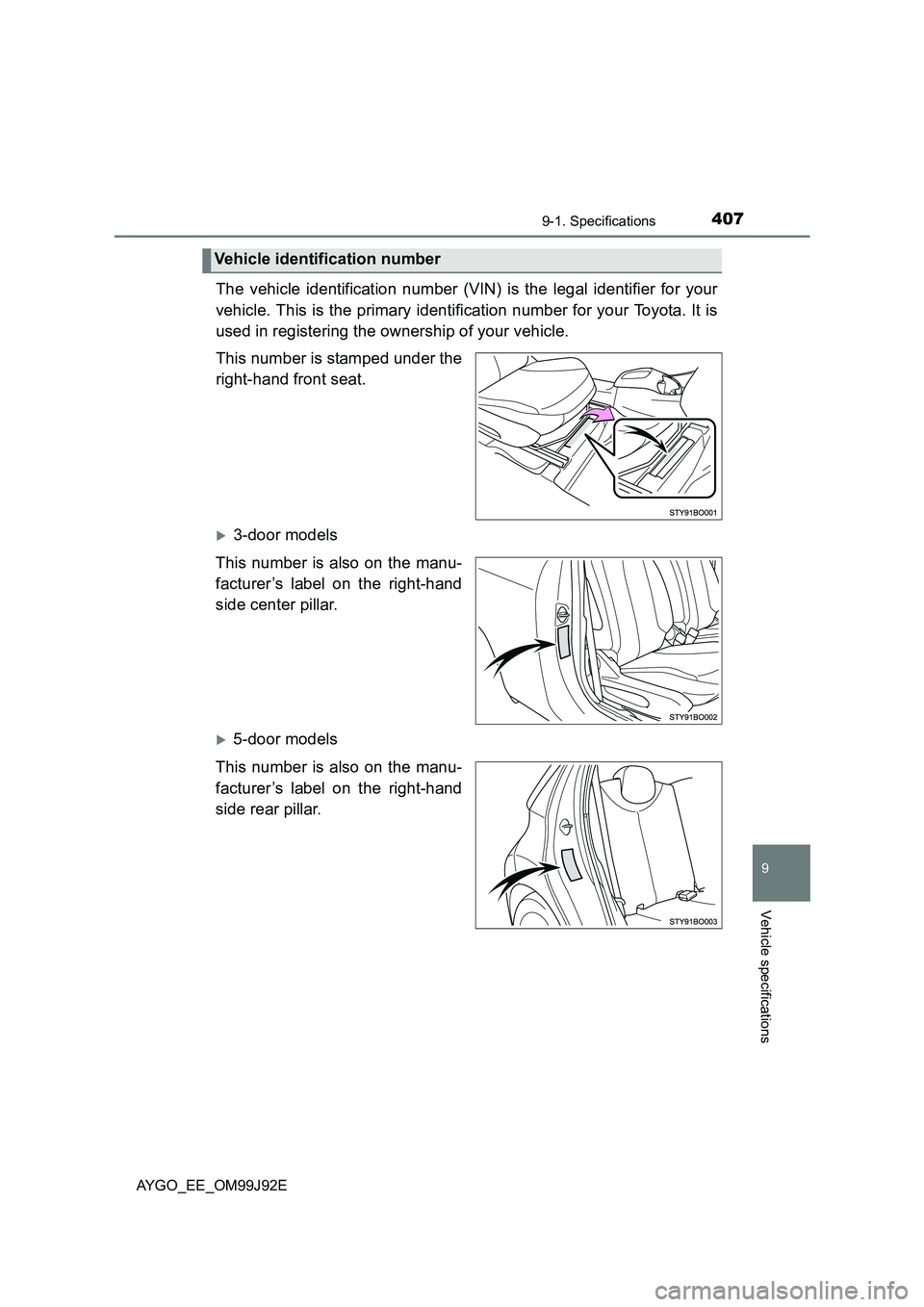

The vehicle identification number (VIN) is the legal identifier for your
vehicle. This is the primary identification number for your Toyota. It is
used in registering the ownership of your vehicle.
This number is stamped under the
right-hand front seat.
X3-door models
This number is also on the manu-
facturer’s label on the right-hand
side center pillar.
X5-door models
This number is also on the manu-
facturer’s label on the right-hand
side rear pillar.
Vehicle identification number

4089-1. Specifications
AYGO_EE_OM99J92E
X1KR engine
*: The engine oil capacity is a reference quantity to be used when changing
the engine oil. Warm up and turn off the engine, wait more than 5 minutes,
and check the oil level on the dipstick.
Fuel
Fuel type
EU area:
Unleaded gasoline conforming to European stan-
dard EN228 only
Except EU area:
Unleaded gasoline only
Research octane
number95 or higher
Fuel tank capacity
(Reference)35 L (9.2 gal., 7.7 Imp.gal.)
Lubrication system
Oil capacity
(Drain and refill  Reference*)
With filter2.8 L (3.0 qt., 2.5 Imp.qt.)
Without filter2.6 L (2.7 qt., 2.3 Imp.qt.)
