2015 TOYOTA AYGO Owners Manual (in English)

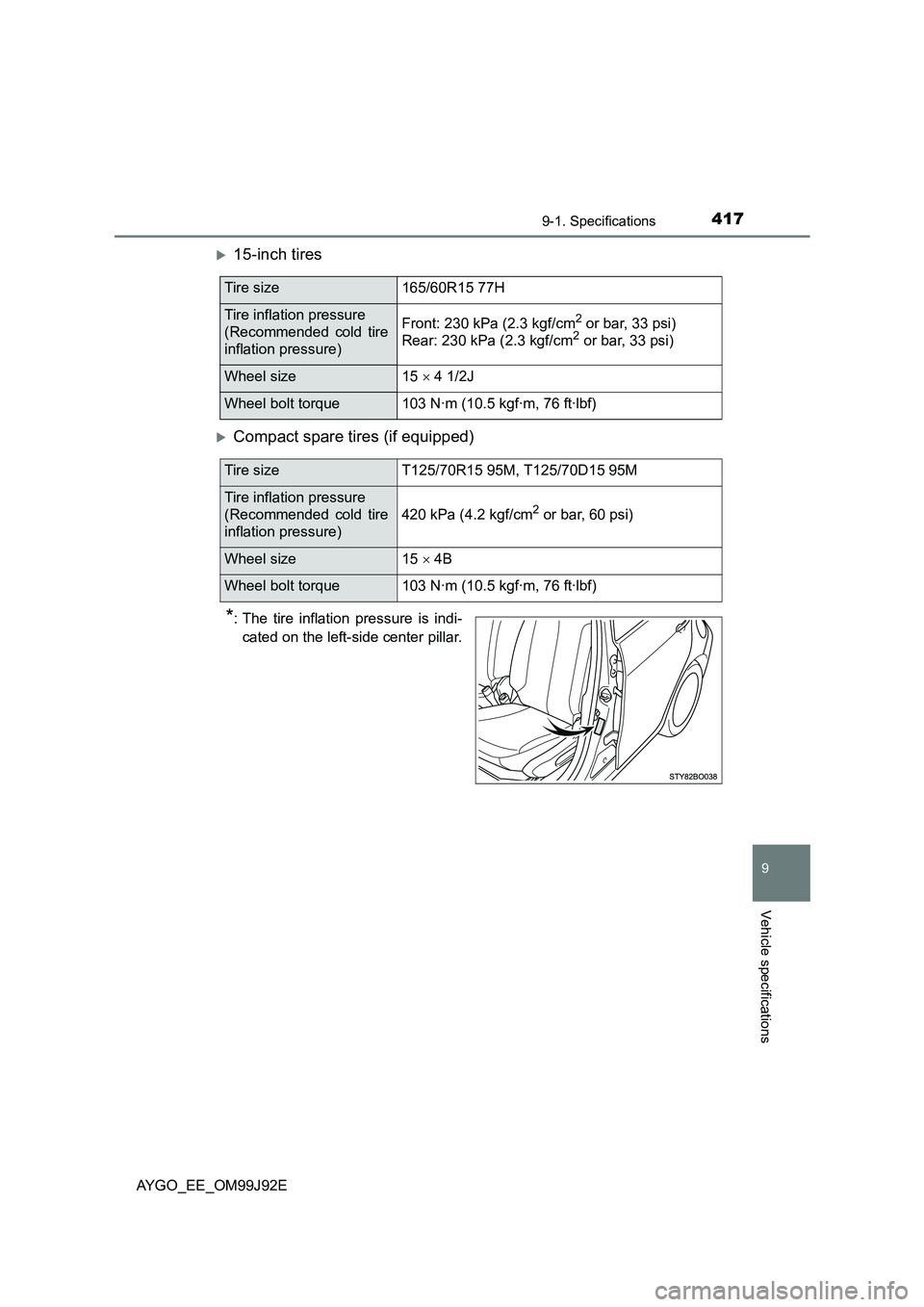

4179-1. Specifications
9
Vehicle specifications
AYGO_EE_OM99J92E
X15-inch tires
XCompact spare tires (if equipped)
*: The tire inflation pressure is indi-
cated on the left-side center pillar.
Tire size165/60R15 77H
Tire inflation pressure
(Recommended cold tire
inflation pressure)
Front: 230 kPa (2.3 kgf/cm2 or bar, 33 psi)
Rear: 230 kPa (2.3 kgf/cm2 or bar, 33 psi)
Wheel size15 × 4 1/2J
Wheel bolt torque103 N·m (10.5 kgf·m, 76 ft·lbf)
Tire sizeT125/70R15 95M, T125/70D15 95M
Tire inflation pressure
(Recommended cold tire
inflation pressure)
420 kPa (4.2 kgf/cm2 or bar, 60 psi)
Wheel size15 × 4B
Wheel bolt torque103 N·m (10.5 kgf·m, 76 ft·lbf)

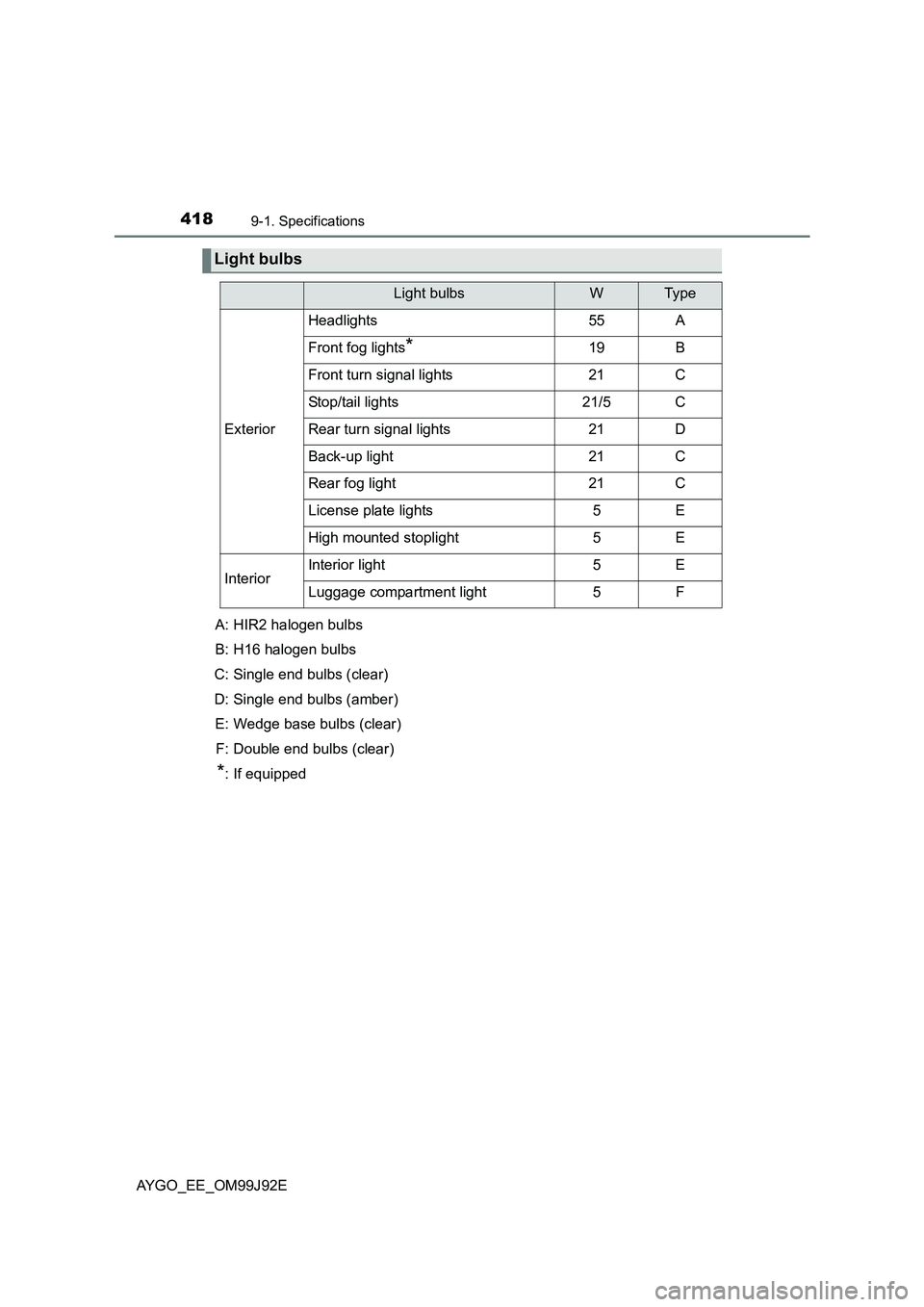

4189-1. Specifications
AYGO_EE_OM99J92E
Light bulbs
Light bulbsWTy p e
Exterior
Headlights55A
Front fog lights*19B
Front turn signal lights21C
Stop/tail lights21/5C
Rear turn signal lights21D
Back-up light21C
Rear fog light21C
License plate lights5E
High mounted stoplight5E
InteriorInterior light5E
Luggage compartment light5F
A: HIR2 halogen bulbs
B: H16 halogen bulbs
C: Single end bulbs (clear)
D: Single end bulbs (amber)
E: Wedge base bulbs (clear)
F: Double end bulbs (clear)
*: If equipped

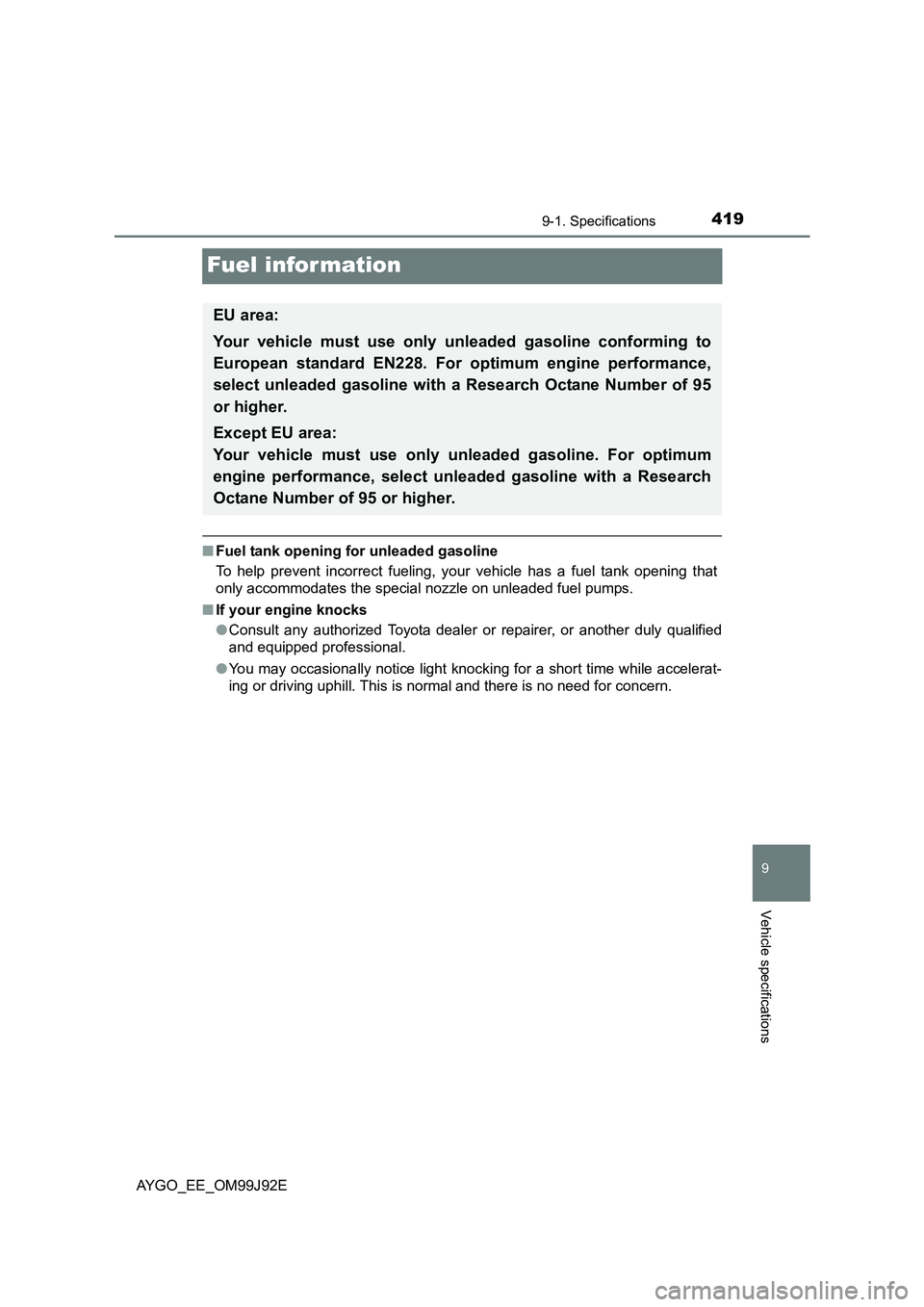

4199-1. Specifications
9
Vehicle specifications
AYGO_EE_OM99J92E
Fuel infor mation
■Fuel tank opening for unleaded gasoline
To help prevent incorrect fueling, your vehicle has a fuel tank opening that
only accommodates the special nozzle on unleaded fuel pumps.
■ If your engine knocks
● Consult any authorized Toyota dealer or repairer, or another duly qualified
and equipped professional.
● You may occasionally notice light knocking for a short time while accelerat-
ing or driving uphill. This is normal and there is no need for concern.
EU area:
Your vehicle must use only unleaded gasoline conforming to
European standard EN228. For optimum engine performance,
select unleaded gasoline with a Research Octane Number of 95
or higher.
Except EU area:
Your vehicle must use only unleaded gasoline. For optimum
engine performance, select unleaded gasoline with a Research
Octane Number of 95 or higher.

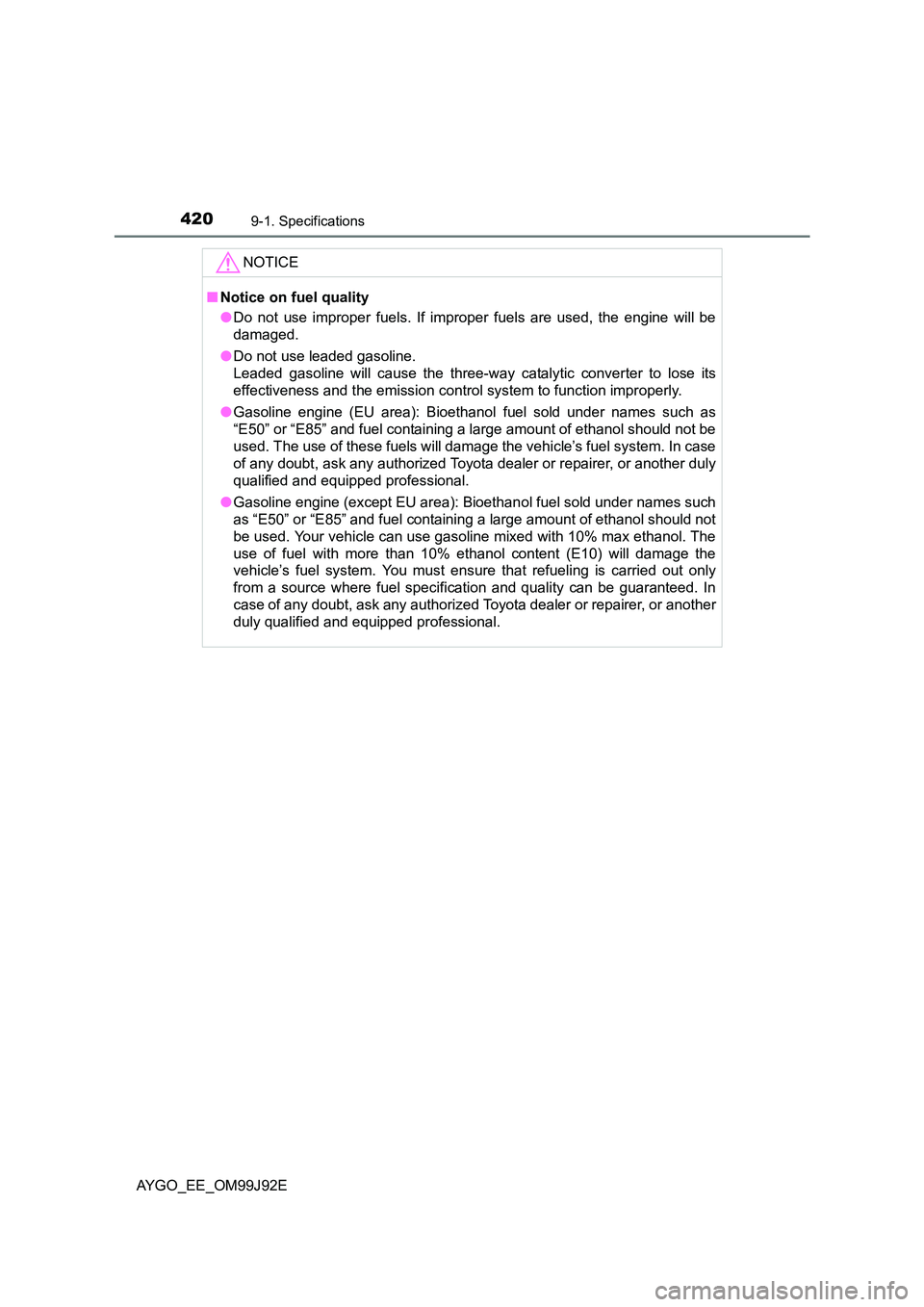

4209-1. Specifications
AYGO_EE_OM99J92E
NOTICE
■ Notice on fuel quality
● Do not use improper fuels. If improper fuels are used, the engine will be
damaged.
● Do not use leaded gasoline.
Leaded gasoline will cause the three-way catalytic converter to lose its
effectiveness and the emission control system to function improperly.
● Gasoline engine (EU area): Bioethanol fuel sold under names such as
“E50” or “E85” and fuel containing a large amount of ethanol should not be
used. The use of these fuels will damage the vehicle’s fuel system. In case
of any doubt, ask any authorized Toyota dealer or repairer, or another duly
qualified and equipped professional.
● Gasoline engine (except EU area): Bioethanol fuel sold under names such
as “E50” or “E85” and fuel containing a large amount of ethanol should not
be used. Your vehicle can use gasoline mixed with 10% max ethanol. The
use of fuel with more than 10% ethanol content (E10) will damage the
vehicle’s fuel system. You must ensure that refueling is carried out only
from a source where fuel specification and quality can be guaranteed. In
case of any doubt, ask any authorized Toyota dealer or repairer, or another
duly qualified and equipped professional.

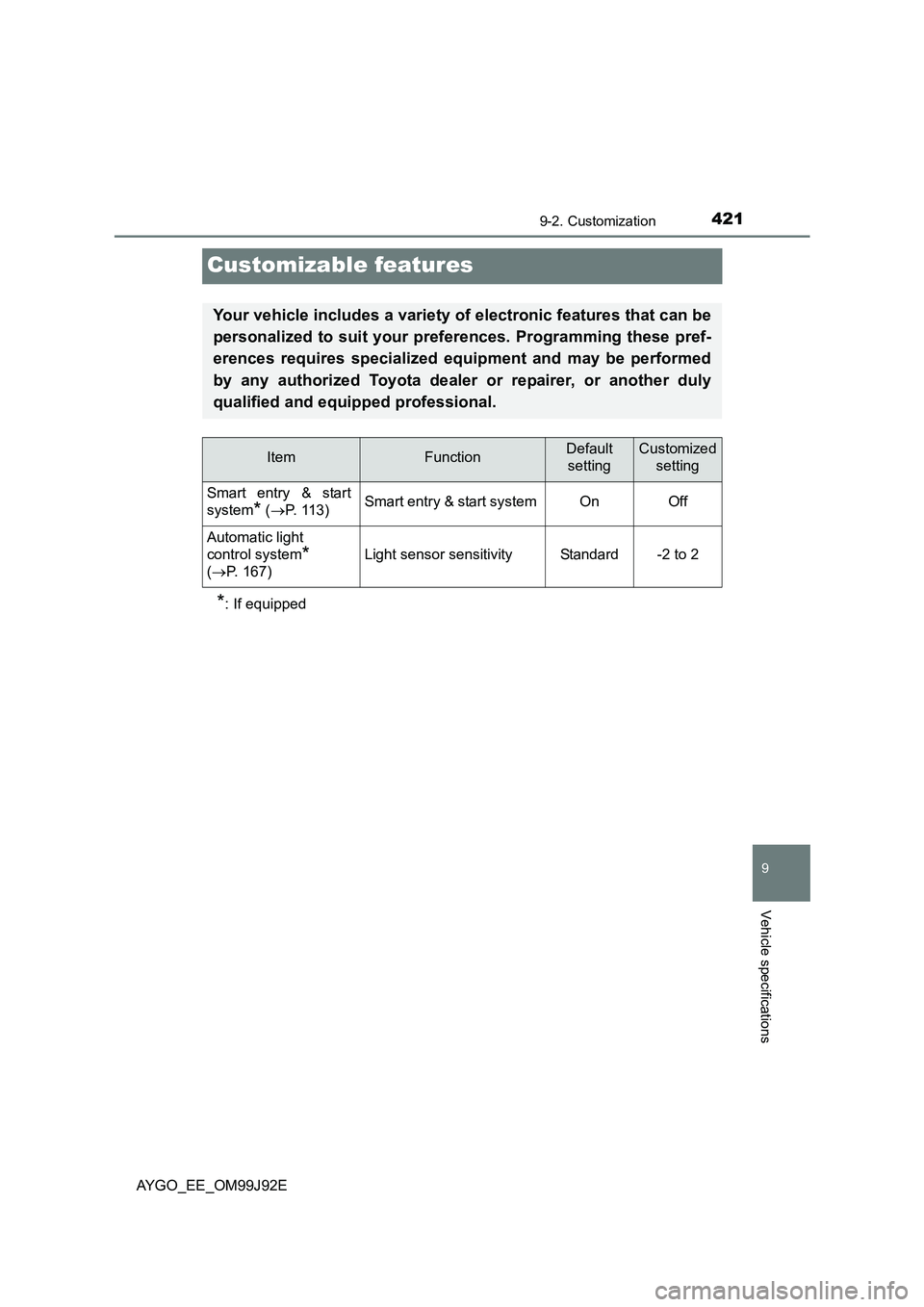

4219-2. Customization
9
Vehicle specifications
AYGO_EE_OM99J92E
Customizable features
*: If equipped
Your vehicle includes a variety of electronic features that can be
personalized to suit your preferences. Programming these pref-
erences requires specialized equipment and may be performed
by any authorized Toyota dealer or repairer, or another duly
qualified and equipped professional.
ItemFunctionDefault
setting
Customized
setting
Smart entry & start
system* ( →P. 113)Smart entry & start systemOnOff
Automatic light
control system*
( →P. 167)
Light sensor sensitivityStandard-2 to 2

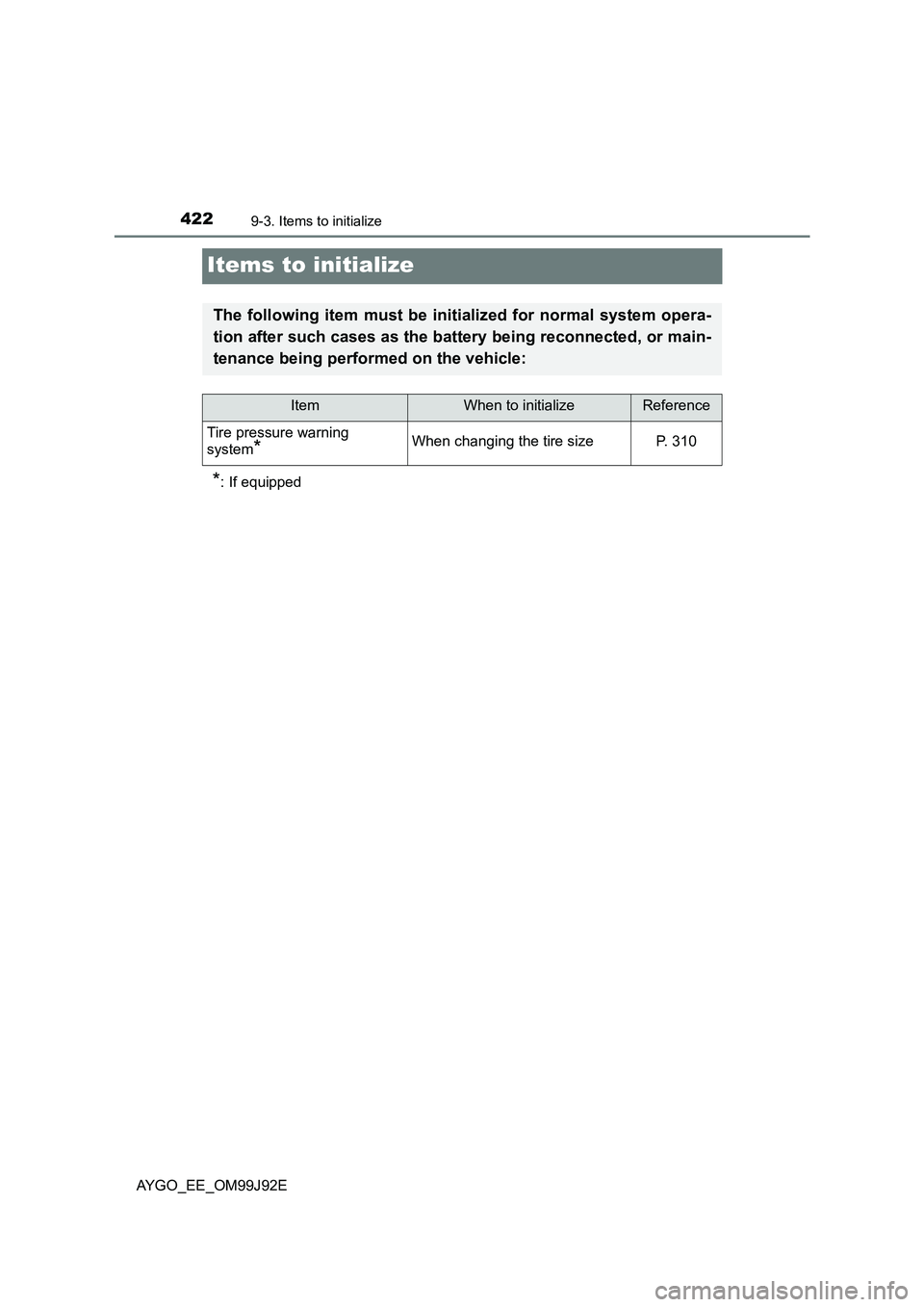

4229-3. Items to initialize
AYGO_EE_OM99J92E
Items to initialize
*: If equipped
The following item must be initialized for normal system opera-
tion after such cases as the battery being reconnected, or main-
tenance being performed on the vehicle:
ItemWhen to initializeReference
Tire pressure warning
system*When changing the tire sizeP. 310

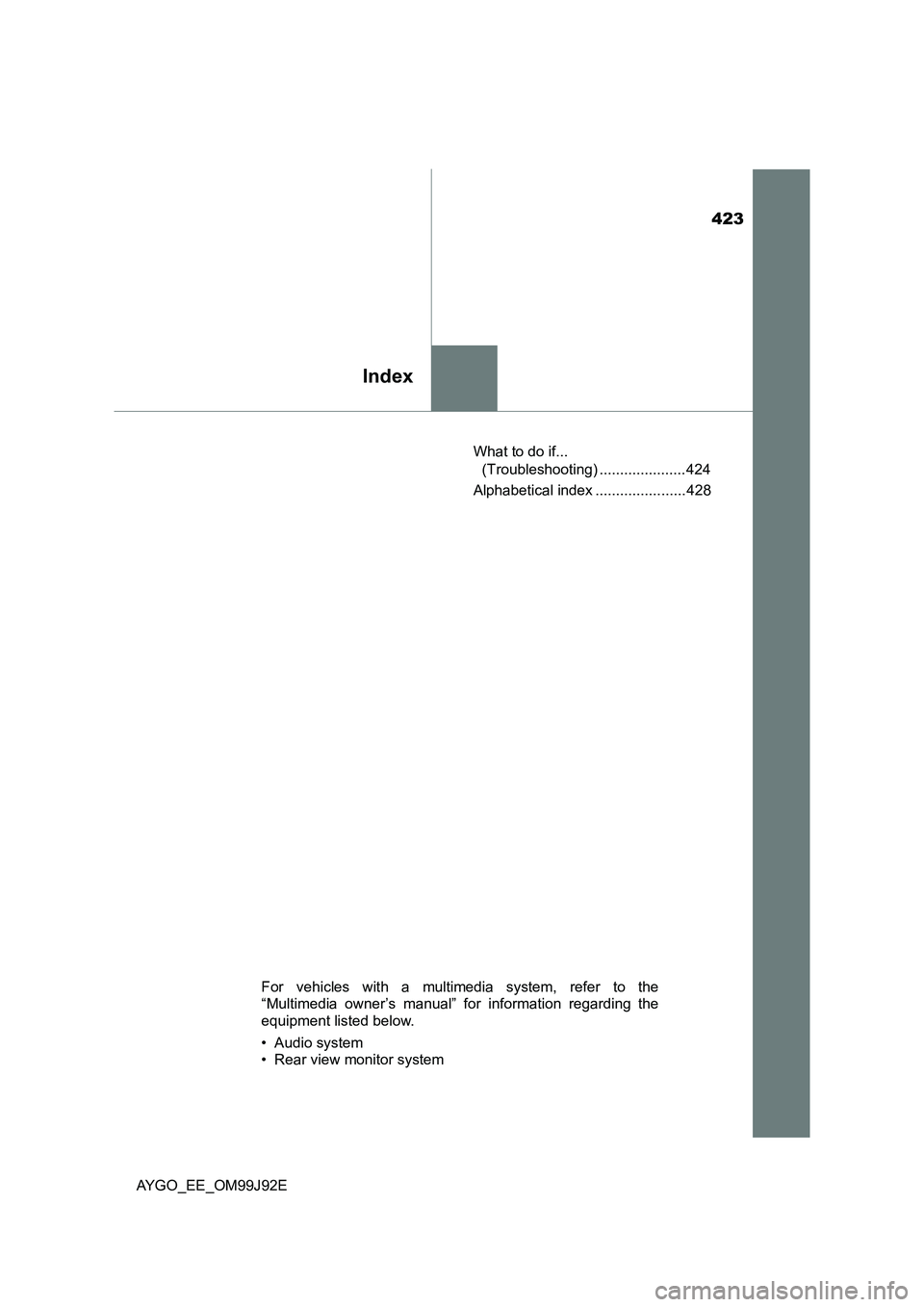

423
Index
AYGO_EE_OM99J92E
What to do if...
(Troubleshooting) ..................... 424
Alphabetical index ...................... 428
For vehicles with a multimedia system, refer to the
“Multimedia owner’s manual” for information regarding the
equipment listed below.
• Audio system
• Rear view monitor system

424What to do if... (Troubleshooting)
AYGO_EE_OM99J92E
What to do if... (Troubleshooting)
●If you lose your keys or mechanical keys, new genuine keys or mechanical
keys can be made by any authorized Toyota dealer or repairer, or another
duly qualified and equipped professional. ( →P. 94)
●Vehicles with a smart entry & start system
If you lose your electronic keys, the risk of vehicle theft increases signifi-
cantly. Contact any authorized Toyota dealer or repairer, or another duly
qualified and equipped professional immediately. ( →P. 101)
●Is the key battery weak or depleted? (→P. 319)
●Vehicles with a smart entry & start system
Is the engine switch in IGNITION ON mode?
When locking the doors, turn the engine switch off. ( →P. 156)
●Vehicles with a smart entry & start system
Is the electronic key left inside the vehicle?
When locking the doors, make sure that you have the electronic key on
your person.
●The function may not operate properly due to the condition of the radio
wave. ( →P. 105, 115)
●Is the child-protector lock set?
The rear door cannot be opened from inside the vehicle when the lock is
set. Open the rear door from outside and then unlock the child-protector
lock. ( →P. 105)
If you have a problem, check the following before contacting any
authorized Toyota dealer or repairer, or another duly qualified
and equipped professional.
The doors cannot be locked, unlocked, opened or closed
You lose your keys
The doors cannot be locked or unlocked
The rear door cannot be opened (5-door models)
