1053-2. Opening, closing and locking the doors
3
Operation of each component
AYGO_EE_OM99J92E

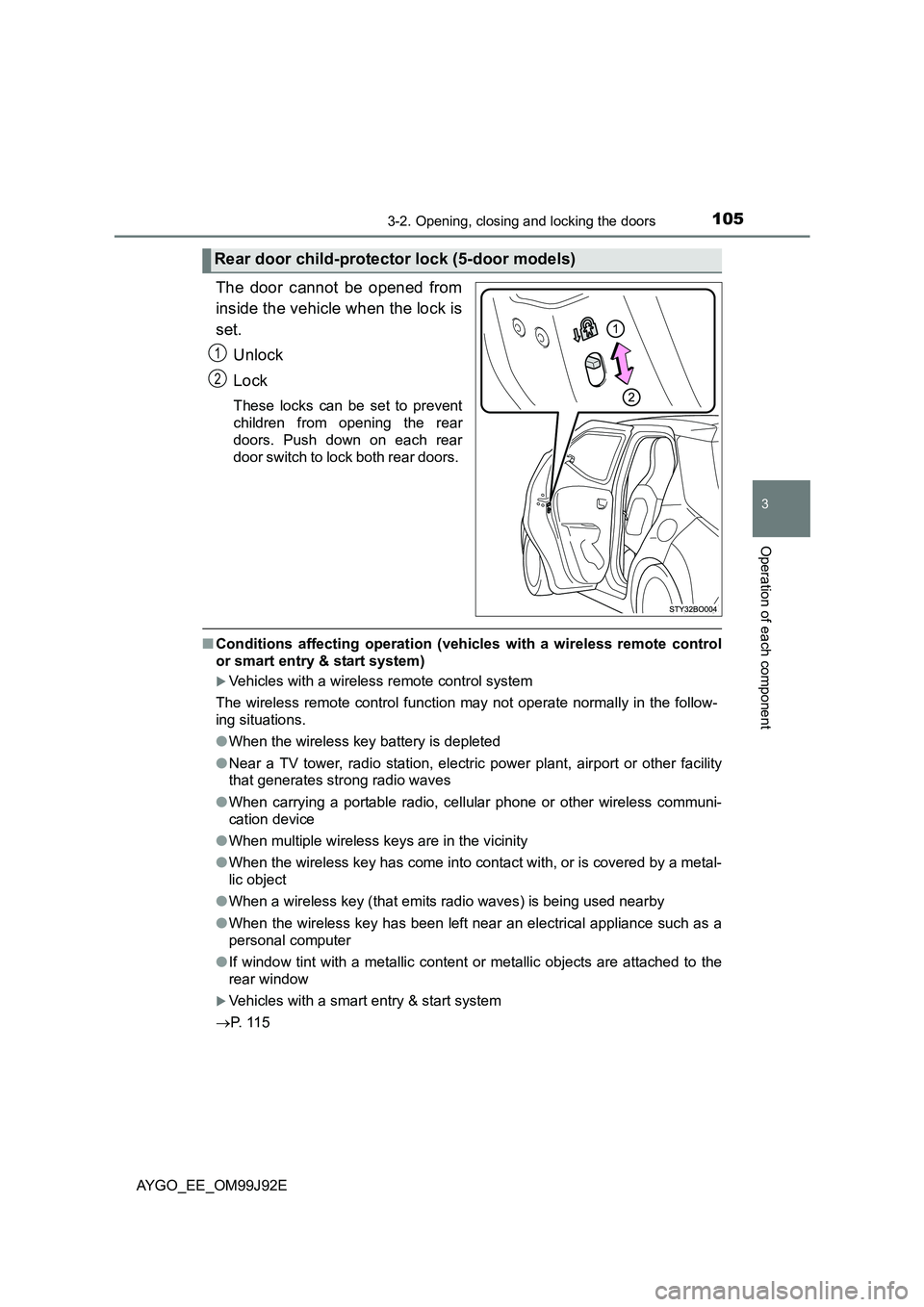

The door cannot be opened from
inside the vehicle when the lock is
set.
Unlock
Lock
These locks can be set to prevent
children from opening the rear
doors. Push down on each rear
door switch to lock both rear doors.
■ Conditions affecting operation (vehicles with a wireless remote control
or smart entry & start system)
XVehicles with a wireless remote control system
The wireless remote control function may not operate normally in the follow-
ing situations.
● When the wireless key battery is depleted
● Near a TV tower, radio station, electric power plant, airport or other facility
that generates strong radio waves
● When carrying a portable radio, cellular phone or other wireless communi-
cation device
● When multiple wireless keys are in the vicinity
● When the wireless key has come into contact with, or is covered by a metal-
lic object
● When a wireless key (that emits radio waves) is being used nearby
● When the wireless key has been left near an electrical appliance such as a
personal computer
● If window tint with a metallic content or metallic objects are attached to the
rear window
XVehicles with a smart entry & start system
→ P. 11 5
Rear door child-protector lock (5-door models)
1
2

1063-2. Opening, closing and locking the doors
AYGO_EE_OM99J92E

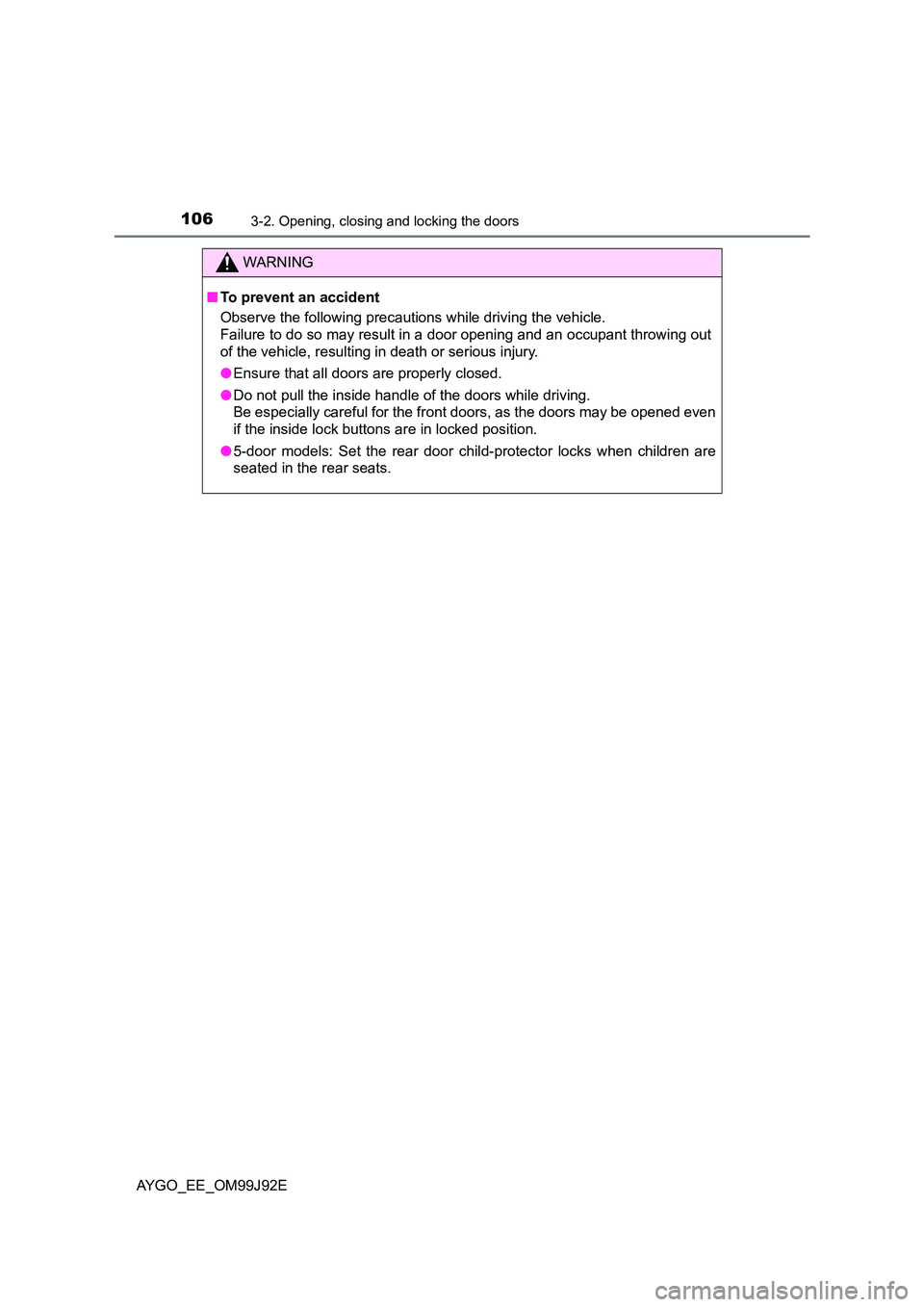

WARNING
■ To prevent an accident
Observe the following precautions while driving the vehicle.
Failure to do so may result in a door opening and an occupant throwing out
of the vehicle, resulting in death or serious injury.
● Ensure that all doors are properly closed.
● Do not pull the inside handle of the doors while driving.
Be especially careful for the front doors, as the doors may be opened even
if the inside lock buttons are in locked position.
● 5-door models: Set the rear door child-protector locks when children are
seated in the rear seats.

107
3
3-2. Opening, closing and locking the doors
Operation of each component
AYGO_EE_OM99J92E

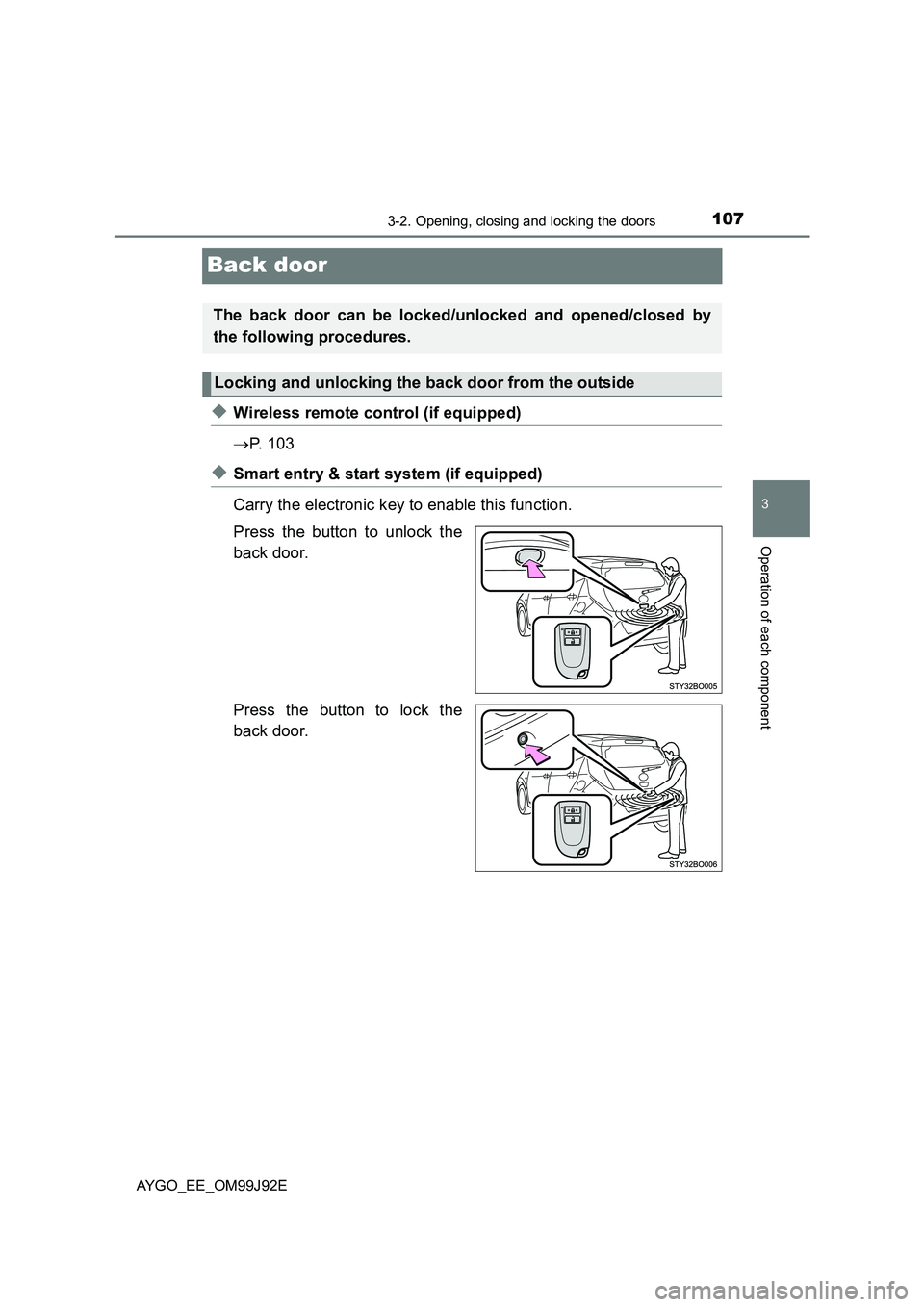

Back door
◆Wireless remote control (if equipped)
→ P. 1 0 3
◆Smart entry & start system (if equipped)
Carry the electronic key to enable this function.
Press the button to unlock the
back door.
Press the button to lock the
back door.
The back door can be locked/unlocked and opened/closed by
the following procedures.
Locking and unlocking the back door from the outside

1083-2. Opening, closing and locking the doors
AYGO_EE_OM99J92E

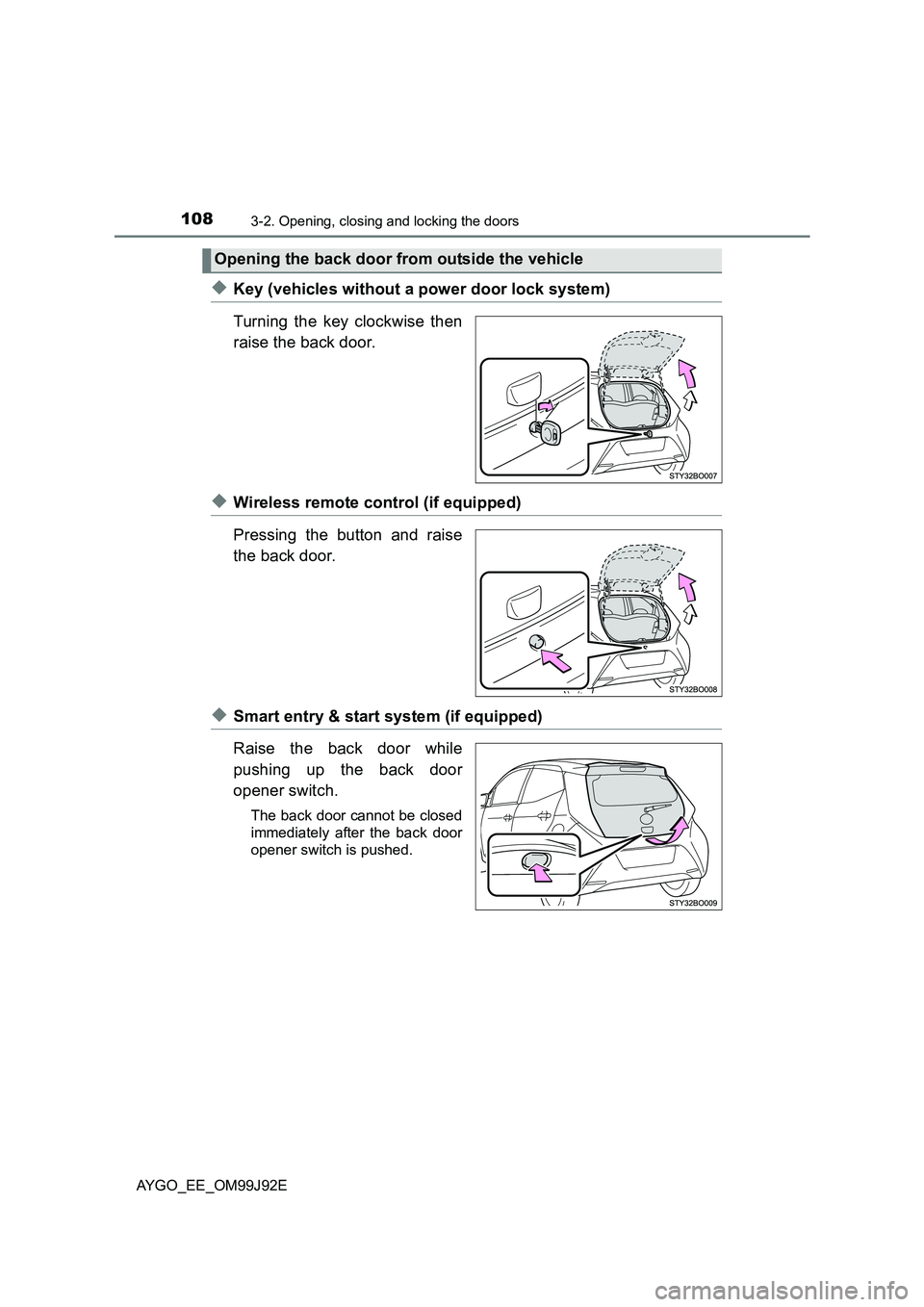

◆Key (vehicles without a power door lock system)
Turning the key clockwise then
raise the back door.
◆Wireless remote control (if equipped)
Pressing the button and raise
the back door.
◆Smart entry & start system (if equipped)
Raise the back door while
pushing up the back door
opener switch.
The back door cannot be closed
immediately after the back door
opener switch is pushed.
Opening the back door from outside the vehicle

1093-2. Opening, closing and locking the doors
3
Operation of each component
AYGO_EE_OM99J92E

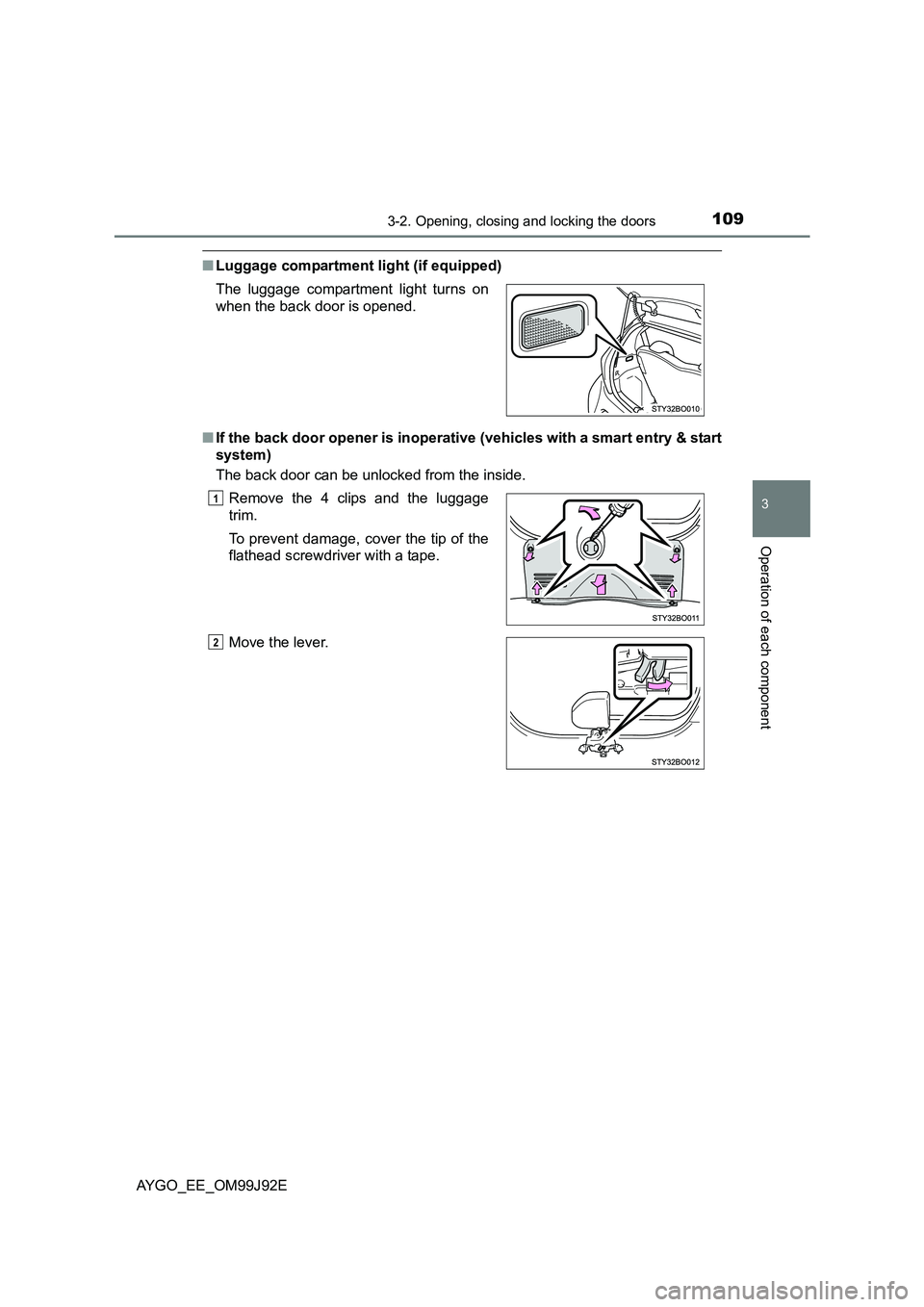

■Luggage compartment light (if equipped)
■ If the back door opener is inoperative (vehicles with a smart entry & start
system)
The back door can be unlocked from the inside.
The luggage compartment light turns on
when the back door is opened.
Remove the 4 clips and the luggage
trim.
To prevent damage, cover the tip of the
flathead screwdriver with a tape.
Move the lever.
1
2

1103-2. Opening, closing and locking the doors
AYGO_EE_OM99J92E

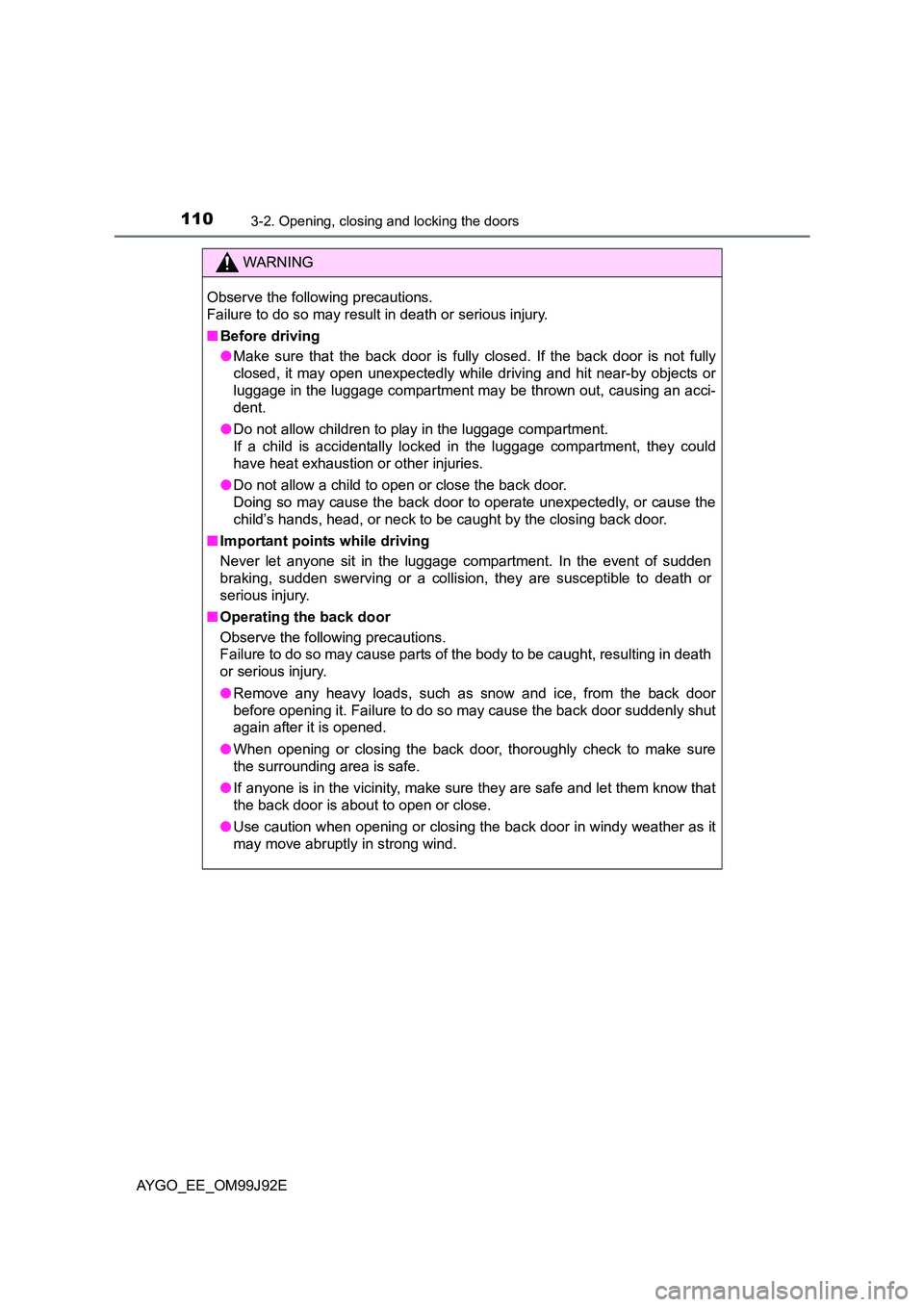

WARNING
Observe the following precautions.
Failure to do so may result in death or serious injury.
■ Before driving
● Make sure that the back door is fully closed. If the back door is not fully
closed, it may open unexpectedly while driving and hit near-by objects or
luggage in the luggage compartment may be thrown out, causing an acci-
dent.
● Do not allow children to play in the luggage compartment.
If a child is accidentally locked in the luggage compartment, they could
have heat exhaustion or other injuries.
● Do not allow a child to open or close the back door.
Doing so may cause the back door to operate unexpectedly, or cause the
child’s hands, head, or neck to be caught by the closing back door.
■ Important points while driving
Never let anyone sit in the luggage compartment. In the event of sudden
braking, sudden swerving or a collision, they are susceptible to death or
serious injury.
■ Operating the back door
Observe the following precautions.
Failure to do so may cause parts of the body to be caught, resulting in death
or serious injury.
● Remove any heavy loads, such as snow and ice, from the back door
before opening it. Failure to do so may cause the back door suddenly shut
again after it is opened.
● When opening or closing the back door, thoroughly check to make sure
the surrounding area is safe.
● If anyone is in the vicinity, make sure they are safe and let them know that
the back door is about to open or close.
● Use caution when opening or closing the back door in windy weather as it
may move abruptly in strong wind.

1113-2. Opening, closing and locking the doors
3
Operation of each component
AYGO_EE_OM99J92E

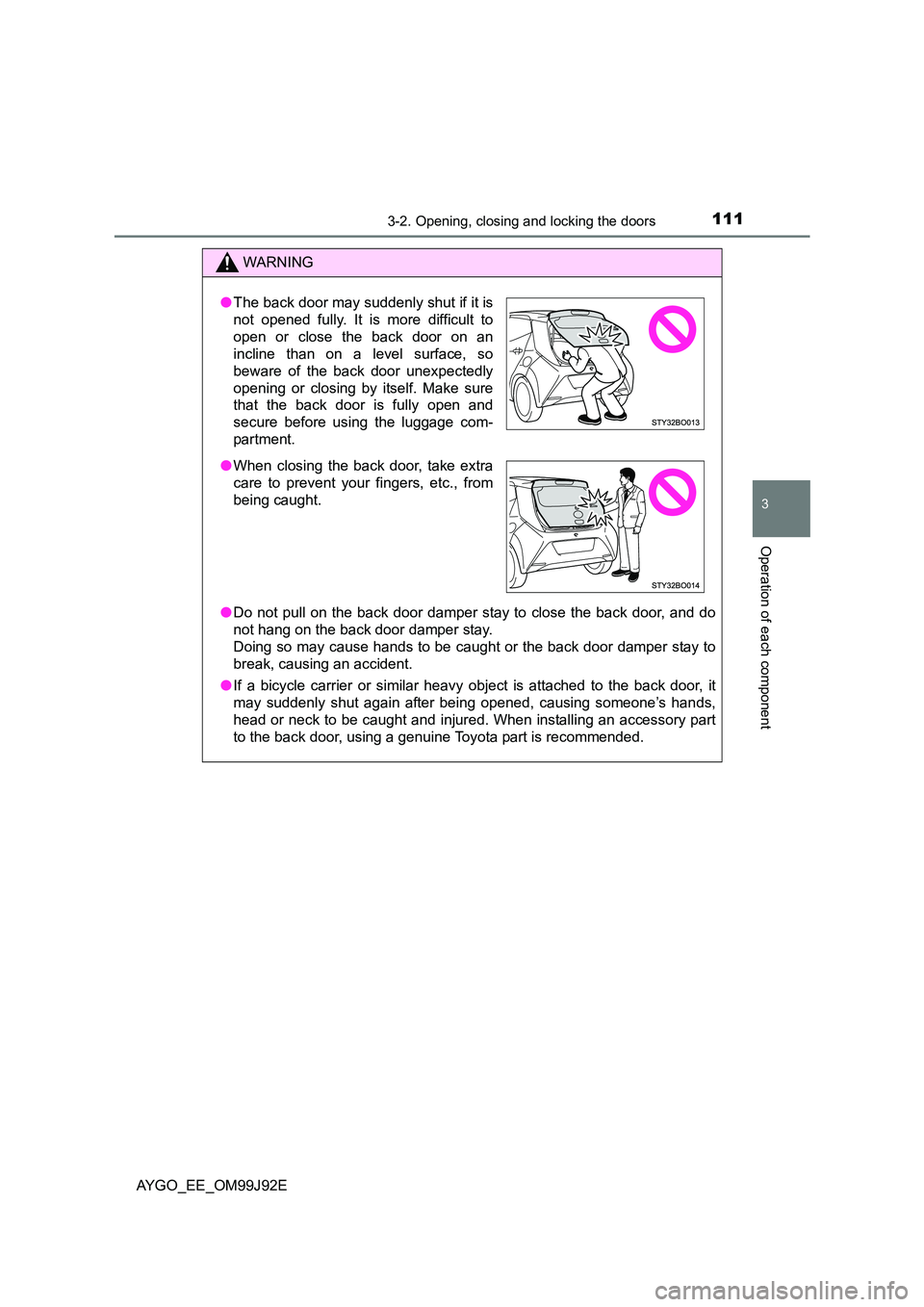

WARNING
● Do not pull on the back door damper stay to close the back door, and do
not hang on the back door damper stay.
Doing so may cause hands to be caught or the back door damper stay to
break, causing an accident.
● If a bicycle carrier or similar heavy object is attached to the back door, it
may suddenly shut again after being opened, causing someone’s hands,
head or neck to be caught and injured. When installing an accessory part
to the back door, using a genuine Toyota part is recommended.
● The back door may suddenly shut if it is
not opened fully. It is more difficult to
open or close the back door on an
incline than on a level surface, so
beware of the back door unexpectedly
opening or closing by itself. Make sure
that the back door is fully open and
secure before using the luggage com-
partment.
● When closing the back door, take extra
care to prevent your fingers, etc., from
being caught.

1123-2. Opening, closing and locking the doors
AYGO_EE_OM99J92E

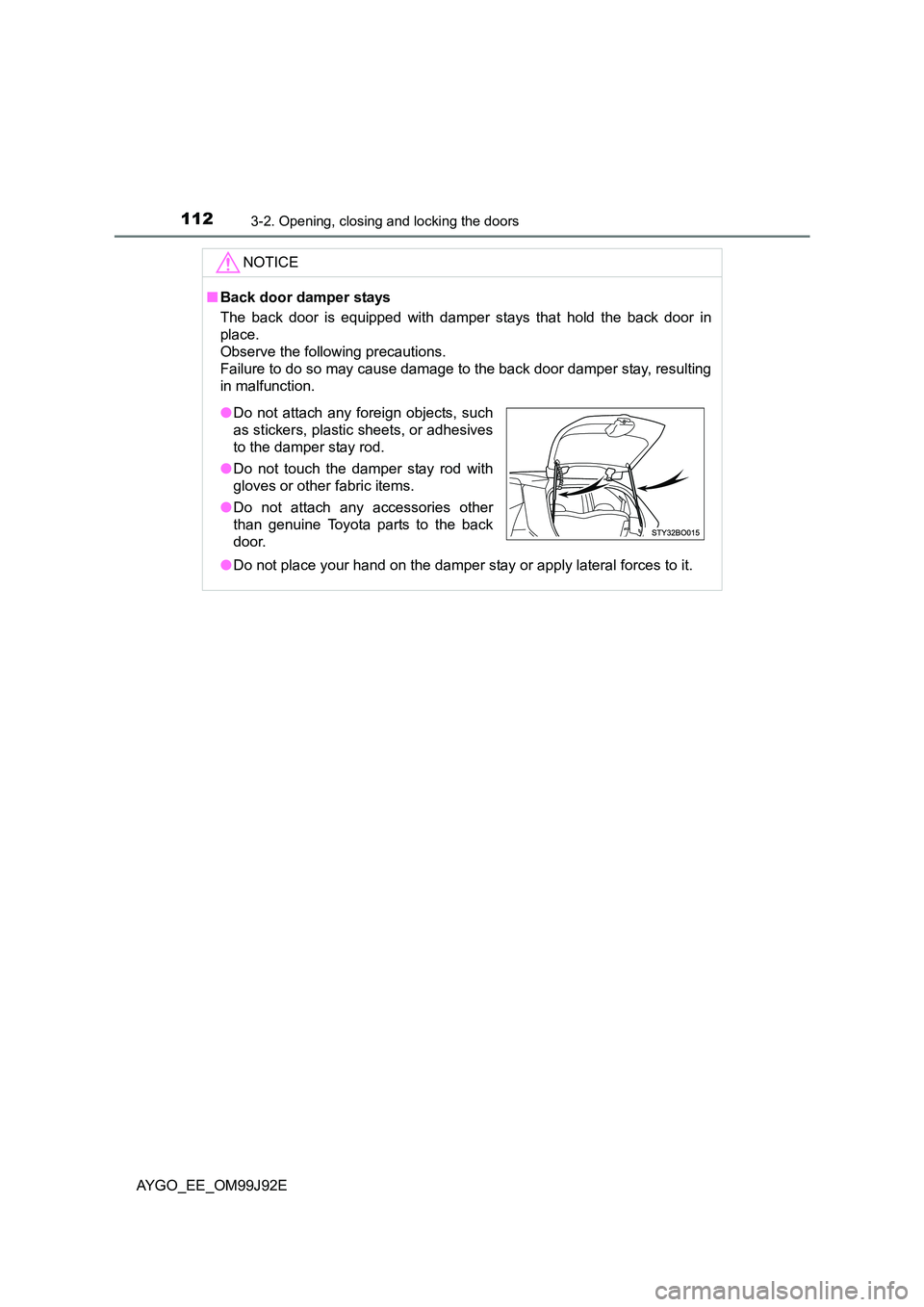

NOTICE
■ Back door damper stays
The back door is equipped with damper stays that hold the back door in
place.
Observe the following precautions.
Failure to do so may cause damage to the back door damper stay, resulting
in malfunction.
● Do not place your hand on the damper stay or apply lateral forces to it.
●Do not attach any foreign objects, such
as stickers, plastic sheets, or adhesives
to the damper stay rod.
● Do not touch the damper stay rod with
gloves or other fabric items.
● Do not attach any accessories other
than genuine Toyota parts to the back
door.
