2015 TOYOTA AYGO Owners Manual (in English)

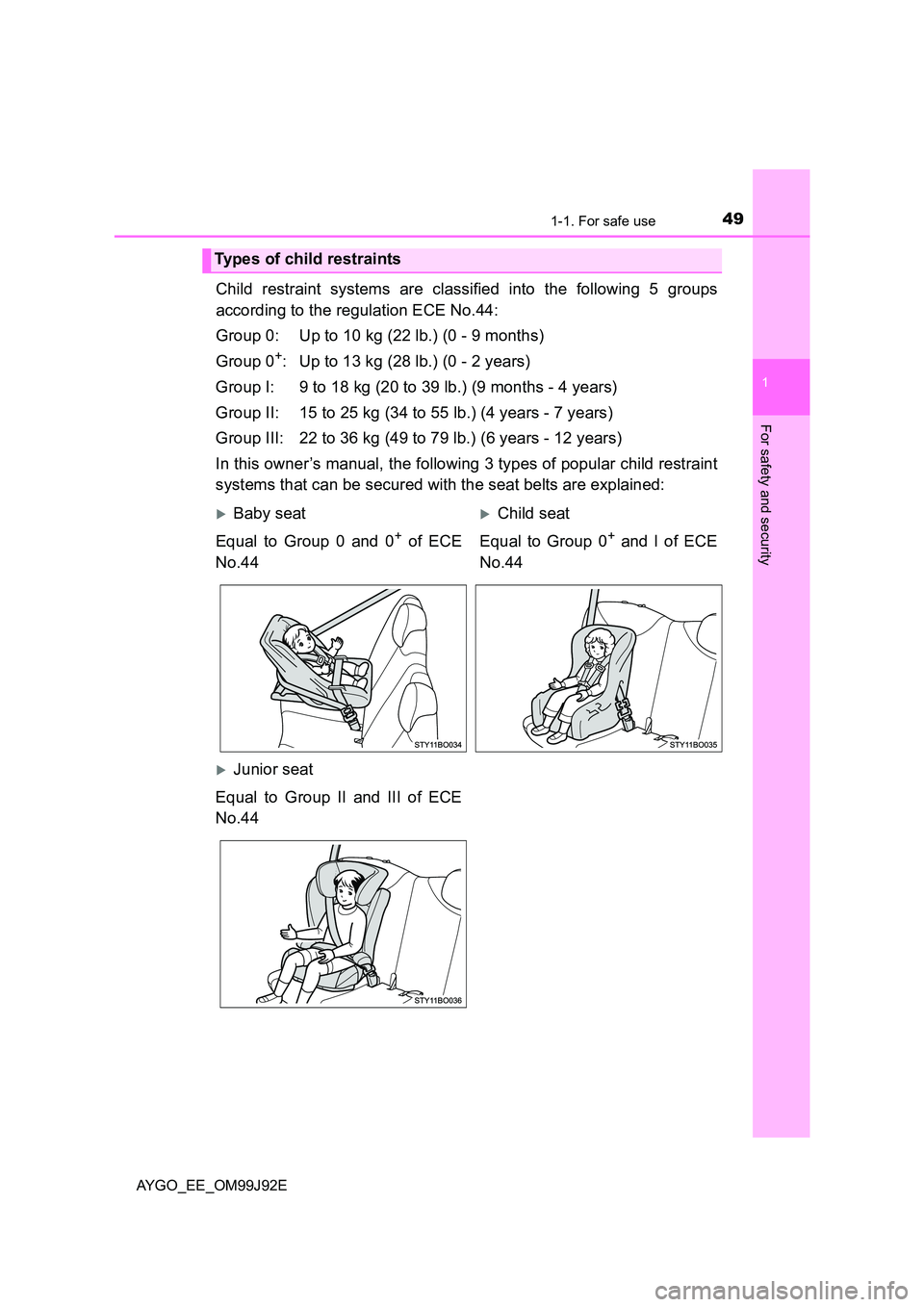

491-1. For safe use
1
For safety and security
AYGO_EE_OM99J92E
Child restraint systems are classified into the following 5 groups
according to the regulation ECE No.44:
Group 0: Up to 10 kg (22 lb.) (0 - 9 months)
Group 0+: Up to 13 kg (28 lb.) (0 - 2 years)
Group I: 9 to 18 kg (20 to 39 lb.) (9 months - 4 years)
Group II: 15 to 25 kg (34 to 55 lb.) (4 years - 7 years)
Group III: 22 to 36 kg (49 to 79 lb.) (6 years - 12 years)
In this owner’s manual, the following 3 types of popular child restraint
systems that can be secured with the seat belts are explained:
Types of child restraints
XBaby seatXChild seat
Equal to Group 0 and 0+ of ECE
No.44
Equal to Group 0+ and I of ECE
No.44
XJunior seat
Equal to Group II and III of ECE
No.44

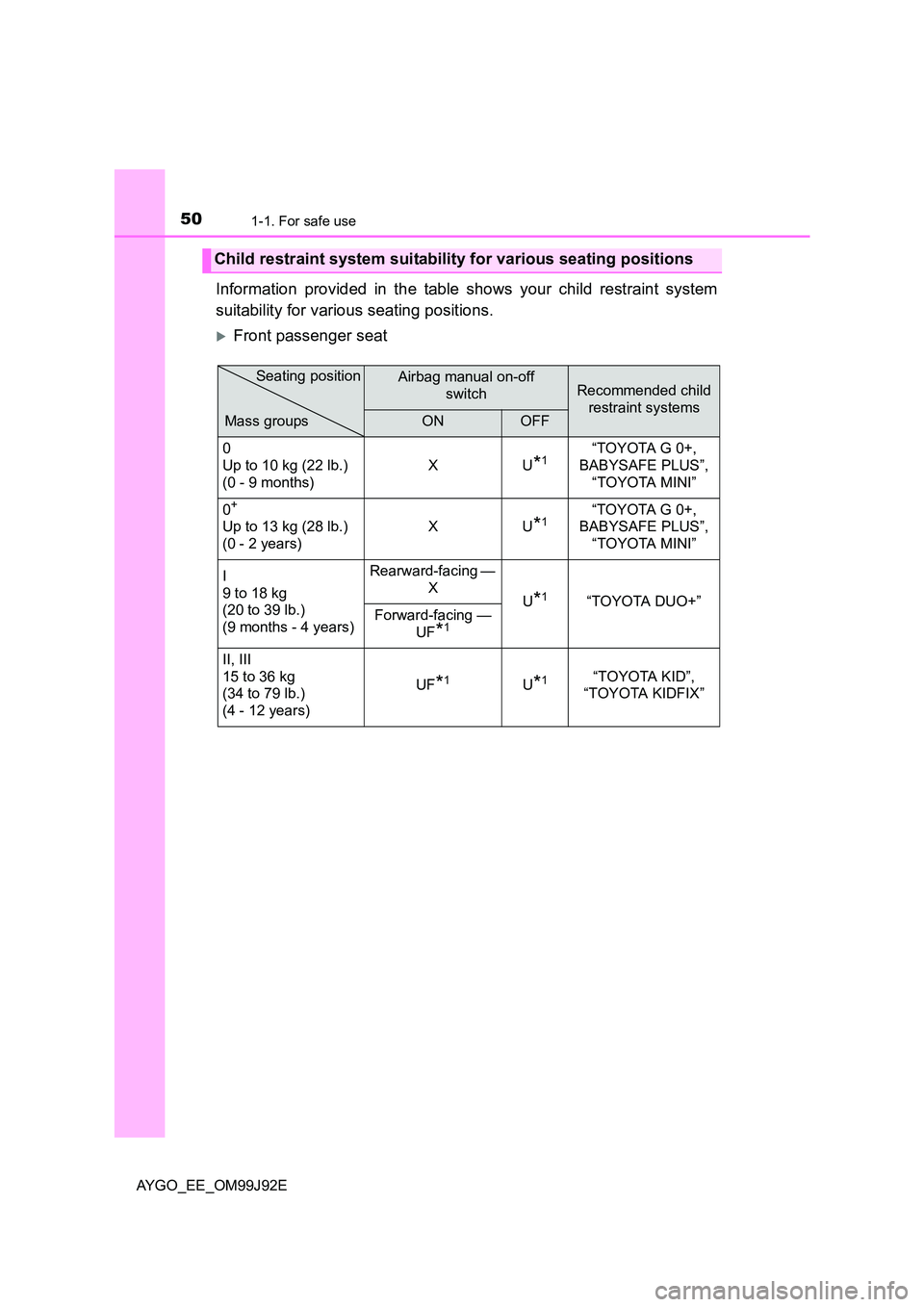

501-1. For safe use
AYGO_EE_OM99J92E
Information provided in the table shows your child restraint system
suitability for various seating positions.
XFront passenger seat
Child restraint system suitability for various seating positions
Airbag manual on-off
switchRecommended child
restraint systemsONOFF
0
Up to 10 kg (22 lb.)
(0 - 9 months)
XU*1“TOYOTA G 0+,
BABYSAFE PLUS”,
“TOYOTA MINI”
0+
Up to 13 kg (28 lb.)
(0 - 2 years)
XU*1“TOYOTA G 0+,
BABYSAFE PLUS”,
“TOYOTA MINI”
I
9 to 18 kg
(20 to 39 lb.)
(9 months - 4 years)
Rearward-facing —
X U*1“TOYOTA DUO+” Forward-facing —
UF*1
II, III
15 to 36 kg
(34 to 79 lb.)
(4 - 12 years)
UF*1U*1“TOYOTA KID”,
“TOYOTA KIDFIX”
Mass groups
Seating position

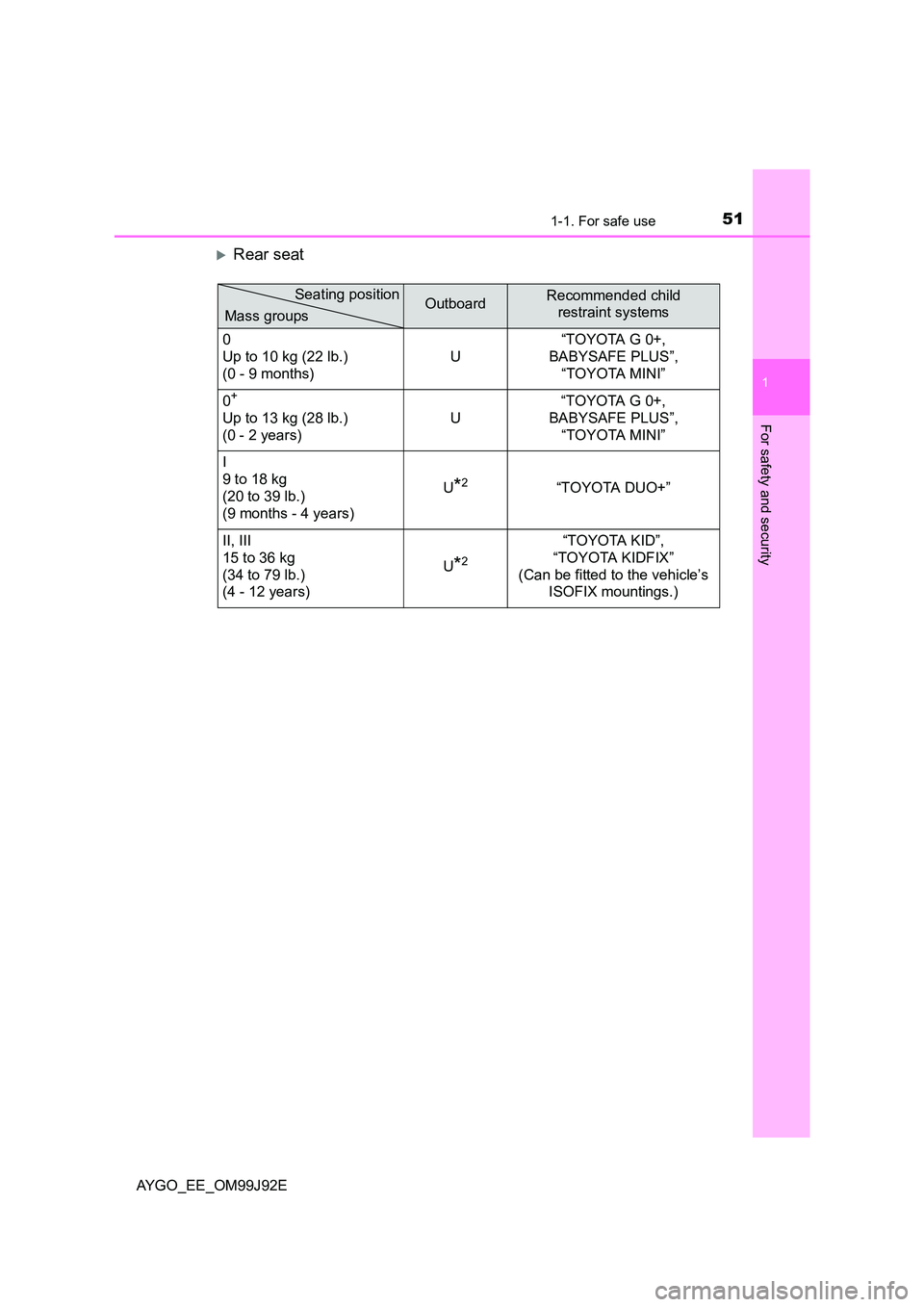

511-1. For safe use
1
For safety and security
AYGO_EE_OM99J92E
XRear seat
OutboardRecommended child
restraint systems
0
Up to 10 kg (22 lb.)
(0 - 9 months)
U
“TOYOTA G 0+,
BABYSAFE PLUS”,
“TOYOTA MINI”
0+
Up to 13 kg (28 lb.)
(0 - 2 years)
U
“TOYOTA G 0+,
BABYSAFE PLUS”,
“TOYOTA MINI”
I
9 to 18 kg
(20 to 39 lb.)
(9 months - 4 years)
U*2“TOYOTA DUO+”
II, III
15 to 36 kg
(34 to 79 lb.)
(4 - 12 years)
U*2
“TOYOTA KID”,
“TOYOTA KIDFIX”
(Can be fitted to the vehicle’s
ISOFIX mountings.)
Mass groups
Seating position

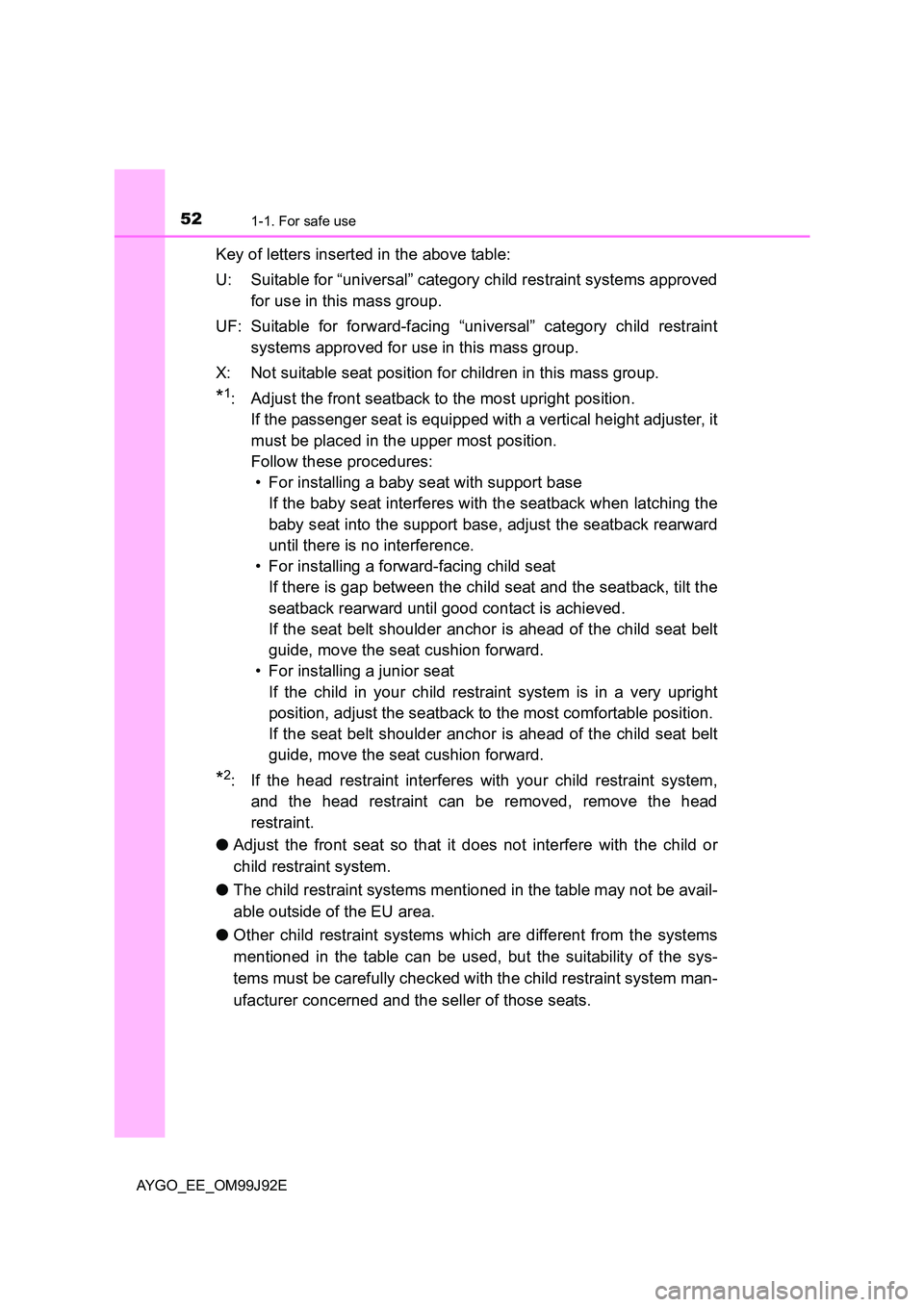

521-1. For safe use
AYGO_EE_OM99J92E
Key of letters inserted in the above table:
U: Suitable for “universal” category child restraint systems approved
for use in this mass group.
UF: Suitable for forward-facing “universal” category child restraint
systems approved for use in this mass group.
X: Not suitable seat position for children in this mass group.
*1: Adjust the front seatback to the most upright position.
If the passenger seat is equipped with a vertical height adjuster, it
must be placed in the upper most position.
Follow these procedures:
• For installing a baby seat with support base
If the baby seat interferes with the seatback when latching the
baby seat into the support base, adjust the seatback rearward
until there is no interference.
• For installing a forward-facing child seat
If there is gap between the child seat and the seatback, tilt the
seatback rearward until good contact is achieved.
If the seat belt shoulder anchor is ahead of the child seat belt
guide, move the seat cushion forward.
• For installing a junior seat
If the child in your child restraint system is in a very upright
position, adjust the seatback to the most comfortable position.
If the seat belt shoulder anchor is ahead of the child seat belt
guide, move the seat cushion forward.
*2: If the head restraint interferes with your child restraint system,
and the head restraint can be removed, remove the head
restraint.
● Adjust the front seat so that it does not interfere with the child or
child restraint system.
● The child restraint systems mentioned in the table may not be avail-
able outside of the EU area.
● Other child restraint systems which are different from the systems
mentioned in the table can be used, but the suitability of the sys-
tems must be carefully checked with the child restraint system man-
ufacturer concerned and the seller of those seats.

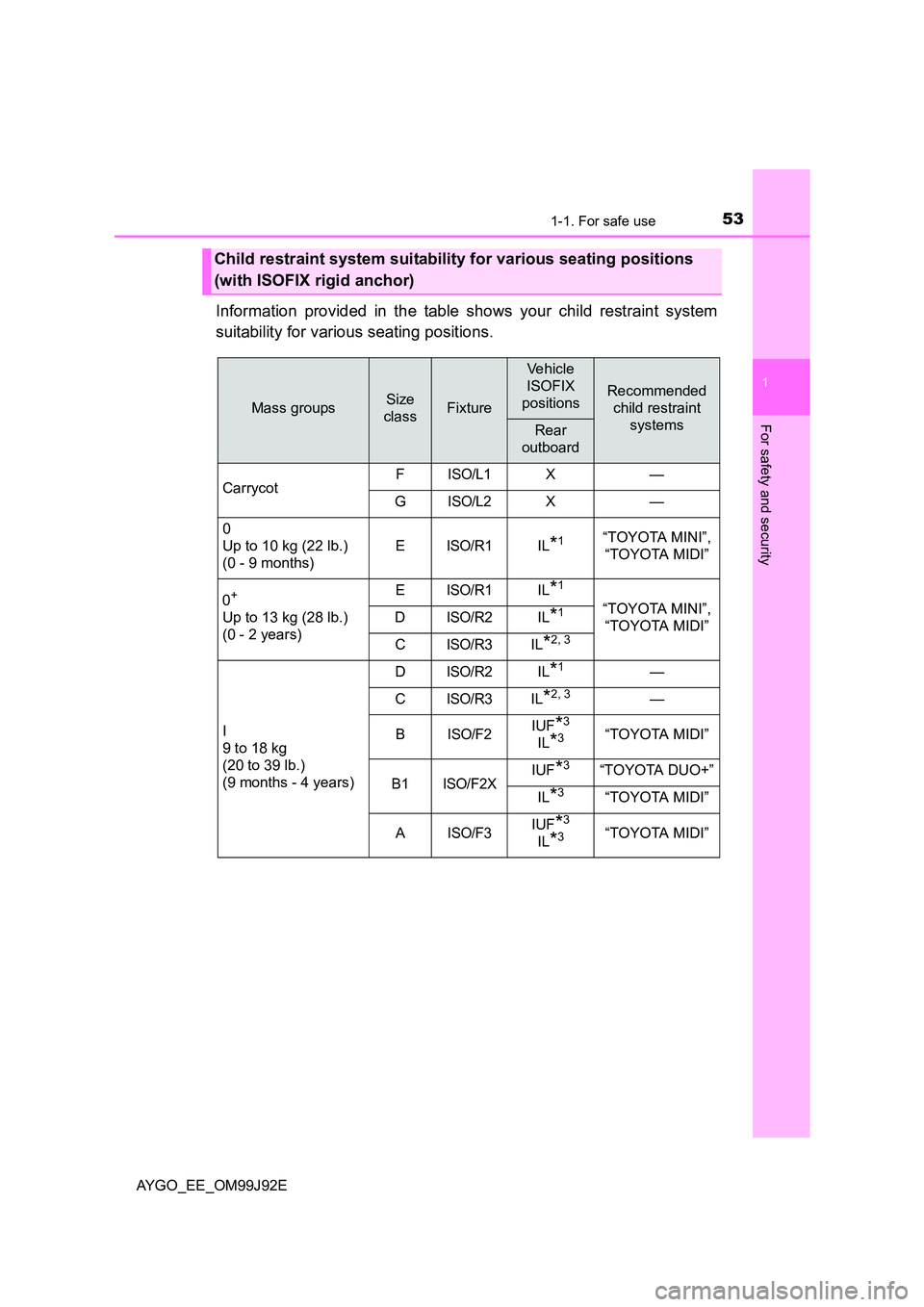

531-1. For safe use
1
For safety and security
AYGO_EE_OM99J92E
Information provided in the table shows your child restraint system
suitability for various seating positions.
Child restraint system suitability for various seating positions
(with ISOFIX rigid anchor)
Mass groupsSize
classFixture
Vehicle
ISOFIX
positionsRecommended
child restraint
systemsRear
outboard
Carrycot FISO/L1X—
GISO/L2X—
0
Up to 10 kg (22 lb.)
(0 - 9 months)
EISO/R1IL*1“TOYOTA MINI”,
“TOYOTA MIDI”
0+
Up to 13 kg (28 lb.)
(0 - 2 years)
EISO/R1IL*1
“TOYOTA MINI”,
“TOYOTA MIDI” DISO/R2IL*1
CISO/R3IL*2, 3
I
9 to 18 kg
(20 to 39 lb.)
(9 months - 4 years)
DISO/R2IL*1—
CISO/R3IL*2, 3—
BISO/F2IUF*3
IL*3“TOYOTA MIDI”
B1ISO/F2XIUF*3 “TOYOTA DUO+”
IL*3“TOYOTA MIDI”
AISO/F3IUF*3
IL*3“TOYOTA MIDI”

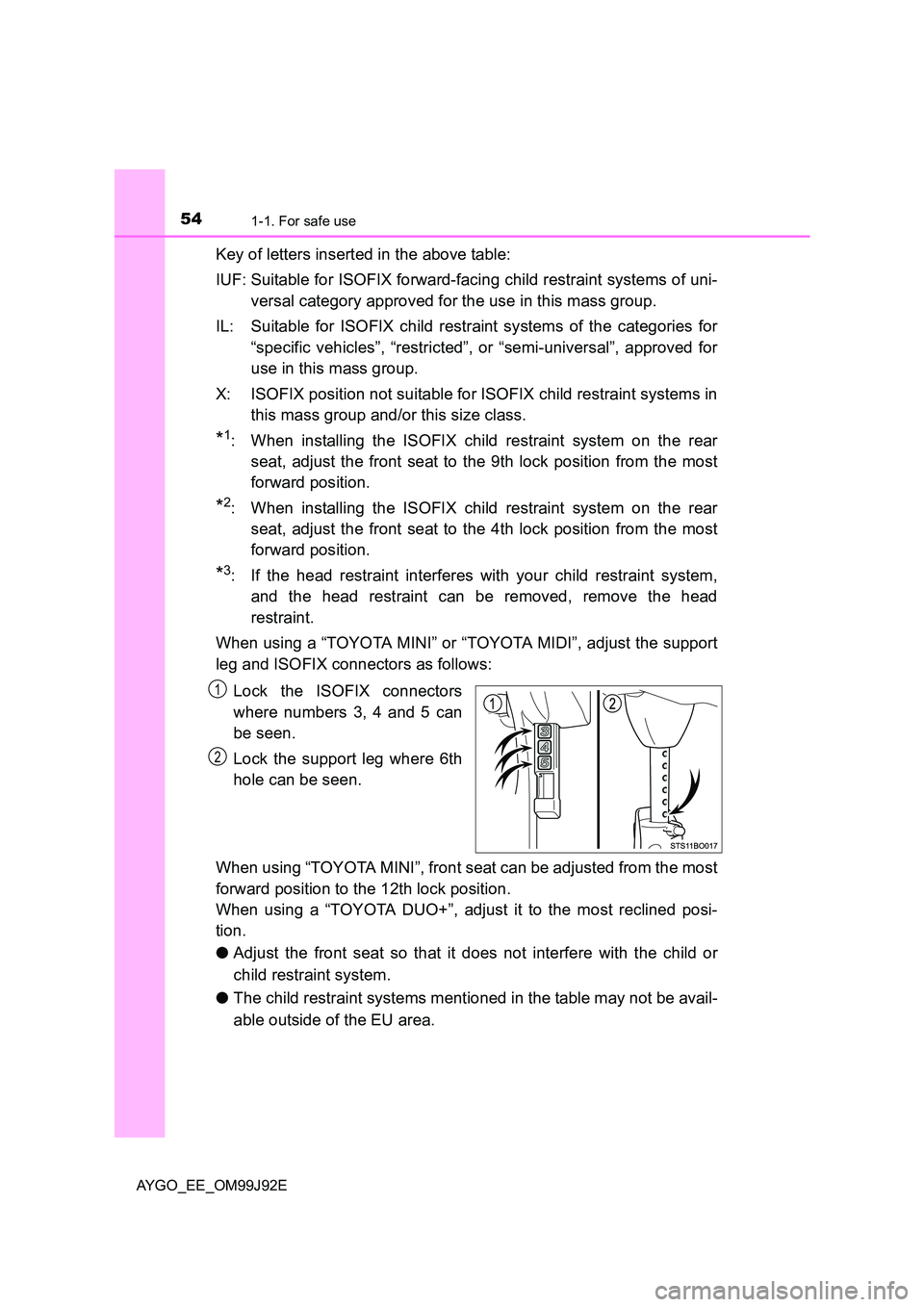

541-1. For safe use
AYGO_EE_OM99J92E
Key of letters inserted in the above table:
IUF: Suitable for ISOFIX forward-facing child restraint systems of uni-
versal category approved for the use in this mass group.
IL: Suitable for ISOFIX child restraint systems of the categories for
“specific vehicles”, “restricted”, or “semi-universal”, approved for
use in this mass group.
X: ISOFIX position not suitable for ISOFIX child restraint systems in
this mass group and/or this size class.
*1: When installing the ISOFIX child restraint system on the rear
seat, adjust the front seat to the 9th lock position from the most
forward position.
*2: When installing the ISOFIX child restraint system on the rear
seat, adjust the front seat to the 4th lock position from the most
forward position.
*3: If the head restraint interferes with your child restraint system,
and the head restraint can be removed, remove the head
restraint.
When using a “TOYOTA MINI” or “TOYOTA MIDI”, adjust the support
leg and ISOFIX connectors as follows:
Lock the ISOFIX connectors
where numbers 3, 4 and 5 can
be seen.
Lock the support leg where 6th
hole can be seen.
When using “TOYOTA MINI”, front seat can be adjusted from the most
forward position to the 12th lock position.
When using a “TOYOTA DUO+”, adjust it to the most reclined posi-
tion.
● Adjust the front seat so that it does not interfere with the child or
child restraint system.
● The child restraint systems mentioned in the table may not be avail-
able outside of the EU area.
1
2

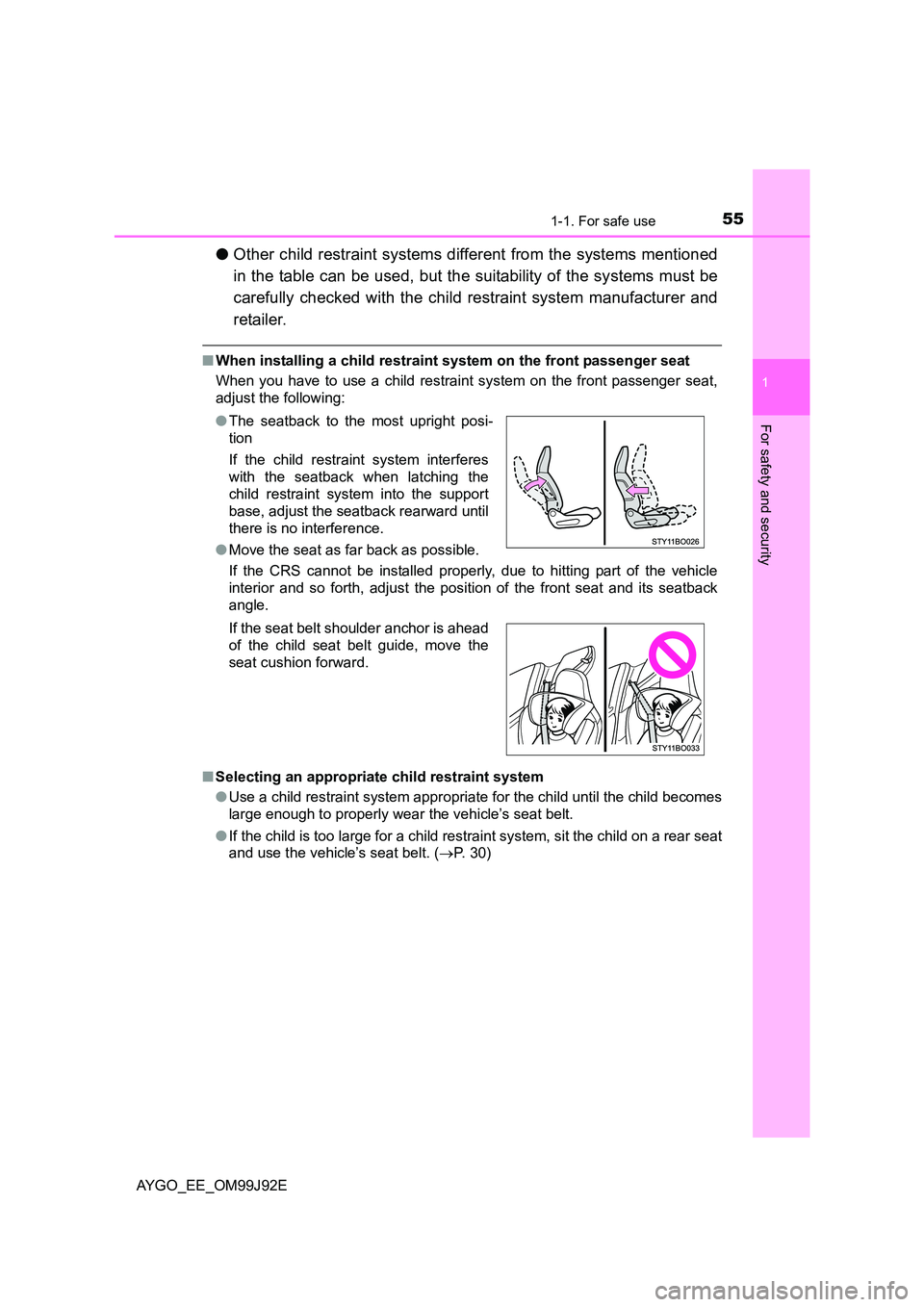

551-1. For safe use
1
For safety and security
AYGO_EE_OM99J92E
●Other child restraint systems different from the systems mentioned
in the table can be used, but the suitability of the systems must be
carefully checked with the child restraint system manufacturer and
retailer.
■ When installing a child restraint system on the front passenger seat
When you have to use a child restraint system on the front passenger seat,
adjust the following:
If the CRS cannot be installed properly, due to hitting part of the vehicle
interior and so forth, adjust the position of the front seat and its seatback
angle.
■ Selecting an appropriate child restraint system
● Use a child restraint system appropriate for the child until the child becomes
large enough to properly wear the vehicle’s seat belt.
● If the child is too large for a child restraint system, sit the child on a rear seat
and use the vehicle’s seat belt. ( →P. 30)
● The seatback to the most upright posi-
tion
If the child restraint system interferes
with the seatback when latching the
child restraint system into the support
base, adjust the seatback rearward until
there is no interference.
● Move the seat as far back as possible.
If the seat belt shoulder anchor is ahead
of the child seat belt guide, move the
seat cushion forward.

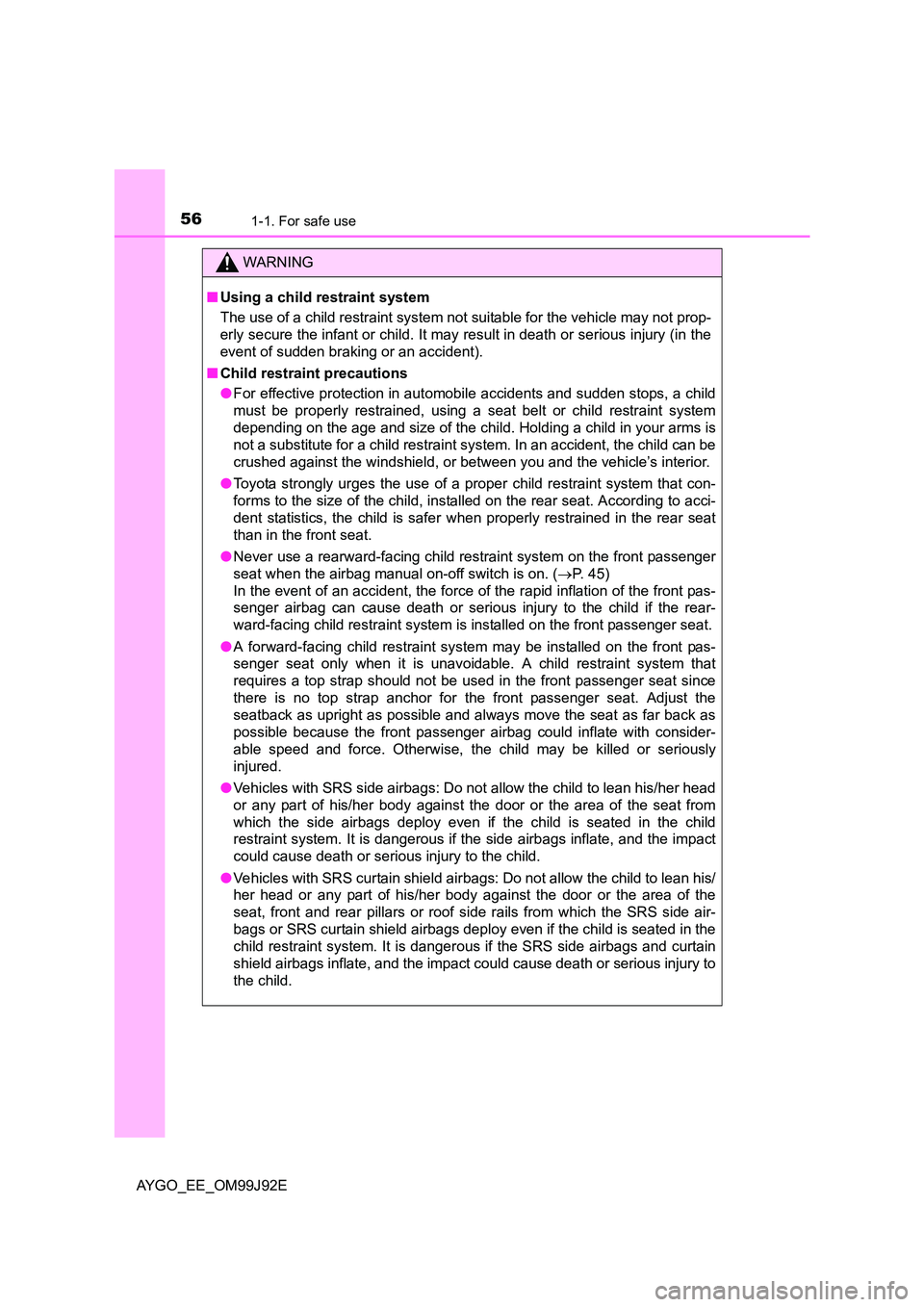

561-1. For safe use
AYGO_EE_OM99J92E
WARNING
■ Using a child restraint system
The use of a child restraint system not suitable for the vehicle may not prop-
erly secure the infant or child. It may result in death or serious injury (in the
event of sudden braking or an accident).
■ Child restraint precautions
● For effective protection in automobile accidents and sudden stops, a child
must be properly restrained, using a seat belt or child restraint system
depending on the age and size of the child. Holding a child in your arms is
not a substitute for a child restraint system. In an accident, the child can be
crushed against the windshield, or between you and the vehicle’s interior.
● Toyota strongly urges the use of a proper child restraint system that con-
forms to the size of the child, installed on the rear seat. According to acci-
dent statistics, the child is safer when properly restrained in the rear seat
than in the front seat.
● Never use a rearward-facing child restraint system on the front passenger
seat when the airbag manual on-off switch is on. ( →P. 4 5 )
In the event of an accident, the force of the rapid inflation of the front pas-
senger airbag can cause death or serious injury to the child if the rear-
ward-facing child restraint system is installed on the front passenger seat.
● A forward-facing child restraint system may be installed on the front pas-
senger seat only when it is unavoidable. A child restraint system that
requires a top strap should not be used in the front passenger seat since
there is no top strap anchor for the front passenger seat. Adjust the
seatback as upright as possible and always move the seat as far back as
possible because the front passenger ai rbag could inflate with consider-
able speed and force. Otherwise, the child may be killed or seriously
injured.
● Vehicles with SRS side airbags: Do not allow the child to lean his/her head
or any part of his/her body against the door or the area of the seat from
which the side airbags deploy even if the child is seated in the child
restraint system. It is dangerous if the side airbags inflate, and the impact
could cause death or serious injury to the child.
● Vehicles with SRS curtain shield airbags: Do not allow the child to lean his/
her head or any part of his/her body against the door or the area of the
seat, front and rear pillars or roof side rails from which the SRS side air-
bags or SRS curtain shield airbags deploy even if the child is seated in the
child restraint system. It is dangerous if the SRS side airbags and curtain
shield airbags inflate, and the impact could cause death or serious injury to
the child.
