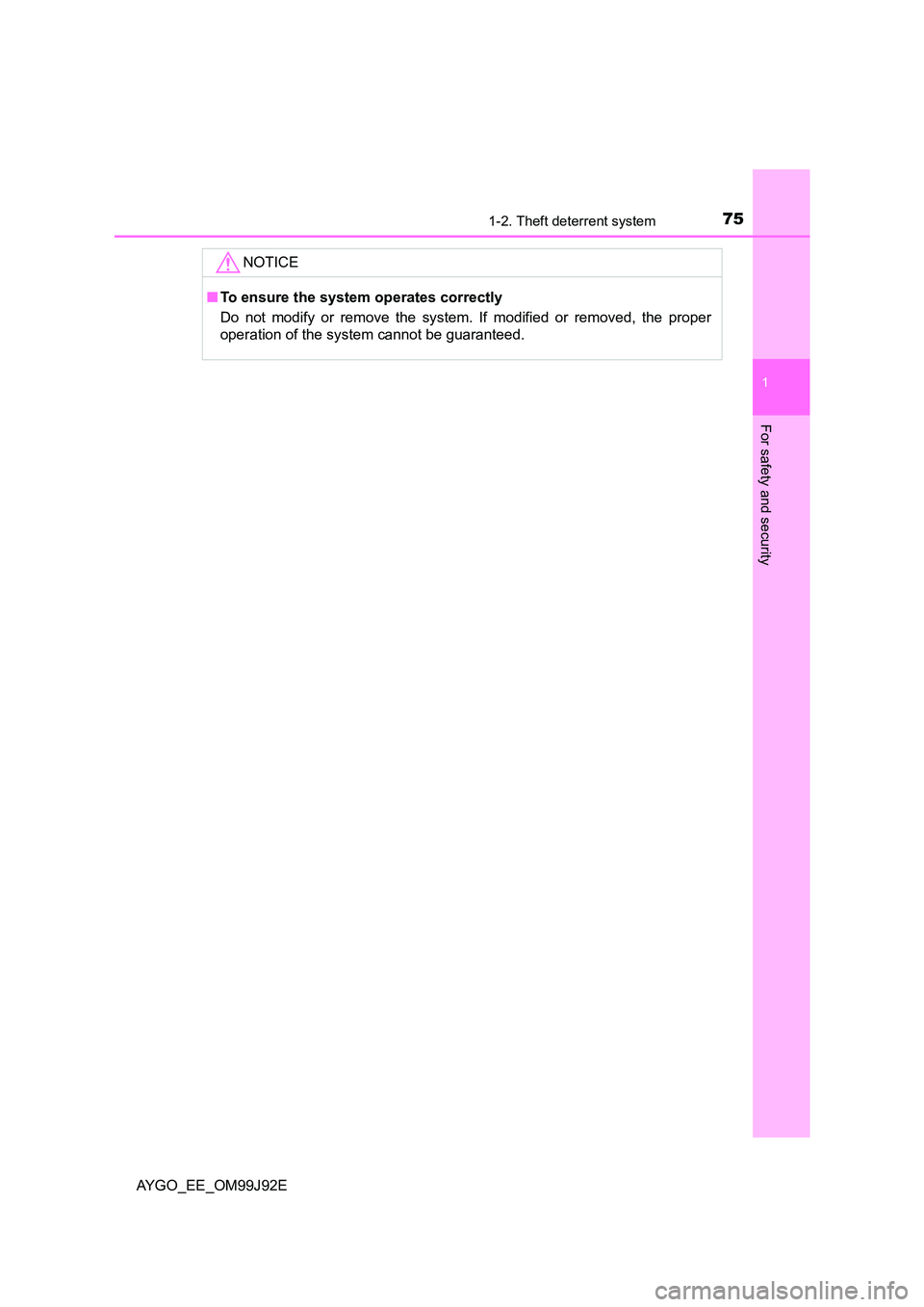

NOTICE
■ To ensure the system operates correctly
Do not modify or remove the system. If modified or removed, the proper
operation of the system cannot be guaranteed.

761-2. Theft deterrent system
AYGO_EE_OM99J92E

77
2Instrument cluster
AYGO_EE_OM99J92E
2. Instrument cluster
Warning lights
and indicators .................... 78
Gauges and meters ............. 83
Multi-information display ...... 85

782. Instrument cluster
AYGO_EE_OM99J92E

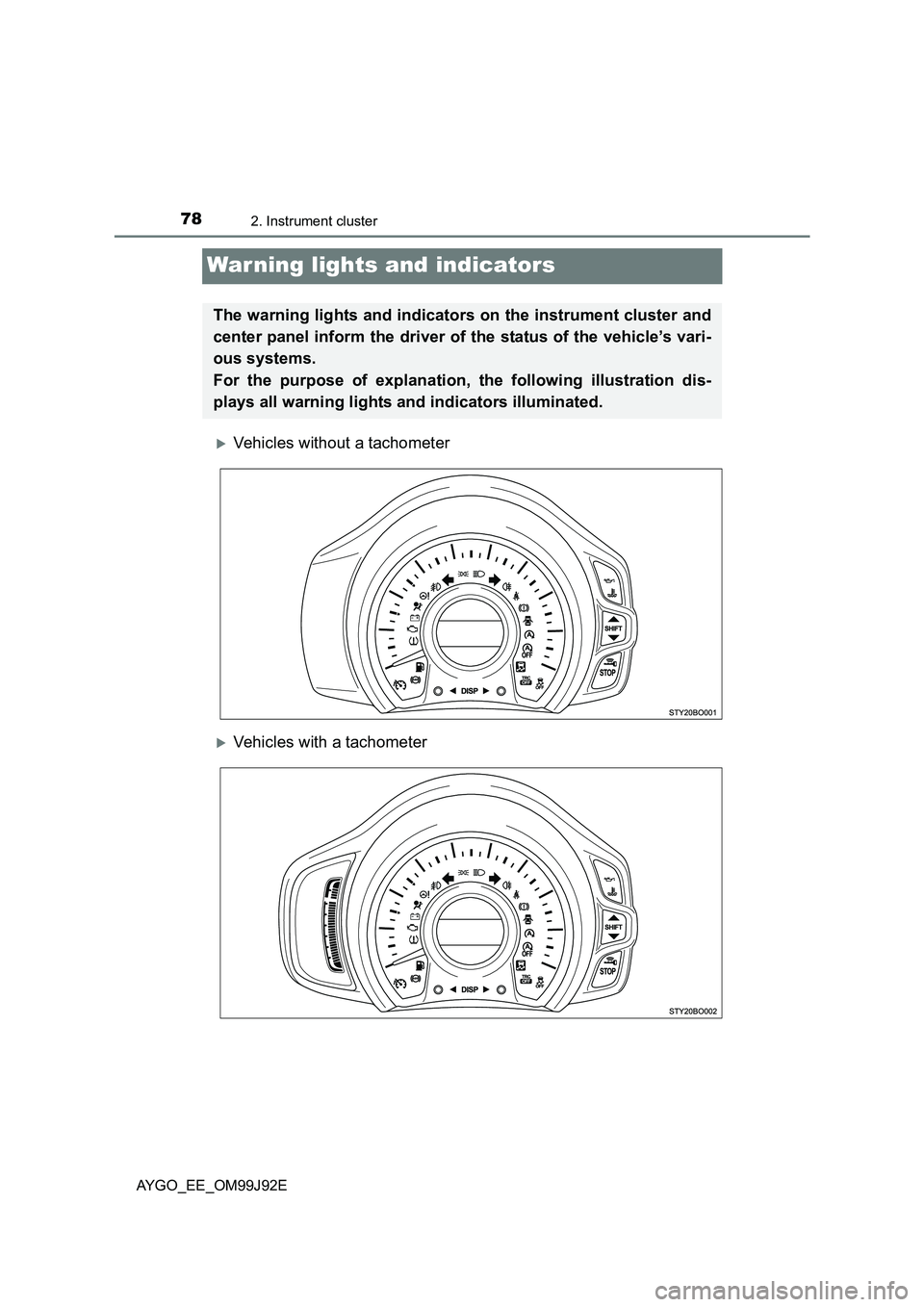

War ning lights and indicators
XVehicles without a tachometer
XVehicles with a tachometer
The warning lights and indicators on the instrument cluster and
center panel inform the driver of the status of the vehicle’s vari-
ous systems.
For the purpose of explanation, the following illustration dis-
plays all warning lights and indicators illuminated.

792. Instrument cluster
2
Instrument cluster
AYGO_EE_OM99J92E
Warning lights inform the driver of malfunctions in the indicated vehi-
cle’s systems.
Warning lights
*1
Brake system warning
light ( →P. 352)
*2, 3, 4
(Yellow)
Speed limiter indicator
( →P. 354)
*1
Charging system
warning light ( →P. 352)
*2, 5
Speed limiter indicator
( →P. 354)
*1
Low engine oil pressure
warning light ( →P. 352)
*1, 2, 6
Stop & Start cancel
indicator ( →P. 354)
*1High engine coolant
temperature warning
light ( →P. 352, 353)
*1, 2
Slip indicator (→P. 355)
*1
“STOP” warning light
( →P. 353)
*2, 7
(Yellow)
Smart entry & start
system indicator light
( →P. 355, 359)
*1, 2Multi-mode manual
transmission
warning light ( →P. 353)
Open door warning light
( →P. 355)
*1
Malfunction indicator
lamp ( →P. 354)
*8Driver’s and front pas-
senger’s seat belt
reminder light ( →P. 355)
*1
SRS warning light
( →P. 354)
*2, 9
Rear passengers’ seat
belt reminder lights
( →P. 355)
*1
ABS warning light
( →P. 354)
Low fuel level warning
light ( →P. 355)
*1Electric power steering
system warning light
( →P. 354)
*1, 2
Tire pressure warning
light ( →P. 356)

802. Instrument cluster
AYGO_EE_OM99J92E
*1: These lights turn on when the engine switch is turned to the “ON” position
(vehicles without a smart entry & start system) or IGNITION ON mode
(vehicles with a smart entry & start system), to indicate that a system check
is being performed. They will turn off after the engine is started, or after a
few seconds. There may be a malfunction in a system if the lights do not
come on, or turn off. Have the vehicle inspected by any authorized Toyota
dealer or repairer, or another duly qualified and equipped professional.
*2: If equipped
*3: The light comes in yellow to indicate a malfunction.
*4: For 1KR engine
*5: For HM01 engine
*6: The light flashes to indicate a malfunction.
*7: The light flashes in yellow to indicate a malfunction. The light flashes
quickly in green to indicate that the steering lock has not been released.
*8: Driver’s seat belt reminder light only, on some models
*9: This light illuminates on the center panel.
The indicators inform the driver of the operating state of the vehicle’s
various systems.
Indicators
*1Gear Shift indicator
( →P. 161, 163)
*2Front fog light indicator
( →P. 171)
Turn signal indicator
( →P. 165)
Rear fog light indicator
( →P. 171)
*2
(Green)
Smart entry & start
system indicator light
( →P. 154)
*1, 2, 3
Slip indicator light
( →P. 192)
Tail light indicator
( →P. 167)
*1, 2
VSC off indicator
( →P. 192)
Headlight high beam
indicator ( →P. 168)
*2, 4
(Green)
Speed limiter indicator
light ( →P. 181)
