2015 TOYOTA AYGO Owners Manual (in English)

892. Instrument cluster
2
Instrument cluster
AYGO_EE_OM99J92E
WARNING
■ The information display at low temperatures (vehicles with a multi-
mode manual transmission)
Allow the interior of the vehicle to warm up before using the liquid crystal
information display. At extremely low temperatures, the information display
monitor may respond slowly, and display changes may be delayed.
For example, there is a lag between the driver's shifting and the new gear
number appearing on the display. This lag could cause the driver to down-
shift again, causing rapid and excessive engine braking and possibly an
accident resulting in death or serious injury.
■ Cautions during setting up the display
As the engine needs to be operating during setting up the display, ensure
that the vehicle is parked in a place with adequate ventilation. In a closed
area such as a garage, exhaust gases including harmful carbon monoxide
(CO) may collect and enter the vehicle. This may lead to death or a serious
health hazard.
NOTICE
■ The information display at low temperatures (vehicles with a manual
transmission)
Allow the interior of the vehicle to warm up before using the liquid crystal
information display. At extremely low temperatures, the information display
monitor may respond slowly, and display changes may be delayed.

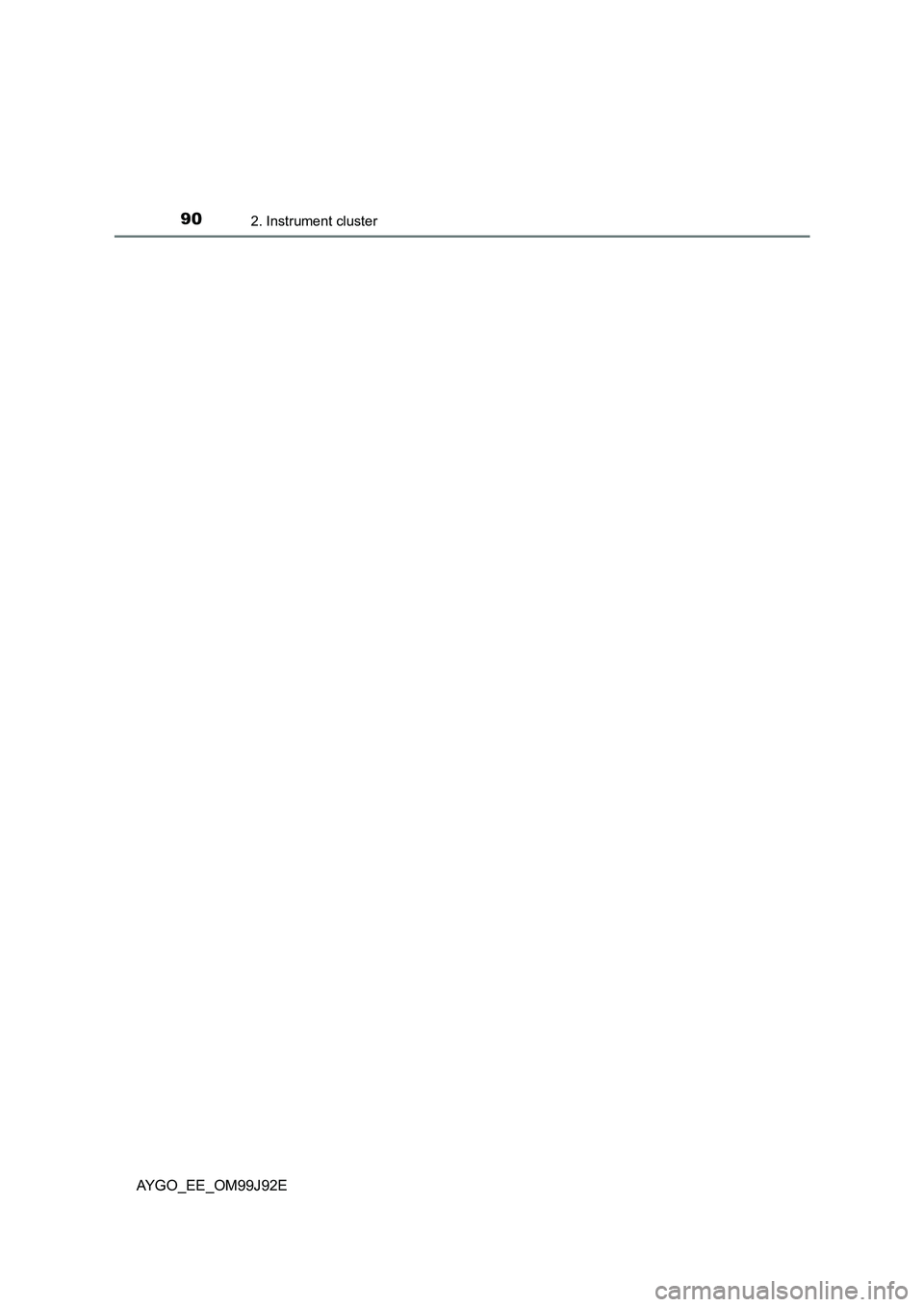

902. Instrument cluster
AYGO_EE_OM99J92E

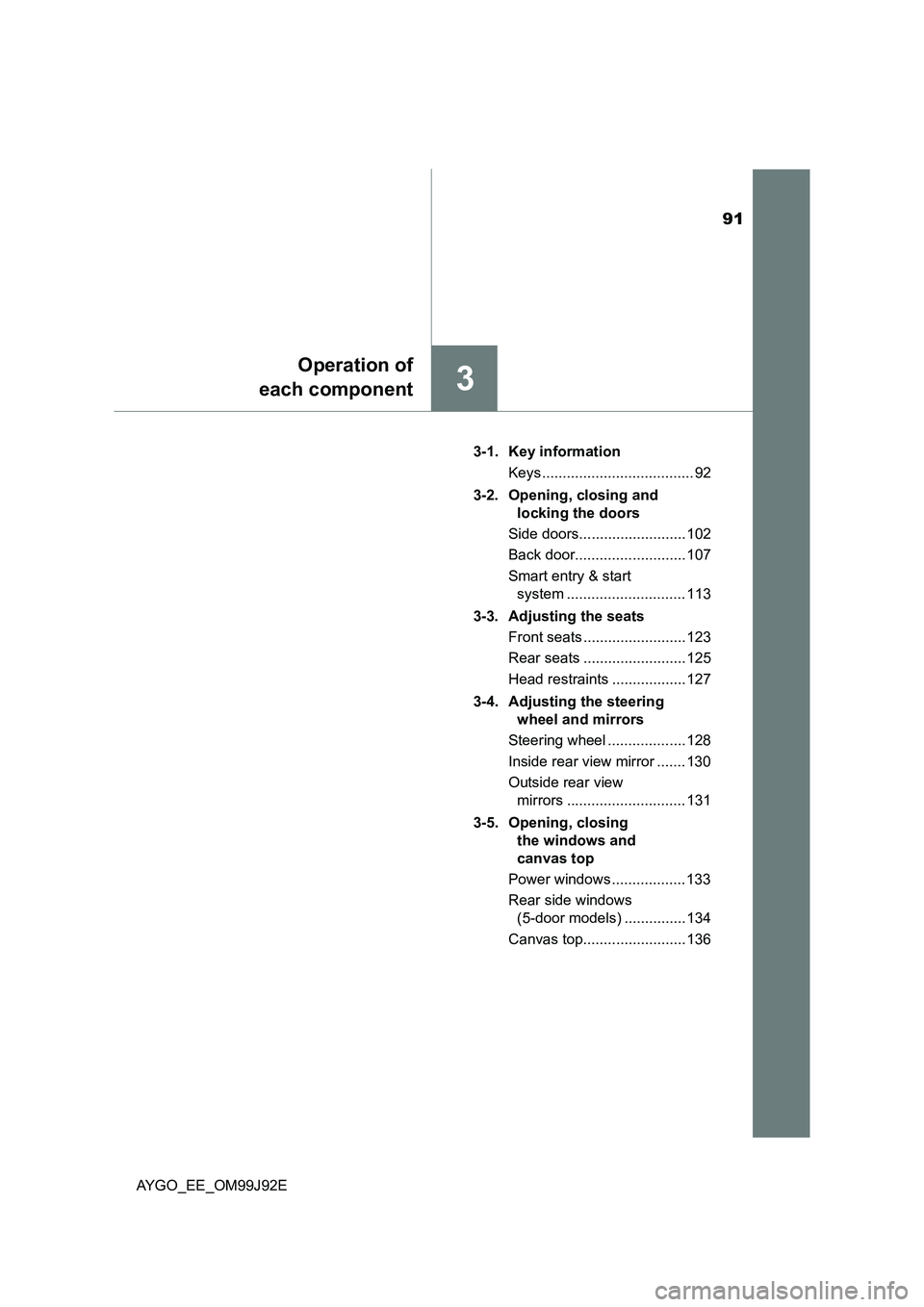

91
3
Operation of
each component
AYGO_EE_OM99J92E
3-1. Key information
Keys ..................................... 92
3-2. Opening, closing and
locking the doors
Side doors.......................... 102
Back door........................... 107
Smart entry & start
system ............................. 113
3-3. Adjusting the seats
Front seats ......................... 123
Rear seats ......................... 125
Head restraints .................. 127
3-4. Adjusting the steering
wheel and mirrors
Steering wheel ................... 128
Inside rear view mirror ....... 130
Outside rear view
mirrors ............................. 131
3-5. Opening, closing
the windows and
canvas top
Power windows .................. 133
Rear side windows
(5-door models) ............... 134
Canvas top......................... 136

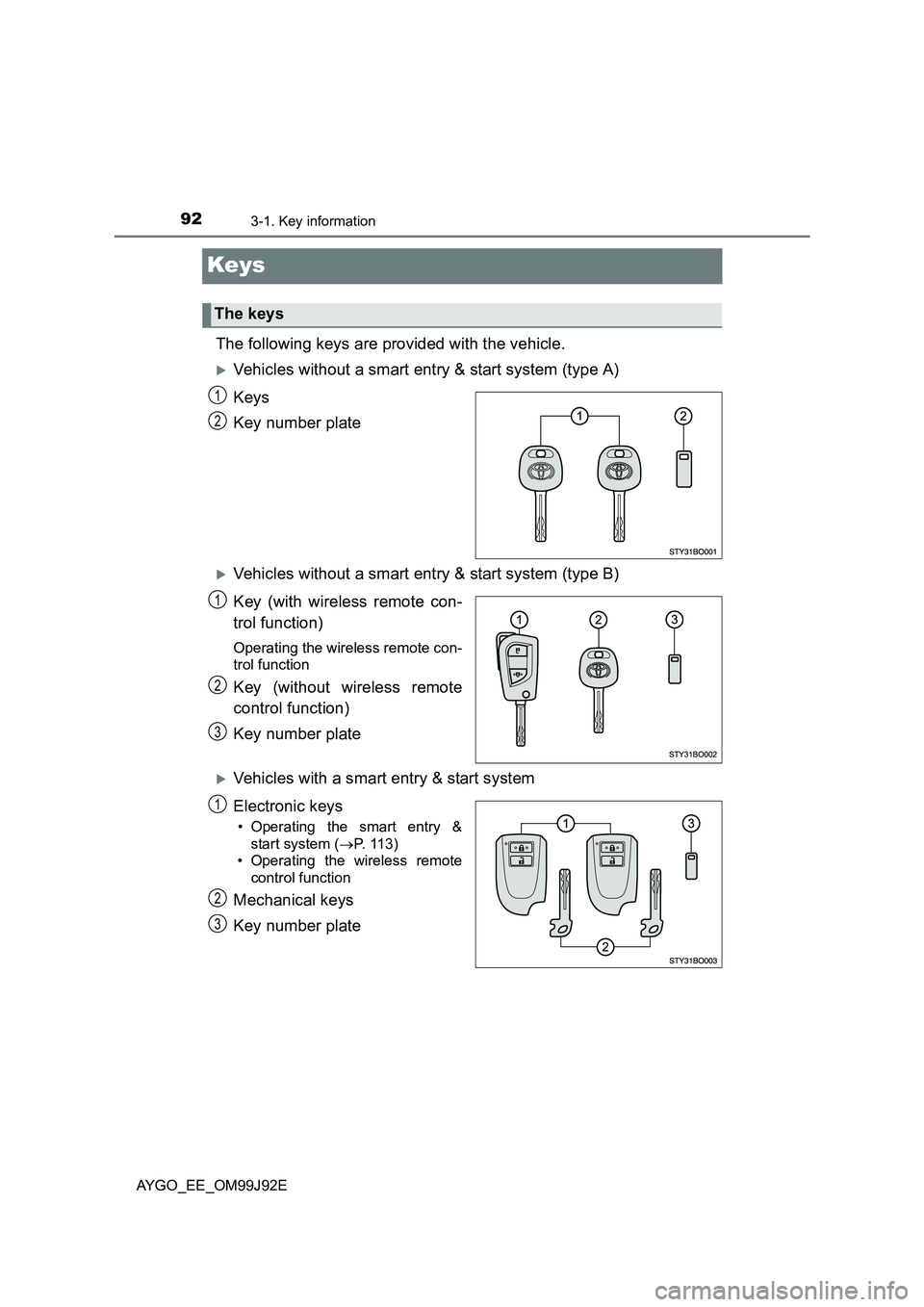

923-1. Key information
AYGO_EE_OM99J92E
Keys
The following keys are provided with the vehicle.
XVehicles without a smart entry & start system (type A)
Keys
Key number plate
XVehicles without a smart entry & start system (type B)
Key (with wireless remote con-
trol function)
Operating the wireless remote con-
trol function
Key (without wireless remote
control function)
Key number plate
XVehicles with a smart entry & start system
Electronic keys
• Operating the smart entry &
start system ( →P. 113)
• Operating the wireless remote
control function
Mechanical keys
Key number plate
The keys
1
2
1
2
3
1
2
3

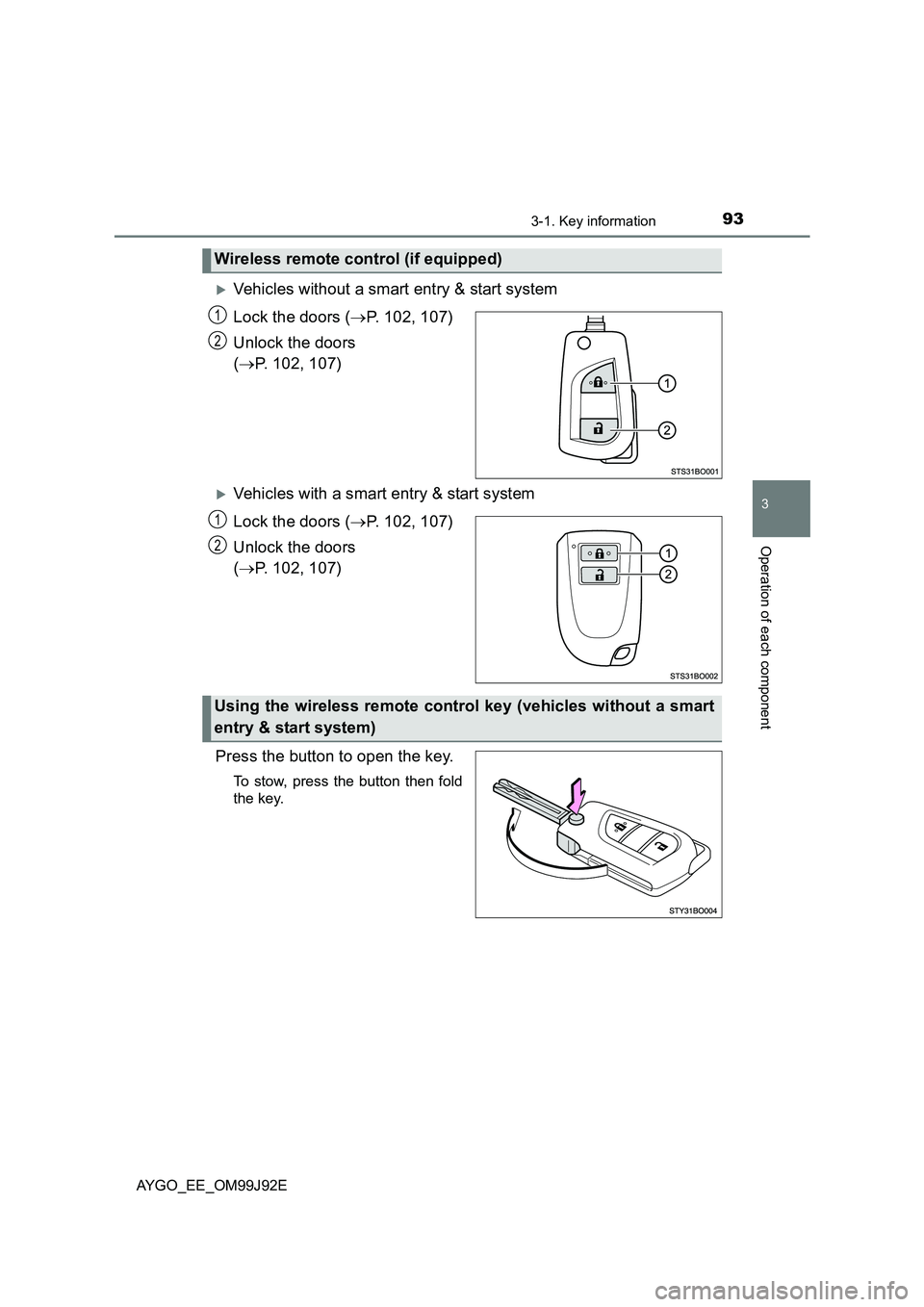

933-1. Key information
3
Operation of each component
AYGO_EE_OM99J92E
XVehicles without a smart entry & start system
Lock the doors ( →P. 102, 107)
Unlock the doors
( →P. 102, 107)
XVehicles with a smart entry & start system
Lock the doors ( →P. 102, 107)
Unlock the doors
( →P. 102, 107)
Press the button to open the key.
To stow, press the button then fold
the key.
Wireless remote control (if equipped)
1
2
1
2
Using the wireless remote control key (vehicles without a smart
entry & start system)

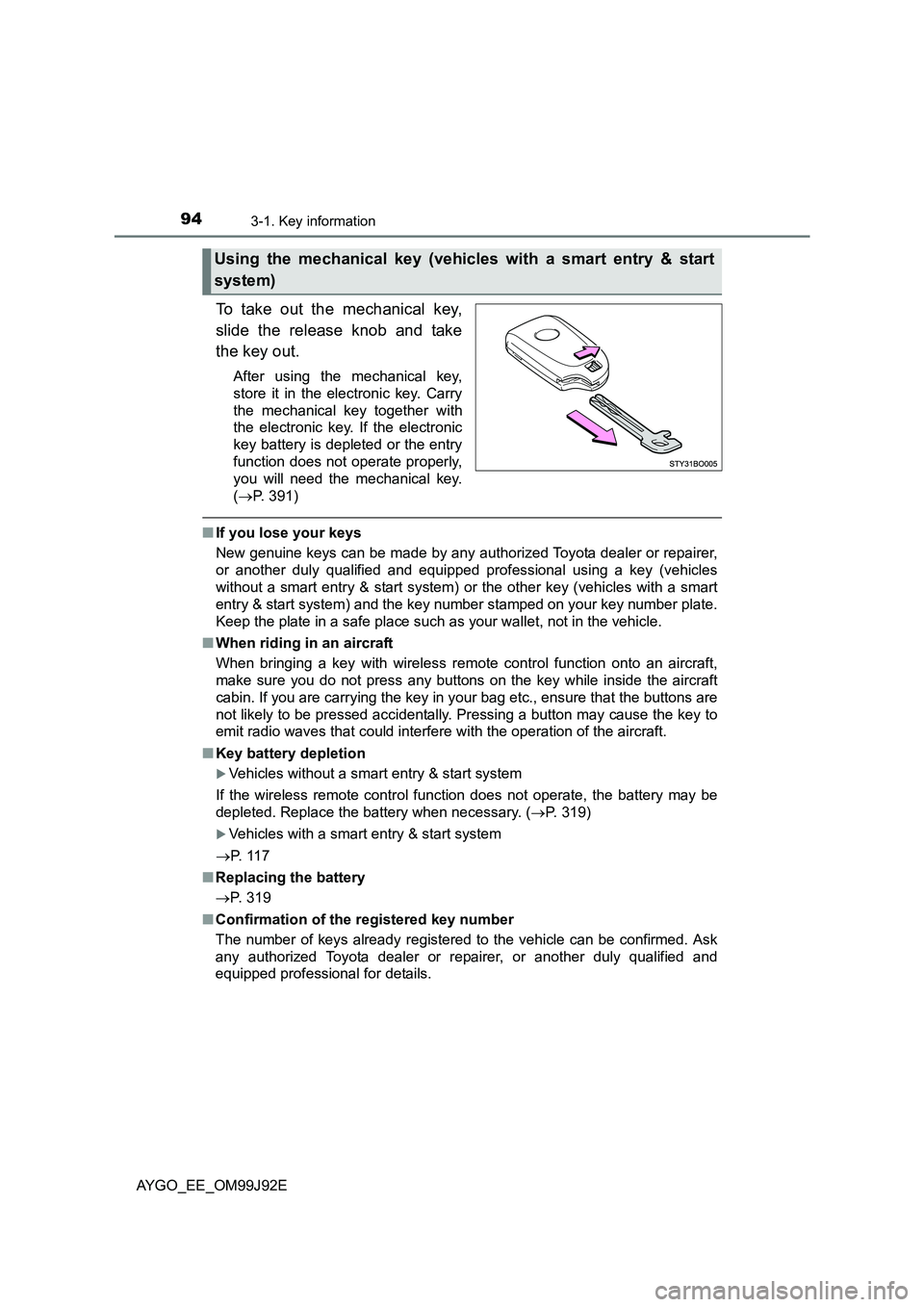

943-1. Key information
AYGO_EE_OM99J92E
To take out the mechanical key,
slide the release knob and take
the key out.
After using the mechanical key,
store it in the electronic key. Carry
the mechanical key together with
the electronic key. If the electronic
key battery is depleted or the entry
function does not operate properly,
you will need the mechanical key.
( →P. 391)
■If you lose your keys
New genuine keys can be made by any authorized Toyota dealer or repairer,
or another duly qualified and equipped pr ofessional using a key (vehicles
without a smart entry & start system) or the other key (vehicles with a smart
entry & start system) and the key number stamped on your key number plate.
Keep the plate in a safe place such as your wallet, not in the vehicle.
■ When riding in an aircraft
When bringing a key with wireless remo te control function onto an aircraft,
make sure you do not press any buttons on the key while inside the aircraft
cabin. If you are carrying the key in your bag etc., ensure that the buttons are
not likely to be pressed accidentally. Pressing a button may cause the key to
emit radio waves that could interfere with the operation of the aircraft.
■ Key battery depletion
XVehicles without a smart entry & start system
If the wireless remote control function does not operate, the battery may be
depleted. Replace the battery when necessary. ( →P. 319)
XVehicles with a smart entry & start system
→ P. 11 7
■ Replacing the battery
→ P. 319
■ Confirmation of the registered key number
The number of keys already registered to the vehicle can be confirmed. Ask
any authorized Toyota dealer or re pairer, or another duly qualified and
equipped professional for details.
Using the mechanical key (vehicles with a smart entry & start
system)

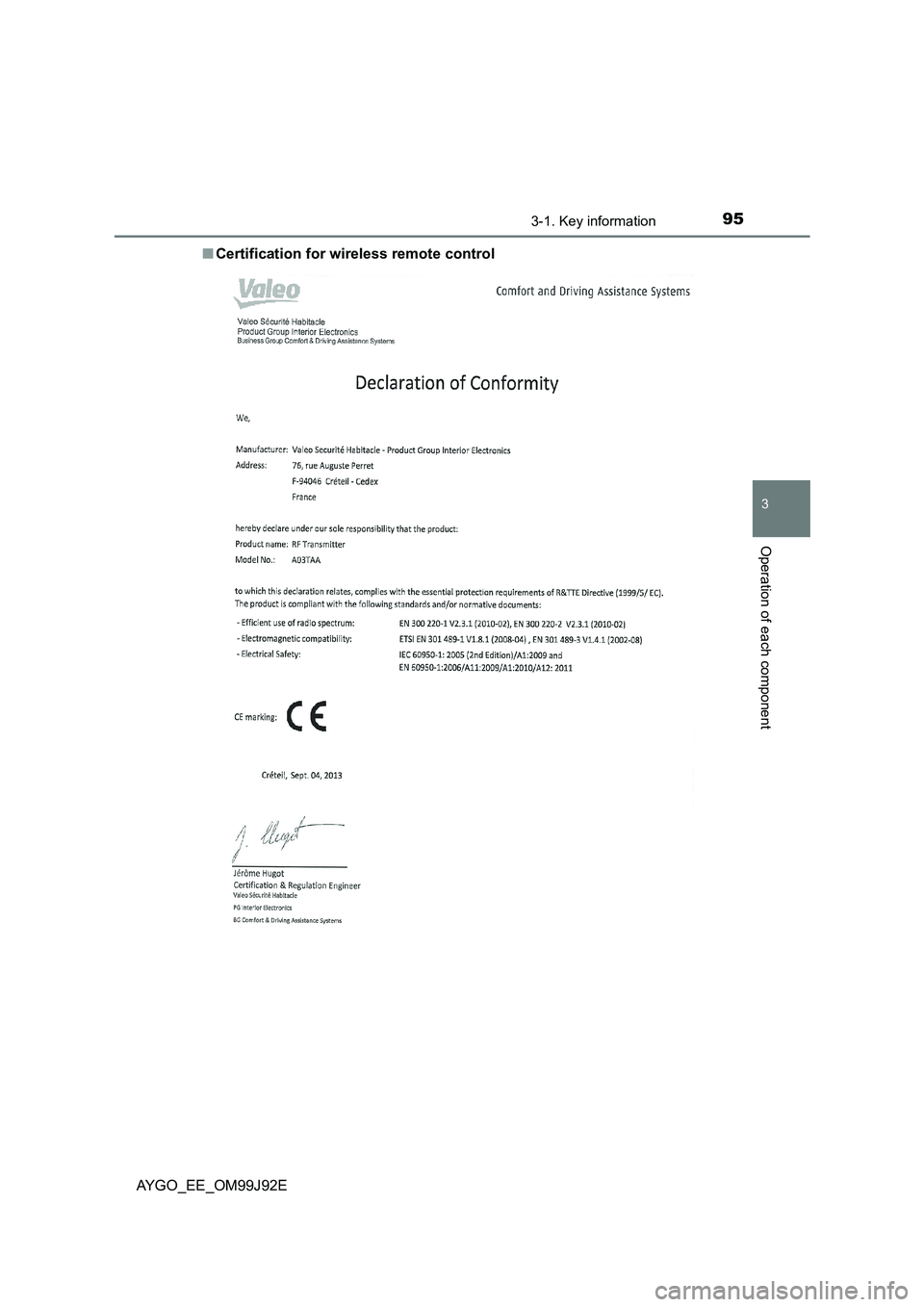

953-1. Key information
3
Operation of each component
AYGO_EE_OM99J92E
■ Certification for wireless remote control

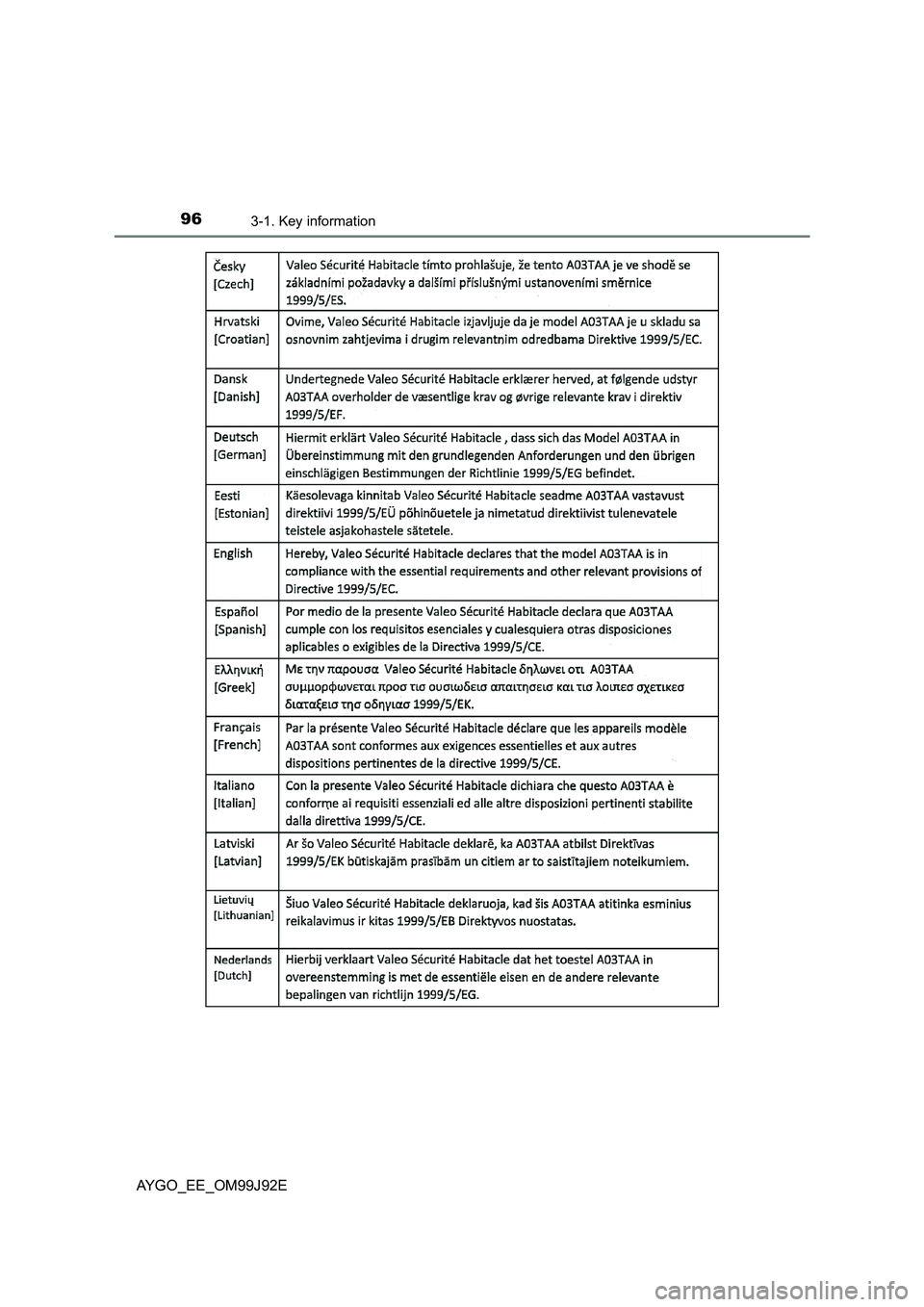

963-1. Key information
AYGO_EE_OM99J92E
