1373-5. Opening, closing the windows and canvas top
3
Operation of each component
AYGO_EE_OM99J92E
■ When the canvas top auto operation is not available
Perform the following procedure:
Vehicles without a smart entry & start system: Turn the engine switch to
the “ON” (engine running) position.
Vehicles with a smart entry & start system: Turn the engine switch to IGNI-
TION ON (engine running) mode.
Press and hold the close switch until the following operations finishes.
Canvas top closes → canvas top opens → canvas top closes again
Check to make sure that the canvas top is completely closed and then
release the switch.
If the auto operation is available, the initialization is finished correctly.
If the auto operation is not available, perform the initialization method again.
WARNING
Observe the following precautions.
Failure to do so may cause death or serious injury.
■ Opening and closing the canvas top
● Do not allow any passengers to put their hands or heads outside the vehi-
cle while it is moving.
● Do not sit on top of the canvas top.
● The driver is responsible for canvas top opening and closing operations.
In order to prevent accidental operation, especially by a child, do not let a
child operate the canvas top. It is possible for children and other passen-
gers to have body parts caught in the canvas top.
● Check to make sure that all passengers do not have any part of their body
in a position where it could be caught when the canvas top is being oper-
ated.
● When exiting the vehicle, turn the engine switch to the “LOCK” position
(vehicles without a smart entry & start system) or off (vehicles with a smart
entry & start system), carry the key and exit the vehicle along with the
child. There may be accidental operation, due to mischief, etc., that may
possibly lead to an accident.
1
2
3

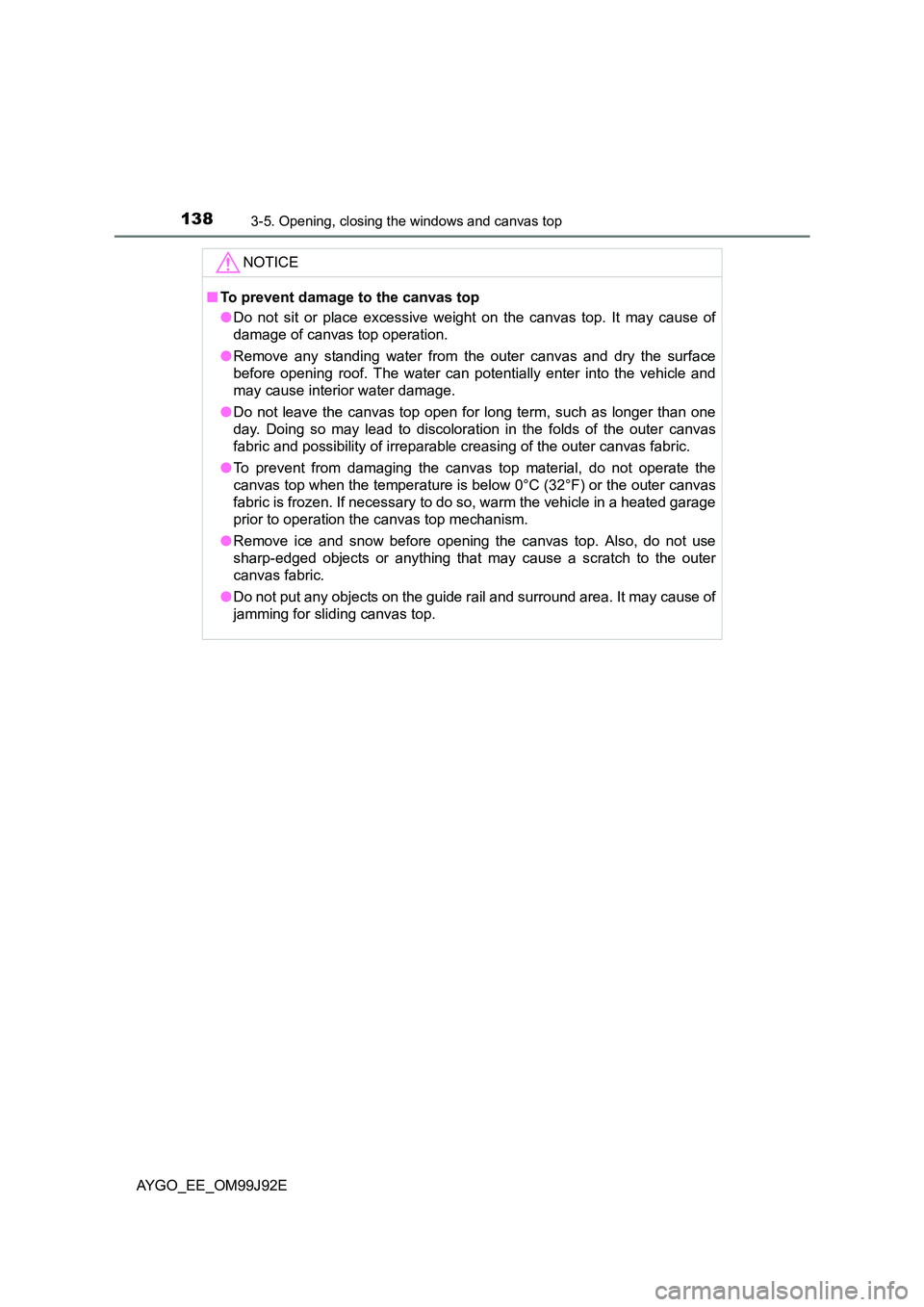

1383-5. Opening, closing the windows and canvas top
AYGO_EE_OM99J92E
NOTICE
■ To prevent damage to the canvas top
● Do not sit or place excessive weight on the canvas top. It may cause of
damage of canvas top operation.
● Remove any standing water from the outer canvas and dry the surface
before opening roof. The water can potentially enter into the vehicle and
may cause interior water damage.
● Do not leave the canvas top open for long term, such as longer than one
day. Doing so may lead to discoloration in the folds of the outer canvas
fabric and possibility of irreparable creasing of the outer canvas fabric.
● To prevent from damaging the canvas top material, do not operate the
canvas top when the temperature is below 0°C (32°F) or the outer canvas
fabric is frozen. If necessary to do so, warm the vehicle in a heated garage
prior to operation the canvas top mechanism.
● Remove ice and snow before opening the canvas top. Also, do not use
sharp-edged objects or anything that may cause a scratch to the outer
canvas fabric.
● Do not put any objects on the guide rail and surround area. It may cause of
jamming for sliding canvas top.

139
4Driving
AYGO_EE_OM99J92E
4-1. Before driving
Driving the vehicle ............. 140
Cargo and luggage ............ 149
Trailer towing ..................... 150
4-2. Driving procedures
Engine (ignition) switch
(vehicles without a smart
entry & start system)........ 151
Engine (ignition) switch
(vehicles with a smart
entry & start system)........ 154
Multi-mode manual
transmission .................... 159
Manual transmission.......... 163
Turn signal lever ................ 165
Parking brake .................... 166
4-3. Operating the lights
and wipers
Headlight switch................. 167
Fog light switch .................. 171
Windshield wiper
and washer ...................... 173
Rear window wiper
and washer ...................... 175
4-4. Refueling
Opening the fuel tank
cap ................................... 177
4-5. Using the driving support
systems
Speed limiter ...................... 181
Stop & Start system ........... 185
Driving assist systems ....... 191
4-6. Driving tips
Winter driving tips .............. 196

1404-1. Before driving
AYGO_EE_OM99J92E
Driving the vehicle
→P. 151, 154
XMulti-mode manual transmission
With the brake pedal depressed, shift the shift lever to E or M.
( →P. 159)
When shifting the shift lever to E: Make sure that the display of the gear
position indicator shows E.
When shifting the shift lever to M: Make sure that the display of the gear
position indicator shows 1.
Release the parking brake. ( →P. 166)
Gradually release the brake pedal and gently depress the accelera-
tor pedal to accelerate the vehicle.
XManual transmission
While depressing the clutch pedal, shift the shift lever to 1.
( →P. 163)
Release the parking brake. ( →P. 166)
Gradually release the clutch pedal. At the same time, depress the
accelerator pedal to accelerate the vehicle.
XMulti-mode manual transmission
With the shift lever in E or M, depress the brake pedal.
If necessary, set the parking brake. ( →P. 166)
If the vehicle is to be stopped for an extended period of time, shift the shift
lever to N. ( →P. 159)
The following procedures should be observed to ensure safe
driving:
Starting the engine
Driving
Stopping
1
2
3
1
2
3
1
2

1414-1. Before driving
4
Driving
AYGO_EE_OM99J92E
XManual transmission
While depressing the clutch pedal, depress the brake pedal.
If necessary, set the parking brake. ( →P. 166)
If the vehicle is to be stopped for an extended period of time, shift
the shift lever to N. ( →P. 163)
Vehicles with a Stop & Start system: If the Stop & Start system is
enabled, shifting the shift lever to N and releasing the clutch pedal
will stop the engine. ( →P. 185)
XMulti-mode manual transmission
With the shift lever in E or M, depress the brake pedal.
Set the parking brake. ( →P. 166)
Shift the shift lever to E, M or R. ( →P. 159)
If parking on a hill, block the wheels as needed.
Vehicles without a smart entry & start system:
Turn the engine switch to the “LOCK” position to stop the engine.
Vehicles with a smart entry & start system:
Press the engine switch to stop the engine.
Make sure that the display of the gear position indicator shows 1 or R.
Lock the door, making sure that you have the key on your person.
XManual transmission
While depressing the clutch pedal, depress the brake pedal.
Set the parking brake. ( →P. 166)
Shift the shift lever to N. ( →P. 163)
If parking on a hill, shift the shift lever to 1 or R and block the wheels as
needed.
Vehicles without a smart entry & start system:
Turn the engine switch to the “LOCK” position to stop the engine.
Vehicles with a smart entry & start system:
Press the engine switch to stop the engine.
Lock the door, making sure that you have the key on your person.
Parking the vehicle
1
2
1
2
3
4
5
1
2
3
4
5

1424-1. Before driving
AYGO_EE_OM99J92E
XMulti-mode manual transmission
With the brake pedal depressed, firmly set the parking brake and
shift the shift lever to E or M.
When shifting the shift lever to E: Make sure that the display of the gear
position indicator shows E.
When shifting the shift lever to M: Make sure that the display of the gear
position indicator shows 1.
Gently depress the accelerator pedal.
Release the parking brake.
XManual transmission
With the parking brake firmly set and the clutch pedal fully
depressed, shift the shift lever to 1.
Lightly depress the accelerator pedal at the same time as gradually
releasing the clutch pedal.
Release the parking brake.
■ When starting off on a uphill (vehicles with a hill-start assist control)
The hill-start assist control will activate. ( →P. 191)
■ Driving in the rain
● Drive carefully when it is raining, because visibility will be reduced, the win-
dows may become fogged-up, and the road will be slippery.
● Drive carefully when it starts to rain, because the road surface will be espe-
cially slippery.
● Refrain from high speeds when driving on an expressway in the rain,
because there may be a layer of water between the tires and the road sur-
face, preventing the steering and brakes from operating properly.
■ Breaking in your new Toyota
To extend the life of the vehicle, observing the following precautions is recom-
mended:
● For the first 300 km (200 miles):
Avoid sudden stops.
● For the first 1000 km (600 miles):
• Do not drive at extremely high speeds.
• Avoid sudden acceleration.
• Do not drive continuously in low gears.
• Do not drive at a constant speed for extended periods.
Starting off on a steep uphill
1
2
3
1
2
3

1434-1. Before driving
4
Driving
AYGO_EE_OM99J92E
■ Operating your vehicle in a foreign country
Comply with the relevant vehicle registration laws and confirm the availability
of the correct fuel. ( →P. 419)
WARNING
Observe the following precautions.
Failure to do so may result in death or serious injury.
■ When starting the vehicle
On vehicles with a multi-mode manual transmission, always keep your foot
on the brake pedal while stopped with the engine running. This prevents the
vehicle from moving unexpectedly.
■ When driving the vehicle
● Do not drive if you are unfamiliar with the location of the brake and accel-
erator pedals to avoid depressing the wrong pedal.
• Accidentally depressing the accelerator pedal instead of the brake
pedal will result in sudden acceleration that may lead to an accident.
• When backing up, you may twist your body around, leading to difficulty
in operating the pedals. Make su re to operate the pedals properly.
• Make sure to keep a correct driving posture even when moving the
vehicle only slightly. This allows you to depress the brake and accelera-
tor pedals properly.
• Depress the brake pedal using your right foot. Depressing the brake
pedal using your left foot may delay response in an emergency, result-
ing in an accident.
● Do not drive the vehicle over or stop the vehicle near flammable materials.
The exhaust system and exhaust gases can be extremely hot. These hot
parts may cause a fire if there is any flammable material nearby.
● During normal driving, do not turn off the engine. Turning the engine off
while driving will not cause loss of steering or braking control, but the
power assist to these systems will be lost. This will make it more difficult to
steer and brake, so you should pull over and stop the vehicle as soon as it
is safe to do so.
However, in the event of an emergency, such as if it becomes impossible
to stop the vehicle in the normal way: →P. 343
● Use engine braking (downshift) to maintain a safe speed when driving
down a steep hill.
Using the brakes continuously may cause the brakes to overheat and lose
effectiveness. ( →P. 159, 163)
● Do not adjust the positions of the steering wheel, the seat, or the inside or
outside rear view mirrors while driving.
Doing so may result in a loss of vehicle control.
● Always check that all passengers’ arms, heads or other parts of their body
are not outside the vehicle.

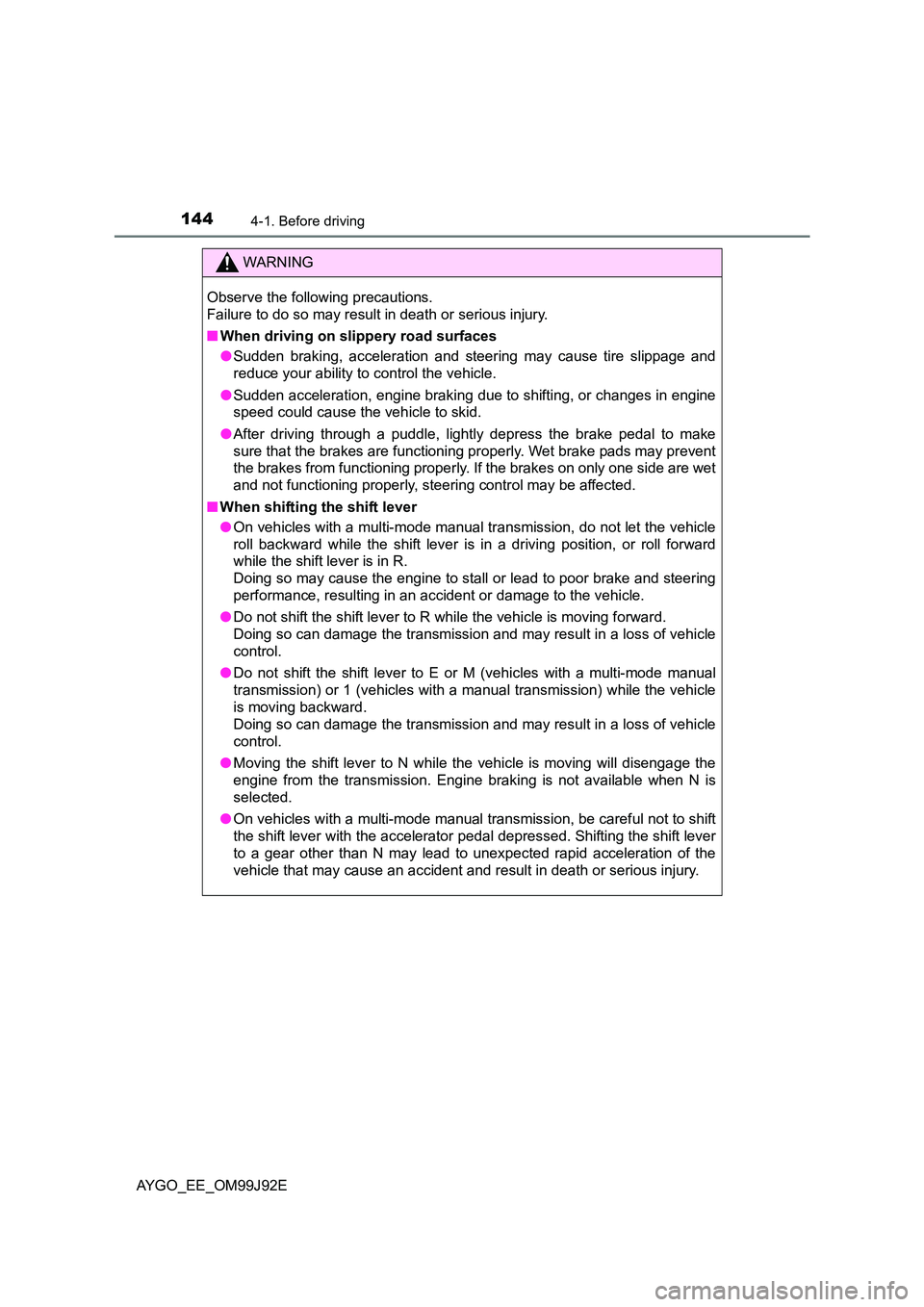

1444-1. Before driving
AYGO_EE_OM99J92E
WARNING
Observe the following precautions.
Failure to do so may result in death or serious injury.
■ When driving on slippery road surfaces
● Sudden braking, acceleration and steering may cause tire slippage and
reduce your ability to control the vehicle.
● Sudden acceleration, engine braking due to shifting, or changes in engine
speed could cause the vehicle to skid.
● After driving through a puddle, lightly depress the brake pedal to make
sure that the brakes are functioning properly. Wet brake pads may prevent
the brakes from functioning properly. If the brakes on only one side are wet
and not functioning properly, steering control may be affected.
■ When shifting the shift lever
● On vehicles with a multi-mode manual transmission, do not let the vehicle
roll backward while the shift lever is in a driving position, or roll forward
while the shift lever is in R.
Doing so may cause the engine to stall or lead to poor brake and steering
performance, resulting in an accident or damage to the vehicle.
● Do not shift the shift lever to R while the vehicle is moving forward.
Doing so can damage the transmission and may result in a loss of vehicle
control.
● Do not shift the shift lever to E or M (vehicles with a multi-mode manual
transmission) or 1 (vehicles with a manual transmission) while the vehicle
is moving backward.
Doing so can damage the transmission and may result in a loss of vehicle
control.
● Moving the shift lever to N while the vehicle is moving will disengage the
engine from the transmission. Engine braking is not available when N is
selected.
● On vehicles with a multi-mode manual transmission, be careful not to shift
the shift lever with the accelerator pedal depressed. Shifting the shift lever
to a gear other than N may lead to unexpected rapid acceleration of the
vehicle that may cause an accident and result in death or serious injury.
