3217-3. Do-it-yourself maintenance
7
Maintenance and care
AYGO_EE_OM99J92E

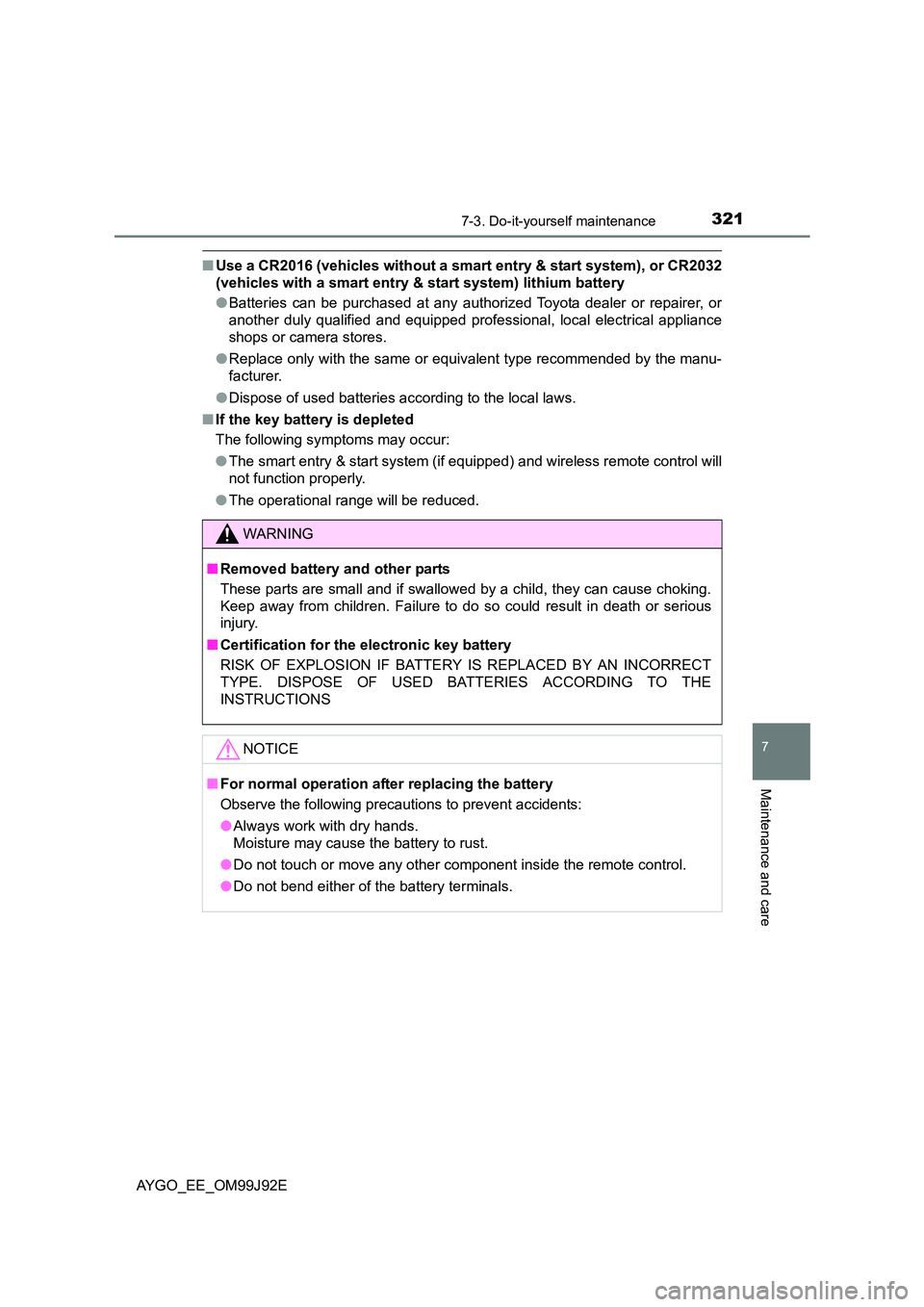

■Use a CR2016 (vehicles without a smart entry & start system), or CR2032
(vehicles with a smart entry & start system) lithium battery
● Batteries can be purchased at any authorized Toyota dealer or repairer, or
another duly qualified and equipped professional, local electrical appliance
shops or camera stores.
● Replace only with the same or equivalent type recommended by the manu-
facturer.
● Dispose of used batteries according to the local laws.
■ If the key battery is depleted
The following symptoms may occur:
● The smart entry & start system (if equipped) and wireless remote control will
not function properly.
● The operational range will be reduced.
WARNING
■ Removed battery and other parts
These parts are small and if swallowed by a child, they can cause choking.
Keep away from children. Failure to do so could result in death or serious
injury.
■ Certification for the electronic key battery
RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT
TYPE. DISPOSE OF USED BATTERIES ACCORDING TO THE
INSTRUCTIONS
NOTICE
■ For normal operation after replacing the battery
Observe the following precautions to prevent accidents:
● Always work with dry hands.
Moisture may cause the battery to rust.
● Do not touch or move any other component inside the remote control.
● Do not bend either of the battery terminals.

3227-3. Do-it-yourself maintenance
AYGO_EE_OM99J92E
Checking and replacing fuses
Vehicles without a smart entry & start system:
Turn the engine switch to the “LOCK” position.
Vehicles with a smart entry & start system:
Turn the engine switch off.
After a system failure, see “Fuse layout and amperage ratings” for
details about which fuse to check. ( →P. 324)
Open the fuse box cover.
XEngine compartment
Push the tabs in and lift the
cover off.
XDriver’s side instrument panel
Remove the cover.
If any of the electrical components do not operate, a fuse may
have blown. If this happens, check and replace the fuses as nec-
essary.
1
2
3

3237-3. Do-it-yourself maintenance
7
Maintenance and care
AYGO_EE_OM99J92E

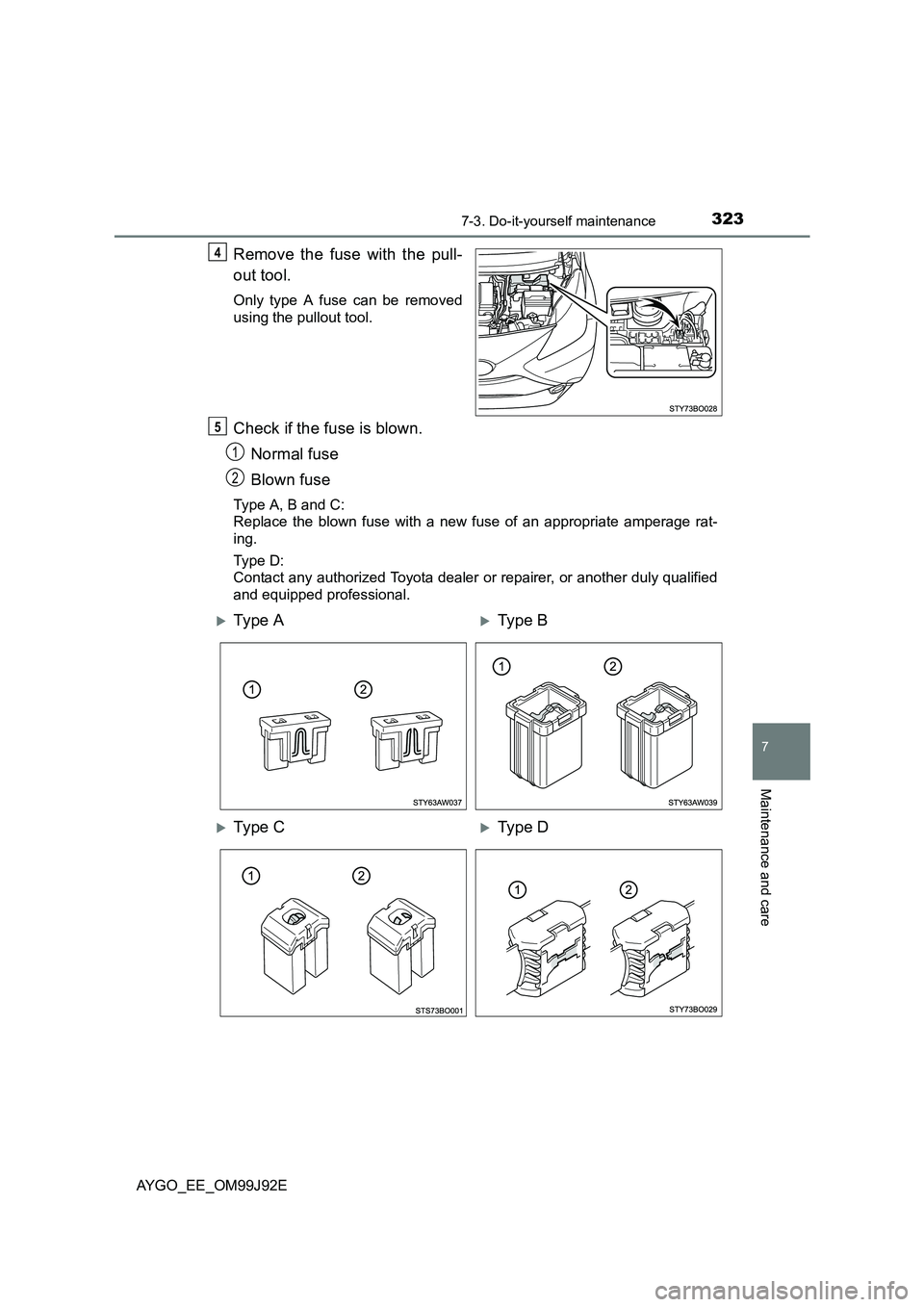

Remove the fuse with the pull-
out tool.
Only type A fuse can be removed
using the pullout tool.
Check if the fuse is blown.
Normal fuse
Blown fuse
Type A, B and C:
Replace the blown fuse with a new fuse of an appropriate amperage rat-
ing.
Type D:
Contact any authorized Toyota dealer or repairer, or another duly qualified
and equipped professional.
4
5
1
2
XTy pe AXType B
XTy pe CXType D

3247-3. Do-it-yourself maintenance
AYGO_EE_OM99J92E

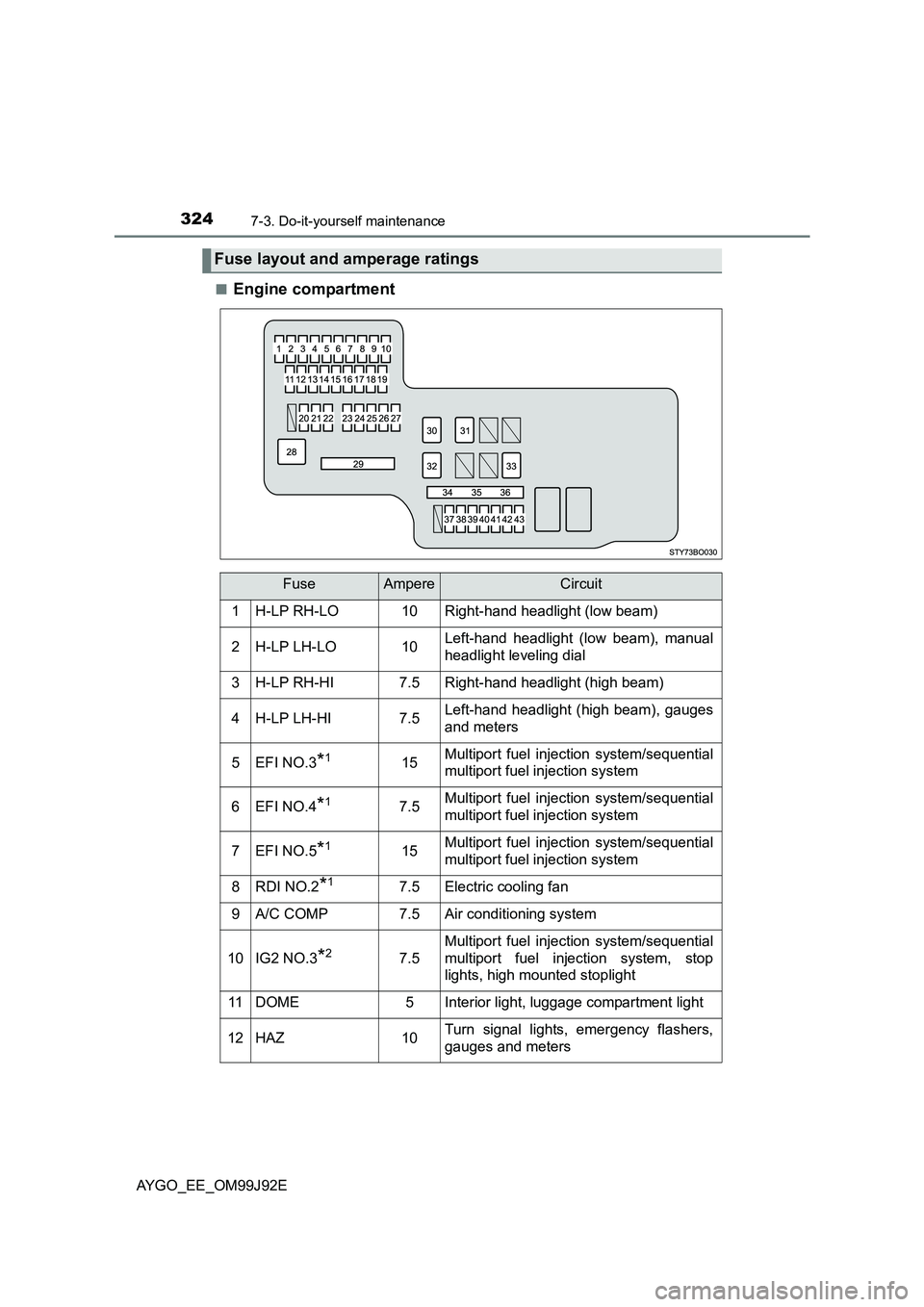

■Engine compartment
Fuse layout and amperage ratings
FuseAmpereCircuit
1H-LP RH-LO10Right-hand headlight (low beam)
2H-LP LH-LO10Left-hand headlight (low beam), manual
headlight leveling dial
3H-LP RH-HI7.5Right-hand headlight (high beam)
4H-LP LH-HI7.5Left-hand headlight (high beam), gauges
and meters
5EFI NO.3*115Multiport fuel injection system/sequential
multiport fuel injection system
6EFI NO.4*17.5Multiport fuel injection system/sequential
multiport fuel injection system
7EFI NO.5*115Multiport fuel injection system/sequential
multiport fuel injection system
8RDI NO.2*17.5Electric cooling fan
9A/C COMP7.5Air conditioning system
10IG2 NO.3*27.5
Multiport fuel injection system/sequential
multiport fuel injection system, stop
lights, high mounted stoplight
11DOME5Interior light, luggage compartment light
12HAZ10Turn signal lights, emergency flashers,
gauges and meters

3257-3. Do-it-yourself maintenance
7
Maintenance and care
AYGO_EE_OM99J92E
13HORN10Horn
14D/C CUT30ECU-B NO.1, ECU-B NO.2, ECU-B NO.3
15ECU-B NO.4*27.5Multi-mode manual transmission
16AM2 NO.27.5Multiport fuel injection system/sequential
multiport fuel injection system
17AM2 NO.37.5Smart entry & start system
18ICS*27.5Charging system
19EFI-MAIN*125EFI NO.3, EFI NO.4, EFI NO.5, RDI
NO.2
20ST30Starting system
21STRG LOCK7.5Steering lock system
22H-LP-MAIN25H-LP RH-LO, H-LP LH-LO, H-LP RH-HI,
H-LP LH-HI
23WIPER-S*27.5Multiport fuel injection system/sequential
multiport fuel injection system
24STA7.5
Multiport fuel injection system/sequential
multiport fuel injection system, starting
system, multi-mode manual transmis-
sion, Stop & Start system
25ECU-B NO.315Audio system, smart entry & start system
26ECU-B NO.17.5Gauges and meters
27ECU-B NO.27.5Vehicle stability control system
28J/B60Instrument fuse box
29ALT*2125
DEF, S/HTR F/R, S/HTR F/L, CANVAS
TOP, ABS NO.1, ABS NO.2, RDI NO.1,
FOG FR, DRL
30AMT*350Multi-mode manual transmission
BBC*440Stop & Start system
31EPS50Electric power steering system
32RDI NO.1
50*1
Electric cooling fan30*5
40*5
FuseAmpereCircuit

3267-3. Do-it-yourself maintenance
AYGO_EE_OM99J92E
*1: HM01 engine
*2: 1KR engine
*3: Vehicles with a multi-mode manual transmission
*4: Vehicles with a Stop & Start system
*5: Replace the fuse with one of the same ampere rating as the original
33ABS NO.150Anti-lock brake system, vehicle stability
control system
34SPARE10Spar e fus e
35SPARE20Spar e fus e
36SPARE30Spar e fus e
37DEF20Rear window defogger, outside rear view
mirror defoggers
38ABS NO.230Anti-lock brake system, vehicle stability
control system
39FOG FR7.5Front fog lights, gauges and meters
40DRL7.5Daytime running lights
41S/HTR F/R15Seat heaters (right side)
42CANVAS TOP20Canvas top
43S/HTR F/L15Seat heaters (left side)
FuseAmpereCircuit

3277-3. Do-it-yourself maintenance
7
Maintenance and care
AYGO_EE_OM99J92E
■Driver ’s side instrument panel
FuseAmpereCircuit
1IG1 NO.25
Back-up light, multiport fuel injection sys-
tem/sequential multiport fuel injection
system, audio system, vehicle stability
control system
2WASHER15Windshield washer, rear window washer
3ECU-IG NO.15
Main body ECU, gauges and meters, air
conditioning system, rear window defog-
ger, outside rear view mirror defoggers,
seat heaters, canvas top, audio system
4ECU-IG NO.25Electric power steering system, Stop &
Start system
5WIPER RR15Rear window wiper
6IG1 NO.15Electric cooling fan, anti-lock brake sys-
tem, vehicle stability control system
7WIPER25Windshield wiper
8MIR HTR10Outside rear view mirror defoggers
9P/OUTLET15Power outlet
10ECU-ACC7.5Outside rear view mirrors, audio system,
Stop & Start system, gauges and meters

3287-3. Do-it-yourself maintenance
AYGO_EE_OM99J92E
11IG2 NO.25
Steering lock system, multiport fuel injec-
tion system/sequential multiport fuel
injection system, multi-mode manual
transmission
12A/BAG7.5SRS airbag system
13METER5Gauges and meters, Stop & Start system
14IG2 NO.115*1Multiport fuel injection system/sequential
multiport fuel injection system, stop lights7.5*2
15EFI NO.17.5*1Multiport fuel injection system/sequential
multiport fuel injection system, Stop &
Start system10*2
16OBD7.5On-board diagnosis system
17STOP10
Stop lights, high mounted stoplight, multi-
port fuel injection system/sequential mul-
tiport fuel injection system, anti-lock
brake system, vehicle stability control
system, multi-mode manual transmis-
sion, smart entry & start system
18TA I L10
Position lights, license plate lights, rear
fog light, front fog lights, tail lights, switch
illumination, multiport fuel injection sys-
tem/sequential multiport fuel injection
system, gauges and meters, audio sys-
tem
19HTR40Air conditioning system
20AM140HTR, OBD, A/C, TAIL, FOG RR, STOP,
P/W, DOOR F/L, DOOR F/R
21AM2 NO.130EFI NO.2, EFI-MAIN, D/L
22EFI NO.2*17.5Multiport fuel injection system/sequential
multiport fuel injection system
23EFI-MAIN*120
EFI NO.1, multiport fuel injection system/
sequential multiport fuel injection system,
fuel pump
24D/L25Main body ECU, door lock system
25P/W30Power windows
FuseAmpereCircuit
