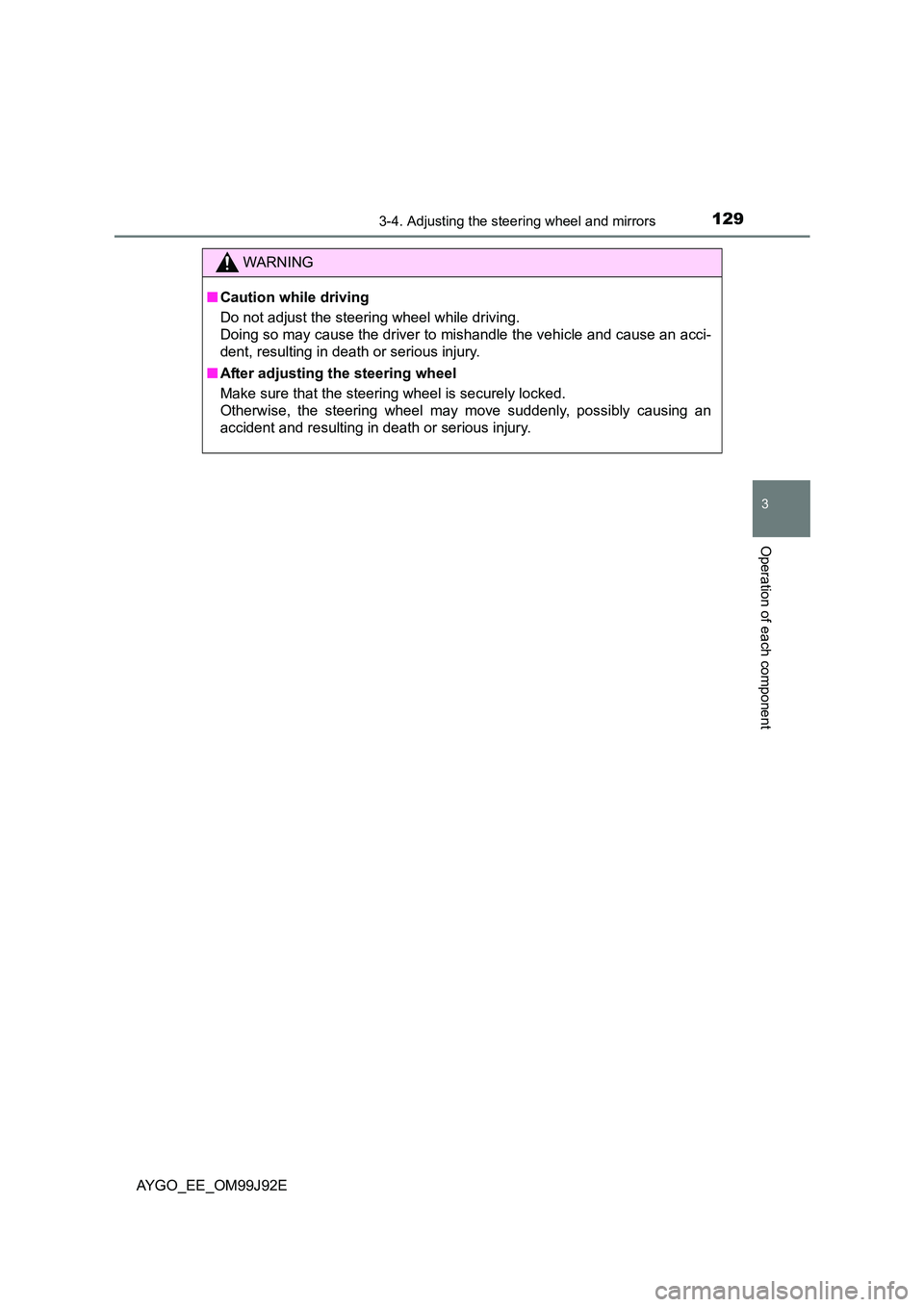

1293-4. Adjusting the steering wheel and mirrors
3
Operation of each component
AYGO_EE_OM99J92E
WARNING
■ Caution while driving
Do not adjust the steering wheel while driving.
Doing so may cause the driver to mishandle the vehicle and cause an acci-
dent, resulting in death or serious injury.
■ After adjusting the steering wheel
Make sure that the steering wheel is securely locked.
Otherwise, the steering wheel may move suddenly, possibly causing an
accident and resulting in death or serious injury.

1303-4. Adjusting the steering wheel and mirrors
AYGO_EE_OM99J92E
Inside rear view mirror
Reflected light from the headlights of vehicles behind can be reduced
by operating the lever.
Normal position
Anti-glare position
The rear view mirror’s position can be adjusted to enable suffi-
cient confirmation of the rear view.
Anti-glare function
1
2
WARNING
Do not adjust the position of the mirror while driving.
Doing so may lead to mishandling of the vehicle and cause an accident,
resulting in death or serious injury.

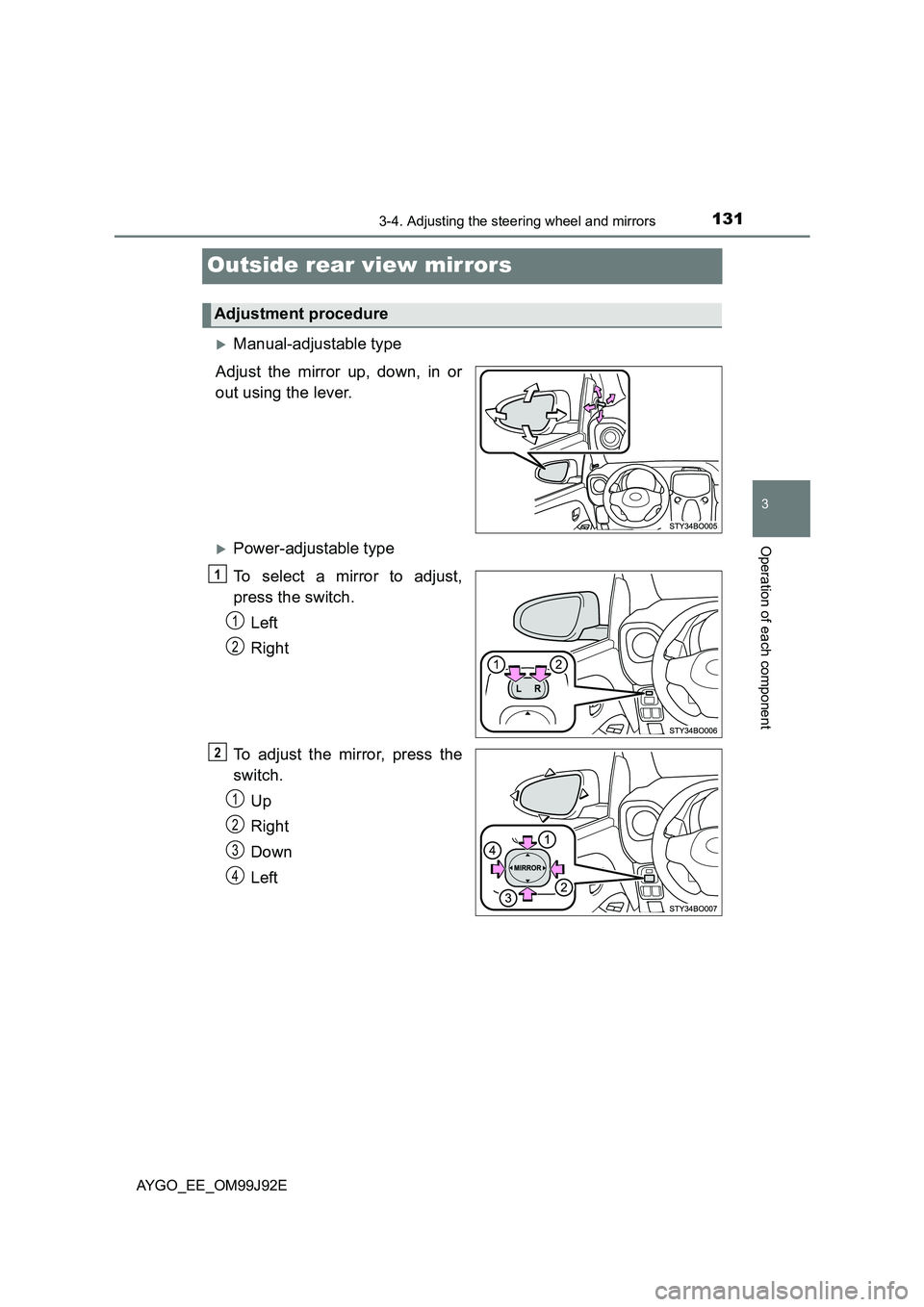

131
3
3-4. Adjusting the steering wheel and mirrors
Operation of each component
AYGO_EE_OM99J92E
Outside rear view mirrors
XManual-adjustable type
Adjust the mirror up, down, in or
out using the lever.
XPower-adjustable type
To select a mirror to adjust,
press the switch.
Left
Right
To adjust the mirror, press the
switch.
Up
Right
Down
Left
Adjustment procedure
1
1
2
2
1
2
3
4

1323-4. Adjusting the steering wheel and mirrors
AYGO_EE_OM99J92E
Push the mirror back in the direc-
tion of the vehicle’s rear.
■ Mirror angle can be adjusted when (power-adjustable type)
XVehicles without a smart entry & start system
The engine switch is in the “ACC” or “ON” position.
XVehicles with a smart entry & start system
The engine switch is in ACCESSORY or IGNITION ON mode.
■ When the mirrors are fogged up (power-adjustable type)
The outside rear view mirrors can be cleared using the mirror defoggers. Turn
on the rear window defogger to turn on the outside rear view mirror defog-
gers. ( →P. 258, 264)
Folding the mirrors
WARNING
■ Important points while driving
Observe the following precautions while driving.
Failure to do so may result in loss of control of the vehicle and cause an
accident, resulting in death or serious injury.
● Do not adjust the mirrors while driving.
● Do not drive with the mirrors folded.
● Both the driver and passenger side mirrors must be extended and properly
adjusted before driving.
■ When a mirror is moving
To avoid personal injury and mirror malfunction, be careful not to get your
hand caught by the moving mirror.
■ When the mirror defoggers are operating (power-adjustable type)
Do not touch the rear view mirror surfaces, as they can become very hot
and burn you.

133
3
3-5. Opening, closing the windows and canvas top
Operation of each component
AYGO_EE_OM99J92E
Power windows∗
The power windows can be opened and closed using the switches.
Operating the switch moves the windows as follows:
Closing
Opening
■ The power windows can be operated when
XVehicles without a smart entry & start system
The engine switch is in the “ON” position.
XVehicles with a smart entry & start system
The engine switch is in IGNITION ON mode.
∗: If equipped
Opening and closing procedures
1
2
WARNING
Observe the following precautions.
Failure to do so may result in death or serious injury.
■ Closing the windows
● The driver is responsible for all the power window operations, including the
operation for the passengers. In order to prevent accidental operation,
especially by a child, do not let a child operate the power windows. It is
possible for children and other passengers to have body parts caught in
the power window.
● Check to make sure that all passengers do not have any part of their body
in a position where it could be caught when a window is being operated.
● When exiting the vehicle, turn the engine switch to the “LOCK” position
(vehicles without a smart entry & start system) or off (vehicles with a smart
entry & start system), carry the key and exit the vehicle along with the
child. There may be accidental operation, due to mischief, etc., that may
possibly lead to an accident.

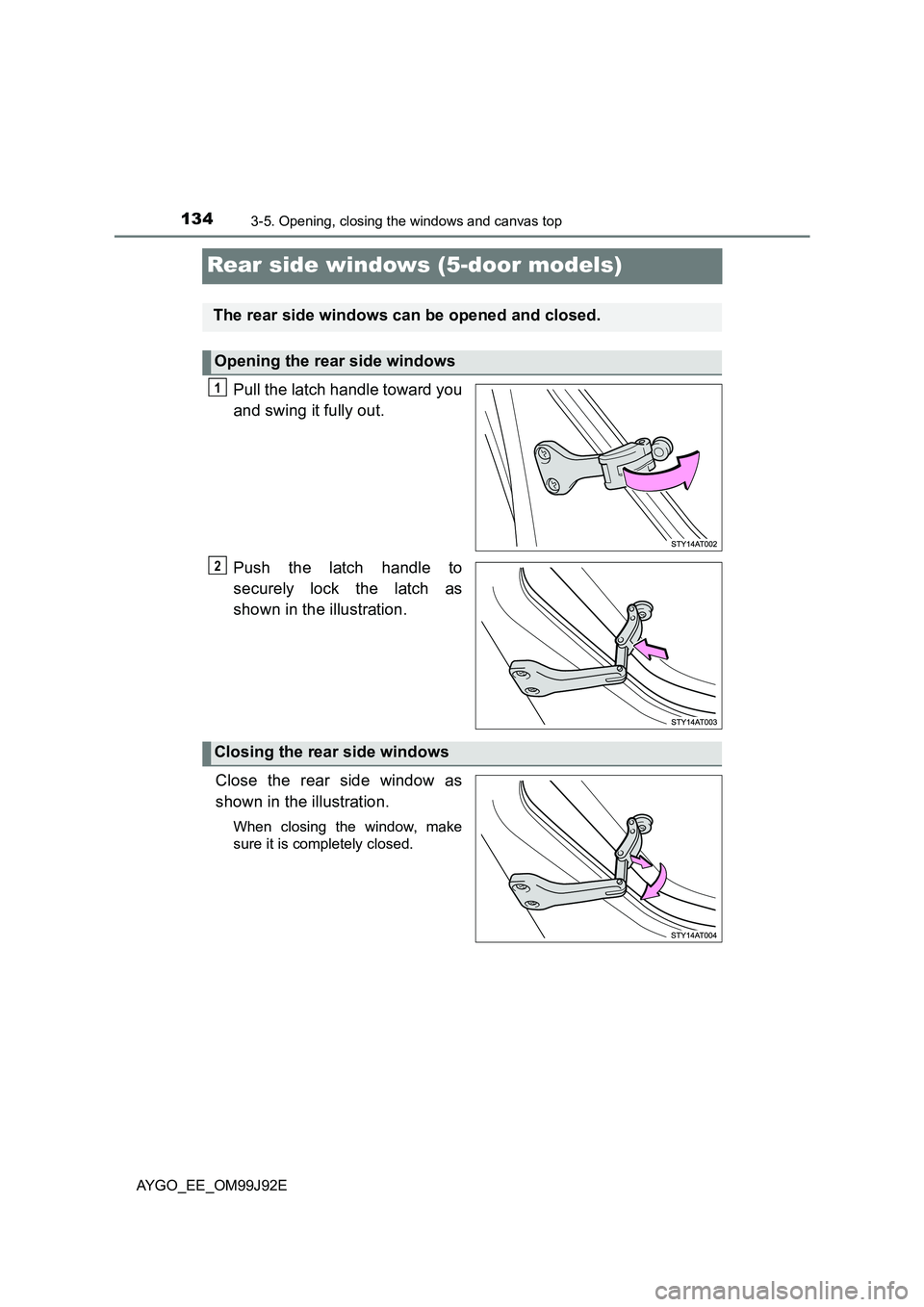

1343-5. Opening, closing the windows and canvas top
AYGO_EE_OM99J92E
Rear side windows (5-door models)
Pull the latch handle toward you
and swing it fully out.
Push the latch handle to
securely lock the latch as
shown in the illustration.
Close the rear side window as
shown in the illustration.
When closing the window, make
sure it is completely closed.
The rear side windows can be opened and closed.
Opening the rear side windows
1
2
Closing the rear side windows

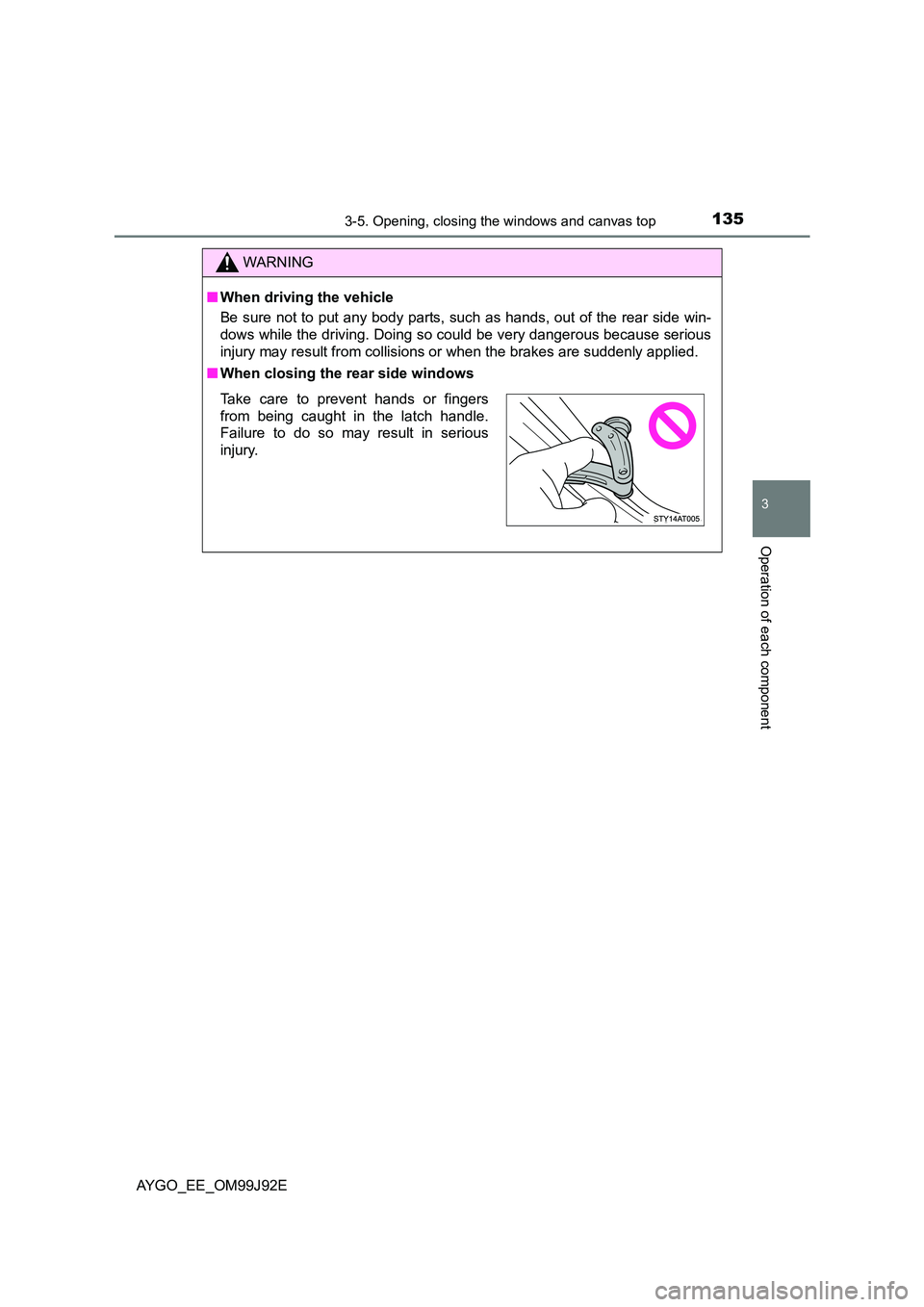

1353-5. Opening, closing the windows and canvas top
3
Operation of each component
AYGO_EE_OM99J92E
WARNING
■ When driving the vehicle
Be sure not to put any body parts, such as hands, out of the rear side win-
dows while the driving. Doing so could be very dangerous because serious
injury may result from collisions or when the brakes are suddenly applied.
■ When closing the rear side windows
Take care to prevent hands or fingers
from being caught in the latch handle.
Failure to do so may result in serious
injury.

1363-5. Opening, closing the windows and canvas top
AYGO_EE_OM99J92E
Canvas top∗
Opens the canvas top*
Closes the canvas top*
The canvas top stops slightly
before the fully close position.
Press the switch again to fully
close the canvas top.
*: Lightly press either end of the can-
vas top switch to stop the canvas
top partway.
■ The canvas top can be operated when
XVehicles without a smart entry & start system
The engine switch is in the “ON” position.
XVehicles with a smart entry & start system
The engine switch is in IGNITION ON mode.
■ System safeguard
When the canvas top repeatedly opening and closing, it may stop temporarily
for system protection. With the engine switch in the “ON” position (vehicles
without a smart entry & start system) or IGNITION ON mode (vehicles with a
smart entry & start system) normal operations can be resumed after several
minutes.
∗: If equipped
Use the overhead switches to open and close the canvas top.
Opening and closing
1
2
