2015 TOYOTA AYGO Owners Manual (in English)

177
4
4-4. Refueling
Driving
AYGO_EE_OM99J92E
Opening the fuel tank cap
●Close all the doors and windows, and turn the engine switch to the
“LOCK” position (vehicles without a smart entry & start system) or
off (vehicles with a smart entry & start system).
● Confirm the type of fuel.
■Fuel types
EU area:
Unleaded gasoline conforming to European standard EN228, Research
Octane Number of 95 or higher.
Except EU area:
Unleaded gasoline, Research Octane Number of 95 or higher.
■ Use of ethanol blended gasoline in a gasoline engine
Toyota allows the use of ethanol blended gasoline where the ethanol content
is up to 10%. Make sure that the ethanol blended gasoline to be used has a
Research Octane Number that follows the above.
Perform the following steps to open the fuel tank cap:
Before refueling the vehicle
WARNING
■ When refueling the vehicle
Observe the following precautions while refueling the vehicle. Failure to do
so may result in death or serious injury.
● After exiting the vehicle and before opening the fuel door, touch an
unpainted metal surface to discharge any static electricity. It is important to
discharge static electricity before refueling because sparks resulting from
static electricity can cause fuel vapors to ignite while refueling.
● Always hold the grips on the fuel tank cap and turn it slowly to remove it.
A whooshing sound may be heard when the fuel tank cap is loosened.
Wait until the sound cannot be heard before fully removing the cap. In hot
weather, pressurized fuel may spray out the filler neck and cause injury.
● Do not allow anyone that has not discharged static electricity from their
body to come close to an open fuel tank.
● Do not inhale vaporized fuel.
Fuel contains substances that are harmful if inhaled.

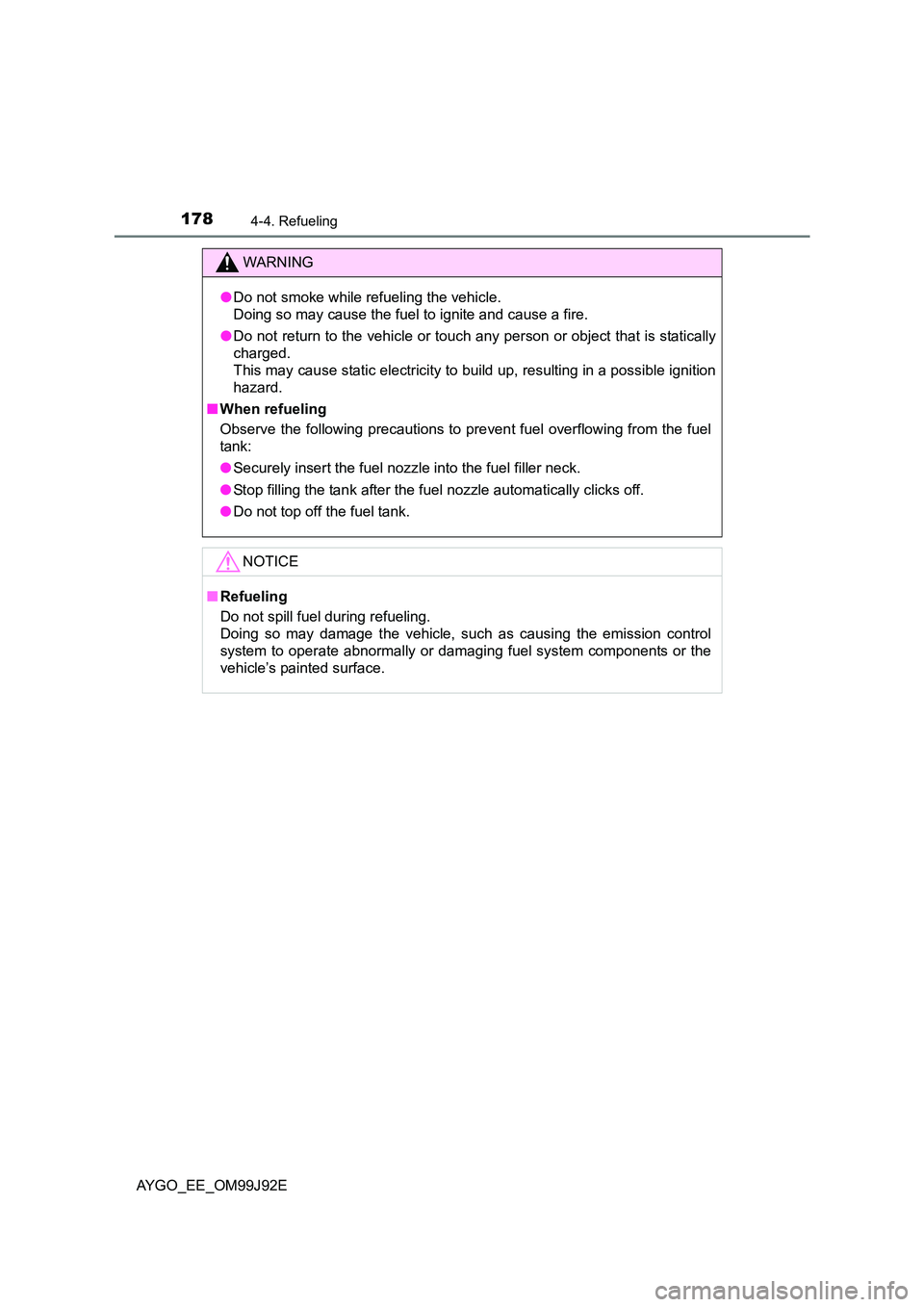

1784-4. Refueling
AYGO_EE_OM99J92E
WARNING
● Do not smoke while refueling the vehicle.
Doing so may cause the fuel to ignite and cause a fire.
● Do not return to the vehicle or touch any person or object that is statically
charged.
This may cause static electricity to build up, resulting in a possible ignition
hazard.
■ When refueling
Observe the following precautions to pr event fuel overflowing from the fuel
tank:
● Securely insert the fuel nozzle into the fuel filler neck.
● Stop filling the tank after the fuel nozzle automatically clicks off.
● Do not top off the fuel tank.
NOTICE
■ Refueling
Do not spill fuel during refueling.
Doing so may damage the vehicle, such as causing the emission control
system to operate abnormally or damaging fuel system components or the
vehicle’s painted surface.

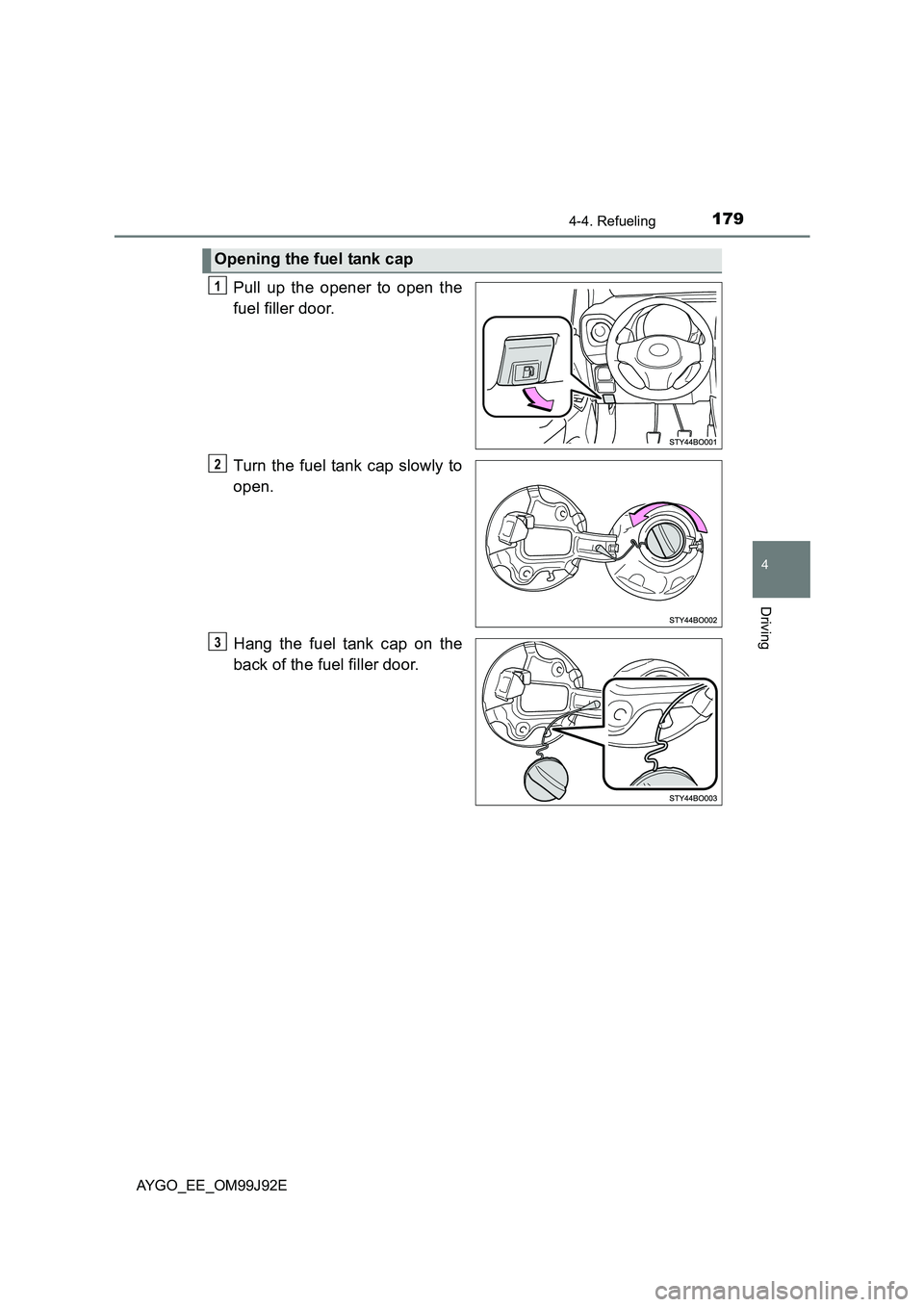

1794-4. Refueling
4
Driving
AYGO_EE_OM99J92E
Pull up the opener to open the
fuel filler door.
Turn the fuel tank cap slowly to
open.
Hang the fuel tank cap on the
back of the fuel filler door.
Opening the fuel tank cap
1
2
3

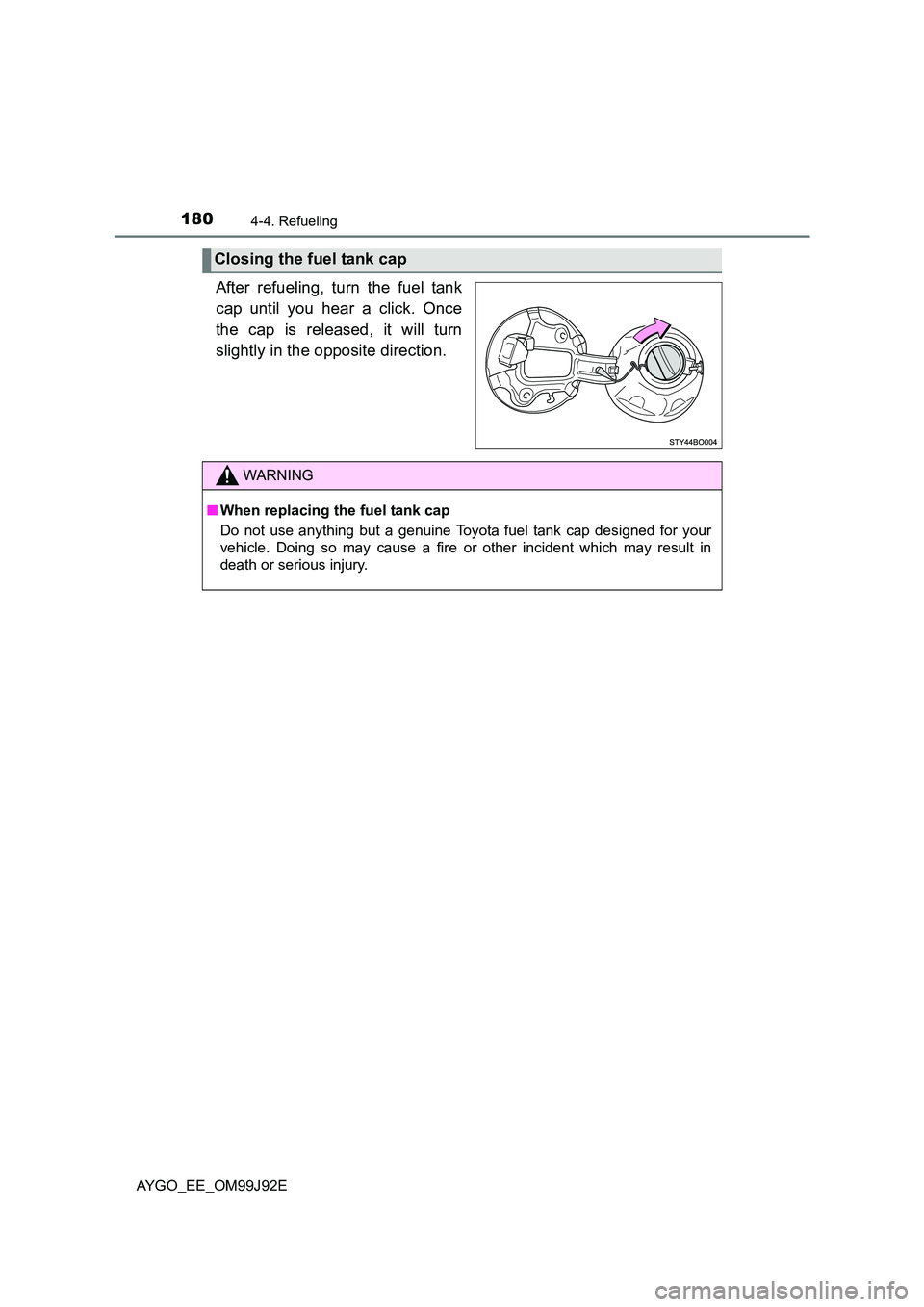

1804-4. Refueling
AYGO_EE_OM99J92E
After refueling, turn the fuel tank
cap until you hear a click. Once
the cap is released, it will turn
slightly in the opposite direction.
Closing the fuel tank cap
WARNING
■ When replacing the fuel tank cap
Do not use anything but a genuine Toyota fuel tank cap designed for your
vehicle. Doing so may cause a fire or other incident which may result in
death or serious injury.

181
4
4-5. Using the driving support systems
Driving
AYGO_EE_OM99J92E
Speed limiter∗
A desired maximum speed can be set using the speed limiter switch.
The speed limiter prevents vehicle speed from exceeding the set
speed.
Indicator
Speed limiter switch
Display
*1: For 1KR engine
*2: For HM01 engine
X1KR engine
Press the “ON-OFF” button to
activate the speed limiter.
Press the button once more to
deactivate the speed limiter.
∗: If equipped
Summary of functions
*1*2
*11
2
3
Setting the speed limiter
1

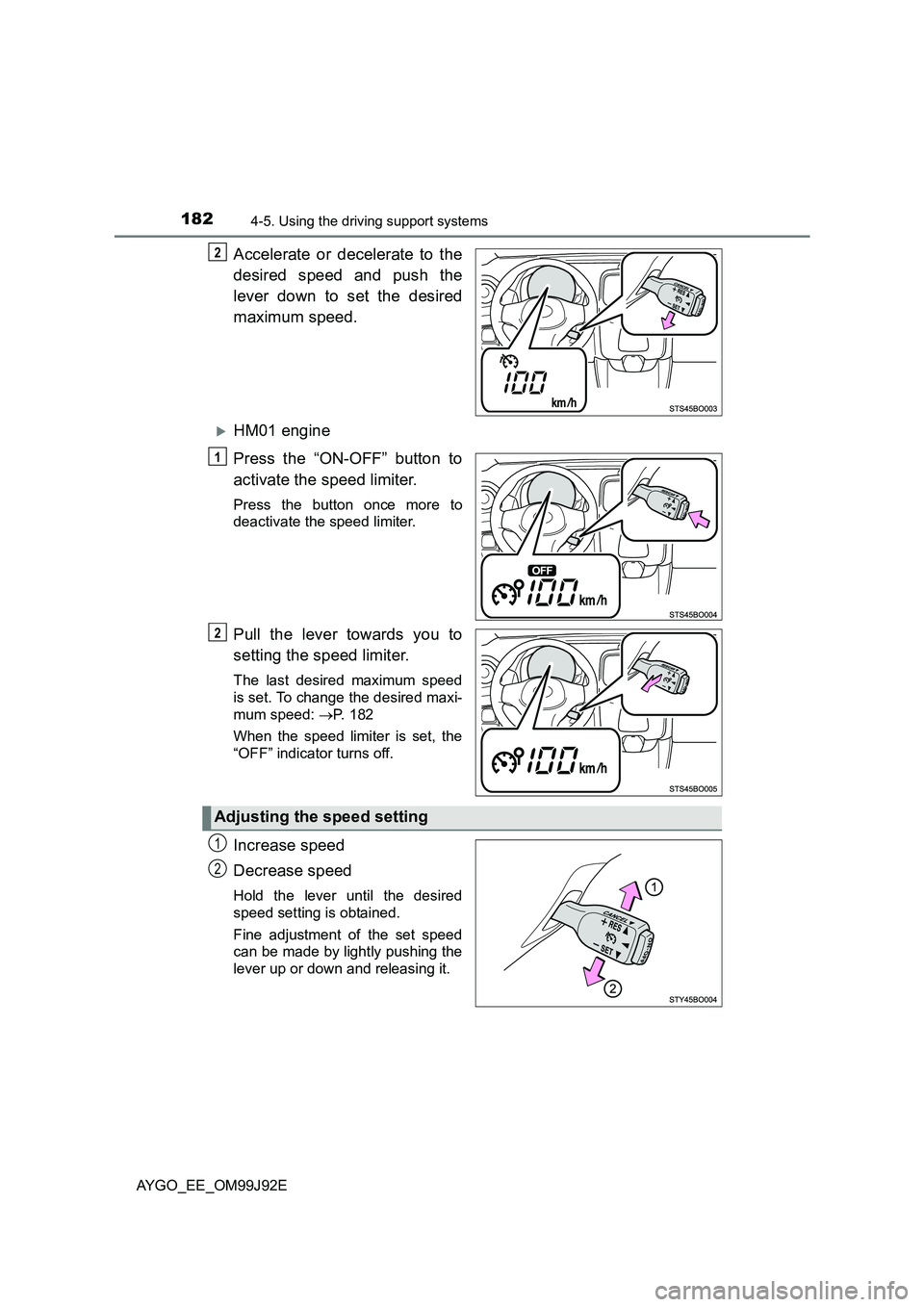

1824-5. Using the driving support systems
AYGO_EE_OM99J92E
Accelerate or decelerate to the
desired speed and push the
lever down to set the desired
maximum speed.
XHM01 engine
Press the “ON-OFF” button to
activate the speed limiter.
Press the button once more to
deactivate the speed limiter.
Pull the lever towards you to
setting the speed limiter.
The last desired maximum speed
is set. To change the desired maxi-
mum speed: →P. 182
When the speed limiter is set, the
“OFF” indicator turns off.
Increase speed
Decrease speed
Hold the lever until the desired
speed setting is obtained.
Fine adjustment of the set speed
can be made by lightly pushing the
lever up or down and releasing it.
2
1
2
Adjusting the speed setting
1
2

1834-5. Using the driving support systems
4
Driving
AYGO_EE_OM99J92E
X1KR engine
Cancel
Pull the lever towards you to can-
cel the speed limiter.
Resume
To resume use of the speed limiter,
push the lever up.
XHM01 engine
Cancel/Resume
Pulling the lever towards you can-
cels the speed limiter. Pulling the
lever towards you again resumes
the speed limiter.
■ When setting the speed limiter
If the vehicle speed is set lower than 30 km/h (20 mph), the desired maximum
speed is set to 30 km/h (20 mph).
■ Exceeding the set speed
In the following situations, when the vehicle speed exceeds the set speed,
the display characters will flash:
● When fully depressing the accelerator pedal
● When driving down a slope (A warning buzzer will sound)
■ When the speed limiter is operating (1KR engine only)
Speed limiter information is displayed in the multi-information display when it
is operating. When the display is switched over to another display, the speed
limiter information returns after 6 seconds.
Canceling and resuming the speed limiter
1
2

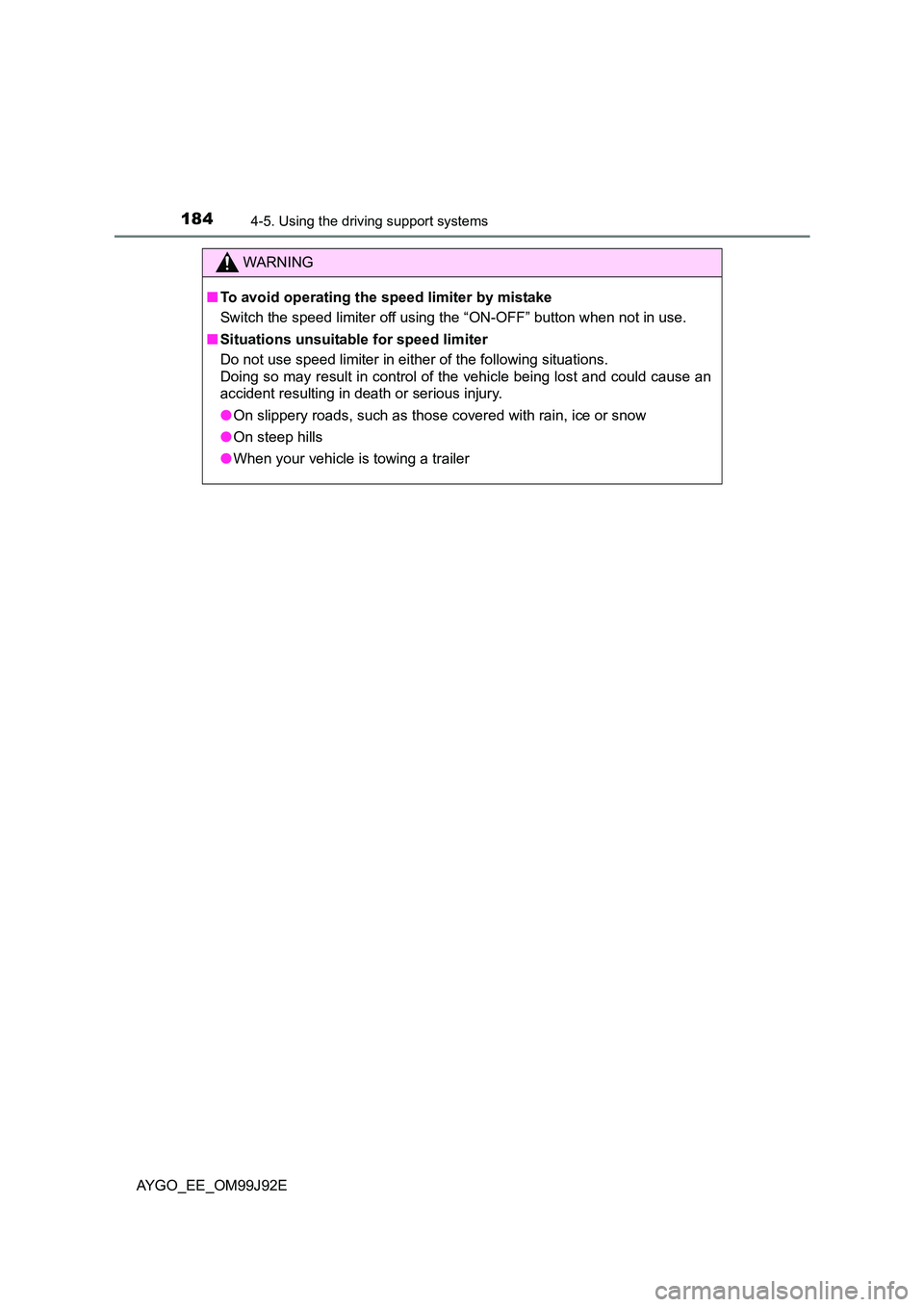

1844-5. Using the driving support systems
AYGO_EE_OM99J92E
WARNING
■ To avoid operating the speed limiter by mistake
Switch the speed limiter off using the “ON-OFF” button when not in use.
■ Situations unsuitable for speed limiter
Do not use speed limiter in either of the following situations.
Doing so may result in control of the vehicle being lost and could cause an
accident resulting in death or serious injury.
● On slippery roads, such as those covered with rain, ice or snow
● On steep hills
● When your vehicle is towing a trailer
