2015 TOYOTA AYGO Owners Manual (in English)

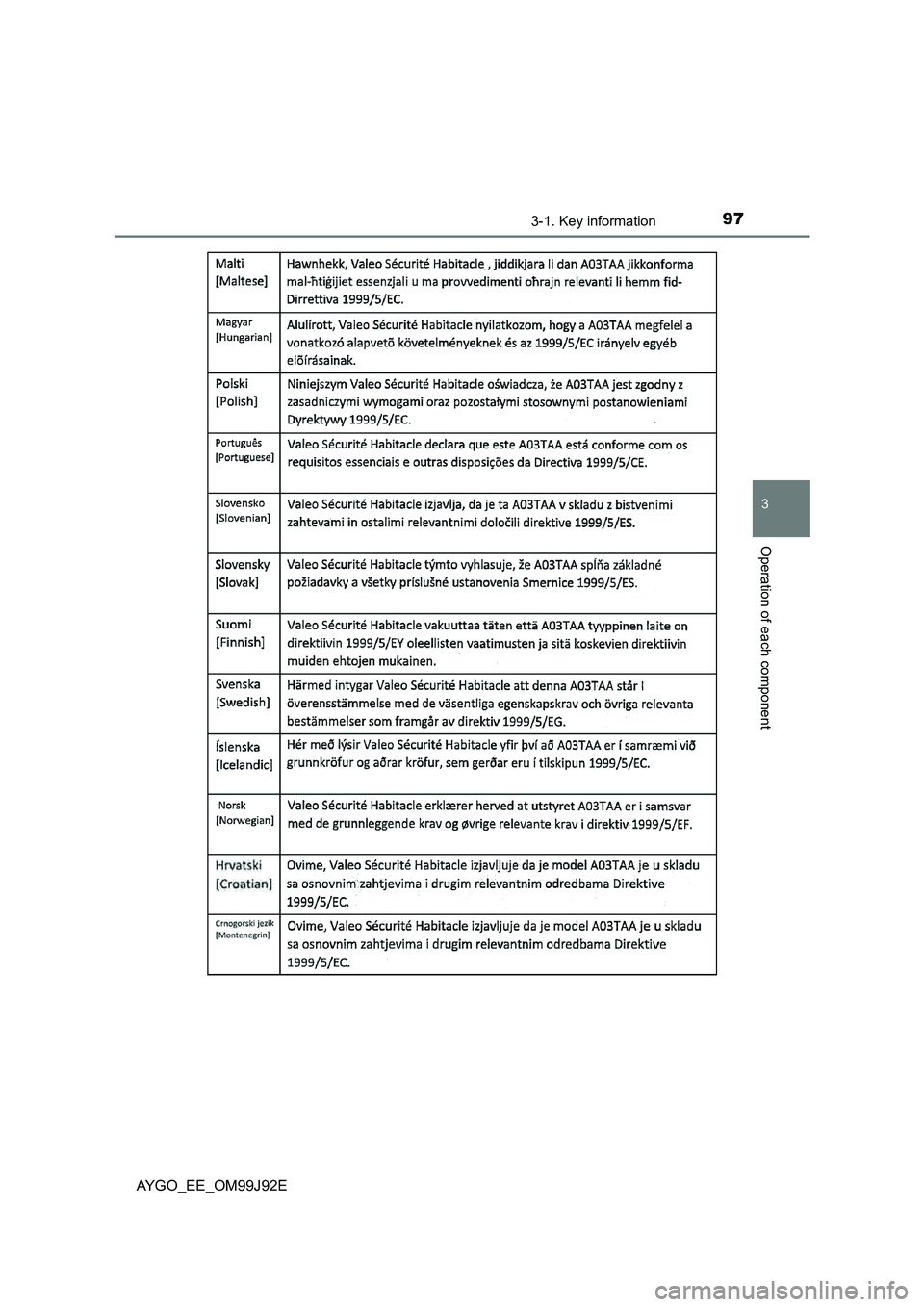

973-1. Key information
3
Operation of each component
AYGO_EE_OM99J92E

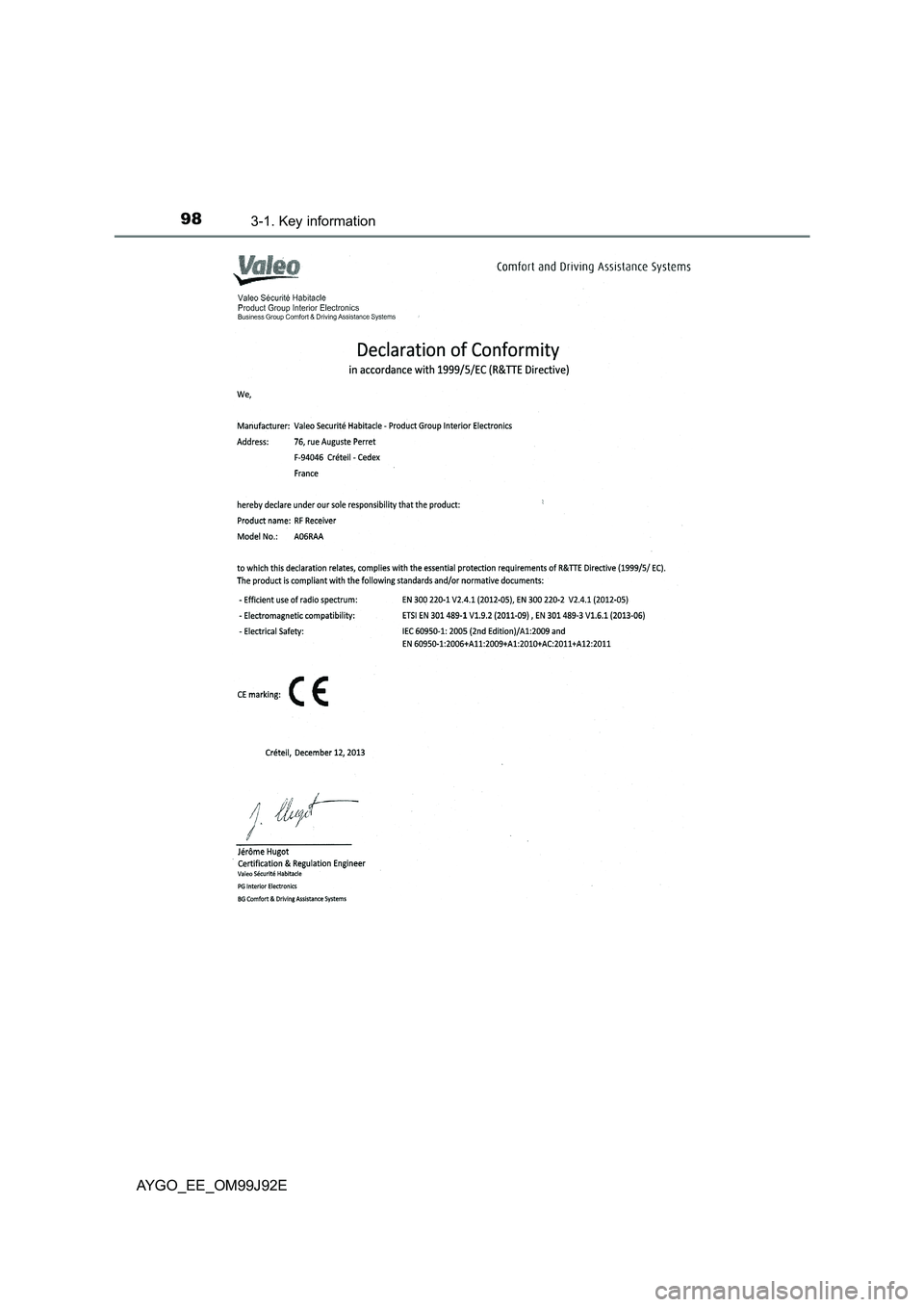

983-1. Key information
AYGO_EE_OM99J92E

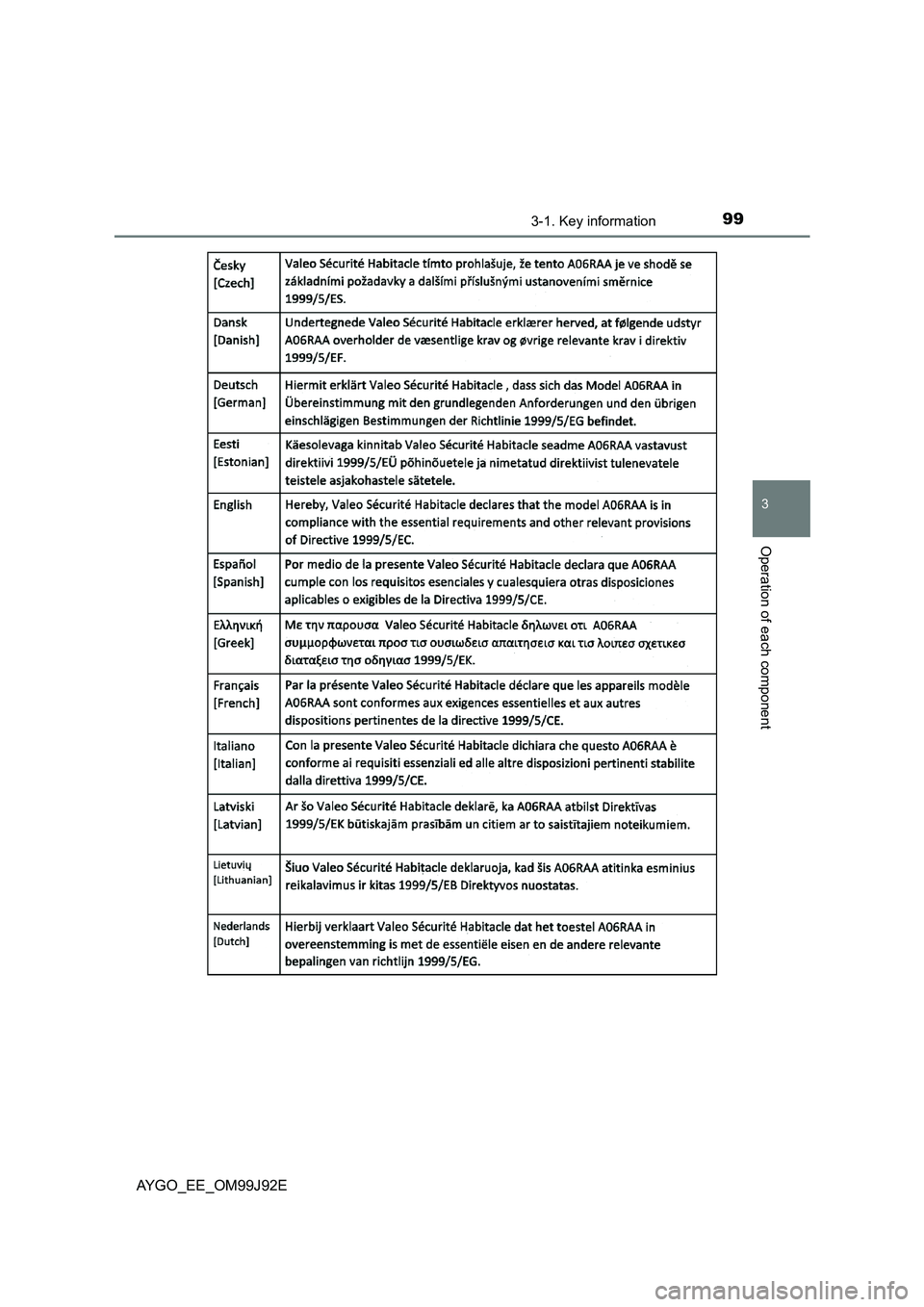

993-1. Key information
3
Operation of each component
AYGO_EE_OM99J92E

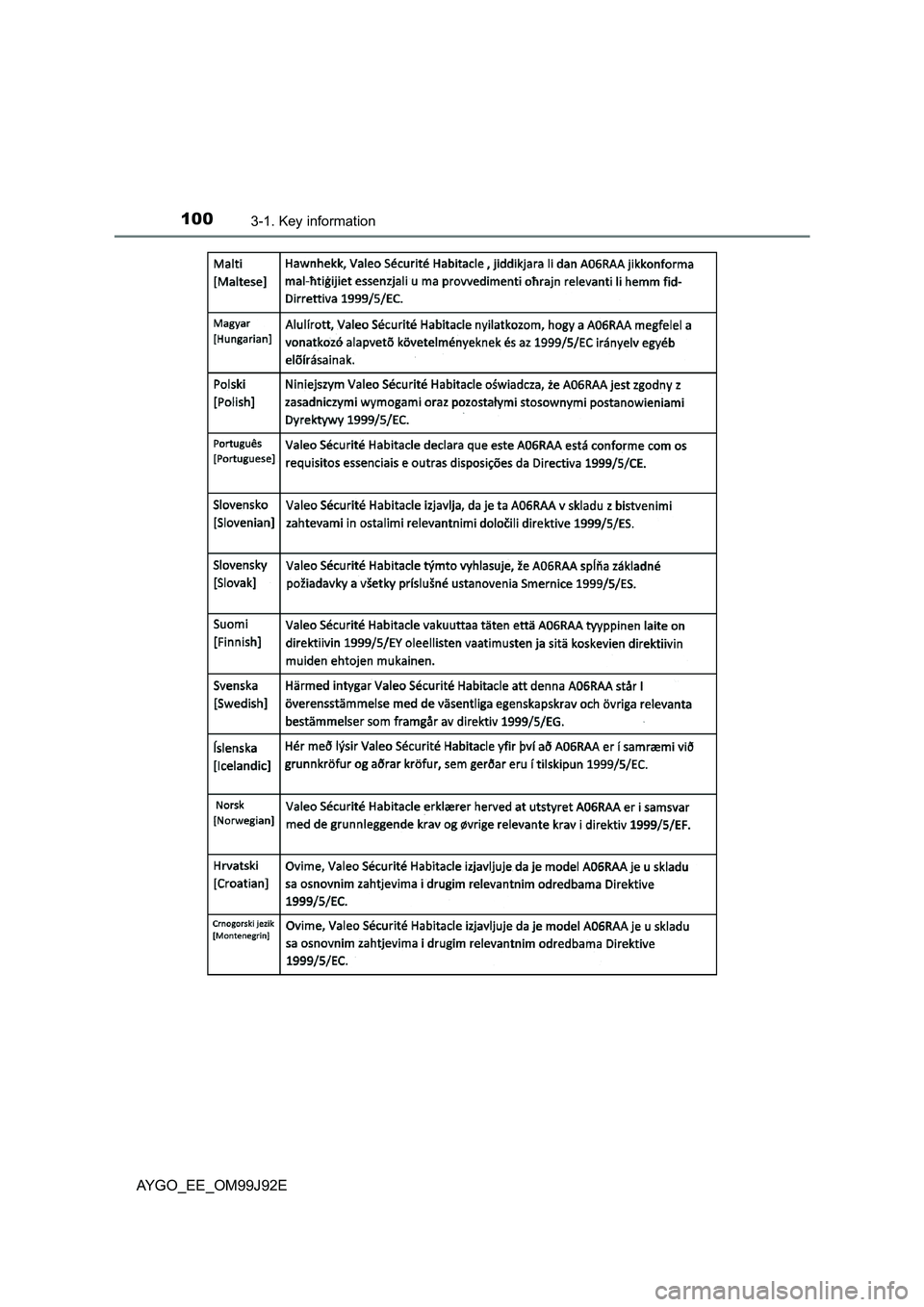

1003-1. Key information
AYGO_EE_OM99J92E

1013-1. Key information
3
Operation of each component
AYGO_EE_OM99J92E
NOTICE
■ To prevent key damage
● Do not drop the keys, subject them to strong shocks or bend them.
● Do not expose the keys to high temperatures for long periods of time.
● Do not get the keys wet or wash them in an ultrasonic washer, etc.
● Do not attach metallic or magnetic materials to the keys or place the keys
close to such materials.
● Do not disassemble the keys.
● Do not attach a sticker or anything else to the surface of the electronic key.
● Do not place the keys near objects that produce magnetic fields, such as
TVs, audio systems and induction cookers, or medical electrical equip-
ment, such as low-frequency therapy equipment.
■ Carrying the electronic key on your person (vehicles with a smart entry
& start system)
Carry the electronic key 10 cm (3.9 in.) or more away from electric appli-
ances that are turned on. Radio wave s emitted from electric appliances
within 10 cm (3.9 in.) of the electronic key may interfere with the key, caus-
ing the key to not function properly.
■ In case of a smart entry & start system malfunction or other key-related
problems (vehicles with a smart entry & start system)
Take your vehicle with all the electronic keys provided with your vehicle to
any authorized Toyota dealer or repairer, or another duly qualified and
equipped professional.
■ When an electronic key is lost (vehicles with a smart entry & start sys-
tem)
If the electronic key remains lost, the risk of vehicle theft increases signifi-
cantly. Visit any authorized Toyota dealer or repairer, or another duly quali-
fied and equipped professional immediately with all remaining electronic
keys that was provided with your vehicle.

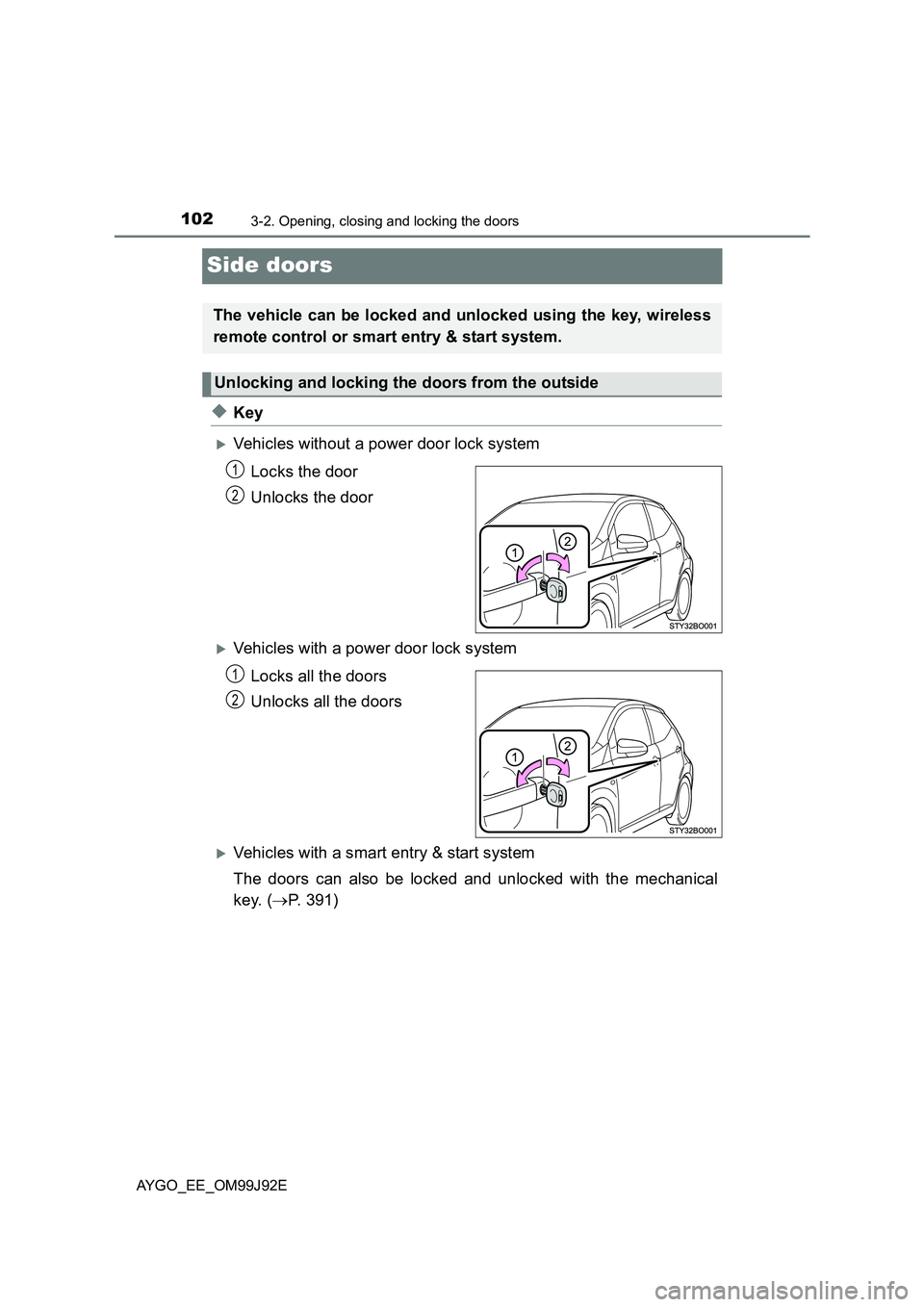

1023-2. Opening, closing and locking the doors
AYGO_EE_OM99J92E
Side doors
◆Key
XVehicles without a power door lock system
Locks the door
Unlocks the door
XVehicles with a power door lock system
Locks all the doors
Unlocks all the doors
XVehicles with a smart entry & start system
The doors can also be locked and unlocked with the mechanical
key. ( →P. 391)
The vehicle can be locked and unlocked using the key, wireless
remote control or smart entry & start system.
Unlocking and locking the doors from the outside
1
2
1
2

1033-2. Opening, closing and locking the doors
3
Operation of each component
AYGO_EE_OM99J92E
◆Wireless remote control (if equipped)
Locks all the doors
Unlocks all the doors
◆Smart entry & start system (if equipped)
Carry the electronic key to enable this function.
Press the button to lock/unlock
the doors.
Press the button to be certain.
■ Operation signals (vehicles with a wireless remote control system or
smart entry & start system)
The emergency flashers flash to indicate that the doors have been locked/
unlocked. (Locked: once; Unlocked: twice)
■ Security feature (vehicles with a smart entry & start system)
If a door is not opened within approximately 30 seconds after the vehicle is
unlocked, the security feature automatically locks the vehicle again.
■ Door lock buzzer (vehicles with a smart entry & start system)
If an attempt to lock the doors is made when a door is not fully closed, a
buzzer sounds continuously for 5 seconds. Fully close the door to stop the
buzzer, and lock the vehicle once more.
■ If the smart entry & start system does not operate properly (if equipped)
● Use the mechanical key to lock and unlock the doors. (→P. 391)
● Replace the battery with a new one if it is depleted. (→P. 319)
1
2

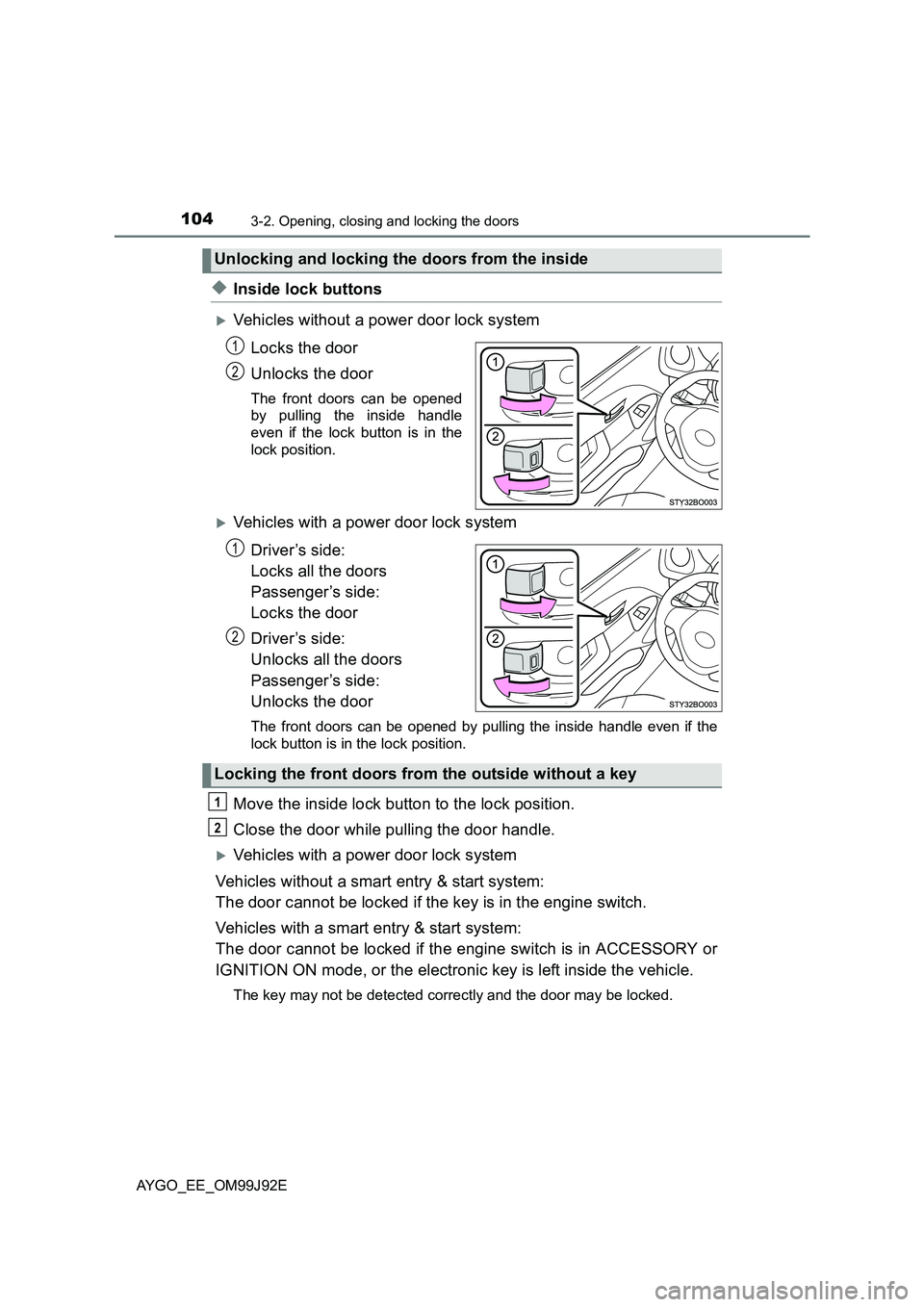

1043-2. Opening, closing and locking the doors
AYGO_EE_OM99J92E
◆Inside lock buttons
XVehicles without a power door lock system
Locks the door
Unlocks the door
The front doors can be opened
by pulling the inside handle
even if the lock button is in the
lock position.
XVehicles with a power door lock system
Driver’s side:
Locks all the doors
Passenger’s side:
Locks the door
Driver’s side:
Unlocks all the doors
Passenger’s side:
Unlocks the door
The front doors can be opened by pulling the inside handle even if the
lock button is in the lock position.
Move the inside lock button to the lock position.
Close the door while pulling the door handle.
XVehicles with a power door lock system
Vehicles without a smart entry & start system:
The door cannot be locked if the key is in the engine switch.
Vehicles with a smart entry & start system:
The door cannot be locked if the engine switch is in ACCESSORY or
IGNITION ON mode, or the electronic key is left inside the vehicle.
The key may not be detected correctly and the door may be locked.
Unlocking and locking the doors from the inside
1
2
1
2
Locking the front doors from the outside without a key
1
2
