2015 Hyundai Grand Santa Fe Handleiding (in Dutch)

Specificaties & Consumenteninformatie
8
*1
: Zie de SAE-viscositeitsindex op de volgende bladzijde.
* 2
: Tegenwoordig zijn er energiebesparende motoroliën beschikbaar. Naast andere
extra voordelen, dragen zij bij tot een laag
brandstofverbruik door de hoeveelheid brandstof te beperken die nodig is om wrijving in de motor te overwinnen. Vaak zijn deze
verbeteringen moeilijk waar te nemen in het dagelijks gebruik, maar op jaarbasis kunnen ze toch merkbaar kosten en energiebesparen.
* 3
:Als in uw land geen API SM of ACEA A5-motorolie verkrijgbaar is, kunt u ook API SL of ACEA A3-motorolie gebruiken.
*4
: Roetfilter Smeermiddel/vloeistof Inhoud Classificatie
Olie achterasdifferentieel (4WD) 0,53
l(0,56 US qt.) HYPOID GEAR OIL API GL-5, SAE 75W/90
(SHELL SPIRAX X of equivalent)
Olie verdeelbak (4WD) 3.3L
0,68
l(0,72 US qt.)
HYPOID GEAR OIL API GL-5, SAE 75W/90
(SHELL SPIRAX X of equivalent)
R2.2 0,6
l(0,63US qt.)
Brandstof 71
l(18,75 US gal.)
Zie “verejste brandstof ” in hoofdstuk 1
Aanbevolen motorolie (Europa)
Leverancier Product
Benzinemotor Dieselmotor
Shell HELIX ULTRA AH-E 5W-30
HELIX ULTRA AP 5W-30
HELIX ULTRA 5W-40
8

9

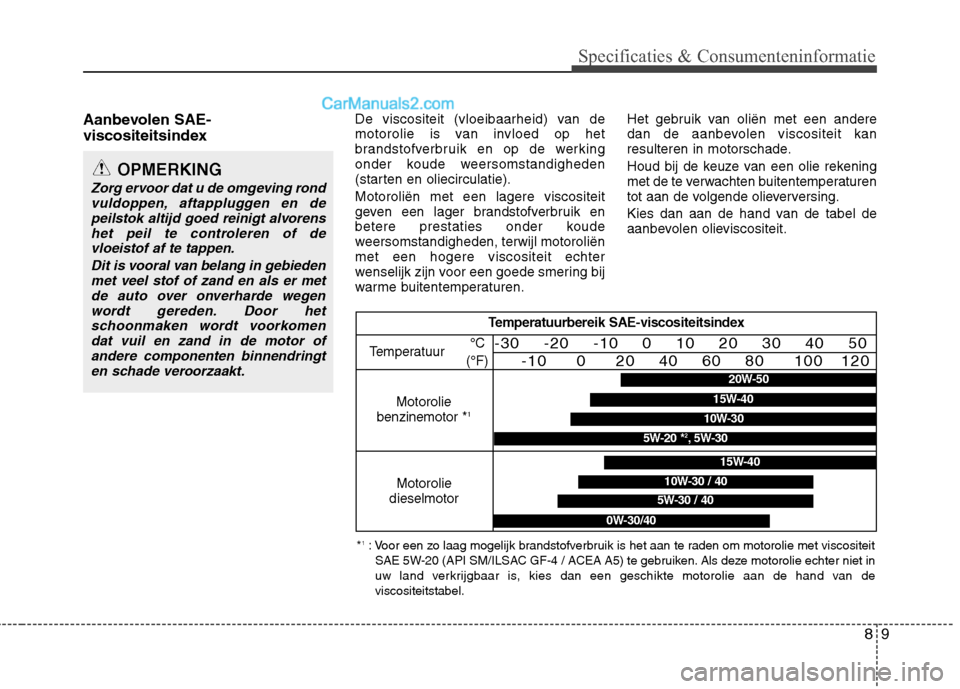

Specificaties & Consumenteninformatie
Aanbevolen SAE-
viscositeitsindexDe viscositeit (vloeibaarheid) van de
motorolie is van invloed op het
brandstofverbruik en op de werking
onder koude weersomstandigheden
(starten en oliecirculatie). Motoroliën met een lagere viscositeit
geven een lager brandstofverbruik en
betere prestaties onder koude
weersomstandigheden, terwijl motoroliënmet een hogere viscositeit echter
wenselijk zijn voor een goede smering bij
warme buitentemperaturen.Het gebruik van oliën met een andere
dan de aanbevolen viscositeit kan
resulteren in motorschade.
Houd bij de keuze van een olie rekening
met de te verwachten buitentemperaturen
tot aan de volgende olieverversing.
Kies dan aan de hand van de tabel de
aanbevolen olieviscositeit.
OPMERKING
Zorg ervoor dat u de omgeving rond
vuldoppen, aftappluggen en de peilstok altijd goed reinigt alvorenshet peil te controleren of de
vloeistof af te tappen.
Dit is vooral van belang in gebiedenmet veel stof of zand en als er metde auto over onverharde wegen wordt gereden. Door het
schoonmaken wordt voorkomendat vuil en zand in de motor ofandere componenten binnendringt en schade veroorzaakt.
* 1
: Voor een zo laag mogelijk brandstofverbruik is het aan te raden om motorolie met viscositeit
SAE 5W-20 (API SM/ILSAC GF-4 / ACEA A5) te gebruiken. Als deze motorolie echter niet in
uw land verkrijgbaar is, kies dan een geschikte motorolie aan de hand van deviscositeitstabel.
Temperatuurbereik SAE-viscositeitsindex
Temperatuur
Motorolie
benzinemotor * 1°C
(°F)-30 -20 -10 0 10 20 30 40 50 -10 0 20 40 60 80 100 120
Motorolie
dieselmotor
5W-30 / 40
15W-40
10W-30 / 40
0W-30/40
20W-50
10W-30
15W-40
5W-20 * 2
, 5W-30
8

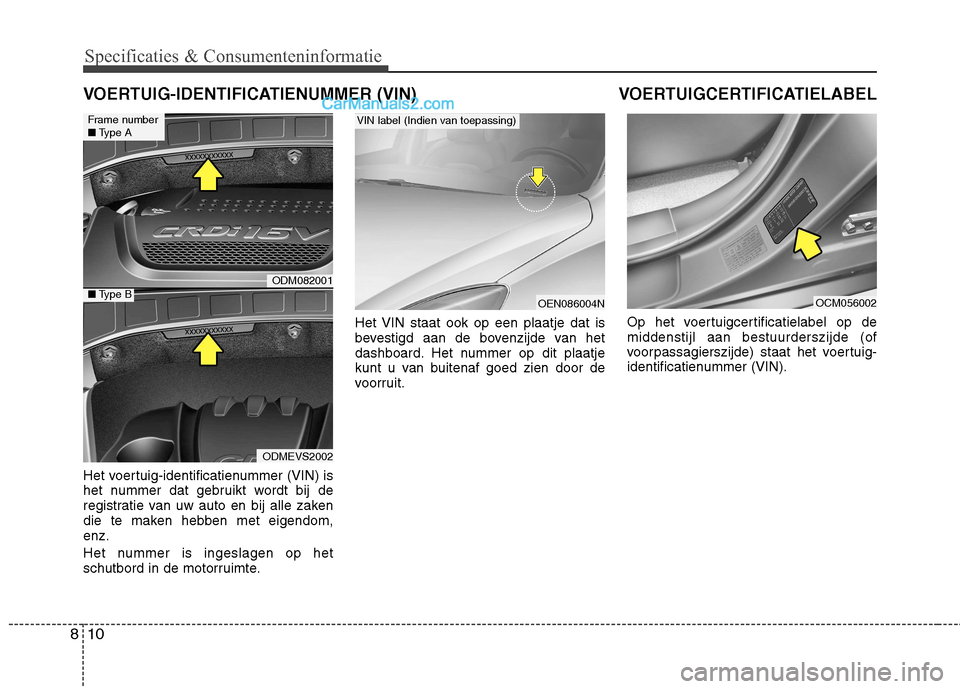

Specificaties & Consumenteninformatie
10
8
Het voertuig-identificatienummer (VIN) is
het nummer dat gebruikt wordt bij de
registratie van uw auto en bij alle zaken
die te maken hebben met eigendom,enz.
Het nummer is ingeslagen op het
schutbord in de motorruimte. Het VIN staat ook op een plaatje dat is
bevestigd aan de bovenzijde van het
dashboard. Het nummer op dit plaatje
kunt u van buitenaf goed zien door de
voorruit.
Op het voertuigcertificatielabel op de middenstijl aan bestuurderszijde (of
voorpassagierszijde) staat het voertuig-
identificatienummer (VIN).
VOERTUIGCERTIFICATIELABEL
VOERTUIG-IDENTIFICATIENUMMER (VIN)
OEN086004N
VIN label (Indien van toepassing)
OCM056002
ODM082001
ODMEVS2002
Frame number ■ Type A
■Type B

811

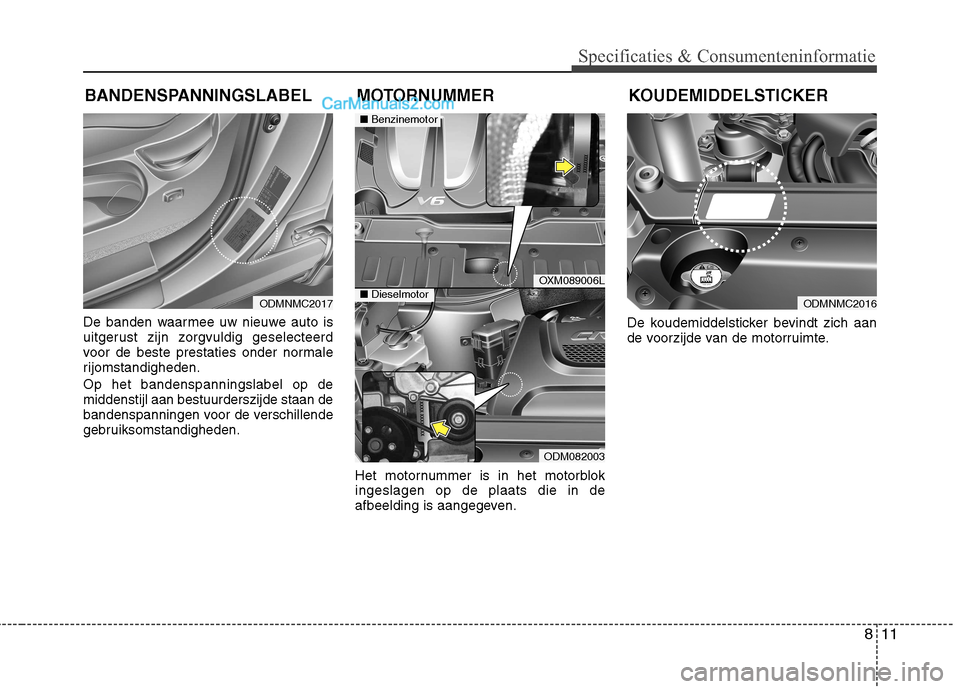

Specificaties & Consumenteninformatie
De banden waarmee uw nieuwe auto is
uitgerust zijn zorgvuldig geselecteerd
voor de beste prestaties onder normale
rijomstandigheden. Op het bandenspanningslabel op de middenstijl aan bestuurderszijde staan de
bandenspanningen voor de verschillende
gebruiksomstandigheden.Het motornummer is in het motorblokingeslagen op de plaats die in de
afbeelding is aangegeven.De koudemiddelsticker bevindt zich aan
de voorzijde van de motorruimte.
MOTORNUMMER
BANDENSPANNINGSLABEL
ODMNMC2017
OXM089006L
ODM082003
■ Benzinemotor
■Dieselmotor
KOUDEMIDDELSTICKER
ODMNMC2016

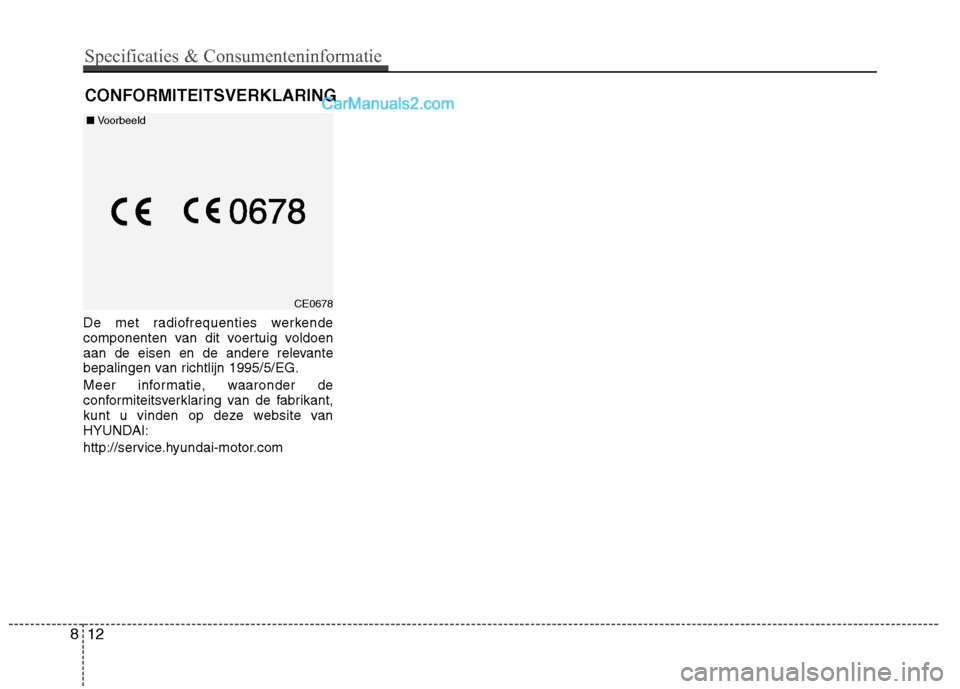

De met radiofrequenties werkende
componenten van dit voertuig voldoen
aan de eisen en de andere relevante
bepalingen van richtlijn 1995/5/EG.
Meer informatie, waaronder de
conformiteitsverklaring van de fabrikant,
kunt u vinden op deze website van
HYUNDAI:
http://service.hyundai-motor.comCONFORMITEITSVERKLARING
CE0678
■
Voorbeeld
812
Specificaties & Consumenteninformatie

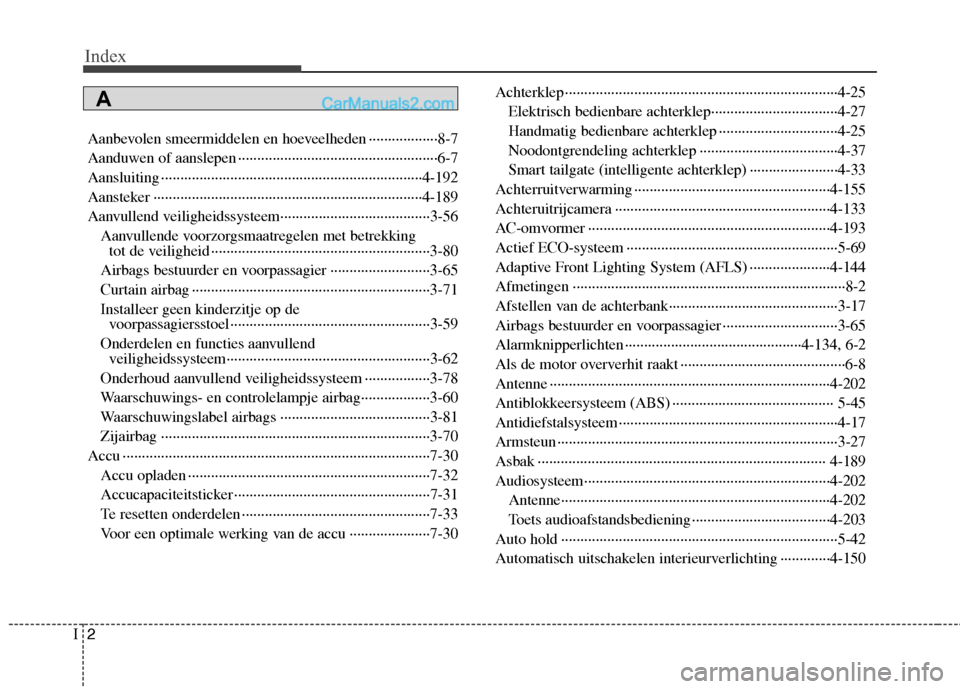

Index
I

Index
2
I
Aanbevolen smeermiddelen en hoeveelheden ··················8-7
Aanduwen of aanslepen ····················································6-7
Aansluiting ····································································4-192
Aansteker ······································································4-189
Aanvullend veiligheidssysteem·······································3-56
Aanvullende voorzorgsmaatregelen met betrekking tot de veiligheid ·························································3-80
Airbags bestuurder en voorpassagier ··························3-65
Curtain airbag ······························································3-71Installeer geen kinderzitje op de voorpassagiersstoel ····················································3-59
Onderdelen en functies aanvullend veiligheidssysteem·····················································3-62
Onderhoud aanvullend veiligheidssysteem ·················3-78
Waarschuwings- en controlelampje airbag··················3-60
Waarschuwingslabel airbags ·······································3-81
Zijairbag ······································································3-70
Accu ················································································7-30 Accu opladen ·······························································7-32
Accucapaciteitsticker ···················································7-31
Te resetten onderdelen ·················································7-33
Voor een optimale werking van de accu ·····················7-30 Achterklep ·······································································4-25
Elektrisch bedienbare achterklep·································4-27
Handmatig bedienbare achterklep ·······························4-25
Noodontgrendeling achterklep ····································4-37
Smart tailgate (intelligente achterklep) ·······················4-33
Achterruitverwarming ···················································4-155
Achteruitrijcamera ························································4-133
AC-omvormer ·······························································4-193
Actief ECO-systeem ·······················································5-69
Adaptive Front Lighting System (AFLS) ·····················4-144
Afmetingen ·······································································8-2
Afstellen van de achterbank············································3-17
Airbags bestuurder en voorpassagier ······························3-65
Alarmknipperlichten ··············································4-134, 6-2
Als de motor oververhit raakt ···········································6-8
Antenne ·········································································4-202
Antiblokkeersysteem (ABS) ·········································· 5-45
Antidiefstalsysteem ·························································4-17
Armsteun ·········································································3-27
Asbak ··········································································· 4-189
Audiosysteem································································4-202
Antenne······································································4-202
Toets audioafstandsbediening ····································4-203
Auto hold ········································································5-42
Automatisch uitschakelen interieurverlichting ·············4-150
A

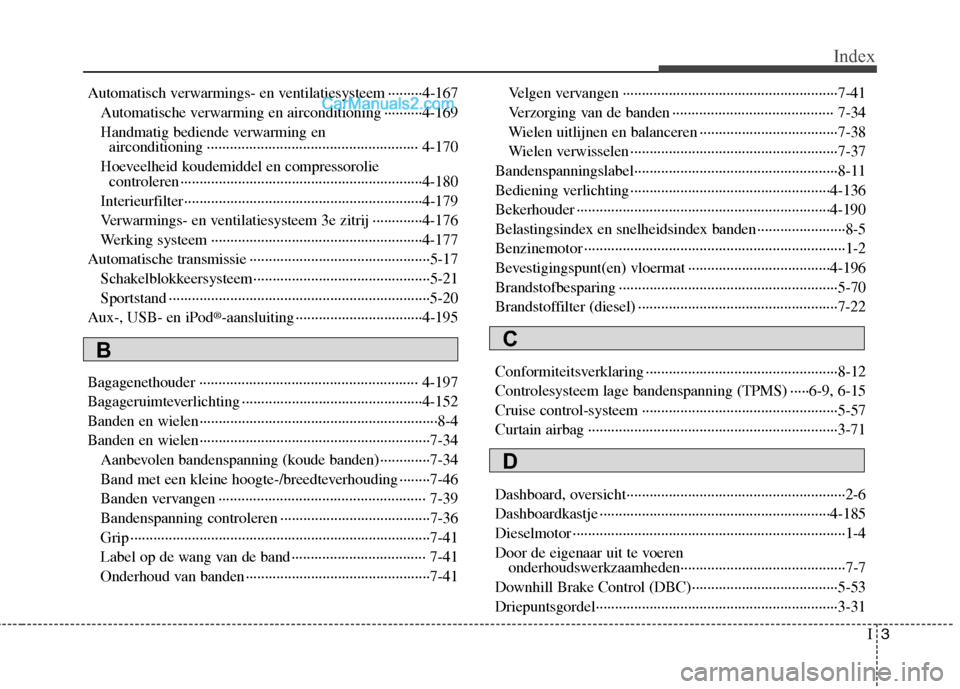

I3
Index
Automatisch verwarmings- en ventilatiesysteem ·········4-167
Automatische verwarming en airconditioning ··········4-169
Handmatig bediende verwarming en airconditioning ······················································· 4-170
Hoeveelheid koudemiddel en compressorolie controleren ·······························································4-180
Interieurfilter······························································4-179
Verwarmings- en ventilatiesysteem 3e zitrij ·············4-176
Werking systeem ·······················································4-177
Automatische transmissie ···············································5-17 Schakelblokkeersysteem··············································5-21
Sportstand ····································································5-20
Aux-, USB- en iPod ®
-aansluiting ·································4-195
Bagagenethouder ························································· 4-197
Bagageruimteverlichting ···············································4-152
Banden en wielen······························································8-4
Banden en wielen····························································7-34 Aanbevolen bandenspanning (koude banden) ·············7-34
Band met een kleine hoogte-/breedteverhouding ········7-46
Banden vervangen ······················································ 7-39
Bandenspanning controleren ·······································7-36
Grip ··············································································7-41
Label op de wang van de band ··································· 7-41
Onderhoud van banden ················································7-41 Velgen vervangen ························································7-41
Verzorging van de banden ·········································· 7-34
Wielen uitlijnen en balanceren ····································7-38
Wielen verwisselen ······················································7-37
Bandenspanningslabel·····················································8-11
Bediening verlichting ····················································4-136
Bekerhouder ··································································4-190
Belastingsindex en snelheidsindex banden ·······················8-5
Benzinemotor ····································································1-2
Bevestigingspunt(en) vloermat ·····································4-196
Brandstofbesparing ·························································5-70
Brandstoffilter (diesel) ····················································7-22
Conformiteitsverklaring ··················································8-12
Controlesysteem lage bandenspanning (TPMS) ·····6-9, 6-15
Cruise control-systeem ···················································5-57
Curtain airbag ·································································3-71
Dashboard, oversicht·························································2-6
Dashboardkastje ····························································4-185
Dieselmotor ·······································································1-4
Door de eigenaar uit te voeren onderhoudswerkzaamheden···········································7-7
Downhill Brake Control (DBC)······································5-53
Driepuntsgordel·······························································3-31
