2011 Peugeot 308 SW BL Owner's Manual - RHD (UK. Australia)

1
39
INSTRUMENTS and CONTROLS

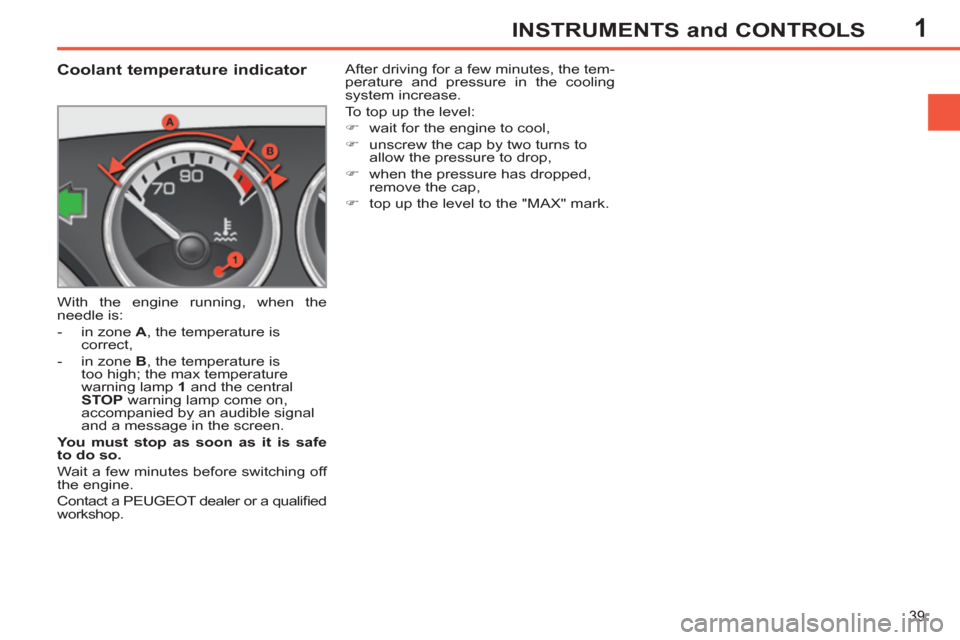

Coolant temperature indicator

With the engine running, when the
needle is:


- in zone A
, the temperature is
correct,

- in zone B
, the temperature is
too high; the max temperature
warning lamp 1
and the central
STOP
warning lamp come on,
accompanied by an audible signal
and a message in the screen.

You must stop as soon as it is safe
to do so.

Wait a few minutes before switching off
the engine.
Contact a PEUGEOT dealer or a qualifi ed
workshop. After driving for a few minutes, the tem-
perature and pressure in the cooling
system increase.
To top up the level:


)
wait for the engine to cool,

)
unscrew the cap by two turns to
allow the pressure to drop,

)
when the pressure has dropped,
remove the cap,

)
top up the level to the "MAX" mark.

1
i
40
INSTRUMENTS and CONTROLS
The level shown will only be correct
if the vehicle is on level ground and
the engine has been off for more
than 30 minutes.

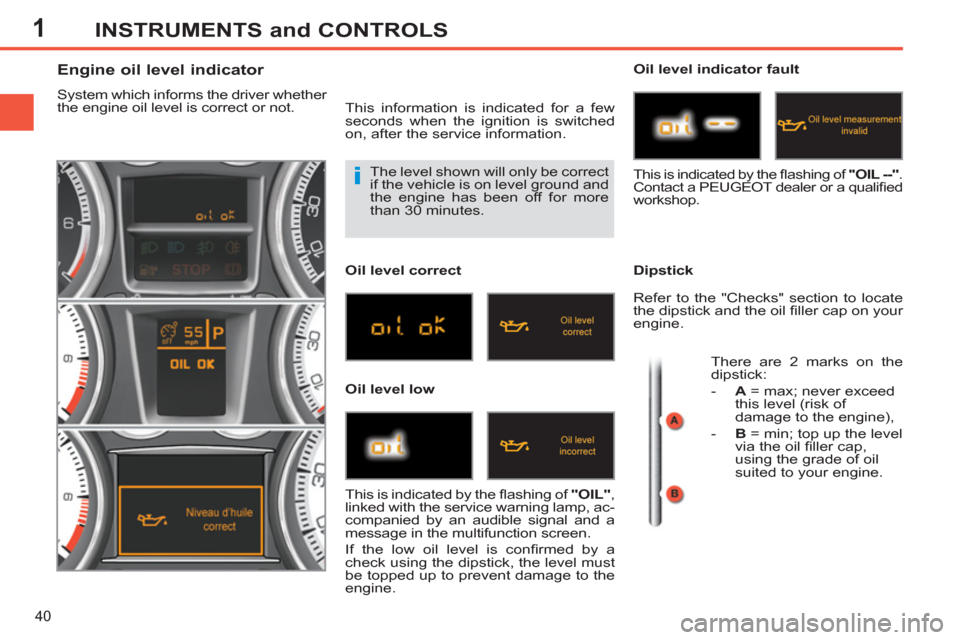

Engine oil level indicator

System which informs the driver whether
the engine oil level is correct or not.
This information is indicated for a few
seconds when the ignition is switched
on, after the service information.

Oil level correct

Oil level low
Oil level indicator fault

Dipstick
This is indicated by the fl ashing of "OIL"
,
linked with the service warning lamp, ac-
companied by an audible signal and a
message in the multifunction screen.
If the low oil level is confi rmed by a
check using the dipstick, the level must
be topped up to prevent damage to the
engine. This is indicated by the fl ashing of "OIL --"
.
Contact a PEUGEOT dealer or a qualifi ed
workshop.
Refer to the "Checks" section to locate
the dipstick and the oil fi ller cap on your
engine.
There are 2 marks on the
dipstick:


- A
= max; never exceed
this level (risk of
damage to the engine),

- B
= min; top up the level
via the oil fi ller cap,
using the grade of oil
suited to your engine.

1
41
INSTRUMENTS and CONTROLS

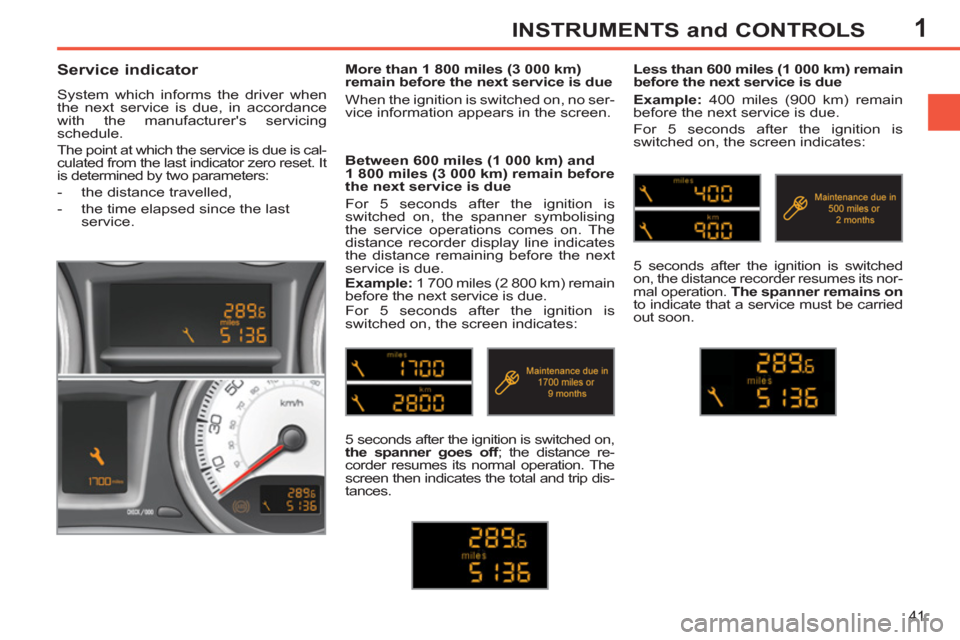

Service indicator

System which informs the driver when
the next service is due, in accordance
with the manufacturer's servicing
schedule.
The point at which the service is due is cal-
culated from the last indicator zero reset. It
is determined by two parameters:


- the distance travelled,

- the time elapsed since the last
service.
Between 600 miles (1 000 km) and
1 800 miles (3 000 km) remain before
the next service is due
For 5 seconds after the ignition is
switched on, the spanner symbolising
the service operations comes on. The
distance recorder display line indicates
the distance remaining before the next
service is due.

Example:
1 700 miles (2 800 km) remain
before the next service is due.
For 5 seconds after the ignition is
switched on, the screen indicates:
5 seconds after the ignition is switched on,
the spanner
goes
off
; the distance re-
corder resumes its normal operation. The
screen then indicates the total and trip dis-
tances.
Less than 600 miles (1 000 km) remain
before the next service is due

Example:
400 miles (900 km) remain
before the next service is due.
For 5 seconds after the ignition is
switched on, the screen indicates:
5 seconds after the ignition is switched
on, the distance recorder resumes its nor-
mal operation. The spanner remains on

to indicate that a service must be carried
out soon.
More than 1 800 miles (3 000 km)
remain before the next service is due
When the ignition is switched on, no ser-
vice information appears in the screen.

1
i
i
42
INSTRUMENTS and CONTROLS
Following this operation, if you wish
to disconnect the battery, lock the
vehicle and wait at least fi ve minutes
for the zero reset to be registered.

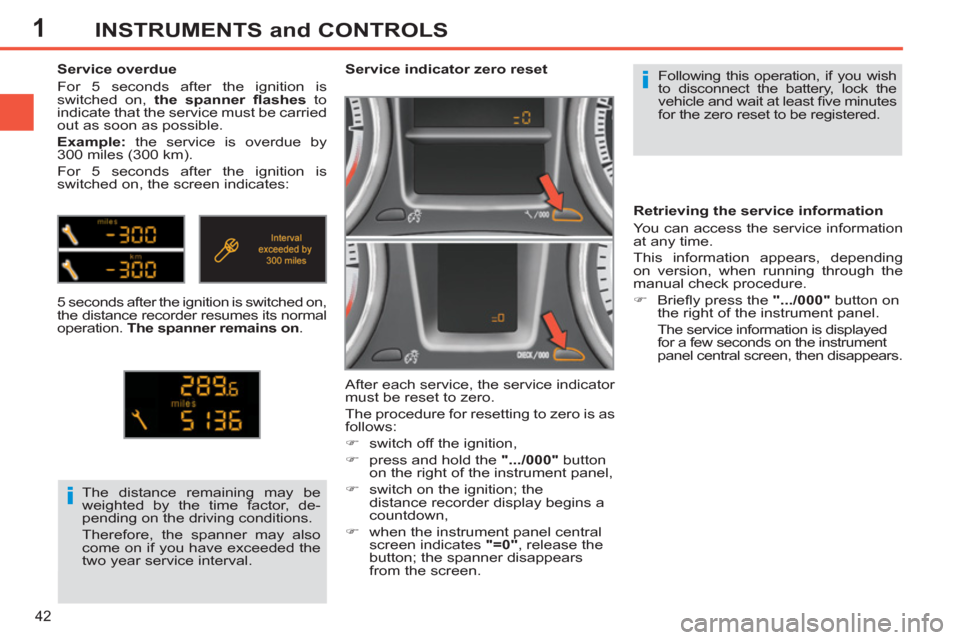

Service indicator zero reset
After each service, the service indicator
must be reset to zero.
The procedure for resetting to zero is as
follows:


)
switch off the ignition,

)
press and hold the ".../000"
button
on the right of the instrument panel,

)
switch on the ignition; the
distance recorder display begins a
countdown,

)
when the instrument panel central
screen indicates "=0"
, release the
button; the spanner disappears
from the screen. The distance remaining may be
weighted by the time factor, de-
pending on the driving conditions.
Therefore, the spanner may also
come on if you have exceeded the
two year service interval.

Service overdue
For 5 seconds after the ignition is
switched on, the spanner fl ashes
to
indicate that the service must be carried
out as soon as possible.

Example:
the service is overdue by
300 miles (300 km).
For 5 seconds after the ignition is
switched on, the screen indicates:
5 seconds after the ignition is switched on,
the distance recorder resumes its normal
operation. The spanner remains
on
.
Retrieving the service information
You can access the service information
at any time.
This information appears, depending
on version, when running through the
manual check procedure.


)
Briefl y press the ".../000"
button on
the right of the instrument panel.
The service information is displayed
for a few seconds on the instrument
panel central screen, then disappears.

1
43
INSTRUMENTS and CONTROLS

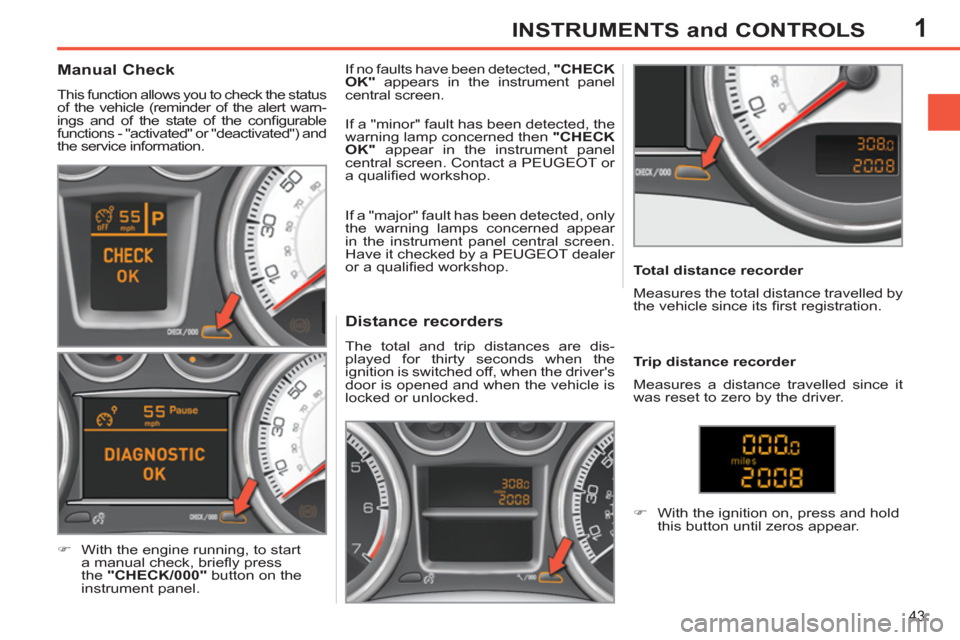

Distance recorders

The total and trip distances are dis-
played for thirty seconds when the
ignition is switched off, when the driver's
door is opened and when the vehicle is
locked or unlocked.
Total distance recorder

Trip distance recorder


)
With the ignition on, press and hold
this button until zeros appear.














Manual Check

This function allows you to check the status
of the vehicle (reminder of the alert warn-
ings and of the state of the confi gurable
functions - "activated" or "deactivated") and
the service information.


)
With the engine running, to start
a manual check, briefl y press
the "CHECK/000"
button on the
instrument panel. If no faults have been detected, "CHECK
OK"
appears in the instrument panel
central screen.
If a "major" fault has been detected, only
the warning lamps concerned appear
in the instrument panel central screen.
Have it checked by a PEUGEOT dealer
or a qualifi ed workshop. If a "minor" fault has been detected, the
warning lamp concerned then "CHECK
OK"
appear in the instrument panel
central screen. Contact a PEUGEOT or
a qualifi ed workshop.
Measures a distance travelled since it
was reset to zero by the driver. Measures the total distance travelled by
the vehicle since its fi rst registration.

1
44
INSTRUMENTS and CONTROLS

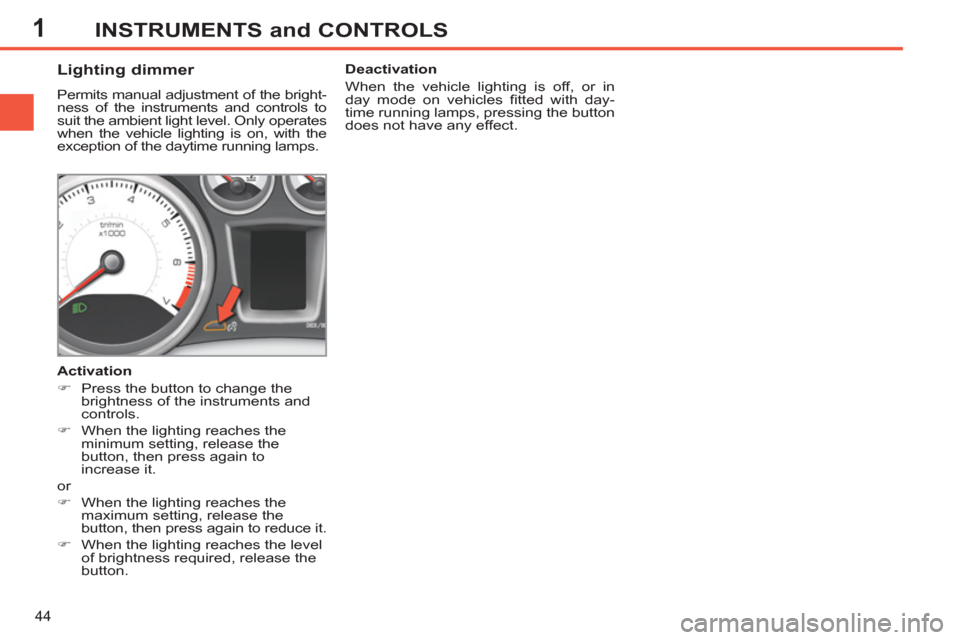

Lighting dimmer

Permits manual adjustment of the bright-
ness of the instruments and controls to
suit the ambient light level. Only operates
when the vehicle lighting is on, with the
exception of the daytime running lamps.

Activation


)
Press the button to change the
brightness of the instruments and
controls.

)
When the lighting reaches the
minimum setting, release the
button, then press again to
increase it.
or


)
When the lighting reaches the
maximum setting, release the
button, then press again to reduce it.

)
When the lighting reaches the level
of brightness required, release the
button.

Deactivation
When the vehicle lighting is off, or in
day mode on vehicles fi tted with day-
time running lamps, pressing the button
does not have any effect.

2
45

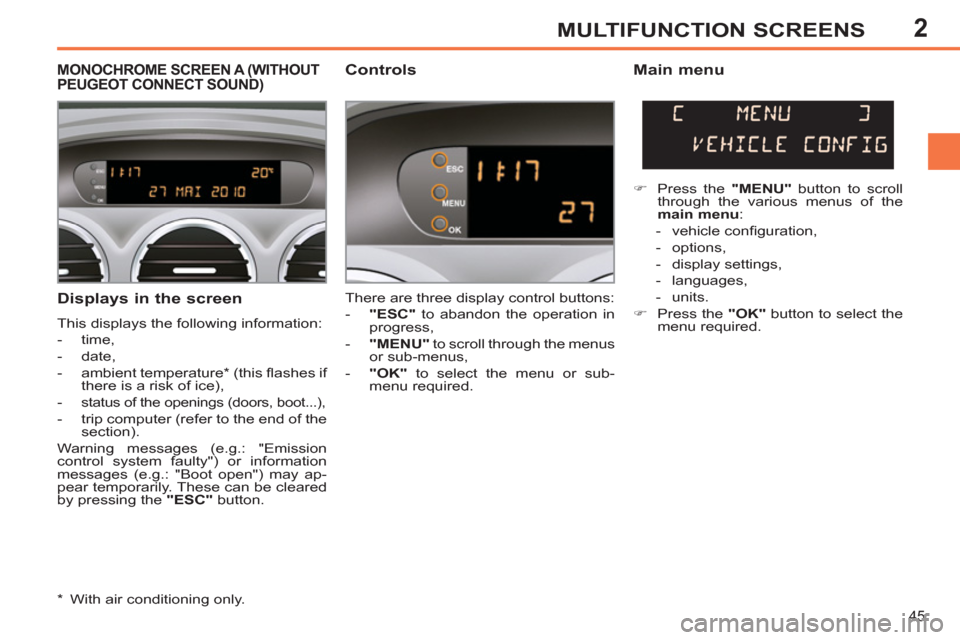

MULTIFUNCTION SCREENS

Displays in the screen

This displays the following information:


- time,

- date,

- ambient temperature * (this fl ashes if
there is a risk of ice),

-
status of the openings (doors, boot...),


- trip computer (refer to the end of the
section).
Warning messages (e.g.: "Emission
control system faulty") or information
messages (e.g.: "Boot open") may ap-
pear temporarily. These can be cleared
by pressing the "ESC"
button.









MONOCHROME SCREEN A (WITHOUT
PEUGEOT CONNECT SOUND)
Controls
Main menu

There are three display control buttons:


- "ESC"
to abandon the operation in
progress,

- "MENU"
to scroll through the menus
or sub-menus,

- "OK"
to select the menu or sub-
menu required.


)
Press the "MENU"
button to scroll
through the various menus of the
main menu
:


- vehicle confi guration,

- options,

- display settings,

- languages,

- units.

)
Press the "OK"
button to select the
menu required.

* With air conditioning only.

2
!
46

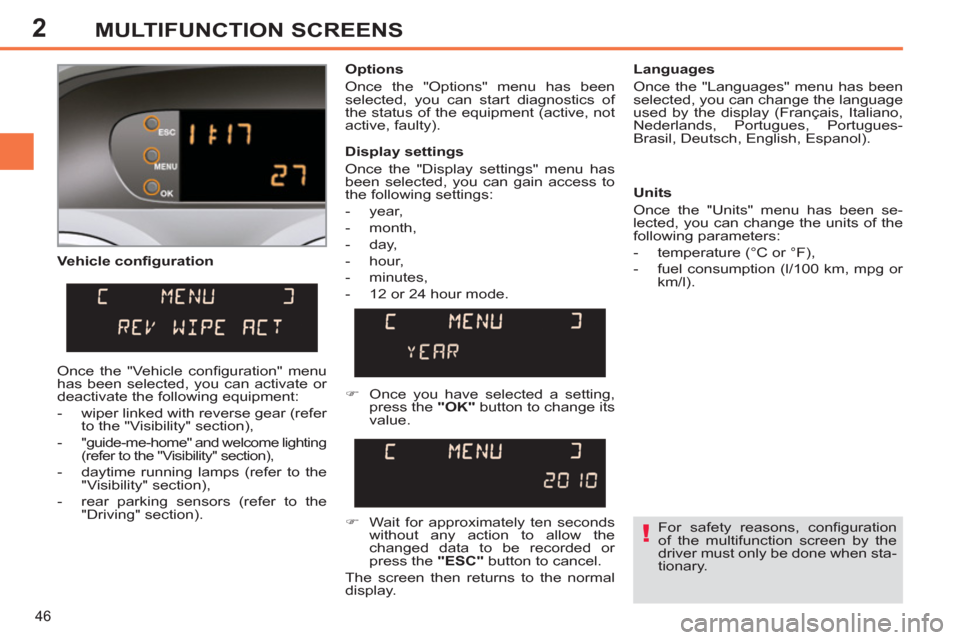

MULTIFUNCTION SCREENS

Vehicle confi guration
Options
Once the "Options" menu has been
selected, you can start diagnostics of
the status of the equipment (active, not
active, faulty).
Languages
Once the "Languages" menu has been
selected, you can change the language
used by the display (Français, Italiano,
Nederlands, Portugues, Portugues-
Brasil, Deutsch, English, Espanol).

Display settings
Once the "Display settings" menu has
been selected, you can gain access to
the following settings:


- year,

- month,

- day,

- hour,

- minutes,

- 12 or 24 hour mode.
Units
Once the "Units" menu has been se-
lected, you can change the units of the
following parameters:


- temperature (°C or °F),

- fuel consumption (l/100 km, mpg or
km/l).



)
Once you have selected a setting,
press the "OK"
button to change its
value.

)
Wait for approximately ten seconds
without any action to allow the
changed data to be recorded or
press the "ESC"
button to cancel.
The screen then returns to the normal
display.

Once the "Vehicle confi guration" menu
has been selected, you can activate or
deactivate the following equipment:


- wiper linked with reverse gear (refer
to the "Visibility" section),

-
"guide-me-home" and welcome lighting
(refer to the "Visibility" section),

- daytime running lamps (refer to the
"Visibility" section),

- rear parking sensors (refer to the
"Driving" section).

For safety reasons, confi guration
of the multifunction screen by the
driver must only be done when sta-
tionary.
