2011 Peugeot 308 SW BL Owner's Manual - RHD (UK. Australia)

4
i
!
87
ACCESS





ALARM

System which protects and provides a de-
terrent against theft and break-ins. It pro-
vides the following types of monitoring.


Locking the vehicle with full
alarm system
For all work on the alarm system,
contact a PEUGEOT dealer or a
qualifi ed workshop.
Activation


)
Switch off the ignition and get out of
the vehicle.

)
Press the locking button on the
remote control.
The monitoring system is active: the in-
dicator lamp in the button fl ashes once
per second.
After the locking button on the remote
control is pressed, the exterior perime-
ter monitoring is activated after a delay
of 5 seconds and the interior volumetric
monitoring after a delay of 45 seconds.
- Exterior perimeter
The system checks for opening of the
vehicle.
The alarm is triggered if anyone tries to
open a door, the boot, the bonnet...



- Interior volumetric
The system checks for any variation in
the volume in the passenger compart-
ment.
The alarm is triggered if anyone breaks
a window, enters the passenger com-
partment or moves inside the vehicle.



Self-protection function
The system checks for the putting out of
service of its components.
The alarm is triggered if the battery, the
central control or the wires of the siren
are put out of service or damaged.
Deactivation


)
Press the unlocking button on the
remote control.
The alarm system is deactivated: the in-
dicator lamp in the button goes off.
If an opening (door, boot...) is
not closed fully, the vehicle is not
locked but the exterior perimeter
monitoring will be activated after a
delay of 45 seconds at the same
time as the interior volumetric
monitoring.

4
i
!
88
ACCESS

Triggering of the alarm

The monitoring functions remain
active until the alarm has been trig-
gered eleven times in succession.
When the vehicle is unlocked using
the remote control, rapid fl ashing
of the indicator lamp in the button
informs you that the alarm was trig-
gered during your absence. When
the ignition is switched on, this
fl ashing stops immediately.



Failure of the remote control

To deactivate the monitoring functions:



)
Lock or deadlock the vehicle using
the key in the driver's door lock.




Locking the vehicle without
activating the alarm

When the ignition is switched on, fi xed
illumination of the indicator lamp in the
button indicates a malfunction of the
system.
Have it checked by a PEUGEOT dealer
or a qualifi ed workshop.

This is indicated by sounding of the siren
and fl ashing of the direction indicators
for thirty seconds.


)
Unlock the vehicle using the key in
the driver's door lock.

)
Open the door; the alarm is trig-
gered.

)
Switch on the ignition; the alarm stops.
The indicator lamp in the button goes
off.




Malfunction

Automatic activation *

To be effective, this deactivation
must be carried out each time the
ignition is switched off.
Deactivation of the interior
volumetric monitoring


)
Switch off the ignition.

)
Within ten seconds, press the
button until the indicator lamp is on
continuously.

)
Get out of the vehicle.

)
Press the locking button on the
remote control immediately.
The exterior perimeter monitoring alone
is activated: the indicator lamp in the
button fl ashes once per second.


Locking the vehicle with
exterior perimeter monitoring
only
Deactivate the interior volumetric moni-
toring to avoid unwanted triggering of
the alarm in certain cases such as:


- leaving a pet in the vehicle,

- leaving a window partially open,

- washing your vehicle,
Reactivation of the interior
volumetric monitoring


)
Press the unlocking button on the
remote control to deactivate the
exterior perimeter monitoring.

)
Press the locking button on the
remote control to activate all the
monitoring functions.
The indicator lamp in the button again
fl ashes once per second.


* According to country.
2 minutes after the last door or the boot
is closed, the system is activated auto-
matically.


)
To avoid triggering the alarm on
entering the vehicle, fi rst press the
unlocking button on the remote
control.

4
i
!
i
89
ACCESS
The electric window controls remain
operational for approximately 45 sec-
onds after the ignition is switched off
or until the vehicle is locked after a
door is opened.
If one of the passenger windows
cannot be operated from the driv-
er's door control panel, carry out
the operation from the control panel
of the passenger door concerned,
and vice versa.

















ELECTRIC WINDOWS

Fitted with a safety anti-pinch system
and a deactivation system to prevent
misuse of the rear controls.


1.
Driver's electric
window control.


2.
Passenger's electric
window control.


3.
Rear right electric
window control.


4.
Rear left electric
window control.


5.
Deactivation of the rear electric
window and door controls.

If the window cannot be closed (for
example, in the presence of ice),
immediately after the movement is
reversed:


)
press and hold the control until
the window opens fully,

)
then pull the control immediately
and hold it until the window
closes,

)
continue to hold the control for
approximately one second after
the window has closed.

The safety anti-pinch function
is not operational during these
operations.


Safety anti-pinch
When the window rises and meets an
obstacle, it stops and partially lowers
again.
- automatic mode



)
Press or pull the control fi rmly.
The window opens or closes fully
when the control is released.

)
Pressing the control again stops
the movement of the window.



One-touch electric windows

There are two options:


- manual mode



)
Press or pull the control gently. The
window stops when the control is
released.

After approximately ten consecutive
complete opening/closing movements
of the window, a protection function is
activated which only authorises closing
of the window to prevent damage to the
electric window motor.
Once the window is closed, the controls
will become available again after ap-
proximately 40 minutes.

4
i
!
!
90
ACCESS
This control also deactivates the
interior controls for the rear doors
(refer to the section "Child safety -
§ Electric child lock").
Any other status of the indicator
lamp indicates a malfunction of the
electric child lock. Have it checked
by a PEUGEOT dealer or a quali-
fi ed workshop.
Reinitialisation
If a window does not rise automatically,
its operation must be reinitialised:


)
pull the control until the window
stops,

)
release the control and pull it again
until the window closes fully,

)
continue to hold the control for
approximately one second after the
window has closed,

)
press the control to lower the window
automatically to the low position,

)
when the window has reached the
low position, press the control again
for approximately one second. Always remove the key from the
ignition when leaving the vehicle,
even for a short time.
If an obstacle is encountered during
operation of the electric windows,
you must reverse the movement of
the window. To do this, press the
control concerned.
When the driver operates the con-
trols for the passengers' electric
windows, they must ensure that no
one is preventing correct closing of
the windows.
The driver must ensure that the
passengers use the electric win-
dows correctly.
Be aware of children when operating
the windows.


Deactivation of the rear electric
window and door controls


)
For the safety of your children, press
control 5
to deactivate the rear
electric window controls regardless
of their position.
Indicator lamp on, the rear controls are
deactivated.
Indicator lamp off, the rear controls are
activated.
The safety anti-pinch function is not
operational during these operations.

4
!
91
ACCESS











DOORS



)
After unlocking the vehicle completely
using the remote control or the key,
pull the door handle.



From inside


)
Pull the front door control to open
the door; this unlocks the vehicle
completely.

)
Pull the rear door control to open
the door; this unlocks only the door
opened.




Closing

When a door is not closed correctly:


- when the engine is running
,
this warning lamp comes on,
accompanied by a message
in the multifunction screen
for a few seconds,

-
when the vehicle is moving
(speed
higher than 6 mph (10 km/h)), this
warning lamp comes on, accompanied
by an audible signal and a message
in the multifunction screen for a few
seconds.



Opening


From outside


Version with deadlocking
The interior door controls do not
operate when the vehicle is dead-
locked.

4
i
!
i
92
ACCESS

When locking/deadlocking from
the outside
When the vehicle is locked or dead-
locked from the outside, the red
indicator lamp fl ashes and the but-
ton is inactive.


)
After normal locking, pull the
interior door lever to unlock the
vehicle.

)
After deadlocking, it is necessary
to use the remote control or the
key to unlock the vehicle.


If one of the doors is open, the au-
tomatic central locking does not
take place.
If the boot is open, the automatic
central locking of the doors is active.









Centralised locking control

System which provides full manual
locking or unlocking of the doors from
the inside.

Locking


)
Press this button to lock the vehicle.
The red indicator lamp in the button
comes on.

Anti-intrusion security

System which provides full automatic
locking or unlocking of the doors and
boot while driving.
You can activate or deactivate this function.


Unlocking


)
Above 6 mph (10 km/h), press this
button to unlock the doors and boot
temporarily.

If one of the doors is open, the cen-
tral locking from the inside does not
take place.

Unlocking


)
Press this button again to unlock the
vehicle.
The red indicator lamp in the button
goes off.
Locking

When the speed exceeds 6 mph (10 km/h),
the doors and boot lock automatically.

4

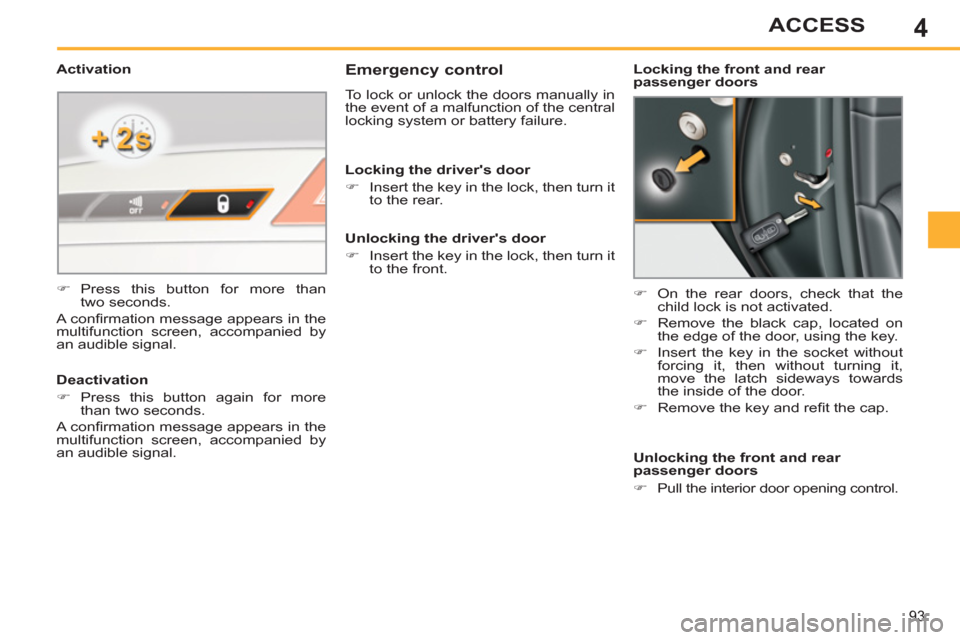

93
ACCESS






Emergency control

To lock or unlock the doors manually in
the event of a malfunction of the central
locking system or battery failure.


)
On the rear doors, check that the
child lock is not activated.

)
Remove the black cap, located on
the edge of the door, using the key.

)
Insert the key in the socket without
forcing it, then without turning it,
move the latch sideways towards
the inside of the door.

)
Remove the key and refi t the cap.

Locking the driver's door


)
Insert the key in the lock, then turn it
to the rear.


Unlocking the driver's door


)
Insert the key in the lock, then turn it
to the front.

Locking the front and rear
passenger doors

Unlocking the front and rear
passenger doors


)
Pull the interior door opening control.


Activation


)
Press this button for more than
two seconds.
A confi rmation message appears in the
multifunction screen, accompanied by
an audible signal.

Deactivation


)
Press this button again for more
than two seconds.
A confi rmation message appears in the
multifunction screen, accompanied by
an audible signal.

4
94

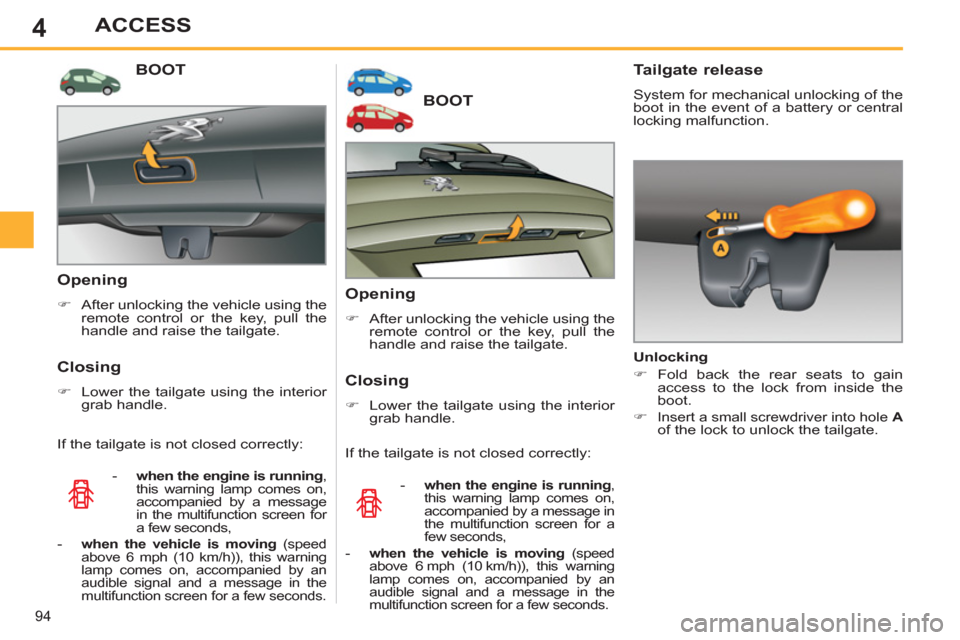

ACCESS











BOOT


Opening



)
After unlocking the vehicle using the
remote control or the key, pull the
handle and raise the tailgate.



Closing



)
Lower the tailgate using the interior
grab handle.


-
when the engine is running
,
this warning lamp comes on,
accompanied by a message in
the multifunction screen for a
few seconds,

- when the vehicle is moving
(speed
above 6 mph (10 km/h)), this warning
lamp comes on, accompanied by an
audible signal and a message in the
multifunction screen for a few seconds.


If the tailgate is not closed correctly:


Opening



)
After unlocking the vehicle using the
remote control or the key, pull the
handle and raise the tailgate.










BOOT



- when the engine is running
,
this warning lamp comes on,
accompanied by a message
in the multifunction screen for
a few seconds,

- when the vehicle is moving
(speed
above 6 mph (10 km/h)), this warning
lamp comes on, accompanied by an
audible signal and a message in the
multifunction screen for a few seconds.








Tailgate release

System for mechanical unlocking of the
boot in the event of a battery or central
locking malfunction.

Unlocking


)
Fold back the rear seats to gain
access to the lock from inside the
boot.

)

Insert a small screwdriver into hole A

of the lock to unlock the tailgate.




Closing



)
Lower the tailgate using the interior
grab handle.
If the tailgate is not closed correctly:
