2011 Peugeot 308 SW BL Owner's Manual - RHD (UK. Australia)

–

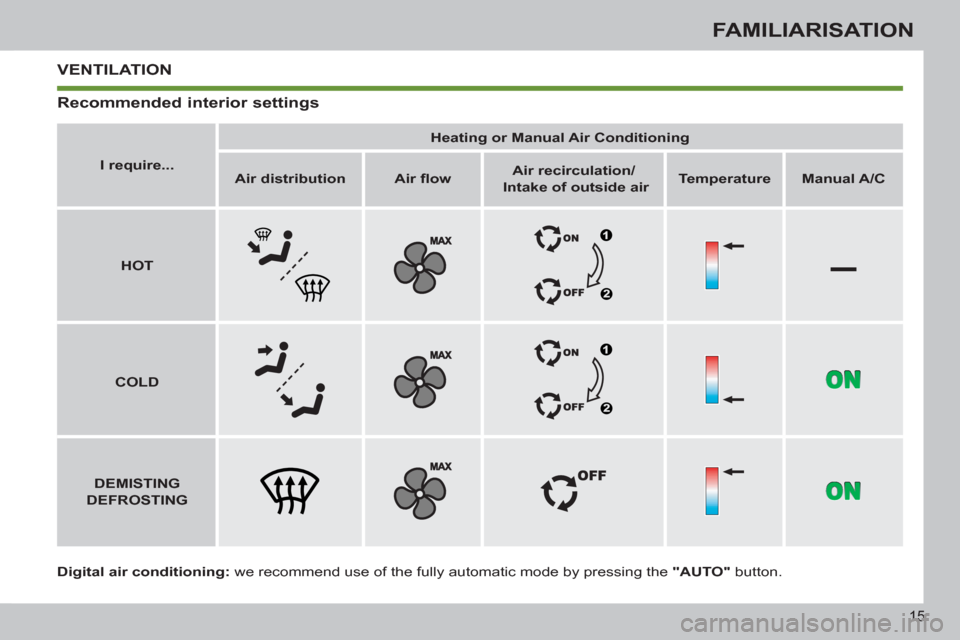

15
FAMILIARISATION
VENTILATION


Digital air conditioning:
we recommend use of the fully automatic mode by pressing the "AUTO"
button.

I require

...



Heating or Manual Air Conditioning




Air distribution



Air fl ow



Air recirculation/


Intake of outside air



Temperature



Manual A/C




HOT





COLD





DEMISTING

DEFROSTING




Recommended interior settings

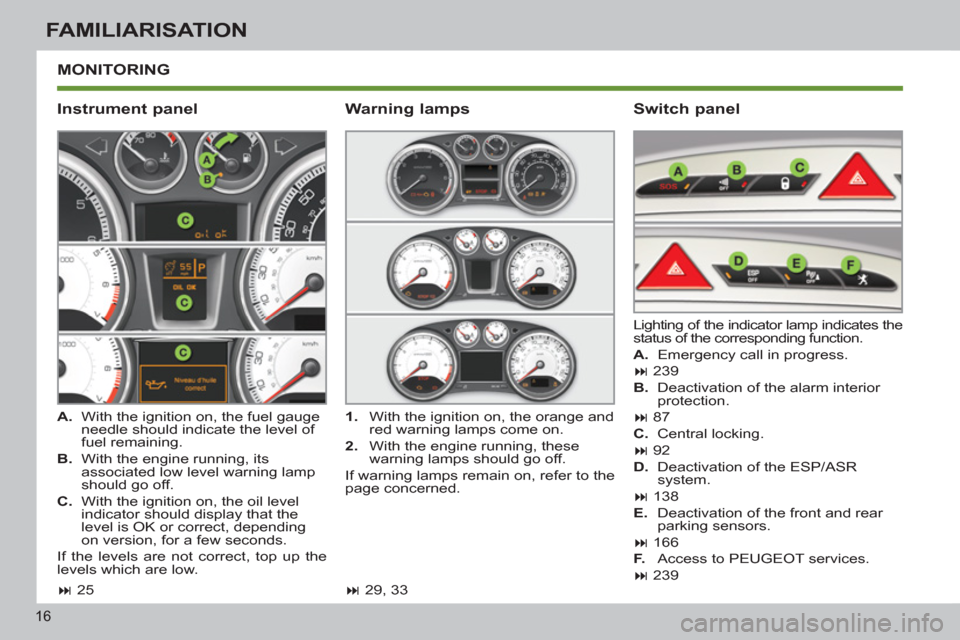

16
FAMILIARISATION
MONITORING


Instrument panel
Switch panel



A.
With the ignition on, the fuel gauge
needle should indicate the level of
fuel remaining.

B.
With the engine running, its
associated low level warning lamp
should go off.

C.
With the ignition on, the oil level
indicator should display that the
level is OK or correct, depending
on version, for a few seconds.
If the levels are not correct, top up the
levels which are low. Lighting of the indicator lamp indicates the
status of the corresponding function.


A.
Emergency call in progress.

239

B.
Deactivation of the alarm interior
protection.

87

C.
Central locking.


92

D.
Deactivation of the ESP/ASR
system.

138

E.
Deactivation of the front and rear
parking sensors.

166

F.
Access to PEUGEOT services.

239



1.
With the ignition on, the orange and
red warning lamps come on.

2.
With the engine running, these
warning lamps should go off.
If warning lamps remain on, refer to the
page concerned.

Warning lamps




25



29, 33

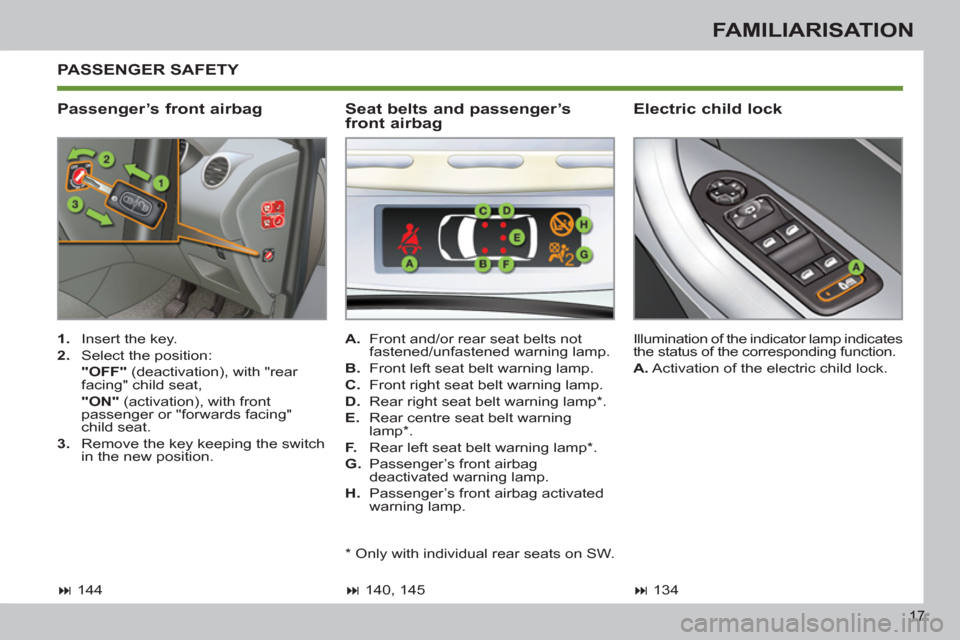

17
FAMILIARISATION
PASSENGER SAFETY


Electric child lock

Illumination of the indicator lamp indicates
the status of the corresponding function.

A.
Activation of the electric child lock.



134

* Only with individual rear seats on SW.


Passenger’s front airbag



1.
Insert the key.

2.
Select the position:
"OFF"
(deactivation), with "rear
facing" child seat,
"ON"
(activation), with front
passenger or "forwards facing"
child seat.

3.
Remove the key keeping the switch
in the new position.

A.
Front and/or rear seat belts not
fastened/unfastened warning lamp.

B.
Front left seat belt warning lamp.

C.
Front right seat belt warning lamp.

D.
Rear right seat belt warning lamp * .

E.
Rear centre seat belt warning
lamp * .

F.
Rear left seat belt warning lamp * .

G.
Passenger’s front airbag
deactivated warning lamp.

H.
Passenger’s front airbag activated
warning lamp.


Seat belts and passenger’s
front airbag



140, 145




144

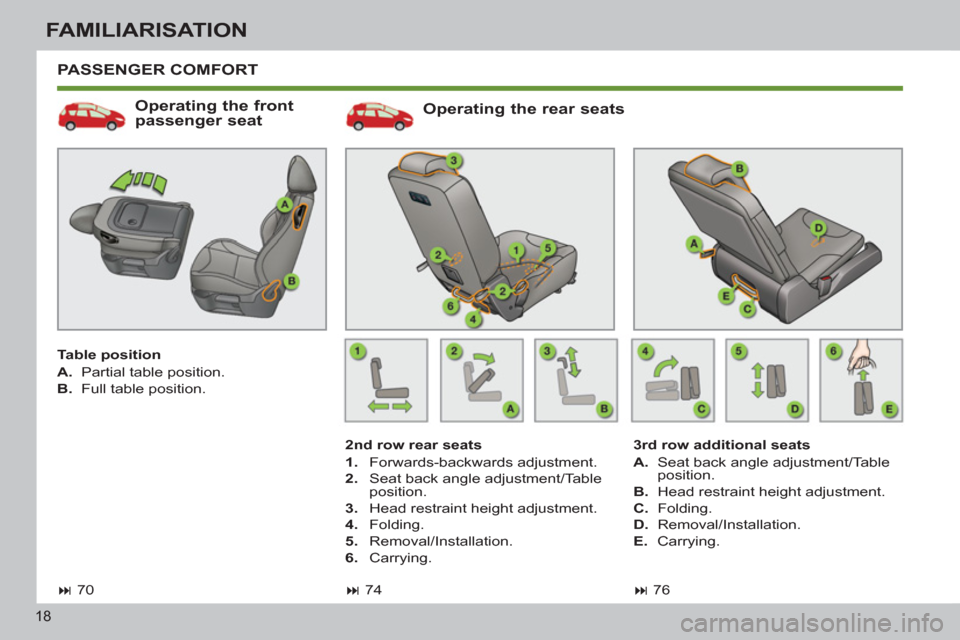

18
FAMILIARISATION
PASSENGER COMFORT


Operating the rear seats


2nd row rear seats


1.
Forwards-backwards adjustment.

2.
Seat back angle adjustment/Table
position.

3.
Head restraint height adjustment.

4.
Folding.

5.
Removal/Installation.

6.
Carrying.



74

3rd row additional seats


A.
Seat back angle adjustment/Table
position.

B.
Head restraint height adjustment.

C.
Folding.

D.
Removal/Installation.

E.
Carrying.



76




Operating the front
passenger seat

Table position


A.
Partial table position.

B.
Full table position.



70

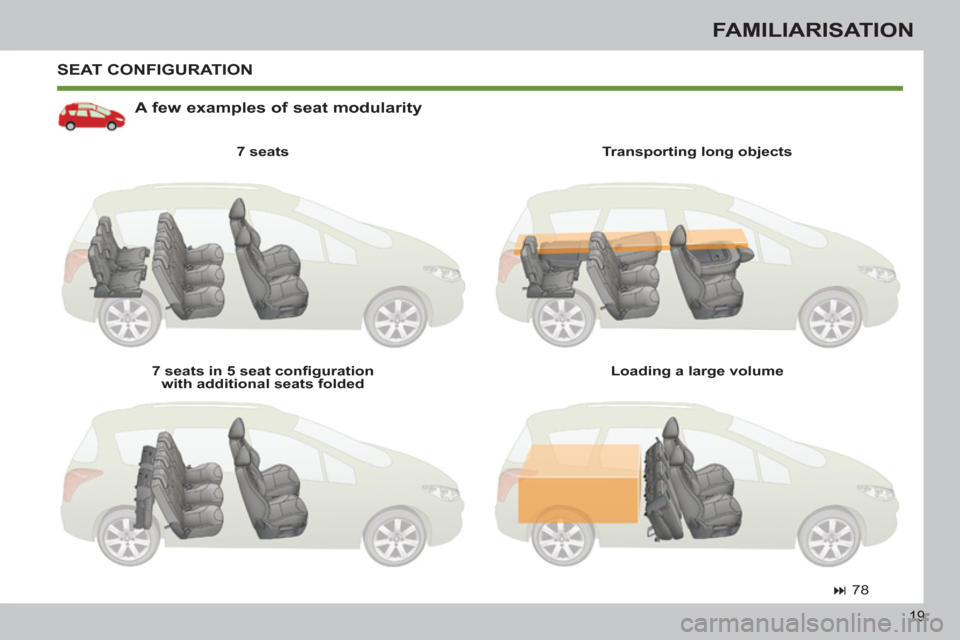

19
FAMILIARISATION
SEAT CONFIGURATION


A few examples of seat modularity


7 seats
7 seats in 5 seat confi guration
with additional seats folded Transporting long objects
Loading a large volume



78

i
!
i

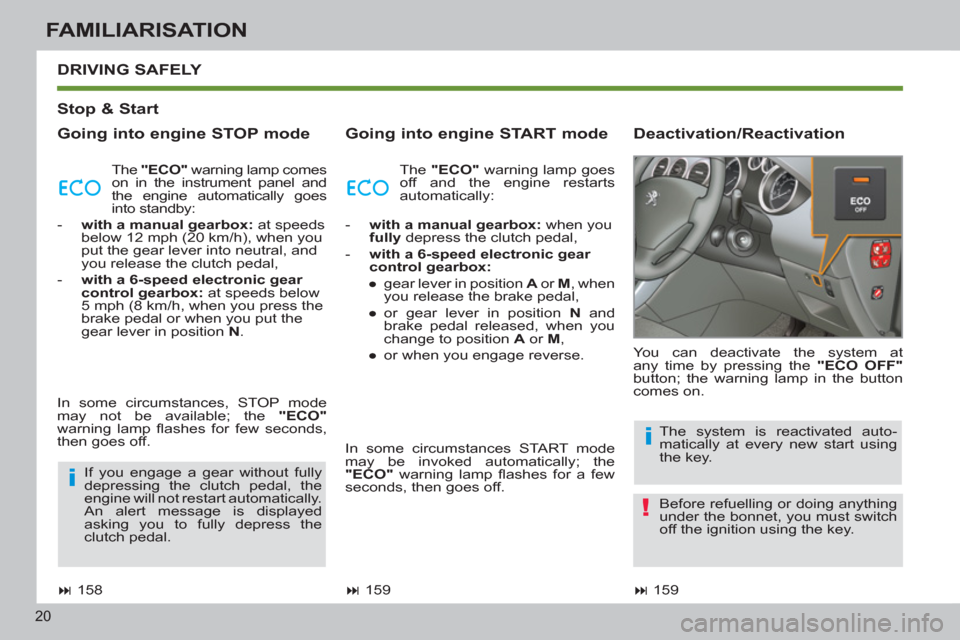

20
FAMILIARISATION

Stop & Start

Going into engine STOP mode
Going into engine START mode
Deactivation/Reactivation

DRIVING SAFELY




159
You can deactivate the system at
any time by pressing the "ECO OFF"

button; the warning lamp in the button
comes on. The "ECO"
warning lamp comes
on in the instrument panel and
the engine automatically goes
into standby: The "ECO"
warning lamp goes
off and the engine restarts
automatically:


- with a manual gearbox:
when you
fully
depress the clutch pedal,

- with a 6-speed electronic gear
control gearbox:



●
gear lever in position A
or M
, when
you release the brake pedal,

●
or gear lever in position N
and
brake pedal released, when you
change to position A
or M
,

●
or when you engage reverse.


- with a manual gearbox:
at speeds
below 12 mph (20 km/h), when you
put the gear lever into neutral, and
you release the clutch pedal,

- with a 6-speed electronic gear
control gearbox:
at speeds below
5 mph (8 km/h, when you press the
brake pedal or when you put the
gear lever in position N
.
In some circumstances, STOP mode
may not be available; the "ECO"

warning lamp fl ashes for few seconds,
then goes off.



158
If you engage a gear without fully
depressing the clutch pedal, the
engine will not restart automatically.
An alert message is displayed
asking you to fully depress the
clutch pedal.



159
The system is reactivated auto-
matically at every new start using
the key.
Before refuelling or doing anything
under the bonnet, you must switch
off the ignition using the key. In some circumstances START mode
may be invoked automatically; the
"ECO"

warning lamp fl ashes for a few
seconds, then goes off.

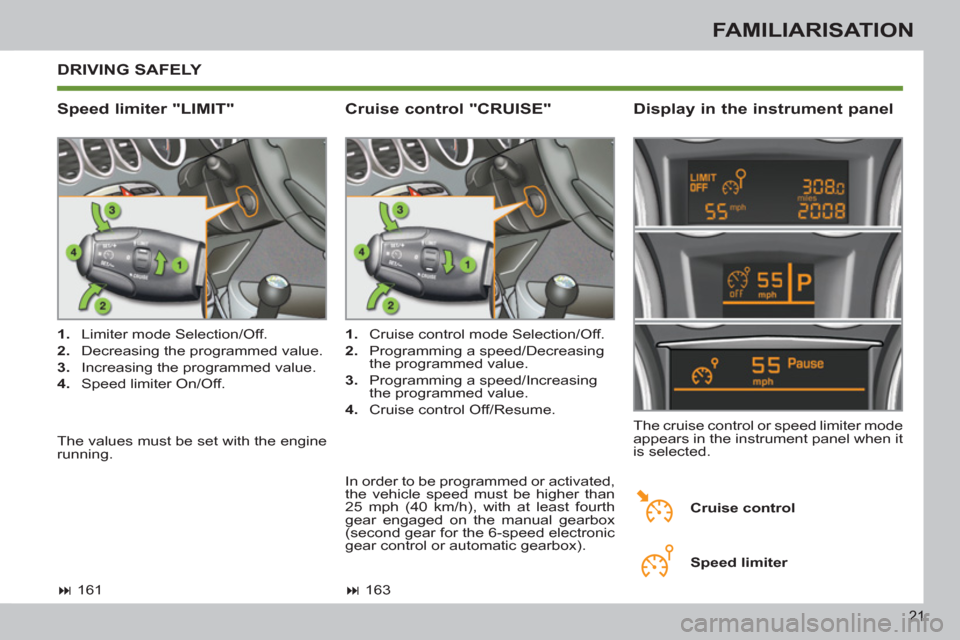

21
FAMILIARISATION
DRIVING SAFELY


Speed limiter "LIMIT"
Display in the instrument panel



1.
Limiter mode Selection/Off.

2.
Decreasing the programmed value.

3.
Increasing the programmed value.

4.
Speed limiter On/Off.
The cruise control or speed limiter mode
appears in the instrument panel when it
is selected.

1.
Cruise control mode Selection/Off.

2.
Programming a speed/Decreasing
the programmed value.

3.
Programming a speed/Increasing
the programmed value.

4.
Cruise control Off/Resume.


Cruise control "CRUISE"


Cruise control

Speed limiter




163




161
In order to be programmed or activated,
the vehicle speed must be higher than
25 mph (40 km/h), with at least fourth
gear engaged on the manual gearbox
(second gear for the 6-speed electronic
gear control or automatic gearbox). The values must be set with the engine
running.

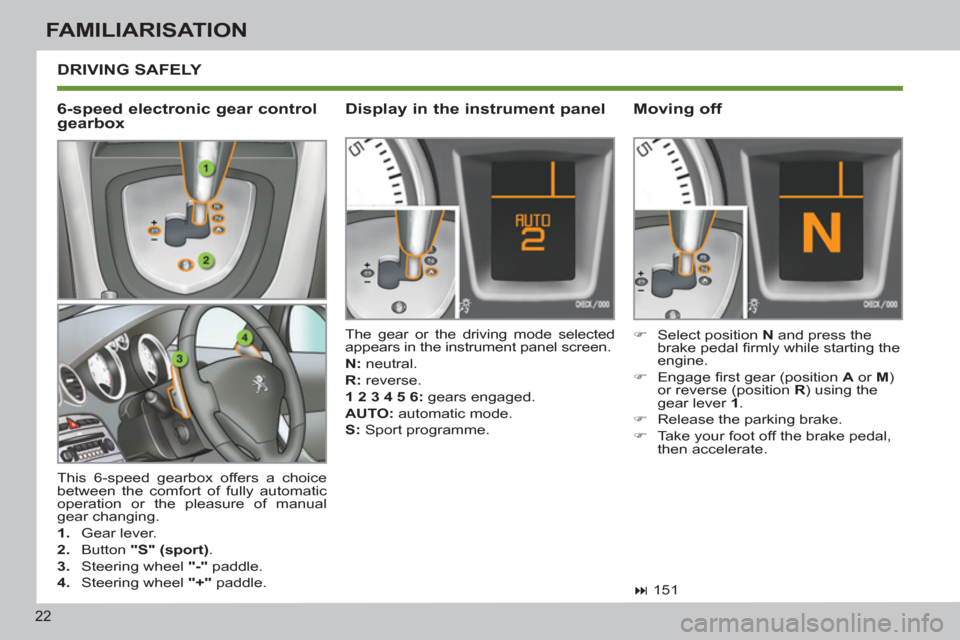

DRIVING SAFELY

This 6-speed gearbox offers a choice
between the comfort of fully automatic
operation or the pleasure of manual
gear changing.


1.
Gear lever.

2.
Button "S" (sport)
.

3.
Steering wheel "-"
paddle.

4.
Steering wheel "+"
paddle.
The gear or the driving mode selected
appears in the instrument panel screen.

N:
neutral.

R:
reverse.

1 2 3 4 5 6:
gears engaged.

AUTO:
automatic mode.

S:
Sport programme.


Display in the instrument panel



)
Select position N
and press the
brake pedal fi rmly while starting the
engine.

)
Engage fi rst gear (position A
or M
)
or reverse (position R
) using the
gear lever 1
.

)
Release the parking brake.

)
Take your foot off the brake pedal,
then accelerate.


Moving off




151



6-speed electronic gear control
gearbox
22
