2011 Peugeot 308 SW BL Owner's Manual - RHD (UK. Australia)

3
i
63
COMFORT

2. Air fl ow adjustment


)

Turn the dial from position
1

to position 5
to obtain a
comfortable air fl ow. Windscreen, side windows and
footwells.
Footwells.
Central and side vents.

)
Turn the dial from blue
(cold) to red (hot) to adjust
the temperature to your
requirements.
Windscreen and side windows.
1. Temperature adjustment
The air distribution can be
adapted by placing the dial in
an intermediate position.










The heating/ventilation or air conditioning
systems can only operate with the engine
running.
)
If you place the air fl ow control
in position 0
(deactivation of the
system), the temperature is no
longer maintained at a comfort-
able level. However, a slight
fl ow of air, due to the movement
of the vehicle, can still be felt.

3. Air distribution adjustment

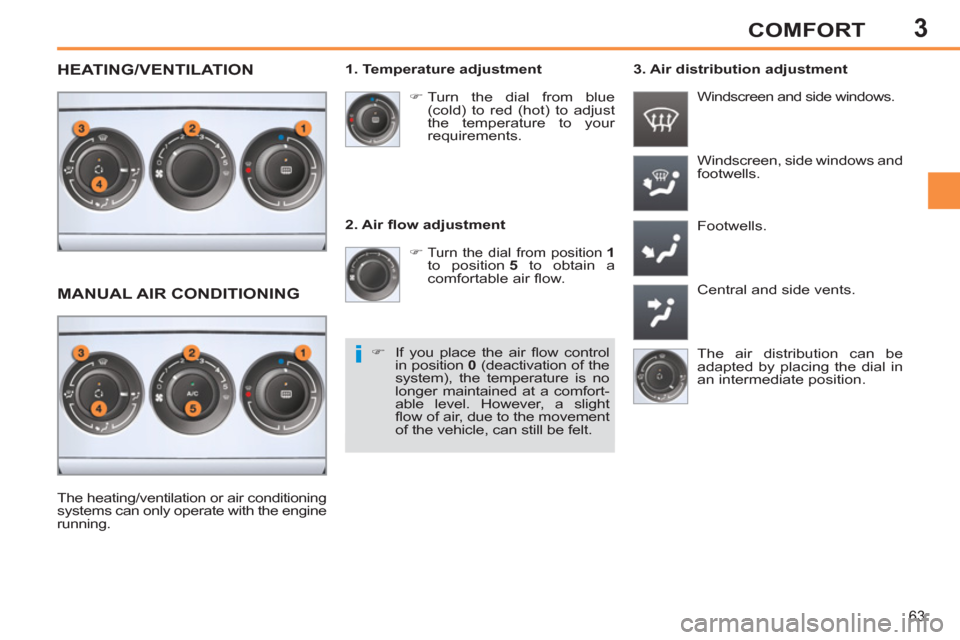

HEATING/VENTILATION
MANUAL AIR CONDITIONING

3
i
i
64
COMFORT

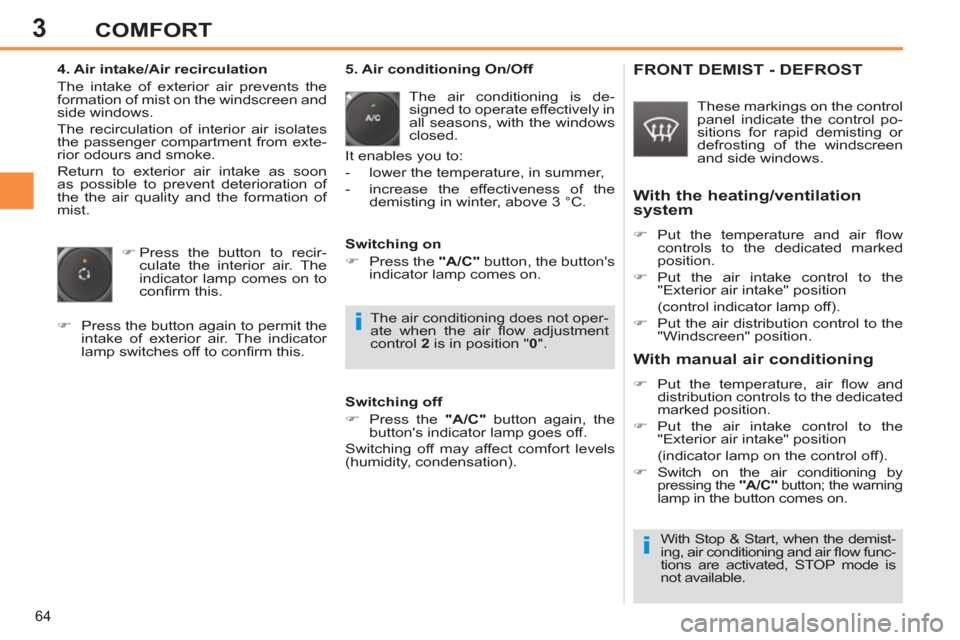

4. Air intake/Air recirculation
The intake of exterior air prevents the
formation of mist on the windscreen and
side windows.
The recirculation of interior air isolates
the passenger compartment from exte-
rior odours and smoke.
Return to exterior air intake as soon
as possible to prevent deterioration of
the the air quality and the formation of
mist.


)
Press the button to recir-
culate the interior air. The
indicator lamp comes on to
confi rm this.

)
Press the button again to permit the
intake of exterior air. The indicator
lamp switches off to confi rm this.



5. Air conditioning On/Off
The air conditioning is de-
signed to operate effectively in
all seasons, with the windows
closed.
It enables you to:


- lower the temperature, in summer,

- increase the effectiveness of the
demisting in winter, above 3 °C.


Switching off


)
Press the "A/C"
button again, the
button's indicator lamp goes off.
Switching off may affect comfort levels
(humidity, condensation).

Switching on


)
Press the "A/C"
button, the button's
indicator lamp comes on.
FRONT DEMIST - DEFROST


These markings on the control
panel indicate the control po-
sitions for rapid demisting or
defrosting of the windscreen
and side windows.


With the heating/ventilation
system


)
Put the temperature and air fl ow
controls to the dedicated marked
position.

)
Put the air intake control to the
"Exterior air intake" position
(control indicator lamp off).

)
Put the air distribution control to the
"Windscreen" position.



With manual air conditioning



)
Put the temperature, air fl ow and
distribution controls to the dedicated
marked position.

)
Put the air intake control to the
"Exterior air intake" position
(indicator lamp on the control off).

)
Switch on the air conditioning by
pressing the "A/C"
button; the warning lamp in the button comes on.
The air conditioning does not oper-
ate when the air fl ow adjustment
control 2
is in position " 0
".

With Stop & Start, when the demist-
ing, air conditioning and air fl ow func-
tions are activated, STOP mode is
not available.

3
i
65
COMFORT
The control button is located on
the heating or air conditioning
system control panel.

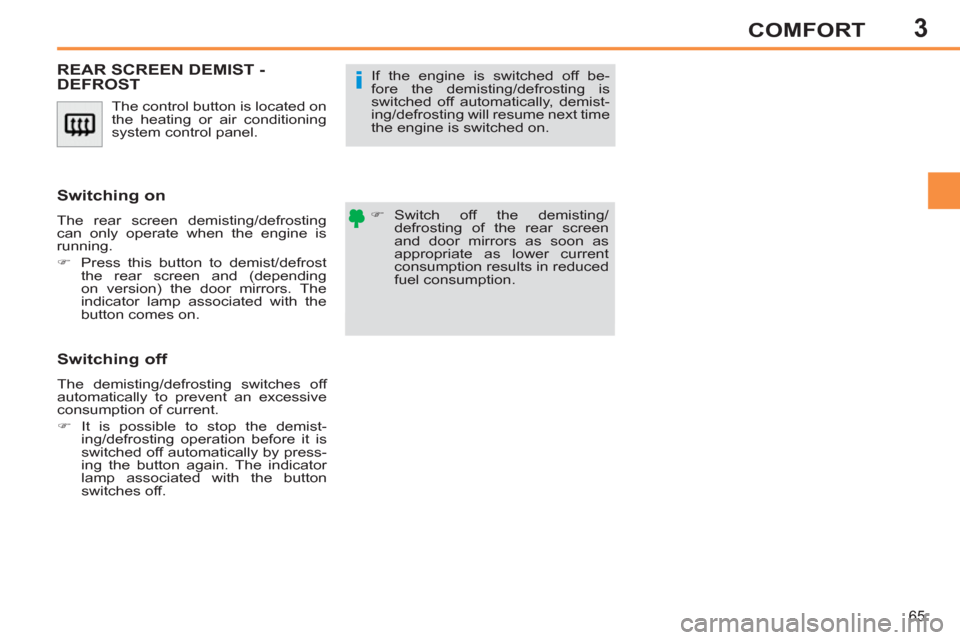

REAR SCREEN DEMIST -
DEFROST


)
Switch off the demisting/
defrosting of the rear screen
and door mirrors as soon as
appropriate as lower current
consumption results in reduced
fuel consumption.
If the engine is switched off be-
fore the demisting/defrosting is
switched off automatically, demist-
ing/defrosting will resume next time
the engine is switched on.

Switching on

The rear screen demisting/defrosting
can only operate when the engine is
running.


)
Press this button to demist/defrost
the rear screen and (depending
on version) the door mirrors. The
indicator lamp associated with the
button comes on.



Switching off

The demisting/defrosting switches off
automatically to prevent an excessive
consumption of current.


)
It is possible to stop the demist-
ing/defrosting operation before it is
switched off automatically by press-
ing the button again. The indicator
lamp associated with the button
switches off.

3
ii
i
66
COMFORT
When the engine is cold, to prevent
too great a distribution of cold air,
the air fl ow will reach its optimum
level gradually.
In cold weather, it favours the dis-
tribution of warm air to the wind-
screen, side windows and footwells
only. On entering the vehicle, if the inte-
rior temperature is much colder or
warmer than the comfort value, there
is no need to change the value dis-
played in order to obtain the comfort
required. The system corrects the
difference in temperature automati-
cally and as quickly as possible.
The air conditioning only operates when
the engine is running.
The driver and front passenger
can each adjust the tempera-
ture to their requirements.


)
Turn control 2
or 3
to the left or to
the right respectively to decrease or
increase this value.
A setting around the value 21 provides
optimum comfort. However, depending
on your requirements, a setting between
18 and 24 is normal.
You are advised to avoid a left/right set-
ting difference of more than 3.
4. Automatic visibility programme
The automatic comfort pro-
gramme may not be suffi cient
to quickly demist or defrost
the windscreen and side win-
dows (humidity, several pas-
sengers, ice, etc.).

Automatic operation



)
Press the "AUTO"
button.
The indicator lamp on the
button comes on.
2. Driver's side adjustment

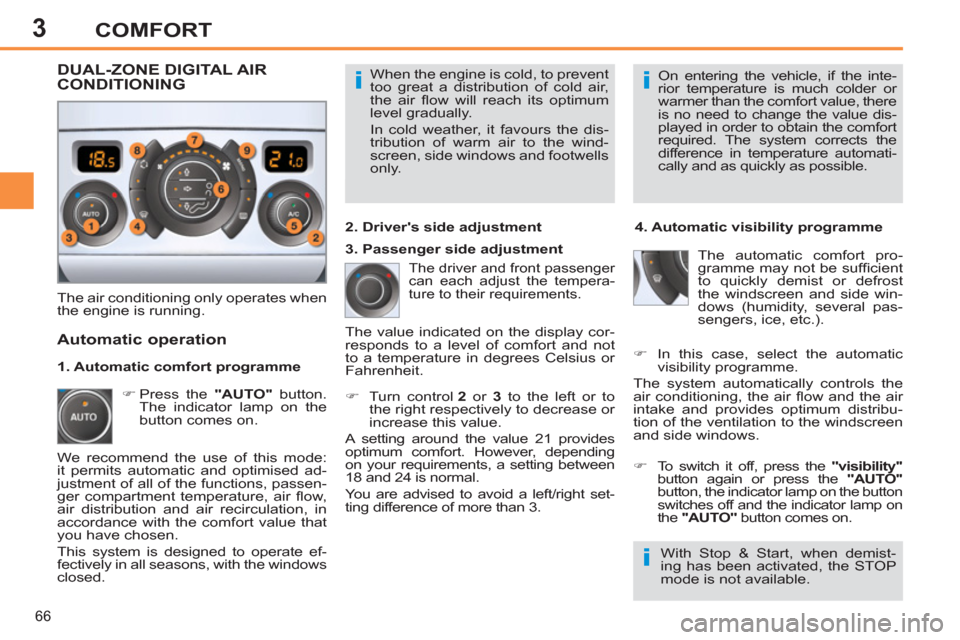

DUAL-ZONE DIGITAL AIR
CONDITIONING
We recommend the use of this mode:
it permits automatic and optimised ad-
justment of all of the functions, passen-
ger compartment temperature, air fl ow,
air distribution and air recirculation, in
accordance with the comfort value that
you have chosen.
This system is designed to operate ef-
fectively in all seasons, with the windows
closed. The value indicated on the display cor-
responds to a level of comfort and not
to a temperature in degrees Celsius or
Fahrenheit.


)
To switch it off, press the "visibility"

button again or press the "AUTO"

button, the indicator lamp on the button
switches off and the indicator lamp on
the "AUTO"
button comes on.


1. Automatic comfort programme
3. Passenger side adjustment


)
In this case, select the automatic
visibility programme.
The system automatically controls the
air conditioning, the air fl ow and the air
intake and provides optimum distribu-
tion of the ventilation to the windscreen
and side windows.






With Stop & Start, when demist-
ing has been activated, the STOP
mode is not available.

3
i
!
67
COMFORT

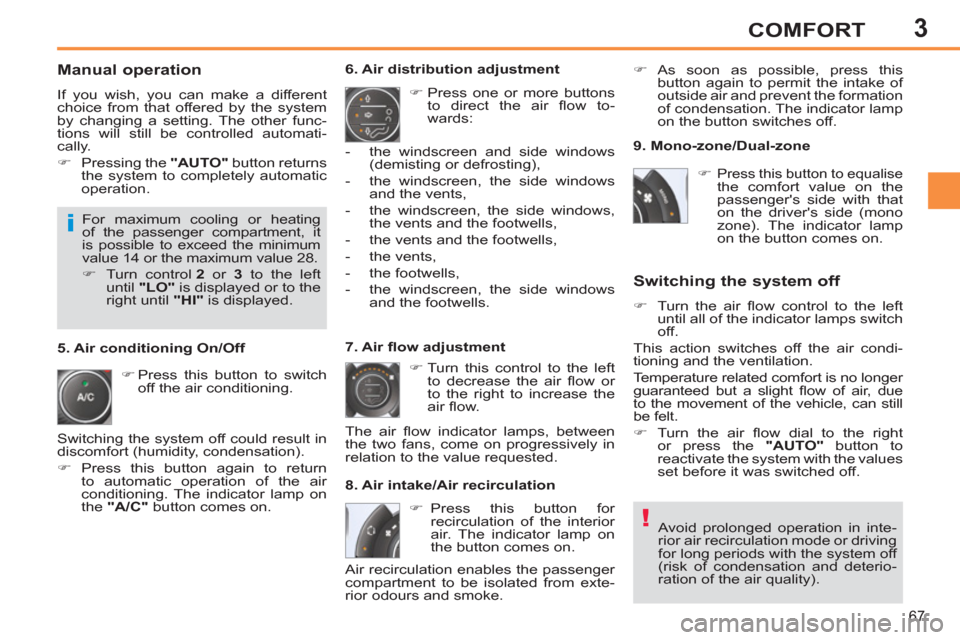

Manual operation

If you wish, you can make a different
choice from that offered by the system
by changing a setting. The other func-
tions will still be controlled automati-
cally.


)
Pressing the "AUTO"
button returns
the system to completely automatic
operation.


)
Press this button to switch
off the air conditioning.
6. Air distribution adjustment


)
Press one or more buttons
to direct the air fl ow to-
wards:

7. Air fl ow adjustment


)
Turn this control to the left
to decrease the air fl ow or
to the right to increase the
air fl ow.

8. Air intake/Air recirculation


Switching the system off



)
Turn the air fl ow control to the left
until all of the indicator lamps switch
off.
This action switches off the air condi-
tioning and the ventilation.
Temperature related comfort is no longer
guaranteed but a slight fl ow of air, due
to the movement of the vehicle, can still
be felt.


)
Turn the air fl ow dial to the right
or press the "AUTO"
button to
reactivate the system with the values
set before it was switched off.


)
Press this button for
recirculation of the interior
air. The indicator lamp on
the button comes on.
5. Air conditioning On/Off
Avoid prolonged operation in inte-
rior air recirculation mode or driving
for long periods with the system off
(risk of condensation and deterio-
ration of the air quality).

- the windscreen and side windows
(demisting or defrosting),

- the windscreen, the side windows
and the vents,

- the windscreen, the side windows,
the vents and the footwells,

- the vents and the footwells,

- the vents,

- the footwells,

- the windscreen, the side windows
and the footwells.


The air fl ow indicator lamps, between
the two fans, come on progressively in
relation to the value requested.

)
As soon as possible, press this
button again to permit the intake of
outside air and prevent the formation
of condensation. The indicator lamp
on the button switches off.

For maximum cooling or heating
of the passenger compartment, it
is possible to exceed the minimum
value 14 or the maximum value 28.


)
Turn control 2
or 3
to the left
until "LO"
is displayed or to the
right until "HI"
is displayed.
9. Mono-zone/Dual-zone


)

Press this button to equalise
the comfort value on the
passenger's side with that
on the driver's side (mono
zone). The indicator lamp
on the button comes on.


Air recirculation enables the passenger
compartment to be isolated from exte-
rior odours and smoke. Switching the system off could result in
discomfort (humidity, condensation).


)
Press this button again to return
to automatic operation of the air
conditioning. The indicator lamp on
the "A/C"
button comes on.

3
68
COMFORT








FRONT SEATS

Seat consisting of a seat cushion, a seat
back and a head restraint which can all
be adjusted to adapt your position for
ease of driving and comfort.

Forwards-backwards adjustment


)
Raise the control and slide the seat
forwards or backwards.

Driver's or passenger's seat height
adjustment


)
Pull the control upwards to raise
or push it downwards to lower, as
many times as necessary, to obtain
the position required.

Seat back angle adjustment


)
Push the control rearwards.




Manual adjustments

3
i
69
COMFORT

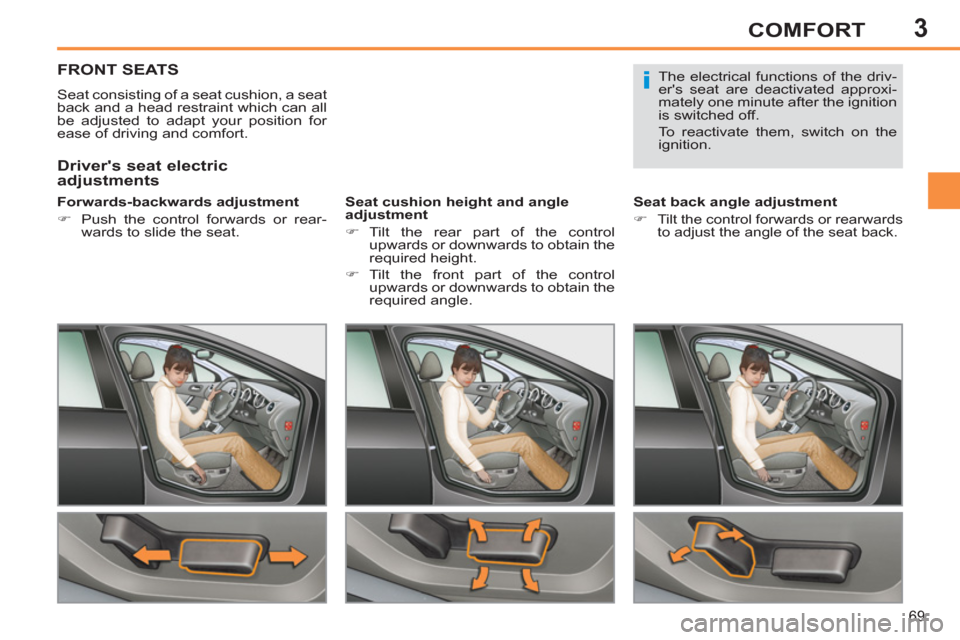

FRONT SEATS

Seat consisting of a seat cushion, a seat
back and a head restraint which can all
be adjusted to adapt your position for
ease of driving and comfort.

Forwards-backwards adjustment


)
Push the control forwards or rear-
wards to slide the seat.

Seat cushion height and angle
adjustment


)
Tilt the rear part of the control
upwards or downwards to obtain the
required height.

)
Tilt the front part of the control
upwards or downwards to obtain the
required angle.

Seat back angle adjustment


)

Tilt the control forwards or rearwards
to adjust the angle of the seat back.




Driver's seat electric
adjustments

The electrical functions of the driv-
er's seat are deactivated approxi-
mately one minute after the ignition
is switched off.
To reactivate them, switch on the
ignition.

3
!
i
70
COMFORT

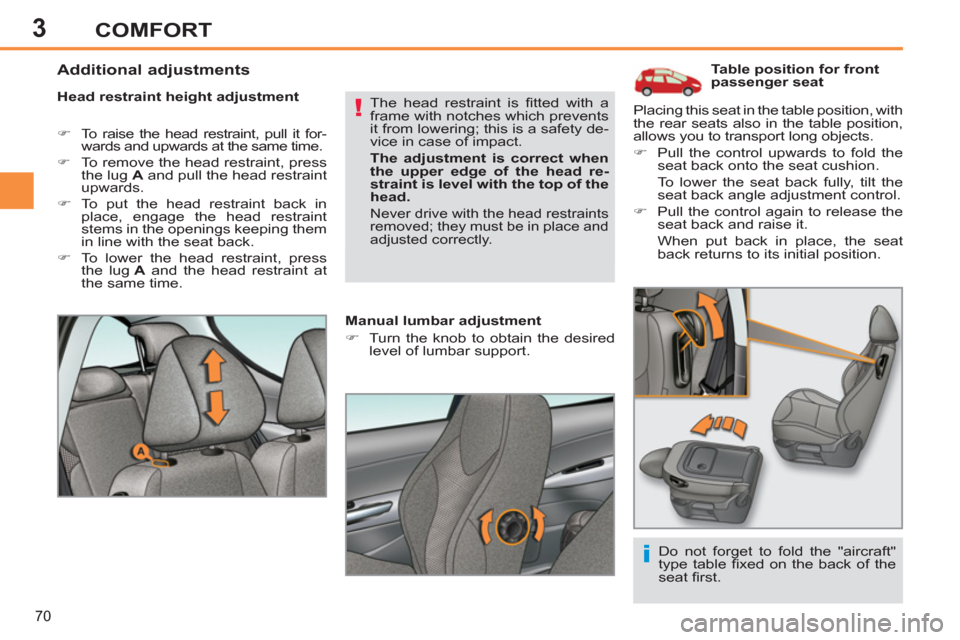

Table position for front
passenger seat

Head restraint height adjustment



)
To raise the head restraint, pull it for-
wards and upwards at the same time.

)
To remove the head restraint, press
the lug A
and pull the head restraint
upwards.


)
To put the head restraint back in
place, engage the head restraint
stems in the openings keeping them
in line with the seat back.

)
To lower the head restraint, press
the lug A
and the head restraint at
the same time. The head restraint is fi tted with a
frame with notches which prevents
it from lowering; this is a safety de-
vice in case of impact.

The adjustment is correct when
the upper edge of the head re-
straint is level with the top of the
head.


Never drive with the head restraints
removed; they must be in place and
adjusted correctly.




Manual lumbar adjustment


)
Turn the knob to obtain the desired
level of lumbar support.












Additional adjustments

Placing this seat in the table position, with
the rear seats also in the table position,
allows you to transport long objects.


)
Pull the control upwards to fold the
seat back onto the seat cushion.
To lower the seat back fully, tilt the
seat back angle adjustment control.

)
Pull the control again to release the
seat back and raise it.
When put back in place, the seat
back returns to its initial position.
Do not forget to fold the "aircraft"
type table fi xed on the back of the
seat fi rst.
