2011 Peugeot 308 SW BL Owner's Manual - RHD (UK. Australia)

11
!
!
!
191
PRACTICAL INFORMATION

Risk of electrocution
Xenon bulbs (D1S-35W) must be
replaced by a PEUGEOT dealer or
a qualifi ed workshop.

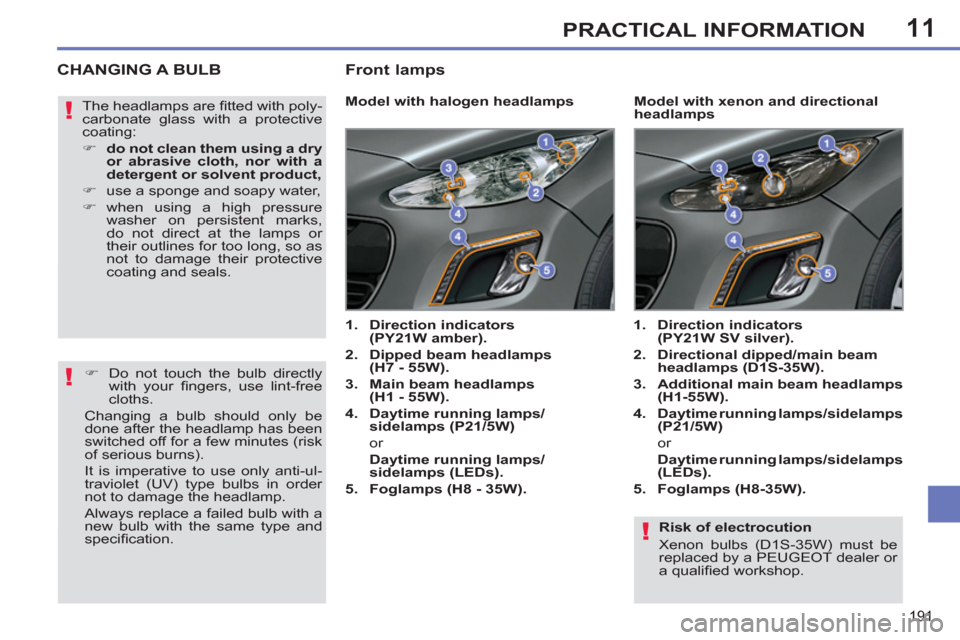

CHANGING A BULB








Model with halogen headlamps


1.
Direction indicators
(PY21W amber).


2.
Dipped beam headlamps
(H7 - 55W).


3.
Main beam headlamps
(H1 - 55W).


4.
Daytime running lamps/
sidelamps (P21/5W)

or
Daytime running lamps/
sidelamps (LEDs).


5.
Foglamps (H8 - 35W).





1.
Direction indicators
(PY21W SV silver).


2.
Directional dipped/main beam
headlamps (D1S-35W).


3.
Additional main beam headlamps
(H1-55W).


4.
Daytime running lamps/sidelamps

(P21/5W)

or
Daytime running lamps/sidelamps
(LEDs).


5.
Foglamps (H8-35W).






























Model with xenon and directional
headlamps The headlamps are fi tted with poly-
carbonate glass with a protective
coating:


)
do not clean them using a dry
or abrasive cloth, nor with a
detergent or solvent product,


)
use a sponge and soapy water,

)
when using a high pressure
washer on persistent marks,
do not direct at the lamps or
their outlines for too long, so as
not to damage their protective
coating and seals.



)
Do not touch the bulb directly
with your fi ngers, use lint-free
cloths.
Changing a bulb should only be
done after the headlamp has been
switched off for a few minutes (risk
of serious burns).
It is imperative to use only anti-ul-
traviolet (UV) type bulbs in order
not to damage the headlamp.
Always replace a failed bulb with a
new bulb with the same type and
specifi cation.


Front lamps

11
i
!
192
PRACTICAL INFORMATION

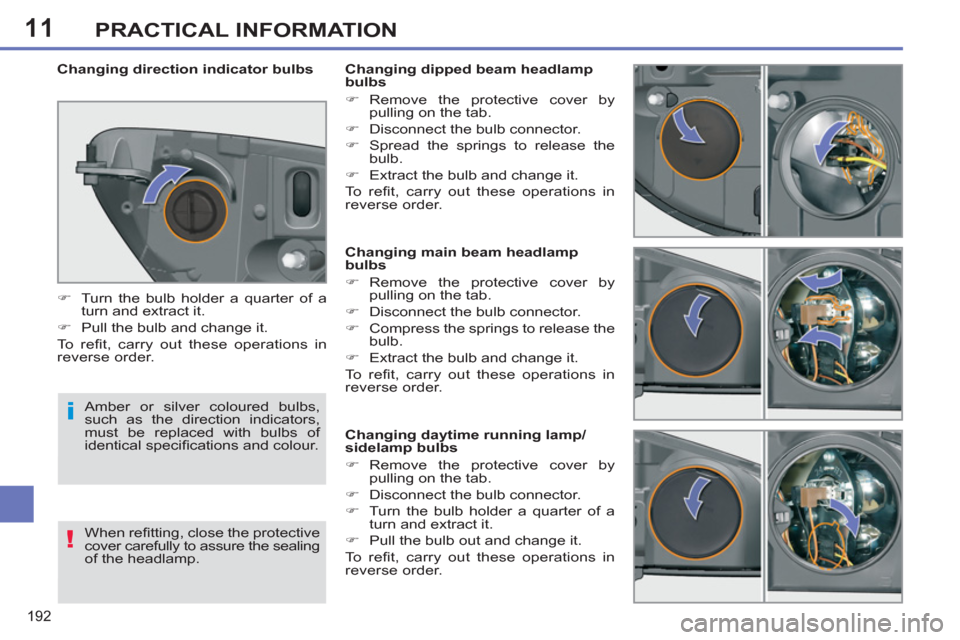

Changing main beam headlamp
bulbs


)
Remove the protective cover by
pulling on the tab.

)
Disconnect the bulb connector.

)
Compress the springs to release the
bulb.

)
Extract the bulb and change it
.
To r efi t, carry out these operations in
reverse order.

Changing daytime running lamp/
sidelamp bulbs


)
Remove the protective cover by
pulling on the tab.

)
Disconnect the bulb connector.

)
Turn the bulb holder a quarter of a
turn and extract it.

)
Pull the bulb out and change it.
To r efi t, carry out these operations in
reverse order.






Changing dipped beam headlamp
bulbs


)
Remove the protective cover by
pulling on the tab.

)
Disconnect the bulb connector.

)
Spread the springs to release the
bulb.

)
Extract the bulb and change it.
To r efi t, carry out these operations in
reverse order.


Changing direction indicator bulbs


)
Turn the bulb holder a quarter of a
turn and extract it.

)
Pull the bulb and change it.
To r efi t, carry out these operations in
reverse order.
Amber or silver coloured bulbs,
such as the direction indicators,
must be replaced with bulbs of
identical specifi cations and colour.
When refi tting, close the protective
cover carefully to assure the sealing
of the headlamp.

11
193
PRACTICAL INFORMATION

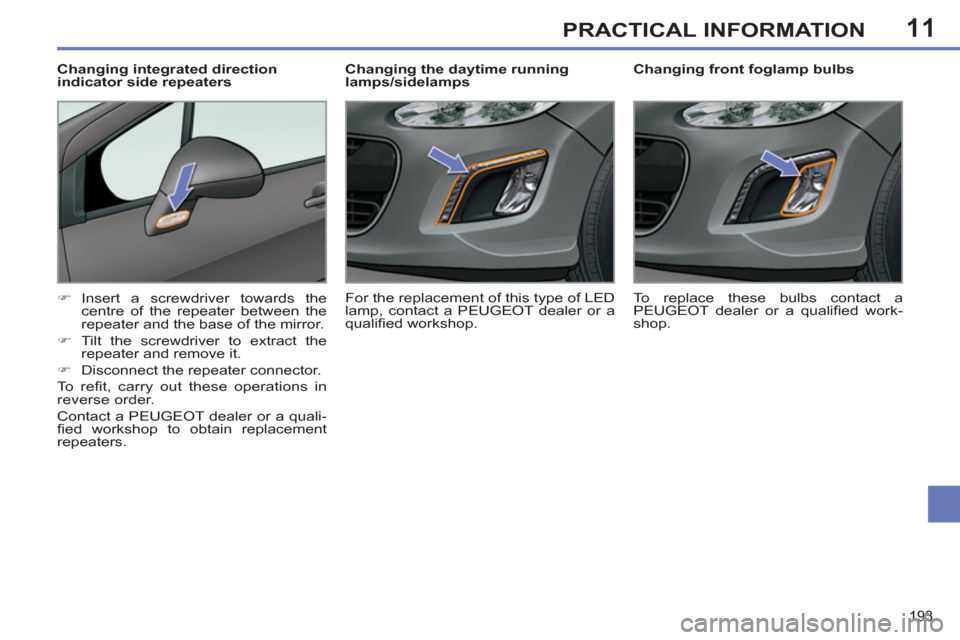

Changing front foglamp bulbs


)
Insert a screwdriver towards the
centre of the repeater between the
repeater and the base of the mirror.

)
Tilt the screwdriver to extract the
repeater and remove it.

)
Disconnect the repeater connector.
To r efi t, carry out these operations in
reverse order.
Contact a PEUGEOT dealer or a quali-
fi ed workshop to obtain replacement
repeaters.

Changing integrated direction
indicator side repeaters
To replace these bulbs contact a
PEUGEOT dealer or a qualifi ed work-
shop.


Changing the daytime running
lamps/sidelamps
For the replacement of this type of LED
lamp, contact a PEUGEOT dealer or a
qualifi ed workshop.

11
i
194
PRACTICAL INFORMATION

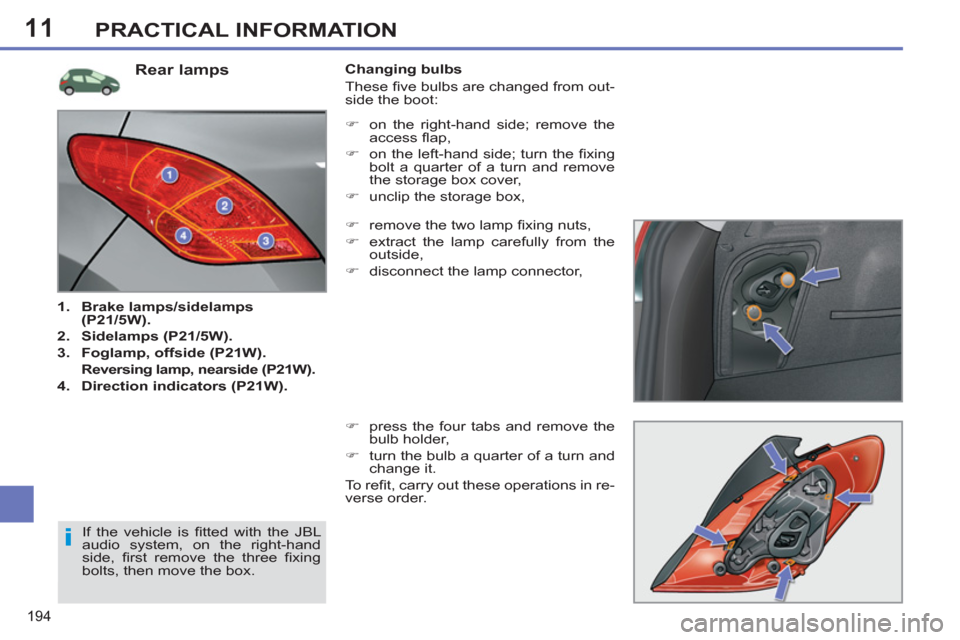

Rear lamps



1.
Brake lamps/sidelamps
(P21/5W).


2.
Sidelamps (P21/5W).


3.
Foglamp,

offside

(P21W).


Reversing lamp,

nearside

(P21W).

4.
Direction indicators (P21W).


Changing bulbs
These fi ve bulbs are changed from out-
side the boot:

)
remove the two lamp fi xing nuts,

)
extract the lamp carefully from the
outside,

)
disconnect the lamp connector,

)
press the four tabs and remove the
bulb holder,

)
turn the bulb a quarter of a turn and
change it.
To r efi t, carry out these operations in re-
verse order.
If the vehicle is fi tted with the JBL
audio system, on the right-hand
side, fi rst remove the three fi xing
bolts, then move the box.

)
on the right-hand side; remove the
access fl ap,

)
on the left-hand side; turn the fi xing
bolt a quarter of a turn and remove
the storage box cover,

)
unclip the storage box,

11
195
PRACTICAL INFORMATION

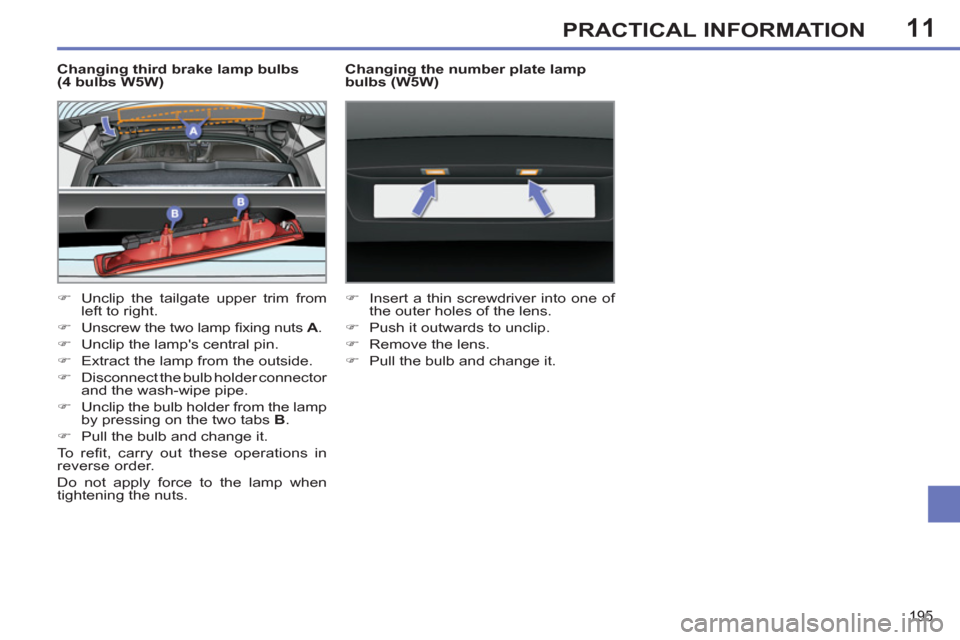

Changing third brake lamp bulbs
(4 bulbs W5W)


)
Unclip the tailgate upper trim from
left to right.

)
Unscrew the two lamp fi xing nuts A
.

)
Unclip the lamp's central pin.

)
Extract the lamp from the outside.

)
Disconnect the bulb holder connector
and the wash-wipe pipe.

)
Unclip the bulb holder from the lamp
by pressing on the two tabs B
.

)
Pull the bulb and change it.
To r efi t, carry out these operations in
reverse order.
Do not apply force to the lamp when
tightening the nuts.
Changing the number plate lamp
bulbs (W5W)


)
Insert a thin screwdriver into one of
the outer holes of the lens.

)
Push it outwards to unclip.

)
Remove the lens.

)
Pull the bulb and change it.

11
196
PRACTICAL INFORMATION

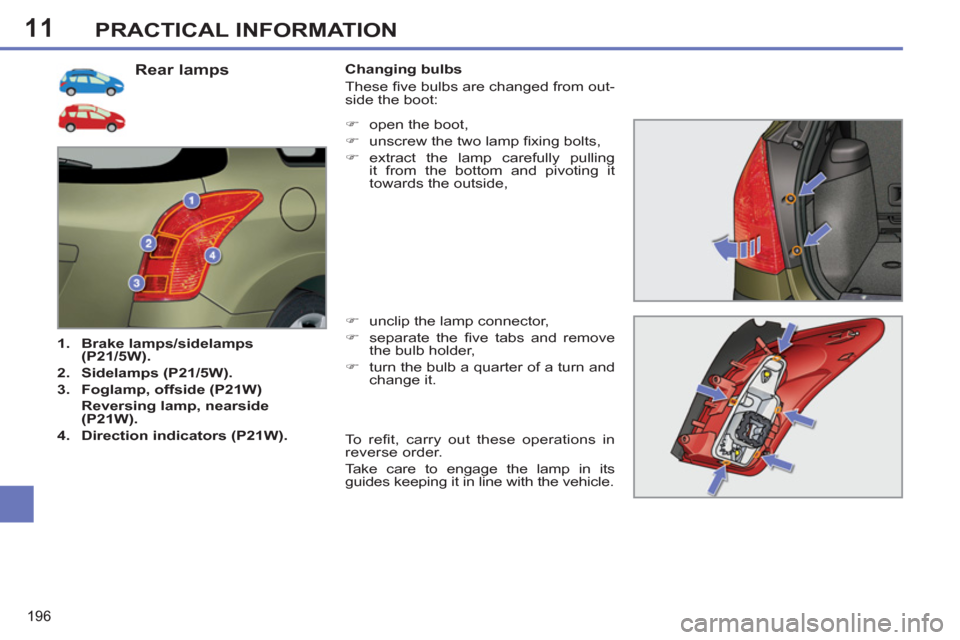

Rear lamps



1.
Brake lamps/sidelamps
(P21/5W).


2.
Sidelamps (P21/5W).


3.
Foglamp,
offside
(P21W)

Reversing lamp, nearside
(P21W).


4.
Direction indicators (P21W).


Changing bulbs
These fi ve bulbs are changed from out-
side the boot:

)
unclip the lamp connector,

)
separate the fi ve tabs and remove
the bulb holder,

)
turn the bulb a quarter of a turn and
change it.

)
open the boot,

)
unscrew the two lamp fi xing bolts,

)
extract the lamp carefully pulling
it from the bottom and pivoting it
towards the outside,
To r efi t, carry out these operations in
reverse order.
Take care to engage the lamp in its
guides keeping it in line with the vehicle.

11
197
PRACTICAL INFORMATION

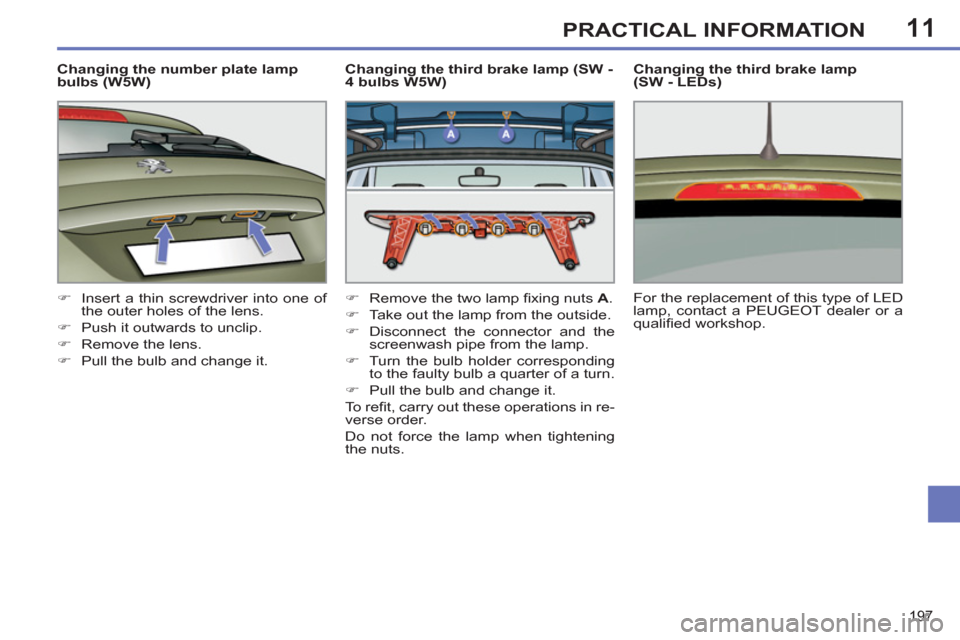

Changing the number plate lamp
bulbs (W5W)


)
Insert a thin screwdriver into one of
the outer holes of the lens.

)
Push it outwards to unclip.

)
Remove the lens.

)
Pull the bulb and change it.

















Changing the third brake lamp (SW -
4 bulbs W5W)


)
Remove the two lamp fi xing nuts A
.

)
Take out the lamp from the outside.

)
Disconnect the connector and the
screenwash pipe from the lamp.

)
Turn the bulb holder corresponding
to the faulty bulb a quarter of a turn.

)
Pull the bulb and change it.
To r efi t, carry out these operations in re-
verse order.
Do not force the lamp when tightening
the nuts.


Changing the third brake lamp
(SW - LEDs)
For the replacement of this type of LED
lamp, contact a PEUGEOT dealer or a
qualifi ed workshop.

11
!
i
198
PRACTICAL INFORMATION
PEUGEOT will not accept responsi-
bility for the cost incurred in repairing
your vehicle or for rectifying malfunc-
tions resulting from the installation
of accessories not supplied and not
recommended by PEUGEOT and
not installed in accordance with its
instructions, in particular when the
combined consumption of all of the
additional equipment connected ex-
ceeds 10 milliamperes.

Installing electrical accessories
Your vehicle’s electrical system is
designed to operate with standard
or optional equipment.
Before installing other electrical
equipment or accessories on your
vehicle, contact a PEUGEOT deal-
er or a qualifi ed workshop.

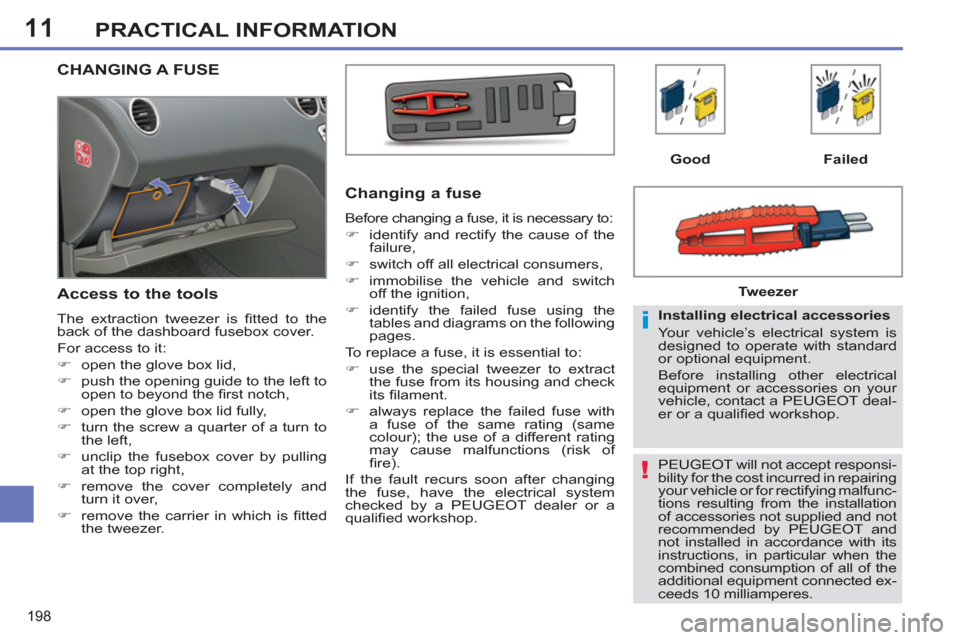

CHANGING A FUSE


Access to the tools

The extraction tweezer is fi tted to the
back of the dashboard fusebox cover.
For access to it:


)
open the glove box lid,

)
push the opening guide to the left to
open to beyond the fi rst notch,

)
open the glove box lid fully,

)
turn the screw a quarter of a turn to
the left,

)
unclip the fusebox cover by pulling
at the top right,

)
remove the cover completely and
turn it over,

)
remove the carrier in which is fi tted
the tweezer.



Changing a fuse

Before changing a fuse, it is necessary to:


)
identify and rectify the cause of the
failure,

)
switch off all electrical consumers,

)
immobilise the vehicle and switch
off the ignition,

)
identify the failed fuse using the
tables and diagrams on the following
pages.
To replace a fuse, it is essential to:


)
use the special tweezer to extract
the fuse from its housing and check
its fi lament.

)
always replace the failed fuse with
a fuse of the same rating (same
colour); the use of a different rating
may cause malfunctions (risk of
fi re).
If the fault recurs soon after changing
the fuse, have the electrical system
checked by a PEUGEOT dealer or a
qualifi ed workshop.
Good

Failed


Tweezer
