2011 Peugeot 308 SW BL Owner's Manual - RHD (UK. Australia)

335
08

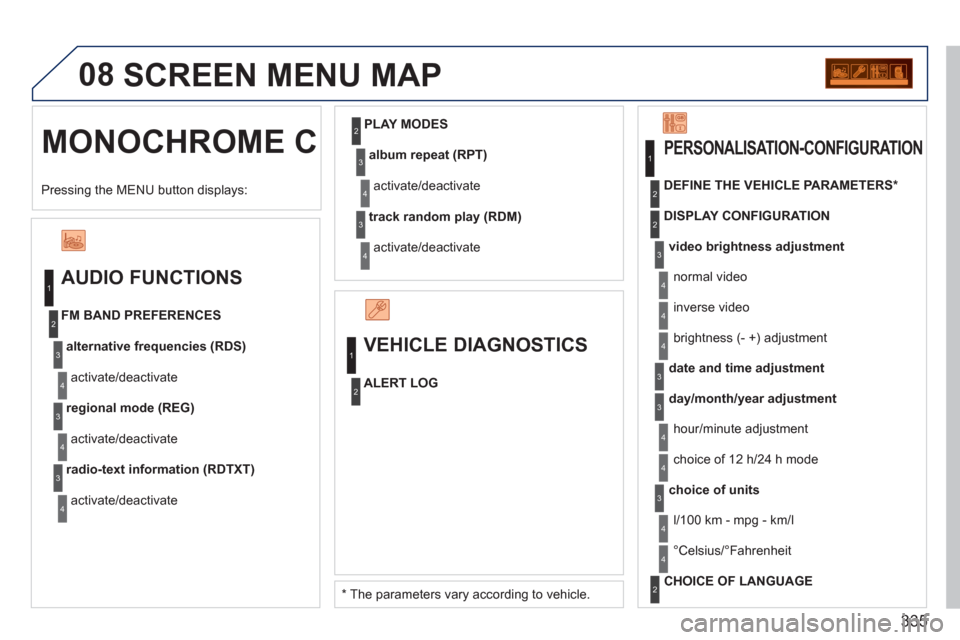

MONOCHROME C SCREEN MENU MAP

AUDIO FUNCTIONS


alternative frequencies (RDS)

activate/deactivate
FM BAND PREFERENCES

regional mode (REG)

activate/deactivate

radio-text information (RDTXT)


activate/deactivate
1
2
3
4
3
4
3
4


PLAY MODES

album repeat (RPT)

activate/deactivate

track random play (RDM)

activate/deactivate
2
3
4
3
4


VEHICLE DIAGNOSTICS


ALERT LOG

1
2
1
2
4
3
2
4
4
3
3
4
4
2
3
4
4

Pressing the MENU button displays:

*
The parameters vary according to vehicle.
video brightness adjustment

DISPLAY CONFIGURATION
DEFINE THE VEHICLE PARAMETERS *



PERSONALISATION-CONFIGURATION

normal video
inverse video
brightness (- +) adjustment

date and time adjustment

day/month/year adjustment
hour/minute adjustment
choice of 12 h/24 h mode

choice of units

l/100 km - mpg - km/l
°Celsius/°Fahrenheit

CHOICE OF LANGUAGE

336

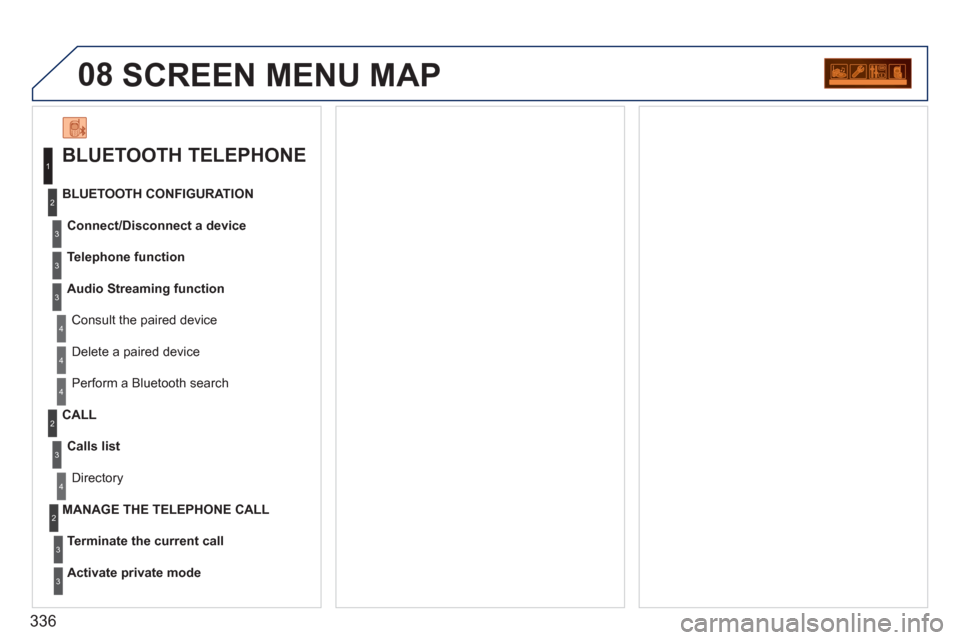

08SCREEN MENU MAP

BLUETOOTH TELEPHONE


Connect/Disconnect a device

Consult the paired device
BLUETOOTH CONFIGURATION

Telephone function


Audio Streaming function

Delete a paired device
Perform a Bluetooth search

Calls list

CALL
Directory

Terminate the current call

MANAGE THE TELEPHONE CALL


Activate private mode



1
2
3
3
3
4
4
4
2
3
4
2
3
3

337

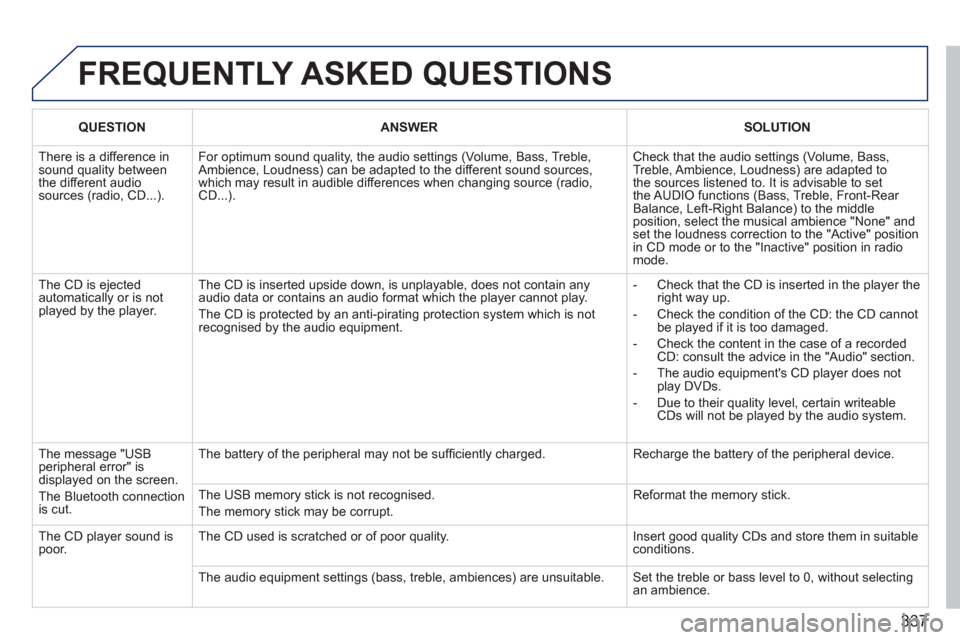

FREQUENTLY ASKED QUESTIONS



QUESTION



ANSWER



SOLUTION


There is a difference in
sound quality between
the different audio
sources (radio, CD...). For optimum sound quality, the audio settings (Volume, Bass, Treble,
Ambience, Loudness) can be adapted to the different sound sources,
which may result in audible differences when changing source (radio,
CD...). Check that the audio settings (Volume, Bass,
Treble, Ambience, Loudness) are adapted to
the sources listened to. It is advisable to set
the AUDIO functions (Bass, Treble, Front-Rear
Balance, Left-Right Balance) to the middle
position, select the musical ambience "None" and
set the loudness correction to the "Active" position
in CD mode or to the "Inactive" position in radio
mode.
The CD is ejected
automatically or is not
played by the player. The CD is inserted upside down, is unplayable, does not contain any
audio data or contains an audio format which the player cannot play.
The CD is protected by an anti-pirating protection system which is not
recognised by the audio equipment.

- Check that the CD is inserted in the player the
right way up.

- Check the condition of the CD: the CD cannot
be played if it is too damaged.

- Check the content in the case of a recorded
CD: consult the advice in the "Audio" section.

- The audio equipment's CD player does not
play DVDs.

- Due to their quality level, certain writeable
CDs will not be played by the audio system.
The message "USB
peripheral error" is
displayed on the screen.
The Bluetooth connection
is cut. The battery of the peripheral may not be suffi ciently charged. Recharge the battery of the peripheral device.
The USB memory stick is not recognised.
The memory stick may be corrupt. Reformat the memory stick.
The CD player sound is
poor. The CD used is scratched or of poor quality. Insert good quality CDs and store them in suitable
conditions.
The audio equipment settings (bass, treble, ambiences) are unsuitable. Set the treble or bass level to 0, without selecting
an ambience.

338

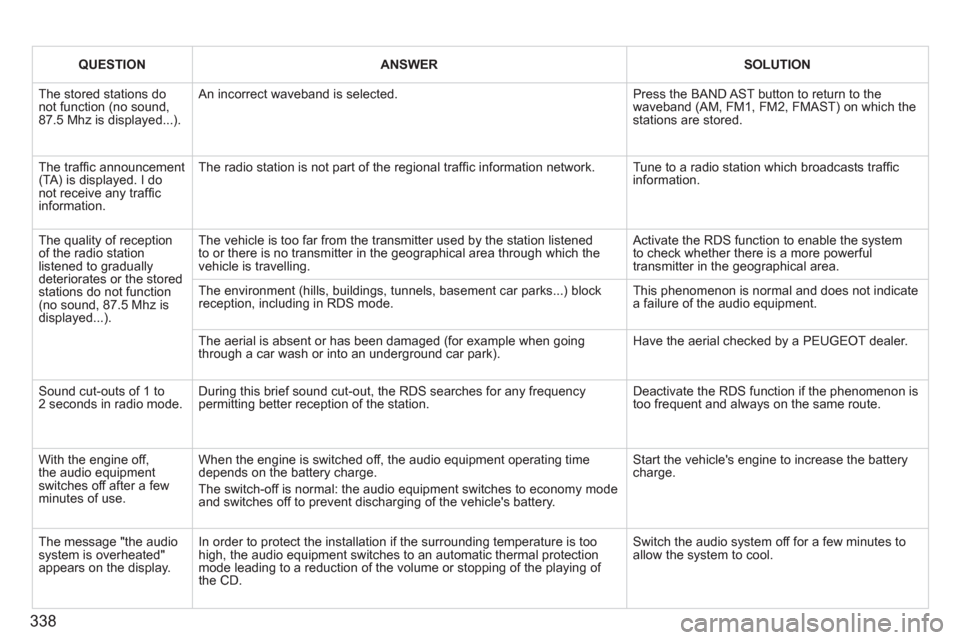

QUESTION



ANSWER



SOLUTION


The stored stations do
not function (no sound,
87.5 Mhz is displayed...). An incorrect waveband is selected. Press the BAND AST button to return to the
waveband (AM, FM1, FM2, FMAST) on which the
stations are stored.
The traffi c announcement
(TA) is displayed. I do
not receive any traffi c
information. The radio station is not part of the regional traffi c information network. Tune to a radio station which broadcasts traffi c
information.
The quality of reception
of the radio station
listened to gradually
deteriorates or the stored
stations do not function
(no sound, 87.5 Mhz is
displayed...). The vehicle is too far from the transmitter used by the station listened
to or there is no transmitter in the geographical area through which the
vehicle is travelling. Activate the RDS function to enable the system
to check whether there is a more powerful
transmitter in the geographical area.
The environment (hills, buildings, tunnels, basement car parks...) block
reception, including in RDS mode. This phenomenon is normal and does not indicate
a failure of the audio equipment.
The aerial is absent or has been damaged (for example when going
through a car wash or into an underground car park). Have the aerial checked by a PEUGEOT dealer.
Sound cut-outs of 1 to
2 seconds in radio mode. During this brief sound cut-out, the RDS searches for any frequency
permitting better reception of the station. Deactivate the RDS function if the phenomenon is
too frequent and always on the same route.
With the engine off,
the audio equipment
switches off after a few
minutes of use. When the engine is switched off, the audio equipment operating time
depends on the battery charge.
The switch-off is normal: the audio equipment switches to economy mode
and switches off to prevent discharging of the vehicle's battery. Start the vehicle's engine to increase the battery
charge.
The message "the audio
system is overheated"
appears on the display. In order to protect the installation if the surrounding temperature is too
high, the audio equipment switches to an automatic thermal protection
mode leading to a reduction of the volume or stopping of the playing of
the CD. Switch the audio system off for a few minutes to
allow the system to cool.

339

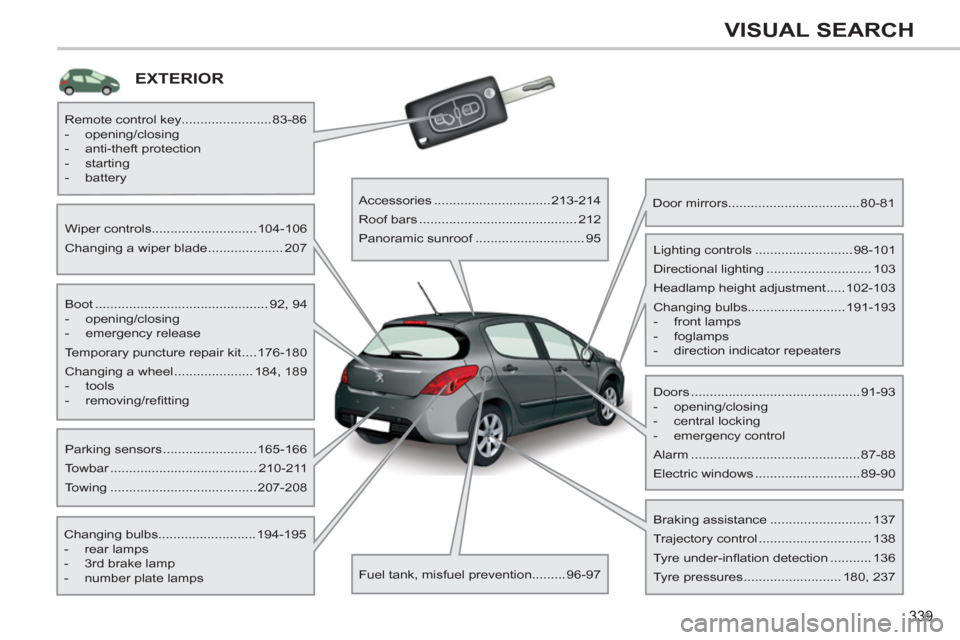

VISUAL SEARCH
EXTERIOR


Boot .............................................. 92, 94


- opening/closing

- emergency release
Temporary puncture repair kit ....176-180
Changing a wheel ..................... 184, 189


- tools

- removing/refi tting

Wiper controls............................104-106
Changing a wiper blade .................... 207

Changing bulbs..........................194-195


- rear lamps

- 3rd brake lamp

- number plate lamps

Parking sensors .........................165-166
Towbar ....................................... 210-211
Towing .......................................207-208
Remote control key........................83-86


- opening/closing

- anti-theft protection

- starting

- battery


Accessories ...............................213-214
Roof bars .......................................... 212
Panoramic sunroof ............................. 95

Fuel tank, misfuel prevention.........96-97
Door mirrors ...................................80-81

Doors .............................................91-93


- opening/closing

- central locking

- emergency control
Alarm .............................................87-88
Electric windows ............................89-90
Lighting controls ..........................98-101
Directional lighting ............................ 103
Headlamp height adjustment .....102-103
Changing bulbs..........................191-193


- front lamps

- foglamps

- direction indicator repeaters


Braking assistance ........................... 137
Trajectory control .............................. 138
Tyre under-infl ation detection ........... 136
Tyre pressures .......................... 180, 237

340

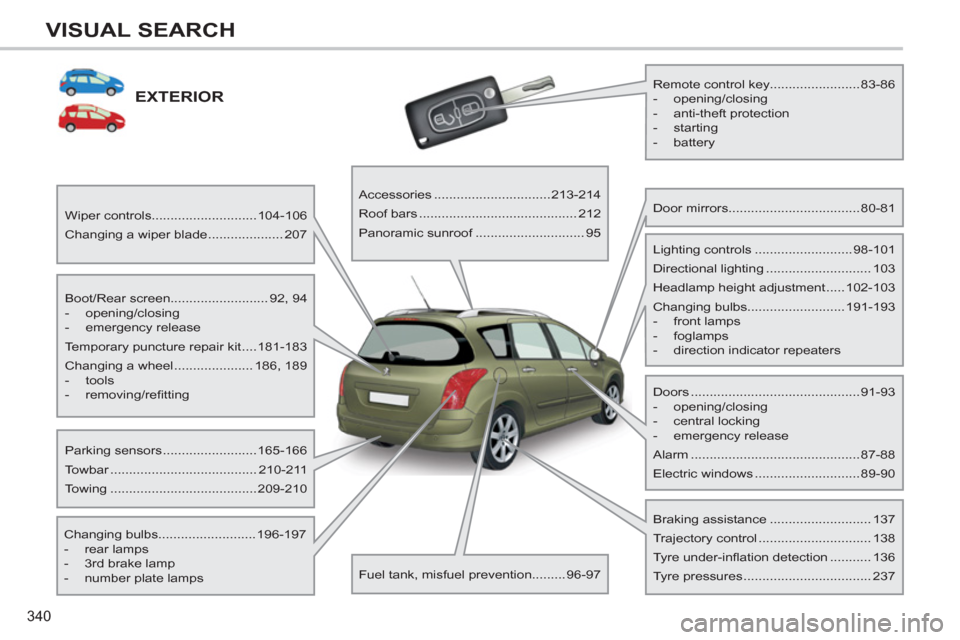

VISUAL SEARCH
EXTERIOR


Boot/Rear screen.......................... 92, 94


- opening/closing

- emergency release
Temporary puncture repair kit ....181-183
Changing a wheel ..................... 186, 189


- tools

- removing/refi tting

Wiper controls............................104-106
Changing a wiper blade .................... 207

Changing bulbs..........................196-197


- rear lamps

- 3rd brake lamp

- number plate lamps

Parking sensors .........................165-166
Towbar ....................................... 210-211
Towing .......................................209-210
Remote control key........................83-86


- opening/closing

- anti-theft protection

- starting

- battery


Accessories ...............................213-214
Roof bars .......................................... 212
Panoramic sunroof ............................. 95

Fuel tank, misfuel prevention.........96-97
Door mirrors ...................................80-81

Doors .............................................91-93


- opening/closing

- central locking

- emergency release
Alarm .............................................87-88
Electric windows ............................89-90
Lighting controls ..........................98-101
Directional lighting ............................ 103
Headlamp height adjustment .....102-103
Changing bulbs..........................191-193


- front lamps

- foglamps

- direction indicator repeaters


Braking assistance ........................... 137
Trajectory control .............................. 138
Tyre under-infl ation detection ........... 136
Tyre pressures .................................. 237

341

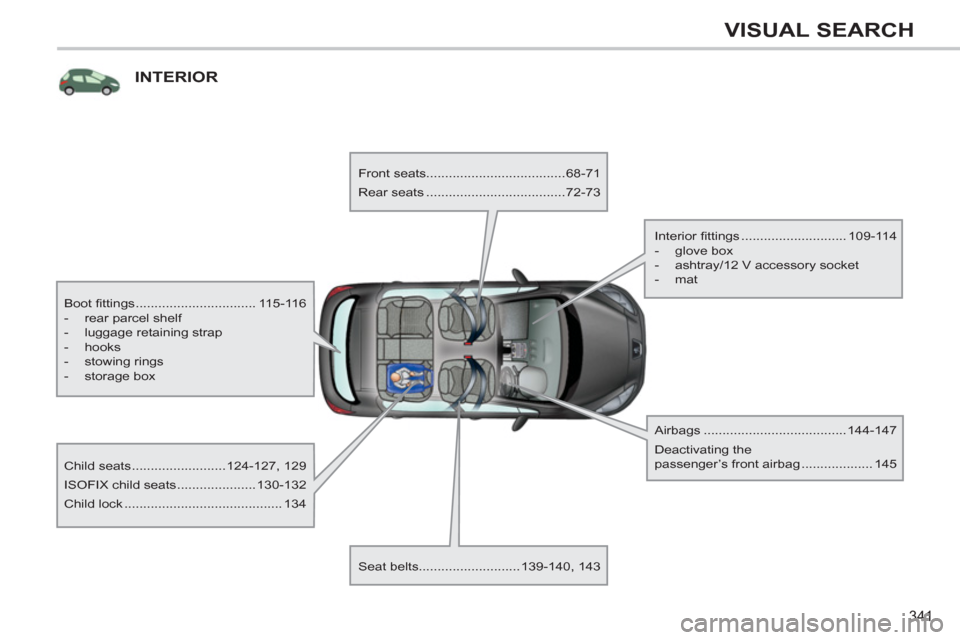

VISUAL SEARCH
INTERIOR


Boot fi ttings ................................ 115-116


- rear parcel shelf

- luggage retaining strap

- hooks

- stowing rings

- storage box


Child seats .........................124-127, 129
ISOFIX child seats .....................130-132
Child lock .......................................... 134
Front seats.....................................68-71
Rear seats .....................................72-73

Seat belts...........................139-140, 143
Airbags ......................................144-147
Deactivating the
passenger’s front airbag ................... 145

Interior fi ttings ............................ 109-114


- glove box

- ashtray/12 V accessory socket

- mat

342

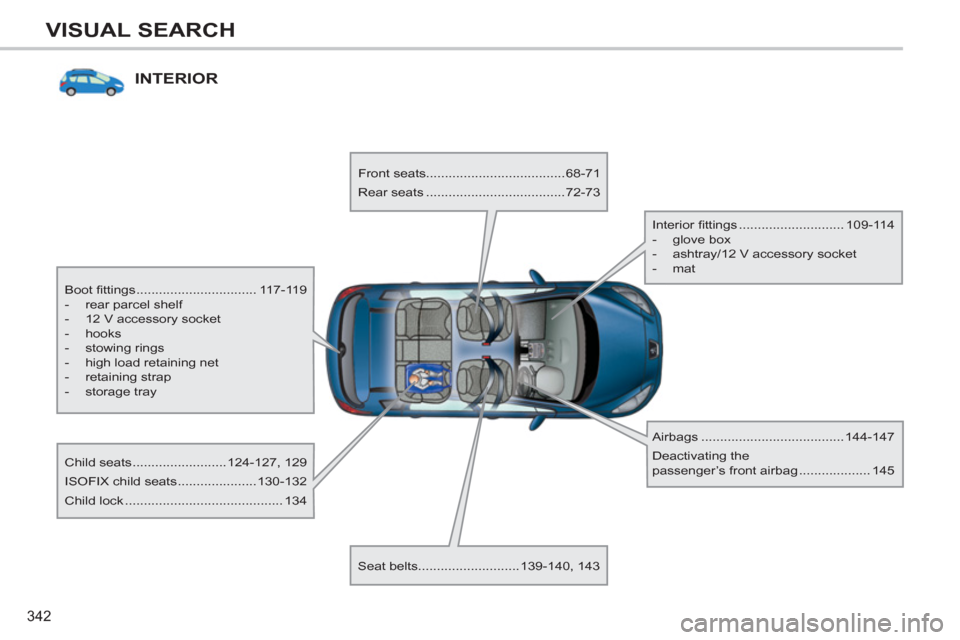

VISUAL SEARCH
INTERIOR


Boot fi ttings ................................ 117-119


- rear parcel shelf

- 12 V accessory socket

- hooks

- stowing rings

- high load retaining net

- retaining strap

- storage tray


Child seats .........................124-127, 129
ISOFIX child seats .....................130-132
Child lock .......................................... 134
Front seats.....................................68-71
Rear seats .....................................72-73

Seat belts...........................139-140, 143
Airbags ......................................144-147
Deactivating the
passenger’s front airbag ................... 145

Interior fi ttings ............................ 109-114


- glove box

- ashtray/12 V accessory socket

- mat
