TECHNICAL DATA

MODELS:


ENGINES AND GEARBOXES



Model codes:


4C... 4E... 4H...


8FR-0


-

5FS-0


-

5FS-9



PETROL ENGINES


1.4 litre VTi 98 hp



1.6 litre VTi 120 hp


Cubic capacity (cc)
1 397
1 598
Bore x stroke (mm)
77 x 75
77 x 85.8
Max power: EU standard (kW)
72
88
Max power engine speed (rpm)
6 000
5 660
Max torque: EU standard (Nm)
136
160
Max torque engine speed (rpm)
4 000
4 250
Fuel
Unleaded
Unleaded
Catalytic converter
Yes
Yes

GEARBOXES

Manual
(5-speed)
Manual
(5-speed)
Automatic
(4-speed)

OIL CAPACITIES (in litres)


Engine (with fi lter replacement)
-
4.25
4.25

4C...:
5-door.
4E...:
SW with bench rear seat.
4H...:
SW with individual rear seats.

12
216
TECHNICAL DATA

MODELS:


ENGINES AND GEARBOXES



Model codes:
4C... 4E... 4H...


N6A-

C



N6A-

5



5FE-J



5FV-8



5FV-A



5FM-J



PETROL ENGINES


1.6 litre 16V
110 hp



1.6 litre THP
150 hp



1.6 litre THP 156 hp



1.6 litre THP
163 hp


Cubic capacity (cc)
1 587
1 598
1 598
1 598
Bore x stroke (mm)
82 x 107
77 x 85.8
77 x 85.8
77 x 85.8
Max power: EU standard (kW)
78
11 0
115
120
Max power engine speed (rpm)
5 600
6 000
6 000
6 000
Max torque: EU standard (Nm)
142
240
240
240
Max torque engine speed (rpm)
4 000
1 400
1 400
1 400
Fuel
Unleaded
Unleaded
Unleaded
Unleaded
Catalytic converter
Yes
Yes
Yes
Yes

GEARBOXES

Manual
(5-speed)
Automatic
(6-speed)
Manual
(6-speed)
Automatic
(6-speed)
Automatic
(6-speed)

OIL CAPACITIES (in litres)

Engine (with fi lter replacement)
3.25
-
-
-
-

4C...:
5-door.
4E...:
SW with bench rear seat.
4H...:
SW with individual rear seats.

12
217
TECHNICAL DATA

MODELS:


ENGINES AND GEARBOXES



Model codes:
4C... 4E... 4H...


5FU-8



PETROL ENGINES


1.6 litre THP 200 hp


Cubic capacity (cc)
1 598
Bore x stroke (mm)
77 x 85.8
Max power: EU standard (kW)
147
Max power engine speed (rpm)
5 800
Max torque: EU standard (Nm)
275
Max torque engine speed (rpm)
1 700
Fuel
Unleaded
Catalytic converter
Yes

GEARBOXES

Manual
(6-speed)

OIL CAPACITIES (in litres)

Engine (with fi lter replacement)
4.25

4C...:
5-door.
4E...:
SW with bench rear seat.
4H...:
SW with individual rear seats.

12
218
TECHNICAL DATA

*
The weight of the braked trailer can be increased, within the GTW limit, if the GVW of the towing vehicle is reduced by an
equal amount; warning, towing using a lightly loaded towing vehicle may have an adverse effect on its road holding.
The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned
must be reduced by 10 % for each additional 1 000 metres of altitude.
The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the performance of the vehicle to protect the engine; if the ambient
temperature is above 37 °C, limit the towed load.

WEIGHTS AND TOWED LOADS (in kg)



Petrol engines


1.4 litre VTi
98 hp




1.6 litre 16V
110 hp



1.6 litre VTi 120 hp



Gearboxes


Manual



Manual



Manual



Automatic



Model codes:


4C...


8FR-0



N6A-C
N6A-5



-



5FS-0



-



5FS-9




- Unladen weight
1 271
1 302
-
1 287
-
1 312


- Kerb weight
1 346
1 377
-
1 362
-
1 387


- Payload
509
518
-
528
-
523


- Gross vehicle weight (GVW)
1 780
1 820
-
1 815
-
1 835


- Gross train weight (GTW)

on a 12% gradient
2 980
3 020
-
3 315
-
3 085


- Braked trailer (within GTW limit)
on a 10% or 12% gradient
1 200
1 200
-
1 500
-
1 250


- Braked trailer * (with load transfer
within the GTW limit)
1 450
1 450
-
1 500
-
1 500


- Unbraked trailer
670
685
-
680
-
690


- Recommended nose weight
60
60
-
76
-
60

12
219
TECHNICAL DATA


WEIGHTS AND TOWED LOADS (in kg)



Petrol engines


1.6 litre THP
150 hp



1.6 litre THP 156 hp



1.6 litre THP
163 hp



1.6 litre THP
200 hp



Gearboxes


Automatic



Manual



Automatic



Automatic



Manual



Model codes:
4C...


5FE-J



5FV-8



5FV-A



5FM-J



5FU-8




- Unladen weight
1 358
1 315
1 368
1 358
1 399


- Kerb weight
1 433
1 390
1 443
1 433
1 474


- Payload
502
525
502
502
451


- Gross vehicle weight (GVW)
1 860
1 840
1 870
1 860
1 850


- Gross train weight (GTW)
on a 12% gradient
2 660
3 390
3 470
2 660
1 850


- Braked trailer (within GTW limit)
on a 10% or 12% gradient
800
1 550
1 600
800
X


- Braked trailer * (with load transfer
within the GTW limit)
800
1 650
1 650
800
X


- Unbraked trailer
710
695
720
710
X


- Recommended nose weight
65
70
70
65
X
The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned
must be reduced by 10 % for each additional 1 000 metres of altitude.
The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the performance of the vehicle to protect the engine; if the ambient
temperature is above 37 °C, limit the towed load. *

The weight of the braked trailer can be increased, within the GTW limit, if the GVW of the towing vehicle is reduced by an
equal amount; warning, towing using a lightly loaded towing vehicle may have an adverse effect on its road holding.

12
220
TECHNICAL DATA
The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned
must be reduced by 10 % for each additional 1 000 metres of altitude.
The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the performance of the vehicle to protect the engine; if the ambient
temperature is above 37 °C, limit the towed load. *

The weight of the braked trailer can be increased, within the GTW limit, if the GVW of the towing vehicle is reduced by an
equal amount; warning, towing using a lightly loaded towing vehicle may have an adverse effect on its road holding.

WEIGHTS AND TOWED LOADS (in kg)



Petrol engines


1.4 litre VTi
98 hp




1.6 litre 16V
110 hp



1.6 litre VTi 120 hp



Gearboxes


Manual



Manual



Manual



Automatic



Model codes: 4E...


8FR-0



N6A-C
N6A-5



-



5FS-0



-



5FS-9




- Unladen weight
1 320
1 374
-
1 320
-
1 356


- Kerb weight
1 395
1 449
-
1 395
-
1 431


- Payload
600
576
-
602
-
592


- Gross vehicle weight (GVW)
1 920
1 950
-
1 922
-
1 948


- Gross train weight (GTW)
on a 12% gradient

3 020
3 150
-
3 272
-
3 298


- Braked trailer (within GTW limit)
on a 10% or 12% gradient
1 100
1 200
-
1 350
-
1 350


- Braked trailer * (with load transfer
within the GTW limit)
1 100
1 400
-
1 500
-
1 500


- Unbraked trailer
695
720
-
695
-
715


- Recommended nose weight
60
75
-
65
-
60

12
221
TECHNICAL DATA
The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned
must be reduced by 10 % for each additional 1 000 metres of altitude.
The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the performance of the vehicle to protect the engine; if the ambient
temperature is above 37 °C, limit the towed load. *

The weight of the braked trailer can be increased, within the GTW limit, if the GVW of the towing vehicle is reduced by an
equal amount; warning, towing using a lightly loaded towing vehicle may have an adverse effect on its road holding.

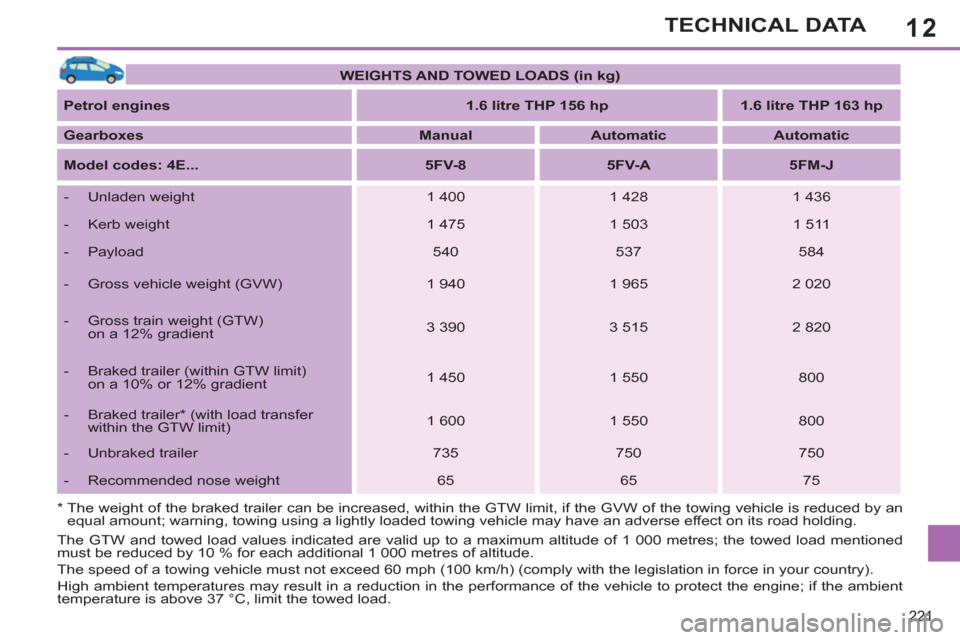

WEIGHTS AND TOWED LOADS (in kg)



Petrol engines


1.6 litre THP 156 hp



1.6 litre THP 163 hp



Gearboxes


Manual



Automatic



Automatic



Model codes: 4E...


5FV-8



5FV-A



5FM-J




- Unladen weight
1 400
1 428
1 436


- Kerb weight
1 475
1 503
1 511


- Payload
540
537
584


- Gross vehicle weight (GVW)
1 940
1 965
2 020


- Gross train weight (GTW)
on a 12% gradient
3 390
3 515
2 820


- Braked trailer (within GTW limit)
on a 10% or 12% gradient
1 450
1 550
800


- Braked trailer * (with load transfer
within the GTW limit)
1 600
1 550
800


- Unbraked trailer
735
750
750


- Recommended nose weight
65
65
75

12
222
TECHNICAL DATA
The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned
must be reduced by 10 % for each additional 1 000 metres of altitude.
The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the performance of the vehicle to protect the engine; if the ambient
temperature is above 37 °C, limit the towed load. *

The weight of the braked trailer can be increased, within the GTW limit, if the GVW of the towing vehicle is reduced by an
equal amount; warning, towing using a lightly loaded towing vehicle may have an adverse effect on its road holding.

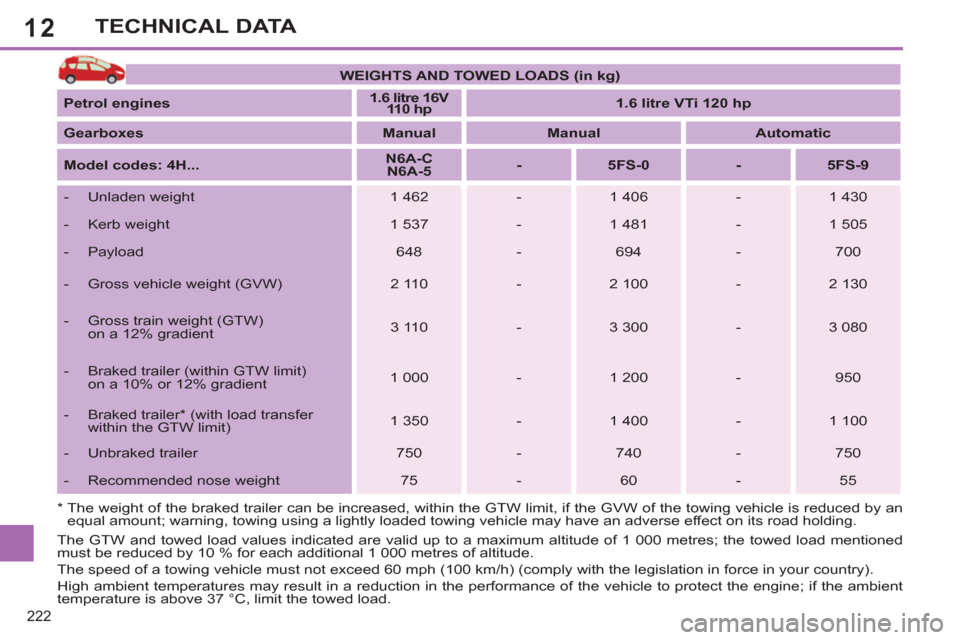

WEIGHTS AND TOWED LOADS (in kg)



Petrol engines


1.6 litre 16V
110 hp


1.6 litre VTi 120 hp



Gearboxes


Manual



Manual



Automatic



Model codes: 4H...


N6A-C
N6A-5



-



5FS-0



-



5FS-9




- Unladen weight
1 462
-
1 406
-
1 430


- Kerb weight
1 537
-
1 481
-
1 505


- Payload
648
-
694
-
700


- Gross vehicle weight (GVW)
2 110
-
2 100
-
2 130


- Gross train weight (GTW)
on a 12% gradient
3 110
-
3 300
-
3 080


- Braked trailer (within GTW limit)
on a 10% or 12% gradient
1 000
-
1 200
-
950


- Braked trailer * (with load transfer
within the GTW limit)
1 350
-
1 400
-
1 100


- Unbraked trailer
750
-
740
-
750


- Recommended nose weight
75
-
60
-
55
