2011 Peugeot 308 SW BL Owner's Manual - RHD (UK. Australia)

2
47

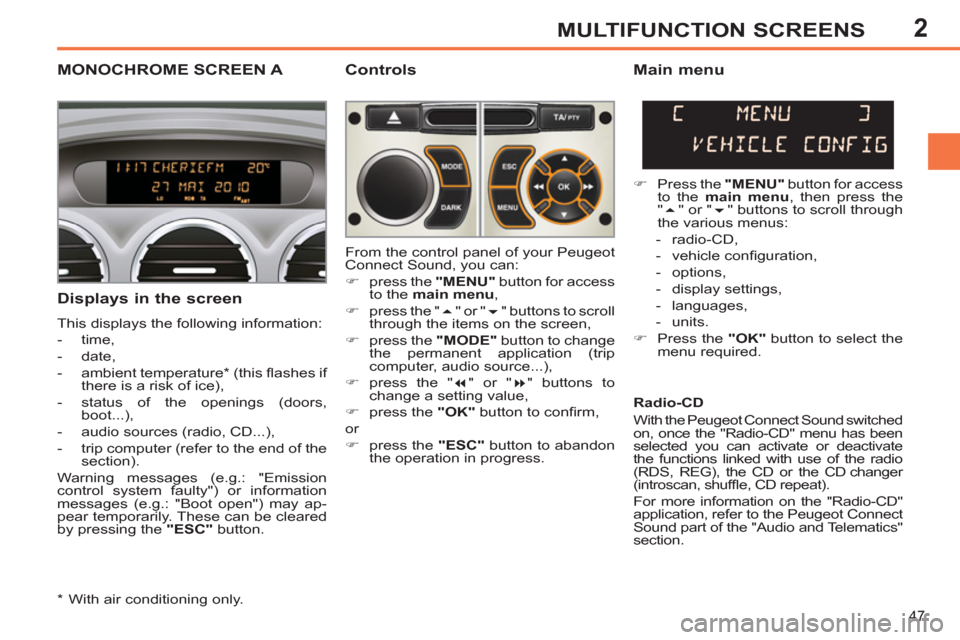

MULTIFUNCTION SCREENS








MONOCHROME SCREEN A

Controls

Displays in the screen

This displays the following information:


- time,

- date,

- ambient temperature * (this fl ashes if
there is a risk of ice),

- status of the openings (doors,
boot...),

- audio sources (radio, CD...),

- trip computer (refer to the end of the
section).
Warning messages (e.g.: "Emission
control system faulty") or information
messages (e.g.: "Boot open") may ap-
pear temporarily. These can be cleared
by pressing the "ESC"
button.


Main menu



)
Press the "MENU"
button for access
to the main menu
, then press the
"
" or "
" buttons to scroll through
the various menus:


- radio-CD,

- vehicle confi guration,

- options,

- display settings,

- languages,

- units.

)
Press the "OK"
button to select the
menu required. From the control panel of your Peugeot
Connect Sound, you can:


)
press the "MENU"
button for access
to the main menu
,

)
press the "
" or "
" buttons to scroll
through the items on the screen,

)
press the "MODE"
button to change
the permanent application (trip
computer, audio source...),

)
press the "
" or "
" buttons to
change a setting value,

)
press the "OK"
button to confi rm,
or

)
press the "ESC"
button to abandon
the operation in progress.

Radio-CD
With the Peugeot Connect Sound switched
on, once the "Radio-CD" menu has been
selected you can activate or deactivate
the functions linked with use of the radio
(RDS, REG), the CD or the CD changer
(introscan, shuffl e, CD repeat).
For more information on the "Radio-CD"
application, refer to the Peugeot Connect
Sound part of the "Audio and Telematics"
section.


*
With air conditioning only.

2
!
48
MULTIFUNCTION SCREENS

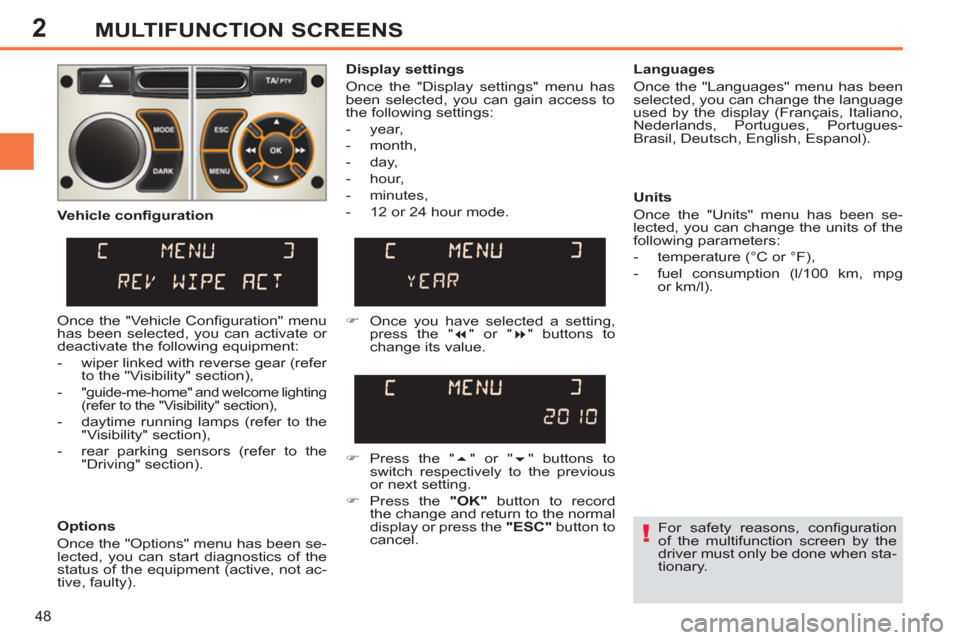

For safety reasons, confi guration
of the multifunction screen by the
driver must only be done when sta-
tionary.

Display settings
Once the "Display settings" menu has
been selected, you can gain access to
the following settings:


- year,

- month,

- day,

- hour,

- minutes,

- 12 or 24 hour mode.
Languages
Once the "Languages" menu has been
selected, you can change the language
used by the display (Français, Italiano,
Nederlands, Portugues, Portugues-
Brasil, Deutsch, English, Espanol).

Units
Once the "Units" menu has been se-
lected, you can change the units of the
following parameters:


- temperature (°C or °F),

- fuel consumption (l/100 km, mpg
or km/l).


)
Once you have selected a setting,
press the "
" or "
" buttons to
change its value.

)
Press the "
" or "
" buttons to
switch respectively to the previous
or next setting.

)
Press the "OK"
button to record
the change and return to the normal
display or press the "ESC"
button to
cancel.



Vehicle confi guration


Options
Once the "Options" menu has been se-
lected, you can start diagnostics of the
status of the equipment (active, not ac-
tive, faulty). Once the "Vehicle Confi guration" menu
has been selected, you can activate or
deactivate the following equipment:


- wiper linked with reverse gear (refer
to the "Visibility" section),

-
"guide-me-home" and welcome lighting
(refer to the "Visibility" section),

- daytime running lamps (refer to the
"Visibility" section),

- rear parking sensors (refer to the
"Driving" section).

2
49
MULTIFUNCTION SCREENS

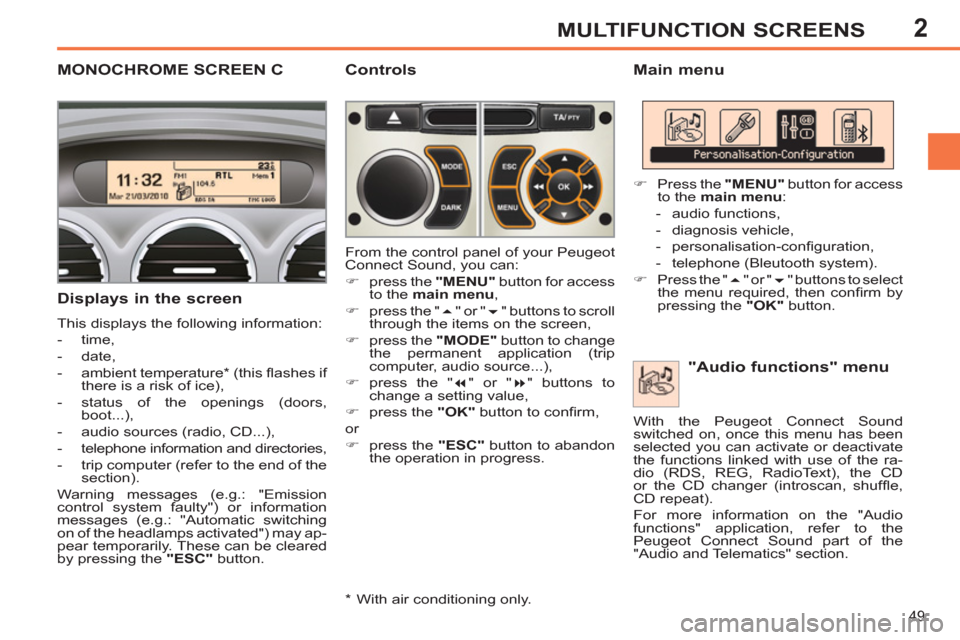

MONOCHROME SCREEN C

Main menu

Displays in the screen

This displays the following information:


- time,

- date,

- ambient temperature * (this fl ashes if
there is a risk of ice),

- status of the openings (doors,
boot...),

- audio sources (radio, CD...),


- telephone information and directories,


- trip computer (refer to the end of the
section).
Warning messages (e.g.: "Emission
control system faulty") or information
messages (e.g.: "Automatic switching
on of the headlamps activated") may ap-
pear temporarily. These can be cleared
by pressing the "ESC"
button.


"Audio functions" menu


Controls

From the control panel of your Peugeot
Connect Sound, you can:


)
press the "MENU"
button for access
to the main menu
,

)
press the "
" or "
" buttons to scroll
through the items on the screen,

)
press the "MODE"
button to change
the permanent application (trip
computer, audio source...),

)
press the "
" or "
" buttons to
change a setting value,

)
press the "OK"
button to confi rm,
or


)
press the "ESC"
button to abandon
the operation in progress.


)
Press the "MENU"
button for access
to the main menu
:


- audio functions,

- diagnosis vehicle,

- personalisation-confi guration,

- telephone (Bleutooth system).

)
Press the "
" or "
" buttons to select
the menu required, then confi rm by
pressing the "OK"
button.


* With air conditioning only. With the Peugeot Connect Sound
switched on, once this menu has been
selected you can activate or deactivate
the functions linked with use of the ra-
dio (RDS, REG, RadioText), the CD
or the CD changer (introscan, shuffl e,
CD repeat).
For more information on the "Audio
functions" application, refer to the
Peugeot Connect Sound part of the
"Audio and Telematics" section.

2
50
MULTIFUNCTION SCREENS

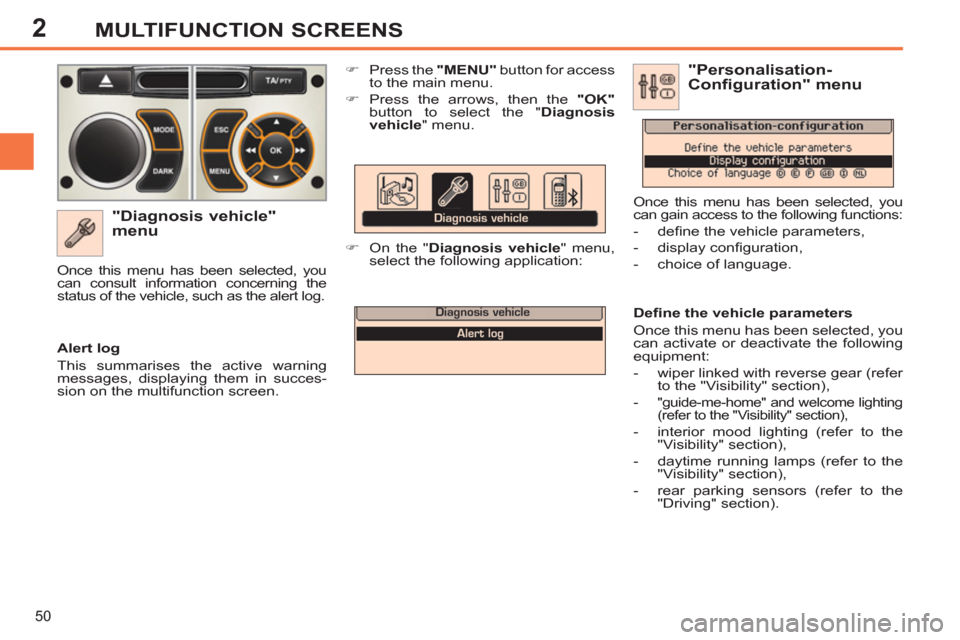

"Diagnosis vehicle"
menu


)
Press the "MENU"
button for access
to the main menu.

)
Press the arrows, then the "OK"

button to select the " Diagnosis
vehicle
" menu.

)
On the " Diagnosis vehicle
" menu,
select the following application:



Alert log
This summarises the active warning
messages, displaying them in succes-
sion on the multifunction screen. Once this menu has been selected, you
can consult information concerning the
status of the vehicle, such as the alert log.

Defi ne the vehicle parameters
Once this menu has been selected, you
can activate or deactivate the following
equipment:


- wiper linked with reverse gear (refer
to the "Visibility" section),

-
"guide-me-home" and welcome lighting
(refer to the "Visibility" section),

- interior mood lighting (refer to the
"Visibility" section),

- daytime running lamps (refer to the
"Visibility" section),

- rear parking sensors (refer to the
"Driving" section).


"Personalisation-
Configuration" menu
Once this menu has been selected, you
can gain access to the following functions:


- defi ne the vehicle parameters,

- display confi guration,

- choice of language.

2
!
51
MULTIFUNCTION SCREENS

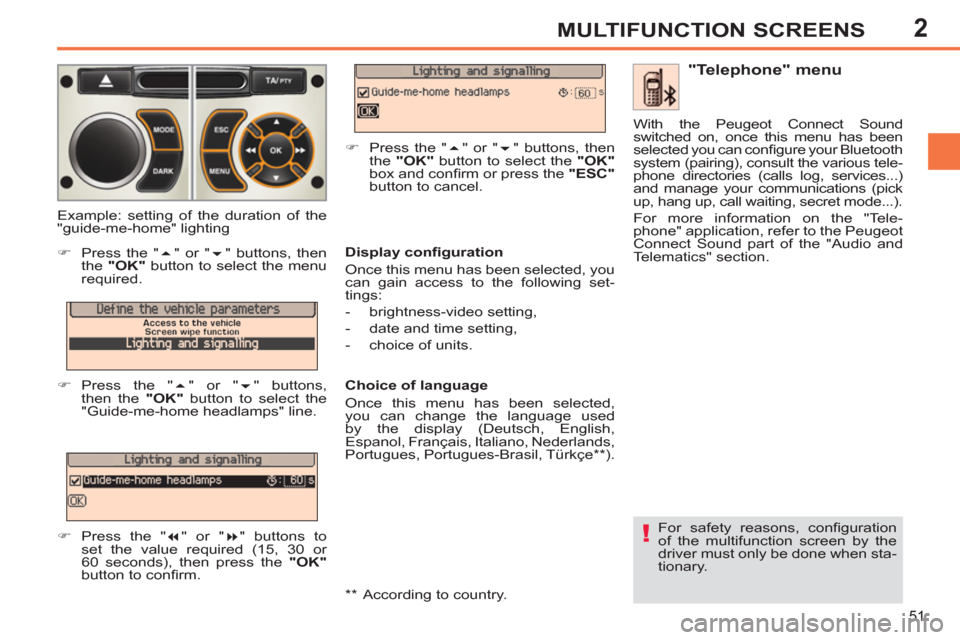

For safety reasons, confi guration
of the multifunction screen by the
driver must only be done when sta-
tionary.


"Telephone" menu


Display confi guration
Once this menu has been selected, you
can gain access to the following set-
tings:


- brightness-video setting,

- date and time setting,

- choice of units.


Choice of language
Once this menu has been selected,
you can change the language used
by the display (Deutsch, English,
Espanol, Français, Italiano, Nederlands,
Portugues, Portugues-Brasil, Türkçe ** ).
Example: setting of the duration of the
"guide-me-home" lighting


)
Press the "
" or "
" buttons, then
the "OK"
button to select the menu
required.

)
Press the "
" or "
" buttons,
then the "OK"
button to select the
"Guide-me-home headlamps" line.

)
Press the "
" or "
" buttons to
set the value required (15, 30 or
60 seconds), then press the "OK"

button to confi rm.
)
Press the "
" or "
" buttons, then
the "OK"
button to select the "OK"

box and confi rm or press the "ESC"

button to cancel.
With the Peugeot Connect Sound
switched on, once this menu has been
selected you can confi gure your Bluetooth
system (pairing), consult the various tele-
phone directories (calls log, services...)
and manage your communications (pick
up, hang up, call waiting, secret mode...).
For more information on the "Tele-
phone" application, refer to the Peugeot
Connect Sound part of the "Audio and
Telematics" section.

** According to country.

2
i
52
MULTIFUNCTION SCREENS

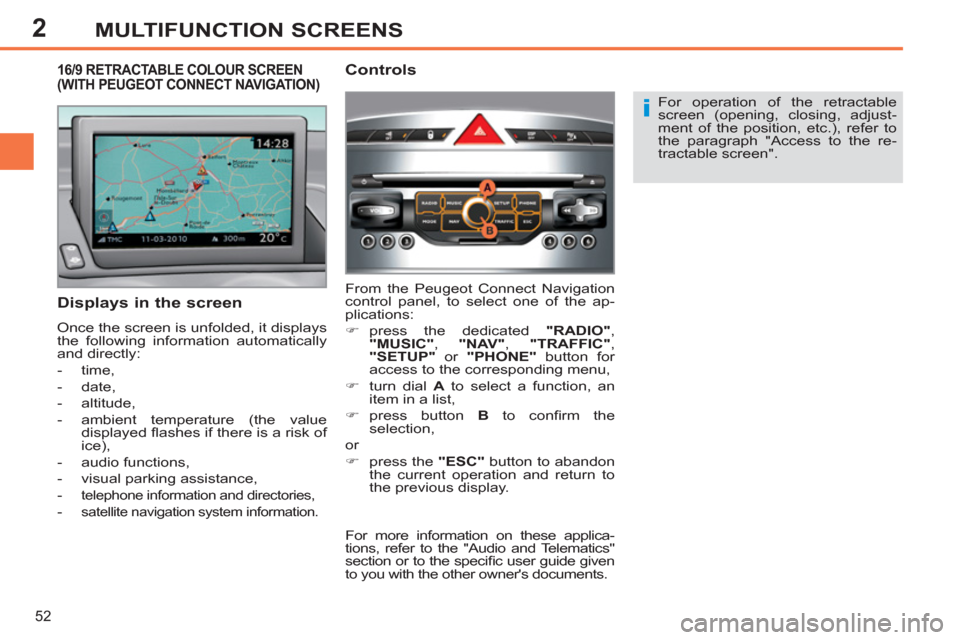

For operation of the retractable
screen (opening, closing, adjust-
ment of the position, etc.), refer to
the paragraph "Access to the re-
tractable screen".


Displays in the screen

Once the screen is unfolded, it displays
the following information automatically
and directly:


- time,

- date,

- altitude,

- ambient temperature (the value
displayed fl ashes if there is a risk of
ice),

- audio functions,

- visual parking assistance,

-
telephone information and directories,


- satellite navigation system information.


From the Peugeot Connect Navigation
control panel, to select one of the ap-
plications:


)
press the dedicated "RADIO"
,
"MUSIC"
, "NAV"
, "TRAFFIC"
,
"SETUP"
or "PHONE"
button for
access to the corresponding menu,

)
turn dial A
to select a function, an
item in a list,

)
press button B
to confi rm the
selection,
or

)
press the "ESC"
button to abandon
the current operation and return to
the previous display.















16/9 RETRACTABLE COLOUR SCREEN
(WITH PEUGEOT CONNECT NAVIGATION)
Controls

For more information on these applica-
tions, refer to the "Audio and Telematics"
section or to the specifi c user guide given
to you with the other owner's documents.

2
!
53
MULTIFUNCTION SCREENS



)

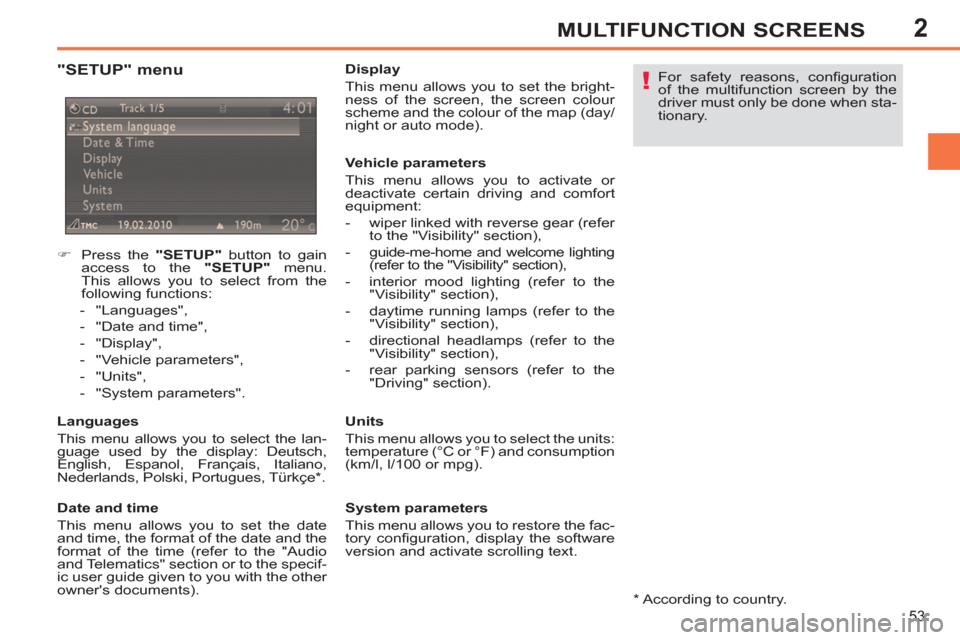

Press the "SETUP"
button to gain
access to the "SETUP"
menu.
This allows you to select from the
following functions:


- "Languages",

- "Date and time",

- "Display",

- "Vehicle parameters",

- "Units",

- "System parameters".



Languages
This menu allows you to select the lan-
guage used by the display: Deutsch,
English, Espanol, Français, Italiano,
Nederlands, Polski, Portugues, Türkçe * .

Date and time
This menu allows you to set the date
and time, the format of the date and the
format of the time (refer to the "Audio
and Telematics" section or to the specif-
ic user guide given to you with the other
owner's documents). For safety reasons, confi guration
of the multifunction screen by the
driver must only be done when sta-
tionary.

System parameters
This menu allows you to restore the fac-
tory confi guration, display the software
version and activate scrolling text.
Vehicle parameters
This menu allows you to activate or
deactivate certain driving and comfort
equipment:


- wiper linked with reverse gear (refer
to the "Visibility" section),

- guide-me-home and welcome lighting
(refer to the "Visibility" section),

- interior mood lighting (refer to the
"Visibility" section),

- daytime running lamps (refer to the
"Visibility" section),

- directional headlamps (refer to the
"Visibility" section),

- rear parking sensors (refer to the
"Driving" section).

Display
This menu allows you to set the bright-
ness of the screen, the screen colour
scheme and the colour of the map (day/
night or auto mode).

Units
This menu allows you to select the units:
temperature (°C or °F) and consumption
(km/l, l/100 or mpg).


"SETUP" menu


* According to country.

2
i
54
MULTIFUNCTION SCREENS

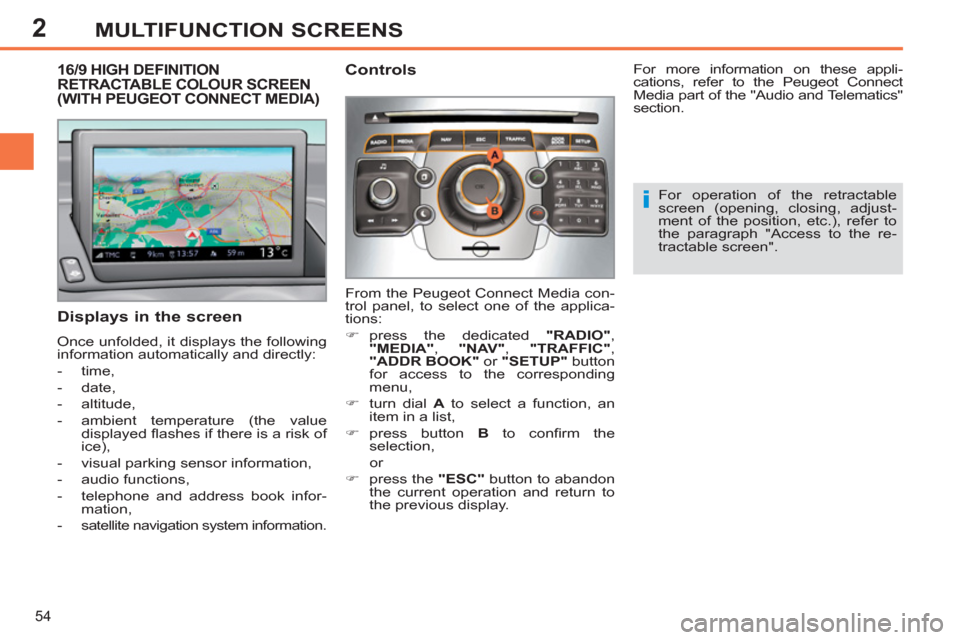

16/9 HIGH DEFINITION
RETRACTABLE COLOUR SCREEN
(WITH PEUGEOT CONNECT MEDIA)

Displays in the screen

Once unfolded, it displays the following
information automatically and directly:


- time,

- date,

- altitude,

- ambient temperature (the value
displayed fl ashes if there is a risk of
ice),

- visual parking sensor information,

- audio functions,

- telephone and address book infor-
mation,

-
satellite navigation system information.


From the Peugeot Connect Media con-
trol panel, to select one of the applica-
tions:


)
press the dedicated "RADIO"
,
"MEDIA"
, "NAV"
, "TRAFFIC"
,
"ADDR BOOK"
or "SETUP"
button
for access to the corresponding
menu,

)
turn dial A
to select a function, an
item in a list,

)
press button B
to confi rm the
selection,
or

)
press the "ESC"
button to abandon
the current operation and return to
the previous display. For operation of the retractable
screen (opening, closing, adjust-
ment of the position, etc.), refer to
the paragraph "Access to the re-
tractable screen". For more information on these appli-
cations, refer to the Peugeot Connect
Media part of the "Audio and Telematics"
section.

Controls
