2011 Peugeot 308 SW BL Owner's Manual - RHD (UK. Australia)

327
05
42
3
1
5
PEUGEOT CONNECT USB

USING THE PEUGEOT CONNECT USB


Press LIST briefl y to display the
previously selected classifi cation.
Navigate through the list using the left/
right and up/down buttons.
Confi rm the selection by pressing OK. The lists available are Artist, Genre and Playlist (as defi ned on the
iPod
® ).
Selection and Navigation are described in steps 1 to 5 above.

Do not connect a hard disk or USB devices other than audio
equipment to the USB port. This could damage your installation.

CONNECTING AN iPOD
®
VIA THE USB PORT
Press one of these buttons to gain
access to the previous/next track on
the classifi cation list currently being
played.
Press and hold one of the buttons for
fast forward or backward play.

Press one of these buttons to gain
access to the previous/next Genre,
Folder, Artist or Playlist on the
classifi cation list currently being
played.
Press and hold LIST to display the
different classifi cations.
Select by Folder/Artist/Genre/Playlist,
press OK to select the classifi cation
required, then press OK again to confi rm.


- by Folder: all folders containing audio
fi les recognised on the peripheral
device, classifi ed in alphabetical
order without following the fl ow chart.

- by Artist: all of the artist names
defi ned in the ID3 Tags, classifi ed in
alphabetical order.

- by Genre: all of the genres defi ned in
the ID3 Tags.

- by Playlist: in accordance with the
playlists recorded on the USB device.

328
05
1
2
1
2
The display and control is via the portable device. First adjust the volume of your portable device.
Then adjust the volume of your audio
system.

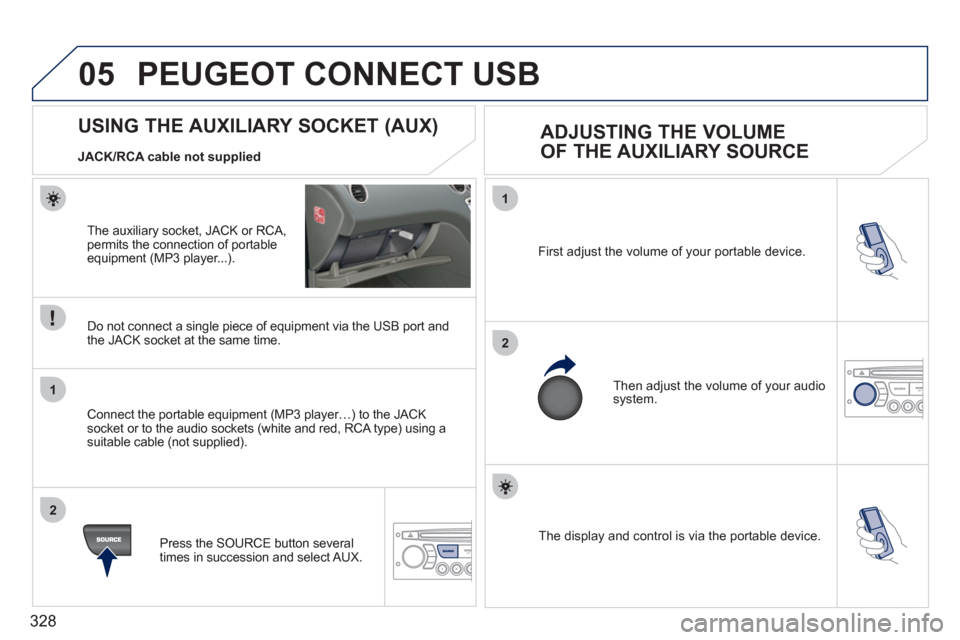

USING THE AUXILIARY SOCKET (AUX)

ADJUSTING THE VOLUME
OF THE AUXILIARY SOURCE
PEUGEOT CONNECT USB

The auxiliary socket, JACK or RCA,
permits the connection of portable
equipment (MP3 player...).

Do not connect a single piece of equipment via the USB port and
the JACK socket at the same time.

Connect the portable equipment (MP3 player…) to the JACK
socket or to the audio sockets (white and red, RCA type) using a
suitable cable (not supplied).

Press the SOURCE button several
times in succession and select AUX.



JACK/RCA cable not supplied

329
06
1
2
3
4
5
6
7
8
9
10

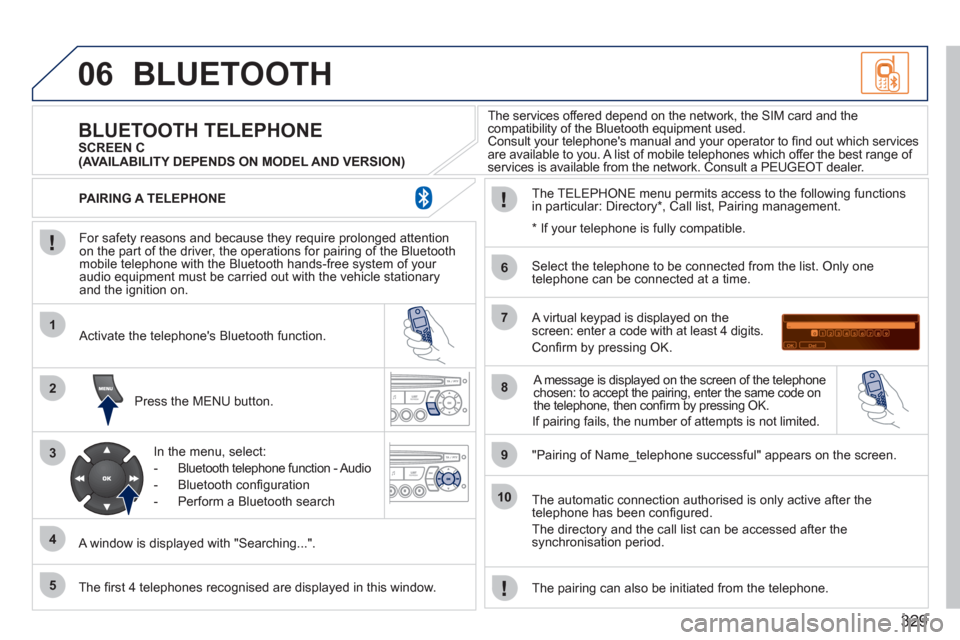

BLUETOOTH


For safety reasons and because they require prolonged attention
on the part of the driver, the operations for pairing of the Bluetooth
mobile telephone with the Bluetooth hands-free system of your
audio equipment must be carried out with the vehicle stationary
and the ignition on.

Press the MENU button.

A window is displayed with "Searching...".
Activate the telephone's Bluetooth function.

In the menu, select:


- Bluetooth telephone function - Audio

- Bluetooth confi guration

- Perform a Bluetooth search

The services offered depend on the network, the SIM card and the
compatibility of the Bluetooth equipment used.
Consult your telephone's manual and your operator to fi nd out which services
are available to you. A list of mobile telephones which offer the best range of
services is available from the network. Consult a PEUGEOT dealer.










BLUETOOTH TELEPHONE

SCREEN C

The TELEPHONE menu permits access to the following functions
in particular: Directory * , Call list, Pairing management.

The fi rst 4 telephones recognised are displayed in this window.
A virtual keypad is displayed on the
screen: enter a code with at least 4 digits.
Confi rm by pressing OK.

"Pairing of Name_telephone successful" appears on the screen.
Select the telephone to be connected from the list. Only one
telephone can be connected at a time.

A message is displayed on the screen of the telephone
chosen: to accept the pairing, enter the same code on
the telephone, then confi rm by pressing OK.
The automatic connection authorised is only active after the
telephone has been confi gured.
The directory and the call list can be accessed after the
synchronisation period.
PAIRING A TELEPHONE

The pairing can also be initiated from the telephone.
(AVAILABILITY DEPENDS ON MODEL AND VERSION)

*
If your telephone is fully compatible.

If pairing fails, the number of attempts is not limited.

330
06
1
2
1
2
1
2
3

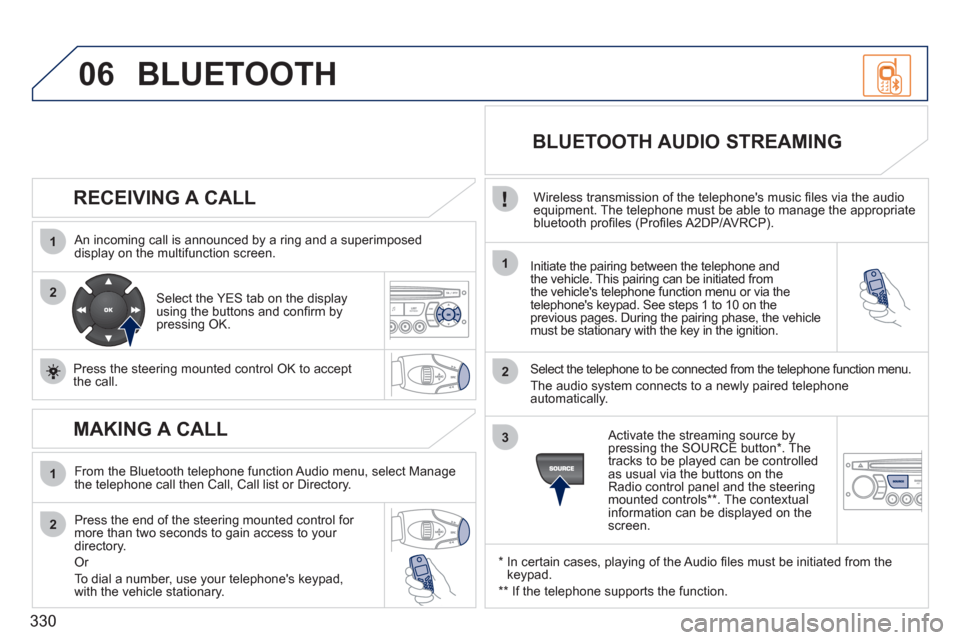

RECEIVING A CALL


An incoming call is announced by a ring and a superimposed
display on the multifunction screen.

Initiate the pairing between the telephone and
the vehicle. This pairing can be initiated from
the vehicle's telephone function menu or via the
telephone's keypad. See steps 1 to 10 on the
previous pages. During the pairing phase, the vehicle
must be stationary with the key in the ignition.

Select the telephone to be connected from the telephone function menu.
The audio system connects to a newly paired telephone
automatically.
Select the YES tab on the display
using the buttons and confi rm by
pressing OK.

Press the steering mounted control OK to accept
the call.








BLUETOOTH AUDIO STREAMING


Wireless transmission of the telephone's music fi les via the audio
equipment. The telephone must be able to manage the appropriate
bluetooth profi les (Profi les A2DP/AVRCP).

*

In certain cases, playing of the Audio fi les must be initiated from the
keypad.

**
If the telephone supports the function.
Activate the streaming source by
pressing the SOURCE button * . The
tracks to be played can be controlled
as usual via the buttons on the
Radio control panel and the steering
mounted controls ** . The contextual
information can be displayed on the
screen.

BLUETOOTH


MAKING A CALL


From the Bluetooth telephone function Audio menu, select Manage
the telephone call then Call, Call list or Directory.

Press the end of the steering mounted control for
more than two seconds to gain access to your
directory.
Or
To dial a number, use your telephone's keypad,
with the vehicle stationary.

331
07
1
2
3
4
5
6
7
8

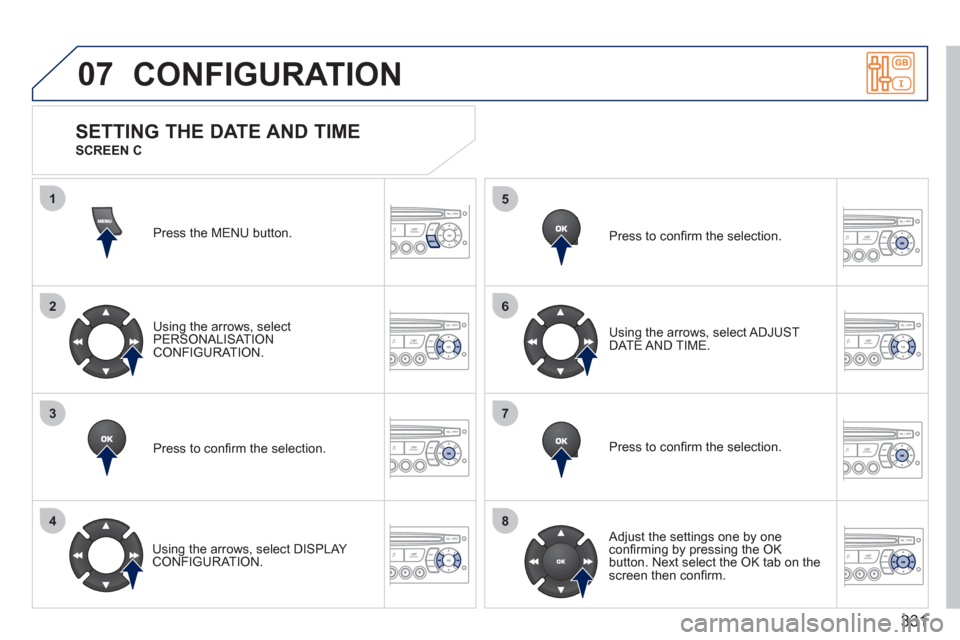

CONFIGURATION

Press the MENU button.

Using the arrows, select
PERSONALISATION
CONFIGURATION.

Press to confi rm the selection.

Using the arrows, select DISPLAY
CONFIGURATION.
Press to confi rm the selection.

Press to confi rm the selection.
Using the arrows, select ADJUST
DATE AND TIME.

Adjust the settings one by one
confi rming by pressing the OK
button. Next select the OK tab on the
screen then confi rm.











SETTING THE DATE AND TIME


SCREEN C

332

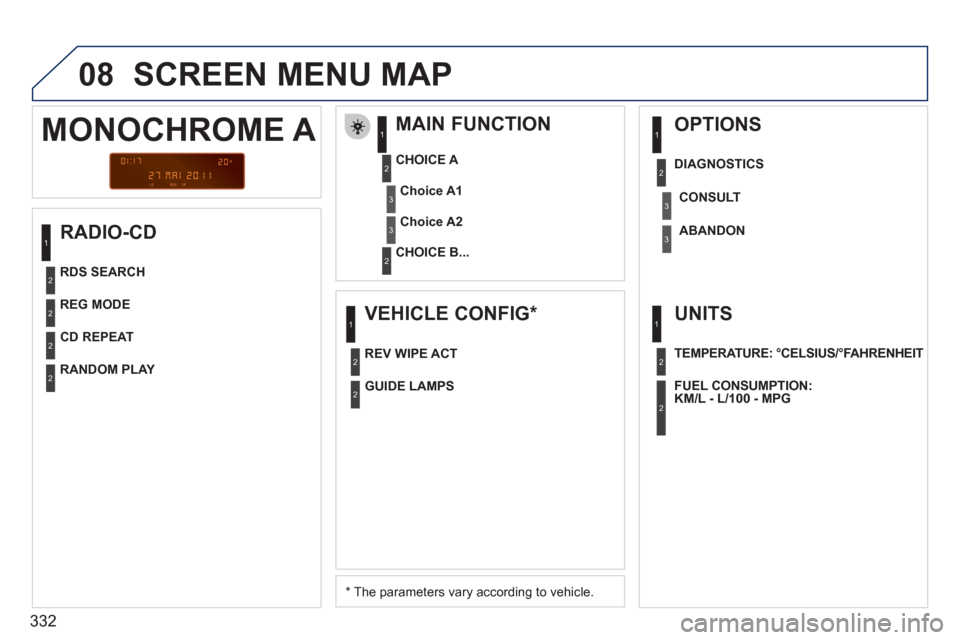

08 SCREEN MENU MAP


RADIO-CD
MAIN FUNCTION


*
The parameters vary according to vehicle.
CHOICE A

CHOICE B...













MONOCHROME A


Choice A1


Choice A2



REG MODE

CD REPEAT

RANDOM PLAY



VEHICLE CONFIG *


REV WIPE ACT


OPTIONS


GUIDE LAMPS

DIAGNOSTICS

RDS SEARCH
CONSULT


ABANDON





UNITS



TEMPERATURE: °CELSIUS/°FAHRENHEIT



FUEL CONSUMPTION:
KM/L - L/100 - MPG

1
2
3
31
2
2
2
2
1
2
3
2
3
1
2
2
1
2
2

333

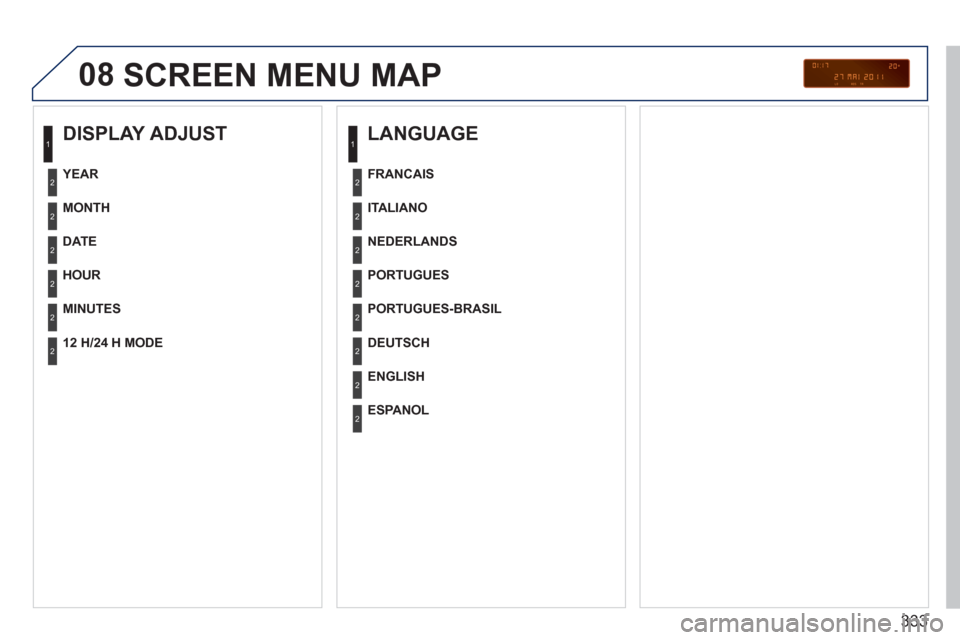

08SCREEN MENU MAP

DISPLAY ADJUST


MONTH

DATE

HOUR

MINUTES
YEAR

12 H/24 H MODE



LANGUAGE


ITALIANO

NEDERLANDS

PORTUGUES

PORTUGUES-BRASIL
FRANCAIS

DEUTSCH

ENGLISH


ESPANOL

1
2
2
2
2
2
2
1
2
2
2
2
2
2
2
2

334

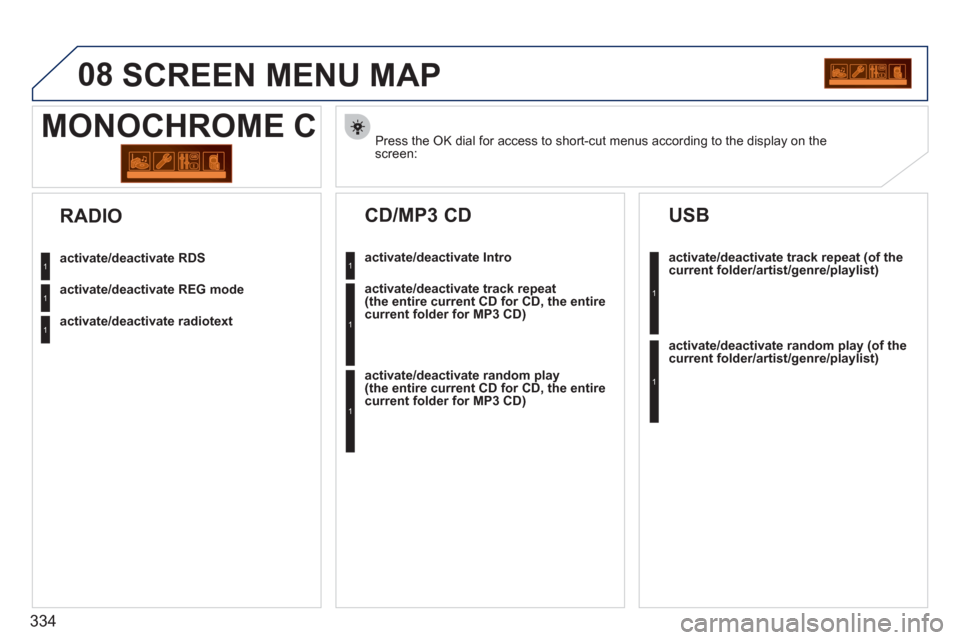

08SCREEN MENU MAP
Press the OK dial for access to short-cut menus according to the display on the
screen:










MONOCHROME C


activate/deactivate RDS


activate/deactivate REG mode


activate/deactivate radiotext




RADIO


activate/deactivate Intro



CD/MP3 CD


activate/deactivate track repeat
(the entire current CD for CD, the entire
current folder for MP3 CD)


activate/deactivate random play
(the entire current CD for CD, the entire
current folder for MP3 CD)


activate/deactivate track repeat (of the
current folder/artist/genre/playlist)



USB


activate/deactivate random play
(of the
current folder/artist/genre/playlist)


1
1
1
1
1
1
1
1
