2011 Peugeot 308 SW BL Owner's Manual - RHD (UK. Australia)

7
127
CHILD SAFETY

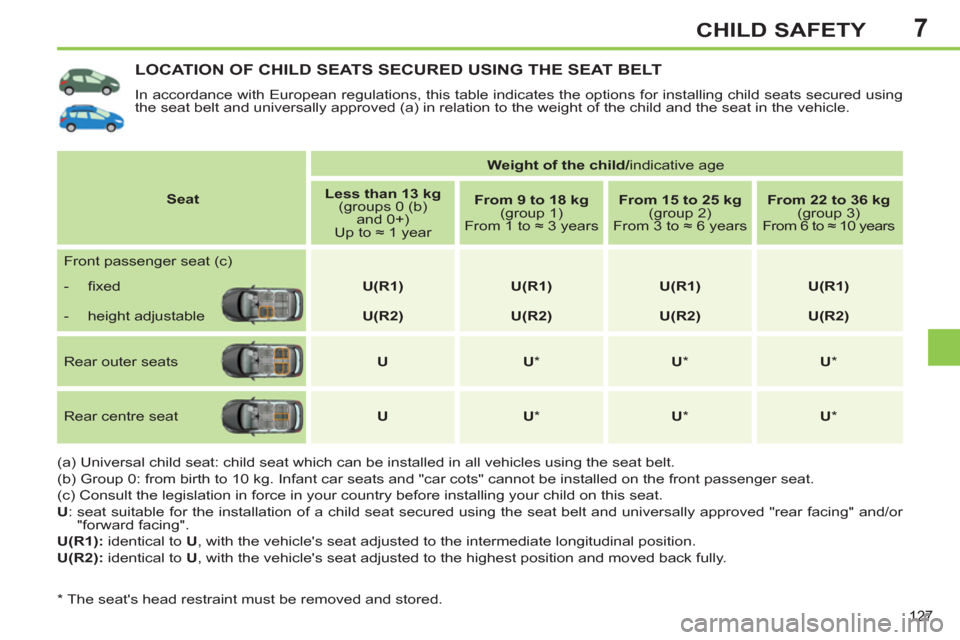

LOCATION OF CHILD SEATS SECURED USING THE SEAT BELT

In accordance with European regulations, this table indicates the options for installing child seats secured using
the seat belt and universally approved (a) in relation to the weight of the child and the seat in the vehicle.
(a) Universal child seat: child seat which can be installed in all vehicles using the seat belt.
(b) Group 0: from birth to 10 kg. Infant car seats and "car cots" cannot be installed on the front passenger seat.
(c) Consult the legislation in force in your country before installing your child on this seat.

U
: seat suitable for the installation of a child seat secured using the seat belt and universally approved "rear facing" and/or
"forward facing".

U(R1)
: identical to U
, with the vehicle's seat adjusted to the intermediate longitudinal position.

U(R2)
: identical to U
, with the vehicle's seat adjusted to the highest position and moved back fully.

*
The seat's head restraint must be removed and stored.

Seat



Weight of the child/
indicative age


Less than 13 kg


(groups 0 (b)
and 0+)
Up to ≈ 1 year

From 9 to 18 kg


(group 1)
From 1 to ≈ 3 years

From 15 to 25 kg


(group 2)
From 3 to ≈ 6 years

From 22 to 36 kg


(group 3)
From 6 to ≈ 10 years

Front passenger seat (c)



- fi xed


U(R1)



U(R1)



U(R1)



U(R1)





- height adjustable


U(R2)



U(R2)



U(R2)



U(R2)



Rear outer seats

U



U

*


U

*


U

*


Rear centre seat

U



U

*


U

*


U

*

7
128
CHILD SAFETY
LOCATION OF CHILD SEATS SECURED USING THE SEAT BELT

In accordance with the European regulation, this table indicates the options for the installation of child seats
secured using the seat belt and universally approved (a) depending on the weight of the child and the seat in the
vehicle.
(a) Universal child seat: child seat which
can be installed in all vehicles using
the seat belt.
(b) Group 0: from birth to 10 kg. Infant
car seats and "car cots" cannot be
installed on the front passenger seat.

Seat



Weight of the child
/indicative age


Below 13 kg


(groups 0 (b)
and 0+)
Up to ≈ 1 year

9 to 18 kg


(group 1)
From 1 to ≈ 3 years


15 to 25 kg


(group 2) From 3 to ≈ 6 years



22 to 36 kg


(group 3)


From 6 to ≈ 10 years



1st row


Front passenger seat (c)








- fi xed

U(R1)



U(R1)



U(R1)



U(R1)


- height adjustable

U(R2)



U(R2)



U(R2)



U(R2)





2nd row



Outer
Seat in standard position
and moved inwards

U



U



U



U


Centre
Centre seat

U



U



U



U





3rd row



Outer
Additional seat

U



U



U



U


Outer
2nd row seat

U



U



U



U


(c) Consult the current legislation in your
country before installing your child on
this seat.

U
: seat suitable for the installation of a
child seat secured using the seat belt
and universally approved, "rear facing"
and/or "forwards facing".
U(R1) : identical to U
, with the vehicle's
seat adjusted to the intermediate
longitudinal position.

U(R2)
: identical to U
, with the vehicle's
seat adjusted to its highest posi-
tion and moved back fully.

7
!
129
CHILD SAFETY

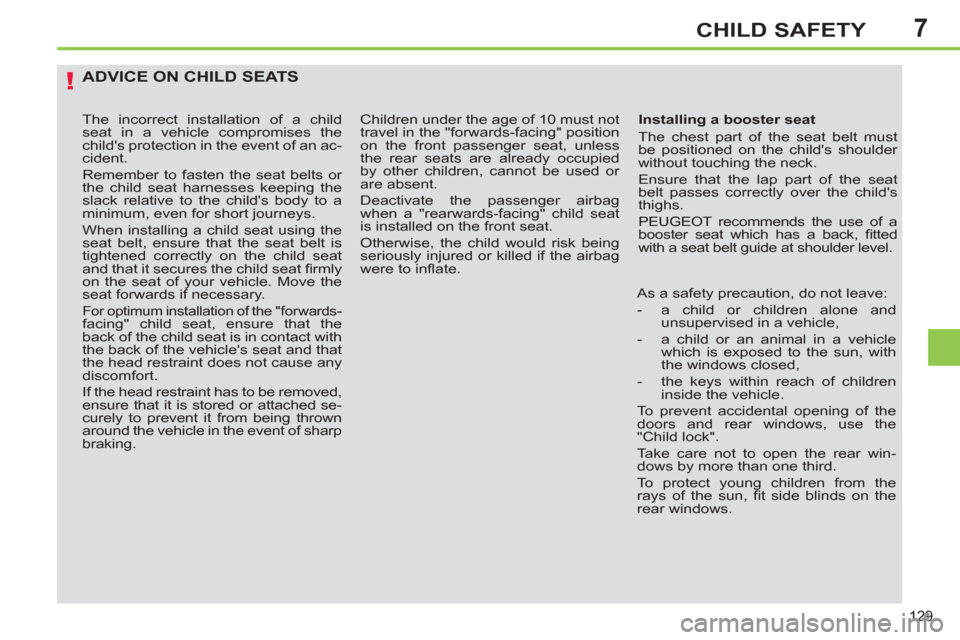

ADVICE ON CHILD SEATS


Installing a booster seat
The chest part of the seat belt must
be positioned on the child's shoulder
without touching the neck.
Ensure that the lap part of the seat
belt passes correctly over the child's
thighs.
PEUGEOT recommends the use of a
booster seat which has a back, fi tted
with a seat belt guide at shoulder level.
As a safety precaution, do not leave:


- a child or children alone and
unsupervised in a vehicle,

- a child or an animal in a vehicle
which is exposed to the sun, with
the windows closed,

- the keys within reach of children
inside the vehicle.
To prevent accidental opening of the
doors and rear windows, use the
"Child lock".
Take care not to open the rear win-
dows by more than one third.
To protect young children from the
rays of the sun, fi t side blinds on the
rear windows.
The incorrect installation of a child
seat in a vehicle compromises the
child's protection in the event of an ac-
cident.
Remember to fasten the seat belts or
the child seat harnesses keeping the
slack relative to the child's body to a
minimum, even for short journeys.
When installing a child seat using the
seat belt, ensure that the seat belt is
tightened correctly on the child seat
and that it secures the child seat fi rmly
on the seat of your vehicle. Move the
seat forwards if necessary.
For optimum installation of the "forwards-facing" child seat, ensure that the
back of the child seat is in contact with
the back of the vehicle's seat and that
the head restraint does not cause any
discomfort.
If the head restraint has to be removed,
ensure that it is stored or attached se-
curely to prevent it from being thrown
around the vehicle in the event of sharp
braking. Children under the age of 10 must not
travel in the "forwards-facing" position
on the front passenger seat, unless
the rear seats are already occupied
by other children, cannot be used or
are absent.
Deactivate the passenger airbag
when a "rearwards-facing" child seat
is installed on the front seat.
Otherwise, the child would risk being
seriously injured or killed if the airbag
were to infl ate.

7
i
130
CHILD SAFETY

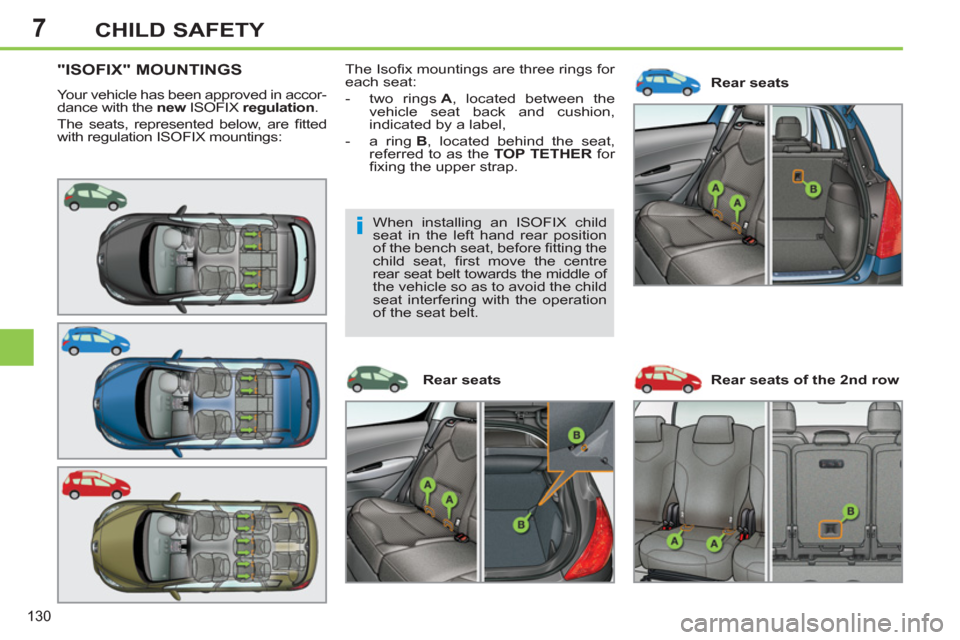

"ISOFIX" MOUNTINGS

Your vehicle has been approved in accor-
dance with the new ISOFIX regulation
.
The seats, represented below, are fi tted
with regulation ISOFIX mountings: Rear seats The Isofi x mountings are three rings for
each seat:


- two rings A
, located between the
vehicle seat back and cushion,
indicated by a label,

- a ring B
, located behind the seat,
referred to as the TOP TETHER
for
fi xing the upper strap.


Rear seats Rear seats of the 2nd row

When installing an ISOFIX child
seat in the left hand rear position
of the bench seat, before fi tting the
child seat, fi rst move the centre
rear seat belt towards the middle of
the vehicle so as to avoid the child
seat interfering with the operation
of the seat belt.

7
i
!
i
131
CHILD SAFETY
This child seat can also be used on seats which are not fi tted with ISOFIX
mountings. In this case, it must be attached to the vehicle seat using the
three point seat belt.

Follow the instructions for fi tting the child seat given in the seat manu-
facturer's installation guide.












ISOFIX CHILD SEAT RECOMMENDED BY PEUGEOT AND
APPROVED FOR YOUR VEHICLE


RÖMER Duo Plus ISOFIX
(size category B1
)


Group 1: from 9 to 18 kg





Installed in the forwards-facing position.
Fitted with an upper strap to be secured on
the upper ring B
, referred to as the TOP TETHER.
Three seat body angles: sitting, reclining, lying. This ISOFIX mounting system ensures
fast, reliable and safe fi tting of the child
seat in your vehicle.
The ISOFIX child seats
are fi tted with
two locks which are secured easily on
the two rings A
.
Some also have an upper strap
(or top
tether) which is attached to ring B
.
The incorrect installation of a child
seat in a vehicle compromises the
child's protection in the event of an
accident.
For information regarding the
ISOFIX child seats which can be
installed in your vehicle, consult
the summary table for the location
of the ISOFIX child seats. To attach this strap, raise the vehicle
seat's head restraint then pass the hook
between its rods. Then fi x the hook on
ring B
and tighten the upper strap.

7
132
CHILD SAFETY

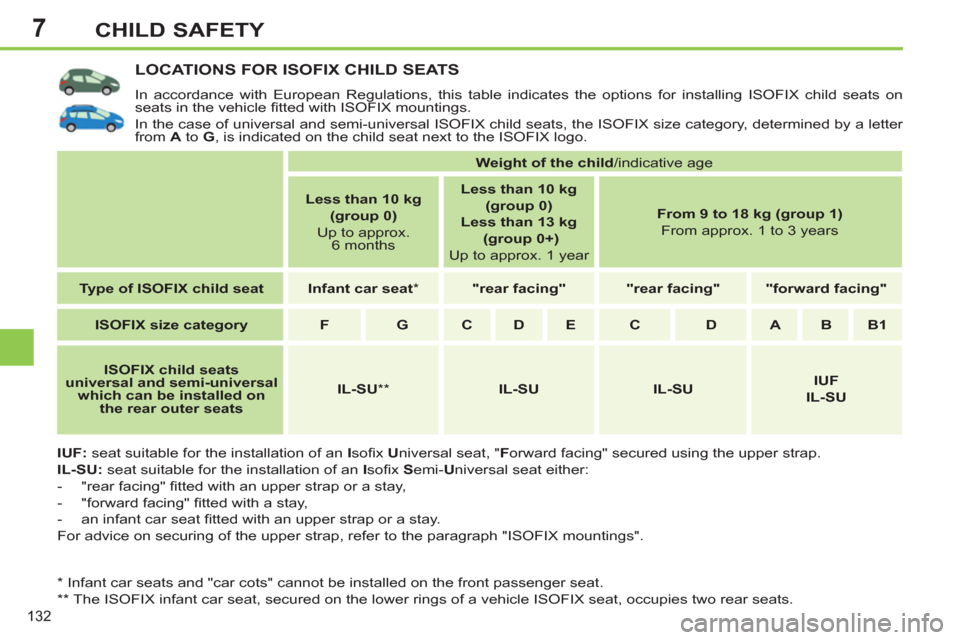

LOCATIONS FOR ISOFIX CHILD SEATS

In accordance with European Regulations, this table indicates the options for installing ISOFIX child seats on
seats in the vehicle fi tted with ISOFIX mountings.
In the case of universal and semi-universal ISOFIX child seats, the ISOFIX size category, determined by a letter
from A
to G
, is indicated on the child seat next to the ISOFIX logo.

IUF:
seat suitable for the installation of an I
sofi x U
niversal seat, " F
orward facing" secured using the upper strap.

IL-SU:
seat suitable for the installation of an I
sofi x S
emi- U
niversal seat either:


- "rear facing" fi tted with an upper strap or a stay,

- "forward facing" fi tted with a stay,

- an infant car seat fi tted with an upper strap or a stay.
For advice on securing of the upper strap, refer to the paragraph "ISOFIX mountings".

* Infant car seats and "car cots" cannot be installed on the front passenger seat.

**
The ISOFIX infant car seat, secured on the lower rings of a vehicle ISOFIX seat, occupies two rear seats.



Weight of the child
/indicative age


Less than 10 kg
(group 0)

Up to approx.
6 months

Less than 10 kg

(group 0)
Less than 13 kg

(group 0+)

Up to approx. 1 year

From 9 to 18 kg (group 1)

From approx. 1 to 3 years


Type of ISOFIX child seat



Infant car seat

*


"rear facing"



"rear facing"



"forward facing"




ISOFIX size category



F


G


C



D



E



C



D



A



B



B1




ISOFIX child seats
universal and semi-universal
which can be installed on
the rear outer seats



IL-SU

**


IL-SU



IL-SU



IUF

IL-SU

7
133
CHILD SAFETY











LOCATIONS FOR ISOFIX CHILD SEATS

In accordance with European Regulations, this table indicates the options for installing ISOFIX child seats on
seats in the vehicle fi tted with ISOFIX mountings.
In the case of universal and semi-universal ISOFIX child seats, the ISOFIX size category, determined by a letter from A
to G
,
is indicated on the child seat next to the ISOFIX logo.

IUF:
seat suitable for the installation of an I
sofi x U
niversal seat, " F
orward facing" secured using the upper strap.

IL-SU:
seat suitable for the installation of an I
sofi x S
emi- U
niversal seat either:


- "rear facing" fi tted with an upper strap or a stay,

- "forward facing" fi tted with a stay,

- an infant car seat fi tted with an upper strap or a stay.
For advice on securing of the upper strap, refer to the "ISOFIX mountings" paragraph.

X:
seat not suitable for the installation of an ISOFIX seat of the size category indicated.



Weight of the child
/indicative age


Less than 10 kg
(group 0)

Up to approx.
6 months

Less than 10 kg
(group 0)

Less than 13 kg
(group 0+)

Up to approx. 1 year

From 9 to 18 kg (group 1)

From approx. 1 to 3 years


Type of ISOFIX child seat



Infant car seat

*


"rear facing"



"rear facing"



"forward facing"




ISOFIX size category



F


G


C



D



E



C



D



A



B



B1




Rear ISOFIX
seats; 2nd row
seat



Side



IL-SU



IL-SU



IL-SU



IUF

IL-SU




Centre



X



IL-SU



IL-SU



IUF
IL-SU




Outer, moved
inwards


X



IL-SU



IL-SU



IUF
IL-SU




Rear ISOFIX
seats; 2nd row
seat installed
in the 3rd row



Outer



X



X



X



IUF
IL-SU



*
Infant car seats and "car cots" cannot be installed on the front passenger seat.

7
!
!
134
CHILD SAFETY
This system is independent and in
no circumstances does it take the
place of the central locking control.
Check the status of the child lock
each time you switch on the ignition.
Always remove the key from the
ignition when leaving the vehicle,
even for a short time.
In the event of a serious impact,
the electric child lock is deactivated
automatically to permit the exit of
the rear passengers.

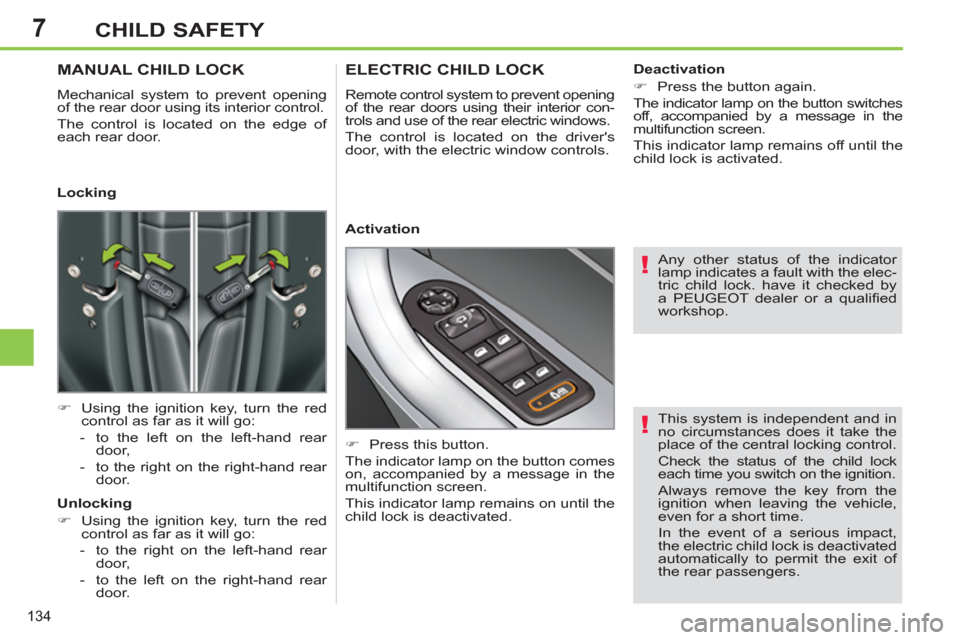

MANUAL CHILD LOCK

Mechanical system to prevent opening
of the rear door using its interior control.
The control is located on the edge of
each rear door.


)
Using the ignition key, turn the red
control as far as it will go:


- to the left on the left-hand rear
door,

- to the right on the right-hand rear
door.



ELECTRIC CHILD LOCK

Remote control system to prevent opening
of the rear doors using their interior con-
trols and use of the rear electric windows.
The control is located on the driver's
door, with the electric window controls.


)
Press this button.
The indicator lamp on the button comes
on, accompanied by a message in the
multifunction screen.
This indicator lamp remains on until the
child lock is deactivated.
Locking

Unlocking


)
Using the ignition key, turn the red
control as far as it will go:


- to the right on the left-hand rear
door,

- to the left on the right-hand rear
door.



Activation
Deactivation


)
Press the button again.
The indicator lamp on the button switches
off, accompanied by a message in the
multifunction screen.
This indicator lamp remains off until the
child lock is activated.
Any other status of the indicator
lamp indicates a fault with the elec-
tric child lock. have it checked by
a PEUGEOT dealer or a qualifi ed
workshop.
