CHECKS

Brake disc wear














Brake pads

Manual parking brake

Brake wear depends on the
style of driving, particularly in
the case of vehicles used in
town, over short distances. It
may be necessary to have the
condition of the brakes checked, even
between vehicle services.
Unless there is a leak in the system, a
drop in the brake fl uid level indicates
that the brake pads are worn.
For information on checking
brake disc wear, contact a
PEUGEOT dealer or a qualifi ed
workshop.
If a loss of effectiveness of this
system is noticed, the parking
brake must be checked, even
between two services.
Checking this system must be done by
a PEUGEOT dealer or a qualifi ed work-
shop.







Manual gearbox

The gearbox does not re-
quire any maintenance (no oil
change).

Refer to the Warranty and
Maintenance Record for the
details of the level checking
interval for this component.







6-speed electronic gearbox
system
The gearbox does not re-
quire any maintenance (no oil
change).

Refer to the Warranty and
Maintenance Record for de-
tails of the checking interval
for this component.







Automatic gearbox

The gearbox does not re-
quire any maintenance (no oil
change).

Refer to the Warranty and
Maintenance Record for details
of the level checking interval for
this component.





















Only use products recommended
by PEUGEOT or products of equi-
valent quality and specifi cation.
In order to optimise the operation
of units as important as the braking
system, PEUGEOT selects and
offers very specifi c products.
To avoid damaging the electrical
units, the use of a high pressure
washer in the engine compartment
is strictly prohibited
.

11
i
176
PRACTICAL INFORMATION

The speed limit sticker I
must be
affi xed to the vehicle's steering
wheel to remind you that a wheel is
in temporary use.
Do not exceed a speed of 50 mph
(80 km/h) when driving with a tyre
repaired using this type of kit.



















TEMPORARY
PUNCTURE REPAIR KIT
The kit is stowed in the boot under the
fl oor. It is installed in the tool box, lo-
cated under the storage box.

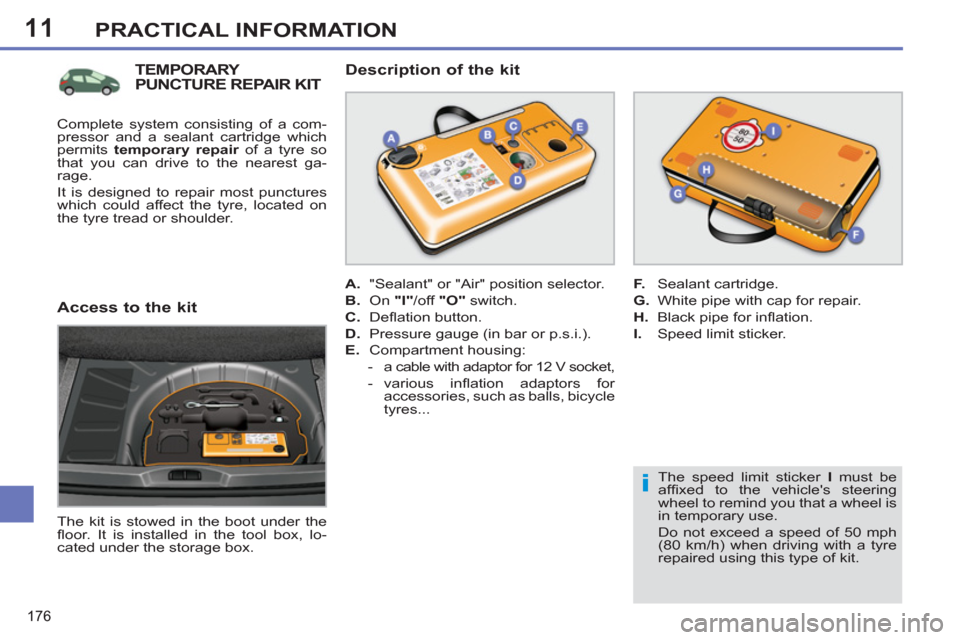

Description of the kit



A.
"Sealant" or "Air" position selector.

B.
On "I"
/off "O"
switch.

C.
Defl ation button.

D.
Pressure gauge (in bar or p.s.i.).

E.
Compartment housing:


- a cable with adaptor for 12 V socket,

- various infl ation adaptors for
accessories, such as balls, bicycle
tyres...
F.
Sealant cartridge.

G.
White pipe with cap for repair.

H.
Black pipe for infl ation.

I.
Speed limit sticker.


Access to the kit

Complete system consisting of a com-
pressor and a sealant cartridge which
permits temporary repair
of a tyre so
that you can drive to the nearest ga-
rage.
It is designed to repair most punctures
which could affect the tyre, located on
the tyre tread or shoulder.

11
i!
177
PRACTICAL INFORMATION

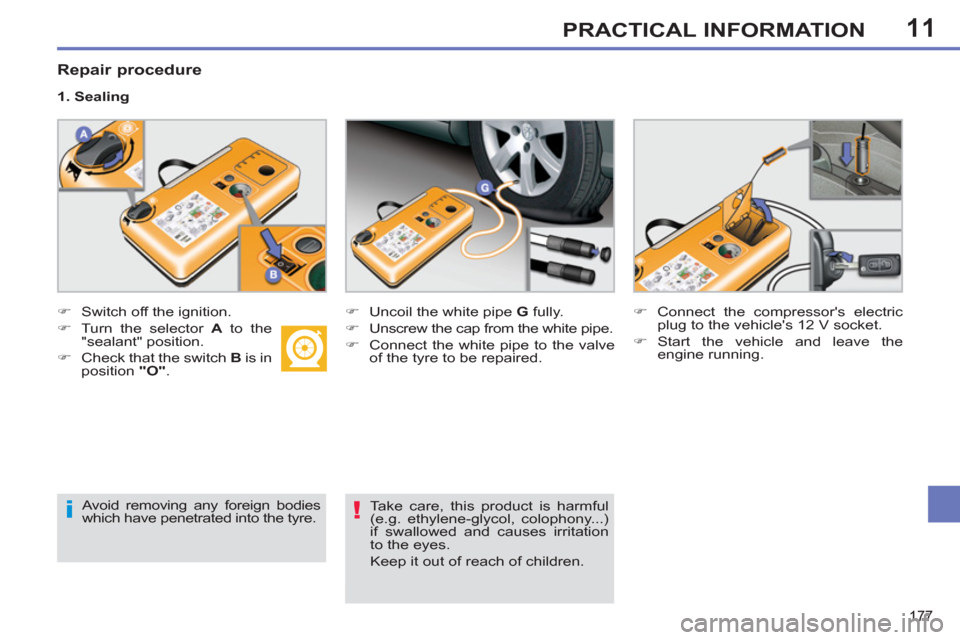

Repair procedure



)
Switch off the ignition.

)
Turn the selector A
to the
"sealant" position.

)
Check that the switch B
is in
position "O"
.
1. Sealing

)
Uncoil the white pipe G
fully.

)
Unscrew the cap from the white pipe.

)
Connect the white pipe to the valve
of the tyre to be repaired.
)
Connect the compressor's electric
plug to the vehicle's 12 V socket.

)
Start the vehicle and leave the
engine running.

Avoid removing any foreign bodies
which have penetrated into the tyre.
Take care, this product is harmful
(e.g. ethylene-glycol, colophony...)
if swallowed and causes irritation
to the eyes.
Keep it out of reach of children.

11
i
i
178
PRACTICAL INFORMATION

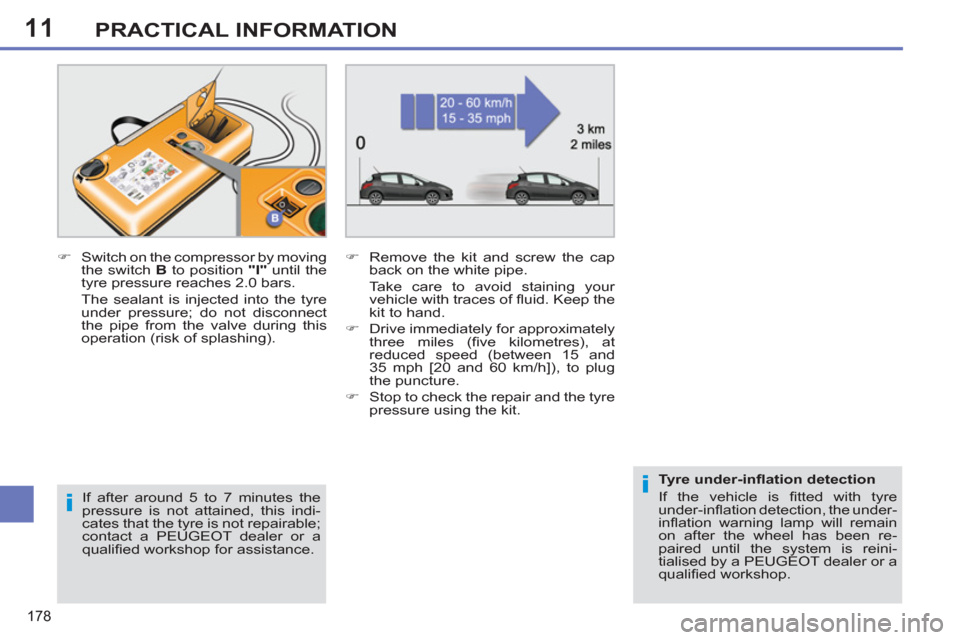

If after around 5 to 7 minutes the
pressure is not attained, this indi-
cates that the tyre is not repairable;
contact a PEUGEOT dealer or a
qualifi ed workshop for assistance.
)
Switch on the compressor by moving
the switch B
to position "I"
until the
tyre pressure reaches 2.0 bars.
The sealant is injected into the tyre
under pressure; do not disconnect
the pipe from the valve during this
operation (risk of splashing).
)
Remove the kit and screw the cap
back on the white pipe.
Take care to avoid staining your
vehicle with traces of fl uid. Keep the
kit to hand.

)
Drive immediately for approximately
three miles (fi ve kilometres), at
reduced speed (between 15 and
35 mph [20 and 60 km/h]), to plug
the puncture.

)
Stop to check the repair and the tyre
pressure using the kit.



Tyre under-infl ation detection
If the vehicle is fi tted with tyre
under-infl ation detection, the under-
infl ation warning lamp will remain
on after the wheel has been re-
paired until the system is reini-
tialised by a PEUGEOT dealer or a
qualifi ed workshop.

11
!
179
PRACTICAL INFORMATION


)
Turn the selector A
to the
"air" position.

)
Uncoil the black pipe H

fully.

)
Connect the black pipe to the valve
of the wheel.
)
Connect the compressor's electric
plug to the vehicle's 12 V socket.

)
Start the vehicle again and leave the
engine running.

)
Visit a PEUGEOT dealer or a
qualifi ed workshop as soon as
possible.
You must inform the technician
that you have used this kit.
After inspection, the technician
will inform you whether the tyre
can be repaired or must be
replaced.

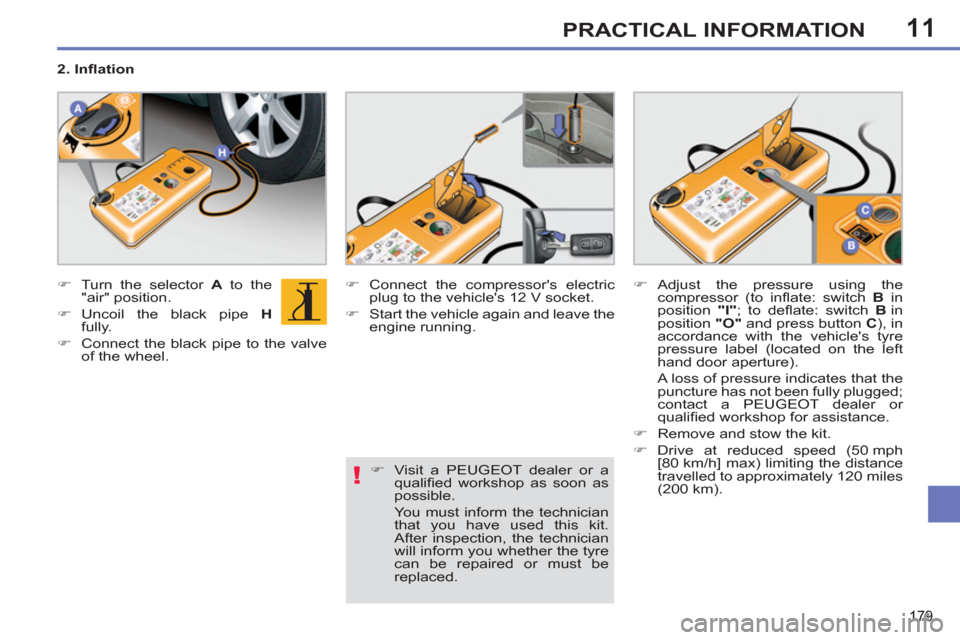

2. Infl ation

)
Adjust the pressure using the
compressor (to infl ate: switch B
in
position "I"
; to defl ate: switch B
in
position "O"
and press button C
), in
accordance with the vehicle's tyre
pressure label (located on the left
hand door aperture).
A loss of pressure indicates that the
puncture has not been fully plugged;
contact a PEUGEOT dealer or
qualifi ed workshop for assistance.

)
Remove and stow the kit.

)
Drive at reduced speed (50 mph
[80 km/h] max) limiting the distance
travelled to approximately 120 miles
(200 km).

11
!
180
PRACTICAL INFORMATION

Beware of discharges of fl uid.
The expiry date of the fl uid is indi-
cated on the cartridge.
The sealant cartridge is designed
for single use; even if only partly
used, it must be replaced.
After use, do not discard the car-
tridge into the environment, take
it to an authorised waste disposal
site or a PEUGEOT dealer.
Do not forget to obtain a new sealant
cartridge, available from PEUGEOT
dealers or from a qualifi ed workshop.

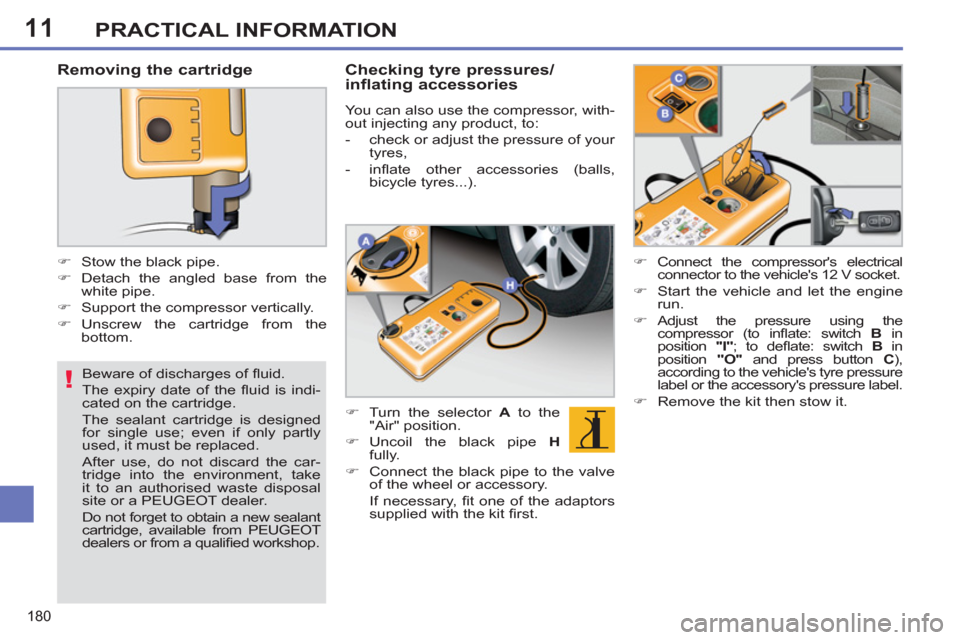

Removing the cartridge




)
Stow the black pipe.

)
Detach the angled base from the
white pipe.

)
Support the compressor vertically.

)
Unscrew the cartridge from the
bottom.



Checking tyre pressures/
inflating accessories

You can also use the compressor, with-
out injecting any product, to:


- check or adjust the pressure of your
tyres,

- infl ate other accessories (balls,
bicycle tyres...).


)
Turn the selector A
to the
"Air" position.

)
Uncoil the black pipe H

fully.

)
Connect the black pipe to the valve
of the wheel or accessory.
If necessary, fi t one of the adaptors
supplied with the kit fi rst.
)
Connect the compressor's electrical
connector to the vehicle's 12 V socket.

)
Start the vehicle and let the engine
run.

)
Adjust the pressure using the
compressor (to infl ate: switch B
in
position "I"
; to defl ate: switch B
in
position "O"
and press button C
),
according to the vehicle's tyre pressure
label or the accessory's pressure label.

)
Remove the kit then stow it.

11
i
181
PRACTICAL INFORMATION
It is designed to repair holes of a
maximum diameter of 6 mm, only
where located on the tyre tread or
shoulder. Avoid removing any for-
eign bodies which have penetrated
the tyre.








TEMPORARY
PUNCTURE REPAIR
KIT
Complete system consisting of a
compressor and a bottle of sealant
which permits temporary repair
of the
tyre so that you can drive to the nearest
garage.
The kit is stowed in the boot storage tray.

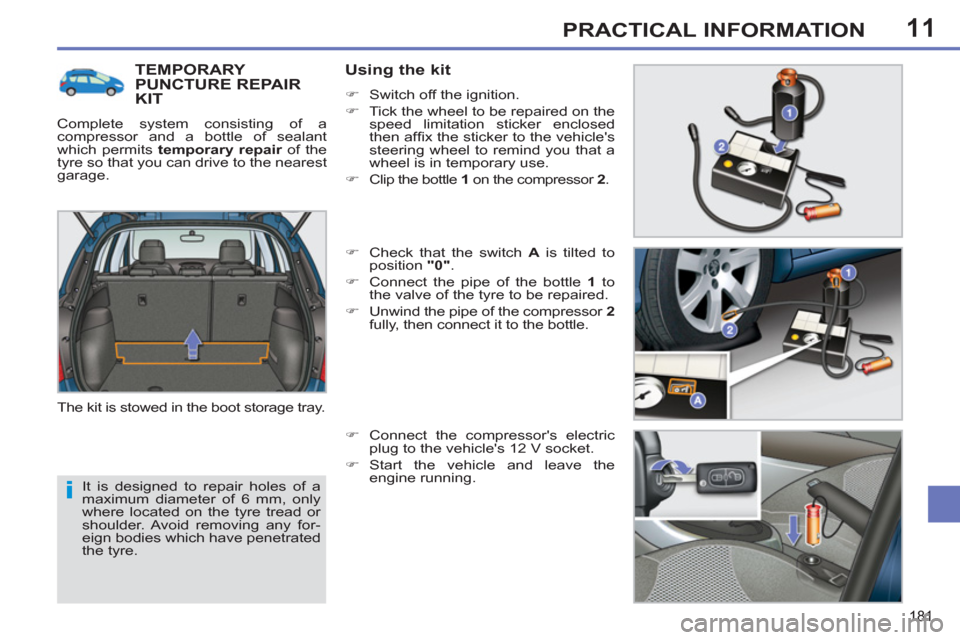

Using the kit



)
Switch off the ignition.

)
Tick the wheel to be repaired on the
speed limitation sticker enclosed
then affi x the sticker to the vehicle's
steering wheel to remind you that a
wheel is in temporary use.

)
Clip the bottle 1
on the compressor 2
.

)
Check that the switch A
is tilted to
position "0"
.

)
Connect the pipe of the bottle 1
to
the valve of the tyre to be repaired.

)
Unwind the pipe of the compressor 2

fully, then connect it to the bottle.

)
Connect the compressor's electric
plug to the vehicle's 12 V socket.

)
Start the vehicle and leave the
engine running.

11
i
182
PRACTICAL INFORMATION

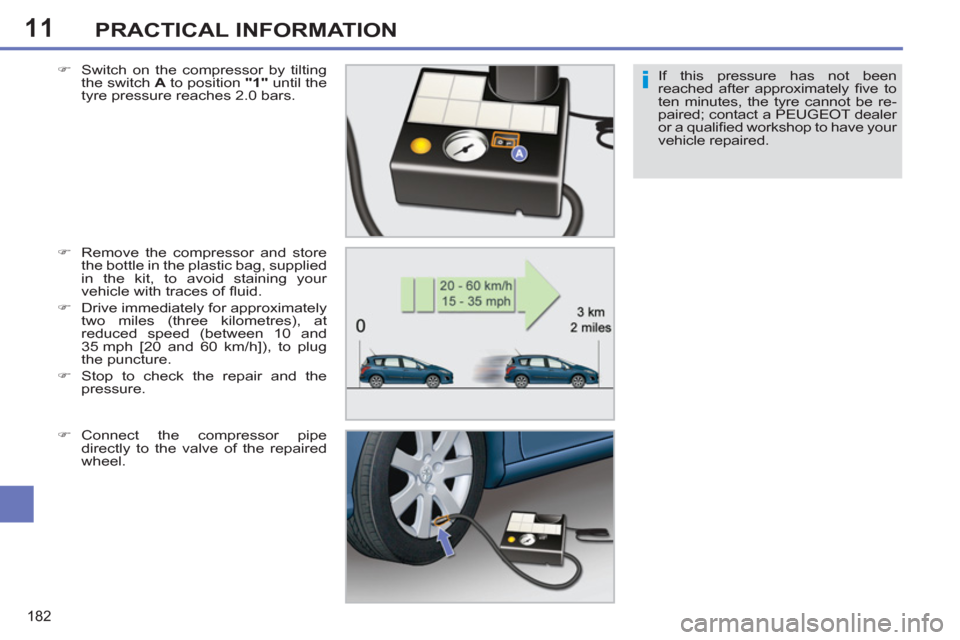

If this pressure has not been
reached after approximately fi ve to
ten minutes, the tyre cannot be re-
paired; contact a PEUGEOT dealer
or a qualifi ed workshop to have your
vehicle repaired.
)
Switch on the compressor by tilting
the switch A
to position "1"
until the
tyre pressure reaches 2.0 bars.

)
Remove the compressor and store
the bottle in the plastic bag, supplied
in the kit, to avoid staining your
vehicle with traces of fl uid.

)
Drive immediately for approximately
two miles (three kilometres), at
reduced speed (between 10 and
35 mph [20 and 60 km/h]), to plug
the puncture.

)
Stop to check the repair and the
pressure.

)
Connect the compressor pipe
directly to the valve of the repaired
wheel.
