TECHNICAL DATA
*

The weight of the braked trailer can be increased, within the GTW limit, if the GVW of the towing vehicle is reduced by an
equal amount; warning, towing using a lightly loaded towing vehicle may have an adverse effect on its road holding.
The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned
must be reduced by 10 % for each additional 1 000 metres of altitude.
The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the performance of the vehicle to protect the engine; if the ambient
temperature is above 37 °C, limit the towed load.

WEIGHTS AND TOWED LOADS (in kg)



Petrol engines




1.6 litre THP 150 hp




1.6 litre THP 156 hp




1.6 litre THP 163 hp




Gearboxes


Automatic



Manual



Automatic



Automatic



Model codes: 4H...


5FE-J



5FV-8



5FV-A



5FM-J




- Unladen weight
1 487
1 481
1 509
1 487


- Kerb weight
1 562
1 556
1 584
1 562


- Payload
633
649
651
633


- Gross vehicle weight (GVW)
2 120
2 130
2 160
2 120


- Gross train weight (GTW)
on a 12% gradient
2 920
3 380
3 510
2 920


- Braked trailer (within GTW limit)
on a 10% or 12% gradient
800
1 250
1 350
800


- Braked trailer * (with load transfer
within the GTW limit)
800
1 400
1 350
800


- Unbraked trailer
750
750
750
750


- Recommended nose weight
75
60
60
75

12
224
TECHNICAL DATA

4C...:
5-door.

4R...:
5-door "Van".
4E...:
SW with bench rear seat.
MODELS:

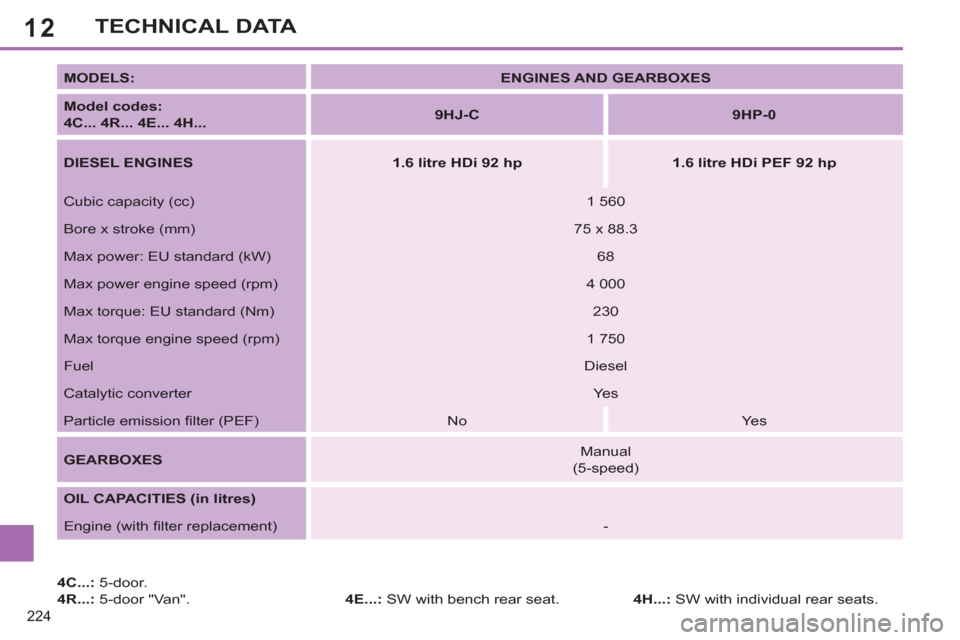

ENGINES AND GEARBOXES



Model codes:
4C... 4R... 4E... 4H...


9HJ-C



9HP-0



DIESEL ENGINES


1.6 litre HDi 92 hp



1.6 litre HDi PEF 92 hp


Cubic capacity (cc)
1 560
Bore x stroke (mm)
75 x 88.3
Max power: EU standard (kW)
68
Max power engine speed (rpm)
4 000
Max torque: EU standard (Nm)
230
Max torque engine speed (rpm)
1 750
Fuel
Diesel
Catalytic converter
Yes
Particle emission fi lter (PEF)
No
Yes

GEARBOXES

Manual
(5-speed)

OIL CAPACITIES (in litres)

Engine (with fi lter replacement)
-

4H...:
SW with individual rear seats.

12
225
TECHNICAL DATA

MODELS:


ENGINES AND GEARBOXES



Model codes:
4C... 4R... 4E... 4H...


9HG-C



9HR-8/S

9HR-8/1S





9HR-8/PS

9HR-8/1P

S




DIESEL ENGINES


1.6 litre HDi 112 hp



1.6 litre e-HDi PEF 112 hp


Cubic capacity (cc)
1 560
Bore x stroke (mm)
75 x 88.3
Max power: EU standard (kW)
82
Max power engine speed (rpm)
3 600
Max torque: EU standard (Nm)
254
270
Max torque engine speed (rpm)
1 750
Fuel
Diesel
Catalytic converter
Yes
Particle emission fi lter (PEF)
No
Yes

GEARBOXES

Manual
(5-speed)
Manual
(6-speed)
Electronic gear control
(6-speed)

OIL CAPACITIES (in litres)

Engine (with fi lter replacement)
-

4C...:
5-door.

4R...:
5-door "Van".
4E...:
SW with bench rear seat.
.../S:
model fi tted with Stop & Start.

4H...:
SW with individual rear seats.
.../1S:
model fi tted with Stop & Start and very low rolling resistance tyres
(e.g.: MICHELIN Energy Saver).

12
226

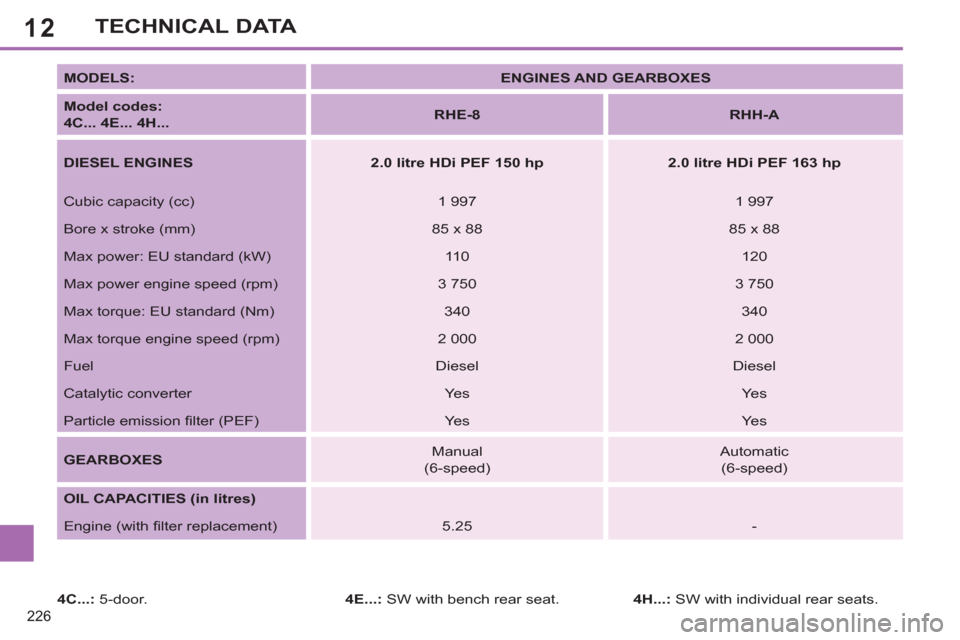

TECHNICAL DATA

MODELS:


ENGINES AND GEARBOXES



Model codes:
4C... 4E... 4H...


RHE-8



RHH-A



DIESEL ENGINES


2.0 litre HDi PEF 150 hp



2.0 litre HDi PEF 163 hp


Cubic capacity (cc)
1 997
1 997
Bore x stroke (mm)
85 x 88
85 x 88
Max power: EU standard (kW)
110
120
Max power engine speed (rpm)
3 750
3 750
Max torque: EU standard (Nm)
340
340
Max torque engine speed (rpm)
2 000
2 000
Fuel
Diesel
Diesel
Catalytic converter
Yes
Yes
Particle emission fi lter (PEF)
Yes
Yes

GEARBOXES

Manual
(6-speed)
Automatic
(6-speed)

OIL CAPACITIES (in litres)

Engine (with fi lter replacement)
5.25
-


4C...:
5-door.
4E...:
SW with bench rear seat.
4H...:
SW with individual rear seats.

12
227
TECHNICAL DATA

*
The weight of the braked trailer can be increased, within the GTW limit, if the GVW of the towing vehicle is reduced by an
equal amount; warning, towing using a lightly loaded towing vehicle may have an adverse effect on its road holding.

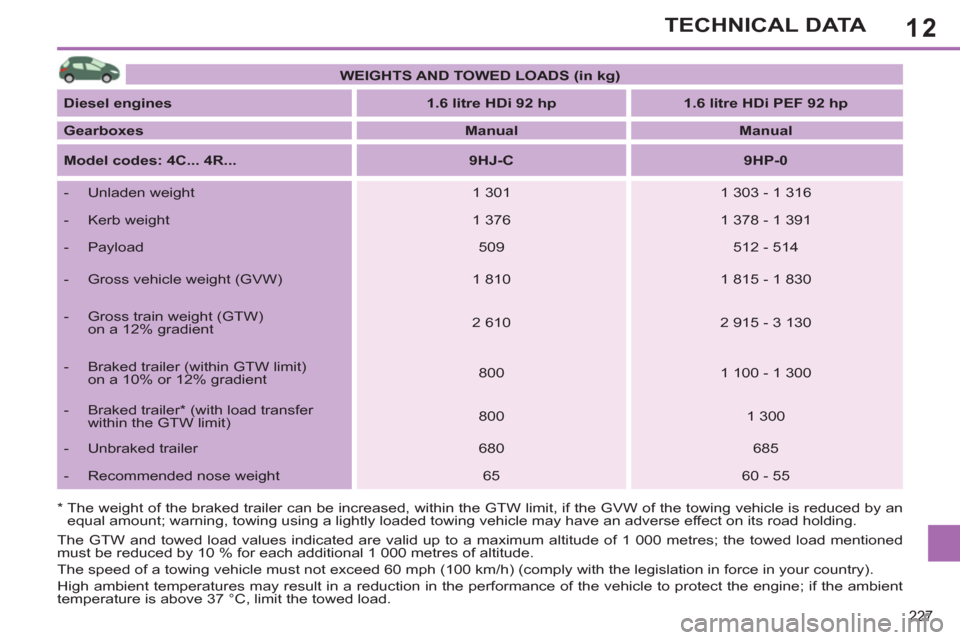

WEIGHTS AND TOWED LOADS (in kg)



Diesel engines


1.6 litre HDi 92 hp



1.6 litre HDi PEF 92 hp



Gearboxes


Manual



Manual



Model codes:
4C... 4R...


9HJ-C



9HP-0




- Unladen weight
1 301
1 303 - 1 316


- Kerb weight
1 376
1 378 - 1 391


- Payload
509
512 - 514


- Gross vehicle weight (GVW)
1 810
1 815 - 1 830


- Gross train weight (GTW)
on a 12% gradient
2 610
2 915 - 3 130


- Braked trailer (within GTW limit)
on a 10% or 12% gradient
800
1 100 - 1 300


- Braked trailer * (with load transfer
within the GTW limit)
800
1 300


- Unbraked trailer
680
685


- Recommended nose weight

65
60 - 55
The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned
must be reduced by 10 % for each additional 1 000 metres of altitude.
The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the performance of the vehicle to protect the engine; if the ambient
temperature is above 37 °C, limit the towed load.

12
228
TECHNICAL DATA

* The weight of the braked trailer can be increased, within the GTW limit, if the GVW of the towing vehicle is reduced by an
equal amount; warning, towing using a lightly loaded towing vehicle may have an adverse effect on its road holding.

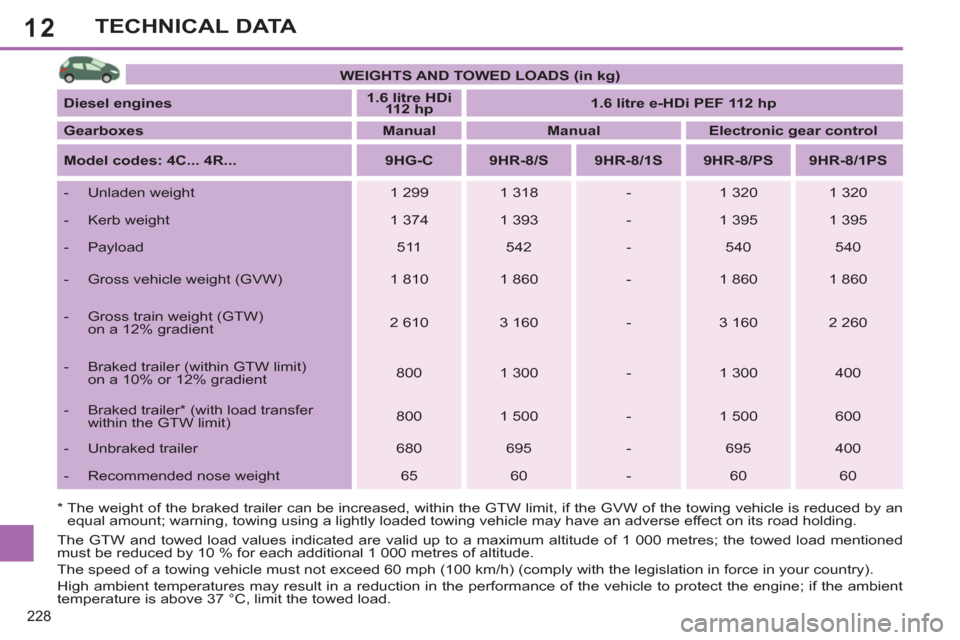

WEIGHTS AND TOWED LOADS (in kg)



Diesel engines


1.6 litre HDi
112 hp



1.6 litre e-HDi PEF 112 hp



Gearboxes


Manual



Manual



Electronic gear control



Model codes:
4C... 4R...


9HG-C



9HR-8/S



9HR-8/1S



9HR-8/PS



9HR-8/1PS




- Unladen weight
1 299
1 318
-
1 320
1 320


- Kerb weight
1 374
1 393
-
1 395
1 395


- Payload
511
542
-
540
540


- Gross vehicle weight (GVW)
1 810
1 860
-
1 860
1 860


- Gross train weight (GTW)
on a 12% gradient
2 610
3 160
-
3 160
2 260


- Braked trailer (within GTW limit)
on a 10% or 12% gradient
800
1 300
-
1 300
400


- Braked trailer * (with load transfer
within the GTW limit)
800
1 500
-
1 500
600


- Unbraked trailer
680
695
-
695
400


- Recommended nose weight
65
60
-
60
60
The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned
must be reduced by 10 % for each additional 1 000 metres of altitude.
The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the performance of the vehicle to protect the engine; if the ambient
temperature is above 37 °C, limit the towed load.

12
229
TECHNICAL DATA

* The weight of the braked trailer can be increased, within the GTW limit, if the GVW of the towing vehicle is reduced by an
equal amount; warning, towing using a lightly loaded towing vehicle may have an adverse effect on its road holding.



WEIGHTS AND TOWED LOADS (in kg)



Diesel engines


2 litre HDi PEF 150 hp



2 litre HDi PEF 163 hp



Gearboxes


Manual



Automatic



Model codes:


4C...


RHE-8



RHH-A




- Unladen weight
1 398
1 428


- Kerb weight
1 473
1 503


- Payload
502
532


- Gross vehicle weight (GVW)
1 900
1 960


- Gross train weight (GTW)
on a 12% gradient
3 600
3 460


- Braked trailer (within GTW limit)
on a 10% or 12% gradient
1 700
1 500


- Braked trailer * (with load transfer
within the GTW limit)
1 700
1 500


- Unbraked trailer
735
750


- Recommended nose weight
70
66
The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned
must be reduced by 10 % for each additional 1 000 metres of altitude.
The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the performance of the vehicle to protect the engine; if the ambient
temperature is above 37 °C, limit the towed load.

12
230
TECHNICAL DATA

* The weight of the braked trailer can be increased, within the GTW limit, if the GVW of the towing vehicle is reduced by an
equal amount; warning, towing using a lightly loaded towing vehicle may have an adverse effect on its road holding.

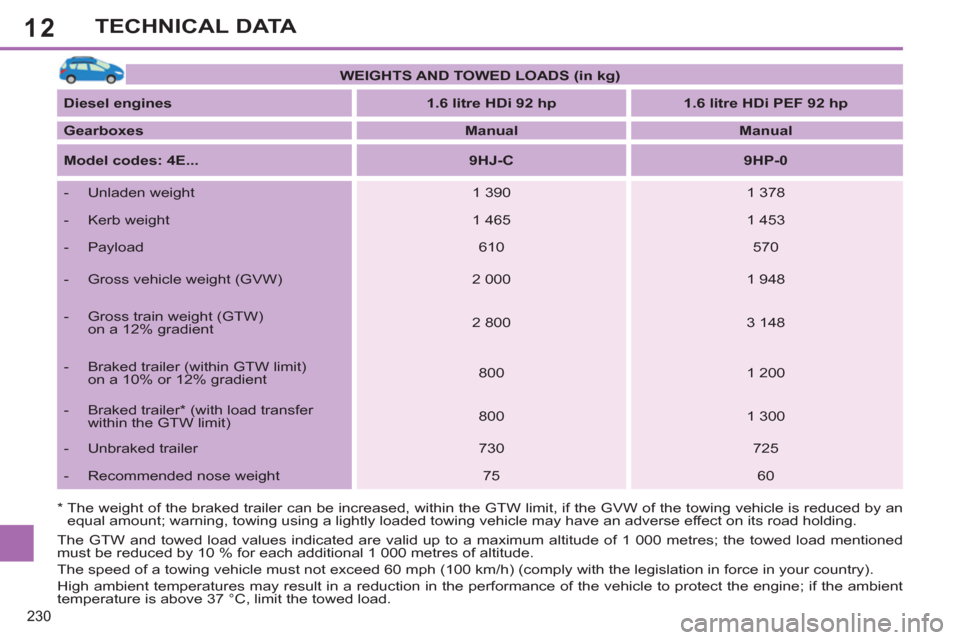

WEIGHTS AND TOWED LOADS (in kg)



Diesel engines


1.6 litre HDi 92 hp



1.6 litre HDi PEF 92 hp



Gearboxes


Manual



Manual



Model codes:
4E...


9HJ-C



9HP-0




- Unladen weight
1 390
1 378


- Kerb weight
1 465
1 453


- Payload
610
570


- Gross vehicle weight (GVW)
2 000
1 948


- Gross train weight (GTW)
on a 12% gradient
2 800
3 148


- Braked trailer (within GTW limit)
on a 10% or 12% gradient
800
1 200


- Braked trailer * (with load transfer
within the GTW limit)
800
1 300


- Unbraked trailer
730
725


- Recommended nose weight

75
60
The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned
must be reduced by 10 % for each additional 1 000 metres of altitude.
The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the performance of the vehicle to protect the engine; if the ambient
temperature is above 37 °C, limit the towed load.
