2011 Peugeot 308 SW BL Owner's Manual - RHD (UK. Australia)

6
i
i

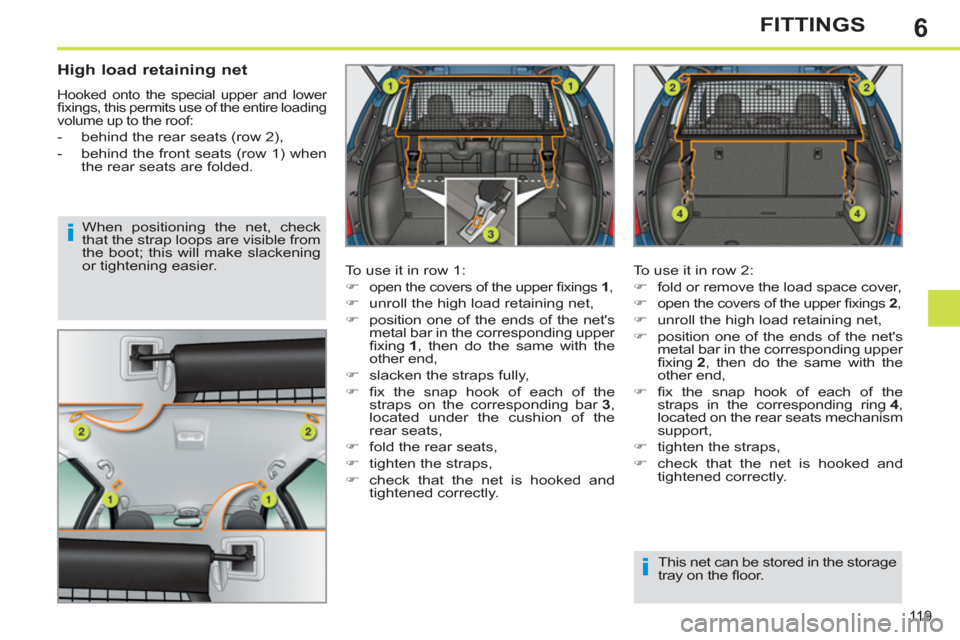

11 9
FITTINGS

High load retaining net

Hooked onto the special upper and lower
fi xings, this permits use of the entire loading
volume up to the roof:


- behind the rear seats (row 2),

- behind the front seats (row 1) when
the rear seats are folded.
To use it in row 1:


)

open the covers of the upper fi xings 1
,


)
unroll the high load retaining net,

)
position one of the ends of the net's
metal bar in the corresponding upper
fi xing 1
, then do the same with the
other end,

)
slacken the straps fully,

)
fi x the snap hook of each of the
straps on the corresponding bar 3
,
located under the cushion of the
rear seats,

)
fold the rear seats,

)
tighten the straps,

)
check that the net is hooked and
tightened correctly. To use it in row 2:


)
fold or remove the load space cover,

)
open the covers of the upper fi xings 2
,


)
unroll the high load retaining net,

)
position one of the ends of the net's
metal bar in the corresponding upper
fi xing 2
, then do the same with the
other end,

)
fi x the snap hook of each of the
straps in the corresponding ring 4
,
located on the rear seats mechanism
support,

)
tighten the straps,

)
check that the net is hooked and
tightened correctly. When positioning the net, check
that the strap loops are visible from
the boot; this will make slackening
or tightening easier.
This net can be stored in the storage
tray on the fl oor.

6

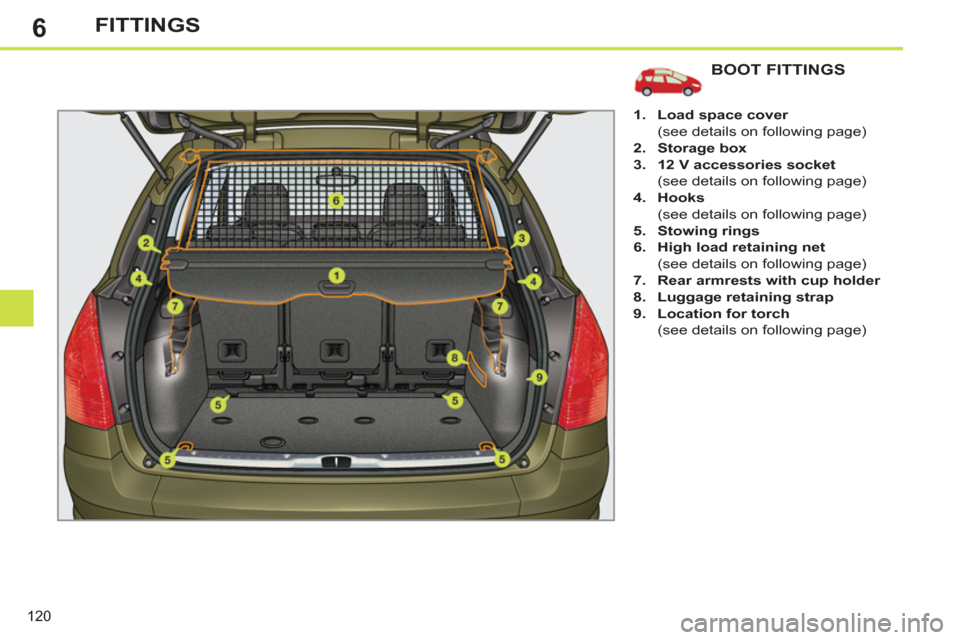

120
FITTINGS

















BOOT FITTINGS



1.
Load space cover

(see details on following page)

2.
Storage box


3.
12 V accessories socket

(see details on following page)

4.
Hooks

(see details on following page)

5.
Stowing rings


6.
High load retaining net

(see details on following page)

7.
Rear armrests with cup holder


8.
Luggage retaining strap


9.
Location for torch

(see details on following page)

6

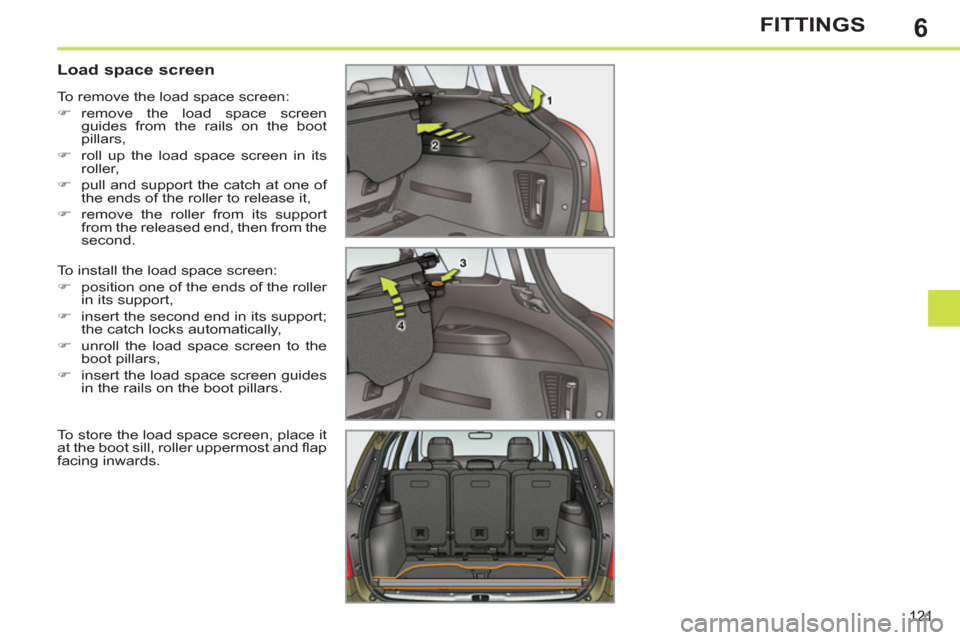

121
FITTINGS









Load space screen

To install the load space screen:


)
position one of the ends of the roller
in its support,

)
insert the second end in its support;
the catch locks automatically,

)
unroll the load space screen to the
boot pillars,

)
insert the load space screen guides
in the rails on the boot pillars. To remove the load space screen:


)
remove the load space screen
guides from the rails on the boot
pillars,

)
roll up the load space screen in its
roller,

)
pull and support the catch at one of
the ends of the roller to release it,

)
remove the roller from its support
from the released end, then from the
second.
To store the load space screen, place it
at the boot sill, roller uppermost and fl ap
facing inwards.

6
i

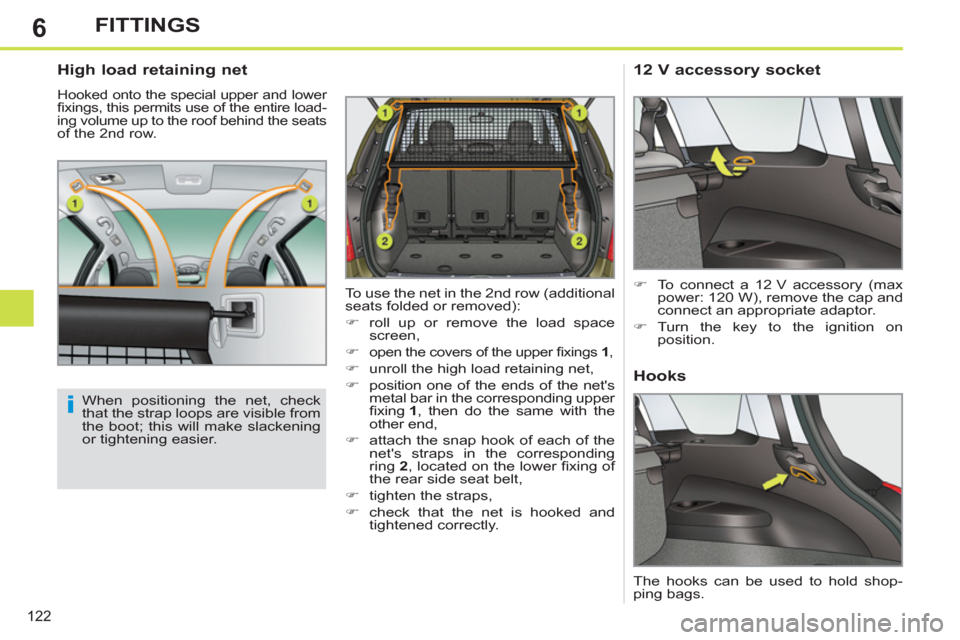

122
FITTINGS

High load retaining net

Hooked onto the special upper and lower
fi xings, this permits use of the entire load-
ing volume up to the roof behind the seats
of the 2nd row.






12 V accessory socket



)
To connect a 12 V accessory (max
power: 120 W), remove the cap and
connect an appropriate adaptor.

)
Turn the key to the ignition on
position.
To use the net in the 2nd row (additional
seats folded or removed):


)
roll up or remove the load space
screen,

)

open the covers of the upper fi xings 1
,


)
unroll the high load retaining net,

)
position one of the ends of the net's
metal bar in the corresponding upper
fi xing 1
, then do the same with the
other end,

)
attach the snap hook of each of the
net's straps in the corresponding
ring 2
, located on the lower fi xing of
the rear side seat belt,

)
tighten the straps,

)
check that the net is hooked and
tightened correctly.
When positioning the net, check
that the strap loops are visible from
the boot; this will make slackening
or tightening easier.





Hooks

The hooks can be used to hold shop-
ping bags.

6
!i

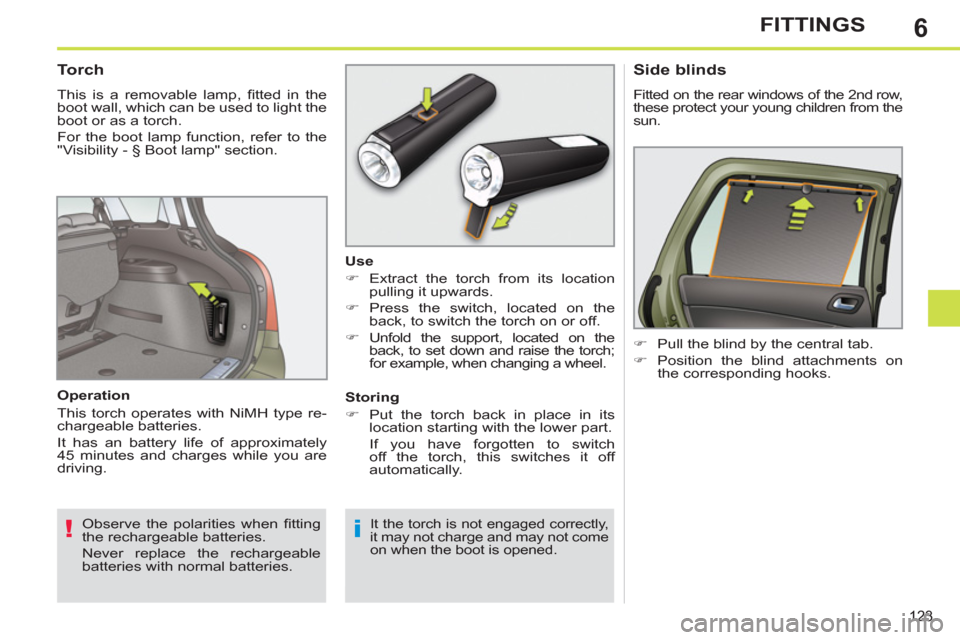

123
FITTINGS










Torch

This is a removable lamp, fi tted in the
boot wall, which can be used to light the
boot or as a torch.
For the boot lamp function, refer to the
"Visibility - § Boot lamp" section.

Operation
This torch operates with NiMH type re-
chargeable batteries.
It has an battery life of approximately
45 minutes and charges while you are
driving.
Use


)
Extract the torch from its location
pulling it upwards.

)
Press the switch, located on the
back, to switch the torch on or off.

)
Unfold the support, located on the
back, to set down and raise the torch;
for example, when changing a wheel.


Storing


)
Put the torch back in place in its
location starting with the lower part.
If you have forgotten to switch
off the torch, this switches it off
automatically.


Side blinds

Fitted on the rear windows of the 2nd row,
these protect your young children from the
sun.


)
Pull the blind by the central tab.

)
Position the blind attachments on
the corresponding hooks.

Observe the polarities when fi tting
the rechargeable batteries.
Never replace the rechargeable
batteries with normal batteries.

It the torch is not engaged correctly,
it may not charge and may not come
on when the boot is opened.

7
i

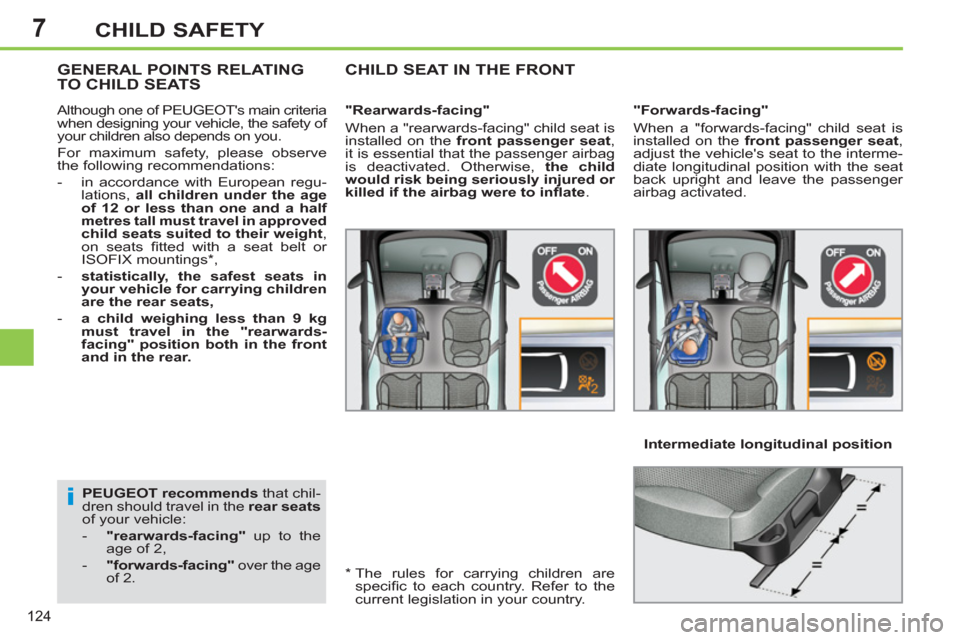

124
CHILD SAFETY

PEUGEOT recommends
that chil-
dren should travel in the rear seats

of your vehicle:


- "rearwards-facing"
up to the
age of 2,

- "forwards-facing"
over the age
of 2.












GENERAL POINTS RELATING
TO CHILD SEATS CHILD SEAT IN THE FRONT


"Forwards-facing"
When a "forwards-facing" child seat is
installed on the front passenger seat
,
adjust the vehicle's seat to the interme-
diate longitudinal position with the seat
back upright and leave the passenger
airbag activated.
"Rearwards-facing"
When a "rearwards-facing" child seat is
installed on the front passenger seat
,
it is essential that the passenger airbag
is deactivated. Otherwise, the child
would risk being seriously injured or
killed if the airbag were to infl ate
.

*

The rules for carrying children are
specifi c to each country. Refer to the
current legislation in your country. Although one of PEUGEOT's main criteria
when designing your vehicle, the safety of
your children also depends on you.
For maximum safety, please observe
the following recommendations:


- in accordance with European regu-
lations, all children under the age
of 12 or less than one and a half
metres tall must travel in approved child seats suited to their weight
,
on seats fi tted with a seat belt or
ISOFIX mountings * ,

- statistically, the safest seats in
your vehicle for carrying children
are the rear seats,


- a child weighing less than 9 kg
must travel in the "rearwards-
facing" position both in the front
and in the rear.



Intermediate longitudinal position

7
!

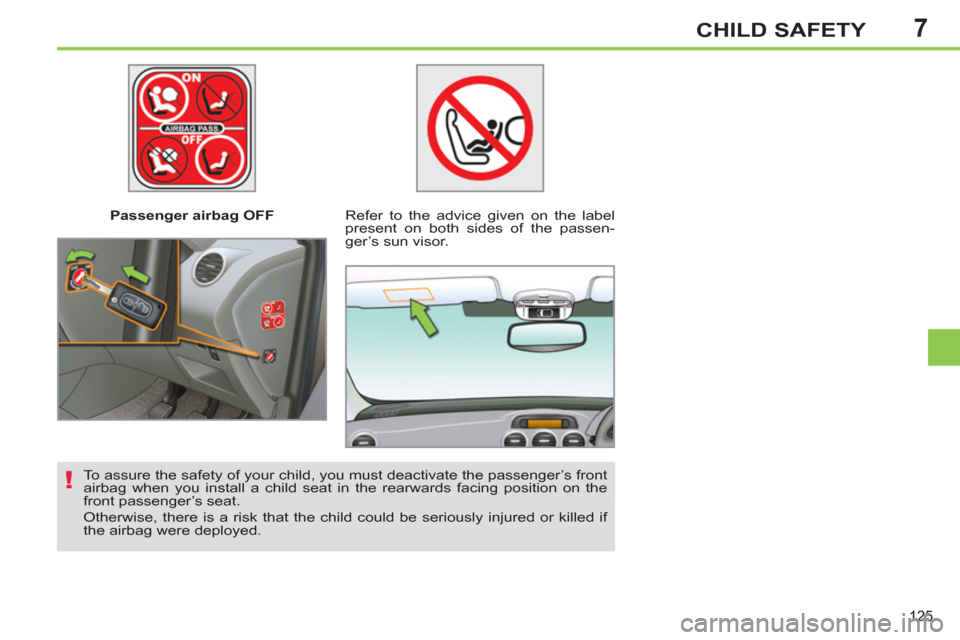

125
CHILD SAFETY


Passenger airbag OFF

Refer to the advice given on the label
present on both sides of the passen-
ger’s sun visor.

To assure the safety of your child, you must deactivate the passenger’s front
airbag when you install a child seat in the rearwards facing position on the
front passenger’s seat.
Otherwise, there is a risk that the child could be seriously injured or killed if
the airbag were deployed.

7

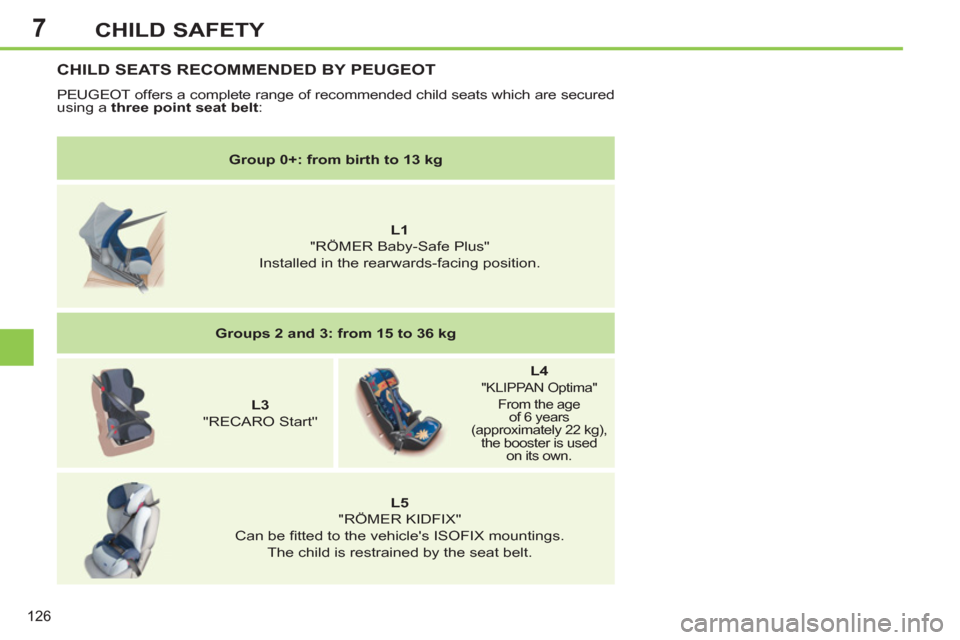

126
CHILD SAFETY


Group 0+: from birth to 13 kg






L1

"RÖMER Baby-Safe Plus"
Installed in the rearwards-facing position.


Groups 2 and 3: from 15 to 36 kg






L3

"RECARO Start''



L4

"KLIPPAN Optima"
From the age
of 6 years
(approximately 22 kg),
the booster is used
on its own.





L5

"RÖMER KIDFIX"
Can be fi tted to the vehicle's ISOFIX mountings.
The child is restrained by the seat belt.

CHILD SEATS RECOMMENDED BY PEUGEOT

PEUGEOT offers a complete range of recommended child seats which are secured
using a three point seat belt
:
