2011 Peugeot 308 SW BL Owner's Manual - RHD (UK. Australia)

5
!
i
103
VISIBILITY

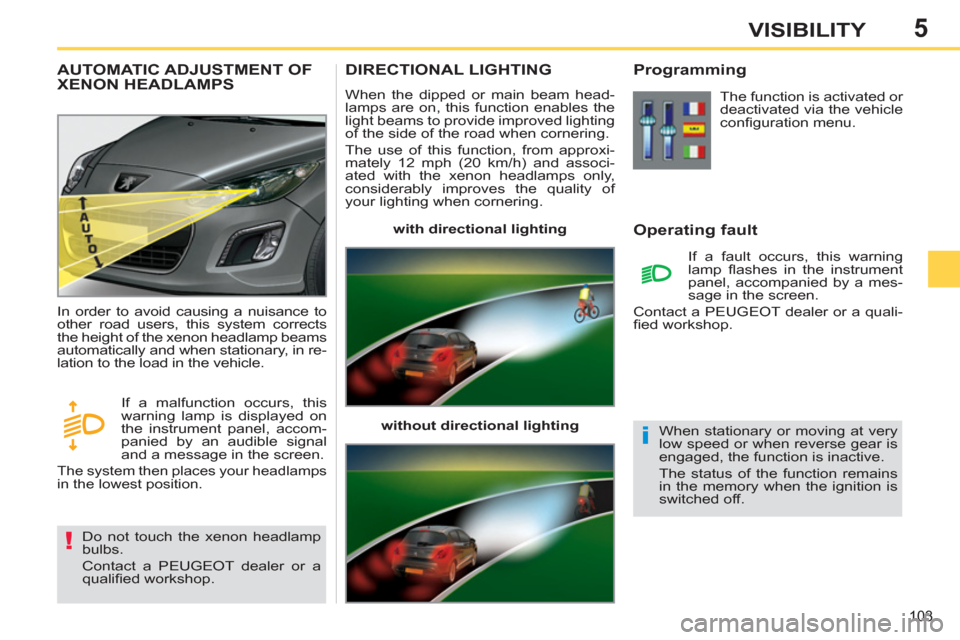

DIRECTIONAL LIGHTING

When the dipped or main beam head-
lamps are on, this function enables the
light beams to provide improved lighting
of the side of the road when cornering.
The use of this function, from approxi-
mately 12 mph (20 km/h) and associ-
ated with the xenon headlamps only,
considerably improves the quality of
your lighting when cornering.

with directional lighting


without directional lighting



Programming

Operating fault

The function is activated or
deactivated via the vehicle
confi guration menu.
If a fault occurs, this warning
lamp fl ashes in the instrument
panel, accompanied by a mes-
sage in the screen.
Contact a PEUGEOT dealer or a quali-
fi ed workshop.









AUTOMATIC ADJUSTMENT OF
XENON HEADLAMPS
Do not touch the xenon headlamp
bulbs.
Contact a PEUGEOT dealer or a
qualifi ed workshop. In order to avoid causing a nuisance to
other road users, this system corrects
the height of the xenon headlamp beams
automatically and when stationary, in re-
lation to the load in the vehicle.
If a malfunction occurs, this
warning lamp is displayed on
the instrument panel, accom-
panied by an audible signal
and a message in the screen.
The system then places your headlamps
in the lowest position.
When stationary or moving at very
low speed or when reverse gear is
engaged, the function is inactive.
The status of the function remains
in the memory when the ignition is
switched off.

5
104
VISIBILITY

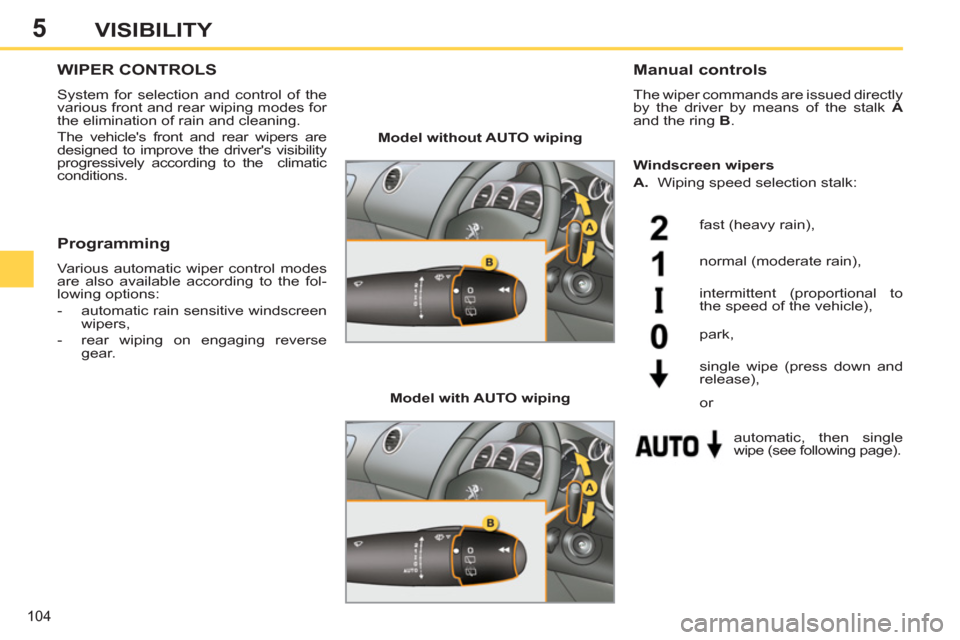

WIPER CONTROLS

System for selection and control of the
various front and rear wiping modes for
the elimination of rain and cleaning.
The vehicle's front and rear wipers are
designed to improve the driver's visibility
progressively according to the climatic
conditions.

Manual controls

The wiper commands are issued directly
by the driver by means of the stalk A

and the ring B
.


Model without AUTO wiping



Model with AUTO wiping
fast (heavy rain),
normal (moderate rain),
intermittent (proportional to
the speed of the vehicle),
automatic, then single
wipe (see following page). park,

single wipe (press down and
release),

Programming

Various automatic wiper control modes
are also available according to the fol-
lowing options:


- automatic rain sensitive windscreen
wipers,

- rear wiping on engaging reverse
gear.

Windscreen wipers

A.
Wiping speed selection stalk:





or

5
!
105
VISIBILITY

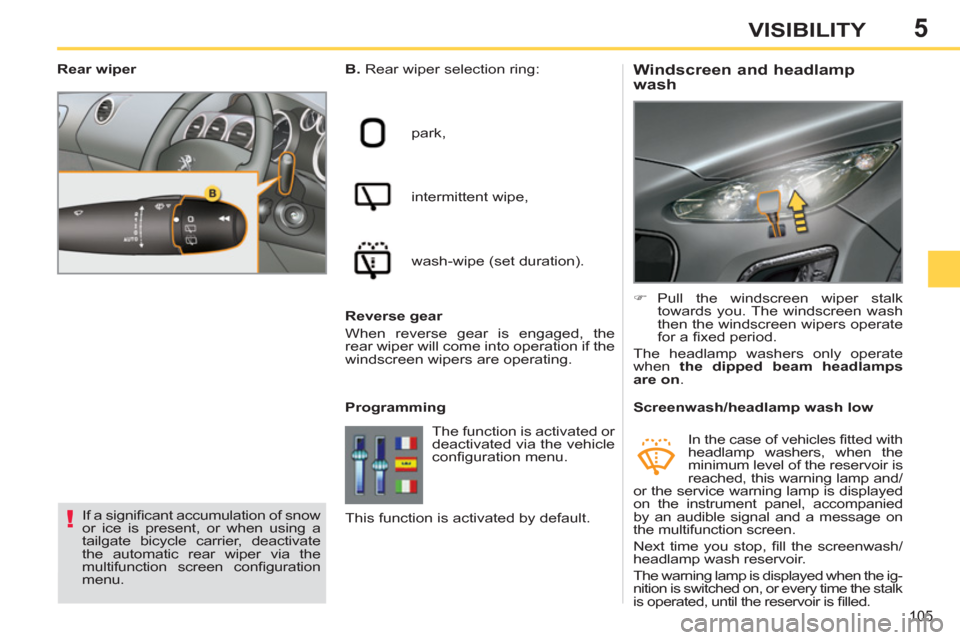

Windscreen and headlamp
wash
B.
Rear wiper selection ring:
park,
intermittent wipe,
wash-wipe (set duration).

Programming

)
Pull the windscreen wiper stalk
towards you. The windscreen wash
then the windscreen wipers operate
for a fi xed period.
The headlamp washers only operate
when the dipped beam headlamps
are on
.











Rear wiper
If a signifi cant accumulation of snow
or ice is present, or when using a
tailgate bicycle carrier, deactivate
the automatic rear wiper via the
multifunction screen confi guration
menu.









Screenwash/headlamp wash low

In the case of vehicles fi tted with
headlamp washers, when the
minimum level of the reservoir is
reached, this warning lamp and/
or the service warning lamp is displayed
on the instrument panel, accompanied
by an audible signal and a message on
the multifunction screen.
Next time you stop, fi ll the screenwash/
headlamp wash reservoir.
The warning lamp is displayed when the ig-
nition is switched on, or every time the stalk
is operated, until the reservoir is fi lled.
The function is activated or
deactivated via the vehicle
confi guration menu.
Reverse gear
When reverse gear is engaged, the
rear wiper will come into operation if the
windscreen wipers are operating.
This function is activated by default.

5
!
i
i
106
VISIBILITY









Special position of the
windscreen wipers

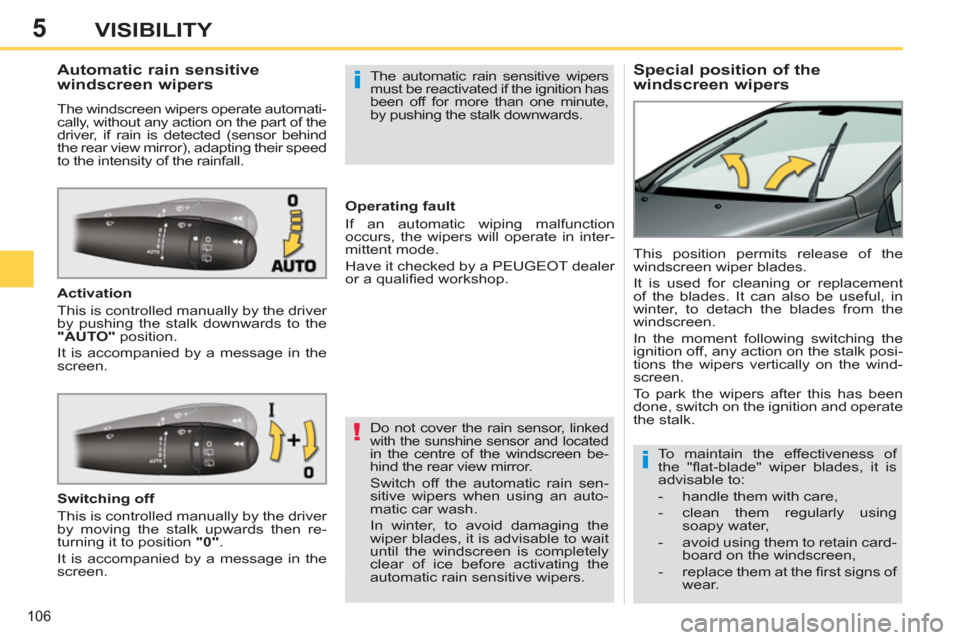

Automatic rain sensitive
windscreen wipers
The windscreen wipers operate automati-
cally, without any action on the part of the
driver, if rain is detected (sensor behind
the rear view mirror), adapting their speed
to the intensity of the rainfall.

Activation
This is controlled manually by the driver
by pushing the stalk downwards to the
"AUTO"
position.
It is accompanied by a message in the
screen. This position permits release of the
windscreen wiper blades.
It is used for cleaning or replacement
of the blades. It can also be useful, in
winter, to detach the blades from the
windscreen.
In the moment following switching the
ignition off, any action on the stalk posi-
tions the wipers vertically on the wind-
screen.
To park the wipers after this has been
done, switch on the ignition and operate
the stalk.
Do not cover the rain sensor, linked
with the sunshine sensor and located in the centre of the windscreen be-
hind the rear view mirror.
Switch off the automatic rain sen-
sitive wipers when using an auto-
matic car wash.
In winter, to avoid damaging the
wiper blades, it is advisable to wait
until the windscreen is completely
clear of ice before activating the
automatic rain sensitive wipers.


The automatic rain sensitive wipers
must be reactivated if the ignition has
been off for more than one minute,
by pushing the stalk downwards.


Switching off
This is controlled manually by the driver
by moving the stalk upwards then re-
turning it to position "0"
.
It is accompanied by a message in the
screen.
Operating fault
If an automatic wiping malfunction
occurs, the wipers will operate in inter-
mittent mode.
Have it checked by a PEUGEOT dealer
or a qualifi ed workshop.
To maintain the effectiveness of
the "fl at-blade" wiper blades, it is
advisable to:


- handle them with care,

- clean them regularly using
soapy water,

- avoid using them to retain card-
board on the windscreen,

- replace them at the fi rst signs of
wear.

5
i
i
!
107
VISIBILITY

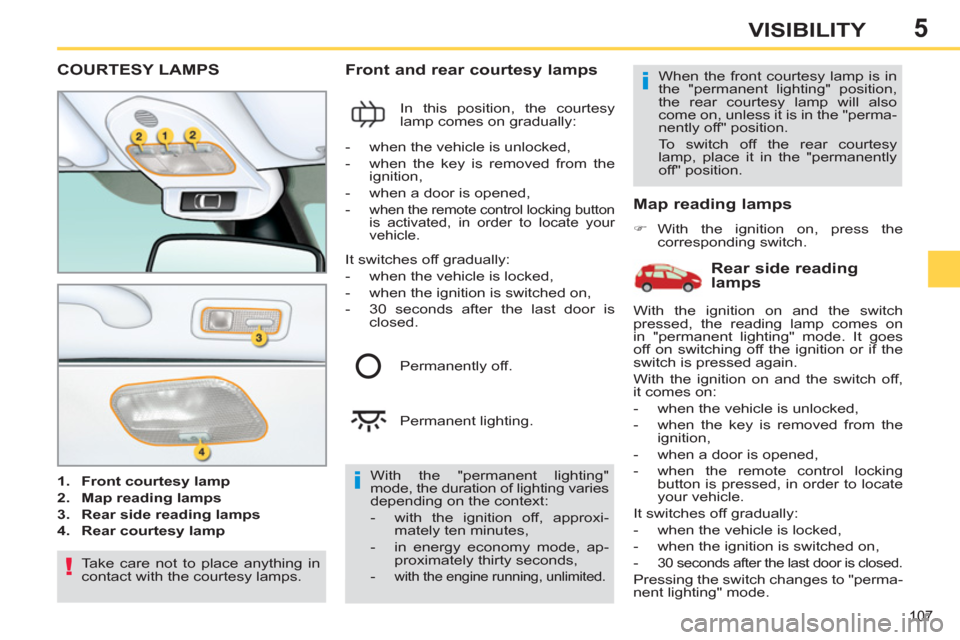

COURTESY LAMPS



1.
Front courtesy lamp


2.
Map reading lamps


3.
Rear side reading lamps


4.
Rear courtesy lamp




Front and rear courtesy lamps

In this position, the courtesy
lamp comes on gradually:

Map reading lamps



)
With the ignition on, press the
corresponding switch.

With the "permanent lighting"
mode, the duration of lighting varies
depending on the context:


- with the ignition off, approxi-
mately ten minutes,

- in energy economy mode, ap-
proximately thirty seconds,

-
with the engine running, unlimited.



- when the vehicle is unlocked,

- when the key is removed from the
ignition,

- when a door is opened,

-
when the remote control locking button
is activated, in order to locate your
vehicle.

Permanently off.
Permanent lighting. When the front courtesy lamp is in
the "permanent lighting" position,
the rear courtesy lamp will also
come on, unless it is in the "perma-
nently off" position.
To switch off the rear courtesy
lamp, place it in the "permanently
off" position.


Rear side reading
lamps It switches off gradually:


- when the vehicle is locked,

- when the ignition is switched on,

- 30 seconds after the last door is
closed.
Take care not to place anything in
contact with the courtesy lamps. With the ignition on and the switch
pressed, the reading lamp comes on
in "permanent lighting" mode. It goes
off on switching off the ignition or if the
switch is pressed again.
With the ignition on and the switch off,
it comes on:


- when the vehicle is unlocked,

- when the key is removed from the
ignition,

- when a door is opened,

- when the remote control locking
button is pressed, in order to locate
your vehicle.
It switches off gradually:


- when the vehicle is locked,

- when the ignition is switched on,

-
30 seconds after the last door is closed.

Pressing the switch changes to "perma-
nent lighting" mode.

5
i
i
108
VISIBILITY








INTERIOR MOOD LIGHTING

The dimmed passenger compartment
lighting improves visibility in the vehicle
when the light is poor.
The lighting time varies according
to the circumstances:


- when the ignition is off,
approximately ten minutes,

- in energy economy mode,
approximately thirty seconds,

- when the engine is running, no
limit. This comes on automatically when the
boot is opened and switches off auto-
matically when the boot is closed.





INTERIOR WELCOME LIGHTING

The remote switching on of the passenger
compartment lighting makes your entry
into the vehicle easier in poor light. It is
activated in accordance with the light in-
tensity detected by the brightness sensor.





BOOT LAMP


Switching on



)
Press the open padlock on the
remote control.
The front door sill lighting, the footwell
lighting and the courtesy lamps come
on; your vehicle is also unlocked.


Switching off

The interior welcome lighting switches
off automatically after a set time or when
one of the doors is opened.


Programming
Switching on

At night, the footwell lighting and the
front courtesy mood lamp come on
automatically when the sidelamps are
switched on.


Switching off

The interior mood lighting switches off
automatically when the sidelamps are
switched off.


Programming

The welcome lighting duration is
associated with and identical to
that of the automatic guide-me-
home lighting. The function is activated or
deactivated via the vehicle
confi guration menu.
This function is activated
by default. The lighting duration is
selected via the vehicle
confi guration menu.

6
109
FITTINGS

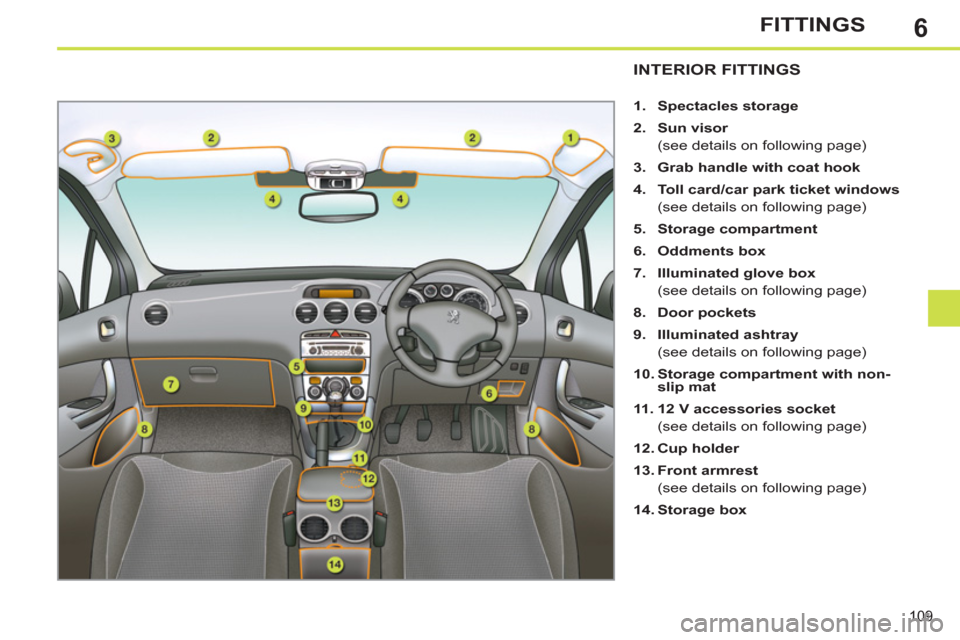

INTERIOR FITTINGS



1.
Spectacles storage


2.
Sun visor

(see details on following page)

3.
Grab handle with coat hook


4.
Toll card/car park ticket windows

(see details on following page)

5.
Storage compartment


6.
Oddments box


7.
Illuminated glove box

(see details on following page)

8.
Door
pockets


9.
Illuminated ashtray

(see details on following page)

10.
Storage compartment with non-
slip mat


11 .
12 V accessories socket

(see details on following page)

12.
Cup holder


13.
Front armrest

(see details on following page)

14.
Storage box

6
i
11 0
FITTINGS

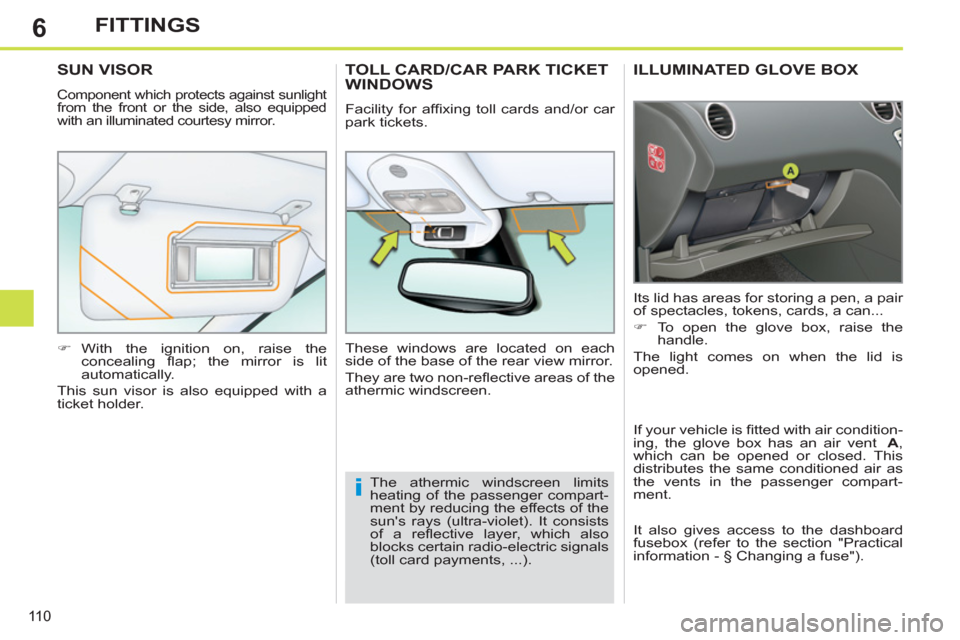

ILLUMINATED GLOVE BOX

Its lid has areas for storing a pen, a pair
of spectacles, tokens, cards, a can...


)
To open the glove box, raise the
handle.
The light comes on when the lid is
opened.








SUN VISOR

Component which protects against sunlight from the front or the side, also equipped
with an illuminated courtesy mirror.


)
With the ignition on, raise the
concealing fl ap; the mirror is lit
automatically.
This sun visor is also equipped with a
ticket holder.











TOLL CARD/CAR PARK TICKET
WINDOWS
Facility for affi xing toll cards and/or car
park tickets.
These windows are located on each
side of the base of the rear view mirror.
They are two non-refl ective areas of the
athermic windscreen.
The athermic windscreen limits
heating of the passenger compart-
ment by reducing the effects of the
sun's rays (ultra-violet). It consists
of a refl ective layer, which also
blocks certain radio-electric signals
(toll card payments, ...). If your vehicle is fi tted with air condition-
ing, the glove box has an air vent A
,
which can be opened or closed. This
distributes the same conditioned air as
the vents in the passenger compart-
ment.
It also gives access to the dashboard
fusebox (refer to the section "Practical
information - § Changing a fuse").
