INSTRUMENTS and CONTROLS

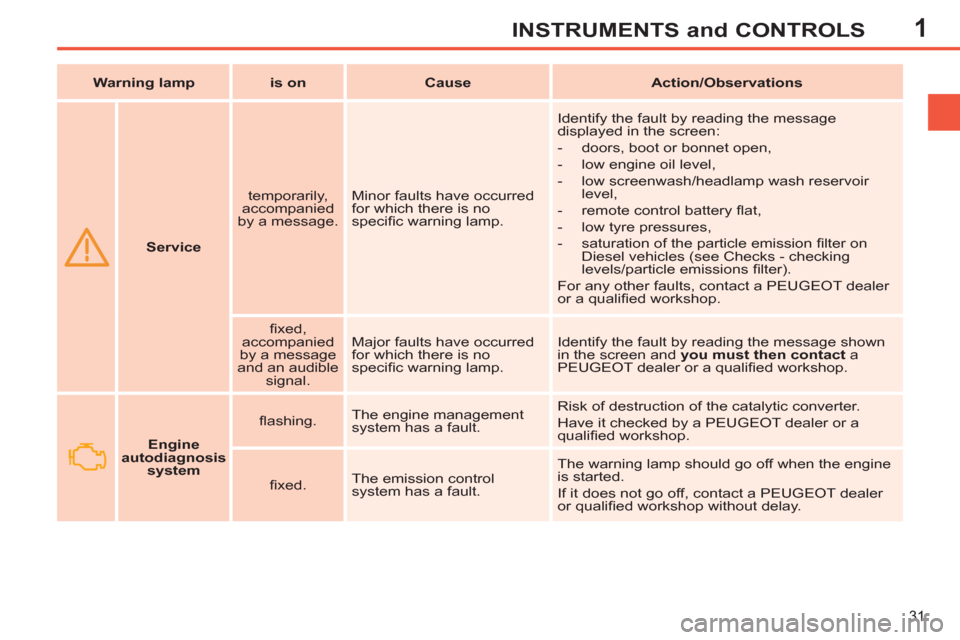

Service


temporarily,
accompanied
by a message. Minor faults have occurred
for which there is no
specifi c warning lamp. Identify the fault by reading the message
displayed in the screen:


- doors, boot or bonnet open,

- low engine oil level,

- low screenwash/headlamp wash reservoir
level,

- remote control battery fl at,

- low tyre pressures,

- saturation of the particle emission fi lter on
Diesel vehicles (see Checks - checking
levels/particle emissions fi lter).
For any other faults, contact a PEUGEOT dealer
or a qualifi ed workshop.

fi xed,
accompanied
by a message
and an audible
signal. Major faults have occurred
for which there is no
specifi c warning lamp. Identify the fault by reading the message shown
in the screen and you must then contact
a
PEUGEOT dealer or a qualifi ed workshop.

Warning lamp



is on



Cause



Action/Observations




Engine
autodiagnosis
system


fl ashing. The engine management
system has a fault. Risk of destruction of the catalytic converter.
Have it checked by a PEUGEOT dealer or a
qualifi ed workshop.

fi xed. The emission control
system has a fault. The warning lamp should go off when the engine
is started.
If it does not go off, contact a PEUGEOT dealer
or qualifi ed workshop without delay.

1
32
INSTRUMENTS and CONTROLS





Low fuel level


fi xed with the
needle in the
red zone,
accompanied
by an audible
signal and a
message. When it fi rst comes on there
remains approximately
6 litres
of fuel in the tank.
At this point, you begin to
use the fuel reserve. Refuel as soon as possible to avoid running out
of fuel.
Until suffi cient fuel has been added, this warning
lamp will come on every time the ignition is
switched on, accompanied by an audible signal
and a message.
This audible signal and message are repeated
with increasing frequency as the fuel level drops
towards "0"
.
Fuel tank capacity: approximately 60 litres
.
Never continue to drive until you run out of fuel,
as this could damage the emission control and
injection systems.

Warning lamp



is on



Cause



Action/Observations






Anti-lock
Braking
System
(ABS)


fi xed. The anti-lock braking
system has a fault. The vehicle retains conventional braking.
Drive carefully at reduced speed and contact
a PEUGEOT dealer or a qualifi ed workshop
without delay.




Dynamic
stability
control
(ESP/ASR)


fl ashing. The ESP/ASR regulation is
active. The system optimises traction and improves the
directional stability of the vehicle.

fi xed. Unless it has been
deactivated (button pressed
and its indicator lamp on) the
ESP/ASR system has a fault. Have it checked by a PEUGEOT or a qualifi ed
workshop.




Directional
headlamps


fl ashing. The directional headlamps
system has a fault. Have it checked by a PEUGEOT dealer or a
qualifi ed workshop.


Foot on the
brake pedal


fi xed. You have forgotten to press
the brake pedal when
starting the engine, with
an electronic gear control
gearbox. You have to press the brake pedal to start the
engine (gear lever in position N
).

1
!
33
INSTRUMENTS and CONTROLS

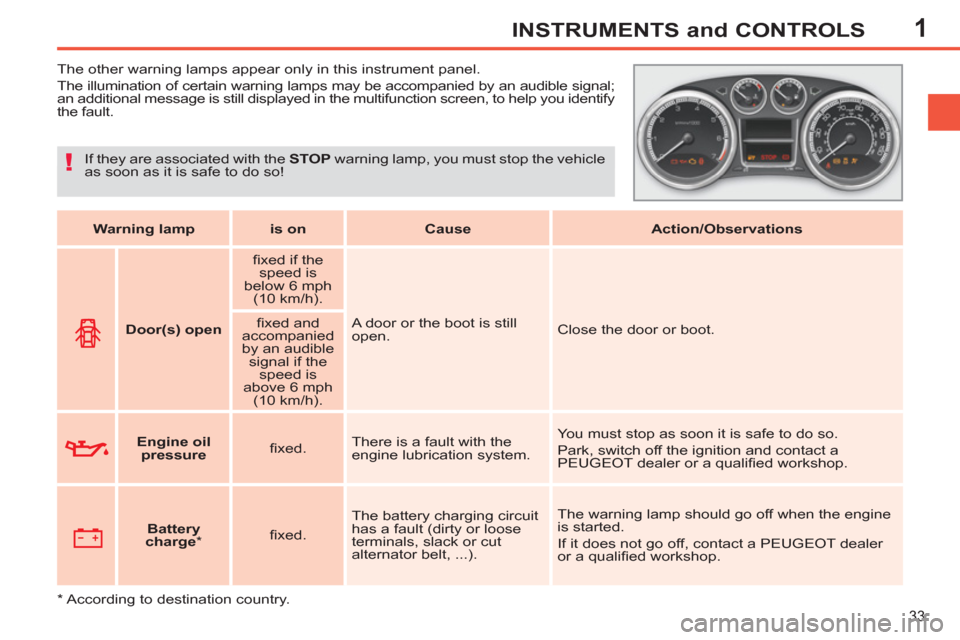

The other warning lamps appear only in this instrument panel.
The illumination of certain warning lamps may be accompanied by an audible signal;
an additional message is still displayed in the multifunction screen, to help you identify
the fault.


Warning lamp



is on



Cause



Action/Observations







Door(s) open


fi xed if the
speed is
below 6 mph
(10 km/h).
A door or the boot is still
open. Close the door or boot.
fi xed and
accompanied
by an audible
signal if the
speed is
above 6 mph
(10 km/h).




Engine oil
pressure


fi xed. There is a fault with the
engine lubrication system. You must stop as soon it is safe to do so.
Park, switch off the ignition and contact a
PEUGEOT dealer or a qualifi ed workshop.




Battery
charge

*

fi xed. The battery charging circuit
has a fault (dirty or loose
terminals, slack or cut
alternator belt, ...). The warning lamp should go off when the engine
is started.
If it does not go off, contact a PEUGEOT dealer
or a qualifi ed workshop. If they are associated with the STOP
warning lamp, you must stop the vehicle
as soon as it is safe to do so!

*
According to destination country.

1
34
INSTRUMENTS and CONTROLS


Warning lamp



is on



Cause



Action/Observations






Water in
Diesel


fi xed. The Diesel fuel fi lter
contains water. Risk of damage to the injection system on Diesel
engines.
Contact a PEUGEOT dealer or a qualifi ed
workshop without delay.



Airbags


fi xed. One of the airbag or seat
belt pretensioner systems
has a fault. Have it checked by a PEUGEOT dealer or a
qualifi ed workshop.




Seat belt not
fastened/
unfastened


fi xed then
fl ashing
accompanied
by an
increasing
audible signal. The driver and/or the front
passenger has not fastened
or has unfastened their seat
belt.
At least one of the rear
passengers has unfastened
their seat belt (only on the
2nd row rear seats on SW
individual rear seats). Pull the strap then insert the tongue in the
buckle.



Passenger's
front airbag


fl ashing in the
instrument
panel and/or
in the seat
belt belt and
passenger's
front airbag
warning lamps
display. The passenger's front
airbag has a fault. The passenger's front airbag may not be
deployed in the event of a serious impact.
Have it checked by a PEUGEOT dealer or a
qualifi
ed workshop.

1
35
INSTRUMENTS and CONTROLS

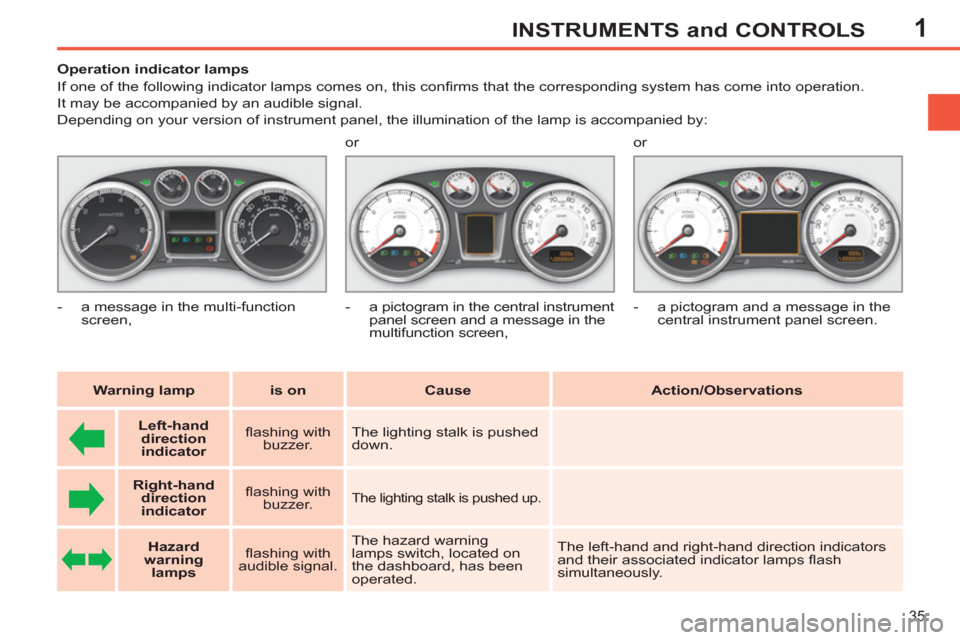

Operation indicator lamps
If one of the following indicator lamps comes on, this confi rms that the corresponding system has come into operation.
It may be accompanied by an audible signal.
Depending on your version of instrument panel, the illumination of the lamp is accompanied by:


Warning lamp



is on



Cause



Action/Observations






Left-hand
direction
indicato

r


fl ashing with
buzzer. The lighting stalk is pushed
down.




Right-hand
direction
indicator


fl ashing with
buzzer.
The lighting stalk is pushed up.




Hazard
warning
lamps


fl ashing with
audible signal. The hazard warning
lamps switch, located on
the dashboard, has been
operated. The left-hand and right-hand direction indicators
and their associated indicator lamps fl ash
simultaneously.

- a message in the multi-function
screen, or

- a pictogram in the central instrument
panel screen and a message in the
multifunction screen, or

- a pictogram and a message in the
central instrument panel screen.

1
36
INSTRUMENTS and CONTROLS

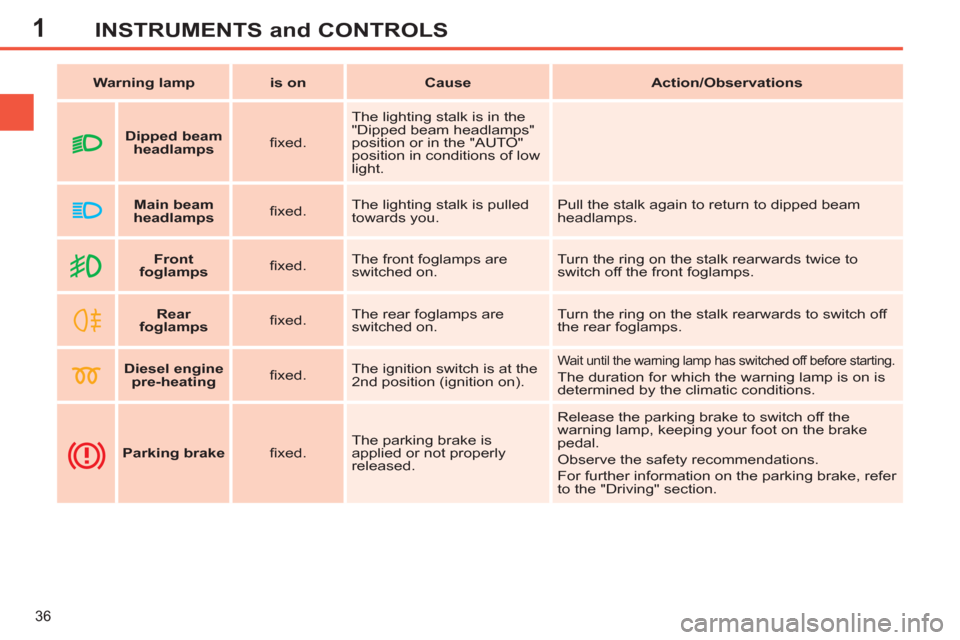

Warning lamp



is on



Cause



Action/Observations






Front
foglamps


fi xed. The front foglamps are
switched on. Turn the ring on the stalk rearwards twice to
switch off the front foglamps.




Rear
foglamps


fi xed. The rear foglamps are
switched on. Turn the ring on the stalk rearwards to switch off
the rear foglamps.




Diesel engine
pre-heating


fi xed. The ignition switch is at the
2nd position (ignition on).
Wait until the warning lamp has switched off before starting.

The duration for which the warning lamp is on is
determined by the climatic conditions.





Parking brake


fi xed. The parking brake is
applied or not properly
released. Release the parking brake to switch off the
warning lamp, keeping your foot on the brake
pedal.
Observe the safety recommendations.
For further information on the parking brake, refer
to the "Driving" section.



Dipped beam
headlamps


fi xed. The lighting stalk is in the
"Dipped beam headlamps"
position or in the "AUTO"
position in conditions of low
light.




Main beam
headlamps


fi xed. The lighting stalk is pulled
towards you. Pull the stalk again to return to dipped beam
headlamps.

1
37
INSTRUMENTS and CONTROLS



Stop & Start


fi xed. When the vehicle stops (red
lights, traffi c jams, ...) the
Stop & Start system has
put the engine into STOP
mode. The warning lamp goes off and the engine
restarts automatically in START mode, as soon
as you want to move off.

fl ashes for a
few seconds,
then goes off. STOP mode is temporarily
unavailable.
or
START mode is invoked
automatically. Refer to "Driving - § Stop & Start" for special
cases with STOP mode and START mode.

Warning lamp



is on



Cause



Action/Observations

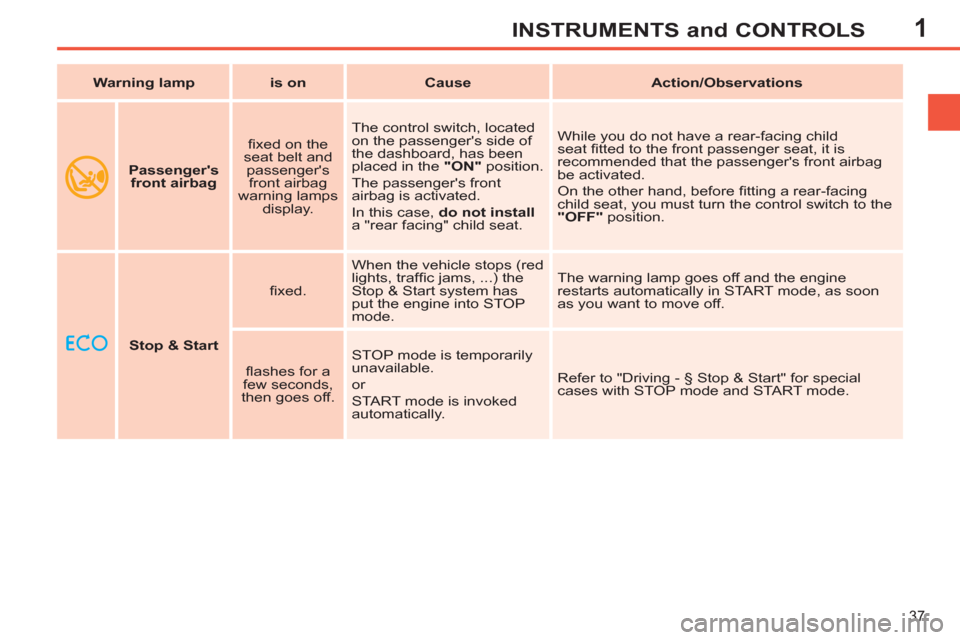

Passenger's
front airbag
fi xed on the
seat belt and
passenger's
front airbag
warning lamps
display. The control switch, located
on the passenger's side of
the dashboard, has been
placed in the "ON"
position.
The passenger's front
airbag is activated.
In this case, do not install
a "rear facing" child seat. While you do not have a rear-facing child
seat fi tted to the front passenger seat, it is
recommended that the passenger's front airbag
be activated.
On the other hand, before fi tting a rear-facing
child seat, you must turn the control switch to the
"OFF"
position.

1
38
INSTRUMENTS and CONTROLS


Warning lamp



is on



Cause



Action/Observations

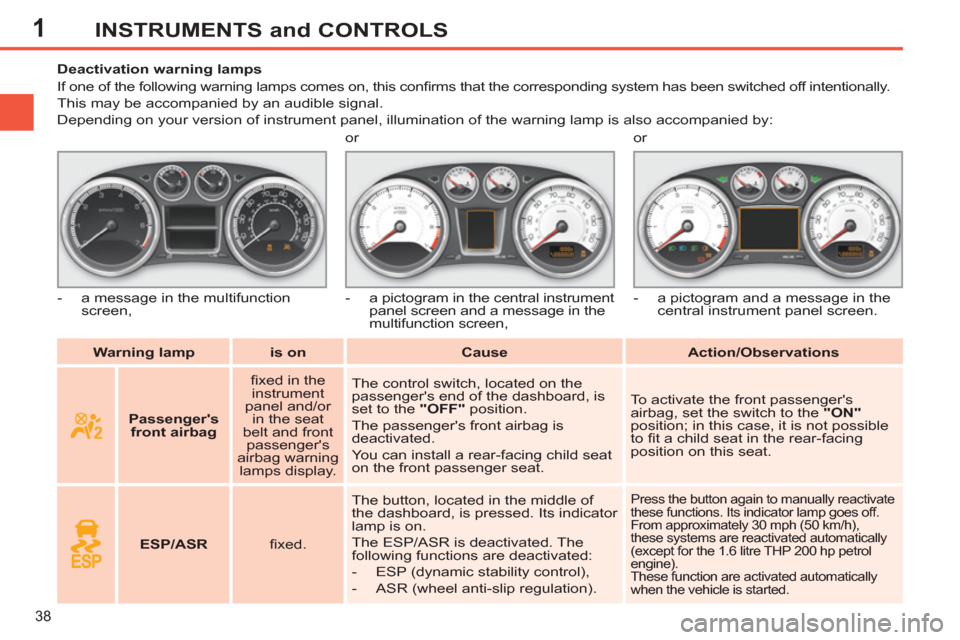

Deactivation warning lamps
If one of the following warning lamps comes on, this confi rms that the corresponding system has been switched off intentionally.
This may be accompanied by an audible signal.
Depending on your version of instrument panel, illumination of the warning lamp is also accompanied by:




Passenger's
front airbag


fi xed in the
instrument
panel and/or
in the seat
belt and front
passenger's
airbag warning
lamps display. The control switch, located on the
passenger's end of the dashboard, is
set to the "OFF"
position.
The passenger's front airbag is
deactivated.
You can install a rear-facing child seat
on the front passenger seat. To activate the front passenger's
airbag, set the switch to the "ON"

position; in this case, it is not possible
to fi t a child seat in the rear-facing
position on this seat.





ESP/ASR


fi xed. The button, located in the middle of
the dashboard, is pressed. Its indicator
lamp is on.
The ESP/ASR is deactivated. The
following functions are deactivated:


- ESP (dynamic stability control),

- ASR (wheel anti-slip regulation).

Press the button again to manually reactivate
these functions. Its indicator lamp goes off.
From approximately 30 mph (50 km/h),
these systems are reactivated automatically
(except for the 1.6 litre THP 200 hp petrol
engine).
These function are activated automatically
when the vehicle is started.


- a message in the multifunction
screen, or

- a pictogram in the central instrument
panel screen and a message in the
multifunction screen, or

- a pictogram and a message in the
central instrument panel screen.
