Page 497 of 696
497
4-3. Do-it-yourself maintenance
4
Maintenance and care
CT200h_EE (OM76041E)
Exterior
Make sure that the 12-volt battery terminals are not corroded
and that there are no loose connections, cracks, or loose
clamps.
Te r m i n a l s
Hold-down clamp
Caution symbols
The meanings of each caution symbol on the top of the 12-
volt battery are as follows:
No smoking, no naked
flames, no sparks
Shield eyes
Keep away from childrenBattery acid
Note operating instruc-
Explosive gas
Page 498 of 696
498
4-3. Do-it-yourself maintenance
CT200h_EE (OM76041E)
Installing the 12-volt battery maintenance cover
Insert the 2 tabs on the far
side of the cover into the
holes.
Hook on the 2 tabs on the
near side of the cover.
Hook on the 2 tabs on the
upper side of the cover.
STEP1
STEP2
STEP3
Page 499 of 696

499
4-3. Do-it-yourself maintenance
4
Maintenance and care
CT200h_EE (OM76041E)
Before recharging
When recharging, the 12-volt battery produces hydrogen gas which is flam-
mable and explosive. Therefore, observe the following precautions before
recharging:
If recharging with the 12-volt battery installed on the vehicle, be sure to
disconnect the ground cable.
Make sure the power switch on the charger is off when connecting and
disconnecting the charger cables to the 12-volt battery.
After recharging/reconnecting the 12-volt battery
Unlocking the doors using the smart entry & start system may not be
possible immediately after reconnecting the 12-volt battery. If this hap-
pens, use the wireless remote control or the mechanical key to lock/
unlock the doors.
Start the hybrid system with the “POWER” switch in ACCESSORY
mode. The hybrid system may not start with the “POWER” switch
turned OFF. However, the hybrid system will operate normally from the
second attempt.
The “POWER” switch mode is recorded by the vehicle. If the battery is
reconnected, the vehicle will return the “POWER” switch mode to the
status it was in before the battery was disconnected. Make sure to turn
off the power before disconnect the battery. Take extra care when con-
necting the battery if the “POWER” switch mode prior to discharge is
unknown.
Restart the hybrid system, depress the brake pedal, and confirm that it is
possible to shift into each shift position.
If the system will not start even after multiple attempts at all methods above,
contact any authorized Lexus dealer or repairer, or another duly qualified
and equipped professional.
Page 500 of 696

500
4-3. Do-it-yourself maintenance
CT200h_EE (OM76041E)
CAUTION
Chemicals in the 12-volt battery
The 12-volt battery contains poisonous and corrosive sulfuric acid and may
produce hydrogen gas which is flammable and explosive. To reduce the risk
of death or serious injury, take the following precautions while working on
or near the 12-volt battery:
Do not cause sparks by touching the 12-volt battery terminals with tools.
Do not smoke or light a match near the 12-volt battery.
Avoid contact with eyes, skin and clothes.
Never inhale or swallow electrolyte.
Wear protective safety glasses when working near the 12-volt battery.
Keep children away from the 12-volt battery.
Where to safely charge the 12-volt battery
Always charge the 12-volt battery in an open area. Do not charge the 12-volt
battery in a garage or closed room where there is insufficient ventilation.
How to recharge the 12-volt battery
Only perform a slow charge
*. The 12-volt battery may explode if charged at
a quicker rate.
*: 4.2 A or less on vehicles with a navigation system or alarm
3.5 A or less on vehicles without a navigation system and alarm
Page 501 of 696

501
4-3. Do-it-yourself maintenance
4
Maintenance and care
CT200h_EE (OM76041E)
CAUTION
Emergency measures regarding electrolyte
If electrolyte gets in your eyes
Flush your eyes with clean water for at least 15 minutes and get immedi-
ate medical attention. If possible, continue to apply water with a sponge or
cloth while traveling to the nearest medical facility.
If electrolyte gets on your skin
Wash the affected area thoroughly. If you feel pain or burning, get medical
attention immediately.
If electrolyte gets on your clothes
It can soak through clothing on to your skin. Immediately take off the
clothing and follow the procedure above if necessary.
If you accidentally swallow electrolyte
Drink a large quantity of water or milk. Get emergency medical attention
immediately.
When replacing the 12-volt battery
Use a 12-volt battery designed for this vehicle. Failure to do so may cause
gas (hydrogen) to enter the passenger compartment, causing a fire or explo-
sion.
For replacement of the 12-volt battery, contact any authorized Lexus dealer
or repairer, or another duly qualified and equipped professional.
Page 502 of 696
502
4-3. Do-it-yourself maintenance
CT200h_EE (OM76041E)
CAUTION
When disconnecting the 12-volt battery
NOTICE
When recharging the 12-volt battery
Never recharge the 12-volt battery while the hybrid system is operating.
Also, be sure all accessories are turned off.
Do not disconnect the negative (-) termi-
nal on the body side as shown. The dis-
connected negative (-) terminal may
touch the positive (+) terminal, which
may cause a short and result in death or
serious injury.
Page 503 of 696
503
4-3. Do-it-yourself maintenance
4
Maintenance and care
CT200h_EE (OM76041E)

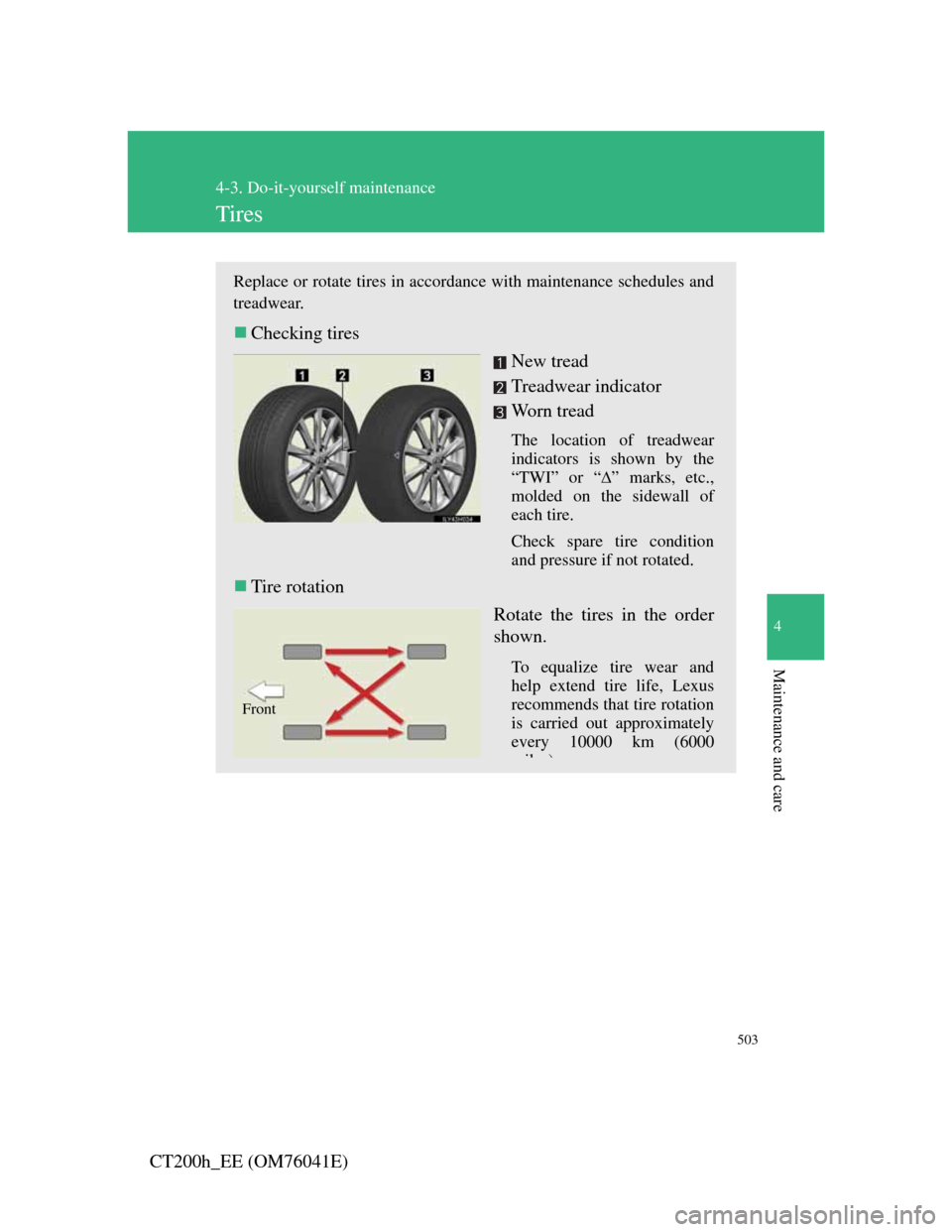

Tires
Replace or rotate tires in accordance with maintenance schedules and
treadwear.
Checking tires
New tread
Treadwear indicator
Wo r n t r e a d
The location of treadwear
indicators is shown by the
“TWI” or “” marks, etc.,
molded on the sidewall of
each tire.
Check spare tire condition
and pressure if not rotated.
Tire rotation
Rotate the tires in the order
shown.
To equalize tire wear and
help extend tire life, Lexus
recommends that tire rotation
is carried out approximately
every 10000 km (6000
il )
Front
Page 504 of 696

504
4-3. Do-it-yourself maintenance
CT200h_EE (OM76041E)
When to replace your vehicle’s tires
Tires should be replaced if:
You have tire damage such as cuts, splits, cracks deep enough to expose
the fabric, and bulges indicating internal damage.
A tire goes flat repeatedly or cannot be properly repaired due to the size
or location of a cut or other damage.
If you are not sure, consult with any authorized Lexus dealer or repairer, or
another duly qualified and equipped professional.
Tire life
Any tire over 6 years old must be checked by a qualified technician even if
it has seldom or never been used or damage is not obvious.
Low profile tires (vehicles with 17 inch tires)
Generally, low profile tires will wear more rapidly and tire grip performance
will be reduced on snowy and/or icy roads when compared to standard tires.
Be sure to use snow tires or tire chains on snowy and/or icy roads and drive
carefully at a speed appropriate for road and weather conditions.
If the tread on snow tires wears down below 4 mm (0.16 in.)
The effectiveness of the tires as snow tires is lost.
