2011 Lexus CT200h Owner's Manual (in English)

113
1-4. Adjustable components (seats, mirrors, steering wheel)
1
Before driving
CT200h_EE (OM76041E)
Adjusting the height of rear view mirror
Adjust the height of the rear
view mirror by moving it up
and down.
To prevent sensor error (vehicles with auto anti-glare inside rear view mir-
ror)
CAUTION
While driving
Do not adjust the position of the mirror while driving.
Doing so may lead to mishandling of the vehicle and cause an accident,
resulting in death or serious injury.
To ensure that the sensors operate prop-
erly, do not touch or cover them.

114
1-4. Adjustable components (seats, mirrors, steering wheel)
CT200h_EE (OM76041E)
Outside rear view mirrors
Mirror angle can be adjusted using the switch.
Type A
To select a mirror to adjust,
press the switch.
Left
Right
To adjust the mirror, press
the switch.
Up
Right
Down
Left
STEP1
STEP2

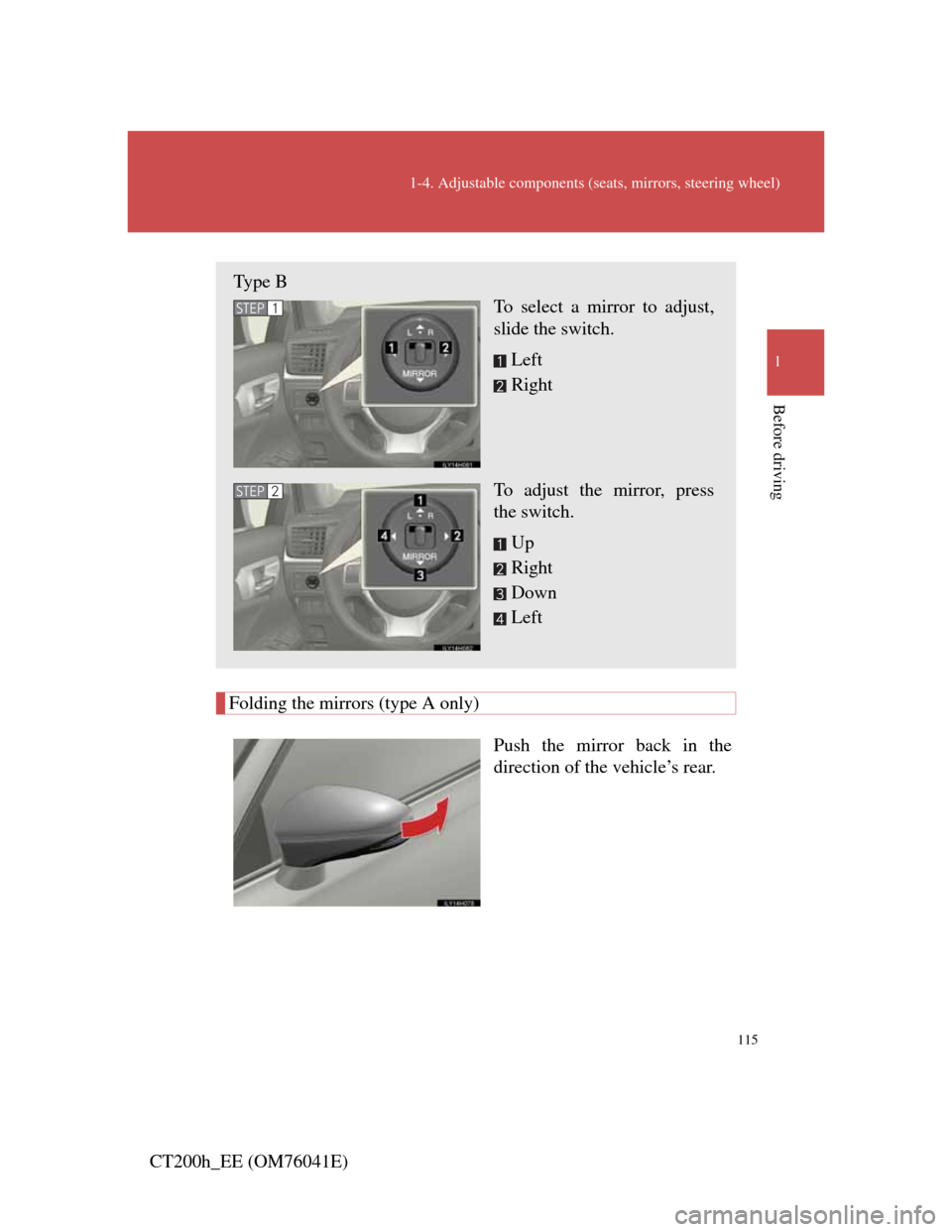

115
1-4. Adjustable components (seats, mirrors, steering wheel)
1
Before driving
CT200h_EE (OM76041E)
Folding the mirrors (type A only)
Push the mirror back in the
direction of the vehicle’s rear.
Type B
To select a mirror to adjust,
slide the switch.
Left
Right
To adjust the mirror, press
the switch.
Up
Right
Down
Left
STEP1
STEP2

116
1-4. Adjustable components (seats, mirrors, steering wheel)
CT200h_EE (OM76041E)
Folding and extending the mirrors (type B only)
Extends the mirrors
Folds the mirrors
Putting the outside rear view
mirror folding switch in the
neutral position sets the mirrors
to automatic mode. Automatic
mode allows the folding or
extending of the mirrors to be
linked to locking/unlocking of
the doors.

117
1-4. Adjustable components (seats, mirrors, steering wheel)
1
Before driving
CT200h_EE (OM76041E)
Mirror angle can be adjusted when
The “POWER” switch is in ACCESSORY or ON mode.
Linked mirror function when reversing (vehicles with driving position
memory)
The outside rear view mirrors will automatically angle downwards when the
vehicle is reversing in order to give a better view of the ground. However,
this function will not operate when the mirror select switch is in the neutral
position (between “L” and “R”).
Rain clearing mirrors (if equipped)
When water droplets collects on the mirror surface, for example when it
rains, the rain clearing (hydrophilic) effect of the mirrors causes the droplets
to be spread out into a film making the rear view clearer. In the following
cases, the rain clearing effect will be reduced temporarily, but will return
after 1 or 2 days’ exposure to direct sunlight.
After wiping dirt off the mirrors
When the mirrors fog up
After waxing your vehicle in an automatic car wash
After your vehicle has been parked for a long period in underground
parking lots etc. where there is no direct sunlight
When the mirrors are fogged up
Turn on the mirror defoggers to defog the mirrors. (P. 323)
Automatic adjustment of the mirror angle (vehicles with driving position
memory)
A desired mirror face angle can be entered to memory and recalled automat-
ically by the driving position memory. (P. 9 8 )
Auto anti-glare function (if equipped)
When the anti-glare inside rear view mirror is set to automatic mode, the
outside rear view mirrors will activate in conjunction with the anti-glare
inside rear view mirror to reduce reflected light. (P. 1 1 2 )

118
1-4. Adjustable components (seats, mirrors, steering wheel)
CT200h_EE (OM76041E)
CAUTION
When driving the vehicle
Observe the following precautions while driving.
Failing to do so may result in loss of control of the vehicle and cause an
accident, resulting in death or serious injury.
Do not adjust the mirrors while driving.
Do not drive with the mirrors folded.
Both the driver and passenger side mirrors must be extended and properly
adjusted before driving.
When a mirror is moving
To avoid personal injury and mirror malfunction, be careful not to get your
hand caught by the moving mirror.
When the mirror defoggers are operating
Do not touch the rear view mirror surfaces, as they can become very hot and
burn you.
NOTICE
If the mirrors become iced up (vehicles with rain-clearing mirror)
In order to retain the rain-clearing properties of the mirror, do not attempt to
scrape the ice off. Instead, remove it by turning on the mirror defoggers or
by applying warm water.

119
1
Before driving
CT200h_EE (OM76041E)
1-5. Opening and closing the windows and moon roof
Power windows
The power windows can be opened and closed using the switches.
Operating the switch moves the windows as follows:
Closing
One-touch closing
*
Opening
One-touch opening
*
*
: Pushing the switch in the
opposite direction will
stop window travel part-
way.

120
1-5. Opening and closing the windows and moon roof
CT200h_EE (OM76041E)
Window lock switch
Press the switch down to lock
the passenger window.
Use this switch to prevent chil-
dren from accidentally opening
or closing a passenger window.
The power windows can be operated when
The “POWER” switch is in ON mode.
Operating the power windows after turning the hybrid system off
The power windows can be operated for approximately 43 seconds even
after the “POWER” switch is turned to ACCESSORY mode or turned off.
They cannot, however, be operated once either front door is opened.
Jam protection function
If an object becomes caught between the window and the window frame,
window travel is stopped and the window is opened slightly.
