2011 Lexus CT200h Owner's Manual (in English)

225
2-2. Instrument cluster
2
When driving
CT200h_EE (OM76041E)
CAUTION
If a safety system warning light does not come on
Should a safety system light such as the ABS and SRS airbag warning light
not come on when you start the hybrid system, this could mean that these
systems are not available to help protect you in an accident, which could
result in death or serious injury. Have the vehicle inspected by any autho-
rized Lexus dealer or repairer, or another duly qualified and equipped pro-
fessional immediately if this occurs.
Warning lights
Warning lights inform the driver of malfunctions in any of the
vehicle’s systems. (P. 558)
*1: These lights turn on when the “POWER” switch is turned to ON
mode to indicate that a system check is being performed. They
will turn off after the hybrid system is on, or after a few seconds.
There may be a malfunction in a system if a light does not come
on, or if the lights do not turn off. Have the vehicle inspected by
any authorized Lexus dealer or repairer, or another duly quali-
fied and equipped professional.
*2Th li h fl h i di lf i
(if equipped)
(if equipped)
*1*1*1*1*1
*1*1*1*1,*1*1
*1*1

226
2-2. Instrument cluster
CT200h_EE (OM76041E)
Multi-information display
The multi-information display presents the driver with a variety of
driving-related data including the current outside air temperature.
Energy monitor (P. 45)
Displays the status of the
hybrid system.
Trip information (P.
228)
Displays driving range, fuel
consumption and other cruis-
ing related information.
Rear seat belt reminder
(P. 570)
Instrument cluster setting
(P. 655)
Changes instrument cluster
di l i

227
2-2. Instrument cluster
2
When driving
CT200h_EE (OM76041E)
Lexus parking assist-sen-
sor (if equipped) (P.
269)
Automatically displayed
when the system is used
Dynamic radar cruise con-
trol display (if equipped)
(P. 252)
Automatically displayed
when the system is used
Warning messages
(P. 565)
Automatically displayed
when a malfunction occurs in

228
2-2. Instrument cluster
CT200h_EE (OM76041E)

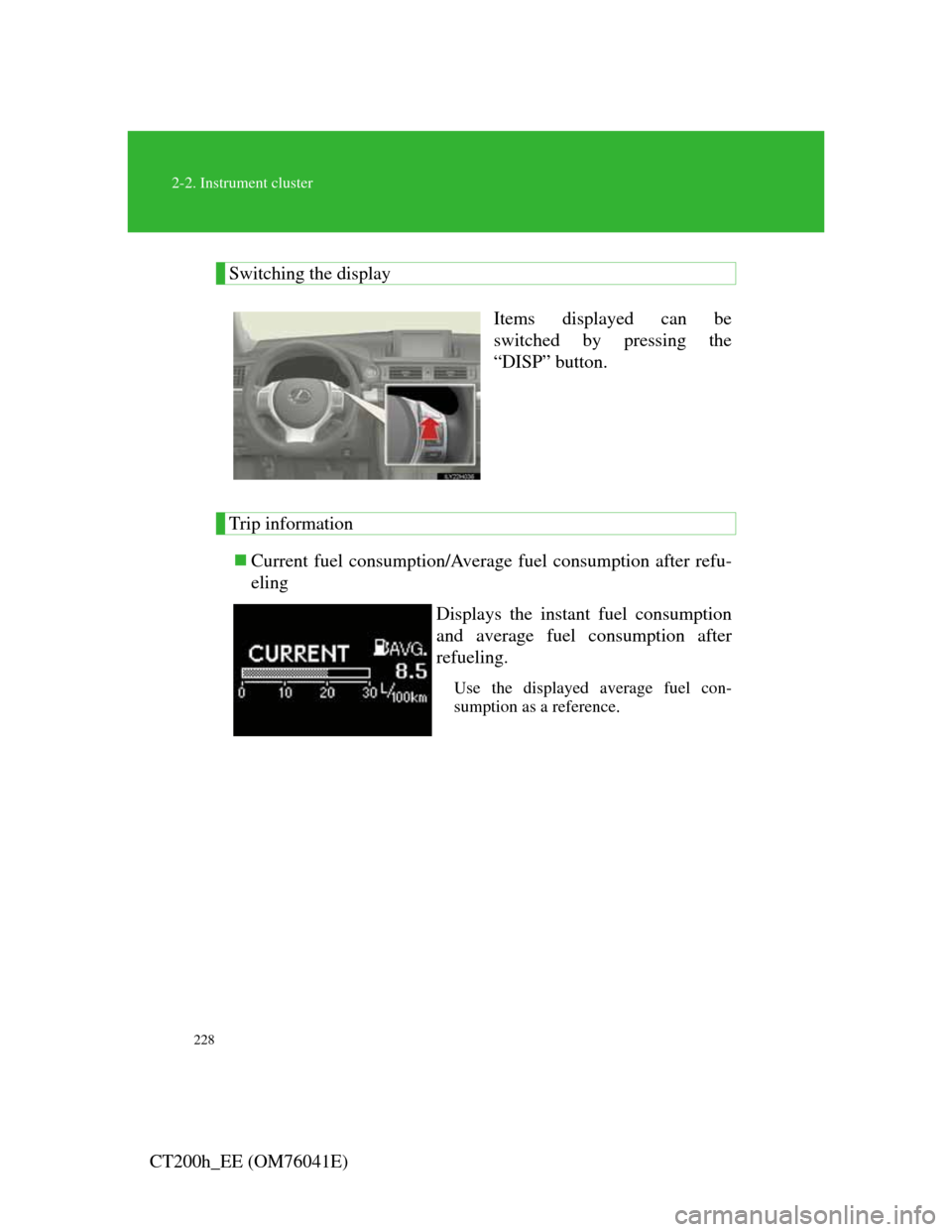

Switching the display
Items displayed can be
switched by pressing the
“DISP” button.
Trip information
Current fuel consumption/Average fuel consumption after refu-
eling
Displays the instant fuel consumption
and average fuel consumption after
refueling.
Use the displayed average fuel con-
sumption as a reference.

229
2-2. Instrument cluster
2
When driving
CT200h_EE (OM76041E)Average fuel consumption
Cruising rangeDisplays the average fuel consumption
since the function was reset.
• The function can be reset by pressing
the “DISP” button for longer than 1
second when the average fuel con-
sumption is displayed.
• Use the displayed average fuel con-
sumption as a reference.
Displays the estimated maximum dis-
tance that can be driven with the quan-
tity of fuel remaining.
• This distance is computed based on
your average fuel consumption.
As a result, the actual distance that
can be driven may differ from that
displayed.
• When only a small amount of fuel is
added to the tank, the display may not
be updated.
When refueling, turn the “POWER”
switch off. If the vehicle is refueled
without turning the “POWER” switch
off, the display may not be updated.

230
2-2. Instrument cluster
CT200h_EE (OM76041E)Elapsed time
Average vehicle speed
Displays the elapsed time since the
hybrid system was started or the func-
tion was reset.
The function can be reset by pressing the
“DISP” button for longer than 1 second
when the elapsed time is displayed.
Displays the average vehicle speed
since the function was reset.
The function can be reset by pushing the
“DISP” button for longer than 1 second
when the average vehicle speed is dis-
played.
When disconnecting and reconnecting 12-volt battery terminals
The following information will be reset:
Average fuel consumption after refueling
Average fuel consumption
Cruising range
Elapsed time
Average vehicle speed

231
2-2. Instrument cluster
2
When driving
CT200h_EE (OM76041E)
NOTICE
The multi-information display at low temperatures
Allow the interior of the vehicle to warm up before using the liquid crystal
information display. At extremely low temperatures, the information display
monitor may respond slowly, and display changes may be delayed.

232
CT200h_EE (OM76041E)
2-3. Operating the lights and windshield wipers
Headlight switch
The headlights can be operated manually or automatically.
Turning the end of the lever turns on the lights as follows:
The front position,
tail, license plate
and instrument
panel lights turn on.
The headlights and
all lights listed
above turn on.
The headlights and
front position lights
turn on and off auto-
matically.
(When the
“POWER” switch is
in ON mode.)
