2011 Lexus CT200h Owner's Manual (in English)

529
4-3. Do-it-yourself maintenance
4
Maintenance and care
CT200h_EE (OM76041E)
2PANEL10 A
Audio system, Lexus parking
assist-sensor switch, windshield
wiper de-icer switch, navigation
system, fuel filler door opener,
glove box light, headlight cleaner
switch, emergency flasher switch,
manual headlight leveling dial, air
conditioning system, outside rear
view mirrors, driving mode select
switches, P position switch, instru-
ment panel light control dial, shift
position indicators, seat heater
switches, heated steering wheel
switch, pre-crash braking off
switch
3IGN10 A
Electronically controlled brake
system, smart entry & start system,
multiport fuel injection system/
sequential multiport fuel injection
system, stop/tail lights, SRS air-
bags
4MET7.5 AGauges and meters
FuseAmpereCircuit

530
4-3. Do-it-yourself maintenance
CT200h_EE (OM76041E)
5WIP30 AWindshield wipers
6RR WIP20 ARear window wiper and washer
7WASHER15 AWindshield washer
8A/C10 AAir conditioning system
9GAUGE10 A
Windshield wiper de-icer switch,
automatic headlight leveling sys-
tem
10ECU-IG NO.210 A
Windshield wipers, Lexus parking
assist monitor, Lexus parking
assist-sensor, electronically con-
trolled brake system, navigation
system, electric power steering
system, turn signal lights, emer-
gency flashers, yaw rate and G
sensor, headlight cleaner, outside
rear view mirrors, driving mode
select switches, overhead module,
pre-crash seat belts, seat heater
switches, heated steering wheel
switch, dynamic radar cruise con-
trol
11ECU-IG NO.110 ANo circuit
12S/ROOF30 AMoon roof
FuseAmpereCircuit

531
4-3. Do-it-yourself maintenance
4
Maintenance and care
CT200h_EE (OM76041E)
13DOOR RL25 APower windows
14DOOR RR25 APower windows
15D FR DOOR25 APower windows, outside rear view
mirrors
16P FR DOOR25 APower windows, outside rear view
mirrors
17STOP10 A
Emergency brake signal, stop/tail
lights, electronically controlled
brake system, pre-crash safety sys-
tem
18RR FOG7.5 ARear fog light, stop/tail lights
19FUEL OPEN7.5 AFuel filler door opener
20OBD7.5 AOn-board diagnosis system
21PWR SEAT30 APower seat
22FR FOG15 AFront fog lights
23DBL LOCK25 ADouble locking system
24PSB30 APre-crash seat belts
25STRG HTR10 AHeated steering wheel
26DOOR NO.125 APower door lock system
27SEAT HTR FL10 ASeat heaters
28SEAT HTR FR10 ASeat heaters
FuseAmpereCircuit

532
4-3. Do-it-yourself maintenance
CT200h_EE (OM76041E)
29RAD NO.27.5 A
Audio system, Lexus parking
assist monitor, navigation system,
overhead module
30PWR OUTLET15 APower outlet
31ECU-ACC10 AAir conditioning system, outside
rear view mirror switches
32PWR OUTLET215 ANo circuit
After a fuse is replaced
If the lights do not turn on even after the fuse has been replaced, a bulb
may need replacement. (P. 534)
If the replaced fuse blows again, have the vehicle inspected by any
authorized Lexus dealer or repairer, or another duly qualified and
equipped professional.
If there is an overload in a circuit
The fuses are designed to blow, protecting the wiring harness from damage.
When replacing light bulbs
Lexus recommends that you use genuine Lexus products designed for this
vehicle. Because certain bulbs are connected to circuits designed to prevent
overload, non-genuine parts or parts not designed for this vehicle may be
unusable.
FuseAmpereCircuit

533
4-3. Do-it-yourself maintenance
4
Maintenance and care
CT200h_EE (OM76041E)
CAUTION
To prevent system breakdowns and vehicle fire
Observe the following precautions.
Failure to do so may cause damage, and possibly a fire or injury.
Never use a fuse of a higher amperage rating than that indicated, or use
any other object in place of a fuse.
Always use a genuine Lexus fuse or equivalent.
Never replace a fuse with a wire, even as a temporary fix.
This can cause extensive damage or even fire.
Do not modify the fuses or fuse boxes.
Fuse box near the power control unit
Never check or replace the fuses as there are high voltage parts and wiring
near the fuse box.
Doing so may cause electric shock, resulting in death or serious injury.
NOTICE
Before replacing fuses
Have the cause of electrical overload determined and repaired by any autho-
rized Lexus dealer or repairer, or another duly qualified and equipped pro-
fessional as soon as possible.

534
4-3. Do-it-yourself maintenance
CT200h_EE (OM76041E)
Light bulbs
You may replace the following bulbs by yourself. The difficulty level
of replacement varies depending on the bulb. If necessary bulb
replacement seems difficult to perform, contact any authorized Lexus
dealer or repairer, or another duly qualified and equipped professional.
For more information about replacing other light bulbs, contact any
authorized Lexus dealer or repairer, or another duly qualified and
equipped professional.
Preparing for light bulb replacement
Check the wattage of the light bulb to be replaced. (P. 652)
Removing the engine compartment covers
P. 486
Front bulb locations
Halogen headlights
Front turn signalHeadlight low
Headlight high Front fog light

535
4-3. Do-it-yourself maintenance
4
Maintenance and care
CT200h_EE (OM76041E)

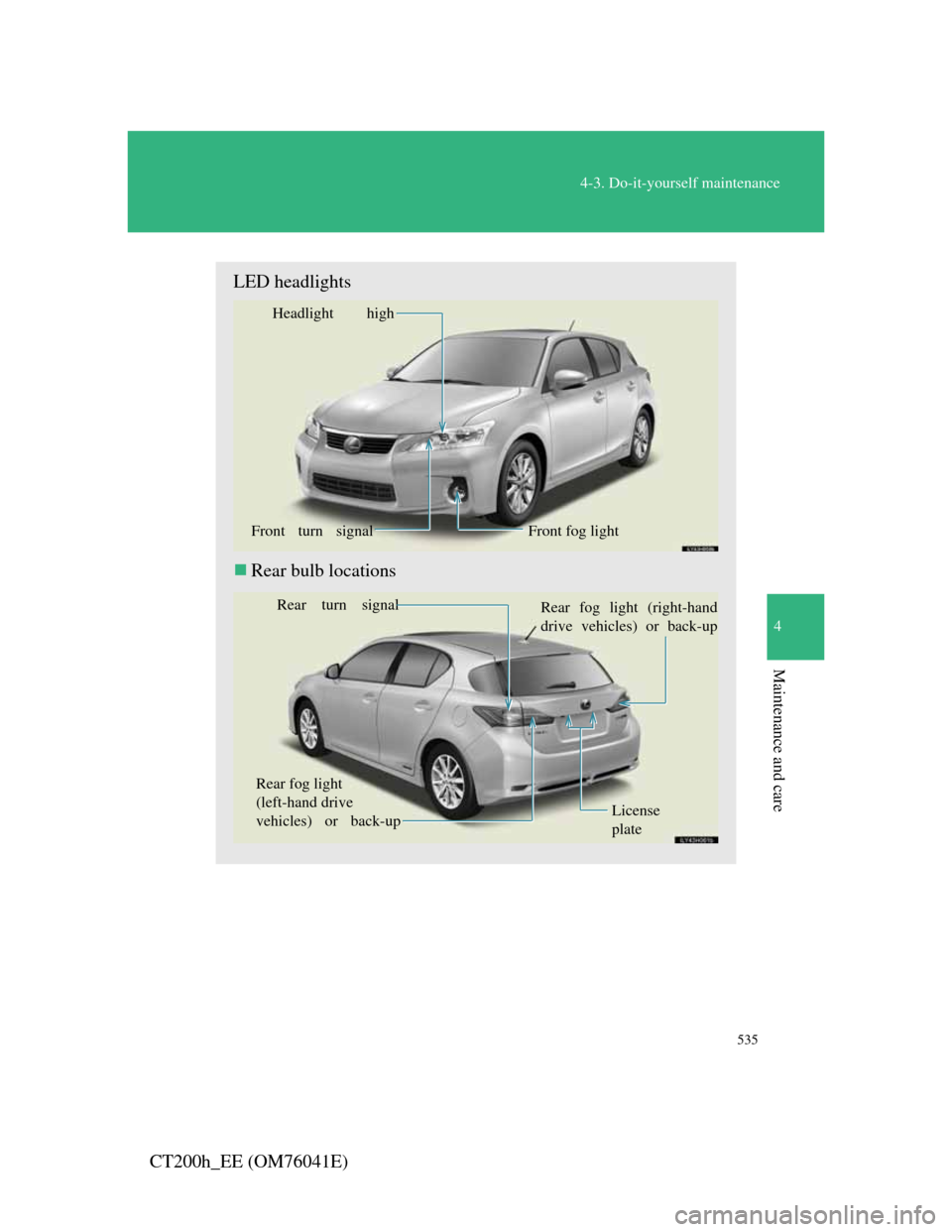

LED headlights
Rear bulb locations
Headlight high
Front turn signal Front fog light
Rear turn signal
Rear fog light
(left-hand drive
vehicles) or back-upRear fog light (right-hand
drive vehicles) or back-up
License
plate

536
4-3. Do-it-yourself maintenance
CT200h_EE (OM76041E)
Replacing light bulbs
Headlight low beams (halogen headlights)
For the right side only: Remove
the securing clips and unclip
the engine coolant reservoir
hose. Then lift up the air
cleaner inlet duct.
Unplug the connector while
pressing the lock release.
STEP1
STEP2
