Installing towing eyelets
Remove the eyelet cover using
a flathead screwdriver.
To protect the bodywork, place
a rag between the screwdriver
and the vehicle body as shown
in the illustration.
Insert the towing eyelet into the
hole and tighten partially by
hand.
Tighten down the towing eyelet
securely using a wheel nut
wrench.
STEP1
STEP2
STEP3

554
5-1. Essential information
CT200h_EE (OM76041E)
Towing with a sling-type truck
Do not tow with a sling-type
truck to prevent body damage.
Towing with a wheel-lift type truck
From the front
Release the parking brake.
From the rear
Use a towing dolly under the
front wheels.

5
555
5-1. Essential information
When trouble arises
CT200h_EE (OM76041E)
Using a flat bed truck
If your Lexus is transported by
a flat bed truck, it should be
tied down at the locations
shown in the illustration.
If you use chains or cables to tie
down your vehicle, the angles
shaded in black must be 45.
Do not overly tighten the tie
downs or the vehicle may be
damaged.
Before emergency towing
Turn the “POWER” switch to ON mode.
Do not turn the “POWER” switch to ACCESSORY mode.
Shift the shift position to N.
Release the parking brake.
Emergency towing eyelet location
P. 586, 600
STEP1
STEP2
STEP3

556
5-1. Essential information
CT200h_EE (OM76041E)
CAUTION
Caution while towing
Use extreme caution when towing the vehicle.
Avoid sudden starts or erratic driving maneuvers which place excessive
stress on the emergency towing eyelets and the cables or chains. Always
be cautious of the surroundings and other vehicles while towing.
Do not turn the “POWER” switch off.
This may lead to an accident as the front wheels will be locked by the
parking lock.
If the hybrid system is off, the power assist for the brakes and steering will
not function, making steering and braking more difficult.
Installing towing eyelets to the vehicle
Make sure that towing eyelets are installed securely.
If not securely installed, towing eyelets may come loose during towing. This
may lead to accidents that cause serious injury or even death.
NOTICE
To prevent damaging the vehicle
When raising the vehicle, ensure adequate ground clearance for towing at
the opposite end of the raised vehicle. Without adequate clearance, the vehi-
cle could be damaged while being towed.
To prevent causing serious damage to the hybrid transmission when towing
using a wheel-lift type truck
Never tow this vehicle from the front with the rear wheels on the ground.
To prevent body damage when towing with a sling-type truck
Do not tow with a sling-type truck, either from the front or rear.
To prevent causing serious damage to the hybrid transmission in emergency
towing
Never tow a vehicle from the rear with four wheels on the ground. This may
cause serious damage to the hybrid transmission.

5
557
5-1. Essential information
When trouble arises
CT200h_EE (OM76041E)

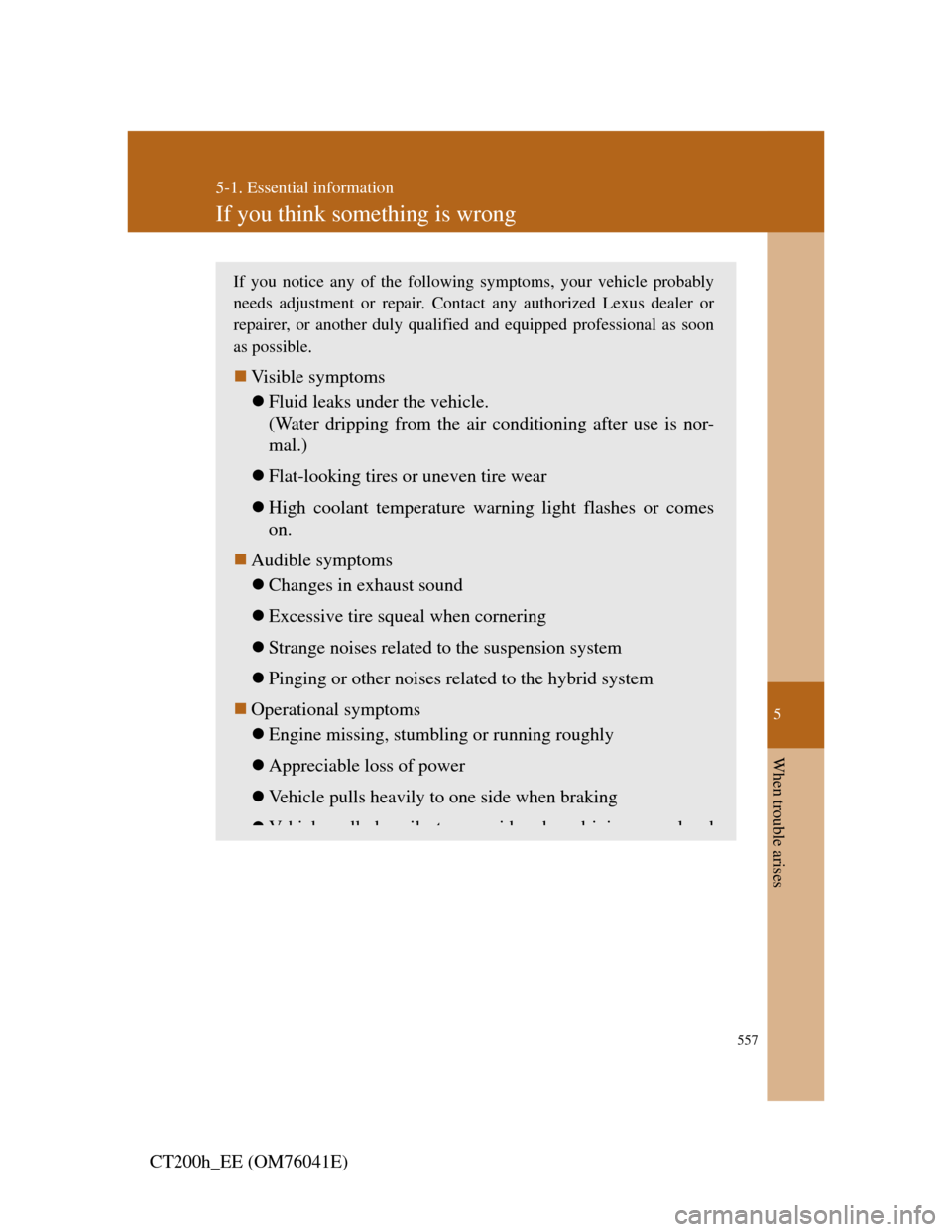

If you think something is wrong
If you notice any of the following symptoms, your vehicle probably
needs adjustment or repair. Contact any authorized Lexus dealer or
repairer, or another duly qualified and equipped professional as soon
as possible.
Visible symptoms
Fluid leaks under the vehicle.
(Water dripping from the air conditioning after use is nor-
mal.)
Flat-looking tires or uneven tire wear
High coolant temperature warning light flashes or comes
on.
Audible symptoms
Changes in exhaust sound
Excessive tire squeal when cornering
Strange noises related to the suspension system
Pinging or other noises related to the hybrid system
Operational symptoms
Engine missing, stumbling or running roughly
Appreciable loss of power
Vehicle pulls heavily to one side when braking
Vehicle p lls hea il to one side hen dri ing on a le el

558
CT200h_EE (OM76041E)
5-2. Steps to take in an emergency
If a warning light turns on or a warning buzzer sounds
Stop the vehicle immediately. Continuing to drive the vehicle may
be dangerous.
The following warning indicates a possible problem in the brake
system. Immediately stop the vehicle in a safe place and contact
any authorized Lexus dealer or repairer, or another duly qualified
and equipped professional.
*: Brake system warning buzzer:
When there is a possible problem that could affect braking perfor-
mance, the warning light will come on and a warning buzzer will
sound.
Parking brake engaged warning buzzer:
P. 5 7 1
Warning lightWarning light/Details
Brake system warning light and warning buzzer (red
indicator)
*
• Low brake fluid
• Malfunction in the brake system
This light also comes on when the parking brake is not
released. If the light turns off after the parking brake is
fully released the system is operating normally.
Calmly perform the following actions if any of the warning lights
comes on or flashes. If a light comes on or flashes, but then goes off,
this does not necessarily indicate a malfunction in the system. How-
ever, if this continues to occur, have the vehicle inspected by any
authorized Lexus dealer or repairer, or another duly qualified and

5
559
5-2. Steps to take in an emergency
When trouble arises
CT200h_EE (OM76041E)
Stop the vehicle immediately.
The following warning indicates the possibility of damage to the
vehicle that may lead to an accident. Immediately stop the vehicle
in a safe place and contact any authorized Lexus dealer or repairer,
or another duly qualified and equipped professional.
Warning lightWarning light/Details
Charging system warning light
Indicates a malfunction in the vehicle’s charging sys-
tem
Low engine oil pressure warning light
Indicates that the engine oil pressure is too low
High coolant temperature warning light
Changes from a flashing to a solid light when the
engine coolant temperature increases

560
5-2. Steps to take in an emergency
CT200h_EE (OM76041E)
Have the vehicle inspected by any authorized Lexus dealer or
repairer, or another duly qualified and equipped professional imme-
diately.
Failure to investigate the cause of the following warnings may lead
to the system operating abnormally and possibly cause an accident.
Have the vehicle inspected by any authorized Lexus dealer or
repairer, or another duly qualified and equipped professional
immediately.
Warning lightWarning light/Details
Malfunction indicator lamp
Indicates a malfunction in:
• The hybrid system;
• The electronic engine control system;
• The electronic throttle control system; or
• The hybrid transmission control system
SRS warning light
Indicates a malfunction in:
• The SRS airbag system; or
• The seat belt pretensioner system
ABS warning light
Indicates a malfunction in:
• The ABS; or
• The brake assist system
Electric power steering system warning light (warning
buzzer)
Indicates a malfunction in the EPS system
