5-2. Steps to take in an emergency
When trouble arises
CT200h_EE (OM76041E)
CAUTION
12-volt battery precautions
The 12-volt battery contains poisonous and corrosive acidic electrolyte,
while related parts contain lead and lead compounds. Observe the following
precautions when handling the 12-volt battery:
When working with the 12-volt battery, always wear safety glasses and
take care not to allow any battery fluids (acid) to come into contact with
skin, clothing or the vehicle body.
Do not lean over the 12-volt battery.
In the event that battery fluid comes into contact with the skin or eyes,
immediately wash the affected area with water and seek medical attention.
Place a wet sponge or cloth over the affected area until medical attention
can be received.
Always wash your hands after handling the battery support, terminals, and
other battery-related parts.
Do not allow children near the 12-volt battery.
After recharging the 12-volt battery
Have the 12-volt battery inspected at any authorized Lexus dealer or
repairer, or another duly qualified and equipped professional.
If the 12-volt battery is deteriorating, continued use may cause the 12-volt
battery to emit a malodorous gas, which may be detrimental to the health of
passengers.
When replacing the 12-volt battery
P. 5 0 1

626
5-2. Steps to take in an emergency
CT200h_EE (OM76041E)
NOTICE
When handling jumper cables
When connecting the jumper cables, ensure that they do not become entan-
gled in the cooling fans or belt.
To prevent damaging the vehicle
The exclusive jump starting terminal is to be used when charging the 12-
volt battery from another vehicle in an emergency. It cannot be used to jump
start another vehicle.

5
627
5-2. Steps to take in an emergency
When trouble arises
CT200h_EE (OM76041E)
If your vehicle overheats
Correction procedures
If the high coolant temperature warning light comes on or
flashes
Stop the vehicle in a safe place and turn off the air condi-
tioning system.
Check to see if steam is coming out from the engine area.
If you see steam:
Stop the hybrid system. Carefully lift the hood after the
steam subsides and then restart the hybrid system.
If you do not see steam:
Leave the hybrid system operating and carefully lift the
hood.
Check to see if the cooling fans are operating.
If the fans are operating:
Wait until the high coolant temperature warning light goes
off and then stop the hybrid system.
If the fans are not operating:
Stop the hybrid system immediately and call any authorized
Lexus dealer or repairer, or another duly qualified and
equipped professional.
The following may indicate that your vehicle is overheating:
The high coolant temperature warning light comes on or
flashes:
The engine may be overheating.
“HYBRID SYSTEM OVERHEAT” is shown on the multi-
information display:
STEP1
STEP2
STEP3

628
5-2. Steps to take in an emergency
CT200h_EE (OM76041E)After the hybrid system has
cooled down sufficiently, check
the engine coolant level and
inspect the cooling system for
leaks.
If the engine compartment
cover needs to be removed: P.
486
Add engine coolant if neces-
sary.
Water can be used in an emer-
gency if engine coolant is
unavailable. (P. 645)
Have the vehicle inspected at the nearest authorized Lexus dealer
or repairer, or another duly qualified and equipped professional as
soon as possible.
STEP4
STEP5

5
629
5-2. Steps to take in an emergency
When trouble arises
CT200h_EE (OM76041E)If “HYBRID SYSTEM OVERHEAT” is shown on the multi-
information display
Stop the vehicle in a safe place and turn off the air condi-
tioning system.
Leave the hybrid system operating and carefully lift the
hood.
Check if the cooling fans are operating.
If the fans are operating:
Wait until the “HYBRID SYSTEM OVERHEAT” message
disappears and then stop the hybrid system.
If the message does not disappear, call any authorized
Lexus dealer or repairer, or another duly qualified and
equipped professional.
If the fans are not operating:
Stop the hybrid system immediately and call any authorized
Lexus dealer or repairer, or another duly qualified and
equipped professional.
After the hybrid system has
cooled down, check the power
control unit coolant level and
inspect the cooling system for
leaks.
If the engine compartment
cover needs to be removed: P.
486
STEP1
STEP2
STEP3
STEP4

630
5-2. Steps to take in an emergency

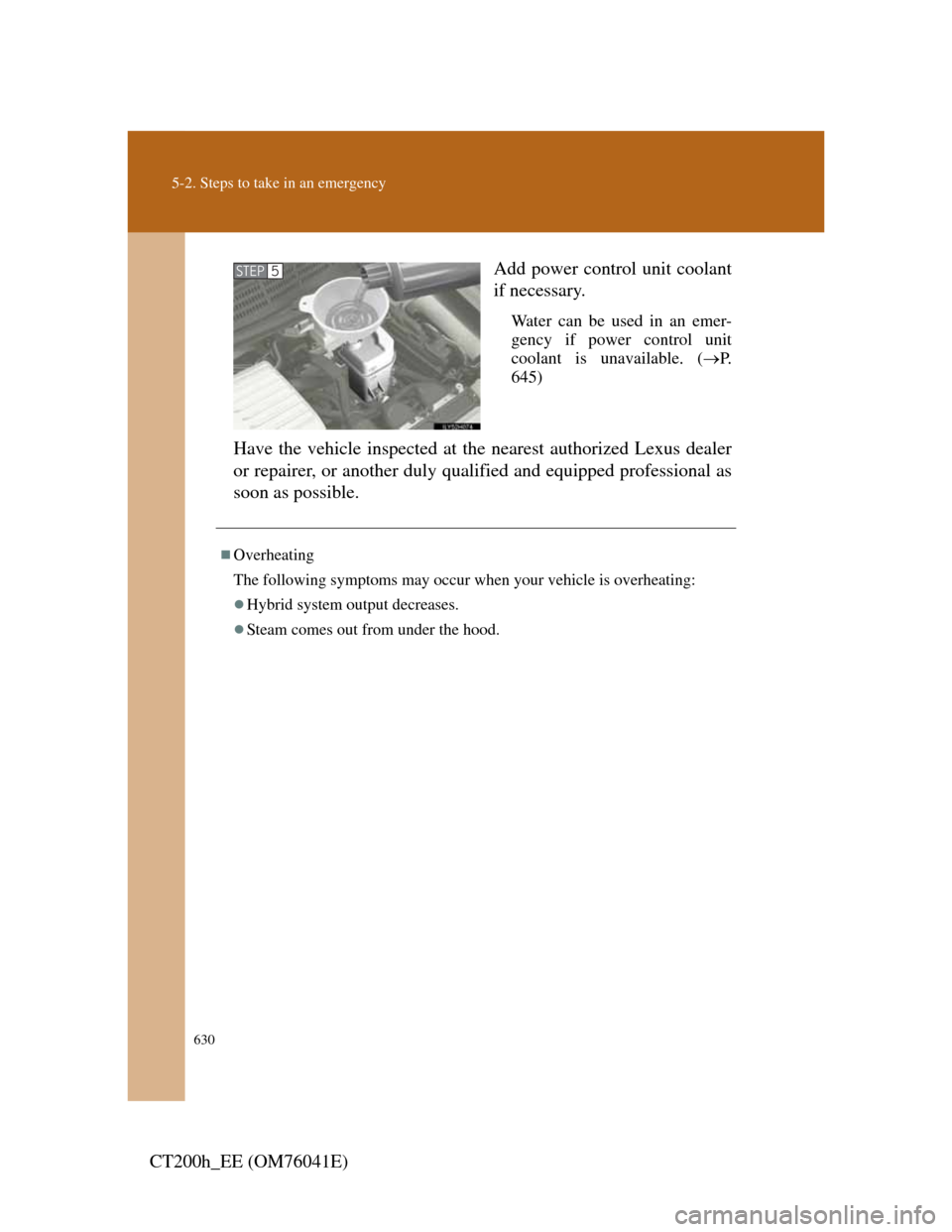

CT200h_EE (OM76041E)Add power control unit coolant
if necessary.
Water can be used in an emer-
gency if power control unit
coolant is unavailable. (P.
645)
Have the vehicle inspected at the nearest authorized Lexus dealer
or repairer, or another duly qualified and equipped professional as
soon as possible.
STEP5
Overheating
The following symptoms may occur when your vehicle is overheating:
Hybrid system output decreases.
Steam comes out from under the hood.

5
631
5-2. Steps to take in an emergency
When trouble arises
CT200h_EE (OM76041E)
CAUTION
To prevent an accident or injury when inspecting under the hood of your
vehicle
If steam is seen coming from under the hood, do not open the hood until
the steam has subsided. The engine compartment may be very hot, caus-
ing serious injuries such as burns.
Check that the indicator on the “POWER” switch and the “READY” indi-
cator are off.
For vehicles with a hybrid system, there are times when the gasoline
engine automatically starts to run or the cooling fans suddenly start to
operate. Do not touch or approach the rotating parts of the belt or fans.
Doing so may lead to fingers, clothes or tools getting caught, resulting in
injury.
Do not loosen the coolant reservoir cap while the hybrid system and radi-
ator are hot.
Serious injury, such as burns, may result from hot coolant and steam
released under pressure.
NOTICE
When adding engine/power control unit coolant
Wait until the hybrid system has cooled down before adding engine/power
control unit coolant.
When adding coolant, do so slowly. Adding cool coolant to a hot hybrid sys-
tem too quickly can cause damage to the hybrid system.

632
5-2. Steps to take in an emergency
CT200h_EE (OM76041E)
If the vehicle becomes stuck
CAUTION
When attempting to free a stuck vehicle
If you choose to push the vehicle back and forth to free it, make sure the sur-
rounding area is clear to avoid striking other vehicles, objects or people. The
vehicle may also lunge forward or lunge back suddenly as it becomes free.
Use extreme caution.
When changing the shift position
Be careful not to change the shift position with the accelerator pedal
depressed.
Changing the shift position to any positions other than P or N may cause the
vehicle to accelerate abruptly, causing an accident and resulting in death or
serious injury.
Carry out the following procedures if the tires spin or the vehicle
becomes stuck in mud, dirt or snow:
Set the parking brake and shift the shift position to P.
Stop the hybrid system.
Remove the mud, snow or sand from around the stuck
tire.
Place wood, stones or some other material under the tires
to help provide traction.
Restart the hybrid system.
Shift the shift position to D or R, release the parkingSTEP1
STEP2
STEP3
STEP4
STEP5
