2011 Lexus CT200h Owner's Manual (in English)

65
1-3. Opening, closing and locking the doors
1
Before driving
CT200h_EE (OM76041E)
If the smart entry & start system has not been used for 14 days or longer,
the doors cannot be unlocked at any doors except the driver’s door. In
this case, take hold of the driver’s door handle, or use the wireless
remote control or the mechanical key, to unlock the doors.
Conditions affecting operation
P. 8 2
Note for the entry function
Even when the electronic key is within the effective range (detection
areas), the system may not operate properly in the following cases:
• The electronic key is too close to the window or outside door handle,
near the ground, or in a high place when the doors are locked or
unlocked.
• The electronic key is on the instrument panel, luggage room, floor, or
in the door pockets or glove box when the hybrid system is started or
“POWER” switch modes are changed.
Do not leave the electronic key on top of the instrument panel or near the
door pockets when exiting the vehicle. Depending on the radio wave
reception conditions, it may be detected by the antenna outside the cabin
and the door will become lockable from the outside, possibly trapping
the electronic key inside the vehicle.
As long as the electronic key is within the effective range, the doors may
be locked or unlocked by anyone.
Even if the electronic key is not inside the vehicle, it may be possible to
start the hybrid system if the electronic key is near the window.
The doors may unlock if a large amount of water splashes on the door
handle, such as in the rain or in a car wash when the electronic key is
within the effective range. (The door will automatically be locked after
approximately 30 seconds if the doors are not opened and closed.)
If the wireless remote control is used to lock the doors when the elec-
tronic key is near the vehicle, there is a possibility that the door may not
be unlocked by the entry function. (Use the wireless remote control to
unlock the doors.)

66
1-3. Opening, closing and locking the doors
CT200h_EE (OM76041E)
Note for locking the doors
Touching the door lock sensor while wearing gloves may delay or pre-
vent lock operation. Remove the gloves and touch the lock sensor again.
If the door handle becomes wet while the electronic key is within the
effective range, the door may lock and unlock repeatedly. Place the key
in a position 2 m (6 ft.) or more separate from the vehicle while the vehi-
cle is being washed. (Take care to ensure that the key is not stolen.)
If the electronic key is inside the vehicle and a door handle becomes wet
during a car wash, a message may be shown on the multi-information
display and a buzzer will sound outside the vehicle. To turn off the
alarm, lock all the doors.
The lock sensor may not work properly if it comes into contact with ice,
snow, mud, etc. Clean the lock sensor and attempt to operate it again, or
use the lock sensor on the lower part of the door handle.
Fingernails may scrape against the door during operation of the door
handle. Be careful not to injure fingernails or damage the surface of the
door.

67
1-3. Opening, closing and locking the doors
1
Before driving
CT200h_EE (OM76041E)
Note for the unlocking function
A sudden approach to the effective range or door handle may prevent the
doors from being unlocked. In this case, return the door handle to the
original position and check that the doors unlock before pulling the door
handle again.
Gripping the door handle when wearing a glove may not unlock the
door. Remove the gloves and touch the sensor on the back of the handle
again.
If the door handle becomes wet while the electronic key is within the
effective range, the door may lock and unlock repeatedly. Place the key
in a position 2 m (6 ft.) or more separate from the vehicle while the vehi-
cle is being washed. (Take care to ensure that the key is not stolen.)
If there is another electronic key in the detection area, it may take
slightly longer to unlock the doors after the door handle is gripped.
Fingernails may scrape against the door during operation of the door
handle. Be careful not to injure fingernails or damage the surface of the
door.
When the vehicle is not driven for extended periods
To prevent theft of the vehicle, do not leave the electronic key within 2 m
(6 ft.) of the vehicle.
The smart entry & start system can be deactivated in advance. (P. 655)
Alarm
Using the smart entry & start system to lock the doors will set the alarm sys-
tem. (P. 138)
To operate the system properly
Make sure to carry the electronic key when operating the system. Do not get
the electronic key too close to the vehicle when operating the system from
the outside of the vehicle.
Depending on the position and holding condition of the electronic key, the
key may not be detected correctly and the system may not operate properly.
(The alarm may go off accidentally, or the door lock prevention may not
operate.)

68
1-3. Opening, closing and locking the doors
CT200h_EE (OM76041E)
If the smart entry & start system does not operate properly
Locking and unlocking the doors: Use the mechanical key. (P. 617)
Starting the hybrid system: P. 6 1 8
Electronic key battery depletion
P. 8 3
When the electronic key battery is fully depleted
P. 5 1 5
Customization
Settings (e.g. smart entry & start system) can be changed.
(Customizable features P. 655)

69
1-3. Opening, closing and locking the doors
1
Before driving
CT200h_EE (OM76041E)
Certification for the smart entry & start system
Hereby, Tokai Rika Co., Ltd. declares that this B81UA is in compliance
with the essential requirements and other relevant provisions of Directive
1999/5/EC.

70
1-3. Opening, closing and locking the doors
CT200h_EE (OM76041E)

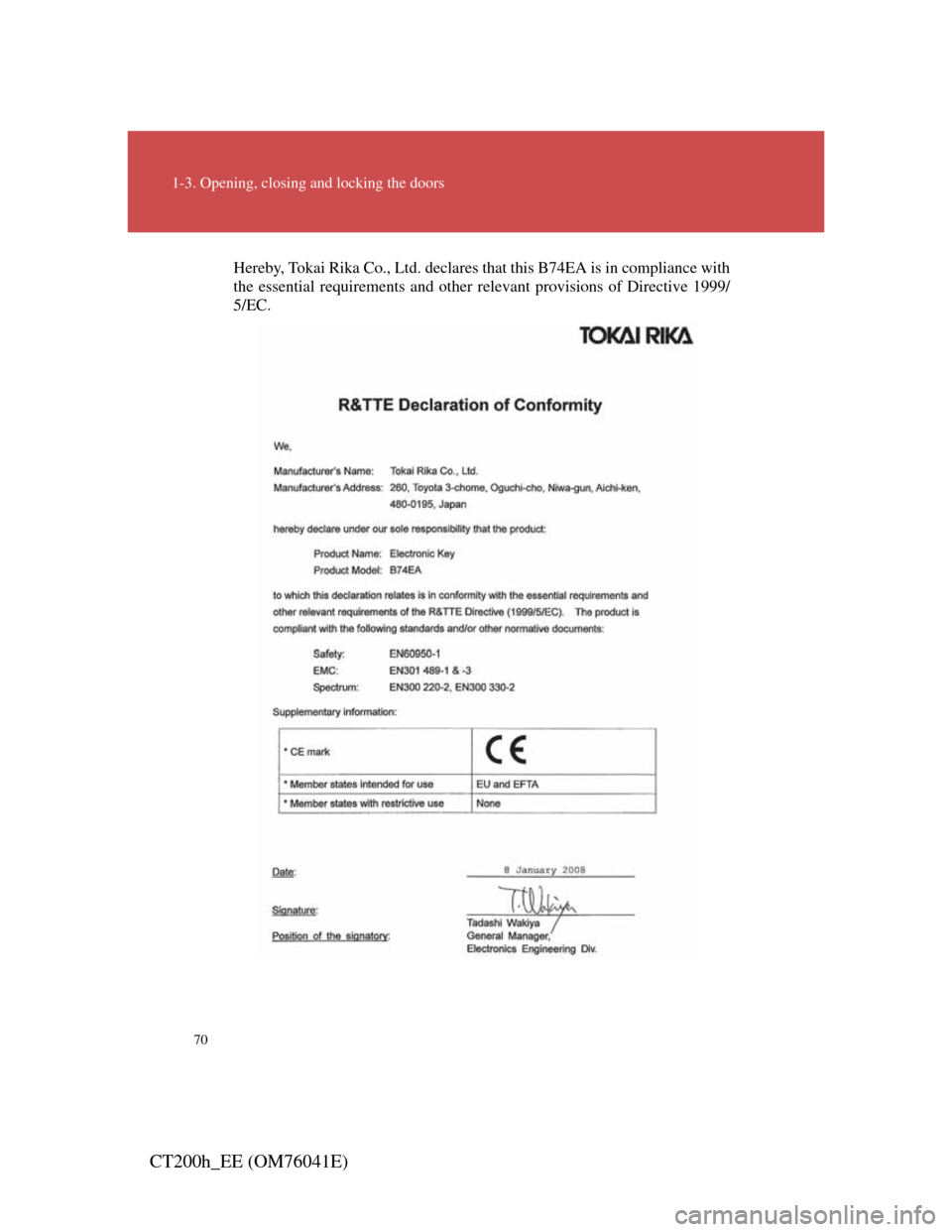

Hereby, Tokai Rika Co., Ltd. declares that this B74EA is in compliance with
the essential requirements and other relevant provisions of Directive 1999/
5/EC.

71
1-3. Opening, closing and locking the doors
1
Before driving
CT200h_EE (OM76041E)

72
1-3. Opening, closing and locking the doors
CT200h_EE (OM76041E)
