2008 GEELY FC Workshop Manual

12. Assemble middle waistband of rear row safety belt
with locker assembly [68010043]
(a) Use the bolts to assemble middle waistband of rear row
safety belt with locker assembly.
Torque: 41 N⋅m
Note: insure the clamp part does not press the protu-
berant part of floor.
13. Assemble rear safety belt crimper assembly.
(a) Check the inclining angle when ELR starts to lock.
(1) Confirm whether safety belt could be pulled out if the
angle exceeds 45°.
Note: do not disassemble the crimper.
(b) Use the bolts to assemble rear safety belt crimper assembly.
Torque: 41 N⋅m
(c) Use the bolts to assemble floor side clamp.
Torque: 41 N⋅m
(d) Check the lock of ELR.
(1) After safety belt is assembled on automobile, check
whether the safety belt could be locked when safety belt
is pulled out quickly.
Safety belt--Rear safety belt
Protuberant
part
Protuberant
part
 278

Light--Light SystemThe phenomena table1. front combination lights and tail lightPhenomena
Only one front combination light
lights
Low beam headlights do not light
(all)
distance lights do not light (all)
Distance light do not light (one
side)
Flare does not light
Front combination lights are too
dark
Only one rear combination light
lights
Rear combination lights do not light
(front combination lights are normal)
Rear combination lights do not light
(front combination lights are abnormal)Reference pages
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-LightLight SystemNotes1. Notes for changing the front combination bulb(a) When the surface of halogen bulbs (the bulb of front assembled headlamp and front fog light) touches
oil, their working life will be shorten. When it lights, it becomes hot.
(b) Because of pressured gas in halogen bulbs (the bulb of front assembled headlamp and front fog
light), the bulb may explode and pieces of broken glass disperse around. So deal with it carefully.
(c) If the time after disassembling the bulb from lamp carrier is too long, the mirror may be polluted by
dirties or hydrosphere. You should prepare a new bulb,then replace it.
(d) Replace it with the lamp of same wattage.
(e) Assemble the changing bulb on the lamp carrier firmly, or it may bring mirror mirage or water intrusion.
(f) Do not touch the black of the top of glass, or it may shorten its working life.Possible part
1.bulb
2.fuse
3.wiring harness
1.fuse
2.relay
3.left combination switch
4.wiring harness
1.fuse
2.relay
3.left combination switch
4.wiring harness
1.bulb
2.wiring harness
1.left combination switch
2.flare
3.wiring harness
1.bulb
2.wiring harness
1.bulb
2.wiring harness
1.bulb
2.wiring harness
3.left combination switch
4.wiring harness
1.fuse
2.relay 279

Light--Light System 280  2. Fog light System
3. Turning and emergency warning light systemEmergency warning light and turn
light does not light
Emergency warning light does
not light (turning light is normal)
Turn light does not light
(Emergency warning light is normalSide turning light does not light
(warning light is normal)
One side of turning light does not
light
One side of turning light does not
light
Only one bulb does not light1. (meter) fuse
2. (turn) fuse
3. ignition switch
4. flasher assembly
5. wiring harness
1. Emergency warning light switch
2. wiring harness
1. turn light switch
2. wiring harness
1. turn light switch
2. wiring harness
3. bulb
1. turn light switch
2. wiring harness
3. bulb
1. turn light switch
2. wiring harness
1. bulb
2. wiring harnessThe light control switch switches on,
the front fog lights do not light (front
combination lights are normal)Lamp switch turn to “HEAD”. front fog
lights do not light (front combination light
do not light)Only one front fog light do not light
Rear fog lights do not light (front
combination lights are normal)
(front fog lights are normal)
Rear fog lights do not light (front fog
lights do not light)1.(front fog light)fuse
2.fog light relay
3.fog light switch
4.wiring harness
1.other parts
2.wiring harness
1.bulb
2.wiring harness
1.fuse
2.rear fog light switch
3.wiring harness
4.bulb
1.other parts
2.wiring harness
3.bulb
4.front fog light switch
5.rear fog light switchphenomena
Possible part
Reference pagesphenomena
Possible partsReference pages

Light--Light System
All lights do not light
When driver cap side door opens,
the light does not light
When right front door opens, the
light does not light
When right rear door opens, the
light does not light
When left rear door opens, the light
does not light
Only one light can light
After all doors are closed, illuminat-
ing lamp will not flame out gradually.
After all doors closed, the head lamp
does not light in 15 seconds, when
turn ignition switch to ACC or ON.
Driver side light or passenger cap
side light do not light
When Driver side door opens,
driver side light does not light
When Passenger side door opens,
passenger side light does not light1. (room light) fuse
1. driver cap side door control switch
2. wiring harness
3. bulb
1. right front door control switch
2. wiring harness
3. bulb
1. right rear door control switch
2. wiring harness
3. bulb
1. left rear door control switch
2. wiring harness
3. bulb
1. bulb
1. Door-control switch
2. Wire harness
1. ignition switch
2. fuse
3. light relay
4. wiring harness
1. (door) fuse
2. (meter) fuse
3. light relay
4. driver side door control switch
5. bulb
6. wiring harness
1. driver side door control switch
2. wiring harness
3. bulb
1. passenger side door control switch
2. wiring harness
3. bulb
4. Room lights system
Inspect the car
1. inspect turning flasher wiring
(a) Disassemble joint from turning flasher and inspect wiring
harness side joint as following table.
phenomena
Possible partsReference pages
 281

(b) Inspect function of rear fog light.
(1) Turn the ignition switch to ON.
(2) Inspect rear fog light’s situation when every switch works, just as following table.

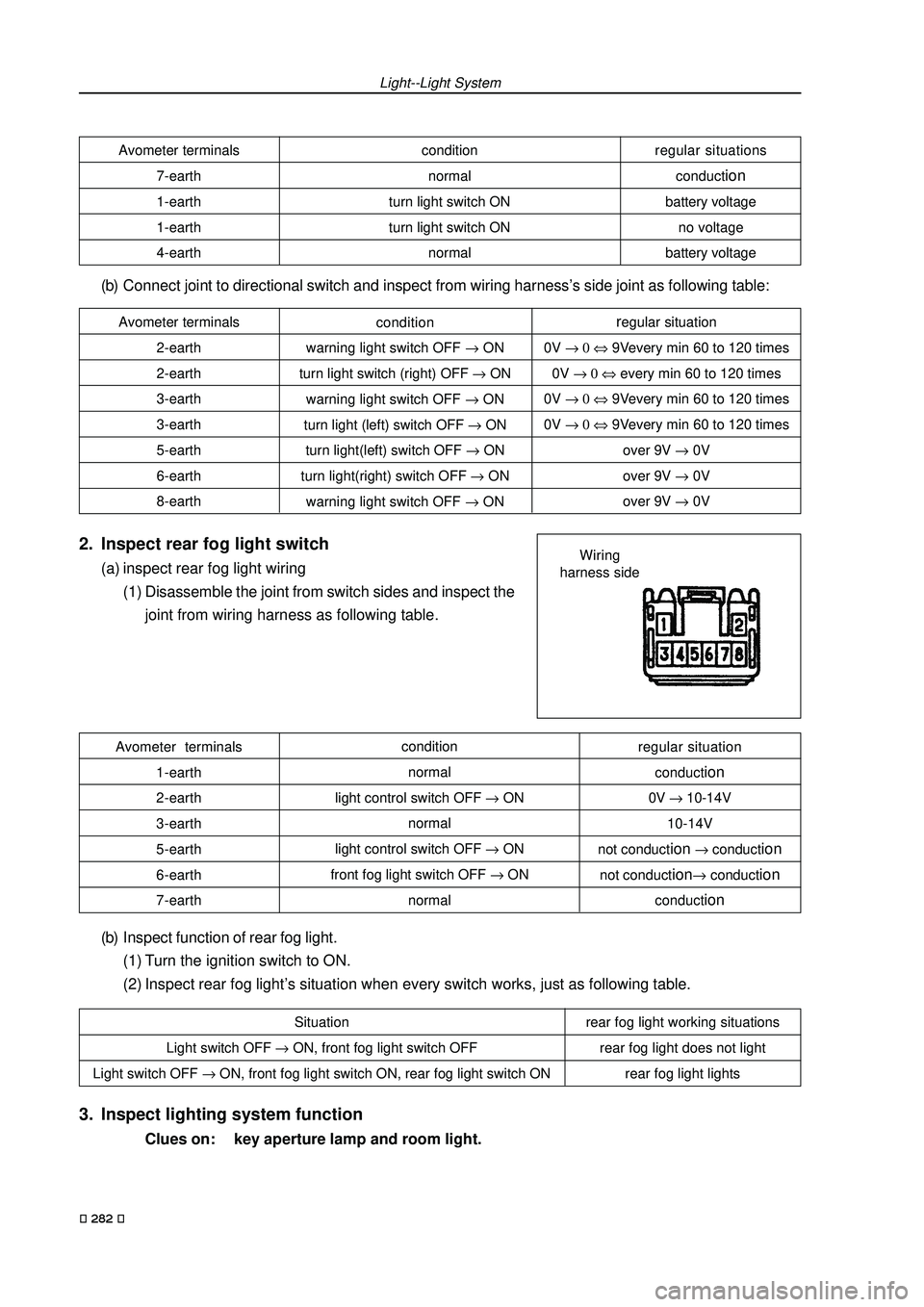

Light--Light System
(b) Connect joint to directional switch and inspect from wiring harness’s side joint as following table:
Avometer terminals
2-earth
2-earth
3-earth
3-earth
5-earth
6-earth
8-earthcondition
warning light switch OFF → ON
turn light switch (right) OFF → ON
warning light switch OFF → ON
turn light (left) switch OFF → ON
turn light(left) switch OFF → ON
turn light(right) switch OFF → ON
warning light switch OFF → ONregular situation
0V → 0 ⇔ 9Vevery min 60 to 120 times
0V → 0 ⇔ every min 60 to 120 times
0V → 0 ⇔ 9Vevery min 60 to 120 times
0V → 0 ⇔ 9Vevery min 60 to 120 times
over 9V → 0V
over 9V → 0V
over 9V → 0V
2. Inspect rear fog light switch
(a) inspect rear fog light wiring
(1) Disassemble the joint from switch sides and inspect the
joint from wiring harness as following table.
Avometer terminals
1-earth
2-earth
3-earth
5-earth
6-earth
7-earthcondition
normal
light control switch OFF → ON
normal
light control switch OFF → ON
front fog light switch OFF → ON
normalregular situation
conduct
ion
0V → 10-14V
10-14V
not conduct
ion → conduction
not conduction→ conduction
conduction
Situation
Light switch OFF → ON, front fog light switch OFF
Light switch OFF → ON, front fog light switch ON, rear fog light switch ONrear fog light working situations
rear fog light does not light
rear fog light lights
3. Inspect lighting system function
Clues on: key aperture lamp and room light.
Avometer terminals
7-earth
1-earth
1-earth
4-earthcondition
normal
turn light switch ON
turn light switch ON
normalregular situations
conduct
ion
battery voltage
no voltage
battery voltage
Wiring
harness side
 282

Light--Light System
(a) Turn the ignition switch to OFF and open all doors, then lock driver cap side door.
(b) Unlock the drive’s side door and open any door, then inspect whether room light lights. Close the door
and inspect whether room light lights off in 15 seconds.
(c) Turn ignition switch to ON, then open any door to inspect whether room light lights off immediately.
(d) Turn ignition switch to OFF.
(e) Open or close any door to light room light. Turn ignition switch to ON before room light turns off(about
15seconds) to inspect whether room light turns off immediately.
(f) Turn ignition switch to OFF.
(g) Open or close any door to light room light. Lock driver cap side door before room light turns off(about
15seconds) to inspect whether room light turns off immediately.
Inspect
1. Front combination headlight dimmer switch
assembly
(a) Inspect the conduction of light control switch
(1) Inspect switch on every positions, the conduction among
terminals as following table.
Switch positionsAvometer terminalsregular situations
OFF - not conduction
Position light12-6conduction
Lamp12-6conduction
Lamp7-10conduction
(b) Inspect conduction of front assembled dimmer switch
(1) Inspect switch on every parts, the conduction among terminals as following table.
Switch positionsAvometer terminalsregular situations
Flasher 11-10conduction
Low beam light9-10conduction
Distant light7-10conduction
(c) Inspect the conduction of turning light switch
(1) Inspect switch on every positions, the conduction among terminals as following table.
Switch positionsAvometer terminalsregular situations
Turn right 4-5conduction
neutral -not conduction
turn left 4-3conduction
 283

Light--Light System
Switch positionsAvometer terminals regular situation
OFF 1-2 not conduction
ON 1-2 conduction
(d) Inspect conduction of front fog light switch
(1) Inspect switch on every positions, the conduction among terminals as following table.
Switch positionsAvometer terminals regular situation
OFF - not conduction
DOOR 1-2conduction
ON 2-bodywork earthconduction
2. Interior rear top light assembly [67010006]
(a) Inspect the conduction of interior rear top light
(1) Inspect switch on every position, the conduction among
terminals as following table.
Standard:
3. Room front top light assembly [67010007] (equipped
with electric sunroof [67010009])
(a) Inspect the conduction of room front roof light
(1) Inspect the conduction between terminal 1 and terminal
2,when switch works.
Standard:
ON: conduction
OFF: not conduction
4. Room front top light assembly [67010005](do not
equipped with electric sunroof)
(a) Inspect the conduction of room front roof light
(1) Inspect the conduction between terminal 1 and terminal
2,when switch works.
Standard:
ON: conduction
OFF: not conduction
5. Trunk lighting assemble [67000106]
(a) Inspect the conduction among terminals.
Standard: conduction
6. Inspect the B door pillar control switch assembly
[67000075]
1 2
 284

Light--Light System
(a) Inspect the conduction of B pillar control switch assembly
(1) Inspect the conduction between terminal 1 and bodywork earth, when switch works.
Standard:
ON (when press the switch): conduction
OFF (when un-press the switch): not conduction
7. Inspect the C door pillar control switch assembly [67000076]
(a) Inspect the conduction of C pillar control switch assembly
(1) Inspect the conduction between terminal 1 and bodywork earth,when switch works.
Standard:
ON (when press the switch): conduction
OFF (when un-press the switch): not conduction
8. Trunk light switch assemble [67000073]
(a) Inspect the conduction of Trunk light switch
Standard:
ON (when press the switch): conduction
OFF (when un-press the switch): not conduction
9. Front fog light relay [67000071]
(a) Inspect the conduction of front fog light relay
(1) Inspect the conduction among terminals
Standards:
Avometer terminalsregular situations
1-2 conduction
3-5 not conduction
10. Inspect rear fog light switch of instrument block
left switch units [67010003].
(a) Inspect battery’s positive wire connects to terminal 1,nega-
tive connects to terminals 7.
(b) Connect a 3.4W test bulb from battery’s positive wire to
terminal 3.
(c) Inspect lighting switch, indicator light of assembled instru-
ments and test bulb should light. If it does not accord with
regularizations, replace the switch.
11. Inspect door light assembly [67000107]
Inspect the conduction among terminals.
If the conduction does not accord with regularizations, replace
the switch.(2) Supply battery voltage(10-14V) to terminal1 and terminal2, then inspect the conduction between
terminal 3 and terminal 5.
Standard: conduction
1
 285
