Cooling - Water pump assembly6. Install water pump assembly.(a) Install new o-ring on water pump.
(b) Install water pump with 6 bolts.
Torque: bolt A: Bolt B: 7. Install alternator mounting components.Torque: 12mm bolt head: 14mm bolt head: 8. Refill engine coolant.
9. Check there is leakage with coolant.
70

Cooling - Temperature regulator componentsReplacement1. Remove engine right bottom shield.
2. Discharge engine coolant.
3. Remove drive belt.Slowly turn drive belt tensioner clockwise to loosen the belt;
then remove drive belt and put back the tensioner slowly to
completely loosen it.4. Remove alternator components.(a) Remove rubber cover and nuts.
(b) Uncouple alternator joint.
(c) Remove 2 bolts and alternator.5. Remove water inlet pipe.
6. Remove temperature regulator.
7. Install temperature regulator.(a) Install new gasket to temperature regulator.
(b) As shown in the diagram, install temperature regulator with
inching valve toward upward.8. Install water inlet pipe and joint.Torque: 9. Install alternator installation components.Torque: 12mm bolt head: m
14mm bolt head: 10. Refill engine coolant.
11. Check there is leakage with coolant.
71Temperature regulator components

Cooling - Radiator with electronic fan assemblyRadiator with electronic fan assemblyReplacement1. Discharge coolant (see Page 73).
2. Disassemble radiator water inlet hose [64000062].
3. Disassemble radiator water outlet hose [64000063].
4. Disassemble No.1 oil cooler inlet pipe (auto gear).
5. Disassemble No.1 oil cooler outlet pipe (auto gear).
6. Disassemble fixing clips of 2 wire harnesses from fan cover.
7. Remove mounting bracket assembly on radiator [64000058].
8. Remove radiator together with electronic fan assembly [64000057].
9. Remove electronic fan together with fan cover assembly [64000060].(a) Screw off fixed nuts connecting electronic fan together with fan cover assembly with radiator.
(b) Uncouple fan motor joint.
(c) Remove 2 bolts of fan.
(d) Remove fan motor at the same time.10. Replace and install as sequences opposite to the above.
11. Refill engine coolant (see Page 73).
12. Check there is leakage with coolant (see Page 66).
72

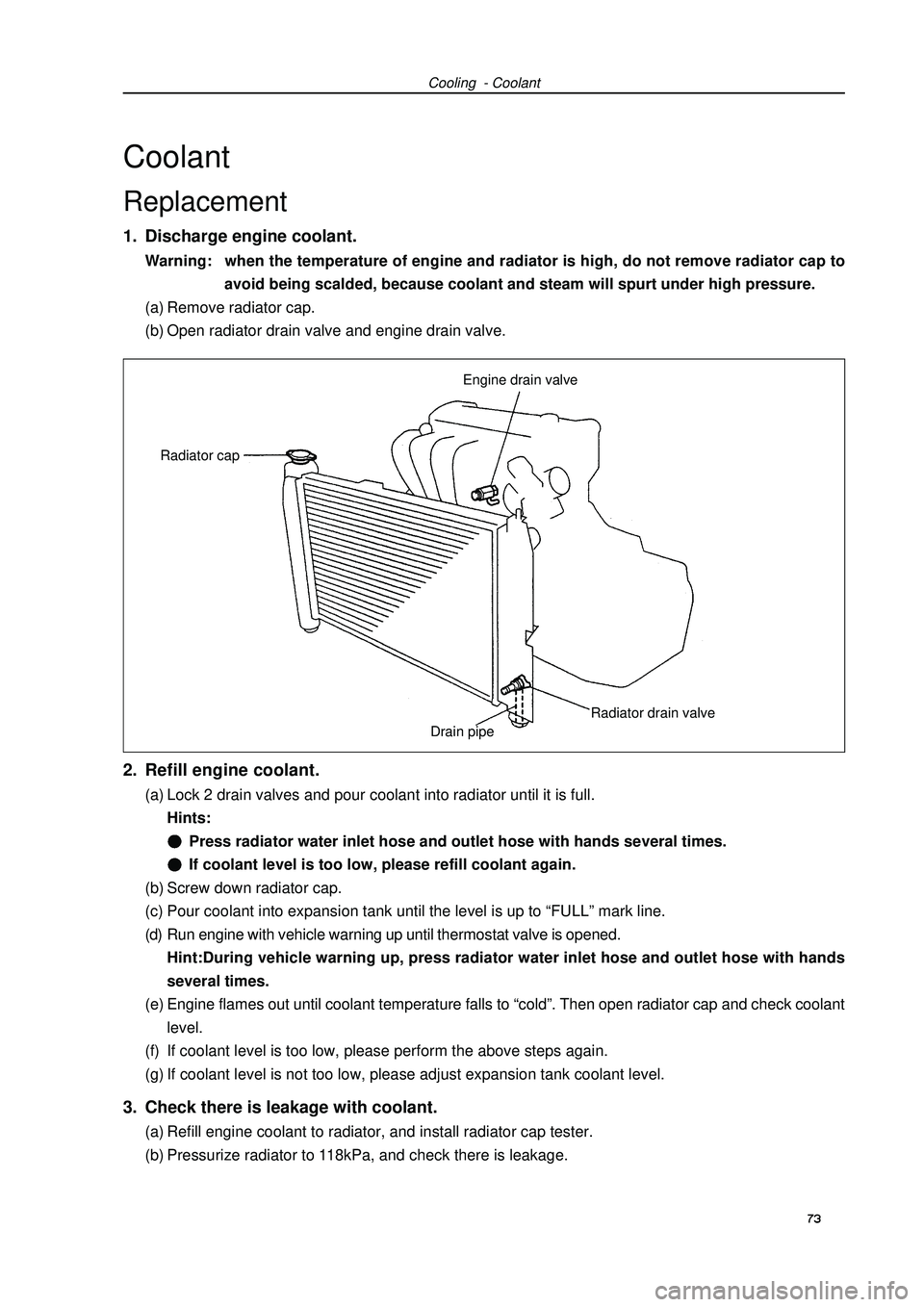

CoolantReplacement1. Discharge engine coolant.Warning: when the temperature of engine and radiator is high, do not remove radiator cap to
avoid being scalded, because coolant and steam will spurt under high pressure.
(a) Remove radiator cap.
(b) Open radiator drain valve and engine drain valve.Cooling - Coolant2. Refill engine coolant.(a) Lock 2 drain valves and pour coolant into radiator until it is full.
Hints:Press radiator water inlet hose and outlet hose with hands several times.If coolant level is too low, please refill coolant again.
(b) Screw down radiator cap.
(c) Pour coolant into expansion tank until the level is up to “FULL” mark line.
(d) Run engine with vehicle warning up until thermostat valve is opened.
Hint:During vehicle warning up, press radiator water inlet hose and outlet hose with hands
several times.
(e) Engine flames out until coolant temperature falls to “cold”. Then open radiator cap and check coolant
level.
(f) If coolant level is too low, please perform the above steps again.
(g) If coolant level is not too low, please adjust expansion tank coolant level.3. Check there is leakage with coolant.(a) Refill engine coolant to radiator, and install radiator cap tester.
(b) Pressurize radiator to 118kPa, and check there is leakage.73Engine drain valve
Radiator drain valve Radiator cap
Drain pipe

LubricationLubricating systemOn-vehicle inspection1. Check oil level.During engine warming up and after it flames out for 5 minutes, check oil level, and the level should
be between two marks on oil dipstick at the moment.If oil level is too low, check there is leakage, and
refill oil up to upper mark on oil dipstick.
Note: oil level should not be above upper mark on oil
dipstick.2. Check oil quality.(a) Check there is deterioration, water penetration, color
change or thinning with oil.
(b) If oil quality becomes poor, please replace with new oil.
Hint: oil grades: API, SH, SJ, SG grade oil or ILSAC
multigrade oil. Recommended viscosity is
shown as below.
The temperature increases from left to right.3. Remove oil pressure alerter assembly.(a) Uncouple oil pressure alerter joint.
(b) Install oil pressure alerter with special tool.4. Install oil pressure gauge.Install oil pressure gauge.5. Warm up vehicle.
6. Check oil pressure.Oil pressure:7. Install oil pressure alerter.(a) Coat adhesive on 2nd or 3rd circle thread of oil pressure
alerter.
Adhesive: anaerobic pipe thread sealing adhesive
1545 (Kesaixin 1545).
(b) Install oil pressure alerter with special tool.
Torque: m
(c) Connect oil pressure alerter joint.8. Start engine and check there is leakage.Lubrication - lubricating systemRecommended viscosity (SAE)
Oil pressure alerter
Oil pressure gauge
Adhesive74Temperature range in forecasting next
oil replacement

Oil filter assemblyReplacementWarning:Long-term or repeat contacting mineral oil will cause decomposing of natural fat on skin, which
will result in dry and sensitive skin and skin rankling. Used oil has potential harm and may cause
carcinoma cutis.When replacing engine oil, always wear protective clothes and gloves to avoid waste oil
penetrating, and reduce the frequency and time of skin contacting waster oil, and clean with
soapy water or clean water not with gasoline, thinner or solvent if skin contacts waste oil.To protect environment, waste oil and oil filter must be abandoned at named place.1. Remove engine right bottom shield.
2. Discharge engine oil.
3. Remove oil filter assembly [4G18-1012100].Remove oil filter with special tool.4. Install oil filter assembly.(a) Check and clean oil filter junction plane.
(b) Coat oil seal of new oil filter with clean oil.
(c) Tighten oil filter with hands to the extent that oil seal
just touches fixing base.
(d) Tighten oil filter for another 3/4 circle with special tool.5. Install oil drain plug [4G18-1009101].Clean oil drain plug, and install it back after replacing oil drain plug gasket.
Torque: 6. Refill engine oil.
7. Check there is oil leakage.Lubrication - Oil filter assemblySpecial tool75Special tool 3/4 circle

Lubrication - Oil pump assemblyOil pump assemblyReplacement1. Remove timing chain assembly (see Page 45).
2. Remove oil pump assembly [4G18-1011100].Remove 5 bolts, oil pump and oil pump gasket.3. Install oil pump assembly.(a) Install new gasket on cylinder body.
(b) Align the guide groove of oil pump drive rotor with the key
on crankshaft, and slide the oil pump in.
(c) Install oil pump with 5 bolts.
Torque: 76

Ignition - Ignition systemSpark plug
cleaneOn-vehicle inspection1. Phase sensor(a) Turn on ignition switch but do not start engine, and place digital universal meter at DC voltage gear,
then connect 2 terminals respectively to 1# pin and 3# pin of sensor, and ensure the voltage is 12V.
(b) Start engine, and phase signal is read by 2# pin via vehicle oscilloscope.2. Speed Sensor(a) Remove speed sensor joint.
(b) Place digital universal meter at ohm gear, and connect 2 terminals respectively to 2# pin and 3# pin of
sensor, and the resistance at should be 8601/2 ±801/2.
(c) Connect speed sensor joint.
(d) Place digital universal meter at AC voltage gear, and connect 2 terminals respectively to 2# pin and 3#pin of sensor, and start engine, there should be voltage output at the moment.(It is recommended to
check with vehicle oscilloscope)IgnitionIgnition systemInspection1. Spark plug(a) Clean spark plug.
Air pressure: below 588kPa.
Time: 20 s or less
(b) Check the damage condition of spark plug and insulator. If
there is something abnormal, please replace with new spark
plug.
Recommended spark plug specification:
Made in Xianghuoju Company: K6RTC
(c) Adjust electrode gap.
Electrode gap: 0.8mm77
