2007 TOYOTA CAMRY Owners Manual

’07Camry_U (L/O 0608)
41
2007MY CAMRY from Oct. ’06 Prod. (OM33748U)
Push the switch.
To lock: Push the switch down on the
right side.
To unlock: Push the switch down on the
left side.
All the doors lock or unlock simultaneous-
ly.
When the front doors are locked from the
outside or locked with the wireless remote
control transmitter, the power door lock
switch will not work until either front door
is unlocked with the key, lock knob, or
wireless remote control transmitter.AUTOMATIC DOOR LOCKING
You can select the following functions:
Locking linked with the shift position
(automatic transmission models only)
All doors are automatically locked when
the selector lever is moved out of “P”
position.
Locking linked with vehicle speed
All doors are automatically locked when
the vehicle speed goes above about 20
km/h (12 mph).
You can set or cancel the automatic
door locking functions:
Be sure to apply the parking brake when
performing the following operations.
To select the locking linked with the
shift position:
1. Close all doors and set the ignition
switch to ON.
2. Shift the selector lever to the “P” posi-
tion.3. Within 10 seconds of setting the igni-
tion switch to ON, press and hold the
driver’s side power door lock switch in
the lock position for 5 seconds and
then release.
The doors will be locked and unlocked
to indicate that the function is set.
To cancel the function, do the above op-
eration again.
To select the locking linked with the
vehicle speed:
1. Close all doors and set the ignition
switch to ON.
2. Automatic transmission models on-
ly—Shift the selector lever from “P” to
the “N” position.
3. Within 10 seconds of setting the igni-
tion switch to ON, press and hold the
driver’s side power door lock switch in
the lock position for 5 seconds and
then release.
The doors will be locked and unlocked
to indicate that the function is set.
To cancel the function, do the above op-
eration again.
—Automatic door locking and
unlocking functions

’07Camry_U (L/O 0608)
42
2007MY CAMRY from Oct. ’06 Prod. (OM33748U)
AUTOMATIC DOOR UNLOCKING
You can select the following functions:
Unlocking linked with the shift posi-
tion (automatic transmission models
only)
All doors are automatically unlocked
when the selector lever is moved to
“P” position.
Unlocking linked with the driver ’s
door
All doors are automatically unlocked
when the driver ’s door is opened within
10 seconds after the ignition switch is
set from ON to ACC or OFF.
You can set or cancel the automatic
door unlocking functions:
Be sure to apply the parking brake when
performing the following operations.To select the unlocking linked with the
shift position:
1. Close all doors and set the ignition
switch to ON.
2. Shift the selector lever to the “P” posi-
tion.
3. Within 10 seconds of setting the igni-
tion switch to ON, press and hold the
driver’s side power door lock switch in
the unlock position for 5 seconds and
then release.
The doors will be locked and unlocked
to indicate that the function is set.
To cancel the function, do the above op-
eration again.To select the unlocking linked with the
driver ’s door:
1. Close all doors and set the ignition
switch to ON.
2. Automatic transmission models on-
ly—Shift the selector lever from “P” to
the “N” position.
3. Within 10 seconds of setting the igni-
tion switch to ON, press and hold the
driver’s side power door lock switch in
the unlock position for 5 seconds and
then release.
The doors will be locked and unlocked
to indicate that the function is set.
To cancel the function, do the above op-
eration again.

’07Camry_U (L/O 0608)
43
2007MY CAMRY from Oct. ’06 Prod. (OM33748U)

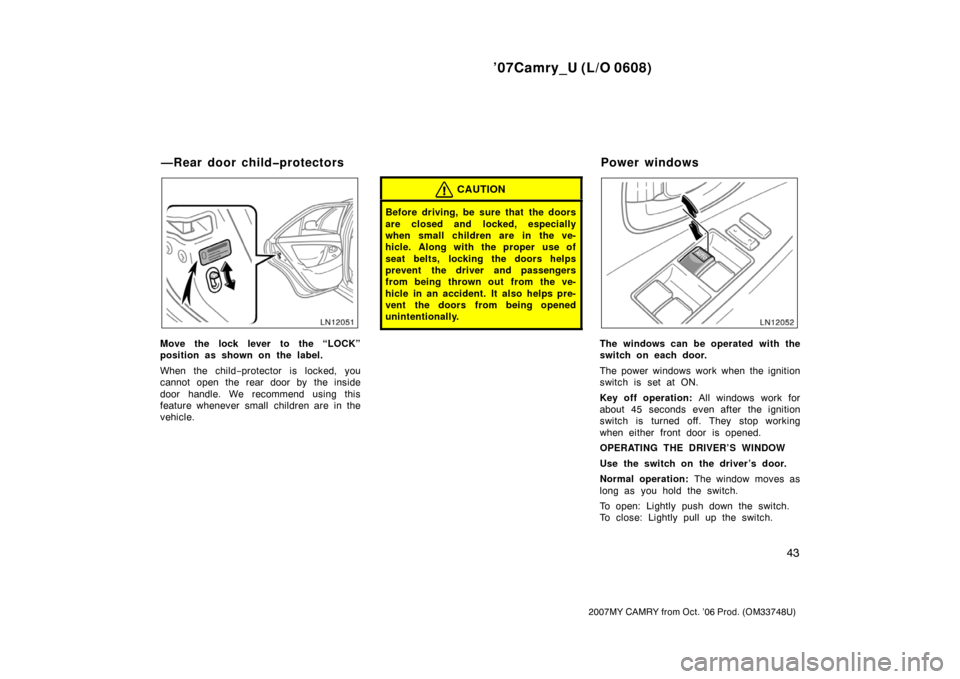

Move the lock lever to the “LOCK”
position as shown on the label.
When the child−protector is locked, you
cannot open the rear door by the inside
door handle. We recommend using this
feature whenever small children are in the
vehicle.
CAUTION
Before driving, be sure that the doors
are closed and locked, especially
when small children are in the ve-
hicle. Along with the proper use of
seat belts, locking the doors helps
prevent the driver and passengers
from being thrown out from the ve-
hicle in an accident. It also helps pre-
vent the doors from being opened
unintentionally.
The windows can be operated with the
switch on each door.
The power windows work when the ignition
switch is set at ON.
Key off operation: All windows work for
about 45 seconds even after the ignition
switch is turned off. They stop working
when either front door is opened.
OPERATING THE DRIVER’S WINDOW
Use the switch on the driver’s door.
Normal operation: The window moves as
long as you hold the switch.
To open: Lightly push down the switch.
To close: Lightly pull up the switch.
—Rear door childprotectors Power windows

’07Camry_U (L/O 0608)
44
2007MY CAMRY from Oct. ’06 Prod. (OM33748U)

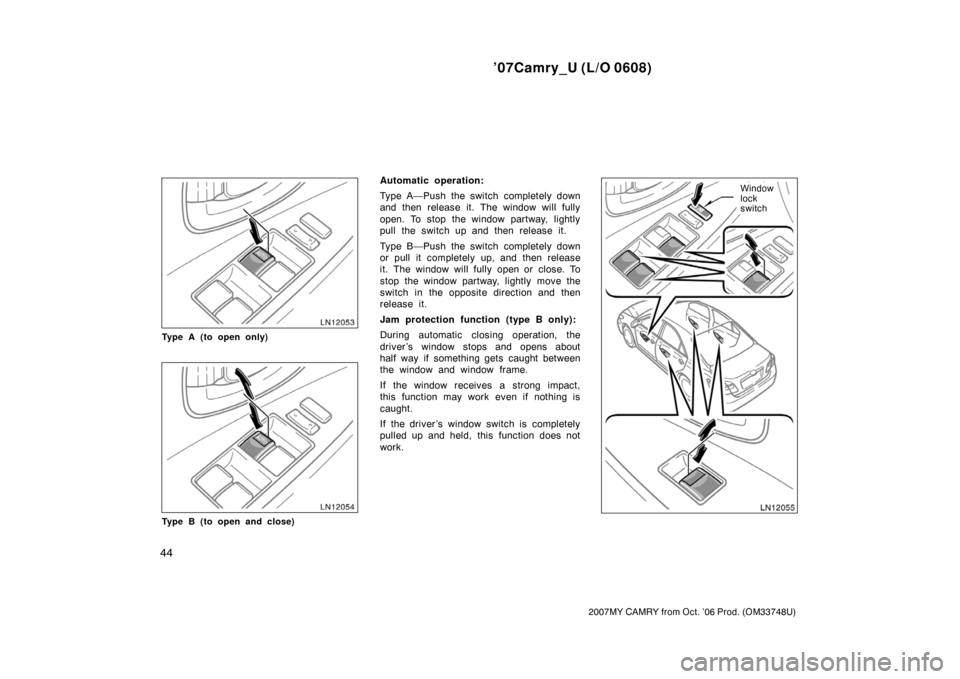

Type A (to open only)
Type B (to open and close)
Automatic operation:
Type A—Push the switch completely down
and then release it. The window will fully
open. To stop the window partway, lightly
pull the switch up and then release it.
Type B—Push the switch completely down
or pull it completely up, and then release
it. The window will fully open or close. To
stop the window partway, lightly move the
switch in the opposite direction and then
release it.
Jam protection function (type B only):
During automatic closing operation, the
driver ’s window stops and opens about
half way if something gets caught between
the window and window frame.
If the window receives a strong impact,
this function may work even if nothing is
caught.
If the driver ’s window switch is completely
pulled up and held, this function does not
work.Window
lock
switch

’07Camry_U (L/O 0608)
45
2007MY CAMRY from Oct. ’06 Prod. (OM33748U)
OPERATING THE PASSENGERS’
WINDOWS
Use the switches on the passengers’
doors. The driver ’s door also has
switches that control the passengers’
windows.
The window moves as long as you hold
the switch.
To open: Push down the switch.
To close: Pull up the switch.
If you push in the window lock switch on
the driver ’s door, the passengers’ windows

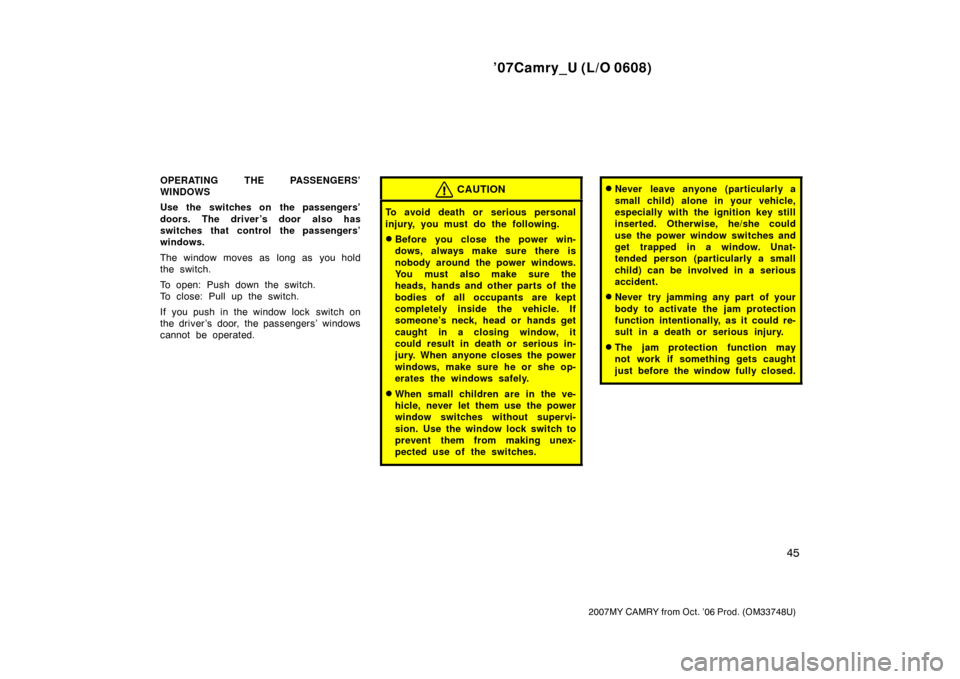

cannot be operated.CAUTION
To avoid death or serious personal
injury, you must do the following.
Before you close the power win-
dows, always make sure there is
nobody around the power windows.
You must also make sure the
heads, hands and other parts of the
bodies of all occupants are kept
completely inside the vehicle. If
someone’s neck, head or hands get
caught in a closing window, it
could result in death or serious in-
jury. When anyone closes the power
windows, make sure he or she op-
erates the windows safely.
When small children are in the ve-
hicle, never let them use the power
window switches without supervi-
sion. Use the window lock switch to
prevent them from making unex-
pected use of the switches.
Never leave anyone (particularly a
small child) alone in your vehicle,
especially with the ignition key still
inserted. Otherwise, he/she could
use the power window switches and
get trapped in a window. Unat-
tended person (particularly a small
child) can be involved in a serious
accident.
Never try jamming any part of your
body to activate the jam protection
function intentionally, as it could re-
sult in a death or serious injury.
The jam protection function may
not work if something gets caught
just before the window fully closed.

’07Camry_U (L/O 0608)
46
2007MY CAMRY from Oct. ’06 Prod. (OM33748U)

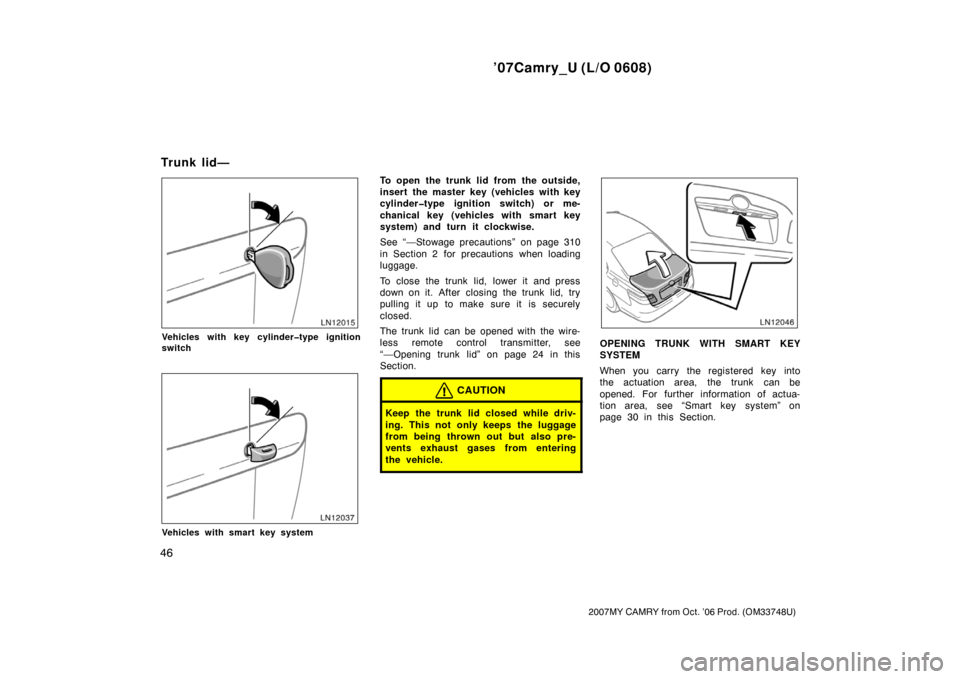

Vehicles with key cylindertype ignition
switch
Vehicles with smart key system
To open the trunk lid from the outside,
insert the master key (vehicles with key
cylindertype ignition switch) or me-
chanical key (vehicles with smart key
system) and turn it clockwise.
See “—Stowage precautions” on page 310
in Section 2 for precautions when loading
luggage.
To close the trunk lid, lower it and press
down on it. After closing the trunk lid, try
pulling it up to make sure it is securely
closed.
The trunk lid can be opened with the wire-
less remote control transmitter, see
“—Opening trunk lid” on page 24 in this
Section.
CAUTION
Keep the trunk lid closed while driv-
ing. This not only keeps the luggage
from being thrown out but also pre-
vents exhaust gases from entering
the vehicle.
OPENING TRUNK WITH SMART KEY
SYSTEM
When you carry the registered key into
the actuation area, the trunk can be
opened. For further information of actua-
tion area, see “Smart key system” on
page 30 in this Section.
Trunk lid—

’07Camry_U (L/O 0608)
47
2007MY CAMRY from Oct. ’06 Prod. (OM33748U)
A warning buzzer may sound when:
The key is brought into the cabin after
the trunk is opened, and the trunk is
then closed.
The key is near the trunk when the
trunk is closed.
The buzzer may sound even when the key
is not in the trunk. This does not indicate
a problem. However, under these circum-
stances, the trunk cannot be opened using
the smart key system. Open the trunk
using other methods.
If you left the key in the trunk and close
it when all side doors are locked, a beep
will sound continuously for 2 seconds. You
can open the trunk pushing the trunk
opener switch without carrying another
key. However, in some instances, the
beep may not sound when the trunk is
closed depending on the location of the
key in the trunk. In addition, when the
doors are open or unlocked, the beep may
not sound when the trunk is closed. When
closing the trunk, make sure that the key
is not left in it.

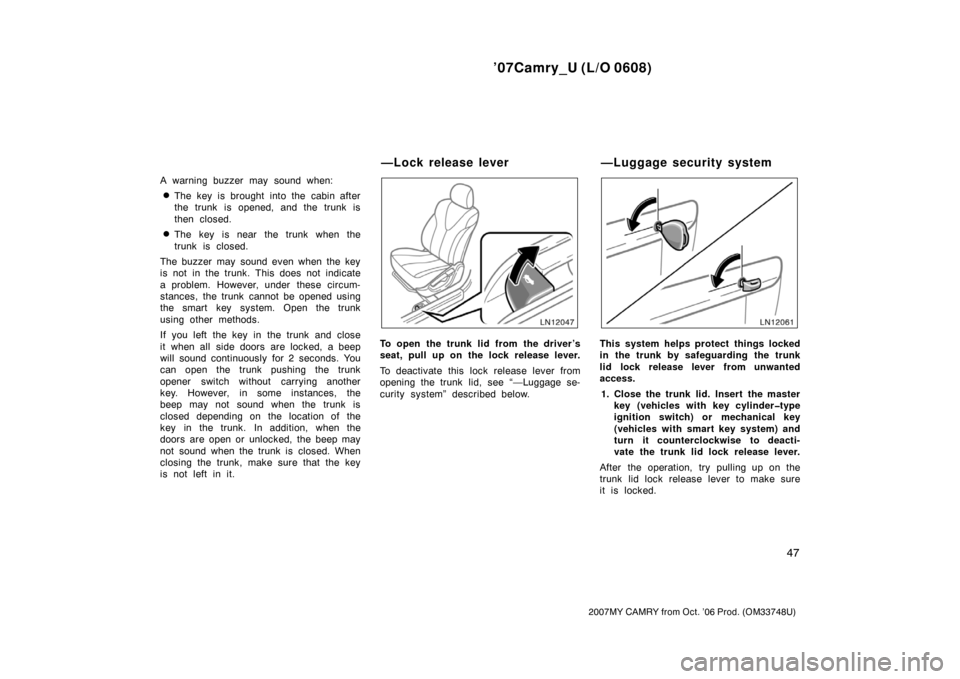

To open the trunk lid from the driver’s
seat, pull up on the lock release lever.
To deactivate this lock release lever from
opening the trunk lid, see “—Luggage se-
curity system” described below.This system helps protect things locked
in the trunk by safeguarding the trunk
lid lock release lever from unwanted
access.
1. Close the trunk lid. Insert the master
key (vehicles with key cylindertype
ignition switch) or mechanical key
(vehicles with smart key system) and
turn it counterclockwise to deacti-
vate the trunk lid lock release lever.
After the operation, try pulling up on the
trunk lid lock release lever to make sure
it is locked.
—Lock release lever —Luggage security system

’07Camry_U (L/O 0608)
48
2007MY CAMRY from Oct. ’06 Prod. (OM33748U)
2. Vehicles with trunk storage exten-
sion—After closing the door located
behind the rear seat armrest, insert
the master key (vehicles with key
cylindertype ignition switch) or me-
chanical key (vehicles with smart key
system) and turn it clockwise to lock
the door.
NOTICE
Implement the above steps to maxi-
mize security of the luggage in the
trunk whenever the vehicle is unat-
tended.
If a person is locked in the trunk,
he/she can pull up the phosphorescent
strap on the inside of trunk lid to open
the trunk lid.
The phosphorescent (glow−in−the−dark)
strap will continue to glow for a time after
the trunk lid is closed. Exposing the strap
to stronger light will cause it to glow lon-
ger.
CAUTION
Always lock the trunk lid and all
doors, and keep away the vehicle
keys out of children’s reach.
Never leave children unattended in
the vehicle. Unsupervised children
may lock themselves in the vehicle
or trunk and suffer serious injuries
or death.
—Internal trunk release strap
