2007 TOYOTA CAMRY Owners Manual

’07Camry_U (L/O 0608)
89
2007MY CAMRY from Oct. ’06 Prod. (OM33748U)

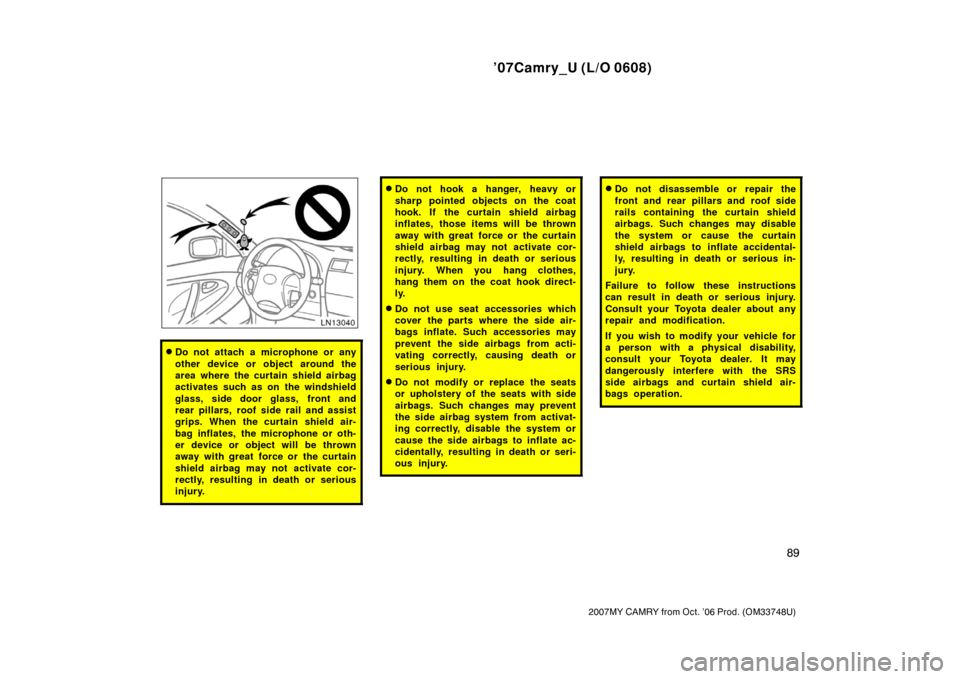

Do not attach a microphone or any
other device or object around the
area where the curtain shield airbag
activates such as on the windshield
glass, side door glass, front and
rear pillars, roof side rail and assist
grips. When the curtain shield air-
bag inflates, the microphone or oth-
er device or object will be thrown
away with great force or the curtain
shield airbag may not activate cor-
rectly, resulting in death or serious
injury.
Do not hook a hanger, heavy or
sharp pointed objects on the coat
hook. If the curtain shield airbag
inflates, those items will be thrown
away with great force or the curtain
shield airbag may not activate cor-
rectly, resulting in death or serious
injury. When you hang clothes,
hang them on the coat hook direct-
ly.
Do not use seat accessories which
cover the parts where the side air-
bags inflate. Such accessories may
prevent the side airbags from acti-
vating correctly, causing death or
serious injury.
Do not modify or replace the seats
or upholstery of the seats with side
airbags. Such changes may prevent
the side airbag system from activat-
ing correctly, disable the system or
cause the side airbags to inflate ac-
cidentally, resulting in death or seri-
ous injury.
Do not disassemble or repair the
front and rear pillars and roof side
rails containing the curtain shield
airbags. Such changes may disable
the system or cause the curtain
shield airbags to inflate accidental-
ly, resulting in death or serious in-
jury.
Failure to follow these instructions
can result in death or serious injury.
Consult your Toyota dealer about any
repair and modification.
If you wish to modify your vehicle for
a person with a physical disability,
consult your Toyota dealer. It may
dangerously interfere with the SRS
side airbags and curtain shield air-
bags operation.

’07Camry_U (L/O 0608)
90
2007MY CAMRY from Oct. ’06 Prod. (OM33748U)
NOTICE
Do not perform any of the following
changes without consulting your
Toyota dealer. Such changes can
interfere with proper operation of the
SRS side airbag and curtain shield
airbag system in some cases.
Installation of electronic devices
such as a mobile twoway radio,
cassette tape player or compact
disc player
Modification of the suspension sys-
tem
Modification of the side structure of
the passenger compartment
Repairs made on or near the con-
sole or front seat
This indicator comes on when the igni-
tion switch is set at ON. It goes off
after about 6 seconds. This means the
SRS side airbags and curtain shield air-
bags are operating properly.This warning light system monitors the
airbag sensor assembly, front airbag sen-
sors, side and curtain shield airbag sen-
sors, curtain shield airbag sensors, driv-
er ’s seat position sensor, driver ’s seat belt
buckle switch, front passenger occupant
classification system, “AIRBAG ON” indi-
cator light, “AIRBAG OFF” indicator light,
front passenger ’s seat belt buckle switch,
seat belt pretensioner assemblies, inflat-
ors, interconnecting wiring and power
sources. (For details, see “Service remind-
er indicators and warning buzzers” on
page 146 in Section 1−6.)
If any of the following conditions occurs,
this indicates a malfunction of the airbags
or seat belt pretensioners. Contact your
Toyota dealer as soon as possible.
The light does not come on when the
ignition switch is set at ON or remains
on for more than about 6 seconds.
The light comes on or starts flashing
while driving.
The SRS warning light and “AIRBAG OFF”
indicator light will come on if there is a
malfunction in the front passenger occu-
pant classification system.

’07Camry_U (L/O 0608)
91
2007MY CAMRY from Oct. ’06 Prod. (OM33748U)
In the following cases, contact your Toyota
dealer as soon as possible:
Any of the SRS side airbags and cur-
tain shield airbags have been inflated.
The portion of the doors (shaded in the
illustration) was involved in an accident
that was not severe enough to cause
the SRS side airbags and curtain
shield airbags to inflate.
The surface of the seats with the side
airbag (shaded in the illustration) is
scratched, cracked, or otherwise dam-
aged.
The portion of the front pillars, rear
pillars or roof side rail garnishes (pad-
ding) containing the curtain shield air-
bags inside (shaded in the illustration)
is scratched, cracked, or otherwise
damaged.
NOTICE
Do not disconnect the battery cables
before contacting your Toyota dealer.
Your vehicle is equipped with a front
passenger occupant classification sys-
tem. This system detects the conditions
1—4 in the table on page 93 and based
on these conditions activates or deacti-
vates the following systems;
Front passenger airbag
Side airbag on the front passenger
seat
Front passenger ’s seat belt pretension-
er
The system monitors the weight and
load on the front passenger seat, and
the seat belt buckle switch to determine
conditions 1—4.
In order for the system to detect the
conditions correctly, do not do any of
the following:
Apply a heavy load to the front pas-
senger seat or equipment (e.g. seat-
back pocket).
Attach a commercial seatback table,
etc. to the front passenger seat seat-
back.
Put weight on the front passenger seat
by putting your hands or feet on the
seatback from the rear passenger seat.
—Front passenger occupant
classification system

’07Camry_U (L/O 0608)
92
2007MY CAMRY from Oct. ’06 Prod. (OM33748U)
The “AIRBAG ON” and “AIRBAG OFF”
indicator lights indicate the actuation of
the front passenger airbag, side airbag
on the front passenger seat and front
passenger ’s seat belt pretensioner.
The “AIRBAG OFF” indicator light will be
illuminated when the ignition switch is set
at ON with the condition 2 in the table
shown below.
If the front passenger occupant classifica-
tion system determines that a person of
adult size sits in the front passenger seat
but the “AIRBAG OFF” indicator light is
illuminated, one of the following is likely
to have occurred:
A rear passenger lifts the front passen-
ger seat cushion with their legs.
Objects are placed under the front pas-
senger seat.
The front passenger seatback is in
contact with the rear seat.
To ensure the system correctly detects an
adult sitting in the front passenger seat,
make sure the above do not occur.
Make sure that the “AIRBAG ON” indicator
light is illuminated when an adult is
seated in the front passenger seat. If the
“AIRBAG OFF” indicator light is illumina-
ted, ask the passenger to sit up straight,
well back in the seat, and with the seat
belt worn correctly. If the “AIRBAG OFF”
indicator light still remains illuminated, ei-
ther ask the passenger to move to the
rear seat, or if that is not possible, move
the front passenger seat fully rearward.
The “AIRBAG ON” and “AIRBAG OFF”
indicator lights will be illuminated ini-
tially when the ignition switch is set at
ON. After about four seconds, they will
go off. After that, the front passenger
occupant classification system operates
and judges which indicator light be illu-
minated.
The SRS warning and “AIRBAG OFF”
indicator lights will come on if there is
a malfunction in the front passenger
occupant classification system.

’07Camry_U (L/O 0608)
93
2007MY CAMRY from Oct. ’06 Prod. (OM33748U)
Condition and operation in the front passenger occupant classification system
Condition detected
by the front
passenger occupant
classification system
Indicator/warning lightDevices
“AIRBAG ON” and
“AIRBAG OFF”
indicator lightsSRS warning
light
Front
passenger ’s
seat belt
reminder lightFront
passenger
airbagSide airbag
on the front
passenger
seatCurtain shield
airbag in the
front
passenger
sideFront
passenger ’s
seat belt
pretensioner
1. Adult∗
1“AIRBAG ON”OffFlashing∗
4Activated
2. Child∗
2 or child
restraint system∗
3“AIRBAG OFF”OffFlashing∗
4Deactivated
Activated
Activated
3. UnoccupiedNot illuminatedOffOffDeactivatedDeactivated
4. There is a
malfunction in the
system
“AIRBAG OFF”OnOffDeactivatedActivated
∗
1: The system judges a person of adult size as an adult. When a smaller adult sits in the front passenger seat, the system may
recognize him/her as a child depending on his/her physique and posture.
∗
2: When a larger child who has outgrown a child restraint system sits in the front passenger seat, the system may recognize him/her
as an adult depending on his/her physique or posture.
∗

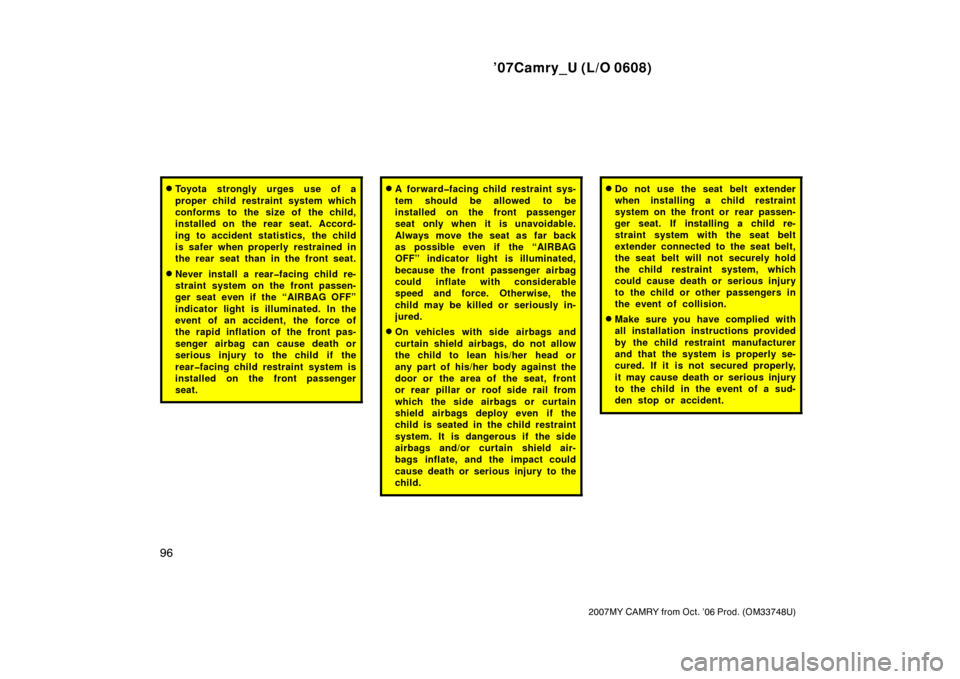

3: Never install a rear−facing child restraint system on the front passenger seat. A forward−facing child restraint system should only be
installed on the front passenger seat when it is unavoidable. (See “Child restraint” on page 95 in this Section as for installing the
child restraint system.)
∗
4: In the event that the front passenger does not wear a seat belt.

’07Camry_U (L/O 0608)
94
2007MY CAMRY from Oct. ’06 Prod. (OM33748U)

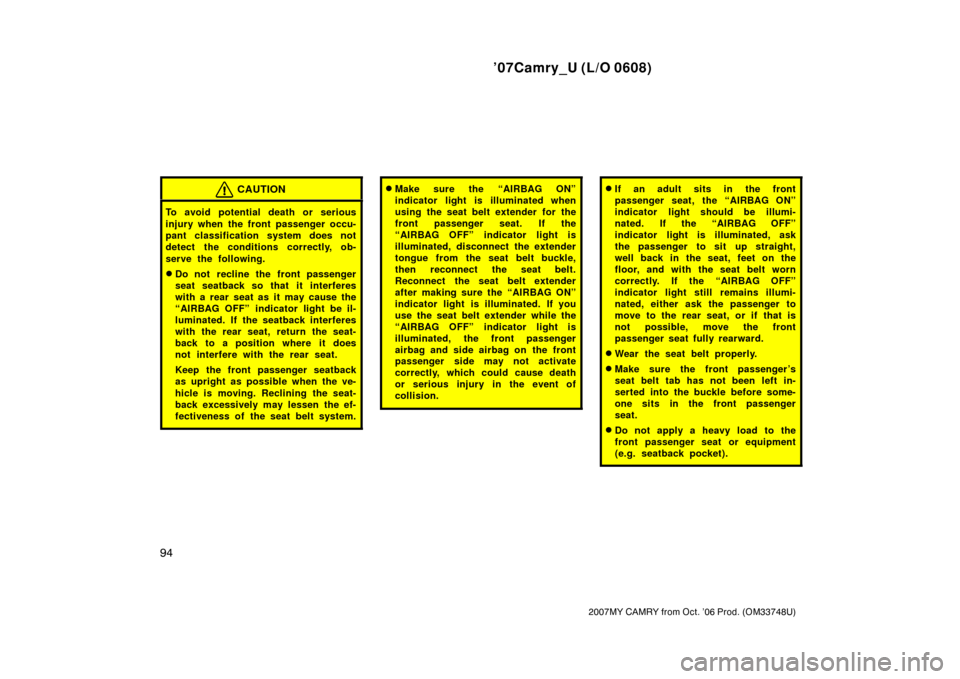

CAUTION
To avoid potential death or serious
injury when the front passenger occu-
pant classification system does not
detect the conditions correctly, ob-
serve the following.
Do not recline the front passenger
seat seatback so that it interferes
with a rear seat as it may cause the
“AIRBAG OFF” indicator light be il-
luminated. If the seatback interferes
with the rear seat, return the seat-
back to a position where it does
not interfere with the rear seat.
Keep the front passenger seatback
as upright as possible when the ve-
hicle is moving. Reclining the seat-
back excessively may lessen the ef-
fectiveness of the seat belt system.
Make sure the “AIRBAG ON”
indicator light is illuminated when
using the seat belt extender for the
front passenger seat. If the
“AIRBAG OFF” indicator light is
illuminated, disconnect the extender
tongue from the seat belt buckle,
then reconnect the seat belt.
Reconnect the seat belt extender
after making sure the “AIRBAG ON”
indicator light is illuminated. If you
use the seat belt extender while the
“AIRBAG OFF” indicator light is
illuminated, the front passenger
airbag and side airbag on the front
passenger side may not activate
correctly, which could cause death
or serious injury in the event of
collision.If an adult sits in the front
passenger seat, the “AIRBAG ON”
indicator light should be illumi-
nated. If the “AIRBAG OFF”
indicator light is illuminated, ask
the passenger to sit up straight,
well back in the seat, feet on the
floor, and with the seat belt worn
correctly. If the “AIRBAG OFF”
indicator light still remains illumi-
nated, either ask the passenger to
move to the rear seat, or if that is
not possible, move the front
passenger seat fully rearward.
Wear the seat belt properly.
Make sure the front passenger ’s
seat belt tab has not been left in-
serted into the buckle before some-
one sits in the front passenger
seat.
Do not apply a heavy load to the
front passenger seat or equipment
(e.g. seatback pocket).

’07Camry_U (L/O 0608)
95
2007MY CAMRY from Oct. ’06 Prod. (OM33748U)

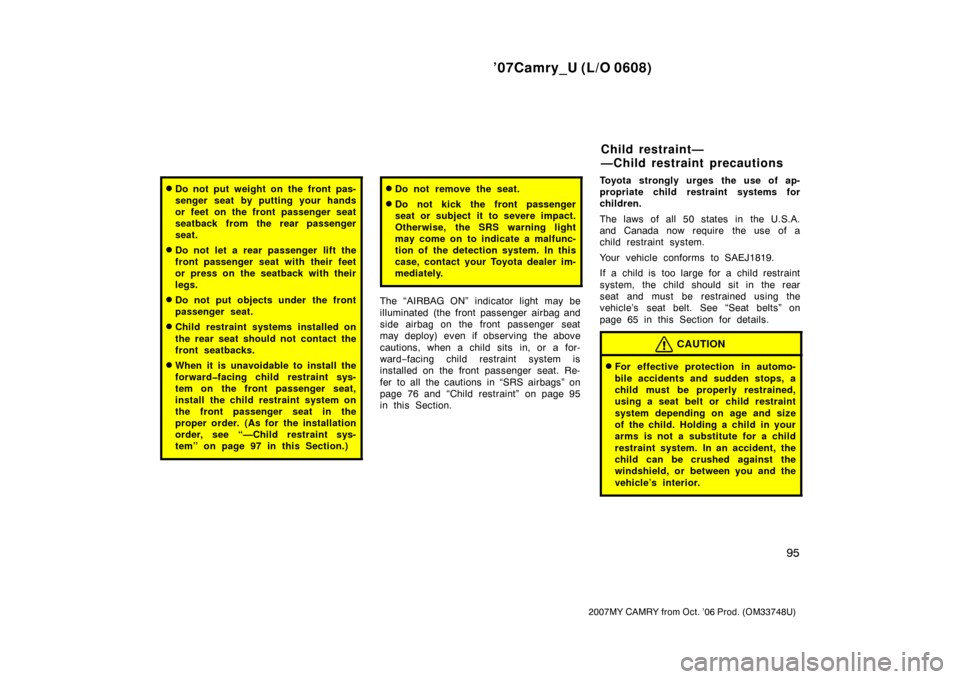

Do not put weight on the front pas-
senger seat by putting your hands
or feet on the front passenger seat
seatback from the rear passenger
seat.
Do not let a rear passenger lift the
front passenger seat with their feet
or press on the seatback with their
legs.
Do not put objects under the front
passenger seat.
Child restraint systems installed on
the rear seat should not contact the
front seatbacks.
When it is unavoidable to install the
forwardfacing child restraint sys-
tem on the front passenger seat,
install the child restraint system on
the front passenger seat in the
proper order. (As for the installation
order, see “—Child restraint sys-
tem” on page 97 in this Section.)
Do not remove the seat.
Do not kick the front passenger
seat or subject it to severe impact.
Otherwise, the SRS warning light
may come on to indicate a malfunc-
tion of the detection system. In this
case, contact your Toyota dealer im-
mediately.
The “AIRBAG ON” indicator light may be
illuminated (the front passenger airbag and
side airbag on the front passenger seat
may deploy) even if observing the above
cautions, when a child sits in, or a for-
ward−facing child restraint system is
installed on the front passenger seat. Re-
fer to all the cautions in “SRS airbags” on
page 76 and “Child restraint” on page 95
in this Section.Toyota strongly urges the use of ap-
propriate child restraint systems for
children.
The laws of all 50 states in the U.S.A.
and Canada now require the use of a
child restraint system.
Your vehicle conforms to SAEJ1819.
If a child is too large for a child restraint
system, the child should sit in the rear
seat and must be restrained using the
vehicle’s seat belt. See “Seat belts” on
page 65 in this Section for details.
CAUTION
For effective protection in automo-
bile accidents and sudden stops, a
child must be properly restrained,
using a seat belt or child restraint
system depending on age and size
of the child. Holding a child in your
arms is not a substitute for a child
restraint system. In an accident, the
child can be crushed against the
windshield, or between you and the
vehicle’s interior.
Child restraint—
—Child restraint precautions

’07Camry_U (L/O 0608)
96
2007MY CAMRY from Oct. ’06 Prod. (OM33748U)
Toyota strongly urges use of a
proper child restraint system which
conforms to the size of the child,
installed on the rear seat. Accord-
ing to accident statistics, the child
is safer when properly restrained in
the rear seat than in the front seat.
Never install a rearfacing child re-
straint system on the front passen-
ger seat even if the “AIRBAG OFF”
indicator light is illuminated. In the
event of an accident, the force of
the rapid inflation of the front pas-
senger airbag can cause death or
serious injury to the child if the
rearfacing child restraint system is
installed on the front passenger
seat.
A forwardfacing child restraint sys-
tem should be allowed to be
installed on the front passenger
seat only when it is unavoidable.
Always move the seat as far back
as possible even if the “AIRBAG
OFF” indicator light is illuminated,
because the front passenger airbag
could inflate with considerable
speed and force. Otherwise, the
child may be killed or seriously in-
jured.
On vehicles with side airbags and
curtain shield airbags, do not allow
the child to lean his/her head or
any part of his/her body against the
door or the area of the seat, front
or rear pillar or roof side rail from
which the side airbags or curtain
shield airbags deploy even if the
child is seated in the child restraint
system. It is dangerous if the side
airbags and/or curtain shield air-
bags inflate, and the impact could
cause death or serious injury to the
child.
Do not use the seat belt extender
when installing a child restraint
system on the front or rear passen-
ger seat. If installing a child re-
straint system with the seat belt
extender connected to the seat belt,
the seat belt will not securely hold
the child restraint system, which
could cause death or serious injury
to the child or other passengers in
the event of collision.
Make sure you have complied with
all installation instructions provided
by the child restraint manufacturer
and that the system is properly se-
cured. If it is not secured properly,
it may cause death or serious injury
to the child in the event of a sud-
den stop or accident.
