2007 TOYOTA CAMRY Owners Manual

’07Camry_U (L/O 0608)
401
2007MY CAMRY from Oct. ’06 Prod. (OM33748U)
Light bulbsBulb
No.WTy p e
Rear personal
lights—8C
Interior light—8E
Door courtesy
lights1685C
Vanity lights—8C
Glove box light—1.2C
Trunk light—3.8C
A: HB3 halogen bulbs
B: H11 halogen bulbs
C: Wedge base bulbs (clear)
D: Wedge base bulbs (amber)
E: Double end bulbsIf either the left or right front fog, front
turn signal/parking, front side marker,
tail or backup lights, or LED
∗ type
high mounted stoplight burns out, con-
tact your Toyota dealer.
NOTICE
Do not try to replace the front fog,
front turn signal/parking, front side
marker, tail or backup light bulbs by
yourself. You may damage the ve-
hicle.
∗: Light−emitting Diode3.5 L V6 (2GRFE) engine only—
Before replacing the headlight bulbs,
remove the cover clips and take off the
cover.

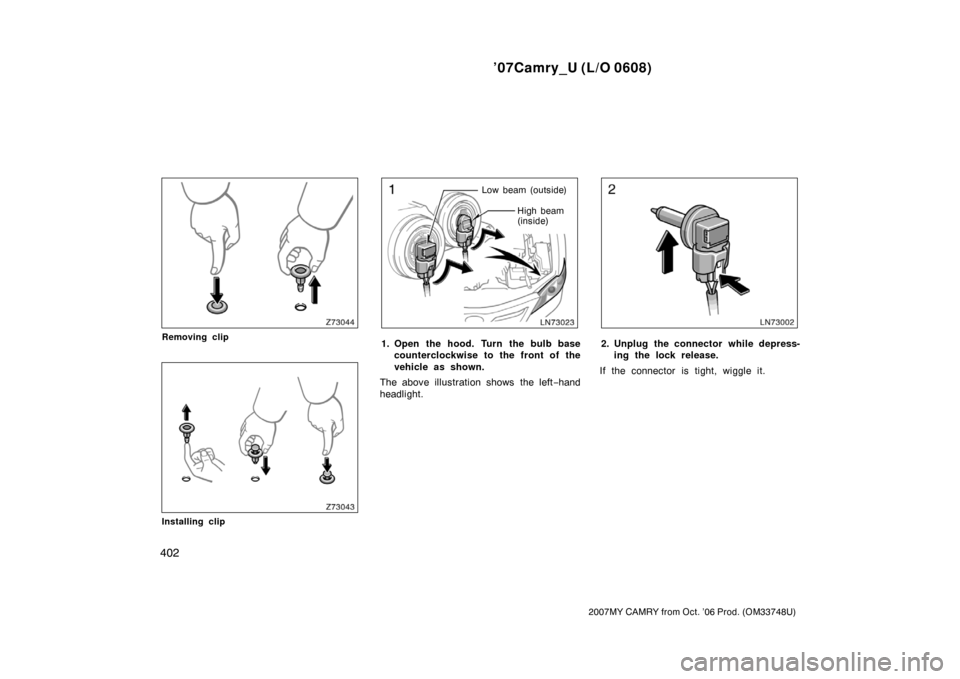

Remove and install the cover clip as
shown in the following illustrations.
—Front fog, front turn
signal/parking, front side
marker, tail and backup
lights, and LED
∗ type high
mounted stoplight —Headlights

’07Camry_U (L/O 0608)
402
2007MY CAMRY from Oct. ’06 Prod. (OM33748U)
Removing clip
Installing clip
Low beam (outside)
High beam
(inside)
1. Open the hood. Turn the bulb base
counterclockwise to the front of the
vehicle as shown.
The above illustration shows the left−hand
headlight.2. Unplug the connector while depress-
ing the lock release.
If the connector is tight, wiggle it.

’07Camry_U (L/O 0608)
403
2007MY CAMRY from Oct. ’06 Prod. (OM33748U)

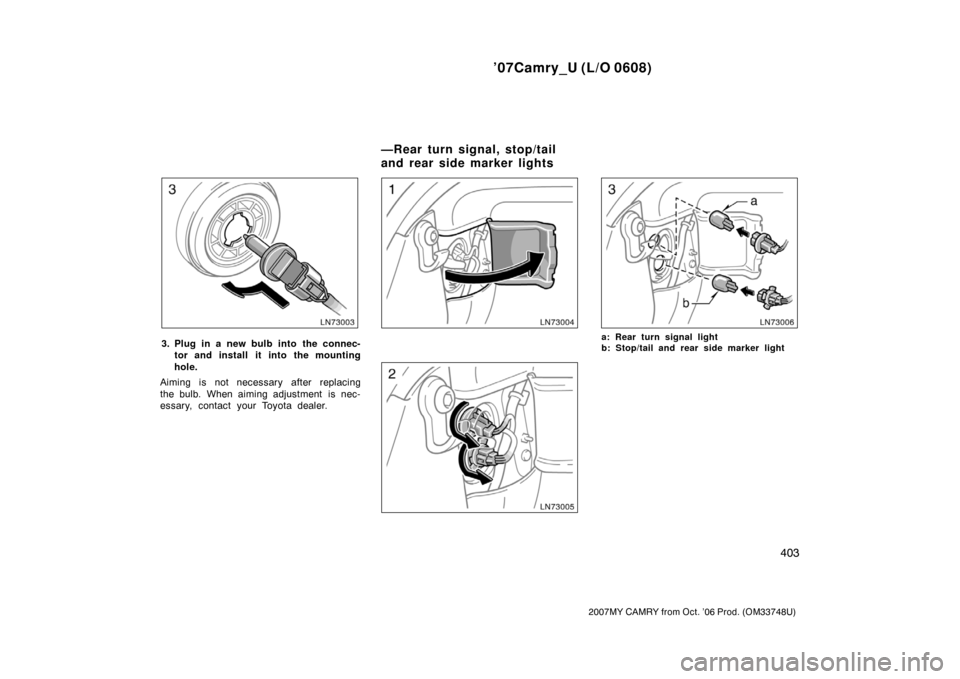

3. Plug in a new bulb into the connec-
tor and install it into the mounting
hole.
Aiming is not necessary after replacing
the bulb. When aiming adjustment is nec-
essary, contact your Toyota dealer.a: Rear turn signal light
b: Stop/tail and rear side marker light
—Rear turn signal, stop/tail
and rear side marker lights

’07Camry_U (L/O 0608)
404
2007MY CAMRY from Oct. ’06 Prod. (OM33748U)

’07Camry_U (L/O 0608)
405
2007MY CAMRY from Oct. ’06 Prod. (OM33748U)
SPECIFICATIONS
Specifications
Dimensions and weights406 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Engine406 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Fuel407 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Service specifications407 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Tires411 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Fuses412 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SECTION 8

’07Camry_U (L/O 0608)
406
2007MY CAMRY from Oct. ’06 Prod. (OM33748U)
Model:
2AZ−FE and 2GR−FE
Type:
2AZ−FE engine
4 cylinder in line, 4 cycle, gasoline
2GR−FE engine
6 cylinder V type, 4 cycle, gasoline
Bore and stroke, mm (in.):
2AZ−FE engine
88.596.0 (3.483.78)
2GR−FE engine
94.083.0 (3.703.27)
Displacement, cm
3 (cu. in.):
2AZ−FE engine 2362 (144.1)
2GR−FE engine 3456 (210.9)
Dimensions and weights
Overall length mm (in.)
Overall width mm (in.)
Overall height
∗
1 mm (in.)
Wheelbase mm (in.)
Front tread mm (in.)
Rear tread mm (in.)
Vehicle capacity weight
(occupants + luggage) kg (lb.)
∗
1: Unladen vehicle∗
2: With P215/55R17 tires∗
3: With P215/60R16 tires1465 (57.7)
∗
2
1470 (57.9)∗
3
4805 (189.2)
1820 (71.7)
2775 (109.3)
1575 (62.0)
1565 (61.6)
410 (900)
Towing capacity
(trailer weight + cargo weight) kg (lb.)453 (1000)
Engine

’07Camry_U (L/O 0608)
407
2007MY CAMRY from Oct. ’06 Prod. (OM33748U)
Fuel type:
Unleaded gasoline, Octane Rating 87
(Research Octane Number 91) or higher
Fuel tank capacity, L (gal., Imp. gal.):
70 (18.5, 15.4)ENGINE
Valve clearance (engine cold), mm (in.):
2.4 L 4−cylinder (2AZ−FE) engine
Intake 0.19—0.29 (0.007—0.011)
Exhaust 0.38—0.48 (0.015—0.019)
Spark plug type:
2.4 L 4−cylinder (2AZ−FE) engine
DENSO SK20R11
NGK IFR6A11
3.5 L V6 (2GR−FE) engine
DENSO FK20HR11
Spark plug gap, mm(in.):
1.1 (0.043)
NOTICE
3.5 L V6 (2GRFE) engine—Use only
above spark plugs. Do not adjust
gaps for engine performance or
smooth driveability.
ENGINE LUBRICATION
Oil capacity (drain and refill), L (qt., Imp.
qt.):
2.4 L 4−cylinder (2AZ−FE) engine
With filter 4.3 (4.5, 3.8)
Without filter 4.1 (4.3, 3.6)
3.5 L V6 (2GR−FE) engine
With filter 6.1 (6.4, 5.4)
Without filter 5.7 (6.0, 5.0)
“Toyota Genuine Motor Oil” is used in
your Toyota vehicle. Use Toyota approved
“Toyota Genuine Motor Oil” or equivalent
to satisfy the following grade and
viscosity.
Oil grade:
ILSAC multigrade engine oil
Fuel Service specifications

’07Camry_U (L/O 0608)
408
2007MY CAMRY from Oct. ’06 Prod. (OM33748U)
Recommended oil viscosity:
2.4 L 4−cylinder (2AZ−FE) engine
SAE 5W−20 or 0W−20
Outside temperature
3.5 L V6 (2GR−FE) engine
SAE 5W−30
Outside temperature
Please contact your Toyota dealer for fur-
ther details.COOLING SYSTEM
Total capacity, L (qt., Imp. qt.):
2.4 L 4−cylinder (2AZ−FE) engine
6.2 (6.6, 5.5)
3.5 L V6 (2GR−FE) engine
9.0 (9.5, 7.9)
Coolant type:
“Toyota Super Long Life Coolant” is
used in your Toyota vehicle at factory
fill. In order to avoid technical problems,
only use “Toyota Super Long Life
Coolant” or similar high quality ethylene
glycol based non−silicate, non−amine,
non−nitrite, and non−borate coolant with
long−life hybrid organic acid technology.
(Coolant with long−life hybrid organic
acid technology is a combination of low
phosphates and organic acids.)
Do not use plain water alone.
Please contact your Toyota dealer for
further details.
