2007 TOYOTA CAMRY Owners Manual

’07Camry_U (L/O 0608)
57
2007MY CAMRY from Oct. ’06 Prod. (OM33748U)
Front passenger seat
CAUTION
The SRS front passenger airbag also
deploys with considerable force, and
can cause death or serious injury es-
pecially if the front passenger is very
close to the airbag. The front passen-
ger seat should be as far from the
airbag as possible with the seatback
adjusted, so the front passenger sits
upright.
Front seats (with SRS side airbags)
CAUTION
The SRS side airbags are installed in
the driver and front passenger seats.
Observe the following precautions.
Do not lean against the front door
when the vehicle is in use, since
the side airbag inflates with consid-
erable speed and force. Otherwise,
you may be killed or seriously in-
jured.
Do not use seat accessories which
cover the area where the side air-
bags inflate. Such accessories may
prevent the side airbags from acti-
vating correctly, causing death or
serious injury.
Do not modify or replace the seats
or upholstery of the seats equipped
with side airbags. Such change may
prevent the side airbag system from
activating correctly, disable the sys-
tem, or cause the side airbags to
inflate accidentally, resulting in
death or serious injury.
CAUTION
Do not adjust the seat while the
vehicle is moving as the seat may
unexpectedly move and cause the
driver to lose control of the vehicle.
Be careful that the seat does not
hit a passenger or luggage.
After adjusting the seat position, re-
lease the lever and try sliding the
seat forward and backward to make
sure it is locked in position.
After adjusting the seatback, push
your body back against the seat to
make sure the seat is locked in
position.
Do not put objects under the seats.
Otherwise, the objects may interfere
with the seatlock mechanism or
unexpectedly push up the seat posi-
tion adjusting lever and the seat
may suddenly move, causing the
driver to lose control of the vehicle.
—Seat adjustment precautions

’07Camry_U (L/O 0608)
58
2007MY CAMRY from Oct. ’06 Prod. (OM33748U)
While adjusting the seat, do not put
your hands under the seat or near
the moving parts. Otherwise, your
hands or fingers may be caught and
injured.1. SEAT POSITION ADJUSTING LEVER
Hold the center of the lever and pull it
up. Then slide the seat to the desired
position with slight body pressure and
release the lever.
2. SEAT HEIGHT ADJUSTING LEVER
(driver ’s seat only)
Pull up or push down the lever.
3. SEATBACK ANGLE ADJUSTING
LEVER
Lean forward and pull the lever up.
Then lean back to the desired angle
and release the lever.
—Adjusting front seats
(manual seat)

’07Camry_U (L/O 0608)
59
2007MY CAMRY from Oct. ’06 Prod. (OM33748U)
CAUTION
Avoid reclining the seatback any
more than needed. The seat belts pro-
vide maximum protection in a frontal
or rear collision when the driver and
the front passenger are sitting up
straight and well back in the seats. If
you are reclined, the lap belt may
slide past your hips and apply re-
straint forces directly to the abdomen
or your neck may contact the shoul-
der belt. In the event of a frontal
collision, the more the seat is re-
clined, the greater the risk of death
or personal injury.
Driver’s seatPassenger’s seat
—Adjusting front seats (power
seat)

’07Camry_U (L/O 0608)
60
2007MY CAMRY from Oct. ’06 Prod. (OM33748U)
1. DRIVER’S SEAT: SEAT POSITION,
SEAT HEIGHT AND SEAT CUSHION
ANGLE ADJUSTING SWITCH
PASSENGER’S SEAT: SEAT POSITION
ADJUSTING SWITCH
Move the control switch in the desired
direction.
Releasing the switch will stop the seat at
that position.
Do not place anything under the front
seats, as this might interfere with the seat
movement.
2. SEATBACK ANGLE ADJUSTING
SWITCH
Move the control switch in the desired
direction.
Releasing the switch will stop the seat-
back at that position.CAUTION
Avoid reclining the seatback any
more than needed. The seat belts pro-
vide maximum protection in a frontal
or rear collision when the driver and
the front passenger are sitting up
straight and well back in the seats. If
you are reclined, the lap belt may
slide past your hips and apply re-
straint forces directly to the abdomen
or your neck may contact the shoul-
der belt. In the event of a frontal
collision, the more the seat is re-
clined, the greater the risk of death
or personal injury.
3. SEAT LUMBAR SUPPORT
ADJUSTING SWITCH
Push the control switch in the desired
direction.
The amount of lumbar support will change
while the switch is pushed.
Rear seats—
—Adjusting rear seats
(reclining type seat)

’07Camry_U (L/O 0608)
61
2007MY CAMRY from Oct. ’06 Prod. (OM33748U)

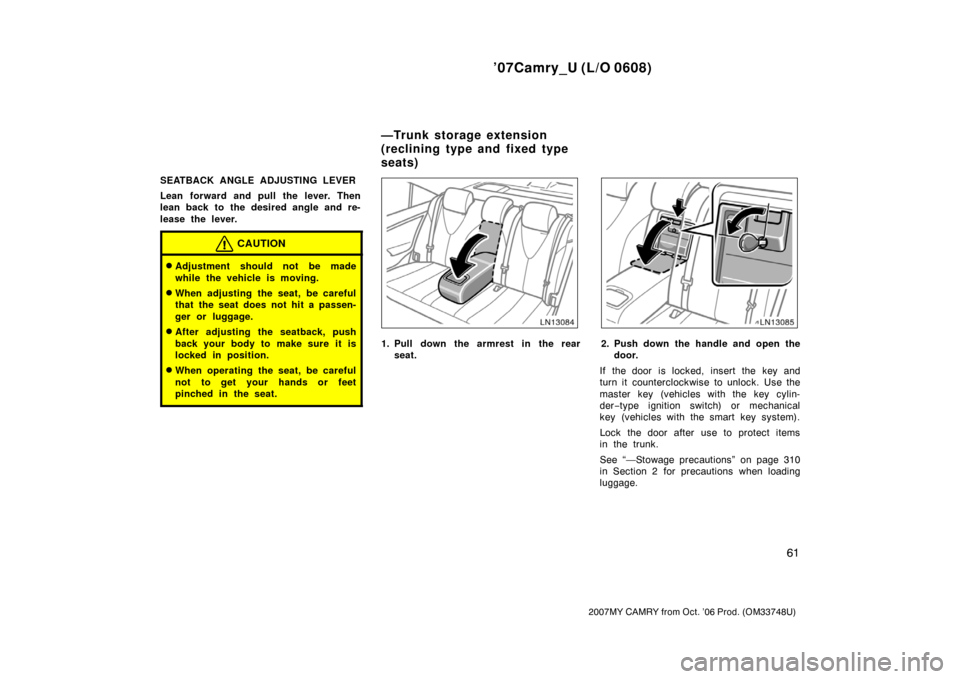

SEATBACK ANGLE ADJUSTING LEVER
Lean forward and pull the lever. Then
lean back to the desired angle and re-
lease the lever.
CAUTION
Adjustment should not be made
while the vehicle is moving.
When adjusting the seat, be careful
that the seat does not hit a passen-
ger or luggage.
After adjusting the seatback, push
back your body to make sure it is
locked in position.
When operating the seat, be careful
not to get your hands or feet
pinched in the seat.

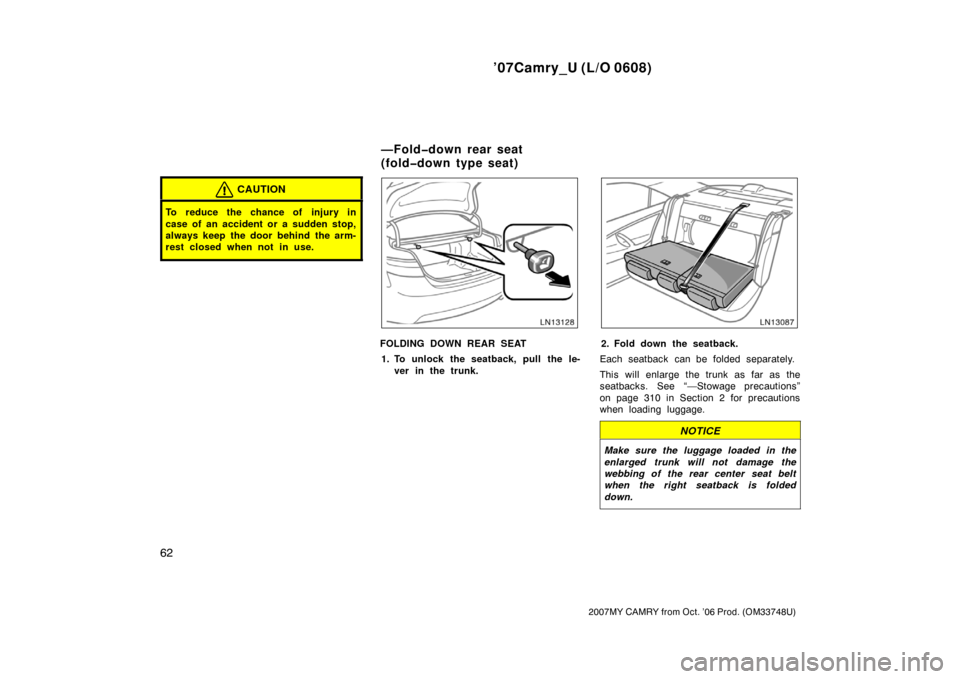

1. Pull down the armrest in the rear
seat.2. Push down the handle and open the
door.
If the door is locked, insert the key and
turn it counterclockwise to unlock. Use the
master key (vehicles with the key cylin-
der−type ignition switch) or mechanical
key (vehicles with the smart key system).
Lock the door after use to protect items
in the trunk.
See “—Stowage precautions” on page 310
in Section 2 for precautions when loading
luggage.
—Trunk storage extension
(reclining type and fixed type
seats)

’07Camry_U (L/O 0608)
62
2007MY CAMRY from Oct. ’06 Prod. (OM33748U)
CAUTION
To reduce the chance of injury in
case of an accident or a sudden stop,
always keep the door behind the arm-
rest closed when not in use.

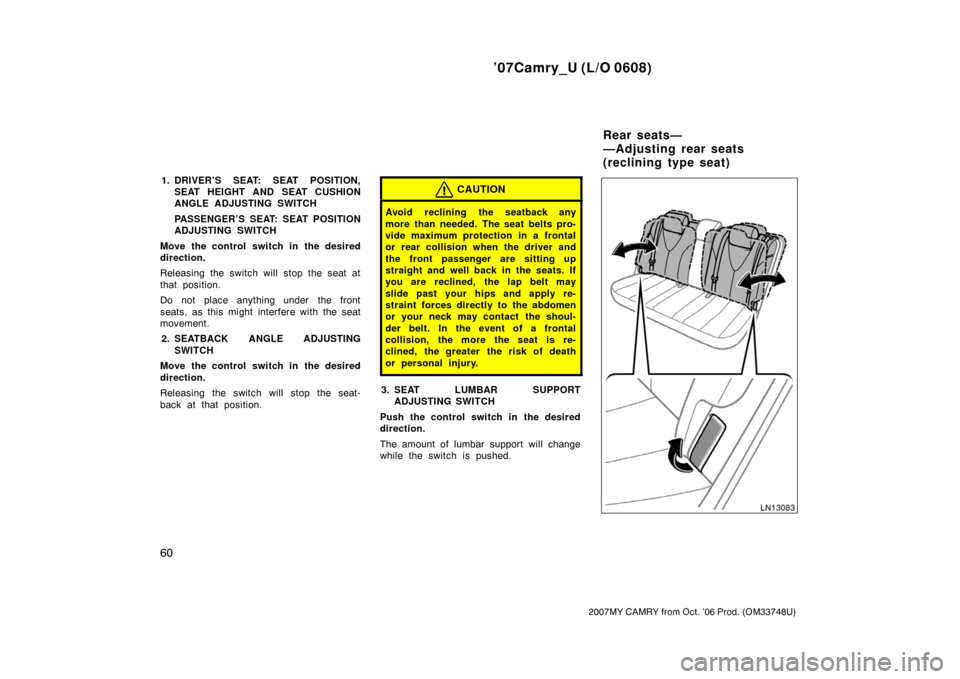

FOLDING DOWN REAR SEAT
1. To unlock the seatback, pull the le-
ver in the trunk.2. Fold down the seatback.
Each seatback can be folded separately.
This will enlarge the trunk as far as the
seatbacks. See “—Stowage precautions”
on page 310 in Section 2 for precautions
when loading luggage.
NOTICE
Make sure the luggage loaded in the
enlarged trunk will not damage the
webbing of the rear center seat belt
when the right seatback is folded
down.
—Folddown rear seat
(folddown type seat)

’07Camry_U (L/O 0608)
63
2007MY CAMRY from Oct. ’06 Prod. (OM33748U)
CAUTION
When returning the seatback to the
upright position, observe the follow-
ing precautions in order to prevent
death or serious injury in a collision
or sudden stop:
Make sure the seatback is securely
locked by pushing forward and rear-
ward on the top of the seatback.
Failure to do so will prevent the
seat belt from operating properly.
Make sure the seat belts are not
twisted or caught in the seatback
and are arranged in the proper

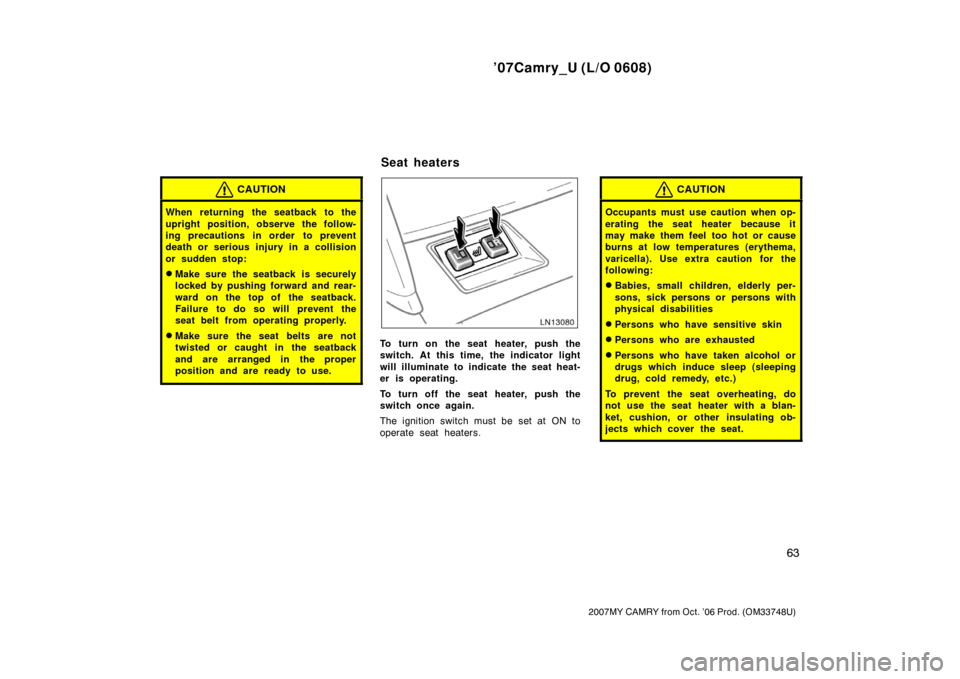

position and are ready to use.To turn on the seat heater, push the
switch. At this time, the indicator light
will illuminate to indicate the seat heat-
er is operating.
To turn off the seat heater, push the
switch once again.
The ignition switch must be set at ON to
operate seat heaters.
CAUTION
Occupants must use caution when op-
erating the seat heater because it
may make them feel too hot or cause
burns at low temperatures (erythema,
varicella). Use extra caution for the
following:
Babies, small children, elderly per-
sons, sick persons or persons with
physical disabilities
Persons who have sensitive skin
Persons who are exhausted
Persons who have taken alcohol or
drugs which induce sleep (sleeping
drug, cold remedy, etc.)
To prevent the seat overheating, do
not use the seat heater with a blan-
ket, cushion, or other insulating ob-
jects which cover the seat.
Seat heaters

’07Camry_U (L/O 0608)
64
2007MY CAMRY from Oct. ’06 Prod. (OM33748U)
NOTICE
Do not put unevenly weighed ob-
jects on the seat and do not stick
sharp objects (needles, nails, etc.)
into the seat.
When cleaning the seats, do not
use organic substances (paint thin-
ner, benzine, alcohol, gasoline,
etc.). They may damage the heater
and seat surface.
To prevent the battery from being
discharged, turn the switch off
when the engine is not running.

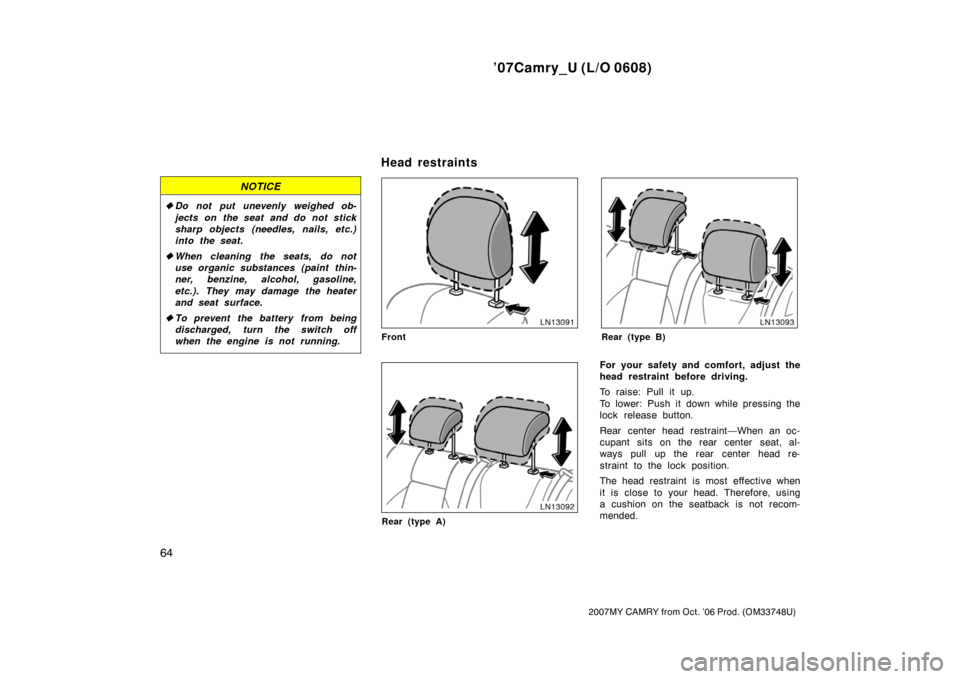

Front
Rear (type A)
Rear (type B)
For your safety and comfort, adjust the
head restraint before driving.
To raise: Pull it up.
To lower: Push it down while pressing the
lock release button.
Rear center head restraint—When an oc-
cupant sits on the rear center seat, al-
ways pull up the rear center head re-
straint to the lock position.
The head restraint is most effective when
it is close to your head. Therefore, using
a cushion on the seatback is not recom-
mended.
Head restraints
