2007 TOYOTA CAMRY Owners Manual

’07Camry_U (L/O 0608)
169
2007MY CAMRY from Oct. ’06 Prod. (OM33748U)
The shift pattern is conventional as
shown above.
Press the clutch pedal down fully while
shifting, and then release it slowly. Do not
rest your foot on the pedal while driving,
because it will cause clutch trouble. Do
not use the clutch to hold the vehicle
when stopped on an uphill grade—use the
parking brake.Recommended shifting speeds
The transmission is fully synchronized and
upshifting or downshifting is easy.
For the best compromise between fuel
economy and vehicle performance, you
should upshift or downshift at the following
speeds:
gear km/h (mph)
1 to 2 or 2 to 1 24 (15)
2 to 3 or 3 to 2 40 (25)
3 to 4 or 4 to 3 64 (40)
4 to 5 or 5 to 4 72 (45)
Downshift to the appropriate gear if accel-
eration is needed when you are cruising
below the above downshifting speeds.
Upshifting too soon or downshifting too
late will cause lugging, and possibly ping-
ing. Regularly revving the engine to maxi-
mum speed in each gear will cause ex-
cessive engine wear and high fuel
consumption.Maximum allowable speeds
To get on a highway or to pass slower
traffic, maximum acceleration may be nec-
essary. Make sure you observe the follow-
ing maximum allowable speeds in each
gear:
gear km/h (mph)
1 54 (33)
2 95 (59)
3 146 (90)
4 200 (124)
NOTICE
Do not downshift if you are going
faster than the maximum allowable
speed for the next lower gear.
Manual transmission

’07Camry_U (L/O 0608)
170
2007MY CAMRY from Oct. ’06 Prod. (OM33748U)
Good driving practice
If it is difficult to shift into reverse, put
the transmission in neutral, release the
clutch pedal momentarily, and then try
again.
When towing a trailer, in order to main-
tain engine braking efficiency, do not
use fifth gear.
CAUTION
Be careful when downshifting on a
slippery surface. Abrupt shifting
could cause the vehicle to skid or
spin.
NOTICE
Do not use any gears other than
first gear when starting off and
moving forward. Doing so may dam-
age the clutch.
Make sure the vehicle is completely
stopped before shifting into reverse.
The traction control system automatical-
ly helps prevent the spinning of front
wheels when the vehicle is started or
accelerated on slippery road surfaces.
When the ignition switch is set at ON, the
system automatically turns on.
CAUTION
Under certain slippery road condi-
tions, full traction of the vehicle and
power against front wheels cannot be
maintained, even though the traction
control system is in operation. Do not
drive the vehicle under any speed or
maneuvering conditions which may
cause the vehicle to lose traction
control. In situations where the road
surface is covered with ice or snow,
your vehicle should be fitted with
snow tires or tire chains. Always
drive at an appropriate and cautious
speed for the present road condi-
tions.
NORMAL DRIVING MODE
You may hear a sound in the engine
compartment for a few seconds when the
engine is started or just after the vehicle
begins to move. This means that the trac-
tion control system is in the self−check
mode, but does not indicate a malfunction.
Traction control system

’07Camry_U (L/O 0608)
171
2007MY CAMRY from Oct. ’06 Prod. (OM33748U)
When the traction control system is oper-
ating, the following conditions occur:
The system controls the spinning of the
front wheels. At this time, the slip indi-
cator light blinks.
You may feel vibration or noise in your
vehicle, caused by operation of the
brakes. This indicates the system is
functioning properly.
The slip indicator light comes on for a few
seconds when the ignition switch is set at
ON. If the indicator light does not come
on when the ignition is turned on, contact
your Toyota dealer.
Without multiinformation display
With multiinformation display

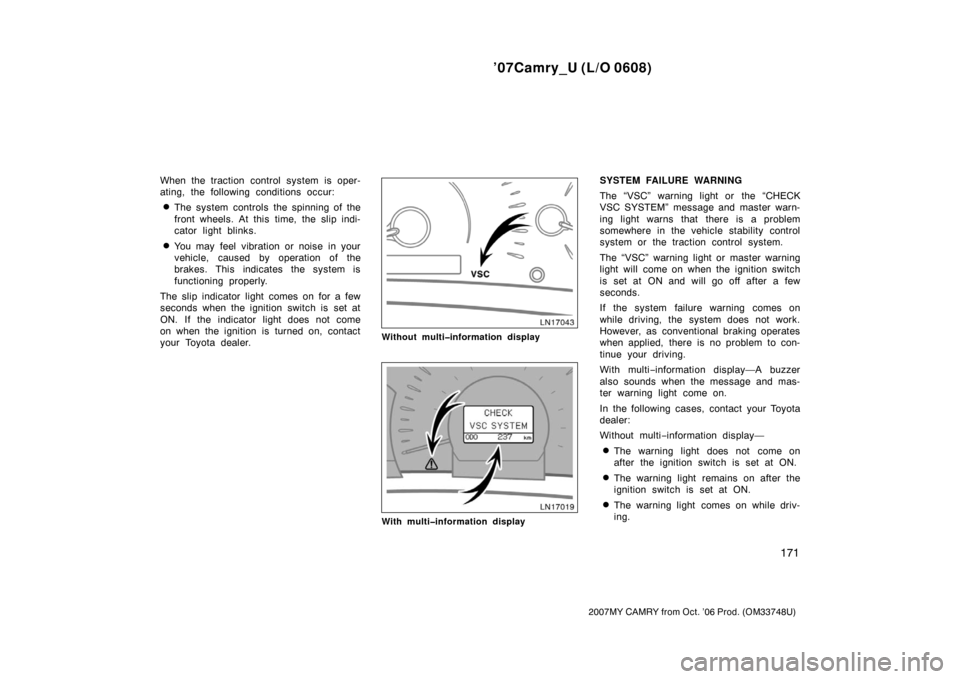

SYSTEM FAILURE WARNING
The “VSC” warning light or the “CHECK
VSC SYSTEM” message and master warn-
ing light warns that there is a problem
somewhere in the vehicle stability control
system or the traction control system.
The “VSC” warning light or master warning
light will come on when the ignition switch
is set at ON and will go off after a few
seconds.
If the system failure warning comes on
while driving, the system does not work.
However, as conventional braking operates
when applied, there is no problem to con-
tinue your driving.
With multi−information display—A buzzer
also sounds when the message and mas-
ter warning light come on.
In the following cases, contact your Toyota
dealer:
Without multi−information display—
The warning light does not come on
after the ignition switch is set at ON.
The warning light remains on after the
ignition switch is set at ON.
The warning light comes on while driv-
ing.

’07Camry_U (L/O 0608)
172
2007MY CAMRY from Oct. ’06 Prod. (OM33748U)
With multi−information display—
The message and master warning light
come on after ignition switch is set at
ON.
The message and master warning light
come on while driving.The vehicle stability control system
helps provide integrated control of the
systems such as antilock brake sys-
tem, traction control, engine control,
etc. This system automatically controls
the brakes and engine to help prevent
the vehicle from skidding when corner-
ing on a slippery road surface or oper-
ating steering wheel abruptly.
This system will activate when your ve-
hicle speed reaches or exceeds 15 km/h
(9 mph), and will deactivate when the ve-
hicle speed reduces to below 15 km/h (9
mph).
You may hear a sound in the engine
compartment for a few seconds when the
engine is started or just after the vehicle
begins to move. This means that the sys-
tem is in the self−check mode, but does
not indicate a malfunction.
CAUTION
Do not rely excessively on the ve-
hicle stability control system. Even
if the vehicle stability control sys-
tem is operating, you must always
drive carefully and attentively to
avoid serious injury. Reckless driv-
ing will result in an unexpected ac-
cident. If the slip indicator light
flashes, an alarm sounds, and spe-
cial care should be taken while
driving.
Only use tires of specified size. The
size, manufacture, brand and tread
pattern for all 4 tires should be the
same. If you use the tires other
than specified, or different type or
size, the vehicle stability control
system may not function correctly.
When replacing the tires or wheels,
contact your Toyota dealer. (See
“Checking and replacing tires” on
page 388 in Section 72.)
In situations where the road surface
is covered with ice or snow, your
vehicle should be fitted with snow
tires or tire chains.
Vehicle stability control
system

’07Camry_U (L/O 0608)
173
2007MY CAMRY from Oct. ’06 Prod. (OM33748U)

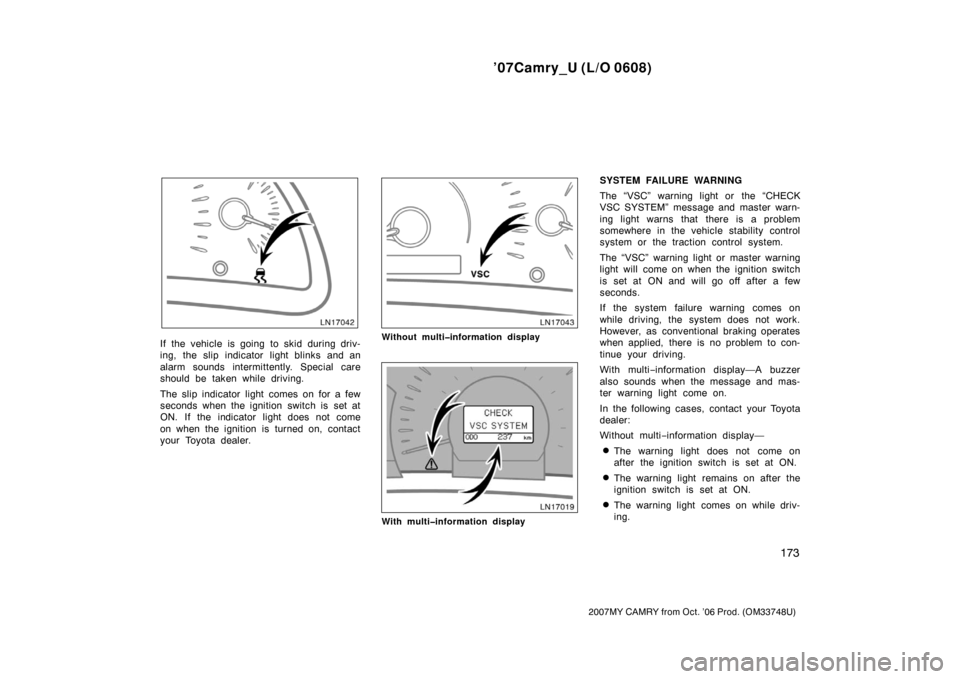

If the vehicle is going to skid during driv-
ing, the slip indicator light blinks and an
alarm sounds intermittently. Special care
should be taken while driving.
The slip indicator light comes on for a few
seconds when the ignition switch is set at
ON. If the indicator light does not come
on when the ignition is turned on, contact
your Toyota dealer.Without multiinformation display
With multiinformation display
SYSTEM FAILURE WARNING
The “VSC” warning light or the “CHECK
VSC SYSTEM” message and master warn-
ing light warns that there is a problem
somewhere in the vehicle stability control
system or the traction control system.
The “VSC” warning light or master warning
light will come on when the ignition switch
is set at ON and will go off after a few
seconds.
If the system failure warning comes on
while driving, the system does not work.
However, as conventional braking operates
when applied, there is no problem to con-
tinue your driving.
With multi−information display—A buzzer
also sounds when the message and mas-
ter warning light come on.
In the following cases, contact your Toyota
dealer:
Without multi−information display—
The warning light does not come on
after the ignition switch is set at ON.
The warning light remains on after the
ignition switch is set at ON.
The warning light comes on while driv-
ing.

’07Camry_U (L/O 0608)
174
2007MY CAMRY from Oct. ’06 Prod. (OM33748U)
With multi−information display—
The message and master warning light
come on after ignition switch is set at
ON.
The message and master warning light
come on while driving.The tire pressure warning system warns
you that the tire inflation pressure is
low.
The tire pressure warning system is not
a substitute for checking normal tire infla-
tion pressure. Check the tire inflation
pressure with a tire pressure gauge regu-
larly.

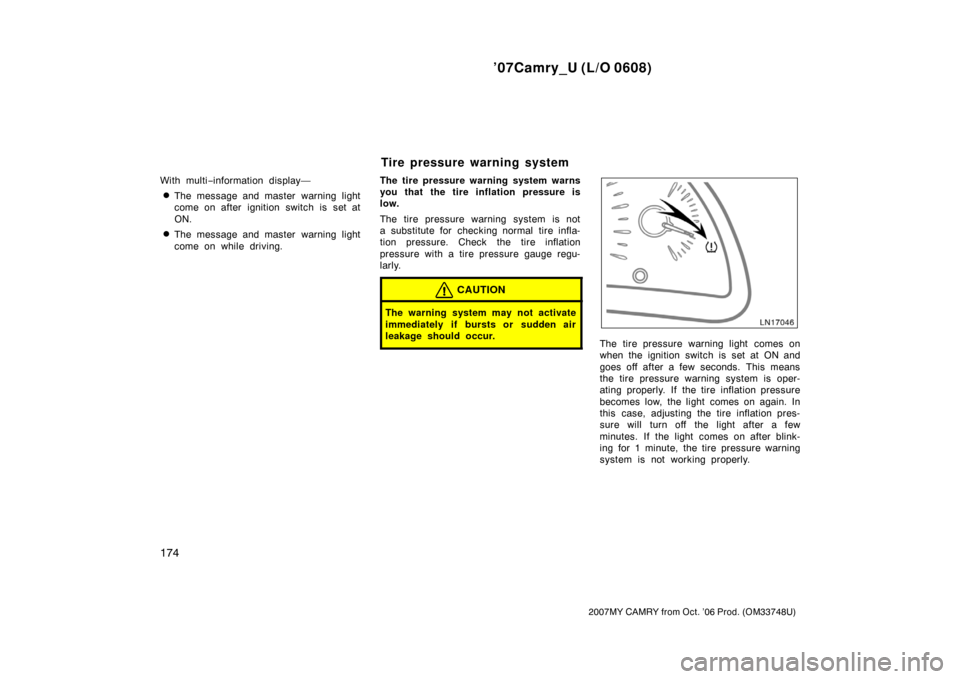

CAUTION
The warning system may not activate
immediately if bursts or sudden air
leakage should occur.
The tire pressure warning light comes on
when the ignition switch is set at ON and
goes off after a few seconds. This means
the tire pressure warning system is oper-
ating properly. If the tire inflation pressure
becomes low, the light comes on again. In
this case, adjusting the tire inflation pres-
sure will turn off the light after a few
minutes. If the light comes on after blink-
ing for 1 minute, the tire pressure warning
system is not working properly.
Tire pressure warning system

’07Camry_U (L/O 0608)
175
2007MY CAMRY from Oct. ’06 Prod. (OM33748U)
Indicator
statusMeaningsDo this
ON
Tire inflation
pressure is
lowAdjust the
tire inflation
pressure
ON after
blinking for
1 minuteTire pres-
sure warn-
ing system
malfunctionHave the
system
checked at
your Toyota
dealer

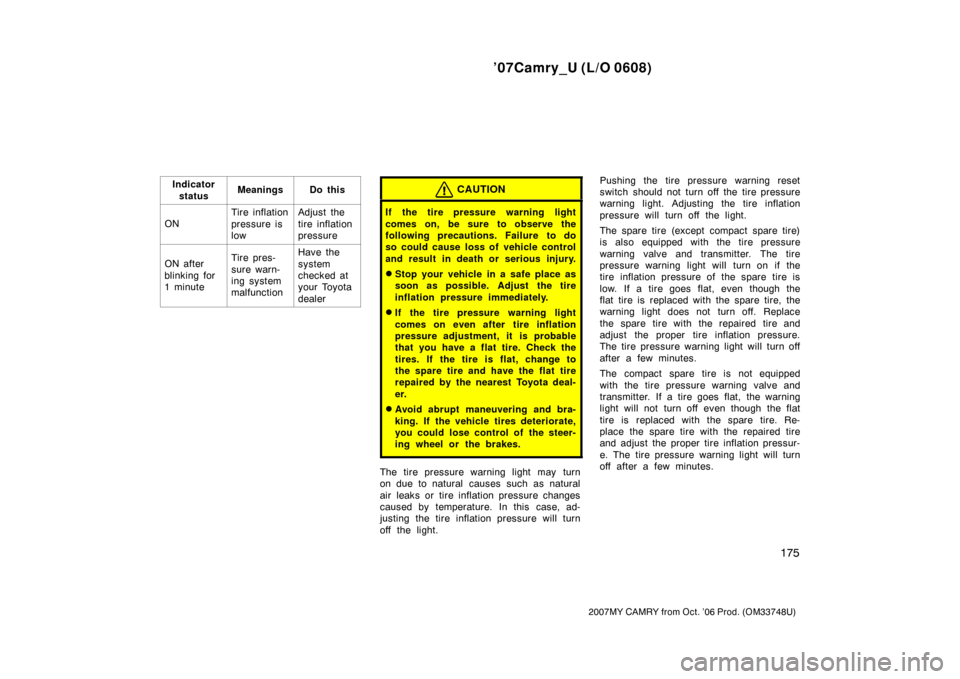

CAUTION
If the tire pressure warning light
comes on, be sure to observe the
following precautions. Failure to do
so could cause loss of vehicle control
and result in death or serious injury.
Stop your vehicle in a safe place as
soon as possible. Adjust the tire
inflation pressure immediately.
If the tire pressure warning light
comes on even after tire inflation
pressure adjustment, it is probable
that you have a flat tire. Check the
tires. If the tire is flat, change to
the spare tire and have the flat tire
repaired by the nearest Toyota deal-
er.
Avoid abrupt maneuvering and bra-
king. If the vehicle tires deteriorate,
you could lose control of the steer-
ing wheel or the brakes.
The tire pressure warning light may turn
on due to natural causes such as natural
air leaks or tire inflation pressure changes
caused by temperature. In this case, ad-
justing the tire inflation pressure will turn
off the light.Pushing the tire pressure warning reset
switch should not turn off the tire pressure
warning light. Adjusting the tire inflation
pressure will turn off the light.
The spare tire (except compact spare tire)
is also equipped with the tire pressure
warning valve and transmitter. The tire
pressure warning light will turn on if the
tire inflation pressure of the spare tire is
low. If a tire goes flat, even though the
flat tire is replaced with the spare tire, the
warning light does not turn off. Replace
the spare tire with the repaired tire and
adjust the proper tire inflation pressure.
The tire pressure warning light will turn off
after a few minutes.
The compact spare tire is not equipped
with the tire pressure warning valve and
transmitter. If a tire goes flat, the warning
light will not turn off even though the flat
tire is replaced with the spare tire. Re-
place the spare tire with the repaired tire
and adjust the proper tire inflation pressur-
e. The tire pressure warning light will turn
off after a few minutes.

’07Camry_U (L/O 0608)
176
2007MY CAMRY from Oct. ’06 Prod. (OM33748U)

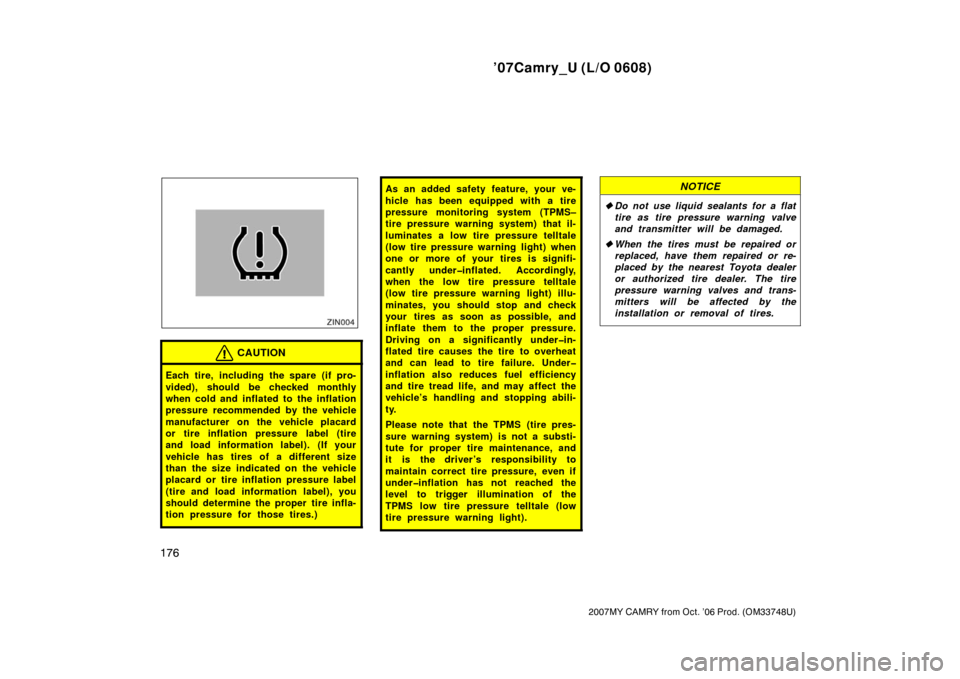

CAUTION
Each tire, including the spare (if pro-
vided), should be checked monthly
when cold and inflated to the inflation
pressure recommended by the vehicle
manufacturer on the vehicle placard
or tire inflation pressure label (tire
and load information label). (If your
vehicle has tires of a different size
than the size indicated on the vehicle
placard or tire inflation pressure label
(tire and load information label), you
should determine the proper tire infla-
tion pressure for those tires.)
As an added safety feature, your ve-
hicle has been equipped with a tire
pressure monitoring system (TPMS–
tire pressure warning system) that il-
luminates a low tire pressure telltale
(low tire pressure warning light) when
one or more of your tires is signifi-
cantly underinflated. Accordingly,
when the low tire pressure telltale
(low tire pressure warning light) illu-
minates, you should stop and check
your tires as soon as possible, and
inflate them to the proper pressure.
Driving on a significantly underin-
flated tire causes the tire to overheat
and can lead to tire failure. Under
inflation also reduces fuel efficiency
and tire tread life, and may affect the
vehicle’s handling and stopping abili-
ty.
Please note that the TPMS (tire pres-
sure warning system) is not a substi-
tute for proper tire maintenance, and
it is the driver ’s responsibility to
maintain correct tire pressure, even if
underinflation has not reached the
level to trigger illumination of the
TPMS low tire pressure telltale (low
tire pressure warning light).NOTICE
Do not use liquid sealants for a flat
tire as tire pressure warning valve
and transmitter will be damaged.
When the tires must be repaired or
replaced, have them repaired or re-
placed by the nearest Toyota dealer
or authorized tire dealer. The tire
pressure warning valves and trans-
mitters will be affected by the
installation or removal of tires.
