2007 TOYOTA CAMRY Owners Manual

’07Camry_U (L/O 0608)
137
2007MY CAMRY from Oct. ’06 Prod. (OM33748U)
1. Outside temperature
(“OUTSIDE TEMP”)
The outside temperature display indi-
cates the outside air temperature.
The displayed temperature ranges from
−40C (−40F) up to 50C (122F).
If an abnormality exists in the connection
of the outside air temperature sensor, “−−”
or “E” will appear on the display. If “−−”
or “E” appears on the display, contact
your Toyota dealer.
There may be a case that “−−” appears
momentarily when the ignition switch is
quickly set to ON. It is normal if it goes
out soon.
2. Driving range
(“CRUISING RANGE”)
The distance the vehicle can travel with
the remaining fuel is calculated and
displayed based on the quantity of re-
maining fuel and past fuel consumption.
The driving range display indicates the
approximate distance that you can drive
until the fuel gauge reaches “E”. It is
different from the actual distance traveled.
The displayed value is updated every 1
second while driving.If the fuel gauge malfunctions, the mileage
figure will not appear.
When the vehicle is refueled, the driving
range is recalculated.
The actual driving range varies with driv-
ing habits and road conditions. If fuel con-
sumption is good, the driving range will be
longer than indicated. If fuel consumption
is poor, the driving range will be shorter
than indicated.
If the low fuel level warning light comes
on, refuel the vehicle even if the display
indicates that the vehicle can be driven
further.
3. Average fuel consumption
(“TANK AVG”)
Average fuel consumption is calculated
and displayed based on total driving
distance and total fuel consumption
with the engine running.
The displayed value is updated every 10
seconds.
Every time you refuel the vehicle, the dis-
played value is reset.4. Driving distance
(“SINCE START”)
The driving distance after the engine
starts is displayed.
Every time you start the engine, the driv-
ing distance display is reset.
5. Average vehicle speed
(“AVG SPEED”)
Average vehicle speed is calculated and
displayed based on total driving dis-
tance and total driving time with the
engine running.
The displayed value is updated every 10
seconds.
6. Cruise information off
The display indicates only odometer and
two trip meters.
7. Zoom display of odometer and trip
meter
The odometer and one of the trip meters
are displayed simultaneously. See
“—Odometer and two trip meters” de-
scribed below.

’07Camry_U (L/O 0608)
138
2007MY CAMRY from Oct. ’06 Prod. (OM33748U)

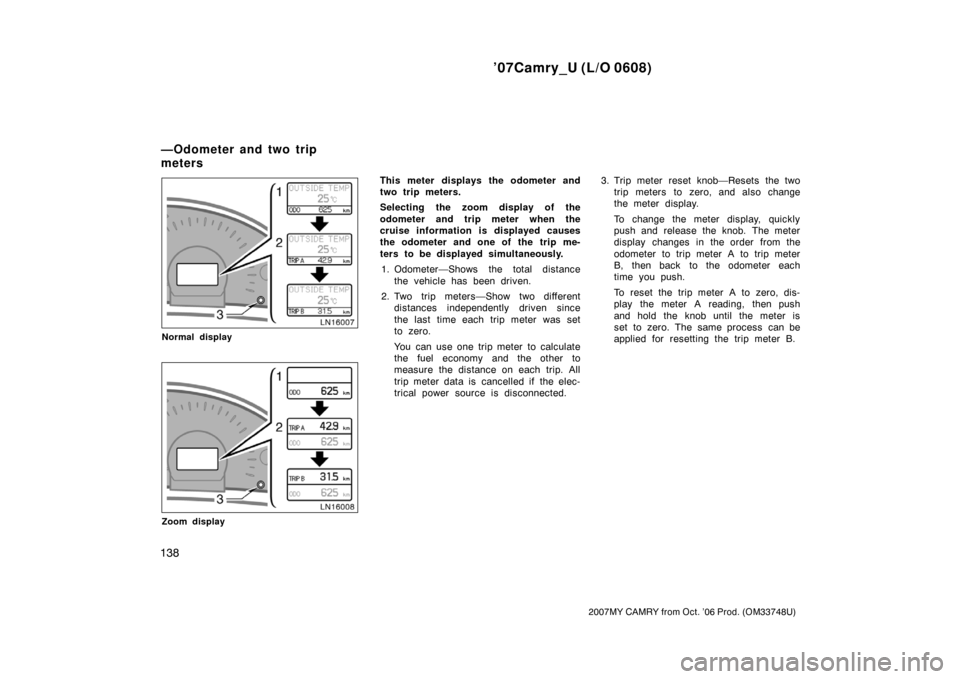

Normal display
Zoom display
This meter displays the odometer and
two trip meters.
Selecting the zoom display of the
odometer and trip meter when the
cruise information is displayed causes
the odometer and one of the trip me-
ters to be displayed simultaneously.
1. Odometer—Shows the total distance
the vehicle has been driven.
2. Two trip meters—Show two different
distances independently driven since
the last time each trip meter was set
to zero.
You can use one trip meter to calculate
the fuel economy and the other to
measure the distance on each trip. All
trip meter data is cancelled if the elec-
trical power source is disconnected.3. Trip meter reset knob—Resets the two
trip meters to zero, and also change
the meter display.
To change the meter display, quickly
push and release the knob. The meter
display changes in the order from the
odometer to trip meter A to trip meter
B, then back to the odometer each
time you push.
To reset the trip meter A to zero, dis-
play the meter A reading, then push
and hold the knob until the meter is
set to zero. The same process can be
applied for resetting the trip meter B.
—Odometer and two trip
meters

’07Camry_U (L/O 0608)
139
2007MY CAMRY from Oct. ’06 Prod. (OM33748U)
MessageStatusAction
aParking brake is not released.Release parking brake.
bEngine oil pressure is low.Stop and check.
cEngine coolant temperature is high.Stop your vehicle and allow engine to cool.
dAny of doors are opened.Close doors completely.
eHood is opened.Close hood completely.
—Messages

’07Camry_U (L/O 0608)
140
2007MY CAMRY from Oct. ’06 Prod. (OM33748U)

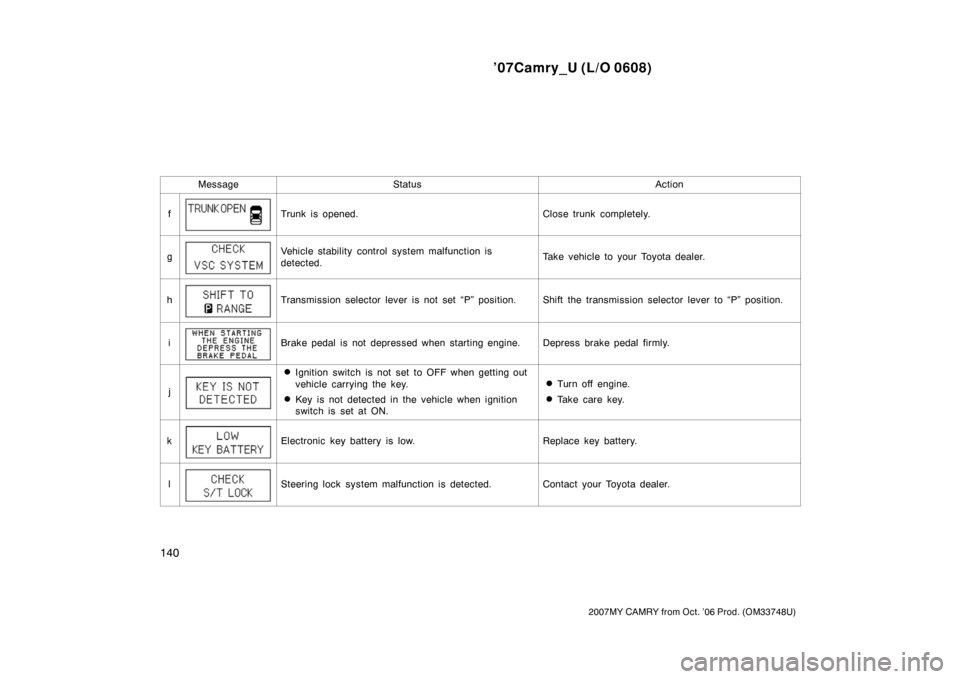

MessageStatusAction
fTrunk is opened.Close trunk completely.
gVehicle stability control system malfunction is
detected.Take vehicle to your Toyota dealer.
hTransmission selector lever is not set “P” position.Shift the transmission selector lever to “P” position.
iBrake pedal is not depressed when starting engine.Depress brake pedal firmly.
j
Ignition switch is not set to OFF when getting out
vehicle carrying the key.
Key is not detected in the vehicle when ignition
switch is set at ON.
Turn off engine.
Take care key.
kElectronic key battery is low.Replace key battery.
lSteering lock system malfunction is detected.Contact your Toyota dealer.

’07Camry_U (L/O 0608)
141
2007MY CAMRY from Oct. ’06 Prod. (OM33748U)
MessageStatusAction
mSteering lock is stuck.Rotate steering wheel slightly.
nOil change is nearly due.Check engine oil.
oOil change is due.Replace engine oil.
pWasher fluid level is low.Add washer fluid.
qMoon roof is opened with ignition switch off.Close moon roof.

’07Camry_U (L/O 0608)
142
2007MY CAMRY from Oct. ’06 Prod. (OM33748U)
(a)
This message is to warn the driver that
the parking brake is not completely re-
leased at the vehicle speed of 5 km/h
(3 mph) or more.
Stop the vehicle and release the park-
ing brake fully.
The message appears with the master
warning light and a warning tone sounds.
(b)
This message is to warn the driver that
the engine oil pressure is too low.
Turn the engine off as soon as possible
and contact your Toyota dealer.
The message appears with the master
warning light and a warning tone sounds.(c)
This message is to warn the driver that
the engine coolant temperature is too
high.
Stop the vehicle and allow the engine
to cool.
The message appears with the master
warning light and a warning tone sounds.
NOTICE
Do not continue driving with an over-
heated engine. See “If your vehicle
overheats” on page 342 in Section 4.
(d)
This message is to remind the driver
that any of the doors are opened.
Close the door securely.
The message appears with the master
warning light and a warning tone sounds
when the vehicle speed rises above 5
km/h (3 mph).
(e)
This message is to remind the driver
that the hood is opened.
Close the hood securely.
The message appears with the master
warning light and a warning tone sounds
when the vehicle speed rises above 5
km/h (3 mph).

’07Camry_U (L/O 0608)
143
2007MY CAMRY from Oct. ’06 Prod. (OM33748U)
(f)
This message is to remind the driver
that the trunk is opened.
Close the trunk securely.
The message appears with the master
warning light a warning tone sounds when
the vehicle speed rises above 5 km/h (3
mph).
(g)
This message is to warn the driver that
there is a problem somewhere in the
vehicle stability control system or trac-
tion control system.
Contact your Toyota dealer to service
vehicle.
In this case, the brakes will operate when
applied, and normal driving may be re-
sumed.
The message appears with the master
warning light and a warning tone sounds.(h)
This message is to warn the driver that
the transmission is not in the “P” posi-
tion when leaving the vehicle.
Put the transmission in the “P” posi-
tion.
If the transmission is not in the “P” posi-
tion with the ignition switch on, the mes-
sage appears with the master warning
light and a warning tone sounds when the
driver ’s door is opened.
(i)
This message is to remind the driver
that the brake pedal is not depressed
when starting the engine.
Depress the brake pedal firmly and press
the “ENGINE START STOP” switch. For
the starting procedure, see “How to start
the engine” on page 316 in Section 3.
If the brake pedal is not depressed, the
message appears and a warning tone
sounds when the engine is started.(j)
When this message appears in the fol-
lowing cases, a warning tone sounds.
The key is not detected in the vehicle
when the “ENGINE START STOP”
switch is pushed.
The key is not detected in the vehicle
because someone has taken the key
outside of the vehicle without turning
the engine off. At this time, a warning
tone sounds. The above message turns
off if the ignition switch is set at OFF
or the key is in the vehicle.
In addition to either of the above condi-
tions, if you get out from the vehicle,
carrying the key when the transmission
selector lever is in a position other than
“P” and the ignition switch is not set to
OFF, “SHIFT TO P RANGE” and “KEY IS
NOT DETECTED” appear alternately.

’07Camry_U (L/O 0608)
144
2007MY CAMRY from Oct. ’06 Prod. (OM33748U)
(k)
This message is to warn the driver that
the electronic key battery of the smart
entry and start system is low.
Change the key battery as soon as pos-
sible to ensure that the smart entry and
start system operates properly.
The message appears with the master
warning light and a warning tone sounds.(l)This message warns the driver that the
steering lock function malfunctions. At
this time, the amber indicator light on
the “ENGINE START STOP” switch
flashes.
The engine will not start in this case.
Contact your Toyota dealer as soon as
possible.
The message appears with the master
warning light and a warning tone sounds.
(m)
This message appears when the steer-
ing lock is stuck. The message appears
for 15 seconds. At this time, the green
indicator light on the “ENGINE START
STOP” switch flashes.
To free the steering lock, rotate the steer-
ing wheel slightly left or right while press-
ing the “ENGINE START STOP” switch.
The message appears with the master
warning light and a warning tone sounds.(n)
This message is to remind the driver to
change the engine oil. The message is
a prior notice.
Toyota recommends that the engine oil
be changed as soon as possible.
If the driving range after the previous oil
change reaches 7200 km (4500 miles), the
message appears for about 15 seconds
with the master warning light and a warn-
ing tone sounds.
The engine oil maintenance data must be
reset after the engine oil change. See
following “Resetting the engine oil mainte-
nance data”.
