2007 TOYOTA CAMRY coolant temperature

’07Camry_U (L/O 0608)
8
2007MY CAMRY from Oct. ’06 Prod. (OM33748U)
LN11061
1. Engine coolant temperature gauge
2. Service reminder indicators and
indicator lights
3. Tachometer4. Automatic transmission shift position
indicator lights
5. Speedometer
6. Fuel gauge7. Trip meter reset knob/instrument panel
light control knob
8. Odometer and two trip meters and
outside temperature display
9. Automatic transmission shift range
display
Instrument cluster overview
Without multiinformation display

’07Camry_U (L/O 0608)
9
2007MY CAMRY from Oct. ’06 Prod. (OM33748U)

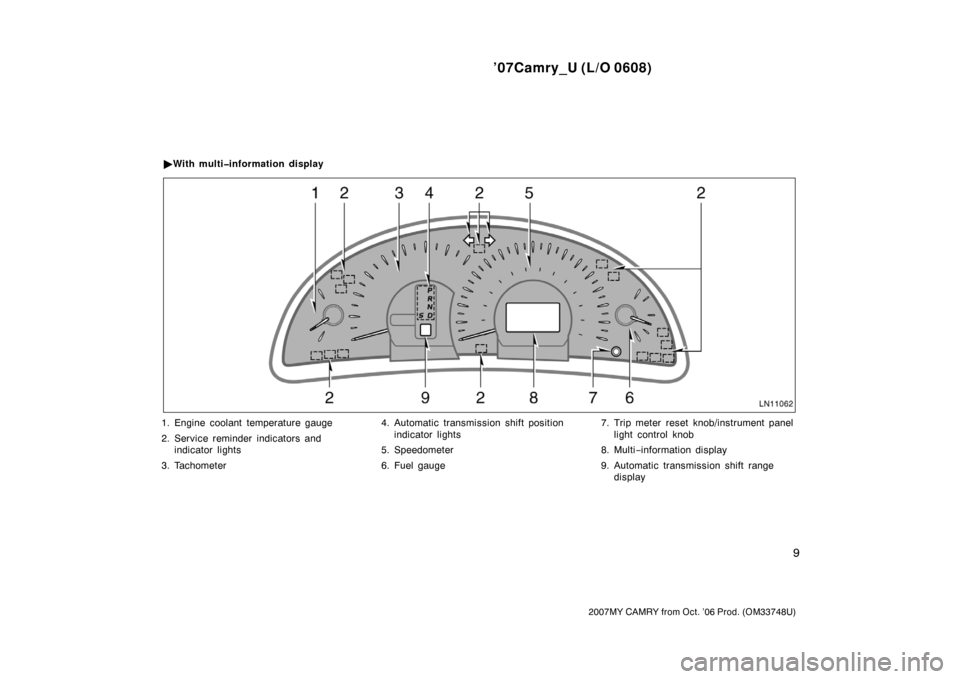

LN11062
1. Engine coolant temperature gauge
2. Service reminder indicators and
indicator lights
3. Tachometer4. Automatic transmission shift position
indicator lights
5. Speedometer
6. Fuel gauge7. Trip meter reset knob/instrument panel
light control knob
8. Multi−information display
9. Automatic transmission shift range
display With multiinformation display

’07Camry_U (L/O 0608)
131
2007MY CAMRY from Oct. ’06 Prod. (OM33748U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Gauges, Meters and Service reminder indicators
Fuel gauge132 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Engine coolant temperature gauge132 . . . . . . . . . . . . . . . . . . . . . . . . . . .
Tachometer133 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Odometer and two trip meters134 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Outside temperature display134 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Multi−information display135 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Service reminder indicators and warning buzzers146 . . . . . . . . . . . . . .
SECTION 1 6

’07Camry_U (L/O 0608)
132
2007MY CAMRY from Oct. ’06 Prod. (OM33748U)
The gauge indicates the approximate
quantity of fuel remaining in the tank
when the ignition switch is on.
Nearly full—Needle at “F”
Nearly empty—Needle at “E”
It is a good idea to keep the tank over
1/4 full.
If the fuel level approaches “E” or the low
fuel level warning light comes on, fill the
fuel tank as soon as possible.
On inclines or curves, due to the move-
ment of fuel in the tank, the fuel gauge
needle may fluctuate or the low fuel level
warning light may come on earlier than
usual.If the fuel tank is completely empty, the
malfunction indicator lamp comes on. Fill
the fuel tank immediately.
The indicator lamp goes off after driving
several times. If the indicator lamp does
not go off, contact your Toyota dealer as
soon as possible.The gauge indicates the engine coolant
temperature when the ignition switch is
on. The engine operating temperature
will vary with changes in weather and
engine load.
If the needle moves into the red zone,
your engine is too hot. If your vehicle
overheats, stop your vehicle and allow the
engine to cool.
Fuel gaugeEngine coolant temperature
gauge

’07Camry_U (L/O 0608)
133
2007MY CAMRY from Oct. ’06 Prod. (OM33748U)
Your vehicle may overheat during severe
operating conditions, such as:
Driving up a long hill on a hot day.
Reducing speed or stopping after high
speed driving.
Idling for a long period with the air
conditioning on in stop−and−go traffic.
Towing a trailer.
NOTICE
Do not remove the thermostat in
the engine cooling system as this
may cause the engine to overheat.
The thermostat is designed to con-
trol the flow of coolant to keep the
temperature of the engine within
the specified operating range.
Do not continue driving with an
overheated engine. See “If your ve-
hicle overheats” on page 342 in
Section 4.
The tachometer indicates engine speed
in thousands of rpm (revolutions per
minute). Use it while driving to select
correct shift points and to prevent en-
gine lugging and overrevving.
Driving with the engine running too fast
causes excessive engine wear and poor
fuel economy. Remember, in most cases
the slower the engine speed, the greater
the fuel economy.
NOTICE
Do not let the indicator needle get
into the red zone. This may cause
severe engine damage.
Tachometer

’07Camry_U (L/O 0608)
139
2007MY CAMRY from Oct. ’06 Prod. (OM33748U)
MessageStatusAction
aParking brake is not released.Release parking brake.
bEngine oil pressure is low.Stop and check.
cEngine coolant temperature is high.Stop your vehicle and allow engine to cool.
dAny of doors are opened.Close doors completely.
eHood is opened.Close hood completely.
—Messages

’07Camry_U (L/O 0608)
142
2007MY CAMRY from Oct. ’06 Prod. (OM33748U)
(a)
This message is to warn the driver that
the parking brake is not completely re-
leased at the vehicle speed of 5 km/h
(3 mph) or more.
Stop the vehicle and release the park-
ing brake fully.
The message appears with the master
warning light and a warning tone sounds.
(b)
This message is to warn the driver that
the engine oil pressure is too low.
Turn the engine off as soon as possible
and contact your Toyota dealer.
The message appears with the master
warning light and a warning tone sounds.(c)
This message is to warn the driver that
the engine coolant temperature is too
high.
Stop the vehicle and allow the engine
to cool.
The message appears with the master
warning light and a warning tone sounds.
NOTICE
Do not continue driving with an over-
heated engine. See “If your vehicle
overheats” on page 342 in Section 4.
(d)
This message is to remind the driver
that any of the doors are opened.
Close the door securely.
The message appears with the master
warning light and a warning tone sounds
when the vehicle speed rises above 5
km/h (3 mph).
(e)
This message is to remind the driver
that the hood is opened.
Close the hood securely.
The message appears with the master
warning light and a warning tone sounds
when the vehicle speed rises above 5
km/h (3 mph).

’07Camry_U (L/O 0608)
162
2007MY CAMRY from Oct. ’06 Prod. (OM33748U)
(b) Normal driving
1. Start the engine as instructed in “How
to start the engine” on page 316 in
Section 3. The transmission must be in
“P” or “N”.
2. With your foot holding down the brake
pedal, shift the selector lever to “D”.
When the lever is in the “D” position, the
automatic transmission system will select
the most suitable gear for running condi-
tions such as normal cruising, hill climb-
ing, hard towing, etc.
Always use the “D” position for better fuel
economy and quieter driving. If the engine
coolant temperature is low, the transmis-
sion will not shift into overdrive gear even
in the “D” position.
CAUTION
Never put your foot on the accelera-
tor pedal while shifting.
3. Release the parking brake and brake
pedal. Depress the accelerator pedal
slowly for smooth starting.(c) Using engine braking
To use engine braking, you can downshift
the transmission as follows:
Shift into the “4” position. The trans-
mission will downshift to fourth gear
and engine braking will be enabled.
Shift into the “3” position. The trans-
mission will downshift to third gear
when the vehicle speed drops down to
or lower than 141 km/h (76 mph), and
stronger engine braking will be en-
abled.
Shift into the “2” position. The trans-
mission will downshift to second gear
when the vehicle speed drops down to
or lower than 89 km/h (48 mph), and
stronger engine braking will be en-
abled.
Shift into the “L” position. The trans-
mission will downshift to first gear
when the vehicle speed drops down to
or lower than 40 km/h (21 mph), and
maximum engine braking will be en-
abled.
Vehicles with cruise control—When the
cruise control is being used, even if you
downshift from “D” to “4”, engine braking
will not be enabled because the cruise
control is not cancelled.For ways to decrease the vehicle speed,
see “Cruise control” on page 181 in this
Section.
CAUTION
Be careful when downshifting on a
slippery surface. Abrupt shifting
could cause the vehicle to skid or
spin.
(d) Using “3”, “2” and “L” positions
The “3”, “2” and “L” positions are used for
strong engine braking as described pre-
viously.
With the selector lever in “3”, “2” or “L”,
you can start the vehicle in motion as
with the lever in “D”.
With the selector lever in “3” or “2”, the
vehicle will start in first gear and automat-
ically shift to third gear or second gear.
With the selector lever in “L”, the trans-
mission is engaged in first gear.
