2007 TOYOTA CAMRY Owners Manual

’07Camry_U (L/O 0608)
273
2007MY CAMRY from Oct. ’06 Prod. (OM33748U)
6. Repeat steps 2 through 5 for each re-
maining HomeLink button to program
another device.
Programming a rolling code system
If your device is “Rolling Code”
equipped, it is necessary to follow
steps 1 through 4 under the heading
“Programming the HomeLink
” before
proceeding with the steps listed below.
1. Locate the “training” button on the ceil-
ing mounted garage door opener motor.
The exact location and color of the
button may vary by brand of garage
door opener. Refer to the owner ’s
guide supplied by the garage door
opener manufacturer for the location of
this “training” button.
2. Press the “training” button on the ceil-
ing mounted garage door opener motor.
Following this step, you have 30 seconds
in which to initiate step 3 below.
3. Press and release the vehicle’s pro-
grammed HomeLink
 button twice. The
garage door may open. If the door
does open, the programming process is
complete. If the door does not open,
press and release the button a third
time. This third press and release will
complete the programming process by
opening the garage door.The ceiling mounted garage door opener
motor should now recognize the
HomeLink
 unit and be able activate the
garage door up/down.
4. Repeat steps 1 through 3 for each re-
maining HomeLink
 button to program
another rolling code system.
Programming an entrance gate/program-
ming all devices in the Canadian market
1. Decide which of the 3 HomeLink
 but-
tons you want to program.
2. Place your hand−held gate/device
transmitter 25 to 75 mm (1 to 3 in.)
away from the surface of the
HomeLink
.
Keep the indicator light on the HomeLink

in view while programming.
3. Press and hold the selected
HomeLink
 button.
4. Continuously press and release (cycle)
the hand−held gate/device transmitter
button every two seconds until step 5
is complete.
5. When the indicator light on the
HomeLink
 changes from a slow to a
rapid flash after 20 seconds, you can
release both buttons.6. Test the operation of the HomeLink
 by
pressing the newly programmed button.
Check to see if the gate/device oper-
ates correctly.
7. Repeat steps 1 through 6 for each re-
maining HomeLink
 button to program
another device.
Programming other devices
To program other devices such as home
security systems, home door locks or
lighting, contact your authorized Toyota
dealer for assistance.
Reprogramming a button
Individual HomeLink
 buttons cannot be
erased, however, to reprogram a single
button, follow the procedure “Programming
the HomeLink
”.
(b) Operating the HomeLink

To operate the HomeLink, press the
appropriate HomeLink button to activate
the programmed device. The HomeLink
indicator light should come on. The
HomeLink continues to send the signal
for up to 20 seconds as long as the
button is pressed.

’07Camry_U (L/O 0608)
274
2007MY CAMRY from Oct. ’06 Prod. (OM33748U)
(c) Erasing the entire HomeLink
memory (all three programs)
To erase all previously programmed codes
at one time, press and hold down the 2
outside buttons for 20 seconds until the
indicator light flashes.
If you sell your vehicle, be sure to erase
the programs stored in the HomeLink

memory.
For additional programming assistance
with your HomeLink
 Universal
Transceiver call the:
Toyota Customer Experience Center at
1−800−331−4331 (U.S.A.)
Toyota Canada Customer Interaction
Centre at 1−888−869−6828 (Canada)Refer to HomeLink
 on the internet at:
WWW.HOMELINK.COM
CAUTION
When programming the HomeLink
Universal Transceiver, you may be
operating a garage door or other
device. Make sure people and ob-
jects are out of the way of the ga-
rage door or other device to pre-
vent potential harm or damage.
Do not use this HomeLink Univer-
sal Transceiver with any garage
door opener that lacks the safety
stop and reverse feature as re-
quired by federal safety standards.
(This includes any garage door
opener model manufactured before
April 1, 1982.) A garage door open-
er which cannot detect an object
(signaling the door to stop and re-
verse), does not meet current feder-
al safety standards. Using a garage
door opener without these features
increases risk of serious injury or
death.
This device complies with Part 15 of the
FCC Rules and with RSS−210 of the IC
Rules. Operation is subject to the fol-
lowing two conditions: (1) This device
may not cause harmful interference, and
(2) this device must accept any interfer-
ence received, including interference
that may cause undesired operation.
WARNING: This transmitter has been
tested and complies with FCC and IC
rules. Changes or modifications not
expressly approved by the party re-
sponsible for compliance could void
the user’s authority to operate the
device.

’07Camry_U (L/O 0608)
275
2007MY CAMRY from Oct. ’06 Prod. (OM33748U)

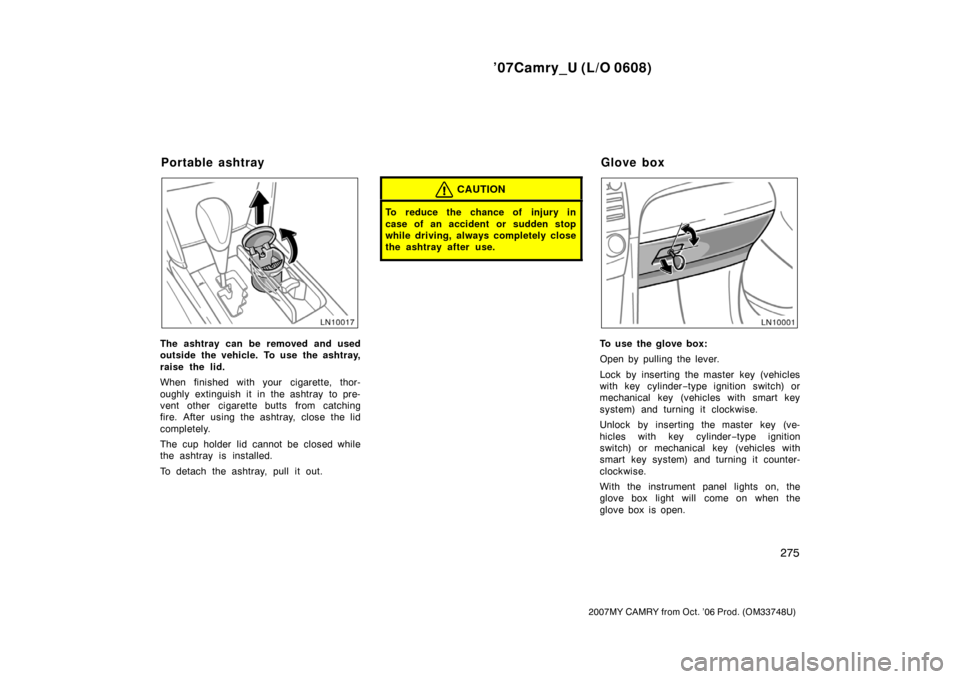

The ashtray can be removed and used
outside the vehicle. To use the ashtray,
raise the lid.
When finished with your cigarette, thor-
oughly extinguish it in the ashtray to pre-
vent other cigarette butts from catching
fire. After using the ashtray, close the lid
completely.
The cup holder lid cannot be closed while
the ashtray is installed.
To detach the ashtray, pull it out.
CAUTION
To reduce the chance of injury in
case of an accident or sudden stop
while driving, always completely close
the ashtray after use.

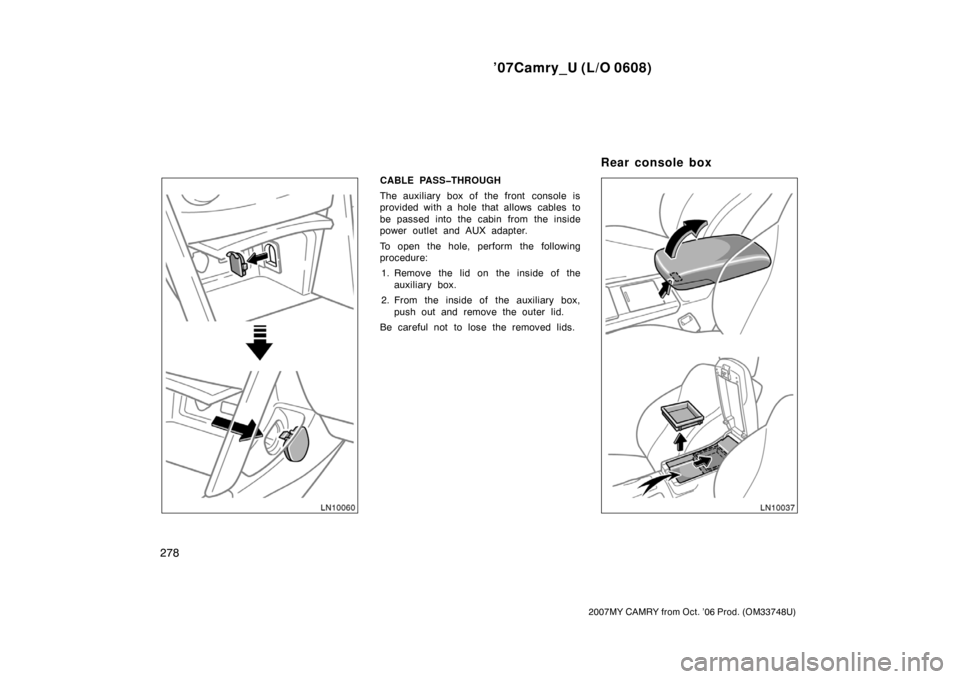

To use the glove box:
Open by pulling the lever.
Lock by inserting the master key (vehicles
with key cylinder−type ignition switch) or
mechanical key (vehicles with smart key
system) and turning it clockwise.
Unlock by inserting the master key (ve-
hicles with key cylinder−type ignition
switch) or mechanical key (vehicles with
smart key system) and turning it counter-
clockwise.
With the instrument panel lights on, the
glove box light will come on when the
glove box is open.
Portable ashtray Glove box

’07Camry_U (L/O 0608)
276
2007MY CAMRY from Oct. ’06 Prod. (OM33748U)
CAUTION
To reduce the chance of injury in
case of an accident or a sudden stop,
always keep the glove box door
closed while driving.

’07Camry_U (L/O 0608)
277
2007MY CAMRY from Oct. ’06 Prod. (OM33748U)
To use the boxes, open it as shown the
illustration.
1. Driver ’s side instrument panel
2. Overhead console
3. Front console
4. Center console (on some models)
CAUTION
To reduce the chance of injury in
case of an accident or a sudden stop,
always keep the auxiliary box closed
while driving.
NOTICE
Overhead console box—During hot
weather, the interior of the vehicle
becomes very hot. Do not leave any-
thing flammable or deformable such
as a lighter, glasses, etc. inside.
Auxiliary boxes

’07Camry_U (L/O 0608)
278
2007MY CAMRY from Oct. ’06 Prod. (OM33748U)
CABLE PASSTHROUGH
The auxiliary box of the front console is
provided with a hole that allows cables to
be passed into the cabin from the inside
power outlet and AUX adapter.
To open the hole, perform the following
procedure:
1. Remove the lid on the inside of the
auxiliary box.
2. From the inside of the auxiliary box,
push out and remove the outer lid.
Be careful not to lose the removed lids.
Rear console box

’07Camry_U (L/O 0608)
279
2007MY CAMRY from Oct. ’06 Prod. (OM33748U)
To open the console box, push the lock
release button and raise the console
box lid.
The upper tray slides forward/backward
and can be removed.
CAUTION
To reduce the chance of injury in
case of an accident or a sudden stop,
always keep the console box closed
while driving.
On some models—It is possible to use
the rear console box lid as an armrest
by moving it. To move it, grasp the
front of the lid and pull forward as
shown in the illustration.
When using the console box, return the lid
to its original position.Manual transmission models
Automatic transmission models (type A)

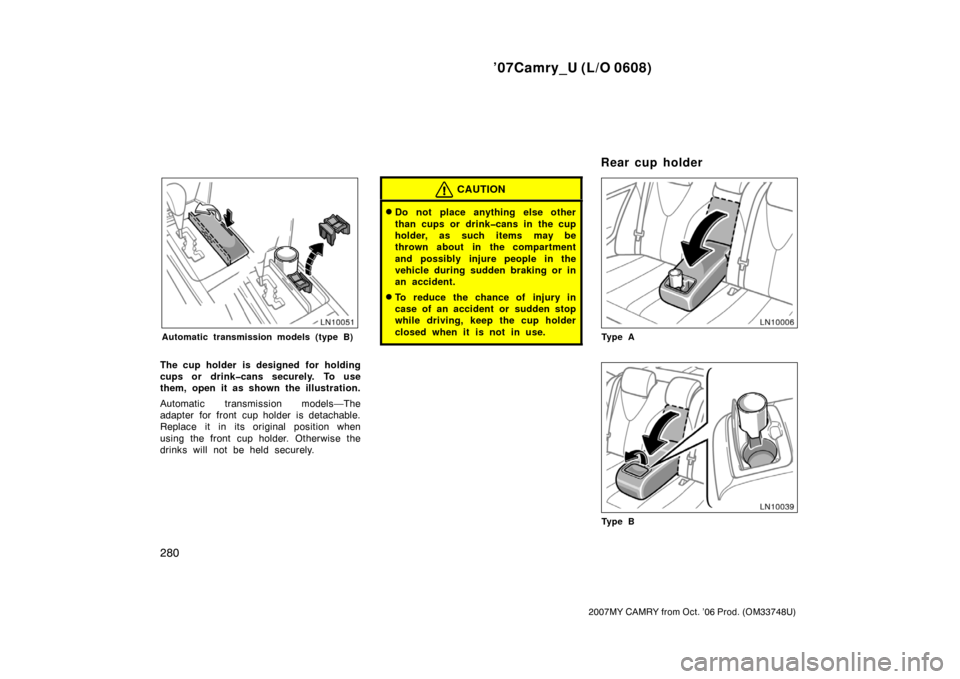

Front cup holder

’07Camry_U (L/O 0608)
280
2007MY CAMRY from Oct. ’06 Prod. (OM33748U)
Automatic transmission models (type B)
The cup holder is designed for holding
cups or drinkcans securely. To use
them, open it as shown the illustration.
Automatic transmission models—The
adapter for front cup holder is detachable.
Replace it in its original position when
using the front cup holder. Otherwise the
drinks will not be held securely.
CAUTION
Do not place anything else other
than cups or drinkcans in the cup
holder, as such items may be
thrown about in the compartment
and possibly injure people in the
vehicle during sudden braking or in
an accident.
To reduce the chance of injury in
case of an accident or sudden stop
while driving, keep the cup holder
closed when it is not in use.
Ty p e A
Ty p e B
Rear cup holder
