2007 TOYOTA CAMRY Owners Manual

’07Camry_U (L/O 0608)
321
2007MY CAMRY from Oct. ’06 Prod. (OM33748U)
(C) A warning buzzer sounds from the
vehicle for two seconds after locking
the door with the door handle switch
This indicates that the driver is attempting
to lock the doors while carrying the key,
neglecting to follow the instructions for
case (B) above.
Lock the doors only after turning off the
engine by pressing the “ENGINE START
STOP” switch and checking that the igni-
tion switch indicator light has gone off.
A warning buzzer that sounds even though
the engine has been turned off indicates
that driver is attempting to lock the ve-
hicle with the keys still in the vehicle.
Leave the vehicle only after making sure
that you are carrying the key.(D) A warning buzzer sounds continu-
ously from the instrument cluster
when opening the driver ’s door
This indicates that the transmission selec-
tor lever is in a position other than “P”
and that the ignition switch is not set at
OFF. The “SHIFT TO P RANGE” message
will also appears on the multi−information
display.
Get out of the vehicle only after setting
the transmission selector lever in the “P”
position, turning off the engine by pressing
the “ENGINE START STOP” switch and
checking that the ignition switch indicator
light has gone off.(E) A warning buzzer sounds continu-
ously from the instrument cluster
and from the vehicle when closing
the door after getting out of the ve-
hicle
This indicates that the driver is attempting
to leave the vehicle carrying the key, ne-
glecting to follow the instructions for case
(D) above. The messages, “SHIFT TO P
RANGE” and “KEY IS NOT DETECTED”,
will also appear alternately on the multi−
information display and the master warn-
ing light will come on.
Get out of the vehicle only after setting
the transmission selector lever in the “P”
position, turning off the engine by pressing
the “ENGINE START STOP” switch and
checking that the ignition switch indicator
light has gone off.

’07Camry_U (L/O 0608)
322
2007MY CAMRY from Oct. ’06 Prod. (OM33748U)
(F) A warning buzzer sounds once from
the instrument cluster and three
times from the vehicle when a pas-
senger is getting out of the vehicle
This indicates that the passenger is at-
tempting to leave the vehicle carrying the
key, without the ignition switch set at OFF.
The “KEY IS NOT DETECTED” message
will also appear on the multi−information
display and the master warning light will
come on.
When passengers get out of the vehicle,
care should be taken to leave the key
with the driver. If the driver begins driving
after a passenger gets out of the vehicle
carrying the key, a warning buzzer will
sound once more.
(G) A warning buzzer sounds from the
vehicle for two seconds when lock-
ing the vehicle from the outside with
the door handle switch
This indicates that the driver is attempting
to lock the door with the key still in the
vehicle.
Leave the vehicle only after making sure
that you are carrying the key.(H) A warning buzzer sounds once from
the instrument cluster when turning
off the ignition switch
This indicates that the key battery is low.
(This warning buzzer sounds only when
the engine has been on or the ignition
switch has been set at ON for 20 minutes
or more.) The “LOW KEY BATTERY” mes-
sage will also appear on the multi−infor-
mation display.
Change the key battery ahead of time in
order to ensure that the smart key system
properly.
(I) A warning buzzer sounds repeatedly
from the instrument cluster when
opening the driver ’s door with the
ignition switch turned off
This indicates that the steering wheel is
not locked. Turn the engine off and then
open the door in order to lock the steering
wheel.(J) The “ENGINE START STOP” switch
flashes green once every second
This indicates that the steering lock is
stuck. The “S/T IS NOT UNLOCKED”
message will also appear on the multi−in-
formation display.
To free it, rotate the steering wheel slight-
ly while pressing the “ENGINE START
STOP” switch.
(K) The “ENGINE START STOP” switch
flashes amber once every 2 seconds
When “CHECK S/T LOCK” is displayed on
the multi−information display—
This indicates a problem with the steering
lock function. Have your vehicle checked
at your Toyota dealer.
When no message is displayed on the
multi−information display—
This indicates a problem with the push
button start function. Have your vehicle
checked at your Toyota dealer.

’07Camry_U (L/O 0608)
323
2007MY CAMRY from Oct. ’06 Prod. (OM33748U)
THEFT PREVENTION FUNCTION
When the engine is turned off, the en-
gine immobilizer system is automatical-
ly set. (See “Engine immobilizer sys-
tem” on page 18 in Section 1−2.)
When the driver ’s door is opened after
turning off the engine, the steering
wheel will lock.
When the vehicle’s battery is dis-
charged, the steering lock function may
not operate properly.
Always slow down in gusty crosswinds.
This will allow you much better control.
Drive slowly onto curbs and, if pos-
sible, at a right angle. Avoid driving
onto high, sharp−edged objects and
other road hazards. Failure to do so
can lead to severe tire damage such
as a tire burst.
Drive slowly when passing over bumps
or travelling on a bumpy road. Other-
wise, the impact could cause severe
damage to the tires and/or wheels.
When parking on a hill, turn the front
wheels until they touch the curb so
that the vehicle will not roll. Apply the
parking brake, and place the transmis-
sion in “P” (automatic) or in first or
reverse (manual). If necessary, block
the wheels.
Washing your vehicle or driving through
deep water may get the brakes wet. To
see whether they are wet, check that
there is no traffic near you, and then
press the pedal lightly. If you do not
feel a normal braking force, the brakes
are probably wet. To dry them, drive
the vehicle cautiously while lightly
pressing the brake pedal with the park-
ing brake applied. If they still do not
work safely, pull to the side of the road
and call a Toyota dealer for assistance.
CAUTION
Before driving off, make sure that
the parking brake is fully released
and the parking brake reminder
light is off.
Do not leave your vehicle unat-
tended while the engine is running.
Do not rest your foot on the brake
pedal while driving. It can cause
dangerous overheating, needless
wear, and poor fuel economy.
To drive down a long or steep hill,
reduce your speed and downshift.
Remember, if you ride the brakes
excessively, they may overheat and
not work properly.
Tips for driving in various
conditions

’07Camry_U (L/O 0608)
324
2007MY CAMRY from Oct. ’06 Prod. (OM33748U)
Be careful when accelerating, up-
shifting, downshifting or braking on
a slippery surface. Sudden accelera-
tion or engine braking could cause
the vehicle to skid or spin.
Do not drive in excess of the speed
limit. Even if the legal speed limit
permits it, do not drive over 140
km/h (85 mph) unless your vehicle
has highspeed capability tires.
Driving over 140 km/h (85 mph) may
result in tire failure, loss of control
and possible injury. Be sure to con-
sult a tire dealer to determine
whether the tires on your vehicle
are highspeed capability tires or
not before driving at such speeds.
Do not continue normal driving
when the brakes are wet. If they are
wet, your vehicle will require a
longer stopping distance, and it
may pull to one side when the
brakes are applied. Also, the park-
ing brake will not hold the vehicle
securely.
Make sure your coolant is properly pro-
tected against freezing.
Only use “Toyota Super Long Life Coolant”
or similar high quality ethylene glycol
based non−silicate, non−amine, non−nitrite,
and non−borate coolant with long−life
hybrid organic acid technology. (Coolant
with long−life hybrid organic acid
technology is a combination of low
phosphates and organic acids.)
See “Checking the engine coolant level”
on page 382 in Section 7−2 for details of
coolant type selection.
For the U.S.A.—“Toyota Super Long Life
Coolant” is a mixture of 50% coolant and
50% deionized water. This coolant pro-
vides protection down to about −35C
(−31F).
For Canada—“Toyota Super Long Life
Coolant” is a mixture of 55% coolant and
45% deionized water. This coolant pro-
vides protection down to about −42C
(−44F).
NOTICE
Do not use plain water alone.
Check the condition of the battery and
cables.
Cold temperatures reduce the capacity of
any battery, so it must be in top shape
to provide enough power for winter start-
ing. Section 7−3 tells you how to visually
inspect the battery. Your Toyota dealer
and most service stations will be pleased
to check the level of charge.
Make sure the engine oil viscosity is
suitable for the cold weather.
See page 381 in Section 7−2 for recom-
mended viscosity. Leaving a heavy sum-
mer oil in your vehicle during winter
months may cause harder starting. If you
are not sure about which oil to use, call
your Toyota dealer—they will be pleased
to help.
Keep the door locks from freezing.
Squirt lock de−icer or glycerine into the
locks to keep them from freezing.
Winter driving tips

’07Camry_U (L/O 0608)
325
2007MY CAMRY from Oct. ’06 Prod. (OM33748U)
Use a washer fluid containing an anti-
freeze solution.
This product is available at your Toyota
dealer and most auto parts stores. Follow
the manufacturer ’s directions for how
much to mix with water.
NOTICE
Do not use engine antifreeze or any
other substitute because it may dam-
age your vehicle’s paint.
Do not use your parking brake when
there is a possibility it could freeze.
When parking, put the transmission into
“P” (automatic) or into first or reverse
(manual) and block the rear wheels. Do
not use the parking brake, or snow or
water accumulated in and around the
parking brake mechanism may freeze,
making it hard to release.
Keep ice and snow from accumulating
under the fenders.
Ice and snow built up under your fenders
can make steering difficult. During bad
winter driving, stop and check under the
fenders occasionally.Depending on where you are driving,
we recommend you carry some emer-
gency equipment.
Some of the things you might put in the
vehicle are tire chains, window scraper,
bag of sand or salt, flares, small shovel,
jumper cables, etc.Your vehicle is not designed to be
dinghy towed (with four wheels on the
ground) behind a motorhome.
NOTICE
Do not tow your vehicle with four
wheels on the ground. This may
cause serious damage to your vehicle.
Dinghy towing
(with automatic transmission)

’07Camry_U (L/O 0608)
326
2007MY CAMRY from Oct. ’06 Prod. (OM33748U)
Your vehicle can be dinghy towed (with
four wheels on the ground) from the
front behind a motorhome.
CAUTION
Dinghy towing requires special equip-
ment and accessories. Please refer to
your service outlet of the motorhome
manufacture for the recommended
equipment.
NOTICE
Dinghy towing does not eliminate the
possibility of damage to your vehicle.
DINGHY TOWING TIPS
Before dinghy towing, be sure to ob-
serve the following in order to reduce
the damage to your vehicle.
1. Put the shift lever in neutral.
2. Set the ignition switch at ACC. Make
sure the audio is turned off and any
item is not plugged into the power out-
let.
NOTICE
To avoid the locking of the steering
wheel, set the ignition switch at ACC.
3. Release the parking brake.
After dinghy towing, let the engine idle for
more than 3 minutes before driving the
vehicle.
NOTICE
Do not tow your vehicle from the
rear. This may cause serious damage
to your vehicle.
Dinghy towing
(with manual transmission)

’07Camry_U (L/O 0608)
327
2007MY CAMRY from Oct. ’06 Prod. (OM33748U)
Your vehicle is designed primarily as a
passenger−carrying vehicle. Towing a
trailer will have an adverse effect on
handling, performance, braking, durability
and driving economy (fuel consumption,
etc.). Your safety and satisfaction depend
on the proper use of correct equipment
and cautious driving habits. For your
safety and the safety of others, you must
not overload your vehicle or trailer. Toyota
warranties do not apply to damage or
malfunction caused by towing a trailer for
commercial purposes. Ask your local
Toyota dealer for further details before
towing.
NOTICE
When towing a trailer, be sure to con-
sult your Toyota dealer for further in-
formation on additional requirements
such as a towing kit, etc.
WEIGHT LIMITS
Before towing, make sure the total trailer
weight, gross vehicle weight, gross axle
weight and trailer tongue load are all with-
in the limits.
The total trailer weight and tongue load
can be measured with platform scales
found at a highway weighing station, build-
ing supply company, trucking company,
junk yard, etc.
CAUTION
The total trailer weight (trailer
weight plus its cargo load) must
not exceed 453 kg (1000 lb.). Ex-
ceeding this weight is dangerous.
Trailer hitch assemblies have differ-
ent weight capacities established by
the hitch manufacturer. Even though
the vehicle may be physically capa-
ble of towing a higher weight, the
operator must determine the maxi-
mum weight rating of the particular
hitch assembly and never exceed
the maximum weight rating speci-
fied for the trailerhitch. Exceeding
the maximum weight rating set by
the trailer hitch manufacturer can
cause an accident resulting in seri-
ous personal injuries.
Tr ailer to win g

’07Camry_U (L/O 0608)
328
2007MY CAMRY from Oct. ’06 Prod. (OM33748U)

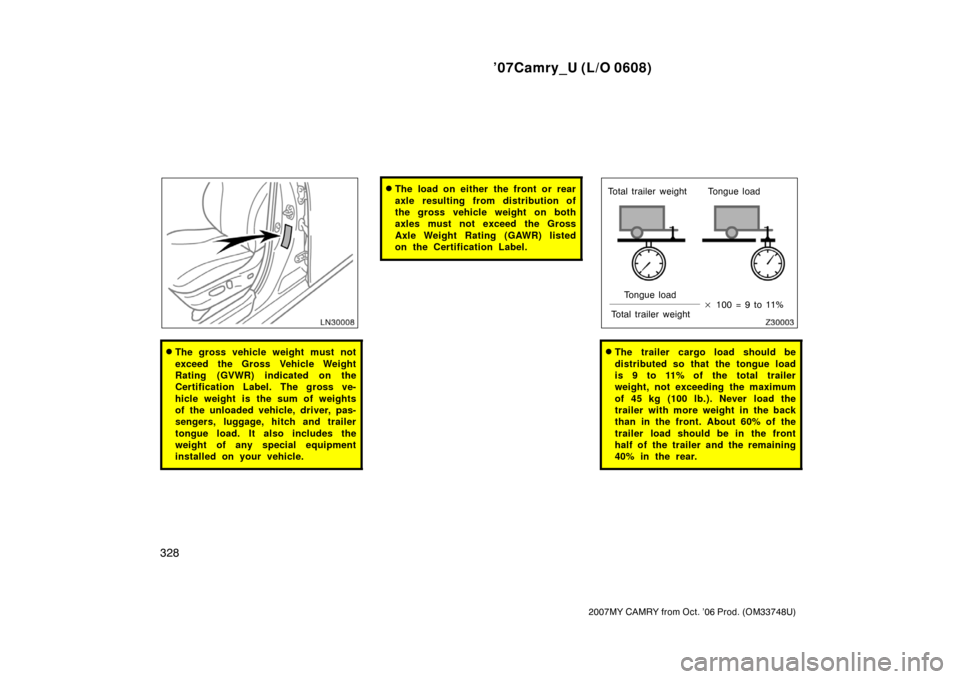

The gross vehicle weight must not
exceed the Gross Vehicle Weight
Rating (GVWR) indicated on the
Certification Label. The gross ve-
hicle weight is the sum of weights
of the unloaded vehicle, driver, pas-
sengers, luggage, hitch and trailer
tongue load. It also includes the
weight of any special equipment
installed on your vehicle.
The load on either the front or rear
axle resulting from distribution of
the gross vehicle weight on both
axles must not exceed the Gross
Axle Weight Rating (GAWR) listed
on the Certification Label.Total trailer weight Tongue load
Tongue load
Total trailer weight 100 = 9 to 11%
The trailer cargo load should be
distributed so that the tongue load
is 9 to 11% of the total trailer
weight, not exceeding the maximum
of 45 kg (100 lb.). Never load the
trailer with more weight in the back
than in the front. About 60% of the
trailer load should be in the front
half of the trailer and the remaining
40% in the rear.
