2007 TOYOTA CAMRY Owners Manual

’07Camry_U (L/O 0608)
65
2007MY CAMRY from Oct. ’06 Prod. (OM33748U)
CAUTION
Adjust the center of the head re-
straint so that it is closest to the
top of your ears.
After adjusting the head restraint,
make sure it is locked in position.
Do not drive with the head re-
straints removed.
To use the armrest, pull it out as
shown above.Toyota strongly urges that the driver and
passengers in the vehicle be properly re-
strained at all times with the seat belts
provided. Failure to do so could increase
the chance of injury and/or the severity of
injury in accidents.
The seat belts provided for your vehicle
are designed for people of adult size,
large enough to properly wear them.
Child. Use a child restraint system ap-
propriate for the child until the child be-
comes large enough to properly wear the
vehicle’s seat belts. See “Child restraint”
on page 95 in this Section for details.
If a child is too large for a child restraint
system, the child should sit in the rear
seat and must be restrained using the
vehicle’s seat belt. According to accident
statistics, the child is safer when properly
restrained in the rear seat than in the
front seat.
If a child must sit in the front seat, the
seat belts should be worn properly. If an
accident occurs and the seat belts are not
worn properly, the force of the rapid infla-
tion of the airbag may cause death or
serious injury to the child.
ArmrestSeat belts—
—Seat belt precautions

’07Camry_U (L/O 0608)
66
2007MY CAMRY from Oct. ’06 Prod. (OM33748U)
Do not allow any children to stand up or
kneel on either rear or front seats. An
unrestrained child could suffer serious in-
jury or death during emergency braking or
a collision. Also, do not let the child sit
on your lap. Holding a child in your arms
does not provide sufficient restraint.
Pregnant woman. Toyota recommends the
use of a seat belt. Ask your doctor for
specific recommendations. The lap belt
should be worn securely and as low as
possible over the hips and not on the
waist.
Injured person. Toyota recommends the
use of a seat belt. Depending on the inju-
ry, first check with your doctor for specific
recommendations.CAUTION
Persons should ride in their seats
properly wearing their seat belts
whenever the vehicle is moving.
Otherwise, they are much more likely
to suffer serious bodily injury or
death in the event of sudden braking
or a collision.
When using the seat belts, observe
the following:
Use the belt for only one person at
a time. Do not use a single belt for
two or more people—even children.
Avoid reclining the seatback any
more than needed. The seat belts
provide maximum protection in a
frontal or rear collision when the
driver and the front passenger are
sitting up straight and well back in
the seats. If you are reclined, the
lap belt may slide past your hips
and apply restraint forces directly
to the abdomen or your neck may
contact the shoulder belt. In the
event of a frontal collision, the
more the seat is reclined, the great-
er the risk of death or personal in-
jury.
Be careful not to damage the belt
webbing or hardware. Take care that
they do not get caught or pinched
in the seat or doors.
Inspect the belt system periodically.
Check for cuts, fraying, and loose
parts. Damaged parts should be re-
placed. Do not disassemble or
modify the system.
Keep the belts clean and dry. If
they need cleaning, use a mild soap
solution or lukewarm water. Never
use bleach, dye, or abrasive clean-
ers, or allow them to come into
contact with the belts—they may
severely weaken the belts. (See
“Cleaning the interior” on page 361
in Section 5.)
Replace the belt assembly (includ-
ing bolts) if it has been used in a
severe impact. The entire assembly
should be replaced even if damage
is not obvious.

’07Camry_U (L/O 0608)
67
2007MY CAMRY from Oct. ’06 Prod. (OM33748U)

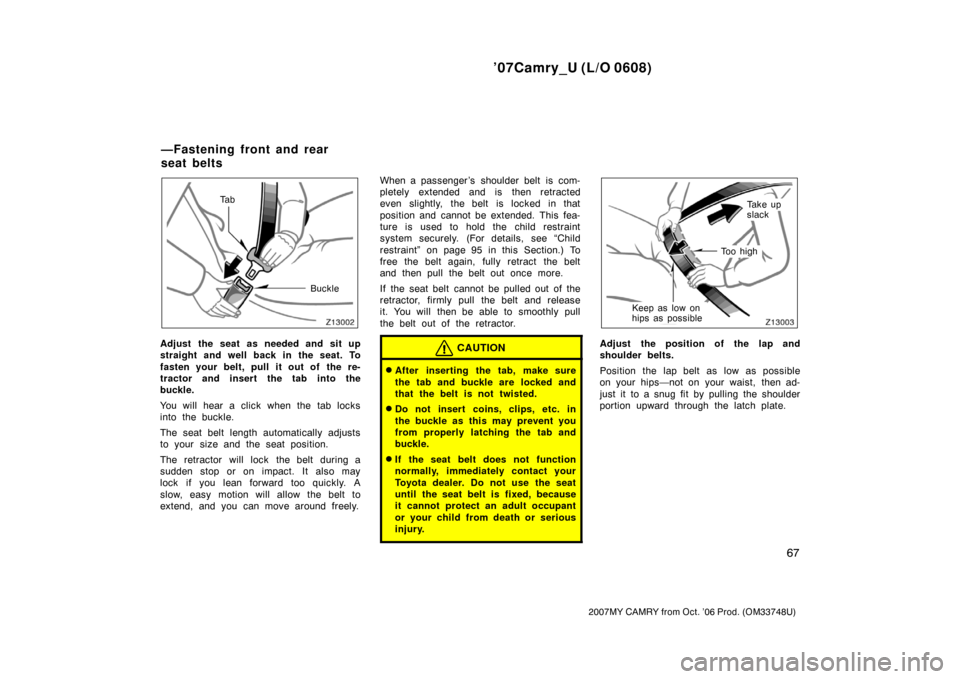

Buckle Ta b
Adjust the seat as needed and sit up
straight and well back in the seat. To
fasten your belt, pull it out of the re-
tractor and insert the tab into the
buckle.
You will hear a click when the tab locks
into the buckle.
The seat belt length automatically adjusts
to your size and the seat position.
The retractor will lock the belt during a
sudden stop or on impact. It also may
lock if you lean forward too quickly. A
slow, easy motion will allow the belt to
extend, and you can move around freely.When a passenger ’s shoulder belt is com-
pletely extended and is then retracted
even slightly, the belt is locked in that
position and cannot be extended. This fea-
ture is used to hold the child restraint
system securely. (For details, see “Child
restraint” on page 95 in this Section.) To
free the belt again, fully retract the belt
and then pull the belt out once more.
If the seat belt cannot be pulled out of the
retractor, firmly pull the belt and release
it. You will then be able to smoothly pull
the belt out of the retractor.CAUTION
After inserting the tab, make sure
the tab and buckle are locked and
that the belt is not twisted.
Do not insert coins, clips, etc. in
the buckle as this may prevent you
from properly latching the tab and
buckle.
If the seat belt does not function
normally, immediately contact your
Toyota dealer. Do not use the seat
until the seat belt is fixed, because
it cannot protect an adult occupant
or your child from death or serious
injury.
Ta k e u p
slack
To o h i g h
Keep as low on
hips as possible
Adjust the position of the lap and
shoulder belts.
Position the lap belt as low as possible
on your hips—not on your waist, then ad-
just it to a snug fit by pulling the shoulder
portion upward through the latch plate.
—Fastening front and rear
seat belts

’07Camry_U (L/O 0608)
68
2007MY CAMRY from Oct. ’06 Prod. (OM33748U)
CAUTION
Both highpositioned lap belts and
loosefitting belts could cause seri-
ous injuries due to sliding under
the lap belt during a collision or
other unintended event. Keep the
lap belt positioned as low on hips
as possible.
Do not place the shoulder belt un-
der your arm.

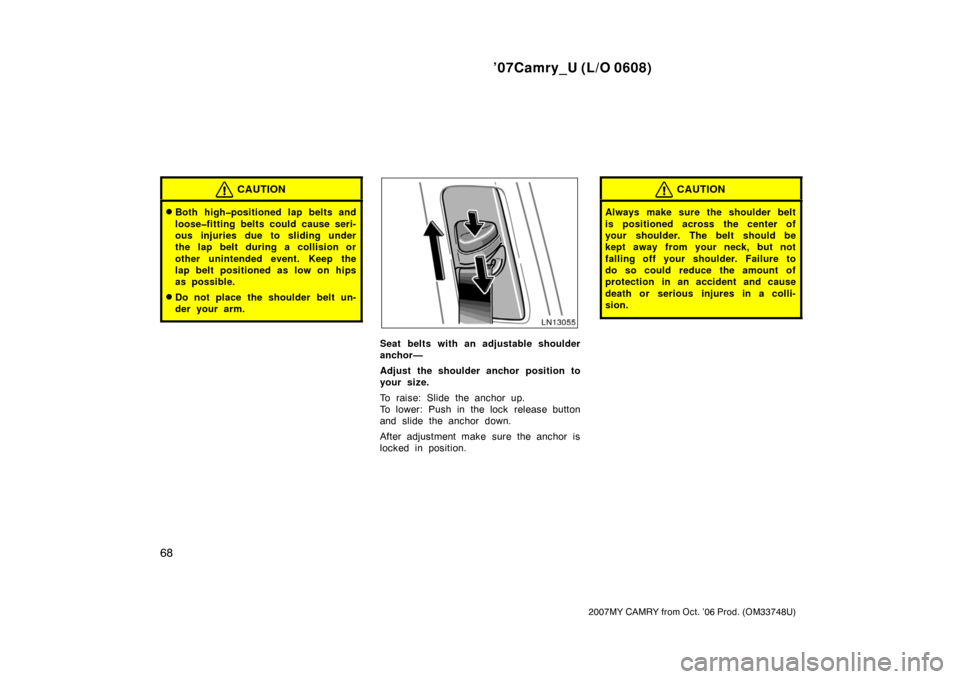

Seat belts with an adjustable shoulder
anchor—
Adjust the shoulder anchor position to
your size.
To raise: Slide the anchor up.
To lower: Push in the lock release button
and slide the anchor down.
After adjustment make sure the anchor is
locked in position.
CAUTION
Always make sure the shoulder belt
is positioned across the center of
your shoulder. The belt should be
kept away from your neck, but not
falling off your shoulder. Failure to
do so could reduce the amount of
protection in an accident and cause
death or serious injures in a colli-
sion.

’07Camry_U (L/O 0608)
69
2007MY CAMRY from Oct. ’06 Prod. (OM33748U)

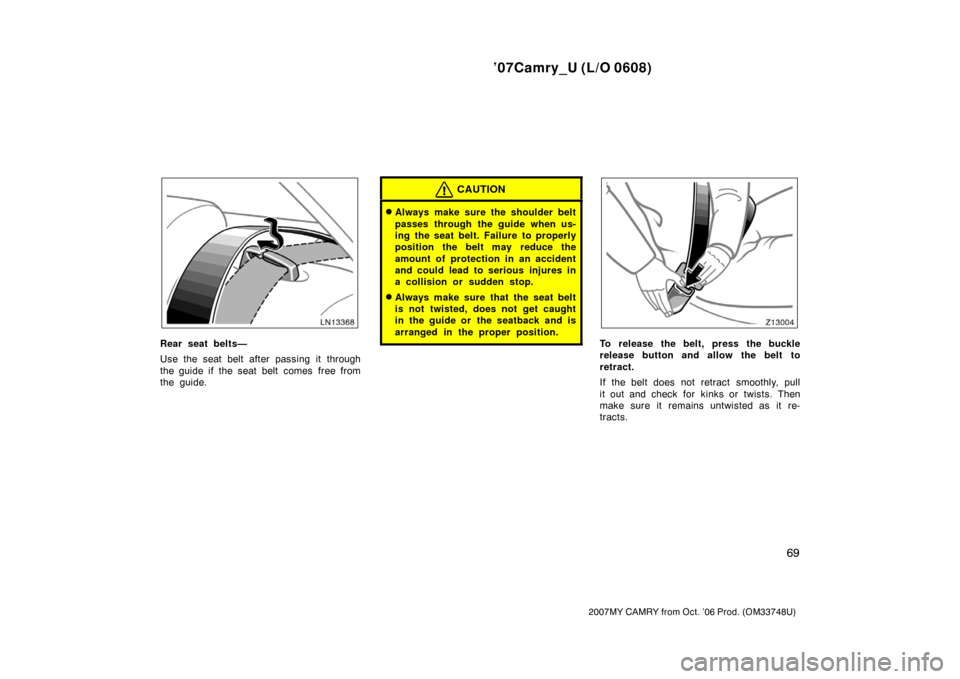

Rear seat belts—
Use the seat belt after passing it through
the guide if the seat belt comes free from
the guide.
CAUTION
Always make sure the shoulder belt
passes through the guide when us-
ing the seat belt. Failure to properly
position the belt may reduce the
amount of protection in an accident
and could lead to serious injures in
a collision or sudden stop.
Always make sure that the seat belt
is not twisted, does not get caught
in the guide or the seatback and is
arranged in the proper position.
To release the belt, press the buckle
release button and allow the belt to
retract.
If the belt does not retract smoothly, pull
it out and check for kinks or twists. Then
make sure it remains untwisted as it re-
tracts.

’07Camry_U (L/O 0608)
70
2007MY CAMRY from Oct. ’06 Prod. (OM33748U)

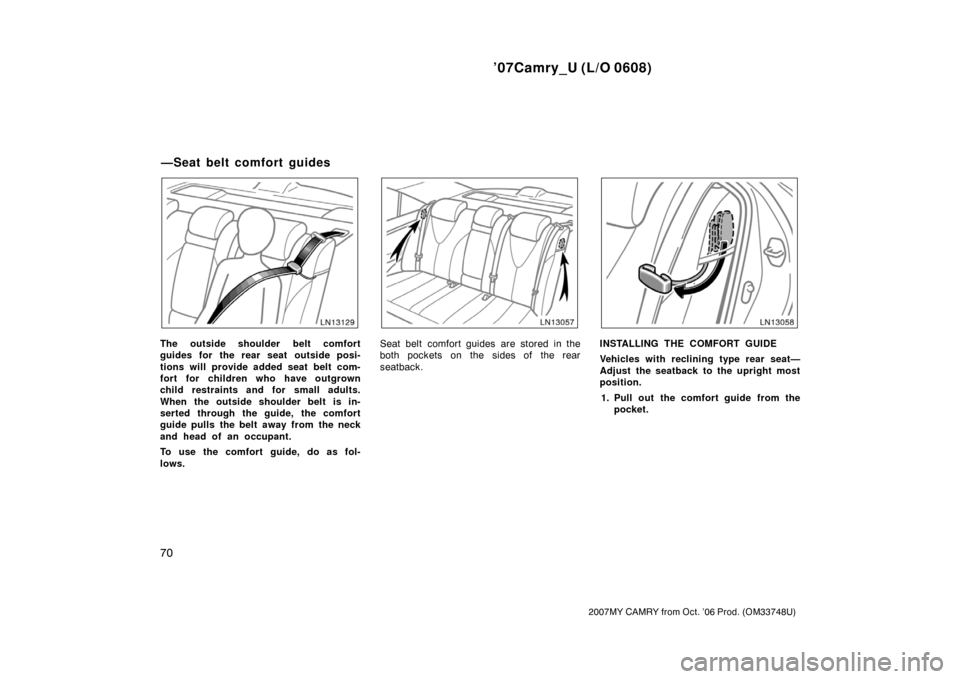

The outside shoulder belt comfort
guides for the rear seat outside posi-
tions will provide added seat belt com-
fort for children who have outgrown
child restraints and for small adults.
When the outside shoulder belt is in-
serted through the guide, the comfort
guide pulls the belt away from the neck
and head of an occupant.
To use the comfort guide, do as fol-
lows.Seat belt comfort guides are stored in the
both pockets on the sides of the rear
seatback.INSTALLING THE COMFORT GUIDE
Vehicles with reclining type rear seat—
Adjust the seatback to the upright most
position.
1. Pull out the comfort guide from the
pocket.
—Seat belt comfort guides

’07Camry_U (L/O 0608)
71
2007MY CAMRY from Oct. ’06 Prod. (OM33748U)

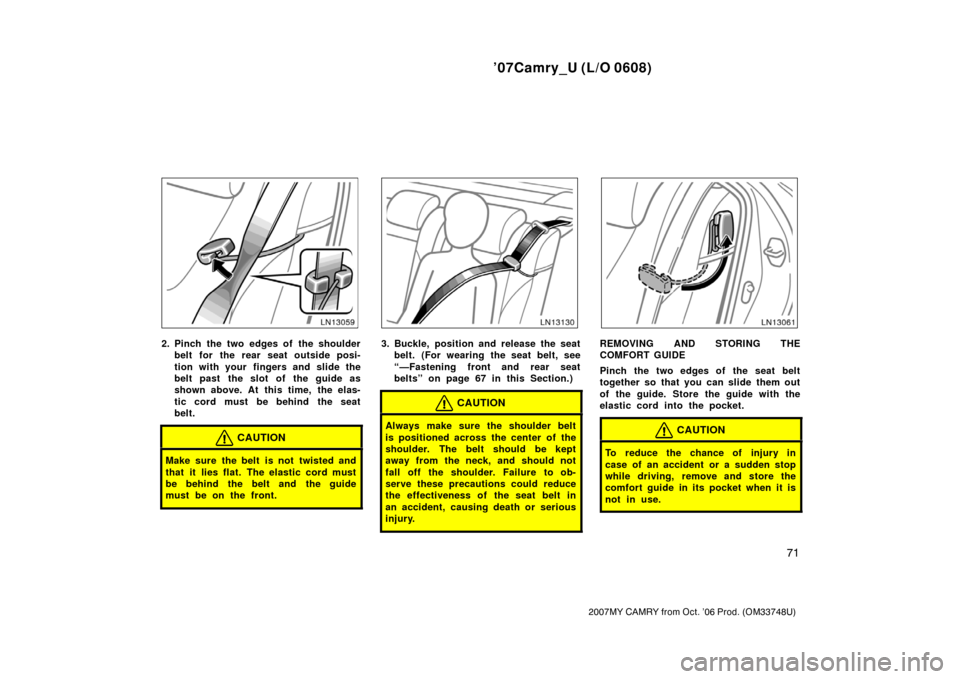

2. Pinch the two edges of the shoulder
belt for the rear seat outside posi-
tion with your fingers and slide the
belt past the slot of the guide as
shown above. At this time, the elas-
tic cord must be behind the seat
belt.
CAUTION
Make sure the belt is not twisted and
that it lies flat. The elastic cord must
be behind the belt and the guide
must be on the front.
3. Buckle, position and release the seat
belt. (For wearing the seat belt, see
“—Fastening front and rear seat
belts” on page 67 in this Section.)
CAUTION
Always make sure the shoulder belt
is positioned across the center of the
shoulder. The belt should be kept
away from the neck, and should not
fall off the shoulder. Failure to ob-
serve these precautions could reduce
the effectiveness of the seat belt in
an accident, causing death or serious
injury.
REMOVING AND STORING THE
COMFORT GUIDE
Pinch the two edges of the seat belt
together so that you can slide them out
of the guide. Store the guide with the
elastic cord into the pocket.
CAUTION
To reduce the chance of injury in
case of an accident or a sudden stop
while driving, remove and store the
comfort guide in its pocket when it is
not in use.

’07Camry_U (L/O 0608)
72
2007MY CAMRY from Oct. ’06 Prod. (OM33748U)
If your seat belts cannot be fastened se-
curely because they are not long enough,
a personalized seat belt extender is avail-
able from your Toyota dealer free of
charge.
Please contact your local Toyota dealer to
order the proper required length for the
extender. Bring the heaviest coat you ex-
pect to wear for proper measurement and
selection of length. Additional ordering in-
formation is available at your Toyota deal-
er.

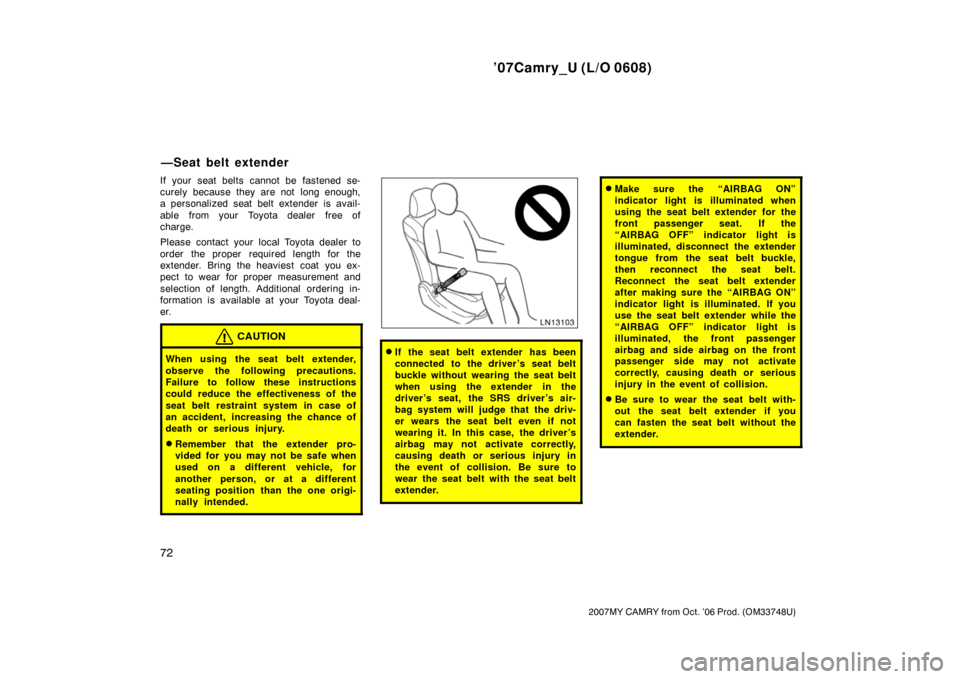

CAUTION
When using the seat belt extender,
observe the following precautions.
Failure to follow these instructions
could reduce the effectiveness of the
seat belt restraint system in case of
an accident, increasing the chance of
death or serious injury.
Remember that the extender pro-
vided for you may not be safe when
used on a different vehicle, for
another person, or at a different
seating position than the one origi-
nally intended.
If the seat belt extender has been
connected to the driver ’s seat belt
buckle without wearing the seat belt
when using the extender in the
driver ’s seat, the SRS driver ’s air-
bag system will judge that the driv-
er wears the seat belt even if not
wearing it. In this case, the driver ’s
airbag may not activate correctly,
causing death or serious injury in
the event of collision. Be sure to
wear the seat belt with the seat belt
extender.
Make sure the “AIRBAG ON”
indicator light is illuminated when
using the seat belt extender for the
front passenger seat. If the
“AIRBAG OFF” indicator light is
illuminated, disconnect the extender
tongue from the seat belt buckle,
then reconnect the seat belt.
Reconnect the seat belt extender
after making sure the “AIRBAG ON”
indicator light is illuminated. If you
use the seat belt extender while the
“AIRBAG OFF” indicator light is
illuminated, the front passenger
airbag and side airbag on the front
passenger side may not activate
correctly, causing death or serious
injury in the event of collision.
Be sure to wear the seat belt with-
out the seat belt extender if you
can fasten the seat belt without the
extender.
—Seat belt extender
